NoiseKen ESS-801GL User manual

INSTRUCTION MANUAL
MODEL ESS-801GL
Description MODEL
Insulation pallet 03-00024A
Ground plane 03-00007A
Floor type vertical couplin plane 03-00034A
Dischar e resistance cable 05-00054B
NOISE LABORATORY CO., LTD.
Edition 3.02
AEC00006-00E-2C

NOTICE
The contents of this booklet are subject to change without prior notice.
No part of this booklet may be reproduced or transferred, in any form, for any purpose,
without the permission of Noise Laboratory Co., Ltd.
The contents of this booklet have been thoroughly checked. However, if a
doubtful point, an error in writing or a missing is found, please contact us.
Noise Laboratory Co., Ltd. shall have no liability for any trouble resulting from the misuse
or improper handling of this product regardless of the contents of this booklet or arising
from the repair or remodeling of this product by a third party other than Noise Laboratory
Co., Ltd. or its authorized person.
Noise Laboratory Co., Ltd. shall have no liability for any trouble resulting from the
remodeling or modification of this product.
In no event shall Noise Laboratory Co., Ltd. be liable for any results arising from the use of
this product.

1
Thoroughly understand the following precautions before use, as they are important matters
for handling this unit in safety.
1. The purpose for this unit is to be used in the environment for electrostatic testing
or immunity testing with other high voltages. Therefore please refer to the part of
safety precautions on the attached manual for installing and operation of this
unit.
2. A number of safety recommendations are listed in "Basic safety precautions for
this simulator" mentioned later. Be sure to read them before setting a test
environment, connection and starting a test.
1. IMPORTANT SAFETY PRECAUTIONS

2
2. CONTENTS
1. IMPORTANT SAFETY PRECAUTIONS .......................... 1
3. INTRODUCTION .............................................................. 3
4. APPLICATION FORM FOR INSTRUCTION MANUAL ............ 5
5. BASIC SAFETY PRECAUTIONS ..................................... 7
5-1 H AZARD SYMBOLS .............................................................................................................. 7
5-2 F UNDAMENTAL S AFETY P RECAUTIONS .......................................................................... 7
6. CONFIGURATION ............................................................ 9
7. HOW TO ASSEMBLE ..................................................... 11
7-1. H OW TO ASSEMBLE THE VERTICAL COUPLING PLANE BASE
........................................ 11
7-2. H OW TO CONNECT THE GROUND PLANE
......................................................................... 13
8. OPERATION (FOR REFERENCE) ................................. 14
9. WARRANTY ..................................................................... 17
10. MAINTENANCE ........................................................... 19
11. NOISE LABORATORY SUPPORT NETWORK ........... 19

3
3. INTRODUCTION
We thank you very much for your purchase of ESS-801GL.
The Model ESS-801GL is manufactured for test set-up for floor-standing equipment in
accordance with IEC 61000-4-2. The ESS-801GL can also be used for usual electrostatic
discharge tests or impulse noise tests.
In order to obtain the highest performance from ESS-801GL , thoroughly understand the
contents of this manual and use as ready reference for operation.
Features
1. It can be used for conducting tests on IEC 61000-4-2 in combination with our Electrostatic
Discharge Simulators.
2. Wooden insulation pallet minimizes the loss of energy produced by the simulator and the
loss of high-frequency electromagnetic field, resulting in excellent determination and
reproducibility.
3. It can be maintained the distance at 0.1m between vertical coupling plane and EUT by
dabbing at the floor equipment.

4
MEMO

5
4. APPLICATION FORM FOR INSTRUCTION MANUAL
To: Noise Laboratory Co., Ltd.
We place an order for an instruction manual.
Model: ESS-801GL
Applicant:
Company name:
Address:
Department:
Person in charge:
Tel No.:
Fax No.:
Cut off this page "APPLICATION FORM FOR INSTRUCTION
MANUAL" from this volume and keep it for future use with care.
When an INSTRUCTION MANUAL is required, fill in the above Application
Form and mail or fax it to the following sales department of our company.

6
MEMO

7
5-1 Hazard symbols
It expresses a DANGER.
DANGER indicates an impending dangerous
condition resulting in a serious injury or death , if
such a condition is not avoided.
It expresses a WARNING.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
It expresses a CAUTION.
CAUTION indicates a potentially hazardous a
situation which, if not avoided, may result in
minor or moderate injury.
5-2 Fundamental Safety Precautions
1. ESS-801GL shall be assembled before use. For assembling, follow the
assembling instructions shown in a later part of this manual. Assembling can be
performed only in a safe place and by two or more persons. Follow the general
safety instructions of the users’ work place. Working in an inappropriate
environment may lead to an injury.【Precautions for human body, environment
and assembling】
2. Do not use this unit but the purpose for use.【Precautions for handling】
3. Install the test table on a flat floor surface. 【Precautions for installation】
5. BASIC SAFETY PRECAUTIONS
DANGER 危険

8
4. As the vertical coupling plane is a thin plate, carefully handle it. Otherwise you
may suffer an injury. Pay special attention to handling of this plane.【Precautions
for handling】
5. As the ground planes are thin plates, wear gloves when handling them.
As they are weighty part, be careful not to drop it on your feet. 【Precautions for
handling and installation】
6. Never put any device which generates fire or high heat on or in proximity to the
table.【Precautions for handling and installation】
7. Do not let the product contact with water, oil or other chemical agent.
【Precautions for handling】
8. Before doing any testing in the environment of the test facilities, read fully to
know inside out of test method and read the manual for electro statistic unit, ESD
Gun and Noise simulator and use properly. 【Caution against human, operation
and environments】
9. NOISE LABORATORY and its selling agents shall not be liable for any accident
resulting in injury or any physical damage due to abuse or mishandling of this
unit, and also shall not assume the responsibility for any resultant damages.
【Precautions for human body, operation, environments and connection】
10. Avoid using or storing this product in a high temperature or low temperature
environment. (Operating temperature range: 15～35℃/ Operating humidity range:
25～75%) 【Caution against environments】
11. When repair, maintenance work or internal adjustment is required, our company's
service engineer or our designated service engineer takes charge of such work.
12. Do not wipe this product with thinner, alcohol or other solvent. When the body is
dirty, soak a cloth into neutral detergent, squeeze out the detergent from the cloth
and wipe the body with the cloth.

9
6. CONFIGURATION

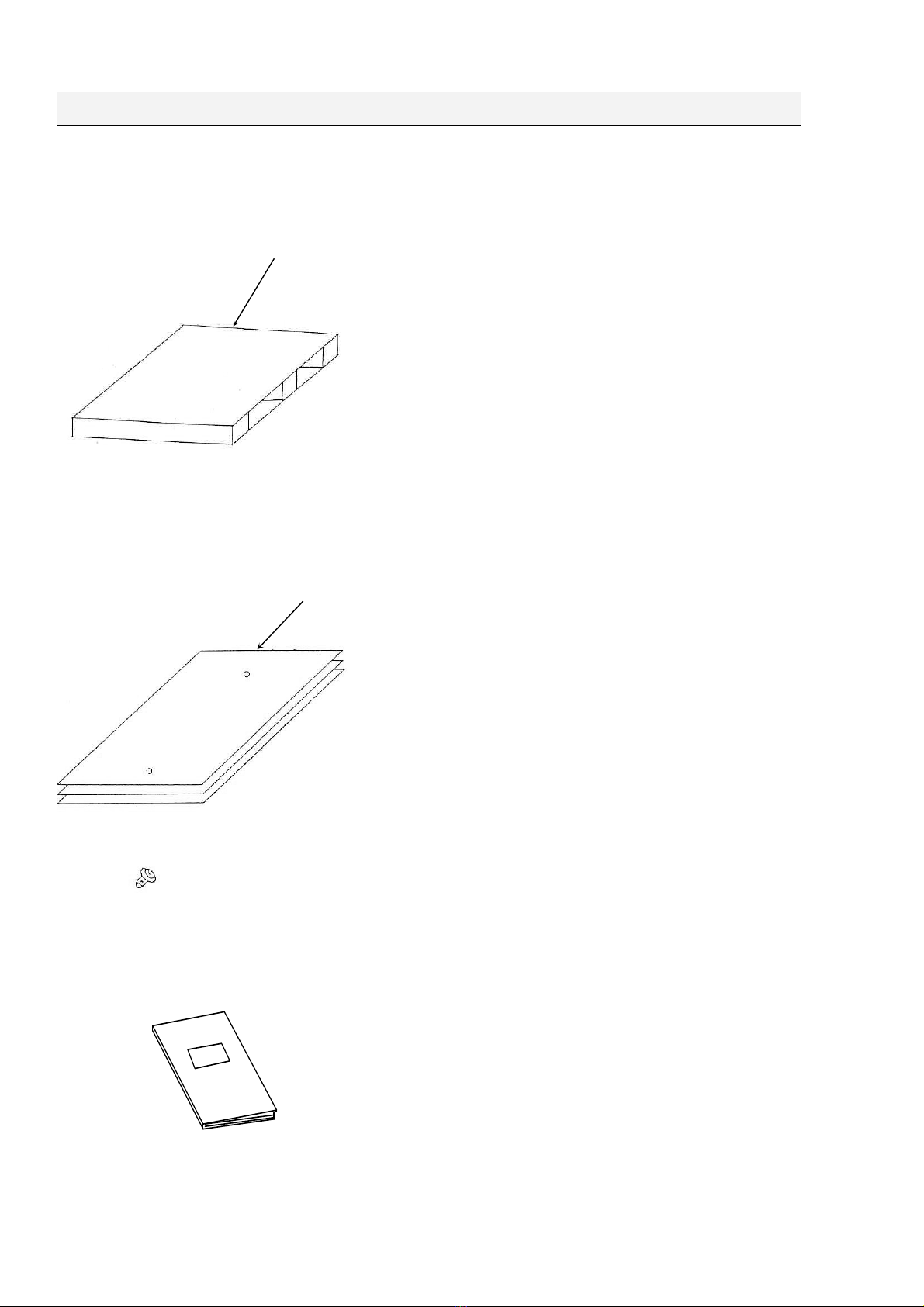

Insulation pallet (MODEL:03-00024A)
①Insulation pallet........1 pc
1200×1200×(H) 100 mm
Material: Wood
Ground plane (MODEL:03-00007A)
①Ground plane ............ 3 pcs
1800×1000×(T) 1.5 mm
Material ..................Aluminum
②Screw M3 with washer........14 pcs
(Spare 2pcs.)
(For ground plane connection)
Instruction manual
①Instruction manual (This book)............ 1pc
①
①
②

10
Floor type vertical coupling plane (MODEL:03-00034A)
①Base..............................................1 piece Material: Wood
②Column..........................................1 piece Material: Wood
③Center adaptor..............................1 piece Material: Delrin
④Clamp set plate.............................1 piece Material: Bakelite
⑤Clamp............................................4 pieces Material: Bakelite
⑥Sliding column...............................1 piece Material: Wood
⑦Plate A...........................................3 pieces Material: Bakelite
⑧Plate B...........................................3 pieces Material: Bakelite
⑨Vertical coupling plane..................1 piece Material: Aluminum, 500 x 500 x (T)1.5 mm
⑩T-plate...........................................1 piece Material: Bakelite
⑪Discharge resistance cable...........1 piece Resistance: 470Ωx2 (MODEL:05-00054B)
⑫M3 flat head screw........................14 pieces (spare 2)
For assembling plates A and B
⑬M4 flat head screw........................14 pieces (spare 2) for assembling T-plate at clamp
⑭M4 screw with washer...................3 pieces (spare 1)
for connecting discharge resistance cable
⑮Wing nut........................................1 piece (Attached to①base, for assembling base)
⑯M8 SP washer...............................1 piece For assembling base
⑰M8 flat washer...............................1 piece For assembling base

11
7. HOW TO ASSEMBLE
7-1. How to assemble the vertical coupling plane base

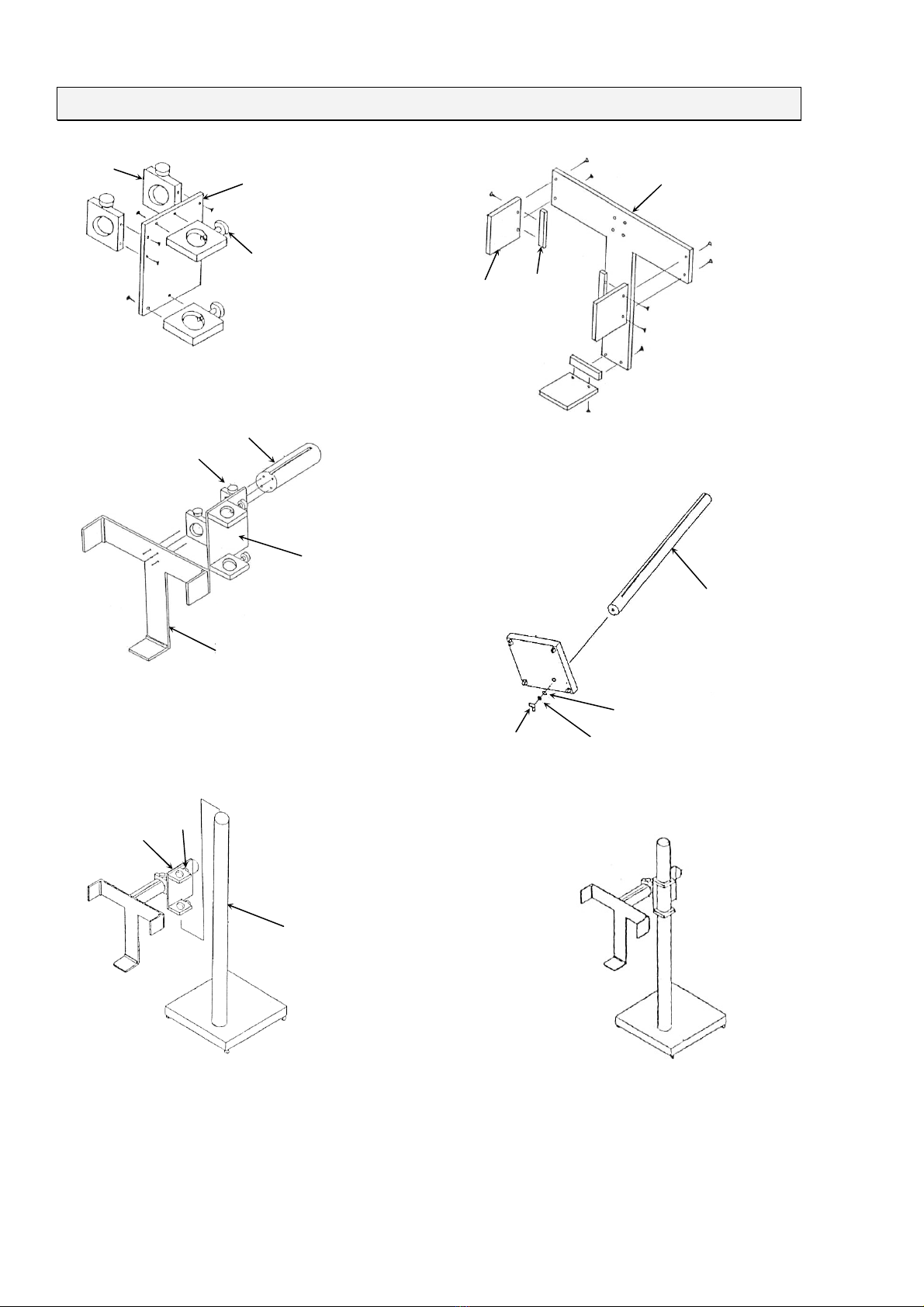

Assemble step 1:
Fix Clamp to Clamp Set Plate with M4 flat
head screw as shown in the figure.
Assemble step 2:
Fix Plate A and Plate B to T-
plate with M3
screw as shown in the figure.
Assemble step 3:
Loosen Knob of Clamp and pass Sliding Column as
shown in the figure. Then fix T-
plate with M4 flat head
screw (supplied) as shown in the figure.
(Note) Do not excessively loosen Knob. Assemble step 4:
Pass Column through Base as shown in
the figure. Fix Bolt with Wing Nut.
Assemble step 5:
Loosen knob of Clamp and finally pass Column in Clamp.
Final drawing
Clamp
Clamp set plate
Knob
T-plate
Plate A Plate B
Knob
Sliding column
Clamp
T-plate
Column
Flat washer
SP washer
Wing nut
Column
Knob
Clamp

12

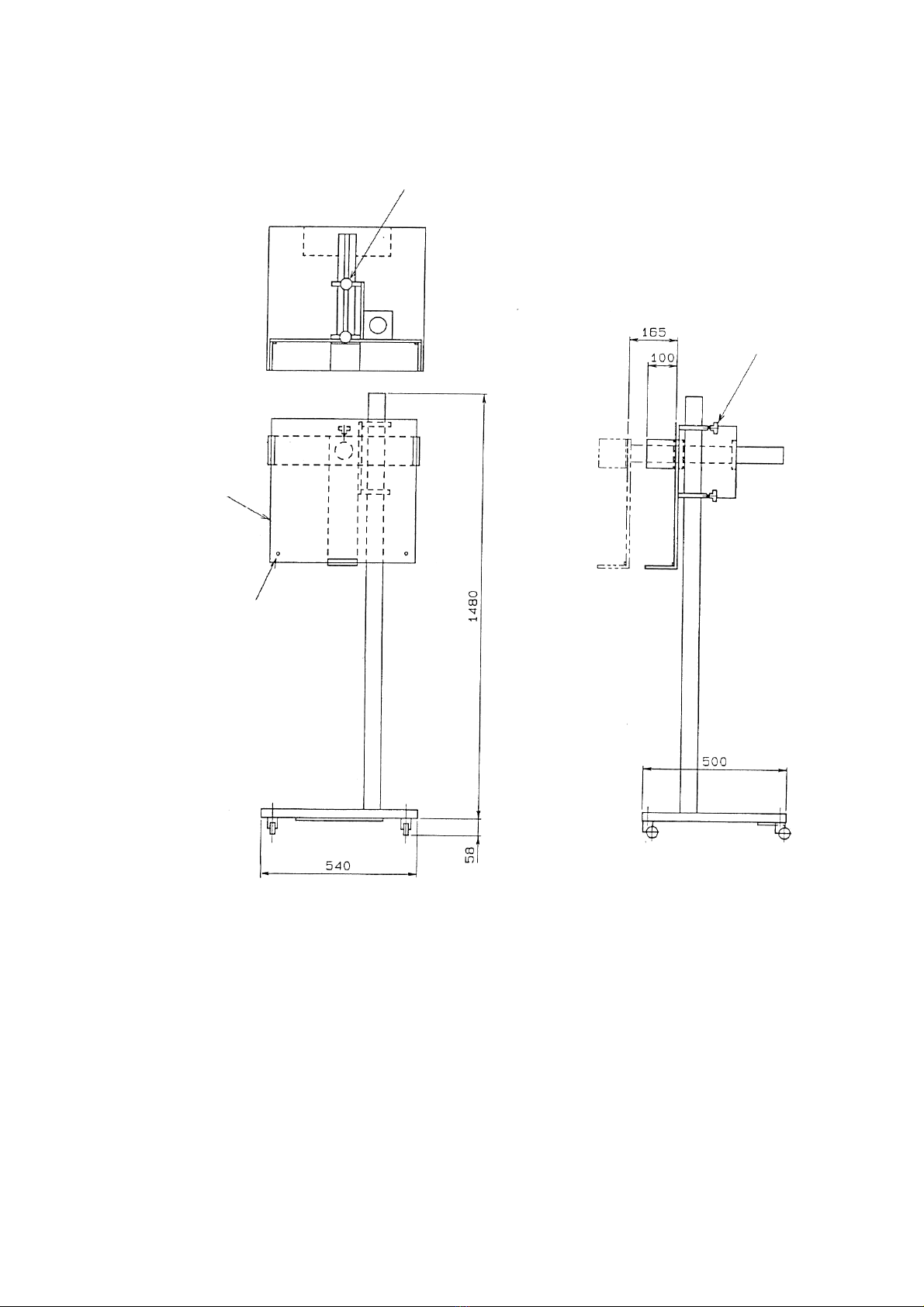

Front-to-back moving guide set screw
Vertical coupling plane
Vertical moving guide
set screw
Discharge resistance
mounting terminal

13
7-2. How to connect the ground plane

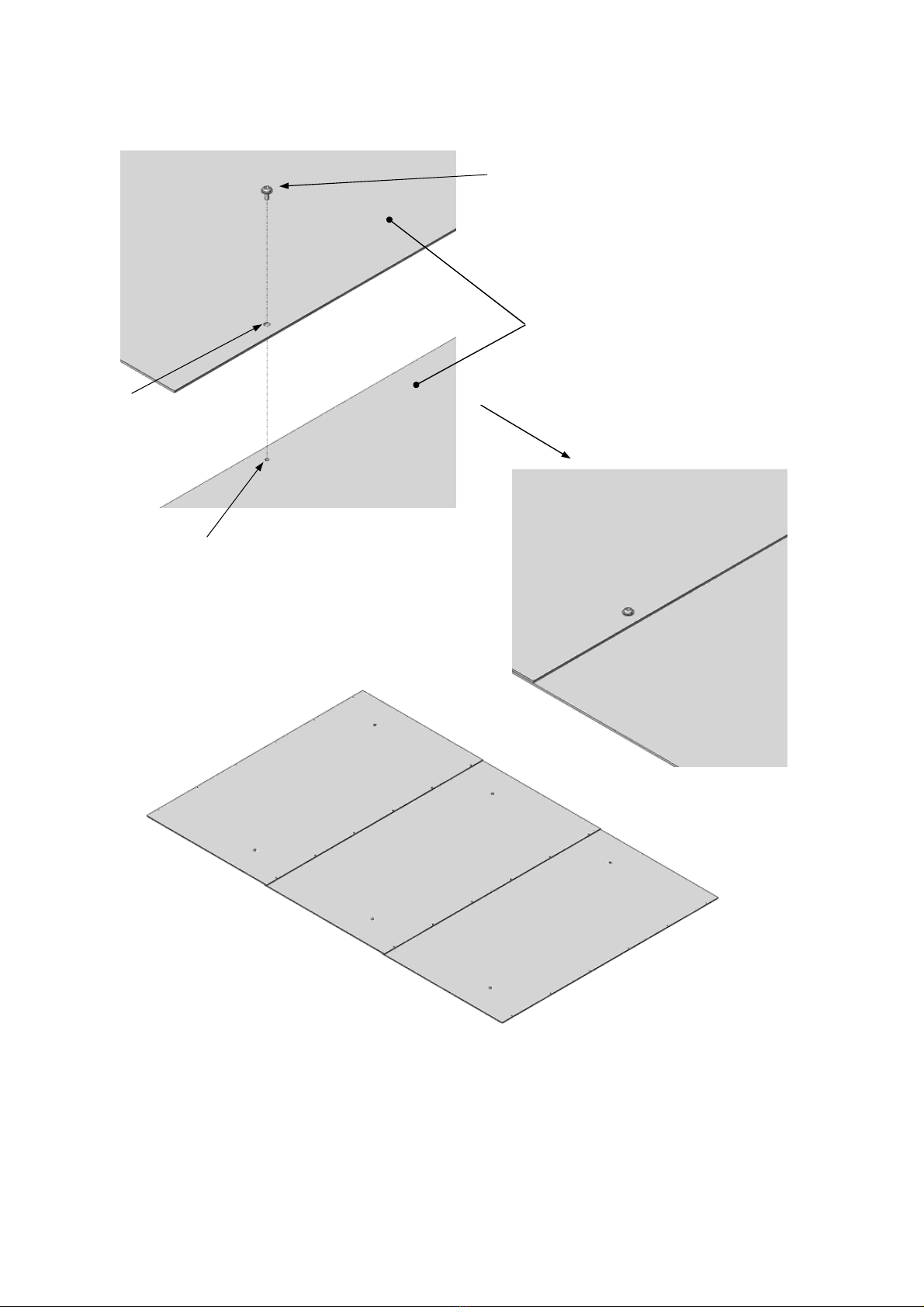

As shown in the above figure, fit the holes of the ground planes and fix them with the supplied M3
screws with washer.
ground Plane
M3 screw
φ4 hole
M3 hole

14
8. Operation (for Reference)
Electrostatic dischar e test based on EN/IEC 61000-4-2 (EUT: Floor-standin devices)
Fi ure 2. Example Test Layout
1. Lay a round plane in the test room to serve as the round reference for the test.
Caution
Althou h the EN/IEC 61000-4-2 standard does not specify where in the test room to lay
the round plane, it does specify that, when positioned on top of the insulatin platform,
the equipment under test (EUT) must be at least 0.8m from the walls or any metallic
objects.
*
As the len th of the round plane is 1.8m in its lon itudinal direction, if it is laid in a
corner of the test room the distance from the wall mi ht be less than 0.8m in the case of a
lar e EUT.
* The requirement for the distance from walls was changed to “0.8m or more” in Edition 2.0 of the
EN/IEC 61000-4-2 standard. The requirement in Edition 1.02 and earlier was “1.0m or more”.
2. Usin an appropriate cable, connect the round plane to the test room’s protective round
terminal. To connect the round cable to the round plane, use the boss hole (M4) or the M3
screw holes used for interconnection.
If the test room does not have a protective ground terminal, have one installed by a
qualified technician. Never use gas, water, or other internal piping as a substitute for a
protective ground terminal because of the risk of fire or explosion, and because of the
possibility that these pipes may not be earthed.
0.1m
0.1m
Electrostatic
test device
Insulatin platform (pallet)
Location for direct
dischar e to EUT
(example)
Locati
on for indirect
dischar e to vertical
couplin plate
Ground plane
(three joined sheets)
☆Isolation
transformer
To AC power supply
for EUT
Protective round
terminal
Ground
line
Dischar e resistance
cable

15
3. Place the insulatin platform on top of the round plane, confirm that the platform does not
wobble, then place the EUT on top of the platform. Do not lay anythin on top of the
insulatin platform.
4. Move the assembled floor-standin vertical couplin plate onto the round plane, loosen the
knobs for adjustin the vertical and horizontal clamp position, and slide the vertical couplin
plate until plate A ( uide plate) comes into contact with the external surface of the EUT for
which the indirect dischar e test is to be performed. After settin in the location where the
indirect dischar e is to be applied, ti hten the two knobs on the clamp to secure the vertical
couplin plate in position. This ensures that the distance between the EUT and vertical
couplin plate is kept at 0.1m.
5. Usin an M4 bolt (with washer), attach the dischar e resistance cable to the vertical couplin
plate. Usin an M4 bolt (with washer), connect the other end of the dischar e resistance cable
to a boss hole (M4) on the round plane. It does not matter which end of the dischar e
resistance cable is connected to the plate and which to the round plane.
6. If required, plu the AC power cable from the EUT into an isolatin transformer (use of a
NoiseKen NCT Series transformer is recommended).
☆ Althou h the EN/IEC 61000-4-2 standard does not allow use of an isolatin transformer,
the Japanese JIS C 61000-4-2 standard stipulates how to connect an isolatin transformer
when the EUT specifications and Japanese power supply conditions make this necessary.
7. Place the electrostatic tester on the round plane. Placin the tester on the insulatin
platform is not permitted.
8. Connect the round cable from the dischar e un to the round plane. The boss holes (M4) on
the round plane can be used as connection terminals. In some cases, the size of the EUT or
its position relative to the electrostatic tester will prevent the round cable from reachin a
boss hole (M4), or mean that the dischar e un cannot be brou ht close to the EUT when the
round cable is connected. In situations such as this, add a new round terminal at a
convenient location on the round plane usin a bolt and braided wire.
Also, attach the center adapter to the conical dischar e tip of the dischar e un, and insert
the vertical couplin plate into the roove at the tip to use as a uide for maintainin the
indirect dischar e position.

16
Notes
Even in the case of comparatively lar e floor-standin EUTs, if the EUT lacks a round cable
due to use of battery power, for example, the application of electrostatic dischar es causes EUT
itself to leave a residual char e, reduce the effectiveness of subsequent dischar es and we will
lose the validity of the test result.
To avoid this problem, the EN/IEC 61000-4-2 standard stipulates that any residual char e on
the EUT be neutralized after each application of electrostatic dischar e, and the supplied
dischar e resistance cable can also be used to neutralize
*
any residual char e on the EUT.
In the case of an EUT with sites for applyin an electrostatic dischar e such as metal
connectors or shells on a case made of plastic or other non-conductive material, it is permitted
to leave a neutralizin cable connected to the point of application while dischar es are applied.
In this Case, there is a stipulated orientation for connectin this cable. The supplied dischar e
resistance cable has two 470 kΩ resistors. If usin this cable, connect the resistor contained in
the square pillar case to the point of application, while for the resistor contained in the round
pillar case, connect the crimped terminal at the end of the cable to the horizontal couplin
plate.
If the test results are different dependin on the method used to neutralize residual char e,
use the results of tests in which the char e is neutralized between each dischar e application.
* A special-purpose neutralizing brush (Model 05-00125A) designed for removing residual charge
from EUTs is available as an option.

17
9. WARRANTY
Servicing terms
The following terms are applicable to servicing by Noise Laboratory Co., Ltd.,
(hereafter referred to as the Company) provided to maintain the intended
performance of its products.
1. Scope
The following terms shall apply only to products made by the Company.
2. Technical servicing fee
In the event of a failure of a product within the warranty period (see warranty
section), the Company will repair a product without charge. After the warranty
expires, repairs will be billed at a nominal cost.
3. Ownership of defective parts
Any defective part exchanged under the Company’s servicing belongs to it.
4. Limited liability
In the event that damages resulting from servicing by the Company are
intentional or caused by negligence, the Company will pay the cost but at the
purchase value of the relevant product maximum. But, notwithstanding the
foregoing, the Company shall not be responsible for any incidental or
consequential damages of any nature, including without limitation thereof loss of
would-be profit or compensation demanded from a third party
5. Refusal to offer servicing
The company may not accept a repair order in the following cases:
More than 5 years have passed since the product discontinued
More than 8 years have passed after delivery
Required component for servicing already discontinued and no alternative is
available.
Product changed, repaired or remodeled without obtaining a prior permission from
the Company.
Product severely damaged to the extent it has lost its original form
