NordicTrack AudioStrider NTEL7906.0 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. NTEL7906.0
Serial No.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.nordictrackservice.com
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
USER’S MANUAL

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
NordicTrack is a registered trademark of ICON IP, Inc.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the ellipti-
cal exercise only as described in this
manual.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dis-
mount, and use it.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 325 pounds.
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer-
cising.
9. Hold the handgrip pulse sensors or the upper
body arms when mounting, dismounting, or
using the elliptical exerciser.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
11. Keep your back straight while using the ellip-
tical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The warning decals shown on page 4 have
been placed on the elliptical exerciser in the
locations shown. If a decal is missing or
illegible, call the toll-free telephone number
on the front cover of this manual and order
a free replacement decal. Apply the decal in
the location shown.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
NordicTrack®AUDIOSTRIDER 990 elliptical exerciser.
The AUDIOSTRIDER 990 elliptical exerciser provides
a wide array of features designed to make your work-
outs at home more effective and enjoyable—and
when you’re not exercising, the unique elliptical exer-
ciser can be folded out of the way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number is NTEL7906.0. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual
for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Stereo Cable
Upper Body Arm
Pedal Disc
Wheel
Pedal
Stereo Speakers
Water Bottle Holder*
Console
Leveling Foot
Handle
Power Socket
Latch Button
Ramp
FRONT
RIGHT SIDE
REAR
Storage Magnet
Fan
Pedal Arm Latch
*No water bottle is included

5

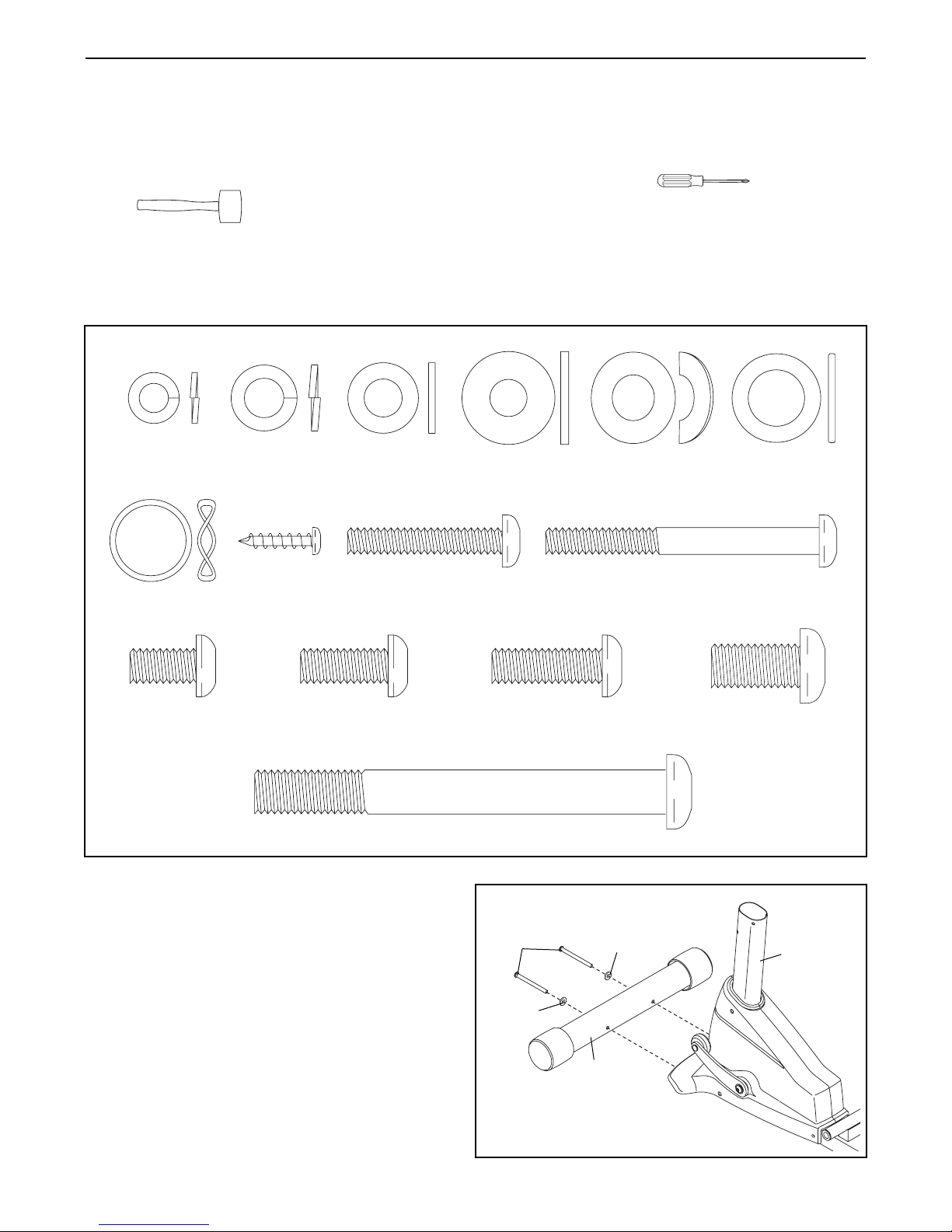

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own phillips screwdriver and rubber
mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-
ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-
bled. If a part is not in the parts bag, check to see if it has been preassembled.
M10 x 93mm Button Screw (82)–4
M10 x 25mm
Washer (87)–2
M8 Split
Washer (101)–4
M4 x 16mm
Screw (116)–16
M6 Split Washer
(102)–8
M6 x 35mm
Screw (109)–4
M6 x 62mm
Screw (108)–4
M8.5 x 16mm x
1.5mm Washer
(103)–6
Link Arm
Spacer (74)–4
M8 x 20mm Button
Screw (107)–4
M8 x 25mm Button
Screw (110)–2
M10 x 20mm Button
Screw (111)–2
M8 x 15mm Button
Screw (106)–10
M10 Curved
Washer (99)–4
Wave Washer
(100)–2
1. While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 93mm Button Screws
(82) and two M10 Curved Washers (99).
4
99
99
82 1
1

6
2. While another person lifts the Folding Frame (2),
attach the Rear Stabilizer (3) to the Folding
Frame with two M10 x 93mm Button Screws (82)
and two M10 Curved Washers (99). Next,
tighten the Center Foot (95) into the Frame (1).
3. Attach the Front Ramp Cover (6) to the
Ramp (5) with four M4 x 16mm Screws (116).
Slide an M10 x 25mm Washer (87) onto an
M10 x 20mm Button Screw (111). Tighten the
Button Screw into one end of the Ramp
Axle (72). Apply a small amount of the included
grease to the Ramp Axle.
Orient the Ramp (5) as shown. Align the lower
end of the Ramp with the welded tube on the
Frame (1). Insert the Ramp Axle (72) into the
Ramp and the welded tube.
Slide an M10 x 25mm Washer (87) onto an
M10 x 20mm Button Screw (111). Tighten the
Button Screw into the open end of the Ramp
Axle (72).
3
3
82
5
1
72
Grease
111
116
111
87
87
6
2
95
1
99
99
2

5. Insert the Roller (38) on the Left Pedal Arm (32)
and the Roller on the Right Pedal Arm (33) into
the sides of the Ramp (5).
Attach the Rear Ramp Cover (7) to the
Ramp (5) with two M4 x 16mm Screws (116).
See the inset drawing. Lift the Pedal Arm
Latch (41) on the Left Pedal Arm (32) and set
the end of the Left Pedal Arm on the left Crank
Bushing Sleeve (54). Release the Pedal Arm
Latch; make sure that the Left Pedal Arm is
securely connected to the Crank Bushing
Sleeve.
Connect the Right Pedal Arm (33) to the
right Crank Bushing Sleeve (not shown) in
the same way.
7
4. Identify the Left Pedal (34) and the Left Pedal
Arm (32), which are marked with stickers.
Attach the Left Pedal (34) to the Left Pedal
Arm (32) with two M6 x 62mm Screws (108),
two M6 x 35mm Screws (109), and four M6
Split Washers (102).
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
116
7
5
5
34
108
102
102
109
41
54
109
32
32
4
38
32
33
102

8

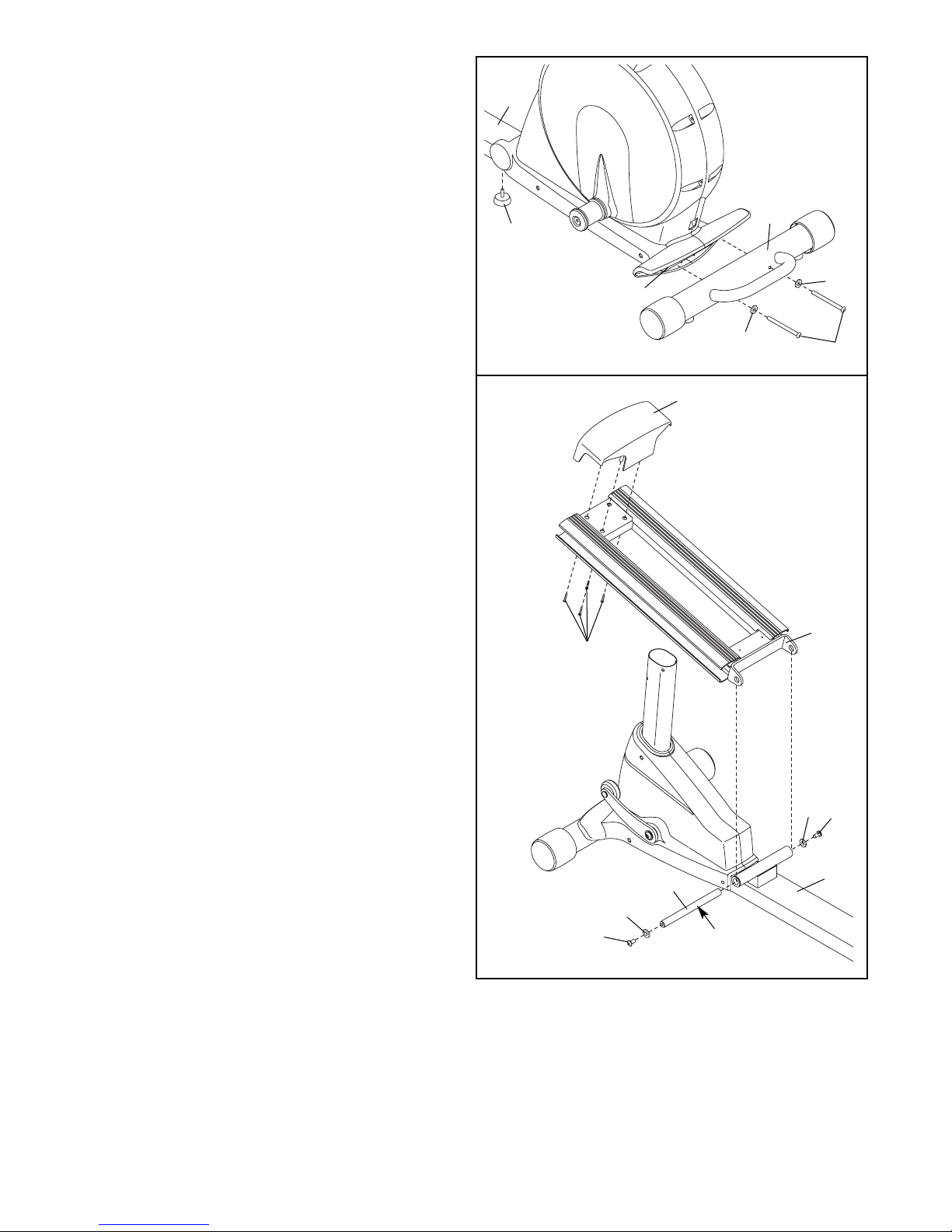

8. Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the left Upper Body Leg (24). Attach the Upper
Body Covers with five M4 x 16mm Screws (116).
Attach the Right Rear Upper Body Cover (28)
and the Right Front Upper Body Cover (29)
in the same way.
7. Attach the Left Upper Body Arm (22) to the left
Upper Body Leg (24) with three M8 x 15mm
Button Screws (106).
Attach the Right Upper Body Arm (23) in the
same way.
6. While another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Carefully insert the Upright (10) into the
Frame (1); be careful not to damage the Wire
Harnesses (64, 65). Attach the Upright with four
M8 x 20mm Button Screws (107) and four M8
Split Washers (101).
22
24
116
26
28
27
116
23
24
106
7
8
6
65
64
107
101 101
1
10
Be careful not
to damage the
Wire Harnesses
(64, 65) during
this step.
107
29

9
9. Apply a small amount of grease to the axle on
the Left Link Arm (30), to the axle on the Left
Pedal Arm (32), and to a Wave Washer (100).
Slide the Wave Washer (100) onto the axle on
the Left Pedal Arm (32). Next, slide a Link Arm
Spacer (74) onto the axle on the Left Link
Arm (30).
Then, insert the axle on the Left Link Arm (30)
into the left Upper Body Leg (24) while sliding
the Left Link Arm onto the axle on the Left Pedal
Arm (32).
Repeat this step with the Right Link Arm (31).
10. Attach the Left Link Arm (30) to the Left Pedal
Arm (32) with an M8 x 15mm Button Screw
(106), an M8.5 x 16mm x 1.5mm Washer (103),
and an Axle Cover (66).
Attach the Left Link Arm (30) to the left Upper
Body Leg (24) with an M8 x 25mm Button
Screw (110), two M8.5 x 16mm x 1.5mm
Washers (103), two Axle Covers (66), a Link
Arm Spacer (74), and an M8 x 15mm Button
Screw (106) as shown.
Attach the Right Link Arm (31) in the same
way.
11. Plug the power cord (not shown) into the power socket (not shown) at the rear of the elliptical exer-
ciser.
Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
9
32
100
30
Grease
Grease
31
24
74
10
66 74
103
110
66
32
30
31
103
106
24
66
103
106

10
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into an appro-
priate outlet that is properly installed and ground-
ed in accordance with all local codes and ordi-
nances. This product is for use on a nominal 120-
volt circuit. Important: The elliptical crosstrainer
is not compatible with GFCI-equipped outlets.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown at
the right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. First, lift the latch under
each pedal arm, and lift the pedal arms off the sleeves
on the crank arms.
Next, raise the pedal arms until they touch the magnets
on the upper body legs; the magnets will hold the pedal
arms in place. Then, hold the handle and lift the frame
until it locks in a vertical position.
To use the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body legs. Then, lift the latches under the pedal
arms, and set the pedal arms on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal arms are securely connected to the crank
arms.
Latch
Sleeve
Pedal
Arm
Handle
Magnet
Latch
Button
Pedal Arm
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Grounded Outlet Box
Adapter
Lug
Metal Screw

11
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
cal exerciser, hold the handgrip pulse sensors, and
place one foot against the center of the front stabilizer.
Pull the pulse sensors until the elliptical exerciser will
roll on the front wheels. Carefully move the elliptical
exerciser to the desired position, and then lower it.
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest posi-
tion. Next, step onto the other pedal. Push the pedals
until they begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow at the right; how-
ever, for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Pedals
Crank Arm
Upper Body Arms
Place
your foot
here
Handgrip
Pulse
Sensors

12
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you select the manual mode of the
console, you can change the resistance of the pedals
and the incline of the ramp with the touch of a button.
As you exercise, the console will provide continuous
exercise feedback. You can even measure your heart
rate using the handgrip pulse sensor.
The console also offers twenty preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
The console also offers two custom programs that
allow you to create your own workout programs and
store them in memory for future use.
In addition, the console features two heart rate pro-
grams that change the resistance of the pedals to
keep your heart rate near target heart rate settings
while you exercise.
The console also features the new iFIT Interactive
Workout System. The iFIT Interactive Workout System
enables the console to accept iFIT Cards containing
workout programs designed to help you achieve specif-
ic fitness goals. For example, lose unwanted pounds
with the 8-week Weight Loss program. iFIT programs
control the resistance of the pedals while the voice of a
personal trainer coaches you and motivates you
through your workouts. One iFIT Card with three new
programs is included. Additional iFIT Cards are avail-
able separately. To purchase iFIT Cards, go to
www.iFIT.com or call the toll-free telephone num-
ber on the front cover of this manual. iFIT Cards
are also available at select stores.
You can even connect your MP3 player or CD player
to the console’s stereo sound system and listen to
your favorite music or audio books while you exercise.
To use the manual mode of the console, follow the
steps beginning on page 13. To use a preset
program, see page 15. To create a custom
program, see page 16. To use a custom program,
see page 17. To use a heart rate program,
see page 18. To use an iFIT program, see page 20.
To use the stereo sound system, see page 20.

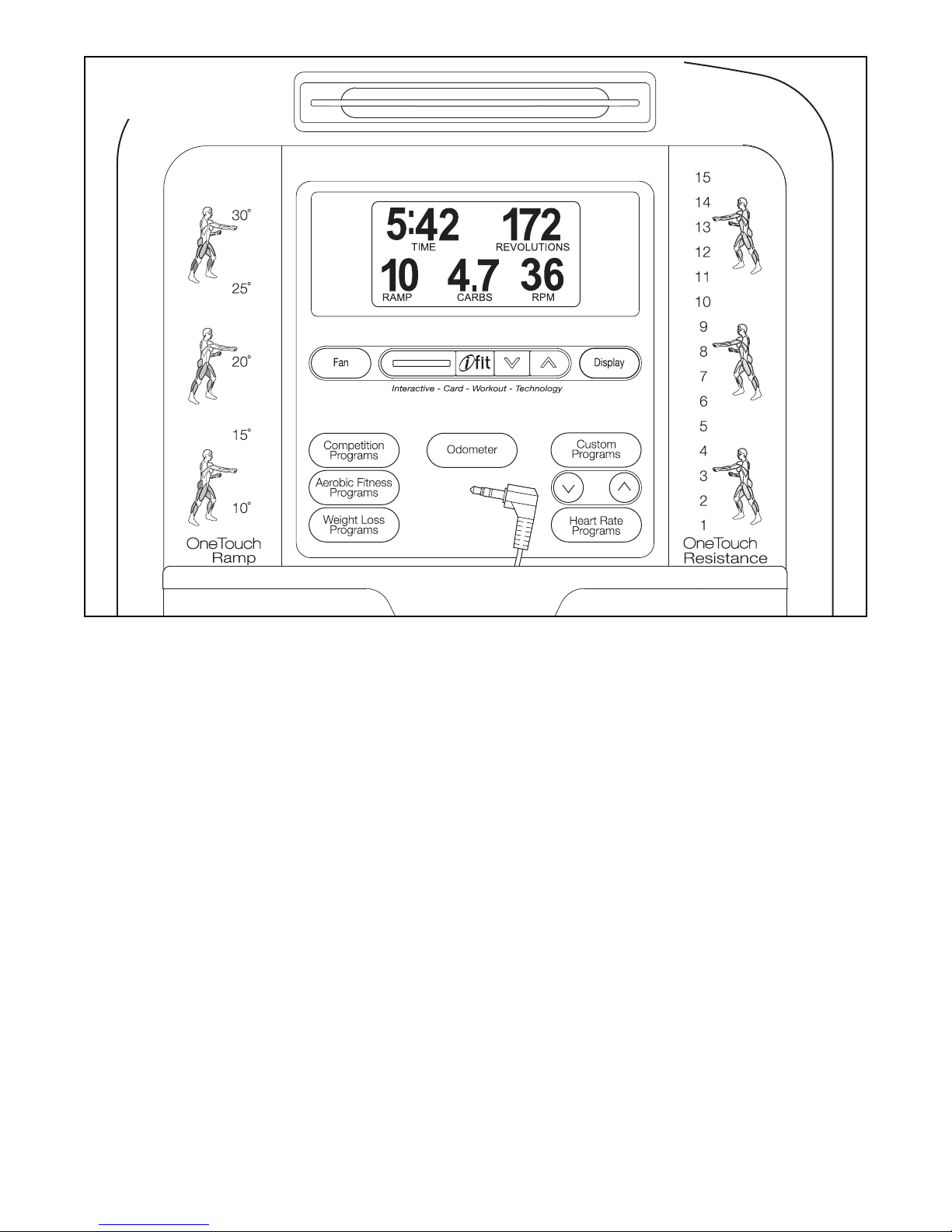

CONSOLE DIAGRAM

13
HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
Press any button on the console or begin
pedaling to turn on the console.

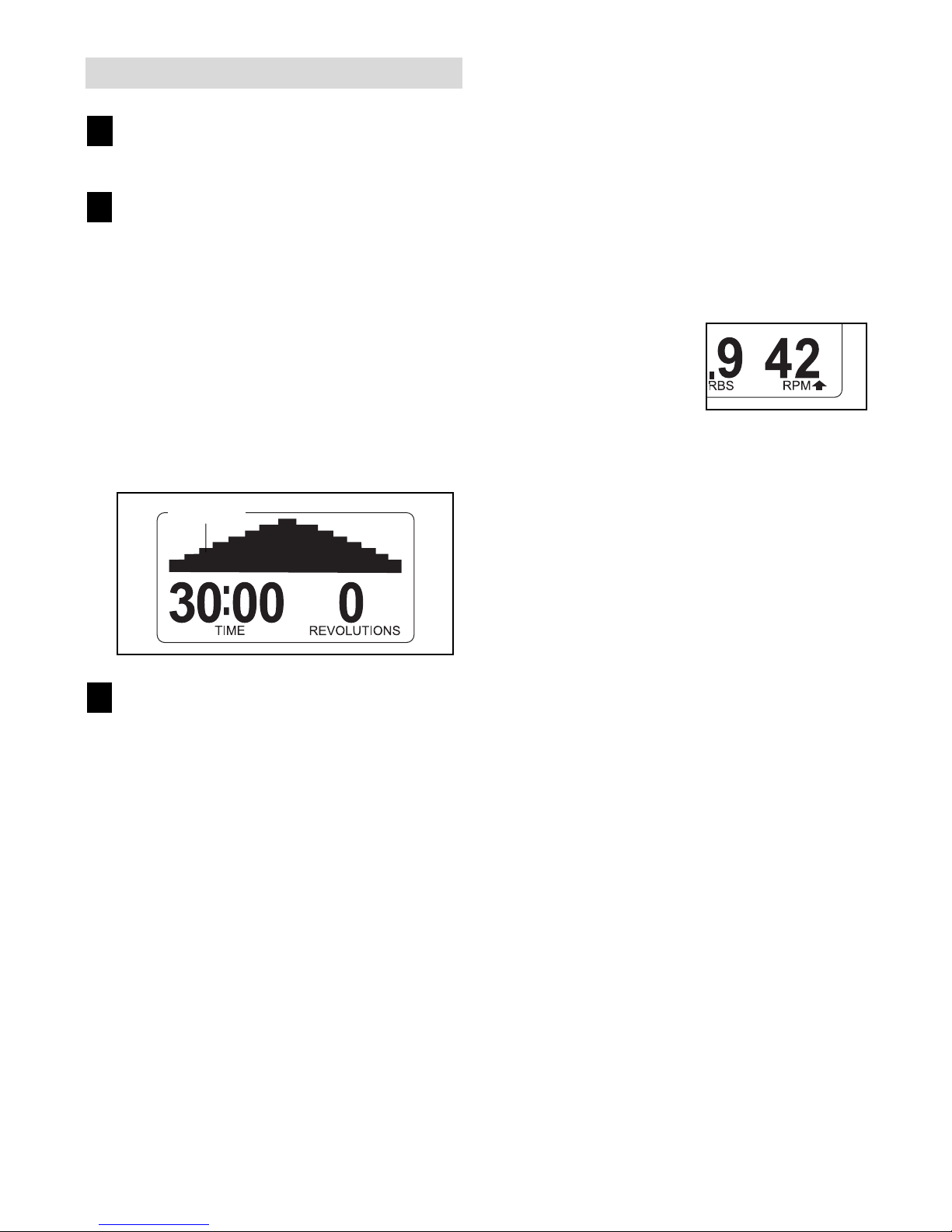

When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing any of the
Programs buttons repeatedly until zeros appear in
the display.
Begin pedaling and change the resistance of
the pedals and the incline of the ramp as
desired.
As you pedal, change the resistance of the ped-
als by pressing the OneTouch Resistance but-
tons. There are fifteen resistance levels. Note:
After you press the buttons, it will take a moment
for the pedals to reach the selected resistance
level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the OneTouch Ramp buttons. There are
five incline levels. Note: After you press the but-
tons, it will take a moment for the ramp to reach
the selected incline level.
Follow your progress with the display.
While you pedal, the upper left corner of the dis-
play will show the elapsed time. Note: During a
program, except for heart rate program 1, the dis-
play will show the time remaining in the program.
The upper right corner of the display will show the
distance you have pedaled, in total revolutions.
The display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 14).
The lower left corner of the display will show the
ramp incline level.
The lower center of the display will show the
approximate number of grams of carbs you have
burned.
The lower right corner of the display will show
your pedaling pace, in revolutions per minute.
The center of the display will show the resistance
level of the pedals for a few seconds each time the
resistance level changes.
You can also view selected information at a larger
size. Press the Display button repeatedly to view
the elapsed time and the distance you have ped-
aled, the elapsed time and the approximate num-
ber of calories you have burned, the elapsed time,
or the approximate number of calories you have
burned. Press the Display button again to view a
workout history of resistance levels and pedaling
pace.
To again view the time, distance, ramp incline,
number of grams of carbs burned, and pedaling
pace, press the Display button again.
To view the total distance pedaled since the ellipti-
cal exerciser was purchased and the trip distance,
press the Odometer button. The information will
appear in the display for a few seconds. To reset
the trip distance, hold down the Odometer button
for a few seconds.
4
3
2
1

14
Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts
on the handgrip
pulse sensor,
remove the plas-
tic. In addition,
make sure that
your hands are
clean. To mea-
sure your heart
rate, hold the handgrip pulse sensor with your
palms resting against the metal contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, your heart rate will
be shown in the display. For the most accurate
heart rate reading, hold the contacts for at least 15
seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a
soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
Turn on the fan if desired.
To turn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
Fan button a second time. To select the auto
mode, press the Fan button again; when the auto
mode is selected, the speed of the fan will auto-
matically increase or decrease as you increase or
decrease your pedaling speed.
Pivot the fan louvers above the display upward or
downward to direct the airflow from the fan.
To turn off the fan, press the Fan button again.
Note: If the pedals are not moved for about thirty
seconds, the fan will automatically turn off.
When you are finished exercising, the console
will turn off automatically.
If the pedals are not moved for several seconds, a
series of tones will sound and the console will
pause.
If the pedals are not moved for about five min-
utes, the console will turn off and the display will
be reset.
7
65
Contacts

15
HOW TO USE A PRESET PROGRAM
Turn on the console.
See step 1 on page 13.
Select a preset program.
To select a weight loss program, press the
Weight Loss Programs button repeatedly; to
select an aerobic fitness program, press the
Aerobic Fitness Programs button; to select a
competition program, press the Competition
Programs button.
When you select a preset program, the name of
the program, the program time, and the maximum
pace and resistance level for the program will
appear in the display for a few seconds. A profile
of the resistance levels of the program will then
appear in the display.
Begin pedaling to start the program.
Each program is divided into 20, 30, or 45 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or tar-
get pace setting may be programmed for two or
more consecutive segments.
During the program, the program profile will show
your progress (see the drawing above). The
flashing segment of the profile represents the cur-
rent segment of the program. The height of the
flashing segment indicates the resistance level
for the current segment. At the end of each seg-
ment of the program, a series of tones will sound
and the next segment of the profile will begin to
flash. If a different resistance level is pro-
grammed for the next segment, the resistance
level will appear in the display for a few seconds
to alert you. The resistance of the pedals will then
change.
As you exercise, you
will be prompted to
keep your pedaling
pace near the target
pace setting for the
current segment.
When an upward-pointing arrow or the prompt
SPEED UP appears next to the pace information
in the display (see step 4 on page 16), increase
your pace. When a downward-pointing arrow or
the prompt SLOW DOWN appears, decrease
your pace. When no arrow or prompt appears,
maintain your current pace. Important: The tar-
get pace settings are intended only to provide
motivation. Make sure to pedal at a pace that
is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the OneTouch Resistance
buttons. However, when the current segment
ends, the pedals will automatically adjust to the
resistance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
profile flashes and the last segment of the pro-
gram ends.
3
2
1
Profile

16
Follow your progress with the display.
During the program, the display will show the pro-
gram profile, the time remaining in the program,
and the distance you have pedaled.
To view the profile, your pedaling pace, and the
distance you have pedaled, press the Display but-
ton. Note: The words SPEED UP or SLOW
DOWN may appear in the display to prompt you
to keep your pedaling pace near the target pace
setting for the current segment.
To view the time remaining in the program and the
distance pedaled, press the Display button. Press
the Display button again to view the time remain-
ing and the approximate number of calories
burned.
To view the time remaining, distance pedaled,
ramp incline, number of grams of carbs burned,
and pedaling pace, press the Display button
again. Note: An upward- or downward-pointing
arrow may appear in the display to prompt you to
keep your pedaling pace near the target pace set-
ting for the current segment.
To view the first display again, press the Display
button again.
Measure your heart rate if desired.
See step 5 on page 14.
Turn on the fan if desired.
See step 6 on page 14.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.
HOW TO CREATE A CUSTOM PROGRAM
Turn on the console.
See step 1 on page 13.
Select a custom program.
To select a custom program, press the Custom
Programs button once or twice. When you select
a custom program, the name of the program and
the settings for the program will appear in the dis-
play for a few seconds.
Begin pedaling to start the program, and
program the desired settings.
Each custom program is divided into 30 one-
minute segments. You can program one resis-
tance level and one target pace setting for each
segment.
To program a resistance level for the first seg-
ment, simply adjust the resistance of the pedals
by pressing the OneTouch Resistance buttons. To
program a target pace for the first segment, sim-
ply pedal at the desired pace.
At the end of the first segment, the program will
store the current resistance level and your current
pace in memory. Program a resistance level and
a target pace for the second segment as
described above.
Continue exercising for up to forty minutes. Stop
pedaling when you are finished with your work-
out. The program you created will then be stored
in memory. Note: If your workout is less than thirty
minutes long, any remaining segments in the pro-
gram will be stored with the last resistance level
and target pace setting you programmed.
When the program is finished, the console
will turn off automatically.
See step 7 on page 14.
4
3
2
1
7
6
5
4

17
HOW TO USE A CUSTOM PROGRAM
Turn on the console.
See step 1 on page 13.
Select a custom program.
To select a custom program, press the Custom
Programs button repeatedly until the words CUS-
TOM 1 or CUSTOM 2 appear in the display.
When you select a custom program, the name of
the program, the program time, and the maximum
pace and resistance level will appear in the dis-
play for a few seconds. A profile of the resistance
levels of the program will then appear in the dis-
play.
Begin pedaling to start the program.
Each custom program is divided into 30 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or tar-
get pace setting may be programmed for two or
more consecutive segments.
During the program, the program profile will show
your progress. The flashing segment of the profile
represents the current segment of the program.
The height of the flashing segment indicates the
resistance level for the current segment. At the
end of each segment of the program, a series of
tones will sound and the next segment of the pro-
file will begin to flash. If a different resistance
level is programmed for the next segment, the
resistance level will appear in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
As you exercise, you
will be prompted to
keep your pedaling
pace near the target
pace setting for the
current segment.
When an upward-pointing arrow or the prompt
SPEED UP appears next to the pace information
in the display (see step 4 on page 16), increase
your pace. When a downward-pointing arrow or
the prompt SLOW DOWN appears, decrease
your pace. When no arrow or prompt appears,
maintain your current pace. Important: The tar-
get pace settings are intended only to provide
motivation. Make sure to pedal at a pace that
is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the OneTouch Resistance
buttons. However, when the current segment
ends, the pedals will automatically adjust to the
resistance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
profile flashes and the last segment of the pro-
gram ends.
Change the program if desired.
If desired, you can change the program while
using it. To change the resistance level for the
current segment, simply press the OneTouch
Resistance buttons. At the end of the current seg-
ment, the new resistance level will be stored in
memory. To change the target pace for the cur-
rent segment, simply change your pedaling
pace. At the end of the current segment, your
pace will be stored in memory. You can continue
exercising and changing the program for up to
thirty minutes.
4
3
2
1
Profile

18
Follow your progress with the display.
See step 4 on page 16.
Measure your heart rate if desired.
See step 5 on page 14.
Turn on the fan if desired.
See step 6 on page 14.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.
HOW TO USE A HEART RATE PROGRAM
Turn on the console.
See step 1 on page 13.
Select a heart rate program.
To select one of the heart rate programs, press
the Heart Rate Programs button repeatedly until
the words HEART RATE 1 or HEART RATE 2
appear in the display.
Enter a target heart rate setting.
A few seconds after you select a heart rate pro-
gram, the words ENTER MAX TARGET HEART
RATE FOR THIS WORKOUT will appear in the
display and the number 110 will begin to flash.
During heart rate program 1, the same target
heart rate setting will be programmed for all seg-
ments of the program. If you have selected heart
rate program 1, press the increase and decrease
buttons above the Heart Rate Programs button to
enter the desired target heart rate setting (see
EXERCISE INTENSITY on page 22).
During heart rate program 2, different target
heart rate settings will be programmed for differ-
ent segments of the program. If you have select-
ed heart rate program 2, press the increase and
decrease buttons above the Heart Rate
Programs button to enter the desired maximum
target heart rate setting for the program (see
EXERCISE INTENSITY on page 22).
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse
sensor continuously during heart rate programs;
however, you should hold the handgrip pulse sen-
sor frequently for the programs to operate proper-
ly. Each time you hold the handgrip pulse sen-
sor, keep your hands on the metal contacts
for at least 30 seconds.
4
3
2
1
8
7
6
5

19
Begin pedaling to start the program.
Heart rate program 1 is divided into 40 one-
minute segments. Note: For a shorter workout,
stop exercising or select a different program
before the program ends.
Heart rate program 2 is divided into 30 one-
minute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
consecutive segments.
During the program, the program profile in the
display will show your progress. The flashing seg-
ment of the profile represents the current seg-
ment of the program. The height of the flashing
segment indicates the target heart rate setting for
the current segment. At the end of each segment
of the program, a series of tones will sound and
the next segment of the profile will begin to flash.
During both programs, the console will regularly
compare your heart rate to the target heart rate
setting for the current segment of the program. If
your heart rate is too far below or above the tar-
get heart rate setting, the resistance of the pedals
will automatically increase or decrease to bring
your heart rate closer to the target heart rate set-
ting. Each time the resistance changes, the resis-
tance level will appear in the display for a few
seconds to alert you.
While you exercise,
you will be prompted
to maintain a con-
stant pedaling pace.
When an upward-
pointing arrow or the
prompt SPEED UP appears next to the pace
information in the display (see step 6 on this
page), increase your pace. When a downward-
pointing arrow or the prompt SLOW DOWN
appears, decrease your pace. When no arrow or
prompt appears, maintain your current pace.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the OneTouch Resistance
buttons. However, when the console compares
your heart rate to the target heart rate setting, the
resistance of the pedals may automatically
increase or decrease to bring your heart rate
closer to the target heart rate setting.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
program ends.
Follow your progress with the display.
During heart rate program 1, the display will
show a graphic that represents a heartbeat each
time your heartbeat is detected, the elapsed time,
and the distance that you have pedaled. During
heart rate program 2, the display will show the
program profile, the time remaining in the pro-
gram, and the distance that you have pedaled.
To view the profile, your pedaling pace, and the
distance you have pedaled, press the Display but-
ton. Note: The words SPEED UP or SLOW
DOWN may appear in the display to prompt you
to keep your pedaling pace near the target pace
setting for the current segment.
To view the time remaining in the program and the
distance pedaled, press the Display button. Press
the Display button again to view the time remain-
ing and the approximate number of calories
burned.
To view the time remaining, distance pedaled,
ramp incline, number of grams of carbs burned,
and pedaling pace, press the Display button
again. Note: An upward- or downward-pointing
arrow may appear in the display to prompt you to
keep your pedaling pace near the target pace set-
ting for the current segment.
To view the first display again, press the Display
button again.
Turn on the fan if desired.
See step 6 on page 14.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 14.
8
7
6
5
Profile

20
HOW TO USE AN IFIT PROGRAM
Turn on the console.
See step 1 on page 13.
Insert an iFIT Card and select a program.
To use an iFIT program, insert an iFIT Card into
the iFIT slot; make sure that the iFIT Card is ori-
ented so the metal contacts are face-down and
are facing the slot. When the iFIT Card is proper-
ly inserted, the indicator next to the slot will light
and the words IFIT 1 will appear in the display.
Next, select the desired program on the iFIT Card
by pressing the up and down buttons next to the
iFIT slot.
A moment after you select a program, the voice
of a personal trainer will begin guiding you
through your workout. iFIT programs work in the
same way as preset programs. To use the pro-
gram, see steps 3 to 6 on pages 15 and 16.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio
books through the con-
sole’s stereo sound system
while you exercise, first
locate the stereo audio
cable in the center of the
console above the speak-
ers. Plug the cable into a jack on your MP3 player or
CD player; make sure that the audio cable is fully
plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume of the speakers using the
volume control on your MP3 player or CD player.
When not in use, insert the stereo audio cable into the
storage recess on the console.
2
1
iFIT Slot
iFIT Card
Cable
