NordicTrack AudioStrider NTEL7906.3 User manual

®
www.nordictrack.com
AUDIOS DER 990
Model No. NTEL7906.3
Serial No.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-825-2588
Mon.-Fri., 6 a.m.-6 p.m. MT
Sat. 8 a.m.-5 p.m. MT
ON THE WEB:
www.nordictrackservice.com
AUAL

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE ELLIPTICAL EXERCISER .................................................. 11
MAINTENANCE AND TROUBLESHOOTING ................................................... 22
EXERCISE GUIDELINES ................................................................... 23
PART LIST .............................................................................. 24
EXPLODED DRAWING .................................................................... 26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover

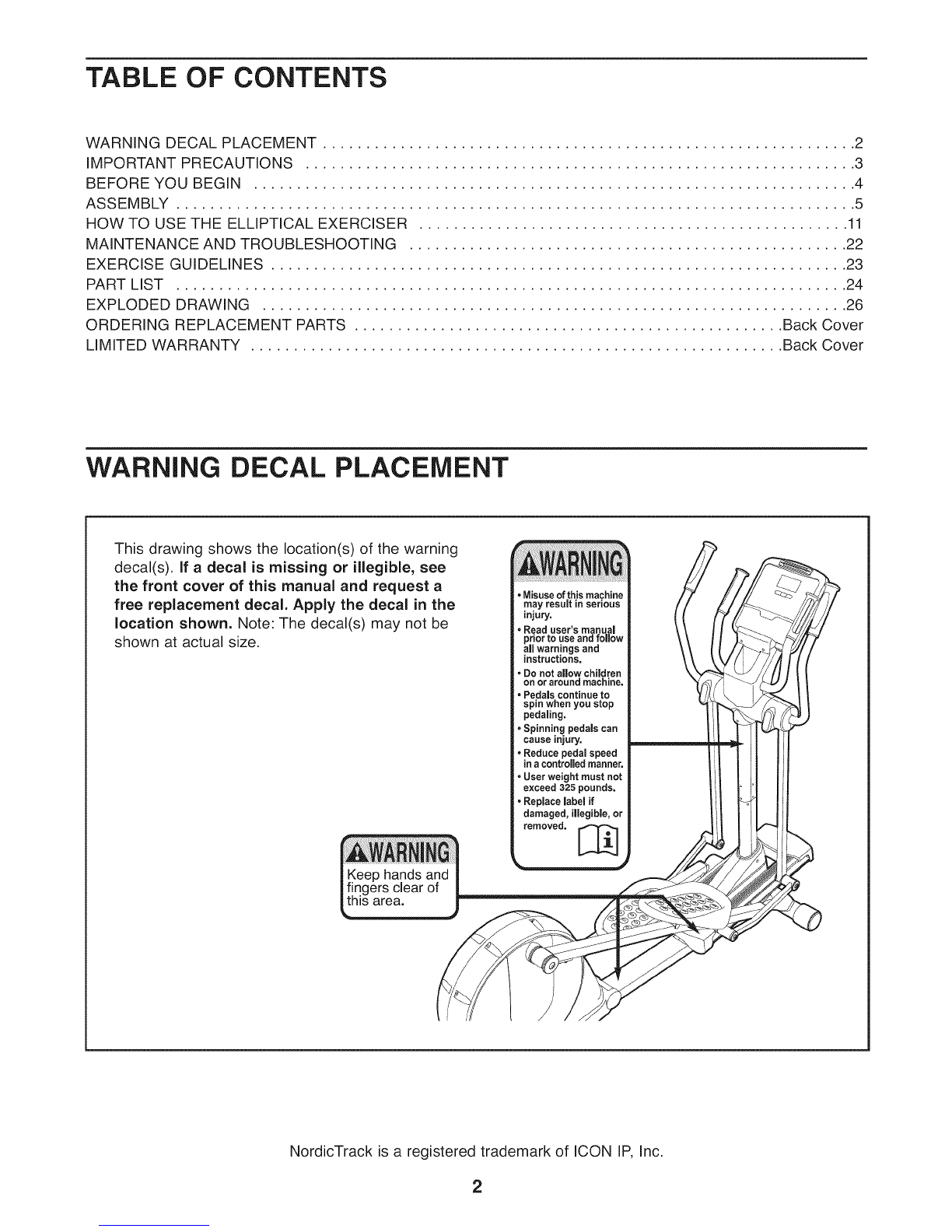

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
Keep hands and
fingers clear of
this area,
•Misuseof this machine
may result in serious
injury.
• Read user's manual
prior to use and follow
all warnings and
instructions.
•Do not allow children
on or around machine.
•Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury.
•Reduce pedal speed
in acontrolled manner.
• User weight must not
exceed 325 pounds.
, Replace label if
damaged, illegible, or
removed. [_
NordicTrack is a registered trademark of ICON IP, Inc.
2

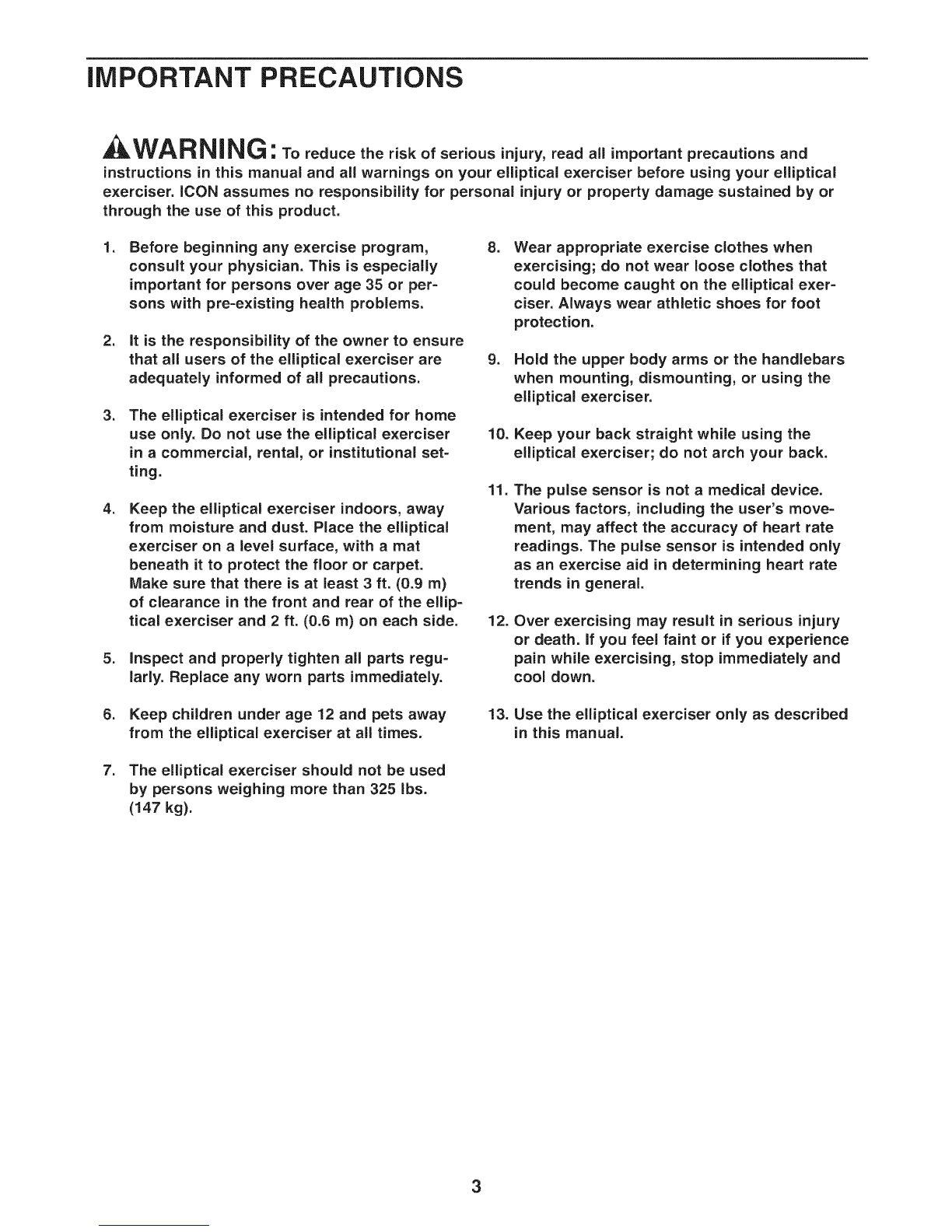

iMPORTANT PRECAUTIONS
AWARNING: Toreducetheriskofse.ousnjory,reada, mportantprecautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser, iCON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program, 8.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre=existing health problems.
=
.
.
.
mtis the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
The elliptical exerciser is intended for home
use only. Do not use the elliptical exerciser
in acommercial, rental, or institutional set-
ting.
Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on alevel surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m)
of clearance in the front and rear of the ellip-
tical exerciser and 2 ft. (0.6 m) on each side.
inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
.
10.
11.
12.
Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on the elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
Hold the upper body arms or the handlebars
when mounting, dismounting, or using the
elliptical exerciser.
Keep your back straight while using the
elliptical exerciser; do not arch your back.
The pulse sensor is not a medical device.
Various factors, including the user's move=
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
6. Keep children under age 12 and pets away
from the elJiptical exerciser at alJ times. 13. Use the elliptical exerciser only as described
in this manual
7. The elliptica! exerciser should not be used
by persons weighing more than 325 Ibs.
(147 kg).
3

BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack ®
AUDIOSTRIDER 990 elliptical exerciser. The
NordicTrack AUDIOSTRIDER 990 elliptical exerciser
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.

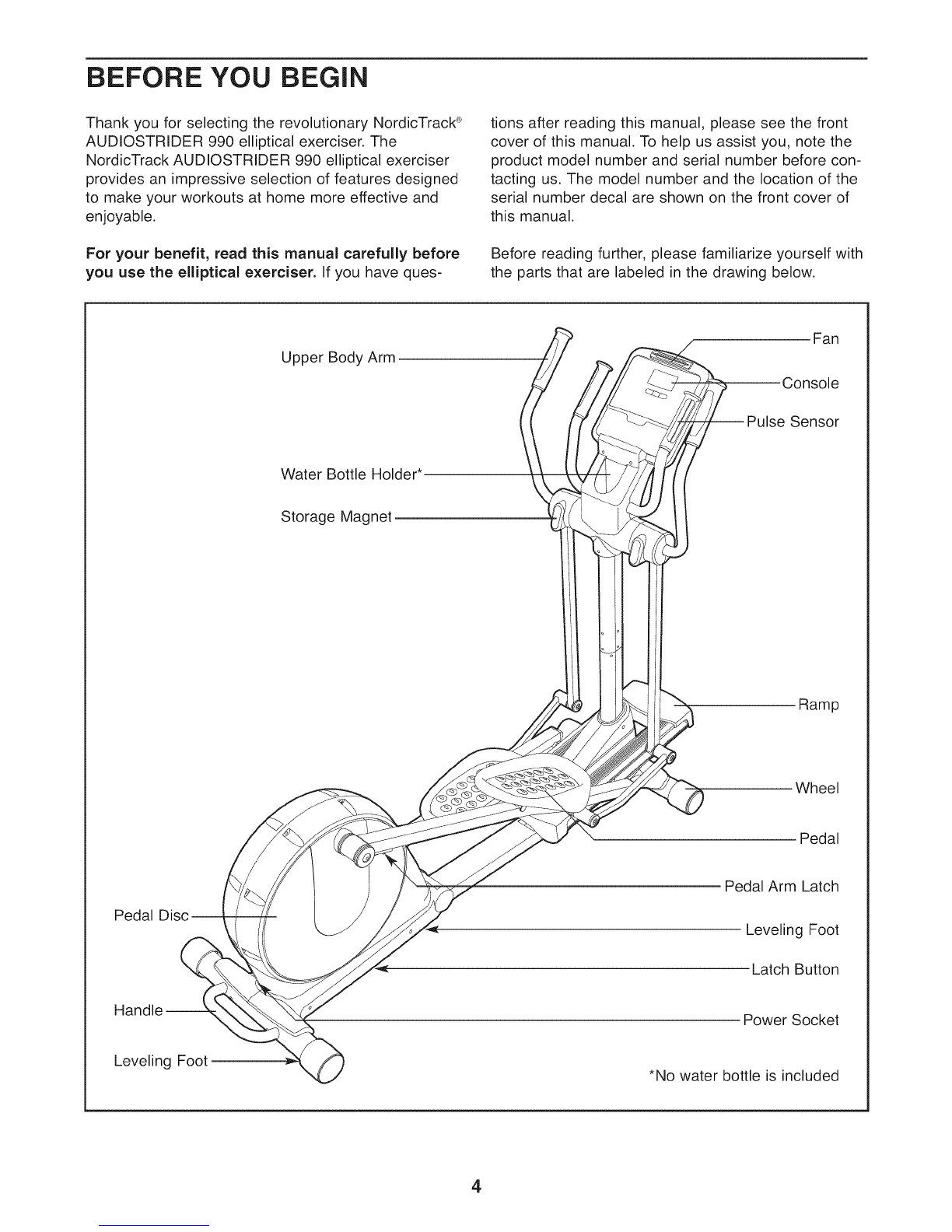

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Upper Body Arm Fan
-- Pulse Sensor
Water Bottle
Storage Magnet
Ramp
Wheel
Pedal
Pedal Disc--
Pedal Arm Latch
Leveling Foot
Latch Button
Leveling Foot
Power Socket
*No water bottle is included
4

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
in addition to the included tool(s), assembly requires aPhillips screwdriver _ and a rubber
mallet c__.

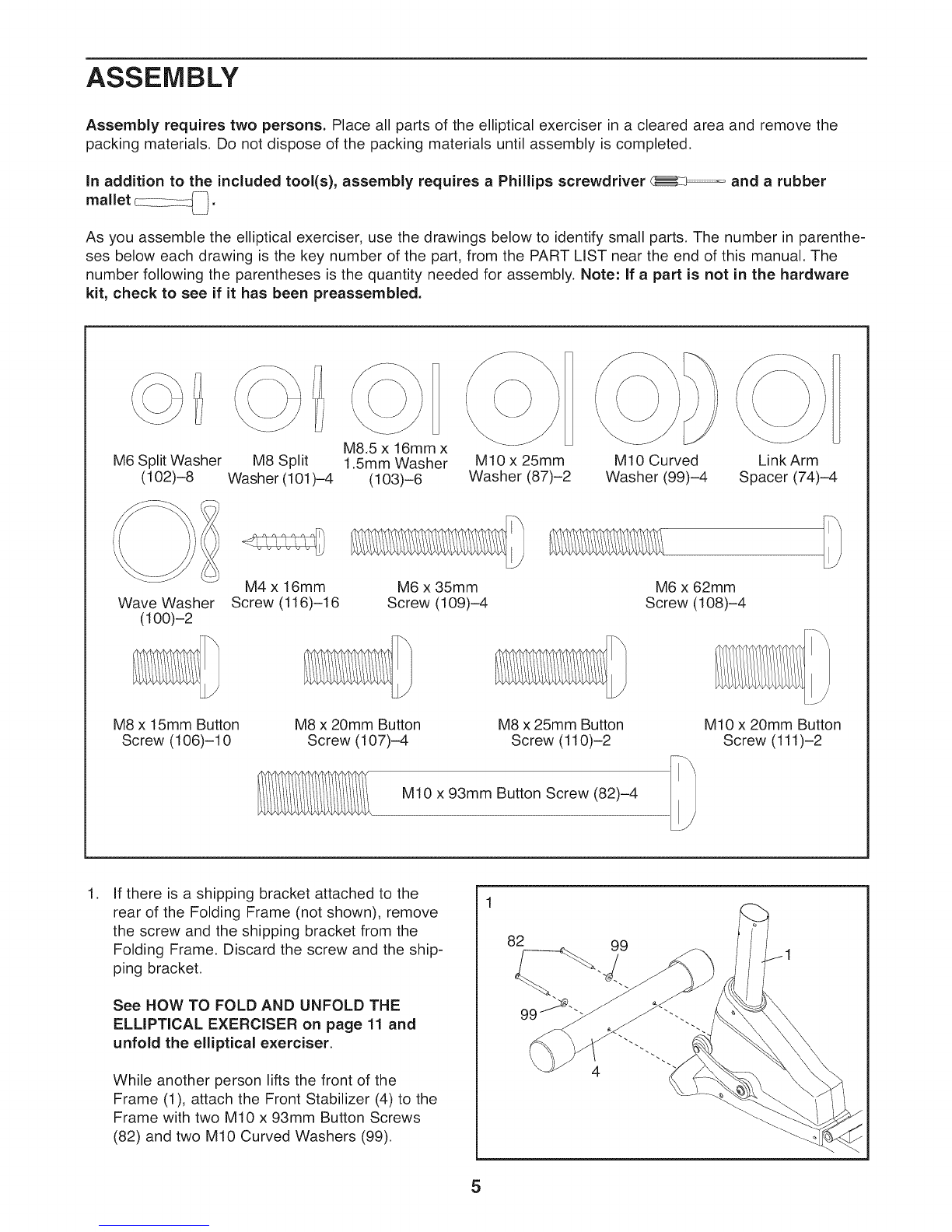

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled.
M8.5 x 16mm x
M6 Split Washer M8 Split 1.5mm Washer M10 x 25mm M10 Curved
(102)-8 Washer (101)-4 (103)-6 Washer (87)-2 Washer (99)-4 1
Link Arm
Spacer (74)-4
M4 x 16mm M6 x 35mm M6 x 62mm
Wave Washer Screw (116)-16 Screw (109)-4 Screw (108)-4
(100)-2
M8 x 15mm Button
Screw (106)-10 M8 x 20mm Button Screw (107)-4 M8 x 25mm Button Screw (110)-2 M10 x 20mm Button Screw (111)-2
M10 x 93mm Button Screw (82)-4
.If there is a shipping bracket attached to the
rear of the Folding Frame (not shown), remove
the screw and the shipping bracket from the
Folding Frame. Discard the screw and the ship-
ping bracket.
See HOW TO FOLD AND UNFOLD THE
ELLiPTiCAL EXERCISER on page 11 and
unfold the elliptical exerciser.
While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 93mm Button Screws
(82) and two M10 Curved Washers (99).
5

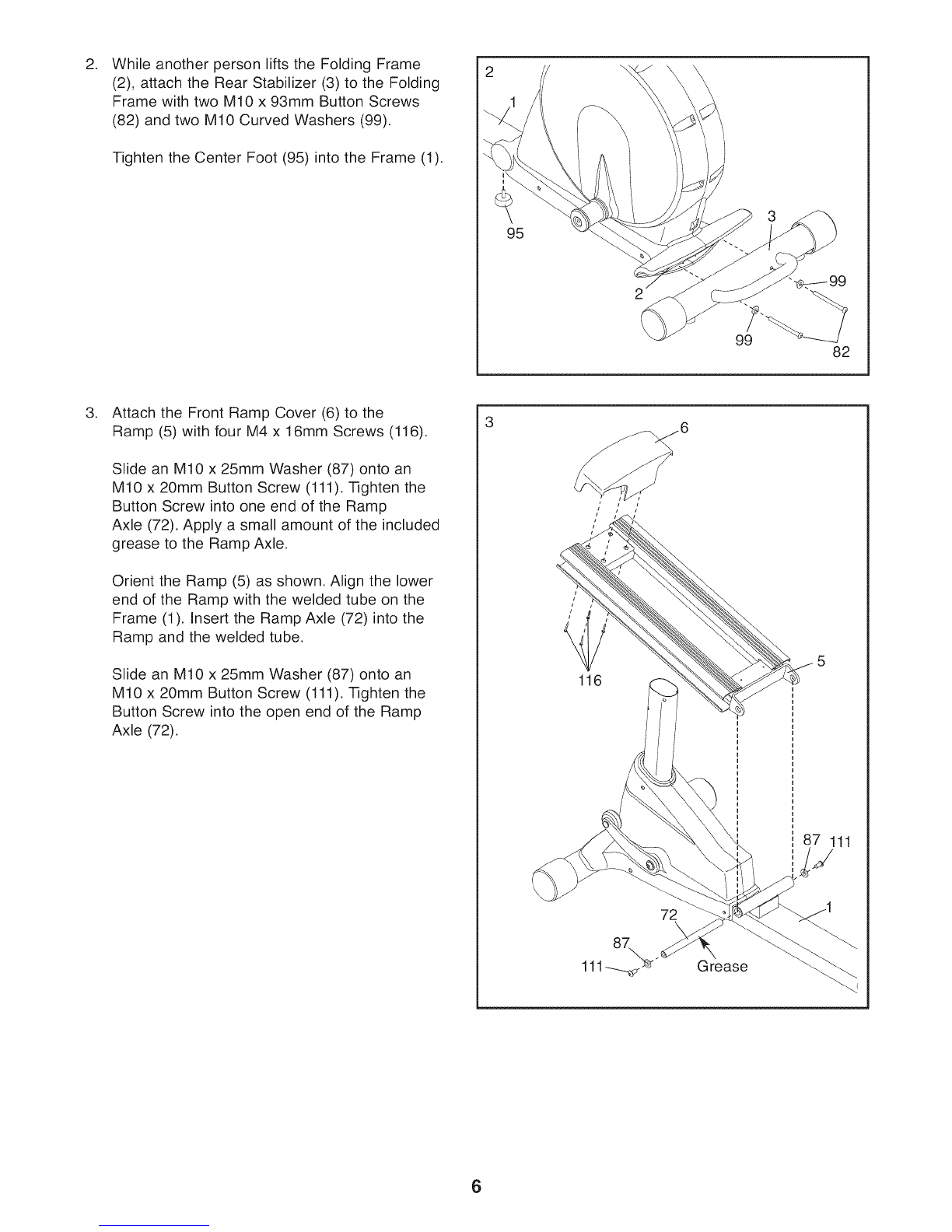

While another person lifts the Folding Frame
(2), attach the Rear Stabilizer (3) to the Folding
Frame with two M10 x 93mm Button Screws
(82) and two M10 Curved Washers (99).
Tighten the Center Foot (95) into the Frame (1).
95
2
\99 82
.Attach the Front Ramp Cover (6) to the
Ramp (5) with four M4 x 16mm Screws (116).
Slide an M10 x 25mm Washer (87) onto an
M10 x 20mm Button Screw (111). Tighten the
Button Screw into one end of the Ramp
Axle (72). Apply a small amount of the included
grease to the Ramp Axle.
Orient the Ramp (5) as shown. Align the lower
end of the Ramp with the welded tube on the
Frame (1). Insert the Ramp Axle (72) into the
Ramp and the welded tube.
Slide an M10 x 25mm Washer (87) onto an
M10 x 20mm Button Screw (111). Tighten the
Button Screw into the open end of the Ramp
Axle (72).
116
Grease
87 111
6

4. 4

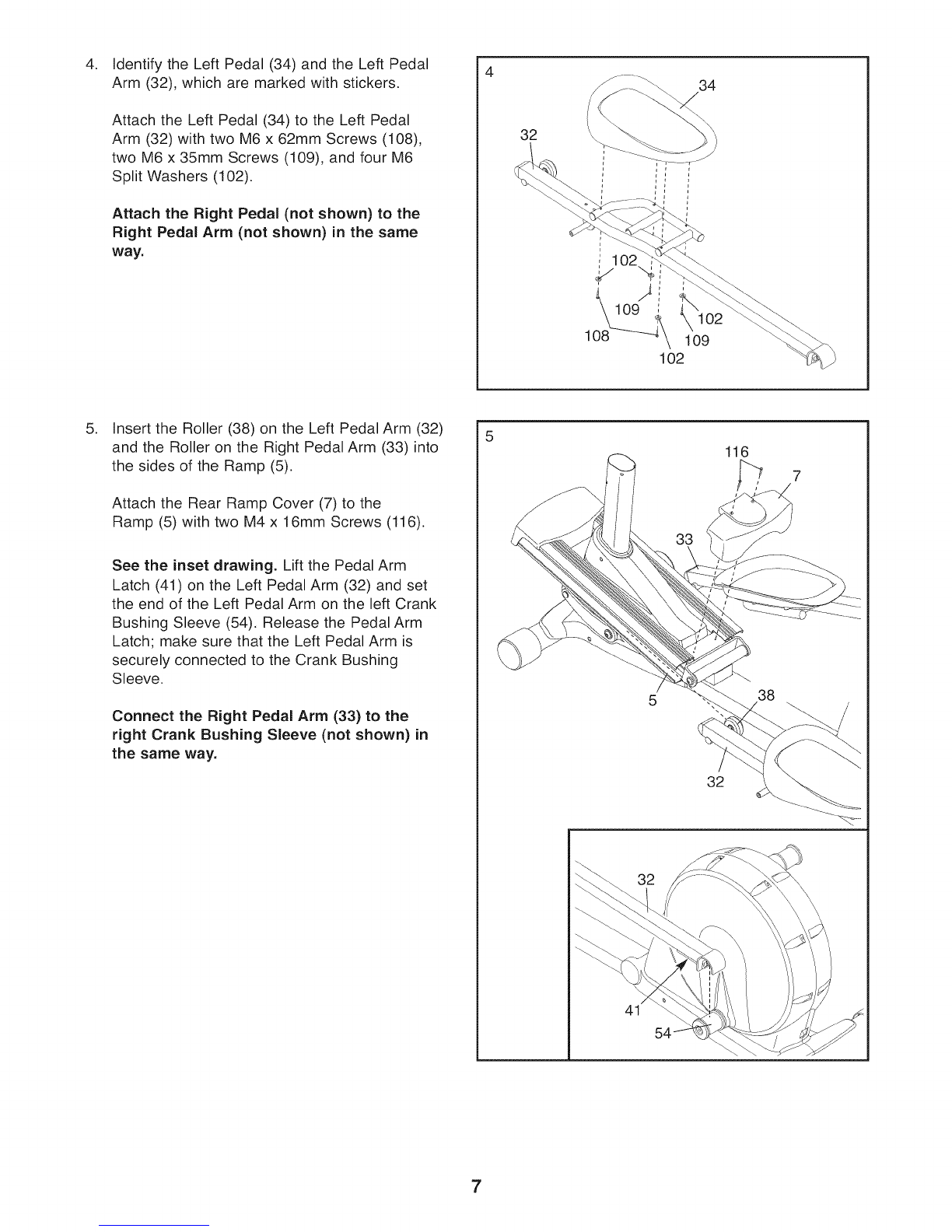

Identify the Left Pedal (34) and the Left Pedal
Arm (32), which are marked with stickers.
Attach the Left Pedal (34) to the Left Pedal
Arm (32) with two M6 x 62mm Screws (108),
two M6 x 35mm Screws (109), and four M6
Split Washers (102).
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
32
34
I
,_102.
1 109
102
.Insert the Roller (38) on the Left Pedal Arm (32)
and the Roller on the Right Pedal Arm (33) into
the sides of the Ramp (5).
Attach the Rear Ramp Cover (7) to the
Ramp (5) with two M4 x 16mm Screws (116).
See the inset drawing. Lift the Pedal Arm
Latch (41) on the Left Pedal Arm (32) and set
the end of the Left Pedal Arm on the left Crank
Bushing Sleeve (54). Release the Pedal Arm
Latch; make sure that the Left Pedal Arm is
securely connected to the Crank Bushing
Sleeve.
Connect the Right Pedal Arm (33) to the
right Crank Bushing Sleeve (not shown) in
the same way.
41
116
38
32
7

6. 6

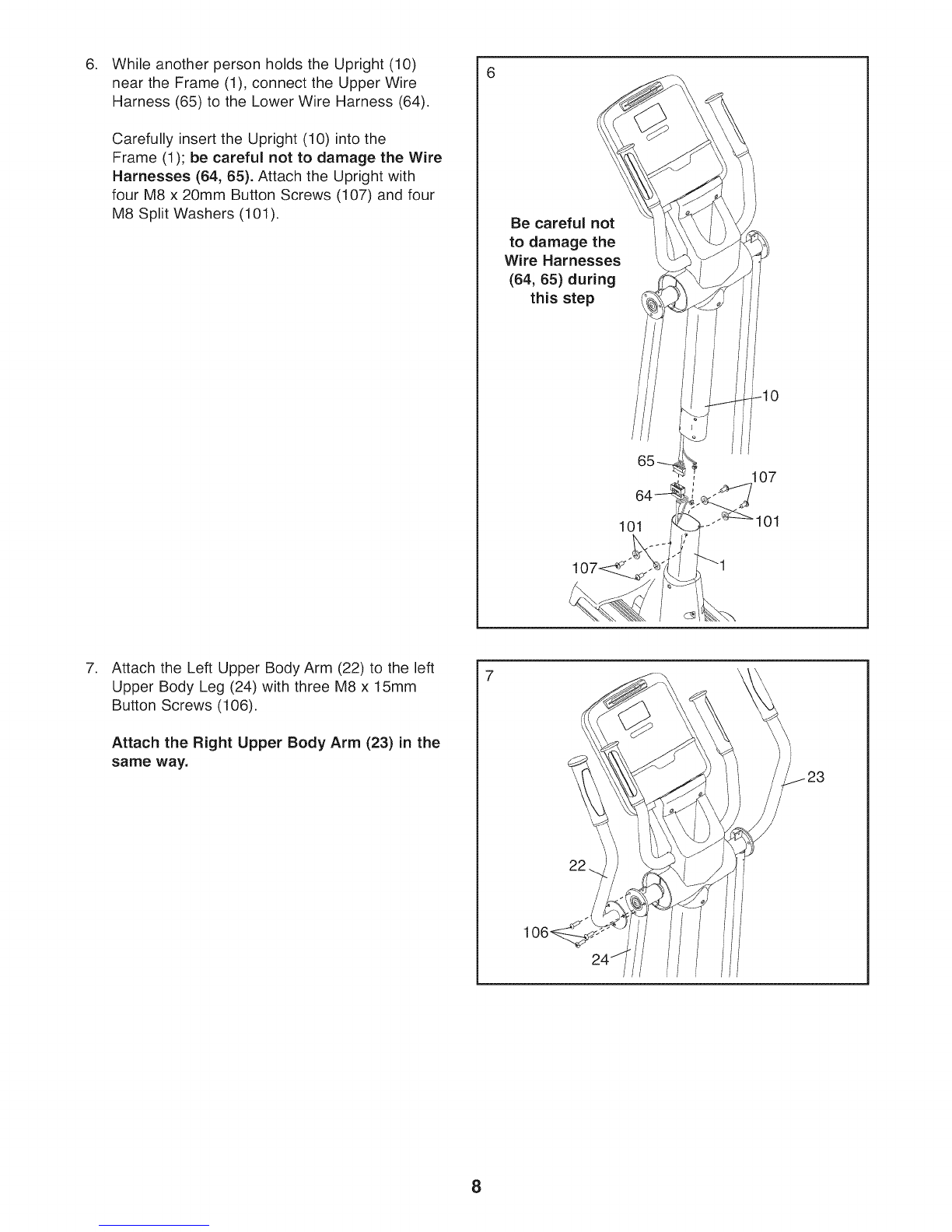

While another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Carefully insert the Upright (10) into the
Frame (1); be careful not to damage the Wire
Harnesses (64, 65). Attach the Upright with
four M8 x 20mm Button Screws (107) and four
M8 Split Washers (101). Be careful not
to damage the
Wire Harnesses
(64, 65) during
this step
/
107
101
.Attach the Left Upper Body Arm (22) to the left
Upper Body Leg (24) with three M8 x 15mm
Button Screws (106).
Attach the Right Upper Body Arm (23) in the
same way.
22
8

8. 8
Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the left Upper Body Leg (24). Attach the Upper
Body Covers with five M4 x 16mm Screws
(116).
Attach the Right Rear Upper Body Cover
(28) and the Right Front Upper Body Cover
(29) in the same way.
116
27
29
g. Apply a small amount of grease to the axle on
the Left Link Arm (30), to the axle on the Left
Pedal Arm (32), and to a Wave Washer (100).
Slide the Wave Washer (100) onto the axle on
the Left Pedal Arm (32). Next, slide a Link Arm
Spacer (74) onto the axle on the Left Link Arm
(30).
Then, gradually work the axle on the Left Link
Arm (30) into the left Upper Body Leg (24)
while at the same time working the Left Link
Arm onto the axle on the Left Pedal Arm (32).
Tip: These parts are designed to fit tightly, it
may be helpful to move the Left Pedal Arm
(32) while working these parts into place.
Repeat this step with the Right Link Arm
(31).
Grease
/
/
24
30 ,!
Grease
31
9

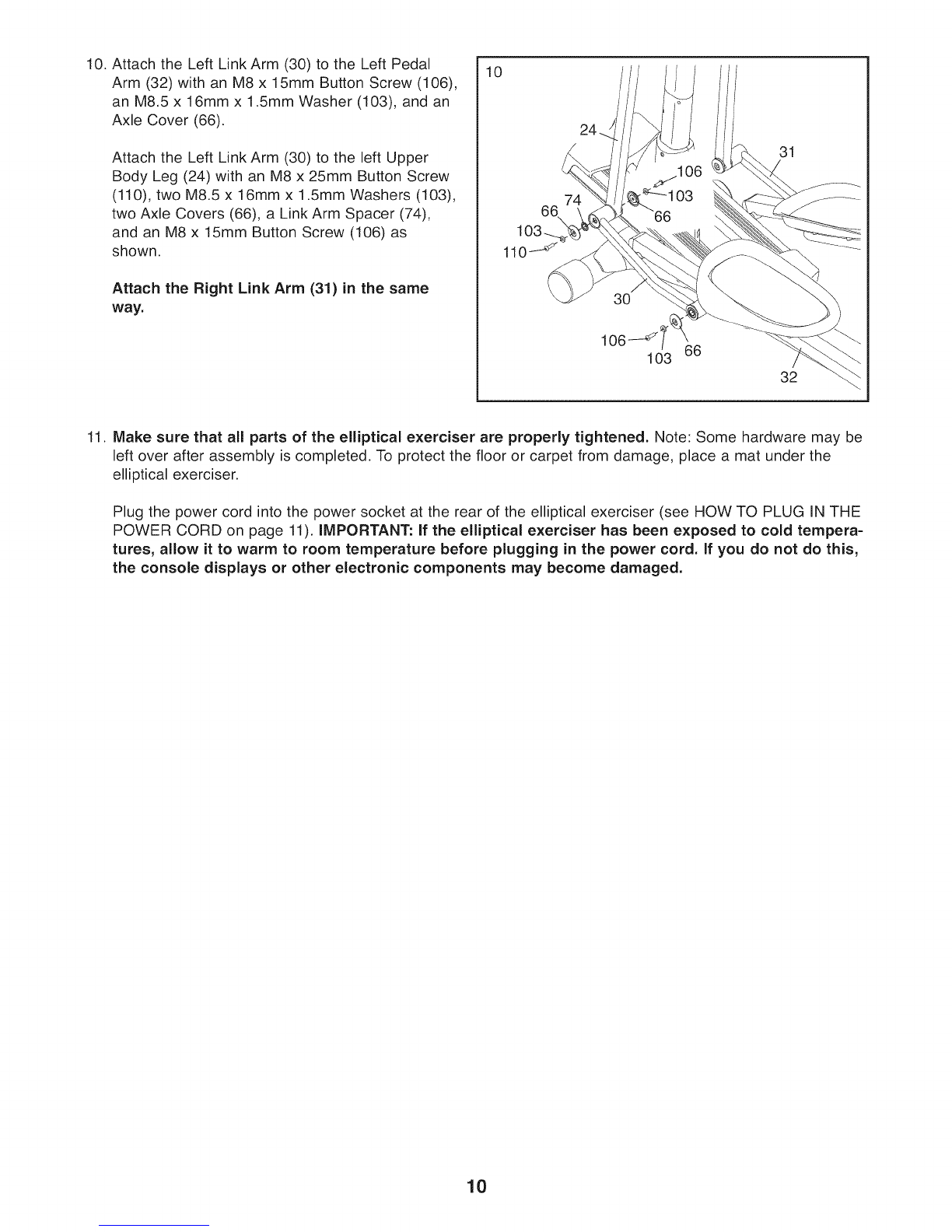

10. Attach the Left Link Arm (30) to the Left Pedal
Arm (32) with an M8 x 15mm Button Screw (106),
an M8.5 x 16mm x 1.5mm Washer (103), and an
Axle Cover (66).
Attach the Left Link Arm (30) to the left Upper
Body Leg (24) with an M8 x 25mm Button Screw
(110), two M8.5 x 16mm x 1.5mm Washers (103),
two Axle Covers (66), a Link Arm Spacer (74),
and an M8 x 15mm Button Screw (106) as
shown.
Attach the Right Link Arm (31) in the same
way.
10
66
31
32
11. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Plug the power cord into the power socket at the rear of the elliptical exerciser (see HOW TO PLUG IN THE
POWER CORD on page 11). IMPORTANT: if the elliptical exerciser has been exposed to cold tempera-
tures, allow it to warm to room temperature before plugging in the power cord. if you do not do this,
the console displays or other electronic components may become damaged.
10

HOW TO USE THE ELLiPTiCAL EXERCISER
HOW TO PLUG IN THE POWER CORD
This product must be grounded, if it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into an appro-
priate outlet that is properly installed and ground-
ed in accordance with all local codes and ordi-
nances. This product is for use on a nominal 120-
volt circuit, iMPORTANT: The elliptical exerciser is
not compatible with GFCI-equipped outlets.
DANGER: Impropercoonoct=oo
of the equipment=grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a
properly
grounded
outlet is not
Outlet Box
Adapter
Lug \_
Metal
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a quali-
fied electrician to determine if the outlet box cover
is grounded before using an adapter.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. First, lift the latch under
each pedal arm, and lift the pedal arms off the sleeves
on the crank arms.
Sleeve \
Next, raise the pedal arms until they touch the mag-
nets on the upper body legs; the magnets will hold the
pedal arms in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
To use the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body legs. Then, lift the latches under the pedal
arms, and set the pedal arms on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal arms are securely connected to the crank
arms.
11

HOW TO MOVE THE ELLiPTiCAL EXERCISER
To move the elliptical exerciser, first fold it as
described on page 11. Next, stand in front of the ellip-
tical exerciser, hold the handgrip pulse sensors, and
place one foot against the center of the front stabilizer.
Pull the pulse sensors until the elliptical exerciser will
roll on the front wheels. Carefully move the elliptical
exerciser to the desired position, and then lower it.
Handgrip _/'_
Pulse \\
Sensors
Place
..your foot
here
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
Upper Body
Pedals
Crank Arm
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
12

CONSOLE DIAGRAM
/f
25 °
!5 °
OneTouch
Ramp
\d
Interactive -Card -Workout -Technology
_ Competition"'_ _ _ Custom
Programs JOdometer Programs
f_erobic Fitness_ _
15
14
12
11
10
7
; j
5
2
\
] ....._,
OneTouch
Resistance
S
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. As you
exercise, the console will provide continuous exercise
feedback. You can even measure your heart rate
using the handgrip pulse sensor.
The console also offers twenty preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
The console also offers two custom programs that
allow you to create your own workout programs and
store them in memory for future use.
In addition, the console features two heart rate pro-
grams that change the resistance of the pedals to
keep your heart rate near target heart rate settings
while you exercise.
The console features the iFit interactive workout sys-
tem, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals. For example, lose unwanted
pounds with the 8-week Weight Loss workout, iFit
workouts control the resistance of the pedals while the
voice of a personal trainer coaches you through your
workouts, iFit cards are available separately. To pur-
chase iFit cards, go to www.iFit.com or see the
front cover of this manual, iFit cards are also
available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 14. To use a
preset program, see page 16. To create a custom
program, see page 17. To use a custom program,
see page 18. To use a heart rate program, see page
19. To use an iFIT program, see page 21. To use
the sound system, see page 21.
13

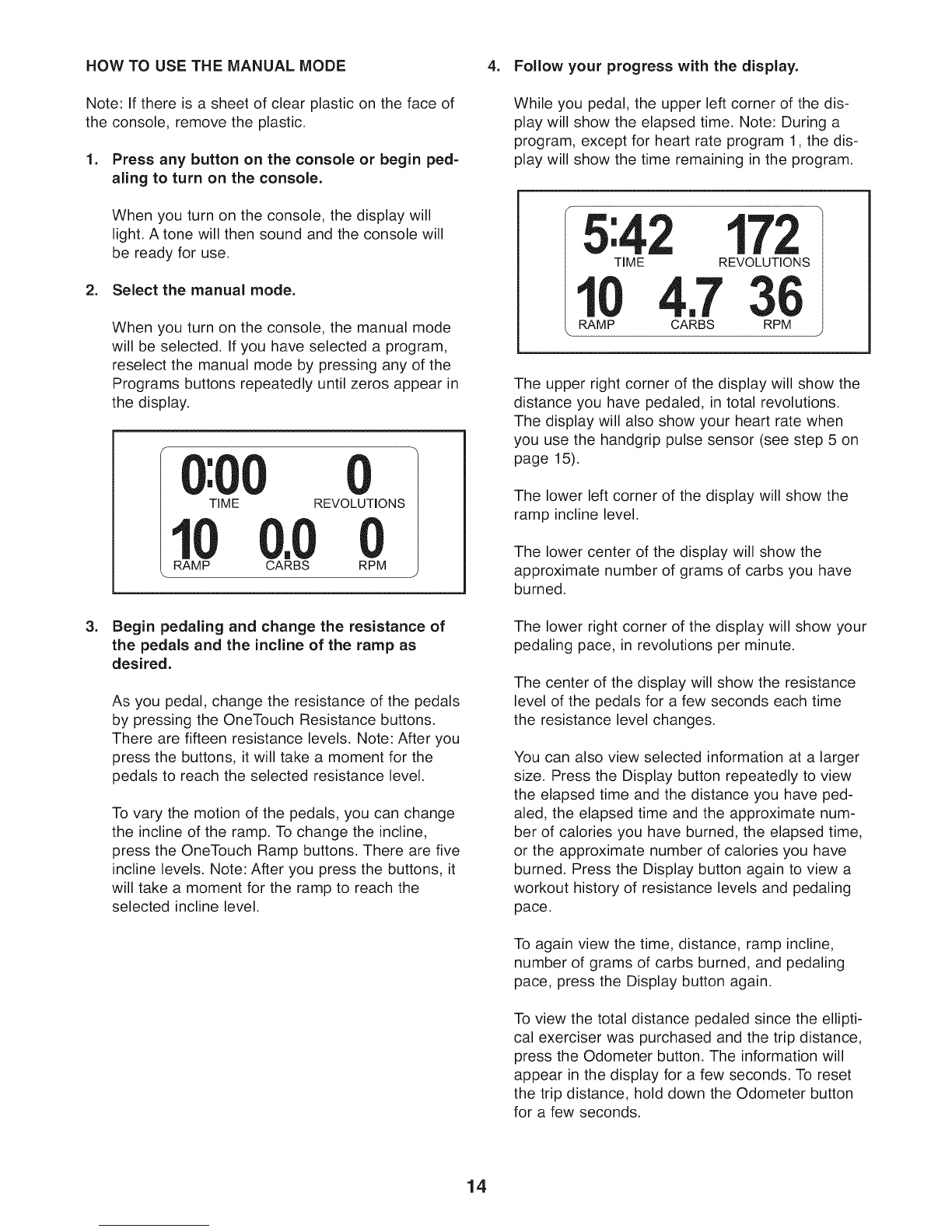

HOW TO USE THE MANUAL MODE 4. Follow your progress with the display.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected, ifyou have selected a program,
reselect the manual mode by pressing any of the
Programs buttons repeatedly until zeros appear in
the display.
TIME REVOLUTIONS
RAMP CARBS RPM
.Begin pedaling and change the resistance of
the pedals and the incline of the ramp as
desired.
As you pedal, change the resistance of the pedals
by pressing the OneTouch Resistance buttons.
There are fifteen resistance levels. Note: After you
press the buttons, it will take a moment for the
pedals to reach the selected resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press the OneTouch Ramp buttons. There are five
incline levels. Note: After you press the buttons, it
will take a moment for the ramp to reach the
selected incline level.
While you pedal, the upper left corner of the dis-
play will show the elapsed time. Note: During a
program, except for heart rate program 1, the dis-
play will show the time remaining in the program.
5:42
TiME
1
RAMP
172
REVOLUTIONS
,.7 36
CARBS RPM
The upper right corner of the display will show the
distance you have pedaled, in total revolutions.
The display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 15).
The lower left corner of the display will show the
ramp incline level.
The lower center of the display will show the
approximate number of grams of carbs you have
burned.
The lower right corner of the display will show your
pedaling pace, in revolutions per minute.
The center of the display will show the resistance
level of the pedals for a few seconds each time
the resistance level changes.
You can also view selected information at a larger
size. Press the Display button repeatedly to view
the elapsed time and the distance you have ped-
aled, the elapsed time and the approximate num-
ber of calories you have burned, the elapsed time,
or the approximate number of calories you have
burned. Press the Display button again to view a
workout history of resistance levels and pedaling
pace.
To again view the time, distance, ramp incline,
number of grams of carbs burned, and pedaling
pace, press the Display button again.
To view the total distance pedaled since the ellipti-
cal exerciser was purchased and the trip distance,
press the Odometer button. The information will
appear in the display for a few seconds. To reset
the trip distance, hold down the Odometer button
for a few seconds.
14

5. Measure your heart rate if desired. 6. Turn on the fan if desired.
if there are
sheets of clear
plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plas-
tic. in addition,
make sure that
your hands are
clean. To measure
your heart rate,
Contacts
hold the handgrip pulse sensor with your palms
resting against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
be shown in the display. For the most accurate
heart rate reading, hold the contacts for at least 15
seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
.
To turn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
Fan button a second time. To select the auto
mode, press the Fan button again; when the auto
mode is selected, the speed of the fan will auto-
matically increase or decrease as you increase or
decrease your pedaling speed.
Pivot the fan louvers above the display upward or
downward to direct the airflow from the fan.
To turn off the fan, press the Fan button again.
Note: If the pedals are not moved for about thirty
seconds, the fan will automatically turn off.
When you are finished exercising, the console
will turn off automatically.
If the pedals are not moved for several seconds, a
series of tones will sound and the console will
pause.
If the pedals are not moved for about five minutes,
the console will turn off and the display will be
reset.
15

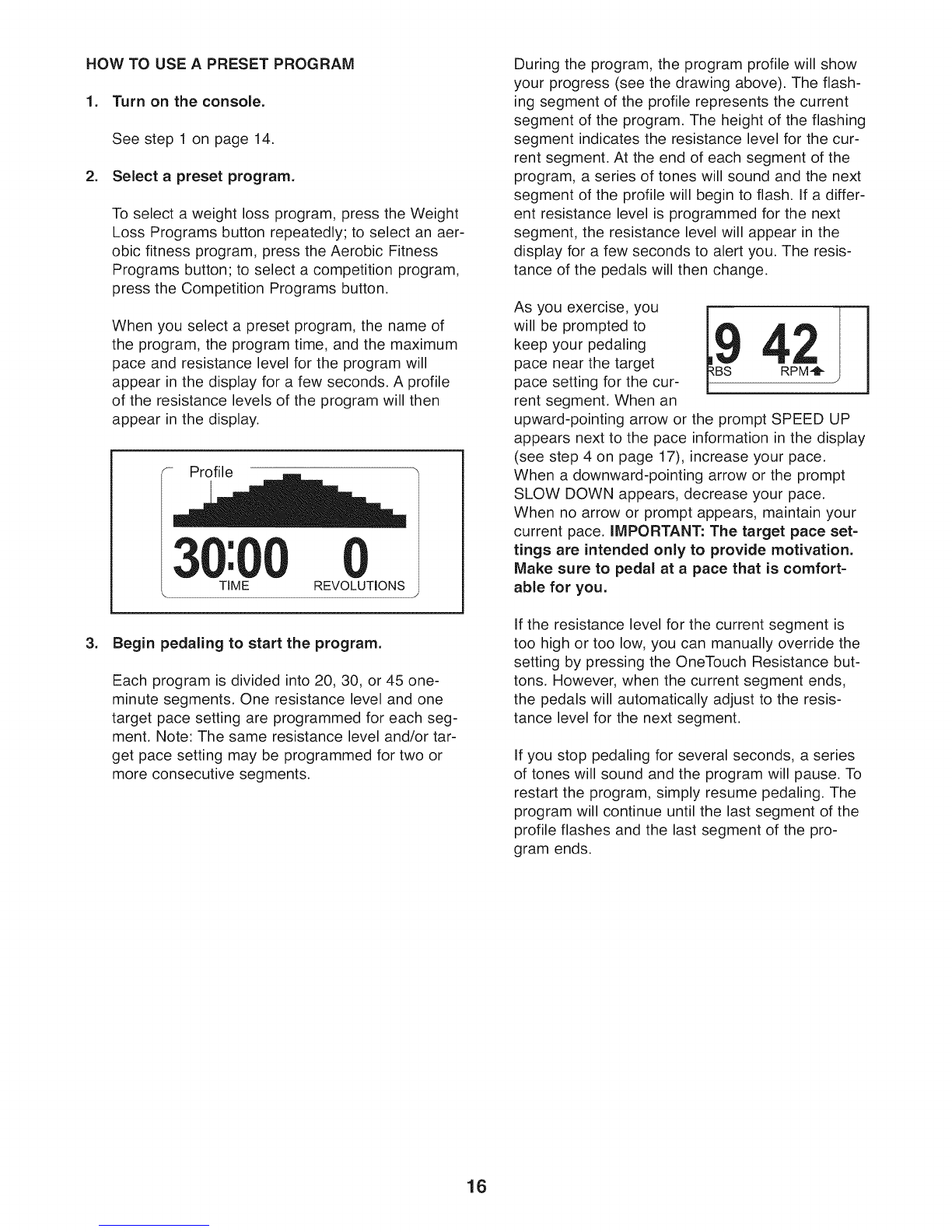

HOW TO USE A PRESET PROGRAM
1. Turn on the console.
See step 1 on page 14.
2. Select a preset program.
To select a weight loss program, press the Weight
Loss Programs button repeatedly; to select an aer-
obic fitness program, press the Aerobic Fitness
Programs button; to select a competition program,
press the Competition Programs button.
When you select a preset program, the name of
the program, the program time, and the maximum
pace and resistance level for the program will
appear in the display for a few seconds. A profile
of the resistance levels of the program will then
appear in the display.
Profile
TIME REVOLUTIONS
3. Begin pedaling to start the program.
Each program is divided into 20, 30, or 45 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or tar-
get pace setting may be programmed for two or
more consecutive segments.
During the program, the program profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the program. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
program, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
As you exercise, you
will be prompted to
keep your pedaling
pace near the target
pace setting for the cur-
rent segment. When an
upward-pointing arrow or the prompt SPEED UP
appears next to the pace information in the display
(see step 4 on page 17), increase your pace.
When a downward-pointing arrow or the prompt
SLOW DOWN appears, decrease your pace.
When no arrow or prompt appears, maintain your
current pace. IMPORTANT: The target pace set-
tings are intended only to provide motivation.
Make sure to pedal at a pace that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the OneTouch Resistance but-
tons. However, when the current segment ends,
the pedals will automatically adjust to the resis-
tance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
profile flashes and the last segment of the pro-
gram ends.
16

4. Follow your progress with the display. HOW TO CREATE A CUSTOM PROGRAM
During the program, the display will show the pro-
gram profile, the time remaining in the program,
and the distance you have pedaled.
To view the profile, your pedaling pace, and the
distance you have pedaled, press the Display but-
ton. Note: The words SPEED UP or SLOW DOWN
may appear in the display to prompt you to keep
your pedaling pace near the target pace setting for
the current segment.
To view the time remaining in the program and the
distance pedaled, press the Display button. Press
the Display button again to view the time remain-
ing and the approximate number of calories
burned.
To view the time remaining, distance pedaled,
ramp incline, number of grams of carbs burned,
and pedaling pace, press the Display button again.
Note: An upward- or downward-pointing arrow may
appear in the display to prompt you to keep your
pedaling pace near the target pace setting for the
current segment.
To view the first display again, press the Display
button again.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
.
See step 6 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
1. Turn on the console.
See step 1 on page 14.
2. Select a custom program.
To select a custom program, press the Custom
Programs button once or twice. When you select a
custom program, the name of the program and the
settings for the program will appear in the display
for a few seconds.
TiME REVOLUTIONS
.
.
Begin pedaling to start the program, and
program the desired settings.
Each custom program is divided into 30 one-
minute segments. You can program one resistance
level and one target pace setting for each seg-
ment.
To program a resistance level for the first segment,
simply adjust the resistance of the pedals by
pressing the OneTouch Resistance buttons. To
program a target pace for the first segment, simply
pedal at the desired pace.
At the end of the first segment, the program will
store the current resistance level and your current
pace in memory. Program a resistance level and a
target pace for the second segment as described
above.
Continue exercising for up to forty minutes. Stop
pedaling when you are finished with your workout.
The program you created will then be stored in
memory. Note: If your workout is less than thirty
minutes long, any remaining segments in the pro-
gram will be stored with the last resistance level
and target pace setting you programmed.
When the program is finished, the console will
turn off automatically.
See step 7 on page 15.
17

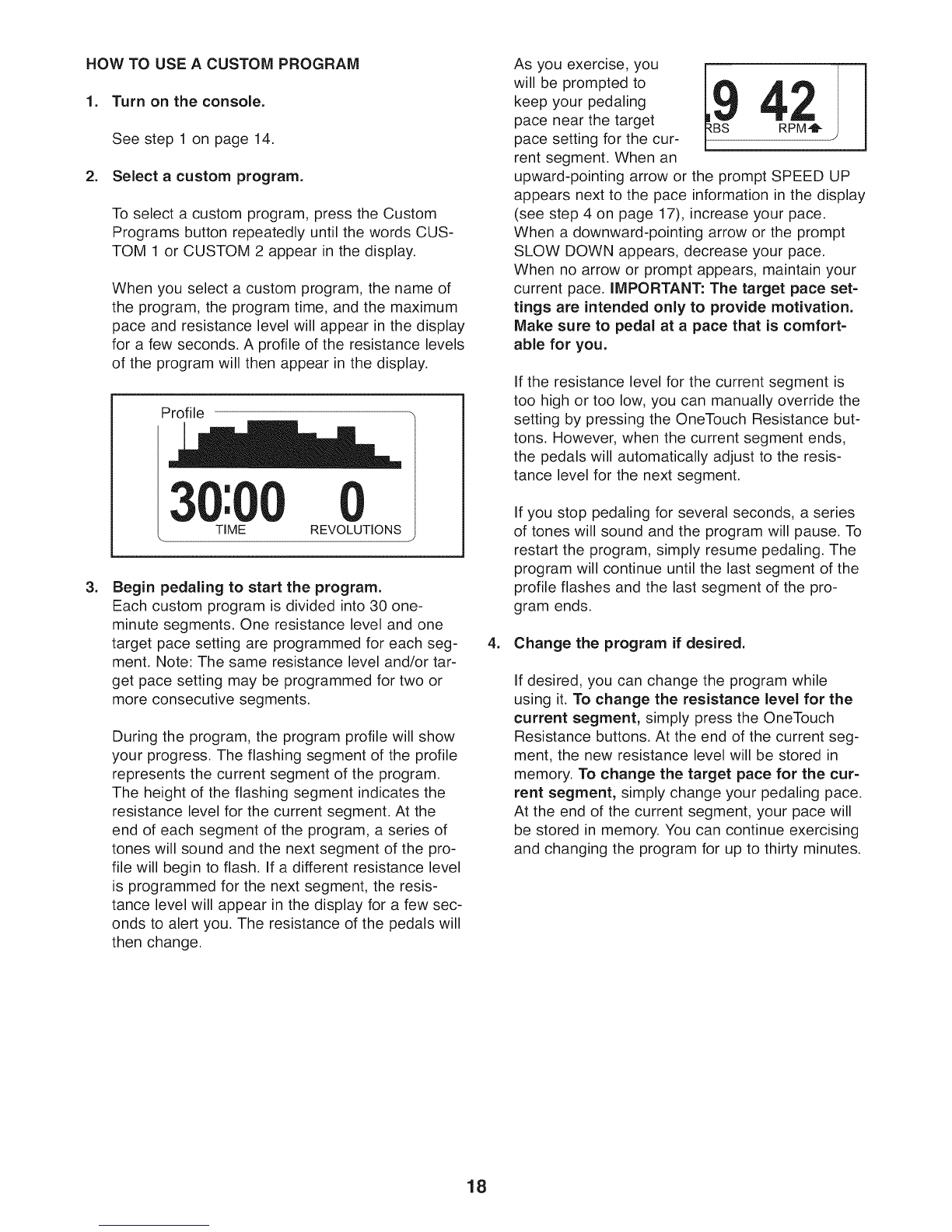

HOW TO USE A CUSTOM PROGRAM
1. Turn on the console.
See step 1 on page 14.
2. Select a custom program.
To select a custom program, press the Custom
Programs button repeatedly until the words CUS-
TOM 1 or CUSTOM 2 appear in the display.
When you select a custom program, the name of
the program, the program time, and the maximum
pace and resistance level will appear in the display
for a few seconds. A profile of the resistance levels
of the program will then appear in the display.
Profile
30:
TIME REVOLUTIONS
.Begin pedaling to start the program.
Each custom program is divided into 30 one-
minute segments. One resistance level and one
target pace setting are programmed for each seg-
ment. Note: The same resistance level and/or tar-
get pace setting may be programmed for two or
more consecutive segments.
During the program, the program profile will show
your progress. The flashing segment of the profile
represents the current segment of the program.
The height of the flashing segment indicates the
resistance level for the current segment. At the
end of each segment of the program, a series of
tones will sound and the next segment of the pro-
file will begin to flash. If a different resistance level
is programmed for the next segment, the resis-
tance level will appear in the display for a few sec-
onds to alert you. The resistance of the pedals will
then change.
As you exercise, you
will be prompted to 42
keep your pedaling
pace near the target RPM-'_
pace setting for the cur-
rent segment. When an
upward-pointing arrow or the prompt SPEED UP
appears next to the pace information in the display
(see step 4 on page 17), increase your pace.
When a downward-pointing arrow or the prompt
SLOW DOWN appears, decrease your pace.
When no arrow or prompt appears, maintain your
current pace. IMPORTANT: The target pace set-
tings are intended only to provide motivation.
Make sure to pedal at a pace that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the OneTouch Resistance but-
tons. However, when the current segment ends,
the pedals will automatically adjust to the resis-
tance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
profile flashes and the last segment of the pro-
gram ends.
4. Change the program if desired.
If desired, you can change the program while
using it. To change the resistance level for the
current segment, simply press the OneTouch
Resistance buttons, At the end of the current seg-
ment, the new resistance level will be stored in
memory, To change the target pace for the cur-
rent segment, simply change your pedaling pace.
At the end of the current segment, your pace will
be stored in memory, You can continue exercising
and changing the program for up to thirty minutes.
18

5. Follow your progress with the display.
See step 4 on page 17.
6. Measure your heart rate if desired.
See step 5 on page 15.
7. Turn on the fan if desired.
See step 6 on page 15.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
HOW TO USE A HEART RATE PROGRAM
1. Turn on the console.
See step 1 on page 14.
2. Select a heart rate program.
To select one of the heart rate programs, press the
Heart Rate Programs button repeatedly until the
words HEART RATE 1 or HEART RATE 2 appear
in the display.
3. Enter a target heart rate setting.
A few seconds after you select a heart rate pro-
gram, the words ENTER MAX TARGET HEART
RATE FOR THIS WORKOUT will appear in the
display and the number 110 will begin to flash.
During heart rate program 1, the same target
heart rate setting will be programmed for all seg-
ments of the program. If you have selected heart
rate program 1, press the increase and decrease
buttons above the Heart Rate Programs button to
enter the desired target heart rate setting (see
EXERCISE INTENSITY on page 23).
During heart rate program 2, different target
heart rate settings will be programmed for different
segments of the program, If you have selected
heart rate program 2, press the increase and
decrease buttons above the Heart Rate Programs
button to enter the desired maximum target heart
rate setting for the program (see EXERCISE
INTENSITY on page 23).
4. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sen-
sor continuously during heart rate programs; how-
ever, you should hold the handgrip pulse sensor
frequently for the programs to operate properly,
Each time you hold the handgrip pulse sensor,
keep your hands on the metal contacts for at
least 30 seconds.
19

5. Begin pedaling to start the program.
Heart rate program 1 is divided into 40 one-
minute segments. Note: For a shorter workout,
stop exercising or select a different program
before the program ends.
Heart rate program 2 is divided into 30 one-
minute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
consecutive segments.
During the program, the program profile in the dis-
play will show your progress. The flashing seg-
ment of the profile represents the current segment
of the program. The height of the flashing segment
indicates the target heart rate setting for the cur-
rent segment. At the end of each segment of the
program, a series of tones will sound and the next
segment of the profile will begin to flash.
Profile
29 107
RPM PULSE
During both programs, the console will regularly
compare your heart rate to the target heart rate
setting for the current segment of the program, if
your heart rate is too far below or above the target
heart rate setting, the resistance of the pedals will
automatically increase or decrease to bring your
heart rate closer to the target heart rate setting.
Each time the resistance changes, the resistance
level will appear in the display for a few seconds
to alert you.
While you exercise,
you will be prompted to
maintain a constant
pedaling pace. When
an upward-pointing
arrow or the prompt
SPEED UP appears next to the pace information
in the display (see step 6 on this page), increase
your pace. When a downward-pointing arrow or
the prompt SLOW DOWN appears, decrease your
pace. When no arrow or prompt appears, maintain
your current pace.
if the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the OneTouch Resistance but-
tons. However, when the console compares your
heart rate to the target heart rate setting, the resis-
tance of the pedals may automatically increase or
decrease to bring your heart rate closer to the tar-
get heart rate setting.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
program ends.
6. Follow your progress with the display.
During heart rate program 1, the display will
show a graphic that represents a heartbeat each
time your heartbeat is detected, the elapsed time,
and the distance that you have pedaled. During
heart rate program 2, the display will show the
program profile, the time remaining in the pro-
gram, and the distance that you have pedaled.
To view the profile, your pedaling pace, and the
distance you have pedaled, press the Display but-
ton. Note: The words SPEED UP or SLOW DOWN
may appear in the display to prompt you to keep
your pedaling pace near the target pace setting for
the current segment.
To view the time remaining in the program and the
distance pedaled, press the Display button. Press
the Display button again to view the time remain-
ing and the approximate number of calories
burned.
To view the time remaining, distance pedaled,
ramp incline, number of grams of carbs burned,
and pedaling pace, press the Display button again.
Note: An upward- or downward-pointing arrow may
appear in the display to prompt you to keep your
pedaling pace near the target pace setting for the
current segment.
To view the first display again, press the Display
button again.
7. Turn on the fan if desired.
.
See step 6 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
20
