NRS Healthcare M48453 Rise Easy Width Adjustable User manual

CONTENTS
General Safety Warning
Please ensure these instructions are fully read and understood
before installation/use. Retain in a safe place for future reference.
User Instructions
M48453 Rise Easy Width Adjustable
Mattress Elevator

CONTENTS
1. INTRODUCTION
2. SAFETY PRECAUTIONS
3. INTENDED USE
4. PRODUCT DESCRIPTION
5. UNPACKING
6. INSTALLATION INSTRUCTIONS
7. OPERATING INSTRUCTIONS
8. FAULT FINDING
9. CARE AND MAINTENANCE
10.GUARANTEE
11.SPARE PARTS LIST
12.IMPORTANT INFORMATION
13.TECHNICAL INFORMATION

1 – Introduction
Thank you for purchasing the NRS Rise Easy Mattress Elevator. This product is
designed to give many years continued service if properly used and maintained. If you
have any problems or need advice regarding the product, please contact your supplier
immediately. Alternatively, you can contact:
NRS Healthcare: 0345 121 8111 or Email: [email protected]
Before fitting the Rise Easy mattress elevator please ensure these instructions are fully
read and understood.
2 - Safety Precautions
The Mattress Elevator has a safe working load of 40st (254Kg) total body
weight
The Mattress Elevator must be assembled correctly according to the following
assembly instructions and must be used in accordance with the instructions
provided.
The Mattress Elevator must be sitting stable and square to the bed.
Check all securing straps are properly secured as described in section 6
If the straps have been undone at any time always ensure they are re-secured
before use.
Before operating the product always check for any obstacles which may impede
the mechanism
Do not allow children to play with or operate the device
When the product is not in use, disconnect the power from the mains supply.
Keep all parts of your body clear from the lifting mechanism.
Do not use any liquid or damp materials to clean electrical or mechanical parts.
Always disconnect the mains plug prior to moving or cleaning.
Ensure all plugs and electrical points are safely wired, dry and free from damage.
Do not use if any cable or electrical connection is damaged.
Do not operate the handset with wet hands, sharp or heavy objects.
3 – Intended Use
The Rise Easy Mattress Elevator is designed to fit most types of divan bed; it is width
adjustable so that one size fits single and double beds. From 2' 6" (762mm) to 5' 0"
(1524mm). Some types of beds e.g. metal framed, may not be suitable, if you are in any
doubt, please contact your supplier before use.
Note the Rise Easy Mattress Elevator is not suitable for use with;

Orthopaedic Mattresses.
Slatted or sprung base divan beds
Not to be used in conjunction with any form of electric under blanket.
The Rise Easy Mattress elevator is designed for use in the home, residential care and
nursing homes.
It should be noted that with prolonged use some damage to the mattress may occur. In
such circumstances, a special mattress is available. Details of which can be obtained
by contacting NRS Customer Services.
4 – Product Description
General;
The Rise Easy Mattress Elevator is designed to allow those confined in bed for long
periods to sit or lie comfortably with a higher degree of independence.
The Mattress Elevator smoothly rises and reclines, the angle adjustment is operated via
a simple to use hand control.
Frame; The Rise Easy Mattress Elevator is constructed from high quality steel tube and
plate with a powder coat paint finish.
The raising and lowering action is via an actuator, which comes ready fitted. The
mechanism has a built in anti crush device as standard. This device reduces the risk of
entrapment between the base and pivoting section of the unit. You must, however use
caution and take care when using the product
Handset; The product is operated via the simple to use, ergonomically designed, hand
control. It has easy touch buttons with clear arrows for raising and lowering the unit.
Straps; The unit is fixed to the bed with four sets of straps and buckles which come
ready assembled to the frame. Note the straps may limit access to divan drawers once
fitted. If this is the case the straps can temporarily be undone, but must be properly re-
secured immediately. Do not operate the Mattress elevator if all the straps are not
securely fastened.
5 – Unpacking
Note: the packaging for this product is purpose built and should be retained if possible.
Check all parts carefully before installing/using the product. Do not fit if any of the parts
are damaged or missing. (See Contents list)
If you have a problem, contact your supplier to have the product returned.
The Rise Easy Mattress Elevator is pre-assembled and ready to be fitted to the bed.

CONTENTS LIST
ITEM
DESCRIPTION
QTY.
1
Mattress Elevator assembly
1
2
Actuator Control Box (Fitted)
1
3
Hand control with cable (Fitted)
1
4
Black Strap – Short (Fitted)
2
5
Grey Strap – Long (Fitted)
2
6
Pin Clip
2
7
User Instructions (This Booklet)
1
8
Packing list and Test Certificate
1
6 – Installation Instructions
It is recommended that a fitted bottom sheet and a duvet are used in conjunction with
the Mattress Elevator.
6.1 - Remove the mattress from the bed. Position the bed away from any wall or obstacle,
if possible, to allow greater access to fit the mattress Elevator.

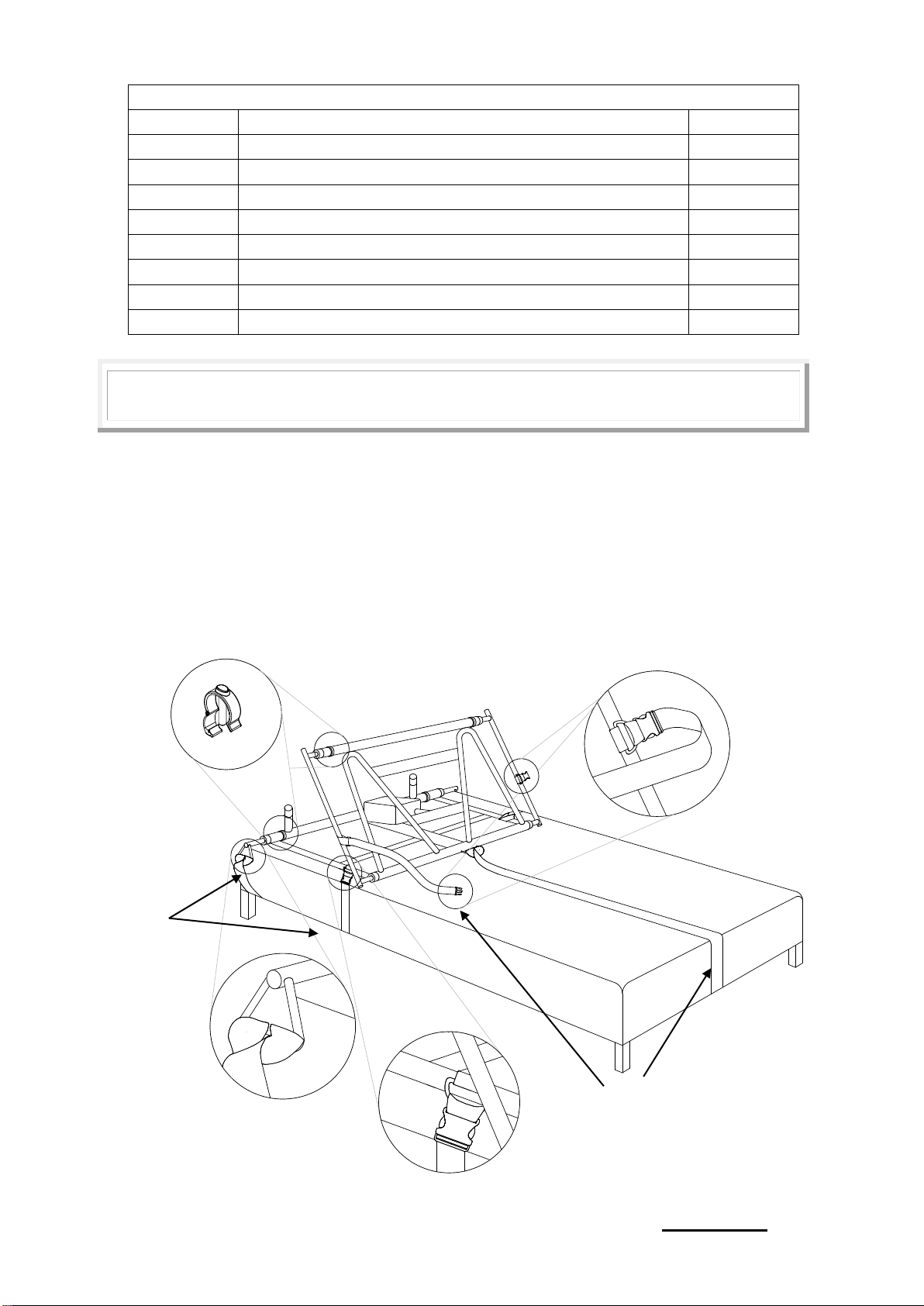

6.2 - Place the mattress elevator on the bed squarely, as shown in Diagram - 1
Diagram 1
A
D
C
B
Detail B shows
Locking Clip fastened
Black
Straps x2
Grey
Straps
x2

6.3 – Position the side extension bars fitted to the rear of the Mattress Elevator (Refer
to Detail A) by pulling out each bar to the desired bed width, turn the tubes so that the
triangular sections are pointing downwards (Refer to Detail C), ensuring that you do not
exceed the last punched hole on the extensions. Align the holes in the tubes and secure
with the two pin clips supplied. Ensure the clips pass completely through the frame and
extension bars and the hinged part of the clip is securely clipped in place.
6.4 - Remove the two pin clips which secure the two side extenders on the top of the
unit (Refer to Detail A). Pull out the extenders so that they are level with the edge of the
bed ensuring that you do not exceed the last punched hole on the frame. Re-insert the
two pin clips as described above.
WARNING: Do not extend beyond the sides of the mattress, as this will reduce the
supported area of the mattress.
Fitting to all bed size range - 2' 6" (762mm) to 5' 0" (1524mm)
6.5 - Take the black webbing strap, fitted to the rear, triangular, section of the frame,
check it is securely fastened, then pass underneath the bed. Fasten the snap clip fitted
to the other triangular section of the frame. Tighten the webbing strap.
6.6 - Repeat the above procedure with the second black webbing strap, fitted to the
frame at position D (Diagram1) again making sure the strap is secure and tightened.
6.7 - Next take the grey strap fitted to the centre front of the elevator frame and pass
down to the foot of the bed and then pass underneath. Fasten to the snap clip fitted to
the centre rear section of the frame. Tighten the webbing strap.
6.8 - Replace the mattress and using the final grey strap, fitted to the side extension,
pass across the top of the mattress and fasten to the snap clip fitted to the other frame
extension bar and tighten the webbing strap (see Diagram 2)
6.9 - The bottom sheet may now be fitted.
Diagram 2
E
F

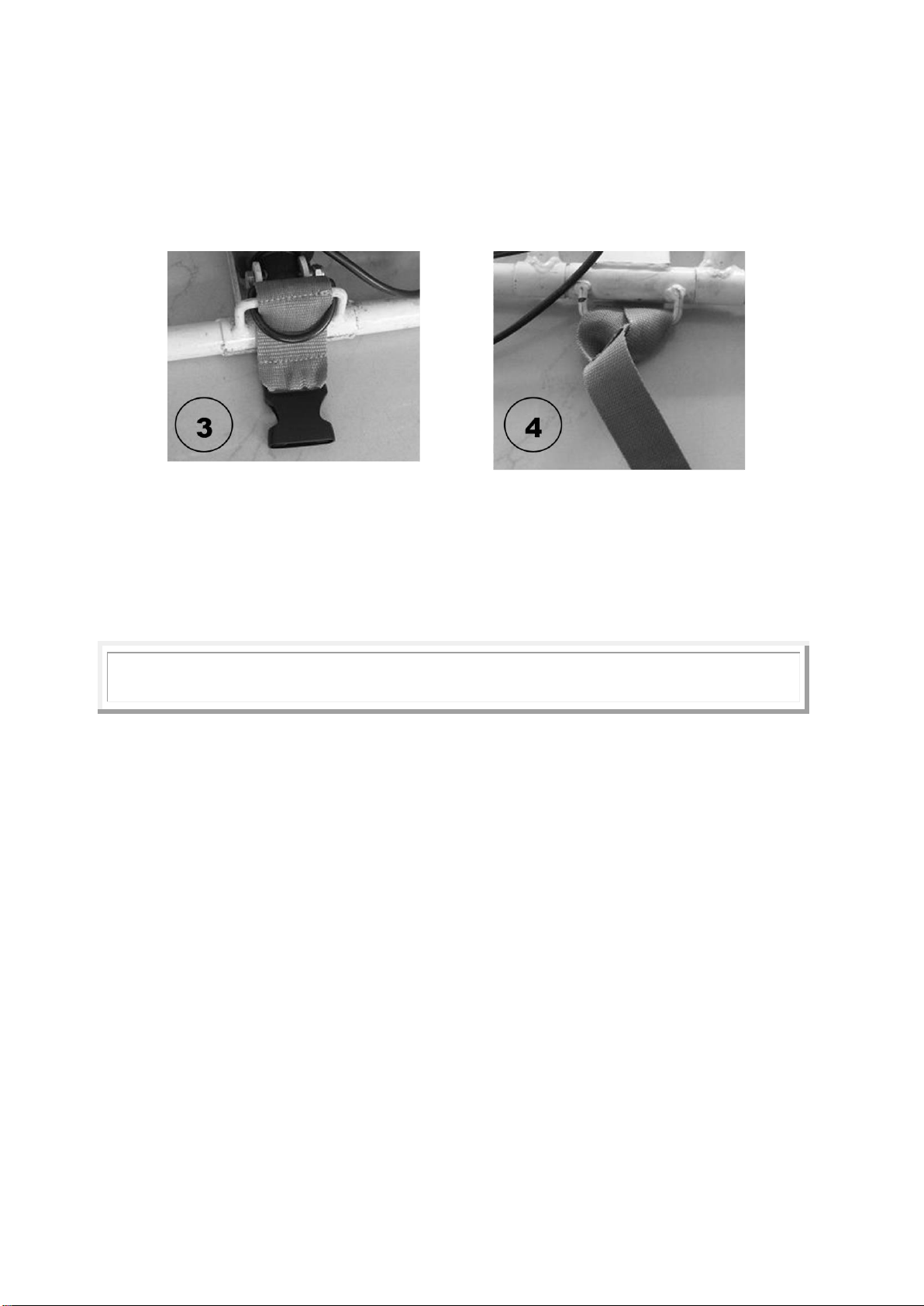

6.10 - To replace webbing strap.
Attach the short end as shown in picture 3 by passing the clip end of the strap through
the frame and then through the plastic “D” ring and pull tight.
Attach the long end of the strap by making a loop through the plastic buckle, then pass
this end through the frame and feed the clip end through the loop and pull tight as shown
in picture 4
Connection to the Power Supply
The Rise Easy Mattress Elevator is supplied ready for Use.
Before connecting to the mains check the supply voltage is the same as that shown on
the control box.
Connect the 13 amp (fused at 3-amp max.) 3 pin plug to the mains.
7 – Operating Instructions
ALWAYS check there are no obstructions before operating the Mattress Elevator.
7.1 – Hold the handset in the correct orientation, with the cable below. Press and hold
the “↑ Button” until the desired angle is reached. Note; the actuator will switch off
automatically if the maximum angle is reached.
7.2 – To lower the mattress. Press and hold the “↓ Button” on the handset. Note; the
actuator will switch off automatically when the lowest position is reached.
Warning: Keep limbs and other body parts clear of all moving parts when operating the
mattress elevator, and make sure there are no obstructions when lowering the frame.
In the event of an obstruction, the unit is fitted with an anti-crush device, which prevents
any further movement of the mechanism. STOP pressing the button immediately. Note;
the motor will keep running if the button remains pressed, but there will be further
movement.
Remove the obstruction and the product will operate as described above.
Never repeatedly operate a push button if the frame fails to move, i.e. It is jammed, as
this can damage the actuator.

8 – Fault Finding
PROBLEM
POSSIBLE CAUSE
REMEDY
Backrest stops
sporadically
Safe working load
exceeded
Follow safe maximum load
guidelines
Possible fault to the
actuator, control box or
handset
Call your engineer for help
Mains cable loose
Check and make sure the
cable is fitted securely
Handset loose
Check connection and
push securely into handset
socket on actuator
Mattress Elevator is noisy
in operation
Actuator needs running in
Run unit a few times to
seat the actuator
Actuator is running, but
the unit is not moving
Anti-crush device has
operated
Faulty actuator or
handset
Remove obstruction
Call your engineer for help
Actuator not running or
lifting
Mains cable not plugged
in
Check mains cable is
plugged in
Handset not plugged in
Check handset is plugged
in
No power supply to the
unit
Check mains supply/
check fuse in plug
Unit moves away from the
bed when raising
Straps to base widthways
and lengthways are not
tight enough
Tighten straps
Mattress creeps down the
bed and overhangs the
base
Mattress strap is not tight
enough
Tighten mattress strap

9 – Care and Maintenance
The Following section is a guide to the recommended care and maintenance procedure
for the Mattress elevator; it should be carried out thoroughly and at regular intervals.
Visual check:
Check the anchor straps are under tension, and in good condition, and the frame is
positioned correctly on the bed.
Check the frame, control box and handset for wear or damage
Check that all pivot points are free to rotate
Check all welds are sound and there is no evidence of damage
Operational check:
Ensure all parts are moving freely
Complete a full cycle of operation; movement should be smooth with no interruptions.
Cleaning:
Before cleaning ensure the mains plug is removed from the wall socket. DO NOT wet
any of the electrical components.
Clean regularly, use a general purpose, neutral detergent and warm water. Do not use
an abrasive detergent, cleaner or cloth to clean or dry this product. To disinfect, wipe
with a mild chloride disinfectant (solution of 1000 ppm)
If you are in any doubt regarding the maintenance of this product, please contact
customer services.
10 – Guarantee
NRS Healthcare, guarantee this product for a period of 12 months from the date of
purchase against faulty materials and workmanship. This guarantee does not cover,
abuse, misuse, interference or tampering with any part of the product.
Any guarantee issued by NRS Healthcare does not affect your statutory rights.
11 – Spare Parts List
SPARE PARTS LIST
M53059
Strap Set
M53060
Handset
M53072
Actuator and Control box
M53084
Transformer

12 – Important Information
The information given in these User Instructions must not be taken as forming part of or
establishing any contractual or other commitment by NRS Healthcare, its agents or
subsidiaries and no warranty or representation concerning the information is given.
Please use common sense and do not take any unnecessary risks when using this
product. As the user you must accept liability for safety when using the product.
13 – Technical Information
TECHNICAL SPECIFICATION
PRODUCT TITLE
Rise Easy Mattress Elevator
PRODUCT WEIGHT
16.5kg (36lb)
SAFE WORKING LOAD
254kg (40 Stones) Total Body Weight
OVERALL SIZE MINIMUM
(W x D x H) 762 x 715 x 155mm
35” x 28” x 6” (Including Actuator)
OVERALL SIZE MAXIMUM
(W x D x H) 1525 x 715 x 780mm
581⁄2 " x 28” x 6” (Including Actuator)
ANGLE OF TILT
10° min.
67°max.
Range:57°
CONTROL BOX OUTPUT
VOLTAGE
24v DC 10A Nominal
CONTROL BOX INPUT VOLTAGE
220v/240v 50 Hz
Handset and actuator approved to EN 50081-1 1992-01-31 and EN 50082-1-
1992-30
Actuator and handset housing to IP 54 water ingress
Electric shock resistance and protection to Class II
Actuator and handset tested to EN 60601-1996-03
Mains cable with 13amp, 3 pin plug. Fuse to 3 amp only

Waste Electrical and Electronic Equipment
The Waste and Electronic Equipment Regulations 2006 (WEEE Regulations) came into
effect in the United Kingdom on 1st July 2007. The Regulations have been designed to
prevent/reduce the amount of waste electrical and electronic equipment by promoting
its reuse, recycling and recovery. The separate collection of WEEE saves energy and
resources and avoids hazardous materials going into landfill.
Products which are covered by WEEE regulations have a crossed out Wheelie Bin
symbol on either the product itself or its packaging. This symbol aims to encourage you
to identify and dispose of WEEE products separately from other waste when it reaches
its end of life.
For business purchasers:
NRS is registered with the B2B Compliance Scheme (Registration Number
WEE/BK0050TZ). For further details please call the B2B Compliance scheme directly
on 01691 676 124
For domestic purchasers:
NRS is registered with the WEEE Distributor Take Back Scheme (Registration Number
7236). For further details on how to dispose of your equipment please go to the scheme
website www.recycle-more.co.uk or contact the recycle-more helpline on: 08450
682572 for information on your nearest WEEE collection point. (Please have your post
code available).
Note: If you have an old electrical or electronic product that has reached its end of life
you can deposit it free of charge for segregation and recycling at Civic Amenity Sites
which are registered as Designated Collection Facilities for WEEE.
NRS Healthcare
Sherwood House, Cartwright Way, Forest Business Park, Bardon Hill,
Coalville, Leicestershire, LE67 1UB UK
Tel. Main Office: 0330 100 00 98
Tel. Customer Services: 0845 120 4522
Email: [e-mail]
NRS Healthcare is a Leading Supplier of Community Equipment and
Daily Living Aids, to view our full range, visit our website:
www.nrshealthcare.co.uk
UI/M48453/Iss6/05/17
