Nuna rebl User manual

instruction manual
Rearward Facing:
Child height 40cm–105cm/ Child weight≤19.5kg;
Forward Facing:
Child height 80cm–105cm/ Child weight≤19.5kg;
i-size child restraint

3
Thanks for
choosing Nuna!
Nuna designs distinctive, smart and exciting products.
" i-Size" (Integral Universal ISOFIX Child Restraint
Systems) is a category of child restraint system for
use in all i-Size seating position of a vehicle.
Not all vehicle manufacture's handbooks list i-Size
compatibility yet. This child restraint and base are also
approved for use in ISOFIX compatible vehicles. Please
refer to the vehicle manufacturer's website or consult
your dealer.
cm
kg

1
Illustrations
1
2
1
2 3
1
2 3
A
I
R
B
A
G
1 2
3
3

2
4
5
12
2
6
1
7
8
9
2
2
1
1 2

3
Illustrations
14
15
10
12
11
1
13 2
1

4
17
16
18
19
20
21

5
Illustrations
23 26
24
25
1
2
22

6
27
28 31
30
29 32

7
34

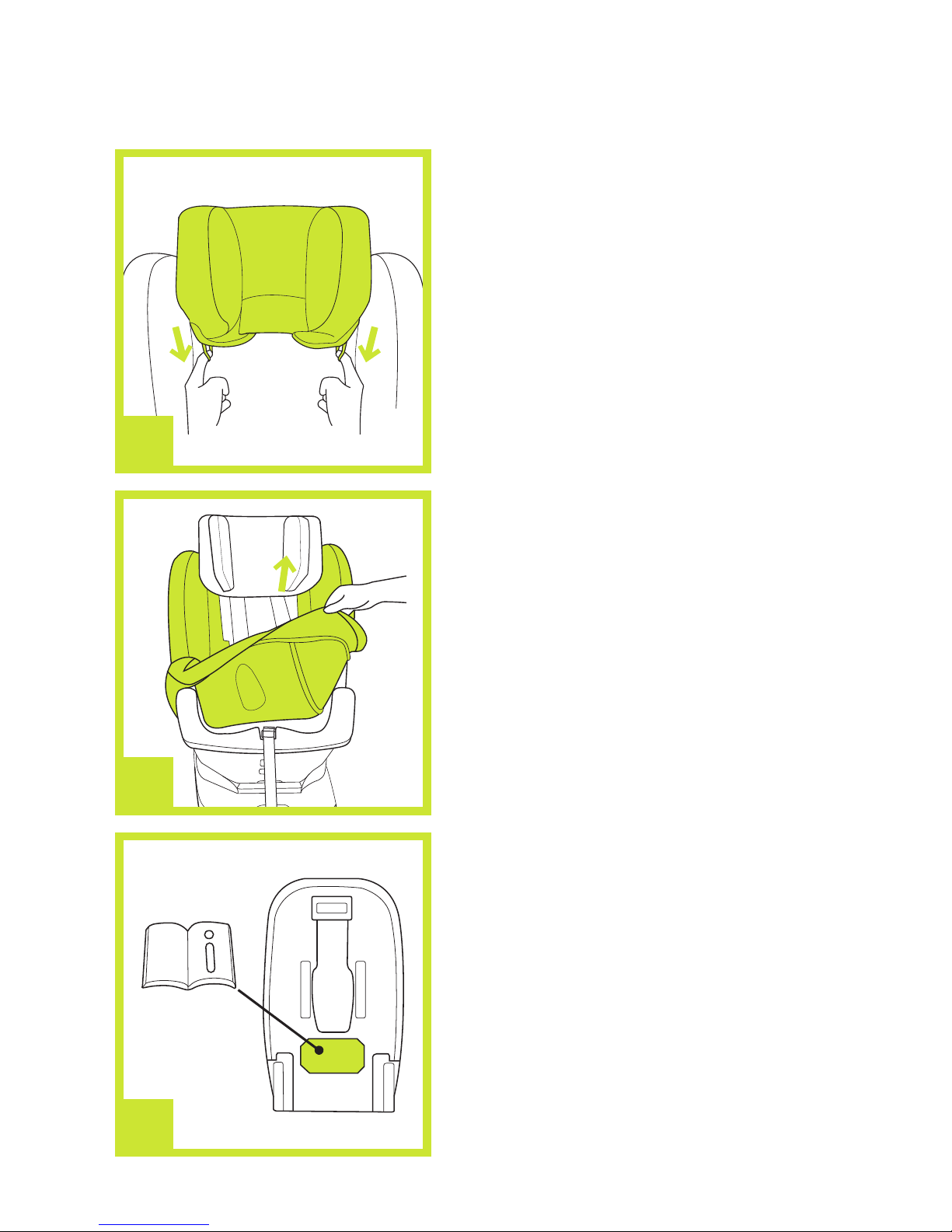

Illustrations
35
33

EN
10
Contents
Illustrations 1-7
English (EN)
Safety and recommendations 11
Product Information 12-13
Parts list 14
Warning 15-18
Installation concerns 19
Contents of the box 19
Choose the Installation Mode 20
Installation with base 21-22
Recline Adjustment 22
Baby Mode 22-23
Height Adjustment 23
Securing child 23-24
Toddler Mode 25
Securing child 25-26
Detach soft goods 26
Cleaning and maintenance 27
Warranty and service 28-29
Where to find Nuna products 30
French (FR) 31
Dutch (NL) 53
German (DE) 75
Italian (IT) 97
Spanish (ES) 119
Türkiye (TR) 141

EN
11
Safety and
Recommendations
Please take note of the following before using the REBL™ i-size
child restraint.
To use this child restraint with the i-Size ISOFIX connections
according to the ECE R129/00 Regulation, your child must meet
the following requirements.
Rearward Facing: Child height 40cm–105cm/ Child weight≤19.5kg;
Forward Facing: Child height 80cm–105cm/ Child weight≤19.5kg;
If you have any questions or comments regarding the Rebl child
restraint, we will be glad to hear them through our website - nuna.eu
Please keep the instruction manual in the storage compartment at
the bottom of the child restraint. (35)
IMPORTANT! RETAIN FOR
FUTURE REFERENCE. READ
CAREFULLY.
Read these instructions carefully before use and keep them for
future reference. Your child’s safety may be affected if you do
not follow these instructions.

EN
12
Product Information
1 According to the ECE R129/00 Regulation, the child restraint
with base is a Universal ISOFIX Class B1, D Child Restraint and
should be fitted using the ISOFIX connections.
2 This is an "i-Size" Child Restraint System. It is approved to
Regulation ECE R129/00, for use in, "i-Size compatible" vehicle
seating positions as indicated by vehicle manufacturers in the
vehicle users’ manual.
3 If in doubt, please consult the child restraint manufacturer or
the retailer.
ECE. R129/00
i-Size UNIVERSAL
ISOFIX
Rearward facing
40cm-105cm
≤19.5kg
Forward facing
80cm-105cm
≤19.5kg
000005

EN
13
For Installation with i-Size ISOFIX System
This is an i-Size ISOFIX Child Restraint SYSTEM. It is approved to
ECE R129/00 series of amendments, not all vehicle manufacture's
handbooks list i-Size compatibility yet. This child restraint and base
is also approved for use in ISOFIX compatible vehicles. Please
refer to the vehicle manufacturer's website or consult your dealer.
It will fit vehicles with positions approved as i-Size ISOFIX
positions (as detailed in the vehicle handbook), depending
on the category of the child restraint and of the fixture. If in
doubt, consult either the child restraint manufacturer or vehicle
manufacturer.

EN
14
1 Head Support
2 Infant Insert
3 Seat Pad
4 Adjustment Webbing
5 Recline Adjustment
Button
6 Load Leg Adjustment
Button
7 Load Leg
8 Load Leg Indicator
9 Load Leg Adjustment
Button
10 ISOFIX Releasing Button
11 Rotating Button
12 Buckle
13 Shoulder Strap
14 Head Support
Adjustment Lever
15 Rebound Bar
16 ISOFIX Connector
17 ISOFIX Guides
1
2
4
5
6
7
89
10
11
12 14
15
16
3
17
Parts List
13

EN
15
Warning
NO child restraint can guarantee full protection
from injury in an accident. However, proper use of
this child restraint will reduce the risk of serious
injury or death to your child.
To use this child restraint with the ISOFIX
connections according to the ECE R129/00
Regulation, your child must meet the following
requirements.
Rearward Facing: Child height 40cm–105cm/ Child
weight≤19.5kg;
Forward Facing: Child height 80cm–105cm/ Child
weight≤19.5kg;
Any straps of child restraint should be tightened
and not twisted.
DO NOT use forward facing before the child’s age
exceeds 15 months. Keep your child rearward
facing as long as possible as rearward facing is the
safest position.
DO NOT install this child restraint without following
the instructions in this manual or you may put your
child at serious risk of injury or death.
NEVER leave your child unattended with this child
restraint.
DO NOT make any modification to this child
restraint or use it along with component parts from
other manufacturers.
DO NOT use this child restraint if it has damaged or
missing parts.

EN
16
DO NOT have your child in large/oversized clothes
because this may prevent your child from being
properly and securely fastened by the shoulder
harness straps and the crotch strap between the
legs.
DO NOT leave this child restraint or other items
unbelted or unsecured in your vehicle because an
unsecured child restraint can be thrown around and
may injure occupants in a sharp turn, sudden stop,
or collision.
DO NOT place rear-facing child restraint on frontal
seat with air bag. Death or serious injury may occur.
Please reference vehicle owner’s manual for more
information.
NEVER use a second-hand child restraint or an
child restraint whose history you do not know
because they may have structural damage that
endangers your child’s safety.
NEVER use ropes or any other substitutes to
secure child restraint in vehicle or to secure child
into child restraint.
DO NOT use this child restraint without the soft
goods.
The soft goods should not be replaced with
any besides the ones recommended by the
manufacturer. The soft goods constitute an integral
part of the child restraint performance.
DO NOT put anything other than the recommended
inner cushions in this child restraint.

EN
17
Be sure that the child restraint is installed in such a
way that no part of it interferes with movable seats
or in the operation of vehicle doors.
DO NOT continue to use this child restraint after it
has suffered any type of crash, even a minor one.
Replace immediately as there may be invisible,
structural damage from the crash.
Remove this child restraint from the vehicle seat
when it is not in regular use.
Consult the distributor for issues concerning
maintenance, repair and part replacement.
To avoid the risk of falling out, always secure the
child using the safety harness when the child
is placed in child restraint, even when the child
restraint is not in the vehicle.
Before carrying the child restraint by hand, ensure
that the child is fastened with the safety harness,
and that the handle is correctly locked in a vertical
position.
To avoid serious injury or death, NEVER place child
restraint on elevated surface seat with child in it.
The parts of this child restraint should not be
lubricated in any way.
Always secure child in child restraint, even on short
trips, as this is when most accidents occur.
DO NOT use this child restraint for more than 5
years after the purchase date as parts may degrade
over time, or from exposure to sunlight, and may
not perform adequately in a crash.

EN
18
Please keep this child restraint away from sunlight,
otherwise it may be too hot for child’s skin. Always
touch the child restraint before placing child in it.
Frequently check the ISOFIX guides for dirt and
clean them if necessary. Reliability can be effected
by ingress of dirt, dust, food particles etc.
DO NOT place any objects in the load leg area in
front of your child restraint.
Correct Installation is only permitted by use of the
ISOFIX connectors.
After your child is placed in this child restraint,
the the child harness must be used correctly, and
ensure that any lap strap is worn low down, so that
the pelvis is firmly engaged.
DO NOT use any load bearing contact points
other than those described in the instructions and
marked on the child restraint.
Must use the rebound bar.

EN
19
Installation
Concerns
DO NOT install this child restraint on vehicle seats
that face sideways (1) or rearward (1) with respect
to the moving direction of the vehicle.
DO NOT place rear-facing child restraint on front seat
with air bag. Death or serious injury may occur. (1)
Please reference vehicle owner’s manual for more
information.
It is recommended to install this child restraint on the
rear vehicle seat. (1)
This child restraint is suitable for vehicle seats with
i-Size ISOFIX anchor points. (2)
DO NOT install this child restraint on vehicle seats
unstable during installation.
Contents
of the Box
Child Restraint
Tools Needed: None

EN
20
Choose the
Installation Mode
Installation
Mode InstallationRecline Position
1-7
1-7
Baby
mode
Toddler
mode
Child height 40cm–105cm/
Child weight≤19.5kg
Child height 80cm–105cm/
Child weight≤19.5kg
