Nustep T5 Instruction sheet

NuStep, Inc. ●5111 Venture Drive, Ann Arbor MI 48108 USA ●800-322-4434
53516 Foot Secure System Instruction, Rev C

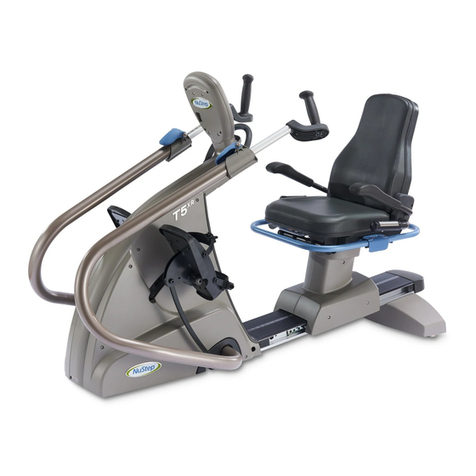

How to Install the Foot Secure System on a NuStep® T5 / T5XR
Right foot pedal shown in instruction.
Tools Required Accessory Kit Parts
10 mm wrench (2) 50801 Assembly – Ankle Strap
(2) 50802 Assembly – Toe Strap
(8) 51455 Bolt-Hex, M6x1x12

Place hex bolt through 1
st
hole to attach toe buckle strap to inside top hole of
footpedal. Place hex bolt through 2
nd
hole to attach ankle buckle strap to inside
bottom hole of footpedal. Attach ladder straps to outside using hex bolts.

Tighten hex bolts with 10 mm
wrench-D
O NOT OVERTIGHTEN!
Tighten only until hex bolt bottoms
out. All straps will be loose with a
slight gap. If over tightened, hex
bolt may damage the threaded
insert in the pedal.

Feed ladder strap end into buckle
strap end.
The completed assembly of the
right footpedal is shown far right.

Complete left footpedal with buckle straps on inside, ladders straps on outside.
Ankle
Ladder straps
Gap
Toe
Buckle straps

NuStep, Inc. ●5111 Venture Drive, Ann Arbor MI 48108 USA ●800-322-4434
53516 Foot Secure System Instruction, Rev C
How to Use and Store the Footstraps on a NuStep® T5 / T5XR
Right foot pedal shown in instruction.
To Use
Simply place foot on the
footpedal and ratchet straps
down using black lever.
Tip –
BLACK lever = BUCKLE strap.
RED lever = RELEASE strap.
To Store
Simply keep straps buckled in
place, or place toe strap behind
pedal and ankle strap under heel
cup and ratchet till snug.
Do not store straps unbuckled
as they will scrape against
cover. Do not remove straps
from pedals for storage.
To Increase Heel Height
Ankle strap may be tightened
down slightly higher than rear
heel to add extra heel height.
Materials:
EVA foam padding, PU strapping,
rubber, nylon. Latex Free.
Care Guide:
Use an all-purpose non-abrasive, non-
bleach cleaner and a soft cloth.
CAUTION
Foot restraint.
User may not be able to
remove foot once installed.
To avoid injury, do not over
tighten straps.
Supervise use of product.
!
