1 Introduction
The Nu-LB-Nano130 is an evaluation board for NUVOTON’s Cortex™-M0 based Nano100 series
microcontrollers, and provides a complete development environment for Nano130 microcontrollers which has
8/16K-byte internal SRAM and 32/64/128K-byte embedded flash, build-in 1.8V LDO, integrated
LCD 4x40 dots, USB 2.0 full-speed port, RTC, 12-bit SAR ADC, 12-bit DAC, capacitive Touch-Key and
provide high performance connectivity peripheral interfaces such as UART, SPI, I2C, I2S, GPIOs, EBI
(External Bus Interface) and ISO-7816-3 for Smart card. It supports Brown-Out Detector, power down mode
with RAM retention and fast wake up via all peripheral interfaces.
The Nu-LB-Nano130 learning board is similar to other development boards. Users can use it to develop and
verify applications to emulate the real behavior. The on-board chip covers Nano130 series features. The Nu-LB-
Nano130 can be a real system controller to design users’ target systems.
This user manual provides information about hardware features and information about using this learning board.
The following figure shows the Nu-LB-Nano130 board.
Figure 1-1 Nu-LB-Nano130 Board (Red)

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 4 of 60
Nu-LB-Nano1301.1
The Nu-LB-Nano130 is built around the NuMicroTM Nano130 MCU and provides versatile external devices
such as one SPI flash for data storage, one SD card slot supported by SPI port1, one I2C interface serial
EEPROM, one UART port with a RS-232 level shifter for console connection (UART0) and one 5-pin SWD
interface for ICE debugging.
The following lists the main components of the Nu-LB-Nano130 board:
Main Components:
1. MCU:NuMicroTM Nano130 MCU, which can run up to 32MHz operating speed.
2. GPIO extension slot: GPIO extension slots that support all the GPI/O pins interface.
3. AUDIO: On-board WAU8822 audio codec.
4. I2CEEPROM:On-board 24LC64 I2C E2PROM.
5. SPI FLASH:On-board 25Q16 SPI serial FLASH for data storage.
6. UART: UART port0 connecting to Male type DSUB-9 connector.
7. SD card Slot:One SD card slot supported by SPI port1.
8. Smart card Slot:One Smart card slot supported by SMC port1.
9. Nu-Link ICE bridge: On-board ICE bridge parts.
10. SWD connector:One 5-pin SWD ICE port for ICE connection.
11. LCD connector: Supports TN/STN LCD glass and TFT LCM module.
12. Touch Pads:5-key slider and 2-key touch pads onboard.
13. DC power jack: 5V/1A power adapter input.
12. LDO: A 5V to 3.3V/1A LDO that supports Nano130 and on-board devices.

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 5 of 60
1.1.1 PCB Placement and Connectors Location
This section provides board placement and peripheral connectors’ information for using the Nu-LB-Nano130
board. The following figure shows the connectors’ location of Nu-LB-Nano130 board.
Figure 1-2 PCB Placement of Nu-LB-Nano130 Board
J1
J2
J3
JR1
JR2
CON2
CON4
CON3
DH2

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 6 of 60
AUDIO Line-in connector: J1
Audio Line-in connector of WAU8822
AUDIO HP out connector: J2
Stero audio HP output of WAU8822
AUDIO SPK out connector: J3
Speaker output of WAU8822
R11
100K
CC6
C/C,1uF
R12
5.6K
LINE_PLUG_INn
CC8
C/C,1uF
L2
R2
J1
PJK-634
PHONE-PJK-631
C
E
F
D
A
B
G
CC9
C/C,220pF
R13
5.6K
ADAVSS
ADAVSS
CC7
C/C,220pF
VCC_P
R16
5.6K
PA12
ADAVSS
R15
5.6K
CC12
C/C,TBD
HP_LOUT
VCC_P
J2
PJK-634
PHONE-PJK-631
C
E
F
D
A
B
G
CC11
C/C,TBD
HP_ROUT
ADAVSS
ADAVSS
CT1
T/C,100uF
R14
100K
ADAVSS
CT2
T/C,100uF

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 7 of 60
LCD interface: JR1,JR2
LCD interface for connecting LCD glass and TFT LCM board.
SMC Port 1 connector: P1
SMC Port 1 interface.
J3
2PX1
1
2
ADAVSS
ROUT
LOUT
CC15
C/C,TBD
CC14
C/C,TBD
ADAVSS
GND
COM2
nCS/SEG10
AD1/SEG25
nWE/SEG22
SEG16
JR1
CONN RECT 10x2
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
SEG14
COM0
nRE/SEG23
SEG27
GND
SEG19
VCC_PVCC_P
AD0/SEG24
VCC_P
COM1
SEG17
GND
AD8/SEG38
AD2/SEG32
AD3/SEG33
VCC_P
AD5
JR2
CONN RECT 15x2
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
SEG9AD7/SEG37 SEG8
ALE/SEG11
LCD connectors
SEG3
COM3
SEG15AD4
SEG18
SEG1
AD6/SEG36
SEG0
GND
SEG2
R41
100K
VCC_P
GND
SC1_PRES
GNDGND
SMC1(Smart Card)
SC1_DAT
SC1_CLK CLK
RST
SC1_RST
R44
10K
CC62
C/C,0.1uF
R42
10K
R43
10K
P1
SM Card Slot
10
9
C4
C3
C2
C1
C8
C7
C6
C5
S2
S1
C4
C3
C2
C1
C8
C7
C6
C5
CC61
C/C,1uF
VCC_SMC
GND
VCC_SMC
DAT
VCC_SMC

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 8 of 60
SD card slot: J7
SD card interface (SPI mode only) connected to SPI port1.
SWD connector: DH2
5-pin SWD interface for Nano130.
USB Device connector: CON2
Mini-B type USB connector.
SPISS10
GND
FB7 FB
SPI1CLK CC42
C/C,1uF
Operating voltage:
3.1V~3.6V
GND
SD_CTL
LED3
GREEN_LED
1 2
GND
R49 22
Source
CC69
TBD
GND
SD_VCC
(P-FET)
GND
GND
R46 220
Drain
SD_VCC
Gate
R50 100K
SPIMOSI10
R45 33
VCC_P
VCC
SD_VCC
SD_CD
FB9 FB
SPIMISO10
J7
SD/MMC SOCKET
8
7
6
5
4
3
2
1
9
10
11
12
13
14 15
RSV
DO
VSS
CLK
VDD
VSS
DI
CS
RSV
WP
GND
GND
CD# HOLD HOLD
SD_PWR_ON
CC66
C/C,1uF SPI1CLK
Q2
Si2301ADS1
3 2
SPIMOSI10 RP2 8P4R-4.7K
1 8
2 7
3 6
4 5
SD_INT
CC65
C/C,0.1uF
SPI1(SPI-SD)
SPISS10
SPIMISO10
CC67
C/C,0.1uF
ICE_DAT
DH2
HEADER 5
1
2
3
4
5
VCC
GND
ICE_RST
ICE_CK

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 9 of 60
Power adapter input: CON3
5V/1A power adapter input connector.
UART Port 0 connector: CON4
UART port 0 with RS-232 level shifter for debug console.
USB_D+
CC38
TBD
R36 27
GND
USB Device
USB_D-
CC39
TBD
R37 27
USB5.0V
GND
CON2
USB MINI-B RECEP.
1
2
3
5
46 7
8
9
VBUS
D-
D+
GND
ID Shield Shield
Shield
Shield
5V Power
Adpater
GND
CON3 Power CON
1
2 3
IN
GND GND
GND
VDD5.0V
CON4
DB9_MALE
1
6
2
7
3
8
4
9
5
10
11
GND
RS232_RXD0
RS232_TXD0

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 10 of 60
Nu-Link ICE Bridge Parts1.2
The Nu-Link-Me is a Debug Adaptor which connects your PC's USB port to your target system (via Serial
Wired Debug Port) and allows you to program and debug embedded programs on the target hardware. To use
the Nu-Link-Me Debug adaptor with IAR or Keil, please refer to “Nuvoton NuMicro™ IAR ICE Driver User
Manual“or “Nuvoton NuMicro™ Keil ICE Driver User Manual” for details. The two documents will be stored
in the local hard disk when user installs each driver. Please refer to the following figure for Nu-Link ICE bridge
parts on the Nu-LB-Nano130 board.
Figure 1-3 Nu-Link ICE Bridge Parts

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 11 of 60

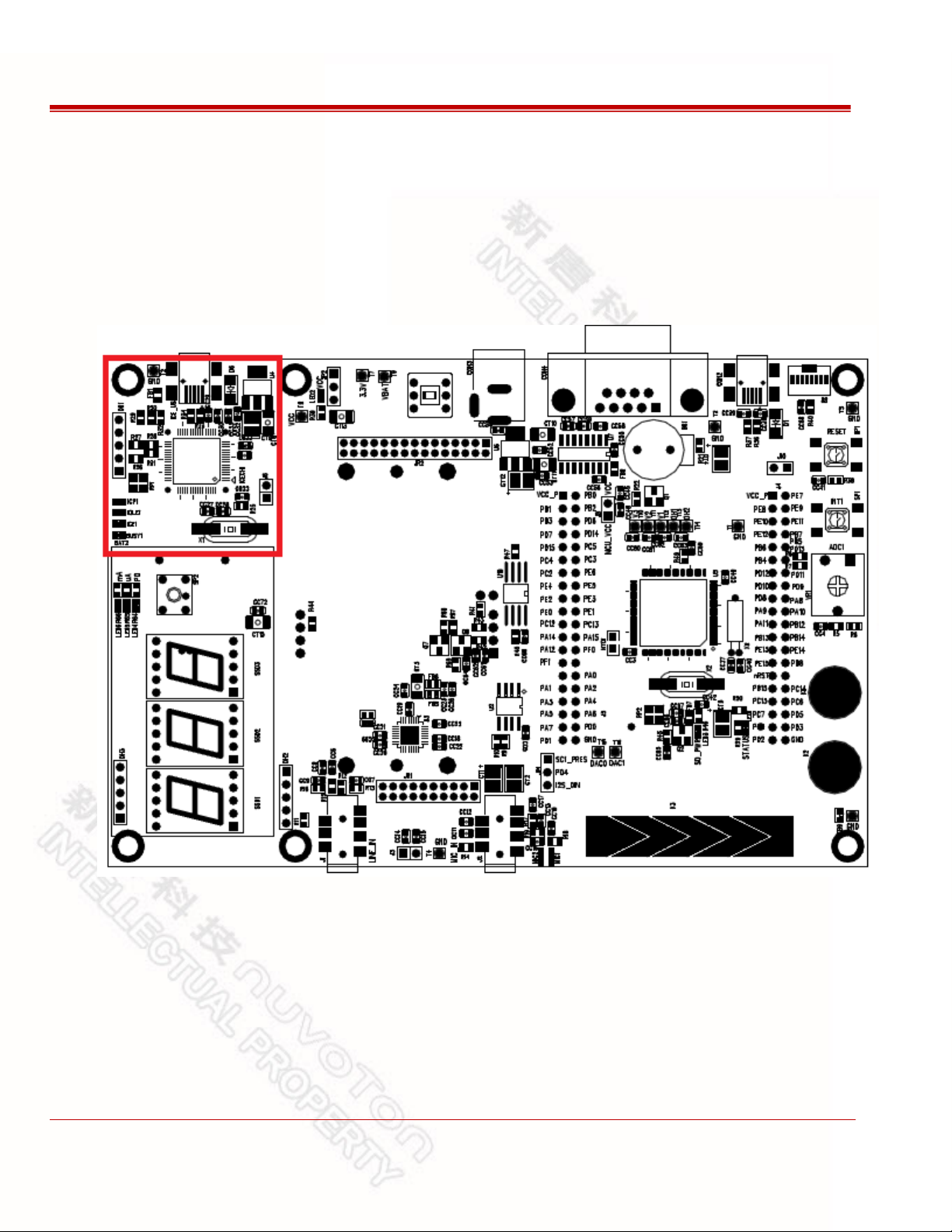

1.2.1 Nu-Link ICE Layout and Connectors
The following figure shows the layout of the Nu-Link ICE connectors.
Figure 1-4 Nu-Link ICE Layout and Connectors
USB device connector: ICE_USB1
Mini-B type USB connector.
DH1
ICE_USB1

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 12 of 60
SWD interface: HEADER5
5-pin interface for SWD connector.
FB1
FB
R33
27
D-
ICE_USB1
mini USB 5pin
USB_MINI_B
5
4
3
2
1 6
7
8
9
GND
NC
DP
DM
VCC SHIELD
SHIELD
SHIELD
SHIELD
D6
SS24A
R34
27
DVBUS5.0V
D+
DRST
DVBUS
DVBUS
DCLK
R26
100K
DVBUS
DDAT
R27
100K
DH1
HEADER 5
1
2
3
4
5

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 13 of 60
LCD Interface1.3
The following shows the interface for LCD glass module and TFT LCM board and provides the connectors
information.
LCD interface: JR1 and JR2
30-pin + 20-pin interface for LCD module connectors.

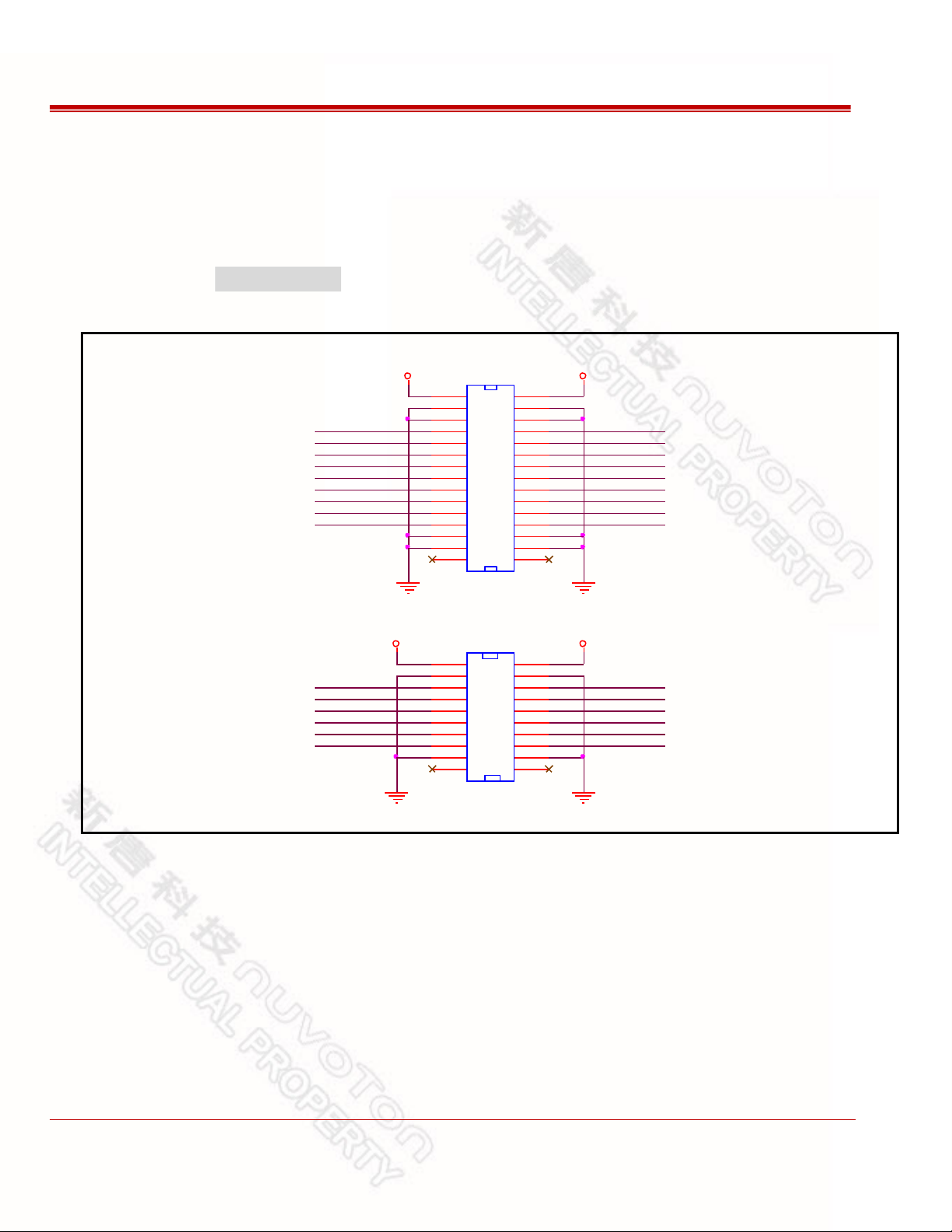

Figure 1-5 Connector Information
1.3.1 LCD Glass Board

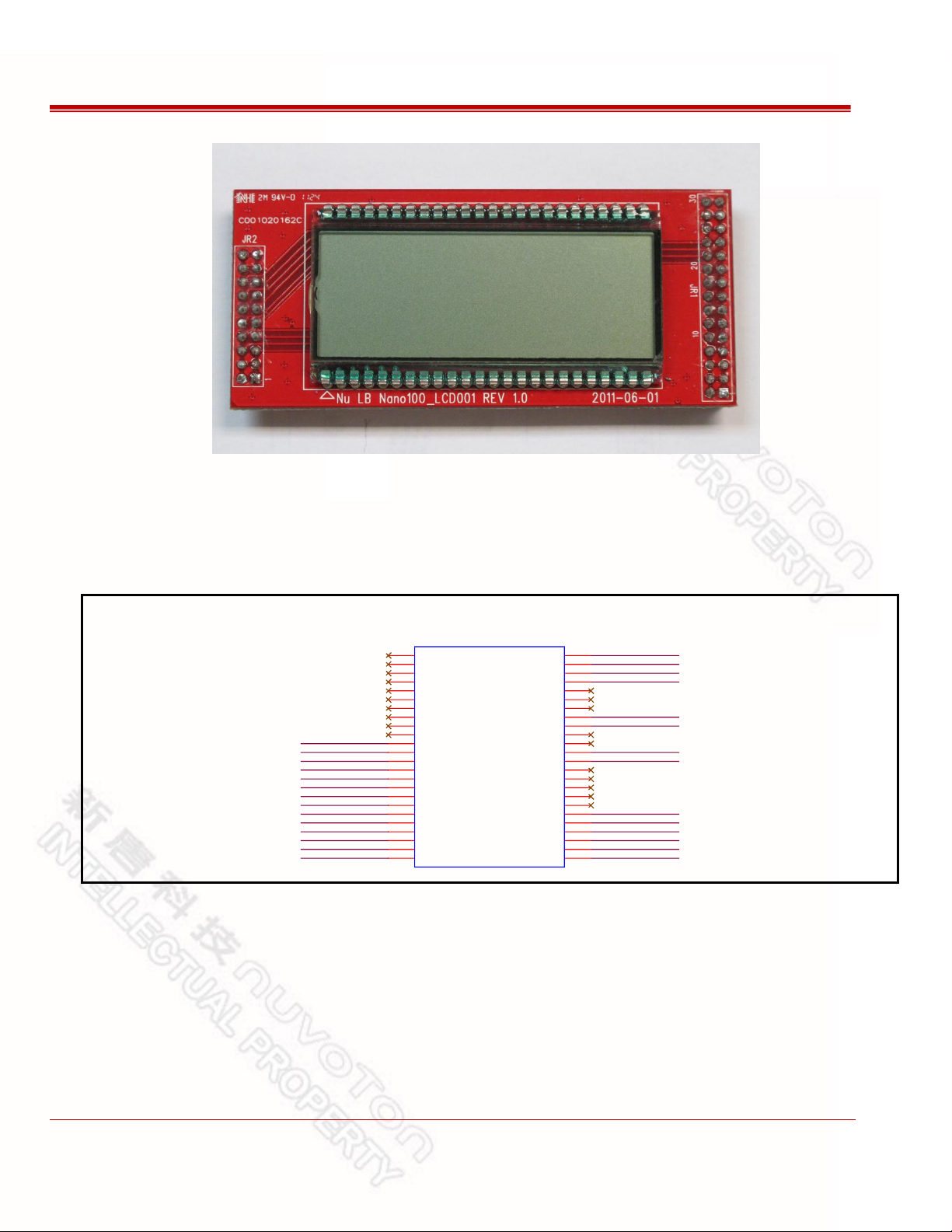

This section provides LCD glass board figure, layout and 4x40 LCD glass socket information.
SEG0
AD3/SEG33 AD2/SEG32
GND
SEG14
AD5
COM3
SEG16
AD7/SEG37
COM1
SEG17
SEG3 SEG2
GND
JR2
CONN RECT 10x2
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
19
17
15
13
11
9
7
5
3
1
20
18
16
14
12
10
8
6
4
2
COM0
nCS/SEG10
AD8/SEG38
AD4
nRE/SEG23
SEG1 COM2
AD6/SEG36
SEG15
GND
SEG18
JR1
CONN RECT 15x2
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
GND
VCC
VCC
SEG19
SEG27
VCC
AD1/SEG25
SEG8SEG9
AD0/SEG24
ALE/SEG11
VCC
nWE/SEG22

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 14 of 60
Figure 1-6 LCD Glass Board
LCD Interface: U1
48-pin interface for LCD glass socket.
Figure 1-7 LCD Glass Socket Information
SEG27
AD6/SEG36
SEG17
AD3/SEG33
SEG19
COM2
nWE/SEG22
SEG9
COM1
nRE/SEG23
SEG16
COM3
AD8/SEG38
AD1/SEG25
AD0/SEG24
COM0
SEG18
ALE/SEG11
SEG15
SEG2
SEG8
SEG14
SEG3
U1
LCD
48
47
46
45
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
SEG0
AD7/SEG37
AD2/SEG32
SEG1
nCS/SEG10

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 15 of 60
1.3.2 TFT LCM Board
This section provides information about 240x320 TFT panel (GFT024CA240320).
Figure 1-5 TFT LCM Board
LCM interface: CON1
39-pin FPC connector for GFT024CA240320.

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 16 of 60
SEG19
nRE/SEG23
BL_K
AD7/SEG37
VCC
GND
AD4
AD3/SEG33
AD6/SEG36
GND
AD2/SEG32
nWE/SEG22
VCC
FMARK
CC3
C/C,1uF
VCC
GND
IM3
R1
10K
VCC
AD0/SEG24
ALE/SEG11
CC2
C/C,1uF
CON1
GFT024CA240320
FPC 1X39
1
2
3
4
5
6
7
8
9
10
11
12
14
13
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
NC
NC
NC
NC
GND
CS
RS
WR
RD
DB0
DB1
DB2
DB4
DB3
DB5
DB6
DB7
DB8
DB9
DB10
DB11
DB12
DB13
DB14
DB15
DB16
DB17
RESET
FMARK
IM0
IM3
IOVCC
VCC
A1
A2
A3
A4
PWM
K
GND
LCD_RST
nCS/SEG10
AD5
BL_A
VCC
CC1
C/C,1uF
BL_A
AD1/SEG25
SEG27

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 17 of 60
2 Getting Started
There are a few hardware jumpers need to be set for selecting corresponding configuration you want. The
following sections provide multi-function I/O information and all the jumper settings for configuring your Nu-
LB-Nano130 board. Due to many IP function are sharing the same I/O pins in Nano130 series MCU, please be
carefully to set on-board jumpers to avoid conflicts between functions.
Figure 1-6 Nano130 Learning Board
J4
J5
JP1
JP2

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 18 of 60
Nu-LB-Nano130 I/O Extension Connectors2.1

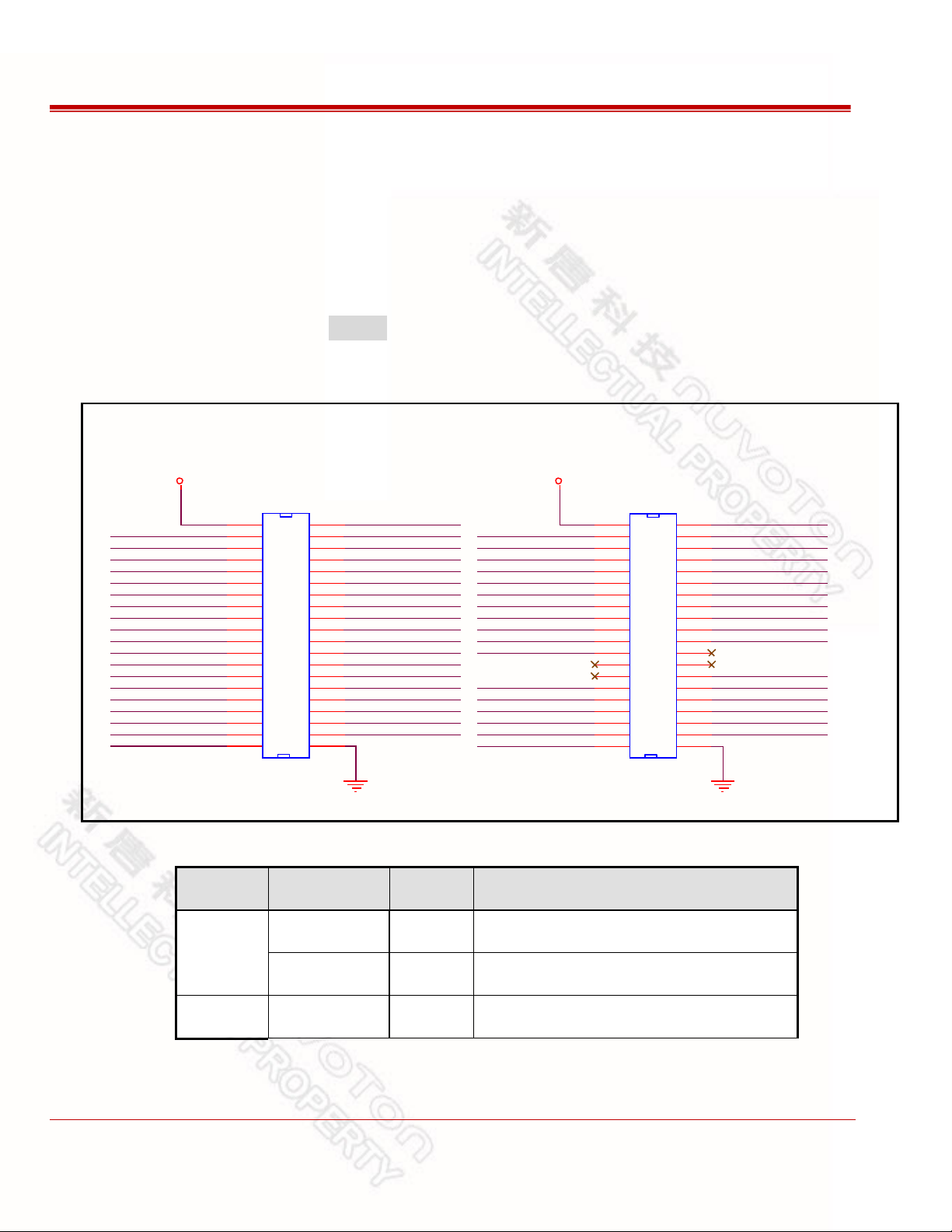

The Nu-LB-Nano130 has 55 I/O pads and 13 power pads for a total of 68 pads. Two 50-pin male headers J4 and
J5 can be connected to a daughterboard or standard wrapping board to the Nu-LB-Nano130 board.
Each pin on J4 and J5 can be used by a daughterboard after disconnecting it from the corresponding function
block on the Nu-LB-Nano130 board. Please refer to the following for detailed pin description.
GPIO extension interface: J4, J5
Two 40 pin interfaces support power, ground, reset and all GPI/O pins interface. The connection can
be made by soldering wires directly to these pads, or by using 2.54 mm pitch headers and sockets.
2.1.1 NuMicroNano130 Pin Description
Pin No.
Pin Name
Pin Type
Description
1
PE.13
I/O
General purpose digital I/O pin
LCD_SEG27
O
LCD segment output 27 at LQFP128
2
PB.14
I/O
General purpose digital I/O pin
SPIMOSI00
PB3
SEG0 COM3
PC8
PD1
CTK14
PD0
AD8/SEG38
SPIMISO10
SPISS00
PA5 AD7/SEG37PA6
PA1
PC13
PE3
ADC2
PC11
PA7
CTK13
PA0
PA2
AD6/SEG36
PE2
SC1_CLK
PA4
SPISS10
PB0
PA12
SEG1
PA13
PC2
COM2
PB1
SC1_DAT
VCC_P
PE4
PD6
PC5
ADC0
GND
SEG3
PC13
PC10
PE6
I2S_MCLK
PC12
TXD0
ADC4
PD14
SPI0CLK
GPIO extersion
ADC3
J5
CONN RECT 20x2
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
31 32
33 34
35 36
37 38
39 40
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
31 32
33 34
35 36
37 38
39 40
PA3
CTK12
PD7
SPIMISO00
PA12
RXD0
PC3
CTK11
SEG2
PC4 COM0
PB2
PA15
SPI1CLK
PWM1_0
PE0 CTK15
PD15
PA14
SPIMOSI10
PE1
COM1
ADC1
PC9
PE6
SEG19
SC1_PRES/I2S_DIN
PC14
SEG14
PB8
nWE/SEG22
ALE/SEG11
PC6
AD2/SEG32
PF5
AD0/SEG24
PA9
AD3/SEG33
PE7
SEG9
PC7
PB14
TXD1
PE15
PD13
SC1_RST/I2S_BCLK
PD10
AD1/SEG25
PC15
nINT0
PB13
SEG18
PD3
RXD1
PD5
SEG16
PD12
PD8
SEG17
PD2
CTK6 PF4
VCC_P
PE13
nRE/SEG23
PB7
nCS/SEG10
PE14
GND
J4
CONN RECT 20x2
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
31 32
33 34
35 36
37 38
39 40
25
23
21
19
17
15
13
11
9
7
5
3
1
26
24
22
20
18
16
14
12
10
8
6
4
2
27 28
29 30
31 32
33 34
35 36
37 38
39 40
PD11
I2S_DOUT
PB4
PE14
PA11
SEG8
PB6
SC1_PWR/I2S_WS
SEG15
PA10
CTK7
PD4
PB8
PE15
PD9
AD4
PE8
SEG27
AD5
PA8
I2C0SCL
PB5
I2C0SDA
PB15 nINT1
PB12

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 19 of 60
Pin No.
Pin Name
Pin Type
Description
INT0
I
External interrupt0 input pin
SC2_CD
I
SmartCard2 card detect
SPI2_SS1
O
SPI2 2nd slave select pin
LCD_SEG12
O
LCD segment output 12 at LQFP64
LCD_SEG26
O
LCD segment output 26 at LQFP128
3
PB.13
I/O
General purpose digital I/O pin
EBI_AD1
I/O
EBI Address/Data bus bit1
LCD_SEG11
O
LCD segment output 11 at LQFP64
LCD_SEG25
O
LCD segment output 25 at LQFP128
4
PB.12
I/O
General purpose digital I/O pin
EBI_AD0
I/O
EBI Address/Data bus bit0
CLKO
O
Frequency Divider output pin
LCD_SEG10
O
LCD segment output 10 at LQFP64
LCD_SEG24
O
LCD segment output 24 at LQFP128
5
NC
6
X32O
O
External 32.768 kHz crystal output pin
7
X32I
I
External 32.768 kHz crystal input pin
8
NC
9
PA.11
I/O
General purpose digital I/O pin
I2C1_SCL
I/O
I2C 1 clock pin

NuMicro Family User Manual
© 2012 Nuvoton Technology Corp.
User Manual Rev. 1.01 —Dec 17, 2012 20 of 60
Pin No.
Pin Name
Pin Type
Description
EBI_nRD
O
EBI read enable output pin
SC0_RST
O
SmartCard0 RST pin
SPI2_MOSI0
I/O
SPI2 1st MOSI (Master Out, Slave In) pin
LCD_SEG9
O
LCD segment output 9 at LQFP64
LCD_SEG23
O
LCD segment output 23 at LQFP128
10
PA.10
I/O
General purpose digital I/O pin
I2C1_SDA
I/O
I2C 1 data I/O pin
EBI_nWR
O
EBI write enable output pin
SC0_PWR
O
SmartCard0 Power pin
SPI2_MISO0
I/O
SPI2 1st MISO (Master In, Slave Out) pin
LCD_SEG8
O
LCD segment output 8 at LQFP64
LCD_SEG22
O
LCD segment output 22 at LQFP128
11
PA.9
I/O
General purpose digital I/O pin
I2C0_SCL
I/O
I2C 0 clock pin
SC0_DAT
I/O
SmartCard0 DATA pin
SPI2_CLK
O
SPI2 serial clock pin
LCD_SEG7
O
LCD segment output 7 at LQFP64
LCD_SEG21
O
LCD segment output 21 at LQFP128
12
PA.8
I/O
General purpose digital I/O pin
I2C0_SDA
I/O
I2C 0 data I/O pin
