Oase BioTec ScreenMatic 2 40000 User manual

BioTec ScreenMatic²
40000, 60000, 90000, 145000
Operating instructions
Downloaded from www.watergardeningdirect.com

BioTec ScreenMatic240000
BTC0111
BioTec ScreenMatic260000
BTC0110
Downloaded from www.watergardeningdirect.com

3
BioTec ScreenMatic290000
BTC0109
Downloaded from www.watergardeningdirect.com

4
BioTec ScreenMatic2145000
BTC0108
Downloaded from www.watergardeningdirect.com

40
EN
WARNING
Original manual.
WARNING
Disconnect all electrical devices in the water from the power supply
before reaching into the water. Otherwise there is a risk of severe in-
juries or death by electrocution.
This unit can be used by children aged 8 and above and by persons
with reduced physical, sensory or mental capabilities or lack of expe-
rience and knowledge if they are supervised or have been instructed
on how to use the unit in a safe way and they understand the hazards
involved. Do not allow children to play with the unit. Only allow chil-
dren to carry out cleaning and user maintenance under supervision.
Safety information
Electrical connection
Special regulations apply for electrical installation in outdoor spaces. Only a qualified electri-
cian may perform the electrical installation.
– The qualified electrician has the necessary professional training, knowledge and experience
to perform electrical installation in outdoor spaces. The electrician can detect potential
dangers and knows how to adhere to regional and national standards, regulations and direc-
tives.
– For your own safety, please consult a qualified electrician.
Only connect the unit if the electrical data of the unit and the power supply match.
Only plug the unit into a correctly installed outlet.
The device is to be supplied through a residual current device (RCD) having a rated residual op-
erating current not exceeding 30 mA.
Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use
(splash-proof).
Protect open plugs and sockets from moisture.
Downloaded from www.watergardeningdirect.com

EN
41
Safe operation
The container cover contains a magnet with a strong magnetic field that may affect the oper-
ation of pacemakers or implantable cardioverter defibrillators (ICDs). Always keep magnets at
least 20 cm away from implanted devices.
Never operate the unit if the housing is defective!
Never operate the unit if an electrical cable is defective!
Do not carry or pull the unit by its power cable.
Route lines in such a way that they are protected from damage and do not present a tripping
hazard.
Never carry out technical changes to the unit.
Only carry out work on the unit that is described in this manual.
Only use original spare parts and accessories.
Disconnect the unit from power in the event of a thunderstorm to prevent damage to the
electronics.
Overvoltage in the mains could lead to operating malfunctions of the unit. For information,
please refer to chapter "Correcting malfunctions”. (→ Malfunction remedy)
Should problems occur, please contact the authorised customer service or OASE.
Intended use
Only use the product described in this manual as follows:
For cleaning garden ponds.
While adhering to the technical specifications. (→ Unit data)
Adherence to the permissible water quality. (→ Permissible water quality)
The following restrictions apply to the unit:
Never use the unit with fluids other than water.
Do not use for commercial or industrial purposes.
Not suitable for salt water.
Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
Downloaded from www.watergardeningdirect.com

42
Product Description
Unit configuration

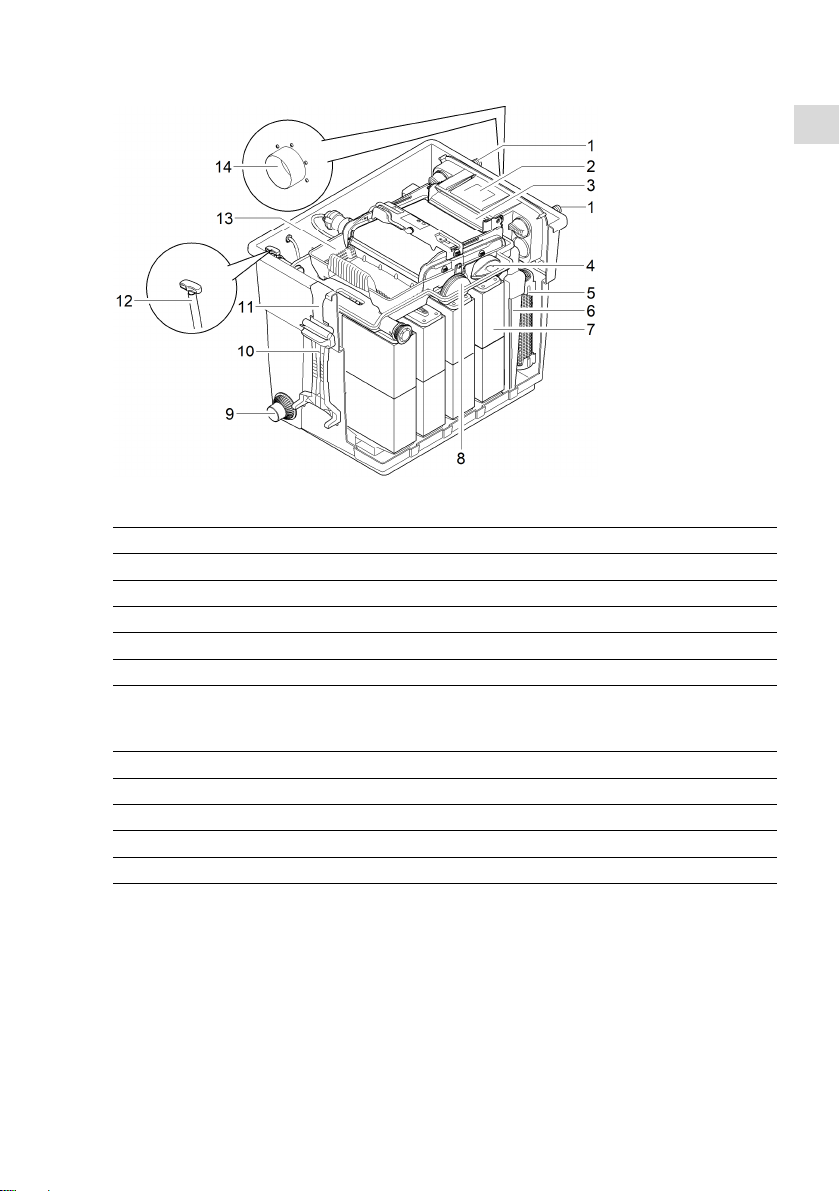

BioTec ScreenMatic240000, 60000
BTC0050
1 Inlets, 2 x
2 Water distributor
3 Distributor extension
4 Brush for regularly cleaning the ScreenMatic screen
5 Substrate tube
BioTec ScreenMatic²40000: 2 x
BioTec ScreenMatic²60000: 3 x
6 Separating plate, can be removed for maintenance purposes
7 Foam filter, 8 x
8 Plug for closing the outlet (14)
Closing the outlet before cleaning the foam filters prevents dirty water from flowing back into
the pond.
9 Dirt outlet
10 Foam cleaning device
11 Holder for the foam cleaning device
12 Dirt outlet slide valve
13 Debris tray
14 Outlet
Downloaded from www.watergardeningdirect.com

EN
43
BioTec ScreenMatic290000
BTC0077
1 Inlets, 2 x
2 Water distributor
3 Distributor extension
4 Brush for regularly cleaning the ScreenMatic screen
5 Substrate tubes, 4 x
6 Separating plate can be removed for maintenance purposes
7 Foam filter, 16 x
8 Blind plug for closing the outlet (14)
Closing the outlet before cleaning the foam filters prevents dirty water from flowing back into
the pond.
9 Dirt outlet
10 Foam cleaning device
11 Holder for the foam cleaning device
12 Dirt outlet slide valve
13 Debris tray
14 Outlet
Downloaded from www.watergardeningdirect.com

44
BioTec ScreenMatic2145000
BTC0049
1 Inlets, 2 x
2 Water distributor
3 Distributor extension
4 Brush for regularly cleaning the ScreenMatic screen
5 Separating plate
6 Substrate tubes, 12 x
7 Outlet
8 Foam filter, 18 x
9 Blind plug for closing the outlet (14)
Closing the outlet before cleaning the foam filters prevents dirty water from flowing back into
the pond.
10 Dirt outlet
11 Debris tray
12 Foam cleaning device
Downloaded from www.watergardeningdirect.com

EN
45

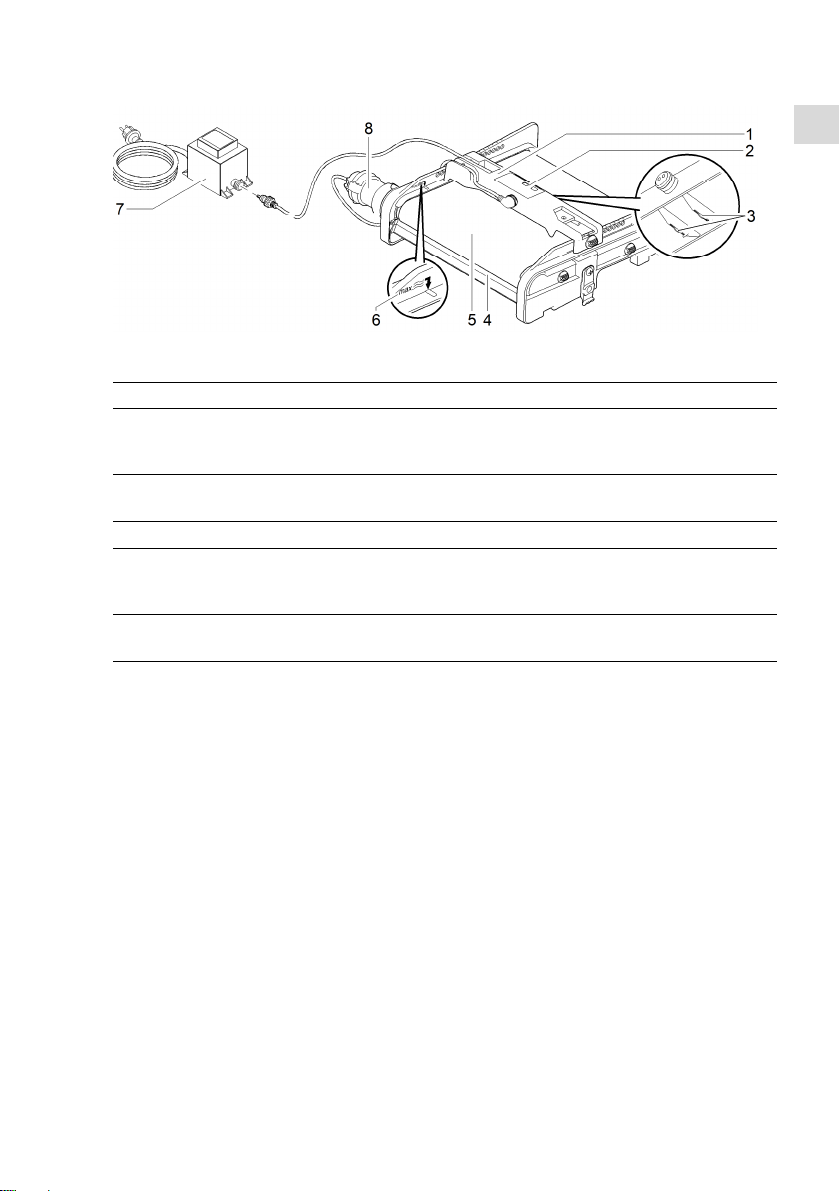

ScreenMatic rotating screen unit
BTC0056
1 Control system
2 Operating panel
3 Sensor underneath the control device
When the sensor comes into contact with the water on the ScreenMatic screen, an automatic
cleaning process is triggered.
4 Stripper
scrapes the debris from the ScreenMatic screen and conveys it into the debris tray.
5 ScreenMatic screen
6 "Max. water jet" mark
Debris may be washed out of the debris collection tray if the water jet from the water distributor
exceeds this mark.
7 Transformer
Voltage supply for the control device and motor
8 Motor
Drive of the ScreenMatic rotating screen unit
Properties
High performance flow-through filter for ponds up to 40 m3, 60 m3, 90 m3or 140 m3.
Electrically driven ScreenMatic rotating screen for automatic removal of coarse debris.
Low-maintenance filter due to the automatic removal of coarse debris.
Bottom dirt outlet with slide valve for removal of dirt/debris from the filter system.
Convenient cleaning of the foam filters directly inside the filter.
Foam cleaning device and holder for fastening the foam cleaning device to the container.
Perfectly tailored to the OASE AquaMax Eco filter pumps.
Direct connection of the OASE UVC clarifiers of the Vitronic 18W/24W/36W, Bitron C and
Bitron Eco series possible.
Use of different filter media to ensure optimum colonisation of bacteria for biological filtra-
tion.
Downloaded from www.watergardeningdirect.com

46
Technical data
Unit data
BioTec ScreenMatic240000 60000 90000 145000
Power pack Primary rated voltage V AC 230 230 230 230
Mains frequency Hz 50 50 50 50
Secondary rated voltage V DC 12 12 12 12
Permissible ambient tem-
perature
°C -10 … +35 -10 … +35 -10 … +35 -10 … +35
Control system Power consumption W 5 5 5 5
Permissible ambient tem-
perature
°C -10 … +35 -10 … +35 -10 … +35 -10 … +35
Cable length Power pack m 2.10 2.10 2.10 2.10
Control system m 5.00 5.00 5.00 5.00
Foam filter Number of blue foam filters pces. 2 2 4 4
Number of red foam filters pces. 3 3 6 7
Number of purple foam fil-
ters
pces. 3 3 6 7
Special filter pellets kg 2.50 3.50 5 14.50
Removal of coarse dirt particles
µ
m 300 300 300 300
Permissible water temperature °C +4 … +35 +4 … +35 +4 … +35 +4 … +35
Inlet Quantity pces. 2 2 2 2
Connection, hose mm 25, 32, 38 25, 32, 38 25, 32, 38, 50 25, 32, 38, 50
G1, G1¼, G1½ G1, G1¼,
G1½
G1, G1¼, G1½,
G2
G1, G1¼, G1½,
G2
Connection, UVC clarifier Bitron C 36 W /55 W / 72 W / 110 W
Bitron Eco 120 W / 180 W / 240 W
Vitronic 18 W / 24 W / 36 W
Outlet Quantity pces. 1 1 1 1
Connection DN 75 DN 75 DN 110 DN 110
Dirt outlet Quantity pces. 1 1 1 1
Connection DN 50 DN 50 DN 50 DN 75
Circulation ca-
pacity
minimum l/h 4000 6000 8000 8000
Max. l/h 9000 11000 12500 17500
Maximum pond
volume
Without fish population m340 60 90 140
With fish population m320 30 45 70
Including koi carp m310 15 22.5 35

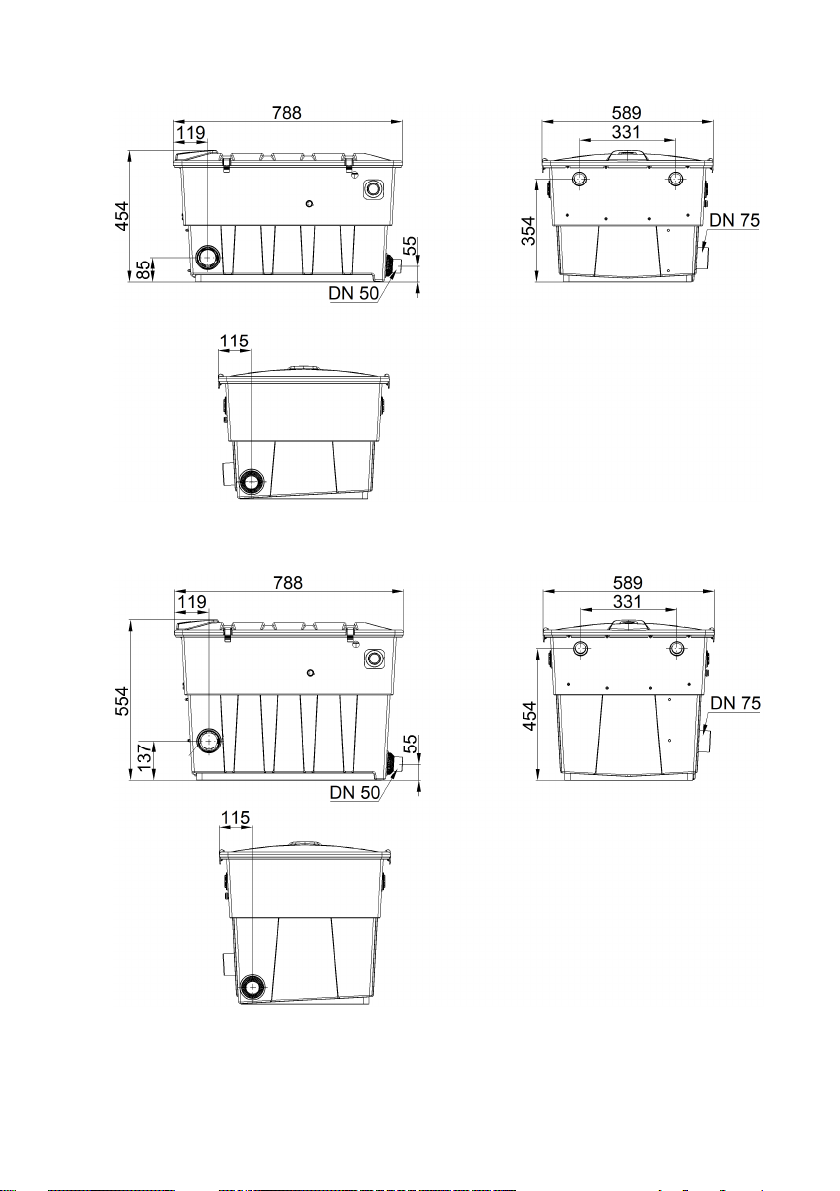

Dimensions Length mm 788 788 788 1200
Width mm 590 590 590 800
Height mm 454 554 654 760
Weight Without water kg 20 25 30 115
Downloaded from www.watergardeningdirect.com

EN
47
Permissible water quality
Type Fresh water Pool water Salt water
pH value 6.8 … 8.5 7.2 … 8.3 7.5 … 8.5
Hardness DH 8 … 15 8 … 15 20 … 30
Free chlorine mg/l <0.3 <0.6 <0.3
Chloride content mg/l <250 <250 <22000
Salt content % <0.4 <0.4 <4
Overall dry residue mg/l <50 <50 <50
Temperature °C +4 … +35 +4 … +30 +4 … +28
Downloaded from www.watergardeningdirect.com

48
Installation and connection
Access to the device
Remove the container cover: Access to the control device.
Hinge up the screen holder: Access to the foam filters, substrate tubes, separating plate and
outlet.
Remove the container cover
BioTec ScreenMatic²40000, 60000, 90000
Release the two locking clips, lift the cover and remove it.
BioTec ScreenMatic²145000
Lift the cover by the handles and remove it.
The handles are not fitted on delivery.
– Screw the handles onto the cover.
BTC0051
Downloaded from www.watergardeningdirect.com

EN
49

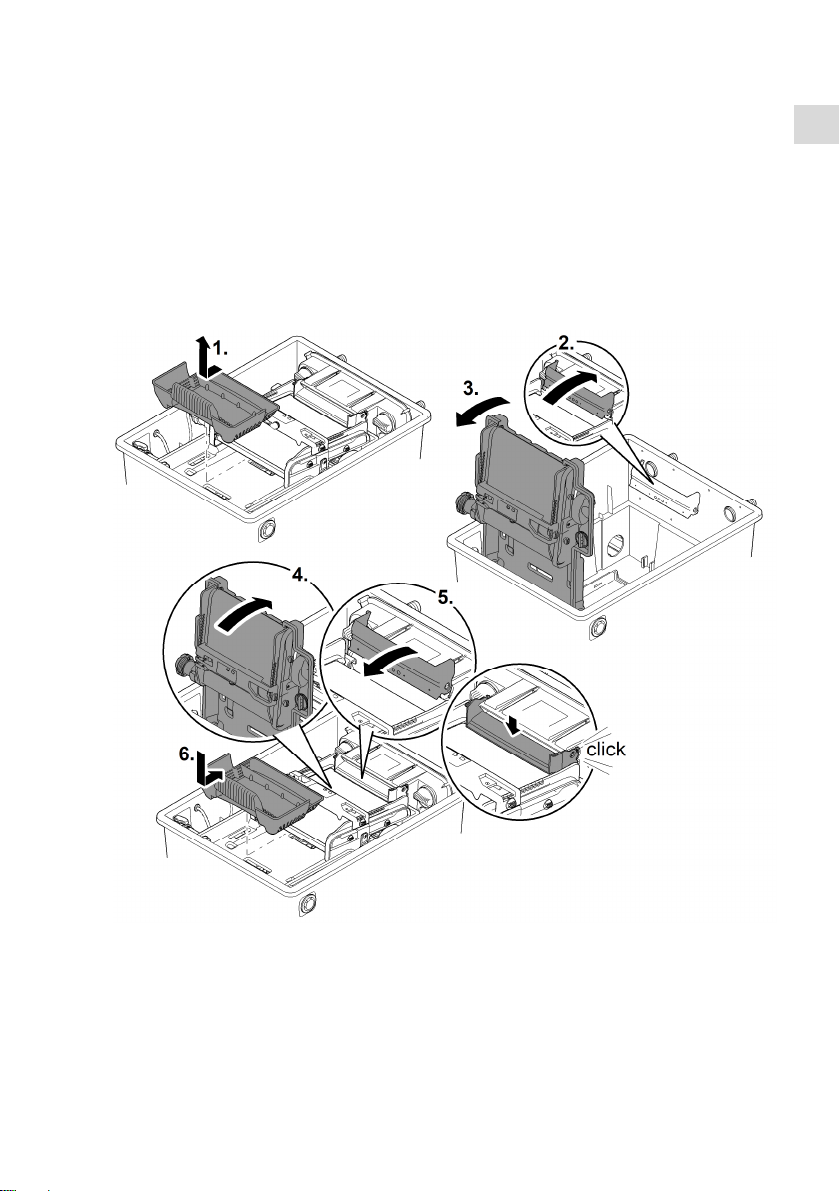

Hinging the screen holder up/down
How to proceed:
To hinge up/open
1. Remove the debris tray.
2. Hinge up the distributor extension.
3. Hinge up the screen holder with the ScreenMatic rotating screen unit.
To hinge down/close
4. Carefully hinge down the screen holder.
5. Push the distribution extension down until it audibly engages.
6. Replace the debris tray.
BTC0052
Downloaded from www.watergardeningdirect.com

50
Installation planning
WARNING
Risk of severe injuries or death by electric shock.
Protective measures for swimming ponds:
Only use electrical units or installations with a rated voltage of U ≤12 V in the water.
Electrical installations with a rated voltage of U > 12 V must be located at a distance of at least
2 m from the water
WARNING
Due to the high weight of the unit, spinal injuries or crushing of limbs is possible when carrying
the unit. The unit weighs more than 25 kg.
Have at least four people carry the container exclusively on the handles to avoid spinal inju-
ries.
Protect your limbs from crushing injuries.
Do not transport the container when it is filled with water.
Electrical components of the filter system operate with a rated voltage of UDC = 12 V. The supply
voltage is supplied via an external transformer connected to the mains.
Filter system with UVC clarifier fitted:
– The filter system and transformer must be located at a distance of at least 2 m from the
water.
Filter system without UVC clarifier fitted:
– The filter system can be installed directly next to the water. The transformer must be lo-
cated at a distance of at least 2 m from the water.
Optimum operating results can be obtained with careful planning, taking the ambient conditions
into account.
As the filter is very heavy when filled, it must be placed on a suitable base (at least on slabs,
but preferably on a poured concrete base) to prevent it from subsiding.
Align the base slab horizontally.
Ensure sufficient room for movement for carrying out cleaning and maintenance work.
Allow the dirty water to drain out into a drain or far enough away from the pond to ensure
that it cannot flow back into the pond.
Do not position the inlet into the pond higher than the outlet of the filter system (e.g. above a
water course or waterfall).
A water course or waterfall guarantees optimum water return to the pond.
In this way, the filtered pond water is enriched with oxygen before it is returned to the
pond.
Downloaded from www.watergardeningdirect.com

EN
51
BTC0048
Downloaded from www.watergardeningdirect.com

52
Inlets
The filter system has two inlets with stepped hose adapters.
For connecting a filter pump
For connecting a UVC clarifier (→ Connecting a UVC clarifier)
If an inlet is not used, fit a closed stepped hose adapter.
– The stepped hose adapters are delivered closed.
Prerequisite:
The container is open. (→ Remove the container cover)
The screen holder is hinged up. (→ Hinging the screen holder up/down)
Connecting the filter pump
How to proceed:
1. Shorten the stepped hose adapter to the diameter of the hose used.
– This reduces pressure losses.
2. Insert the stepped hose adapter with flat seal into the inlet opening.
3. Screw the distributor nut with O ring onto the stepped hose adapter and hand tighten.
– BioTec ScreenMatic²145000: Alternatively you can fit a 50 mm hose sleeve.
4. Slip the hose clip over the hose, fit the hose onto the hose connector and secure with the
hose clip.
Downloaded from www.watergardeningdirect.com

EN
53
BTC0058
Downloaded from www.watergardeningdirect.com

54

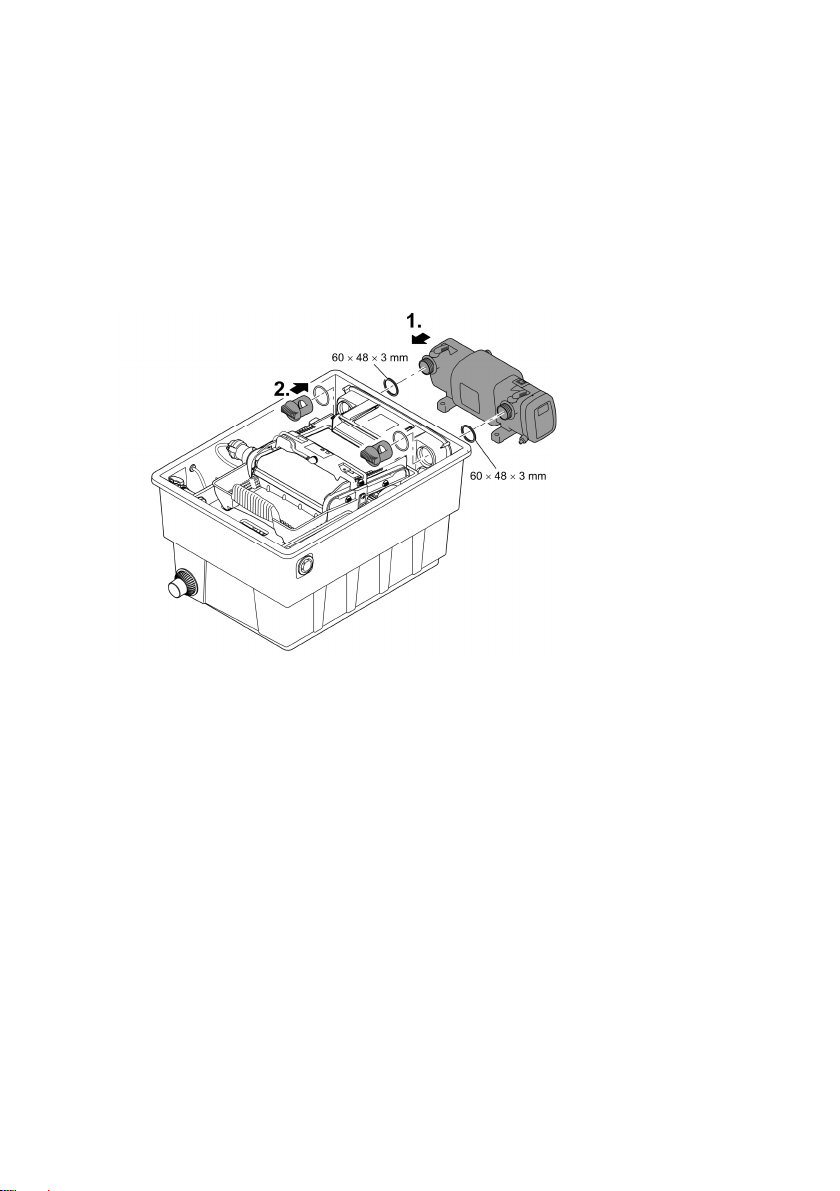

Connecting a UVC clarifier
Fitting the outlet
Prerequisite:
The container is open. (→ Remove the container cover)
The screen holder is hinged up. (→ Hinging the screen holder up/down)
How to proceed:
1. Fit the UVC clarifier with flat seal into the inlet opening.
2. Screw the distributor nut with O ring onto the stepped hose adapter and hand tighten.
– Read the UVC clarifier operating instructions.
BTC0059
Outlets
Use suitable pipes.
Do not use any right-angled bends. Bends with a maximum angle of 45° are very efficient.
Standing water in pipes can freeze when there is a hard frost and cause pipes to burst. For this
reason, lay the pipes and hoses with a gradient (50 mm/m) to ensure that they can run empty.
Pipe dimensions: (→ Unit data)
Support the connected pipes. This increases the stability of pipe constructions and pre-
vents them from sagging.
Downloaded from www.watergardeningdirect.com

EN
55

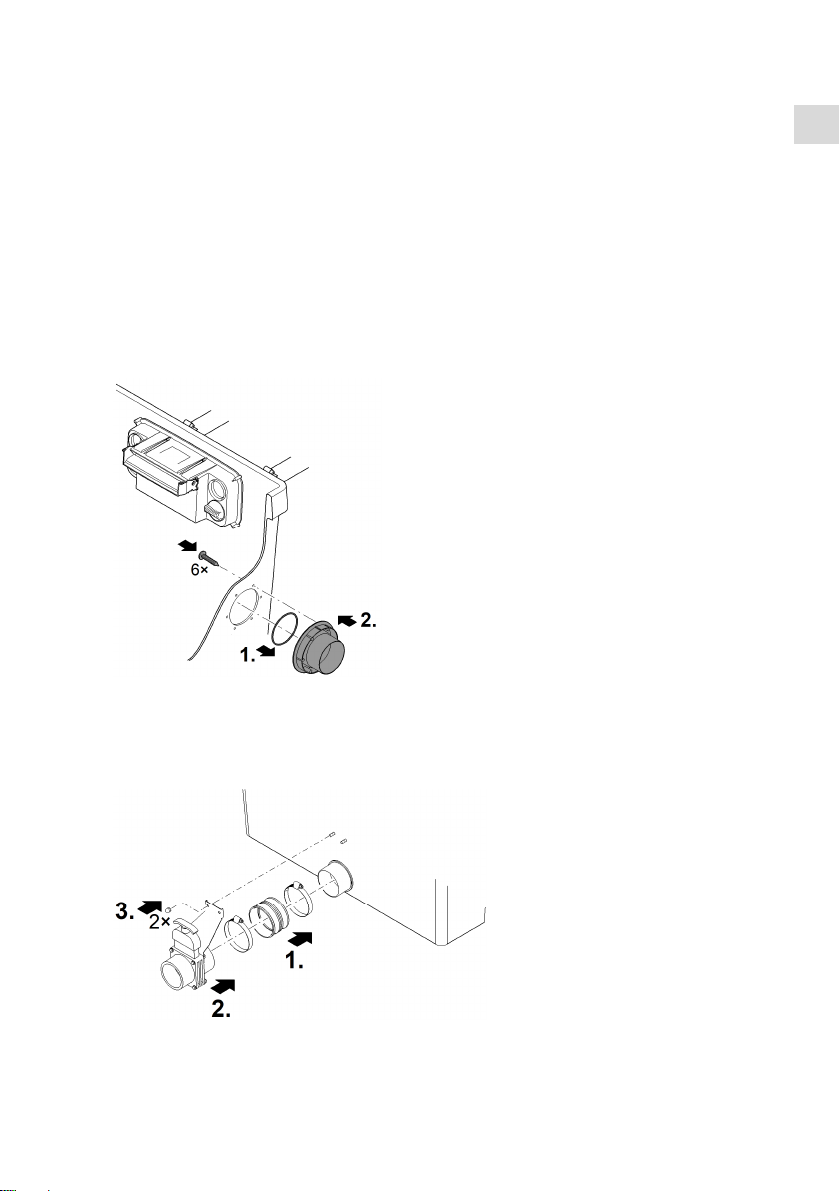

Fitting the outlet
BioTec ScreenMatic²145000: The outlet is not fitted on delivery.
Prerequisite:
The container is open. (→ Remove the container cover)
How to proceed:
1. Push the O-ring onto the outlet.
2. Position the outlet in the container wall from the outside.
– Ensure that the marking points up and is aligned with the holes in the container wall.
3. Use three oval head screws to screw the outlet to the container wall from the inside.
– Tighten the screws diagonally to ensure that the seal is uniformly applied.
– If you are using a cordless screwdriver: Do not set the screwdriver to “drill” to prevent dam-
age to the self-tapped thread. Then re-tighten the screws with a Torx screwdriver.
BTC0064
Installing the dirt outlet
BioTec ScreenMatic²145000: The outlet is not fitted on delivery.
Proficlear0347
Downloaded from www.watergardeningdirect.com
