Oase Filtoclear 3000 Maintenance and service guide

1
Warranty, Safety and
Operating Instructions
Garantie, mode d'emploi
et consignes de sécurité
Garantia,Instructivo
de Seguridad y de
Operaciones
800 – 1.600 – 3.000 – 4.000
FILTOCLEAR
29746/02C

2
Usetheseinstructionstofamiliarizeyourselfwiththedevicebefore
youuseitforthefirsttime.Itisabsolutelyessentialthatyouobserve
thesafetyguidelinesontheproperandsafeuseofthedevice.
For safety reasons, children and young people under 16 years of
age, as well as people who cannot recognize potential hazards or
whoarenotfamiliarwiththeseinstructions,mustnotusethisdevice!
Please keep these instructions in a safe place! In the event of a
change of ownership, please pass these instructions on to the
newowneralong with the product.
Symbols
The symbols used on the device and in these instructions have
thefollowing meaning:
Caution! Importantadvice about hazards!
Importantinformation!
Caution! Refer to the instructions!
Caution! Disconnectplug!
Keepawayfromdirectsunlight!
Caution!DangerousUVC radiation!
The Filtoclear may be used with a maximum pressure of 2,9 psi
(0.2bar)!
TheFiltoclearmustberemovedwhen frost is expected!

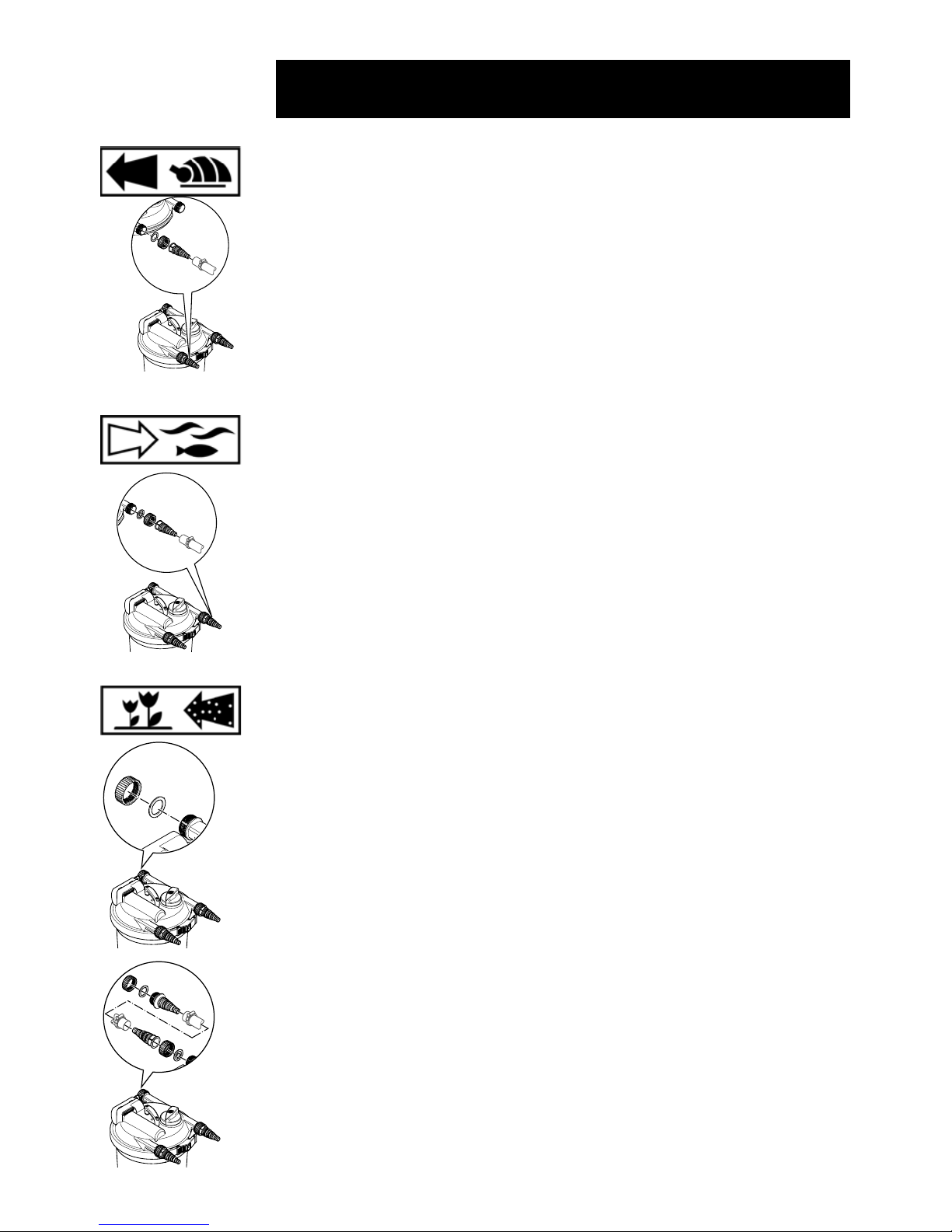

Water inlet from the pump into the filter.
Water outlet from the filter into the pond.
Cleaningoutlet from the filterintothe sewerage system or ontoa
flowerbed, forexample.
Function switch setting “Filter“.
Function switch setting “Clean“.
Pmax = 2,9 psi
(0,2 bar)
English

3
English
Unpacking
Whenunpacking, ifexternal damageis visiblewhichcould impair
thefunctioningofimportant partsof theequipment, pleaseinform
thecarrierofthedefectsimmediately,onthesamedayifpossible,
and insist on the facts being recorded in writing. Then contact
yoursupplier who will take care of everything else.
Parts supplied
1 x Filtoclear pressure filter with integrated UVC
2 x spiral stepped hose adapter ½“, transparent
1 x spiral stepped hose adapter 1½“, black
1 x spiral stepped hose adapter 1½“, threaded, black
3 x union nuts 1½“
2x flow vane
1 x flat seal
1 x instructions
Appropriate use
TheFiltoclearwith integrated UVC is a sealed pressure filter
systemforbiological andmechanicalfilteringofnormal pond
water with a temperature of + 40°F to + 95°F. This Filtoclear
pressurefilterisintendedexclusivelyforprivateuseforcleaning
gardenpondswithorwithoutpondfish.
Optimum cleaning is achieved in combination with the OASE
Aquamaxpumps.
Important safety instructions
Warning -Toguardagainstinjury,basicsafetyprecautionsshould
beobserved, includingthefollowing:
1. Read and follow all safety instructions
2. Danger -Toavoid possible electricshock,special care should
betaken since water isemployedin the use ofthisequipment.
For each of the following situations, do not attempt repairs
yourself; return the appliance to an authorized service facility
forservice or discard the appliance.
- lf the appliance falls into the water, DON’T reach for it! First
unplug it and then retrieve it. lf electrical components of the
appliancegetwet,unplug theapplianceimmediately.

4
English
Safety guidelines
Filtoclear pressure filter with integrated UVC
-Caution: Dangerous ultraviolet radiation. The rays from
the UVC lamp are harmful to your eyes and skin! Never
operate the lamp of the Filtoclear UVC outside the casing!
- Set up the Filtoclear with integrated UVC so that it is safe from
flooding.SecureyourFiltoclearsothatitwillnotfallintothepond.
It should be placed at least 6,5 feet from the edge of the pond.
- Always turn the pump on first before starting up the Filtoclear
UVC.TheUVClampmustnotbeoperatedwithoutwaterflowing
through it.
- Do not use the Filtoclear UVC if the connecting lead, UVC
lampor casing appear to be defective!
- DonotusetheFiltoclearUVCwhentherearepeopleinthewater!
- Caution: Thebuilt-in temperaturemonitor inthe FiltoclearUVC
automaticallyswitches offthe UVC lamp if it overheats.Afterit
hascooled down,the UVClamp isautomaticallyswitched back
onagain.
-Never open the casing of the UVC or its accessories unless
expressly directed to do so in the instructions.
- The electrical data of the supply grid must correspond to the
data on the type label.
- Do not operate any appliance if it has a damaged cord or
plug,or if it is malfunctioning or if it is dropped or damaged in
anymanner.
3. Always unplug an appliance from an outlet when not in use,
beforeputtingonortakingoffparts,andbeforecleaning.Never
yank cord to pull plug from outlet. Grasp the plug and pull to
disconnect.
4. Donot use an appliancefor other than intended use. The use
of attachments not recommended or sold by the appliance
manufacturermaycauseanunsafecondition.
5. Readand observe all the importantnotices on the appliance.
6. Save these instructions

5
English
Pmax = 2,9 psi
(0,2 bar)
min
6,5
feet
max.
6,5feet
-AlwaysdisconnecttheplugsoftheFiltoclearUVCandofalldevices
thatareinthewaterbeforeyoucarryoutanyworkontheFiltoclear!
- For your own safety, contact an electrician if you have any
questionsorproblemsregardingtheelectrical connection!
-Never immersethe device in water!
- Electricalinstallations near garden pondsandswimming pools
must comply with international and national installation
guidelines.
- Keep the connecting points dry!
-Do not carryor pullthe Filtoclearby itsconnecting lead!Protect
the connecting lead from heat, oil and sharp edges.
- Laythehoses and connecting lead in such a way that they are
not an obstacle and do not become damaged!
-Caution! Danger! Never operate the Filtoclear pressure filter
with integrated UVC with a water pressure greater than 2,9 psi (

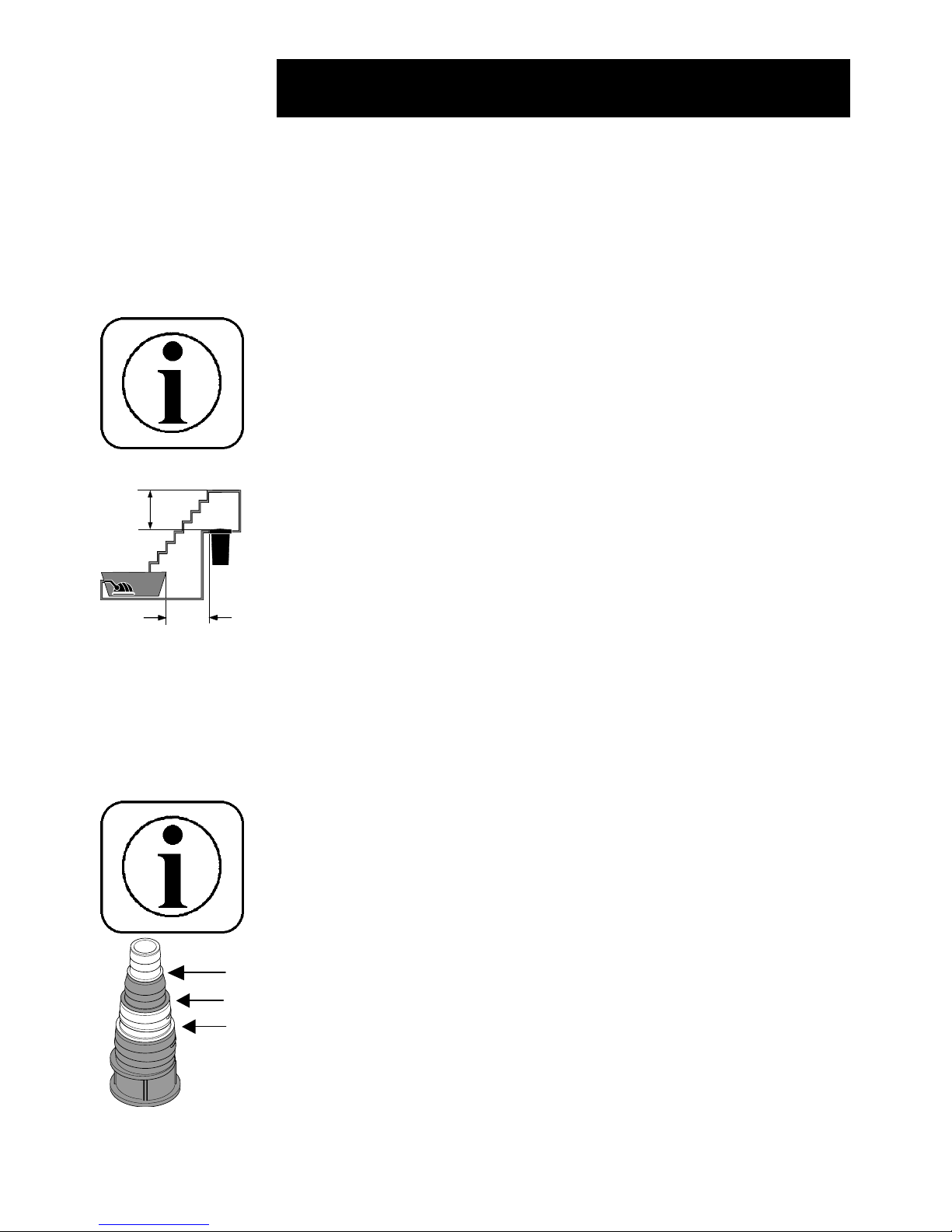

0,2 bar)! The height difference between the filter lid and the
pressure-free outlet point can therefore be 6,5 feet max. The
maximum delivery pressure of the pump being used must not
exceed 7,25psi ( 0,5 bar).
- Only operate the Filtoclear with pressure hoses that are
approvedforatleast2,9psi(0,2bar),i.e.themaximumpressure
of the pump.
- Check and clean the water outlet to the pond on a regular ba-
sis. The outlet should always be clear, as any blockage would
resultin the filter being operated at a pressure greater than 2,9
psi ( 0,2 bar). This in turn would lead to the risk of leaking and
thereforeofthepondemptyingcompletely.
-Important: When the Filtoclear is being used in ‘filter’ mode,
the cleaning connection or any drainage hose connected to it
must always be sealed with the sealing cap and inserted flat
seal in order to prevent the pond from emptying. At the same
time the sealing cap acts as a safeguard in case the function
switch is accidentally set to ‘Clean’.
- Make sure that the function switch is always set to ‘Filter’ when
the pump is in operation. The function switch may only be set to
‘Clean’whencleaningthefilterspongeswiththehandlefunction.

6
English
Do’s
—Make sure that the unit is installed in accordance with all
Nationaland Electrical Codes.
—Make sure to install the Filtoclear at least 6,5 feet from the
edgeof the pond.
—Make sure to keep the outlet system free of dirt and debris.
—Make sure to unplug the unit before servicing the unit.
—Make sure tokeeptheplugs and connectionsdryat all times.
—Make sure to return the unit to an authorized service dealer
forany repairs.
Don’ts
—Do not exceed the “Maximum Operating Pressure” of 2,9 psi
(0,2bar).
—Do not carry or pull the unit by the power cord.
—Do not tamperwith or operateunit without theproperground-
ing plug.
—Donotoperatetheunitifthepowercordappearstobedefective.
—Do not operate the lamp outside of the housing.
—Do not operatetheunit withoutwater flowingthroughthe unit.
—Do not expose eyes or skin to the lamp’s rays.
—Do not attempt any repairs on this unit.
—Do not open the casing of the Bitron or its accessories un-
less expressly directed to do so in the instructions
- Before starting up the Filtoclear, check that the connected
hoses, the sealing cap and the tension ring with safety latch
are sitting correctly.
-Never pumpany liquids other than water!
- When frost is expected, you must remove the Filtoclear with
integratedUVC.
- Install the Filtoclear where it will not be exposed to direct
sunlight.
- Pleaseobservethelocalnoiseprotectionregulations.

7
English
Electrical connection
Groundinginstructions
Thisproduct must be grounded.Ifit should malfunction orbreak-
down, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This product is
equippedwithan electrical cord having an equipment grounding
conductor and a grounding plug. The plug must be plugged into
an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Danger – Improper connection of the equipment-grounding
conductor can result in the risk of electrocution. Check with a
qualifiedelectricianorservicepersonnelifyouareindoubt as to
whether the outlet is properly grounded. Do not modify the plug
providedwith theproduct– if itwill not fittheoutlet, have aproper
outlet installed by a qualified electrician. Do not use any type of
adapterwith the product.
Warning – To reduce the risk of electrocution, keep all connec-
tions dry and off the ground. Do not touch plug with wet hands.
Ground fault circuit interrupter (GFCI)
protection
Tocomply with the National Electric Code(NFPA70) and to pro-
vide additional protection from the risk of electrical shock, this
unit should only be connected to a receptacle that is protected
by a ground fault circuit interrupter (GFCI < 30 mA).

8
English
How the Filtoclear pressure filter works
TheFiltoclearpressurefilterwithintegratedUVCisasealedfilter
systemforthebiologicalandmechanicalcleaningofpondwater.
A Water inlet
Thepumpisconnectedtothewaterinletwithapressurehose.
B Pre-clarifying of pond water
Asthewaterflowsin,itisbrieflyexposedtoultravioletradiation
under the UVC lamp. This kills off germs and bacteria and
inhibitsalgaegrowth.Thewatersubsequentlyflowsfromthe
edge into the filter in a circular fashion.
C Vortex system (settling zone)
Suspended matter and bio-sludge are precipitated by the
centrifugaleffectandgravity.
D Mechanical filtering
Dirt particles are trapped by the outer surface of the filter
spongesbeforethewaterflowstheentireheightofthefilterfrom
the edge into the inner chamber of the filter.
GI H
F
A
C
D
E
B
J

9
Installation guidelines with regard to the
Clear Water Guarantee
OASE guarantees that this system will maintain clear water in a
pondinaccordancewiththefollowingdefinitions,installationand
usageguidelines:
Definition of clear water:
Clear water is achieved if the fish or stones at the bottom of the
pond can be seen at a depth of 3,25 feet.
Selecting the right system
Pleaseselect thefiltersystem usingthefollowing table(selection
criteria:pond size and with/without fish population).
E Biological clarifying
Theporesofthe filterspongesformalargeinnersurface
whichmicroorganisms cancolonise.The red andblue filter
sponges differ in size and density. This creates zones in
which the water can flow at different speeds. Zones with a
highflowspeed(bluefiltersponges)favourthecolonisation
ofmicroorganismswhichconvertammoniumtonitratevia
nitride(nitrification).Zoneswithalowflowspeed(redfilter
sponges)supportthecolonisationofanaerobicmicroorgan-
ismswhichreducenitratetonitrogen(denitrification).
F Water outlet with flow indicator
At the water outlet, the clarified water is fed back into the
gardenpondviaapressure hoseorawatercourseetc.
G Cleaning connection
When cleaning the filter, a drainage hose can be connected
to the cleaning connection which diverts the dirty water into
adrainor onto a flower bed.
H Functionswitch
The function switch is used to switch between normal water
dischargeintothepond(“Filter“)andthecleaningconnec-
tion(“Clean“).
I Cleaning the filter sponges with the handle function
The filter sponges can be cleaned while the Filtoclear is
operationalthroughhard“pumping”by pressing the cleaning
handle.
J UVC Reflection (only Filtoclear 4.000)
English

10
ThefiltersystemwithintegratedUVCmustberunningpermanently,
24hoursaday.
TheUVC lampmust bereplacedafter 8,000hours ofoperation in
orderto ensure that the Filtoclear UVC continues to operatewith
optimumeffectiveness.
The filter system must be cleaned regularly.
Pressure loss due to height difference
The selection table allows for a maximum height difference of
3,25 feet between the surface of the water and the highest point
ofthe filtering system.Ifthe height differenceisgreater than 3,25
feet,youshoulduseacorrespondinglymorepowerfulpump.
English
Pressure loss due to hoses
Use large hoses if possible in order to minimise pressure loss.
Please use the following hose diameters for hoses up to 13 feet
in length:
Filtoclear800 1 – 1¼ inches
Filtoclear1.600 1 – 1½ inches
Filtoclear3.000 1¼ - 1½ inches
Filtoclear4.000 1½ inches
1''
1¼''
1½''
¾“
Slight pollution of pond
without fish population Heavy pollution of pond
with fish population
Aquamax Filtoclear 800 Filtoclear 1.600
1.600 SF 800 gal 400 gal 1.050 gal 525 gal
2.200 SF - - 1.600 gal 800 gal
3.000 SF - - - -
3.500 SF - - - -
Aquamax Filtoclear 3.000 Filtoclear 4.000
1.600 SF 1.600 gal 800 gal 2.100 gal 1.050 gal
2.200 SF 2.100 gal 1.050 gal 2.400 gal 1.200 gal
3.000 SF 2.640 gal 1.320 gal 3.000 gal 1.500 gal
3.500 SF 3.000 gal 1.500 gal 4.000 gal 2.000 gal

11
English
Installing and connecting the Filtoclear
pressure filter
Installing the Filtoclear pressure filter
Chooseasuitablelocationforthepressurefilter.Pleasenotethe
installationguidelinesregardingtheclearwaterguaranteeaswell
asthefollowingguidelines:
– InstalltheFiltoclearpressurefilterwithintegratedUVCsothat
itissafefromflooding.SecureyourFiltoclearsothatitwillnot
fallintothepond.Itshouldbeplacedatleast6,5feetfromthe
edgeofthepond.
– Placethefilteronafirmandlevelbase,e.g.onaslab.Thefilter
can also be buried up to the lip of the filter canister.
– Please ensure that there is unhindered access to the lid in
ordertobeabletocarryoutworkonthefilter,e.g.cleaningthe
filtersponges.
–Never operate the Filtoclear pressure filter with integrated
UVCwithawaterpressuregreaterthan2,9psi(0,2bar).The
heightdifferencebetweenthelidandpressure-freeoutletcan
thereforebeamaximum of6,5 feet.
Connecting hoses
Decide which hose diameter you need based on the selection
table and the recommended hose according to the installation
guidelines for the clear water guarantee (page 9 and 10). Only
operatetheFiltoclearwith pressurehoses thatare approvedfora
pressure of at least 2,9 psi ( 0,2 bar) i.e. the maximum pressure
of the pump. From the OASE range, we recommend the green
spiral hose with the corresponding hose clip.
Note: We recommend warming the hosewithhot water,pushing
/ twisting it onto the spiral stepped hose adapter and securing it
with a hose clip. This makes the connection more watertight.
Important!: To avoid pressure loss, cut the spiral stepped hose
adapter at the relevant point to fit each hose (see illustration).
1''
1¼''
1½''
¾“
Pmax = 2,9 psi
(0,2 bar)
min
6,5
feet
max.
6,5feet
Forhosesthat arelonger than13feet,pleasealwaysusehoses
thatcorrespondto the upper value of the scale.
Inordertoavoidpressureloss,cutthespiralsteppedhoseadapter
atthe relevant points for each hose.
Avoidunnecessarycornersandbendswhichcontributetofurther
pressure loss.

12
English
Connecting to cleaning connection
You can have a drainage hose permanently connected to the
cleaning connection. This allows you to drain the dirty water
directly into the sewerage system or onto a flower bed.
Important!: When the Filtoclear is being used in ‘filter’ mode,
the cleaning connection or any drainage hose connected to it
mustalwaysbe sealed withthe sealingcapand insertedflatseal
inorderto prevent the pond from emptying.At the same time the
sealing cap acts as a safeguard in case the function switch is
accidentally set to ‘Clean’.
To connect the drainage hose, push the union nut onto the
transparent spiral stepped hose adapter. Push / twist the hose
onand securewith a hoseclip. Insertthegreen flowvaneinto the
unionnut andscrew tightontocleaning connection.In ordertobe
able to seal the open end of the drainage hose with the sealing
cap,youneedtopush/twisttheblackspiralsteppedhoseadapter
with thread onto the hose and secure it with a hose clip. Screw
the sealing cap and inserted flat seal on tight.
Connection to water outlet
Push the union nut onto the transparent spiral stepped hose
adapter. Push / twist the hose on and secure with a hose clip.
Insertthe green flow vane into the unionnutand screw tight onto
the water outlet nozzle.
Note: We recommend diverting the cleaned water via a small
watercourse,for example, instead of feeding it directly back into
the pond. This enriches the water with additional oxygen.
Connection at water inlet
Push the union nut onto the black spiral stepped hose adapter.
Push / twist the hose on and secure with a hose clip.
Insert the flat seal into the union nut and screw tight onto the
water inlet nozzle:

13
English
Starting up the pressure filter
Important! Before each start-up, you should check that the
connectedhoses, thesealing capand thetensionring withsafety
latch are sitting correctly. The function switch must be set to the
“Filter“symbol. It isimperative that youreadand followthesafety
guidelinesbefore start-up.
1. First switch on the pump
Caution!TheUVClampmustnotbeoperatedwithoutwaterflowing
through it.
2.After starting up the pump, check that all the connections are
watertight.Improve those that are not.
3. Plug the Filtoclear UVC into the mains. The power indicator
lights up with a blue shimmer.
Note: In the case of a new installation, the pressure filter
onlyreachesitsfullbiologicalcleaningeffectivenessafter
a few weeks. Extensive bacterial activity only starts at
temperaturesof + 50°F or above.
Cleaning and maintenance of the Filtoclear
TheFiltoclear pressure filter is largely maintenance-free. The fil-
tersponges should, however,be cleaned regularly.
Cleaning the filter sponges with the handle function
Suspended matter and dirt are deposited in the filter sponges
over time. These deposits reduce the effectiveness of the filter,
sothe filter sponges should be cleaned regularly,e.g. every two
weeks.
Note: The filter sponges should be cleaned when cloudy
or even dirty water flows out of the water outlet and back
into the pond.
You can check how dirty the filter is at the transparent
spiral stepped hose adapter with the green flow vane at
the water outlet.
1. Twist off the sealing cap at the cleaning connection or at the
drainage hose that is connected to the cleaning connection.
Caution: There will be a small flow of water.
2. Pull the function switch up slightly and turn clockwise until it
clicks into the “Clean” position.
3. Pullthe cleaning handle hard and “pump” several times. This
squeezes the filter sponges and cleans them mechanically.
4. Press the cleaning handle down until it hits the lid. The two
O-rings noticably lock into position.

14
English
5. The filter will now be rinsed clean.As soon as only clean water
canbeseenthroughthetransparentspiralsteppedhoseadapter
at the cleaning connection, pull the function switch up slightly
and turn anti-clockwise until it clicks into the “Filter” position.
6. Screwthe sealing cap with the inserted flat sealtightontothe
cleaningconnection or thedrainage hose thatisconnected to
thecleaning connection.
7. The filter is now operational again. Check the water flow into
thepond at the green flow vane.
Washing the filter sponges
Ifthe water flowis too smalldueto dirty filterspongesand cannot
be improved through cleaning with the handle function, then the
filter sponges must be washed or replaced.
Note: Do not use any chemical cleaning agents so as not to kill
off the microorganisms in the filter sponges.
1. Disconnect the mains plug of the Filtoclear UVC.
2. Switchoff the pump and ensure that it cannot be switched on
unintentionally.
3. Removeall hoses by unscrewingthe union nuts.
4. Removethe tensionring.To dothis,pull back thesafety latch,
push in the fastening hook and open the tension ring.
5. Lift off the lid with the filter sponge assembly. Place the lid
upsidedown on another cleansurface.The filter sponges are
lying with the filter plate facing up.
Wear marking:
Thefilter spongesare pre-stressed.The filterspongescan
fall apart due to the mechanical strain and due to normal
ageing. This can result in a short-circuit in the filter.
To check the filter sponges, they must lie on top of each
other on the lower filter plate without any “air gaps”. The
filtersponges must be replaced if the wearmarkingonthe
upper plate is completely visible (see illustrations)
6. Removeupper filter plate by unscrewing thetwoscrews.
7. Pulloffthe filter sponges and clean under flowing water.Give
the filter sponges a good squeeze.

15
8. Pull off the lower filter plate.
9. Cleanthefilterbox,thelidwithlatticepipe,bothfilterplatesand
the tension ring by spraying them with a water hose.
10.Lift the bypass valve slightly and clean the inlet comb of the
FiltoclearUVC (see illustration).
11.Clean the lid sealing ring and the edge of the filter box.
12.Pushone filter plate, with the collar facing up,onto the lattice
pipe and the cleaning rods.
13.Thefilter sponges are pushed on from the casinglid, starting
with a large blue filter sponge and always alternating with a
smallredfiltersponge.Thecleaningrodslieinthetwoopenings
of the large chamber of the filter sponges.
14.Put the filter plate on with the collar facing down. Fasten the
cleaning rods flush to the filter plate using the two screws.
Important: If the cleaning rods can be pushed through the
holesof the filter plate, thefilterplatemust be turned 90° onto
the other set of holes. The lattice pipe must be completely
coveredby the collar diameter.
15.Place the lid seal onto the upper edge of the filter box (see
illustration).
16.Press the lid with the filter sponge assembly onto the filter box.
17.Place the tension ring onto the edge of the filter box and lid,
pressdownonthelidand click the fastening into place. Push
the safety latch in. Caution: Do not jam the cable of the
FiltoclearUVC!
18.Fasten all hoses with flat seals or flow vane to the
correspondingconnectionsbyscrewingtheunionnutsontight.
19.Startthe pressurefilterup again.(see“Starting upthepressure
filter“)
English

16
Replace UVC lamp
TheUVC lampmustbe replaced after8.000 hours ofoperation in
ordertoensurethattheFiltoclearUVCcontinuestooperate with
optimumeffectiveness.
1. Disconnect the mains plug of the Filtoclear UVC.
2. Switchoff the pump and make sure that it cannotbeswitched
onunintentionally.
3. Unscrew the four screws of the Filtoclear UVC and carefully
pull the lamp from the lid of the filter. Note: The screws are
screwedinverydeep(approx.0,7inch)inordertoallowgreater
torquetobeapplied.
4. Unscrew the clamping screw in an anti-clockwise direction
andremove the quartz tube with O-ring.
5. Pull out the UVC lamp and replace it.
Note: Due to a built-in safety switch the UVC lamp only
worksaftercompleteassemblyoftheFiltoclear.Onlylamps
of the type 9W UV-C, G23 may be used.
6. Clean the quartz tube with a damp cloth.
7. Check the quartz tube and O-ring for damage and replace if
necessary.
8. Screwthe clampingscrew with quartztube and O-ringon tight
in a clockwise direction.
Cleaning the quartz tube
1. Disconnect the mains plug of the Filtoclear UVC.
2. Switchoff the pump andmake sure that itcannotbe switched
onunintentionally.
3. Unscrew the four screws of the Filtoclear UVC and carefully
pull the lamp from the lid of the filter. Note: The screws are
screwedinverydeep(approx.0,7inch)inordertoallowgreater
torquetobeapplied.
4. Clean the quartz tube with a damp cloth.
5. Pullouttheflatsealandtheprotectivetubebetweenthelidand
the Filtoclear UVC and clean with water. Check the parts for
damageandreplaceifnecessary.Fittheflatsealunderthering
oftheprotectivetube(seeillustration) andinsertinlidtogether.
6. Insert the Filtoclear UVC in the lid of the filter and screw the
four screws on tight by hand (1,5 ft-lb).
7. Startthepressurefilterupagain.(see“Startingupthepressure
filter“)
English

17
English
9. Pull out the flat seal and the protective tube between the lid
andtheFiltoclear UVCandcleanwithwater.Checkthepartsfor
damageandreplaceifnecessary.Fittheflatsealunderthering
oftheprotectivetube(seeillustration)andinsertinlidtogether.
10.Insert the Filtoclear UVC in the lid of the filter and screw the
four screws on tight by hand (1,5 ft-lb).
11.Start the pressure filter up again. (see “Starting up the
pressurefilter“).
Storage / winter storage
When frost is expected, you must remove the Filtoclear with
integratedUVC!Cleanitthoroughly(seeCleaningandmaintenance
ofthe Filtoclear).Checkthe Filtoclearwith integrated UVCfor any
damage. Store the Filtoclear with integrated UVC in a dry and
frost-freeplace.Theplaceofstoragemustbeinaccessibletochildren.
Advice on disposal
Please dispose of your Filtoclear with integrated UVC in an
environmentally friendly way. Contact your local refuse depart-
mentforadviceon disposal.
UVClampsmustnotbedisposedofwithdomesticwaste!Remove
the UVC lamp from the unit and take it to a collection point, so
thatit can be disposedofin an environmentallyresponsibleway.
Repair / cable replacement
Forrepair/cable replacementpleasesend thedefectiveFiltoclear
with integrated UVC directly to the supplier / manufacturer.
Available sparepartsare listedunderProduct overview.

18
Fault
Water not
getting clear
UVClamp
indicator is
not on
No water
discharge
from pond inlet
Possiblecauses
• Unit not been used
for long
• Inappropriate pump
capacity
• Water is extremely
dirty
• Fish and animal
population too large
• Filter sponges are
dirty
• Quartz tube is dirty
• MainsplugofFiltoclear
UVC not connected
• Defective UVC lamp
• Faulty connection
• Lamp has no UVC
output
• Protective tube not
fitted
• Filtoclear UVC over-
heating
• Function switch set
to “Clean”
• Mains plug of pump
not connected
• Pond inlet blocked
Measures
• Full biological cleaning effectiveness
is only reached after a few weeks.
• Reset pump capacity
• Remove algae and leaves from
the pond, change the water
• Guideline: approx. 2 feet fish length
to every 265 gal of pond water
• Clean the filter sponges
• Remove the Filtoclear UVC and
clean the quartz tube
• Connect the mains plug of the
FiltoclearUVC
• Replace the UVC lamp
• Check the electrical connection
• The lamp should be replaced after
approx. 8,000 hours of operation
• See Replace UVC lamp
• After cooling down, UVC
switched on automatically
• Reset function switch to “Filter”
• Connect the mains plug of the
pump
• Clean pond inlet
Troubleshooting
English
Technical data
Filtoclear 800 1.600 3.000 4.000
Dimensions in inches
(LxWxH) 14,96x14,96x12,2 14,96x14,96x17 14,96x14,96x21,6 14,96x14,96x26,4
Inletandoutlet ¾“ to 1½“ ¾” to 1½“ ¾“ to 1½“ ¾“ to 1½“
Filter volume in gallon 1,3 2,4 3,7 4,5
Crystalline filter surface 57 ft² 113 ft² 170 ft² 225 ft²
Integrated UVC clarifier 9 W 9 W 9 W 9 W
NominalvoltageUVC 120V/60Hz 120V/60Hz 120V/60Hz 120V/60Hz
Lamp components UVC 9W UV-C, G23 9W UV-C, G23 9W UV-C, G23 9W UV-C, G23
Cablelength 15 ft 15 ft 15 ft 15 ft
Weight 11 lbs. 12 lbs. 13 lbs. 14 lbs.

19
English
Wearing parts
Filtoclear800: SpareUVClamp9W IDNo.54984
Sparefilter setFiltoclear USA800 IDNo.56109
Spare set of seals IDNo.34581
Filtoclear1.600: SpareUVClamp9W IDNo.54984
Sparefilterset FiltoclearUSA1.600 IDNo.56110
Spare set of seals IDNo.34581
Filtoclear3.000: SpareUVClamp9W IDNo.54984
Sparefilterset FiltoclearUSA3.000 IDNo.56111
Spare set of seals IDNo.34581
Filtoclear4.000: SpareUVClamp9W IDNo.56112
Sparefilter set Filtoclear USA 4.000 IDNo.56884
Spare set of seals IDNo.34581
Product overview
1 Filter box Filtoclear USA 800 IDNo.24460
2 Filter box Filtoclear USA 1.600 IDNo.24461
3 Filter box Filtoclear USA 3.000 IDNo.24462
4 Filter box Filtoclear USA 4.000 IDNo.26527
5 LidFiltoclear IDNo.24459
6 Innerlid Filtoclear IDNo.24457
7 Spare UVC lamp 9W IDNo.54984
8 FiltoclearUVC 120V/60Hz IDNo.25236
9 Quartztube IDNo.22622
10 Lattice pipe Filtoclear USA 800 IDNo.24853
11 Lattice pipe Filtoclear USA 1.600 IDNo.24854
12 Lattice pipe Filtoclear USA 3.000 IDNo.24852
13 Lattice pipe Filtoclear USA 4.000 IDNo.26595
14 ProtectivetubeFiltoclearUVC IDNo.34521
15 Spare set of control elements Filtoclear IDNo.34579
16 Spare set of screw elements Filtoclear IDNo.34580
17 Spare set of seals Filtoclear IDNo.34581
18 Spare filter set Filtoclear USA 800 IDNo.56109
19 Spare filter set Filtoclear USA 1.600 IDNo.56110
20 Spare filter set Filtoclear USA 3.000 IDNo.56111
21 Spare filter set Filtoclear USA 4.000 IDNo.56884
22 CleaningrodsFiltoclearUSA800 IDNo.24749
23 CleaningrodsFiltoclearUSA1.600 IDNo.24748
24 CleaningrodsFiltoclearUSA3.000 IDNo.24747
25 CleaningrodsFiltoclearUSA4.000 IDNo.26596
26 Additional pack Filtoclear USA
800 / 1.600 / 3.000 / 4.000 IDNo.34617
27 Tensionring Filtoclear IDNo.34578
28 Protectivetubewithreflectorplate(4.000only) IDNo.35256

20
English
5
6
7/ 8
9
10
17 17/18
27 18/27
16
16/18
16(2x)/17(12x)
25
18/27
17(12x)
18
17
17
18 17
17/18
17
18
15a/15b/28
18
18
