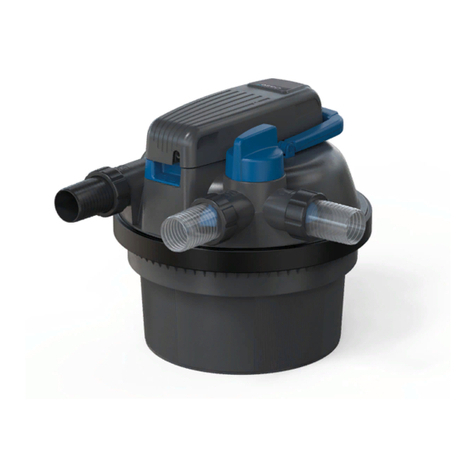

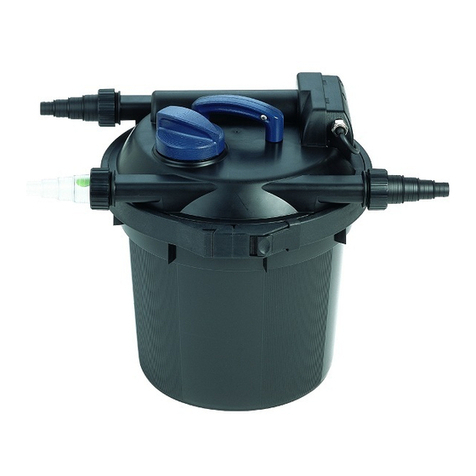

Oase FiltoClear 5000 User manual

DE
EN
FR
NL
ES
PT
IT
DA
NO
SV
FI
HU
PL
CS
SK
SL
HR
RO
BG
UK
RU
CN
FiltoClear
5000, 13000, 19000, 31000
DE
Gebrauchsanleitung
HU
Használati útmutató
EN
Operating instructions
PL
Instrukcja
ñċĂìÂÓü̵
FR
Notice d'emploi
CS
Návod k pouĊití
NL
Gebruiksaanwijzing
SK
Návod na pouĊitie
ES
Instrucciones de uso
SL
Navodila za uporabo
PT
Instruções de uso
HR
Uputa o upotrebi
IT
Istruzioni d'uso
RO
(Ìæìâñïµñ̵¡¥®ÓÅÓæµÌï
DA
Brugsanvisning
BG
ʉʥʰʨʘʖʣʛʝʖʩʥʤʨʦʛʗʖ
NO
Bruksanvisning
UK
ʅʤʧʻʗʣʞʠʝʛʠʧʥʡʩʖʨʖʬʻʼ
SV
Bruksanvisning
RU
ʆʩʠʤʘʤʚʧʨʘʤʥʤʳʠʧʥʡʩʖʨʖʬʞʞ
FI
Käyttöohje
CN
使用说明书

EN
29
EN
WARNING
Original operating manual.
WARNING
Disconnect all electrical units in the water from the power supply be-
fore reaching into the water. Otherwise there is a risk of injuries or
death by electrocution.
This unit can be used by children aged 8 and above and by persons
with reduced physical, sensory or mental capabilities or lack of expe-
rience and knowledge if they are supervised or have been instructed
on how to use the unit in a safe way and they understand the hazards
involved. Do not allow children to play with the unit. Only allow chil-
dren to carry out cleaning and user maintenance under supervision.
Safety information
Electrical connection
Special regulations apply to electrical installation in outdoor areas. Only allow a qualified elec-
trician to perform the electrical installation.
– The qualified electrician has the required professional training, knowledge and skills to per-
form electrical installations in outdoor areas. The qualified electrician can detect potential
risks and adheres to regional and national standards, regulations and directives.
– For your own safety, please consult a qualified electrician.
Only connect the unit if the electrical data of the unit and the power supply match.
Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated
fault current of max. 30 mA by means of a fault current protection device.
Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use
(splash-proof).
Protect open plugs and sockets from moisture.

30
Safe operation
Do not use the unit, if electrical lines or the housing are damaged.
A damaged connection cable cannot be replaced. Dispose of the unit.
Do not carry or pull the unit by its power cable.
Never make technical modifications to the unit.
Only carry out work on the unit that is described in this manual.
Only use original spare parts and accessories.
Route lines so that they are protected from damage and nobody can trip over them.
Should problems occur, please contact the authorized customer service or OASE.
Intended use
Only use the product described in this manual as follows:
For mechanical and biological cleaning of garden ponds
In compliance with the technical specifications. (→ Technical data)
The following restrictions apply to the unit:
This product is not suitable for general lighting, but is only intended for the purpose described
here.
Never operate the UVC lamp outside the casing or use it for any other purpose. The UVC radia-
tion is harmful to the eyes and skin even in small doses.
Never use the unit with fluids other than water.
Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
Never run the unit without water.
Do not use for commercial or industrial purposes.

EN
31

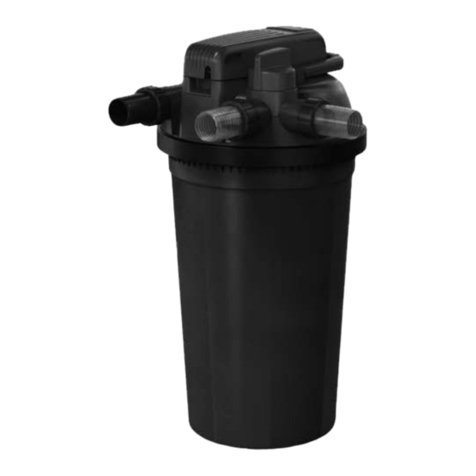

Product description
Overview
FCL0007

32
1 Water inlet for the pond water being cleaned
Connection G2
2 Opening ring with locking screw for locking the UVC unit head
It is necessary to open the opening ring in order to remove the UVC unit head.
3 Water outlet for the cleaned pond water
Connection G2
4 UVC unit head with temperature monitor
The UVC clarifier shuts down when overheating and automatically turns on again after it has
cooled down
5 Turning valve for switching between water outlet and dirt water outlet
Water filtration and UVC radiation
Cleaning the foam filters
6 Dirt water outlet for the dirt water when cleaning the foam filters
Connection G2
7 Indicator lamp for checking the function of the UVC clarifier
8 Cleaning handle
Pull to compress the foam filters and flush out the dirt particles
9 Filter cover
10 Clamping ring for fastening the filter cover on the container
11 Marking for max. burying depth
12 Container
13 Cleaning rotor, cleans the quartz glass during operation
Only for FiltoClear 19000, 31000
14 Foam filter, blue (10 ppi)
15 Foam filter, red (30 ppi)
16 Foam filter, purple (20 ppi)
17 Closing disc for foam filters, is connected with both cleaning rods
18 Cleaning rod, connecting cleaning handle and closing disc
19 Meshed tube, maintaining the distance between the foam filters and the UVC water housing
20 UVC water housing, conveying water to the UVC lamp
21 Spacers that connect the two spacer discs
The spacers prevent the foam filters from being compressed by the weight of the foam filters
above them
22 Quartz glass with internal UVC lamp
23 Spacer disc, placed between each pair of foam filters

EN
33
Connection components for installation
FCL0012
1 Hose connector, transparent
Use: Water outlet, dirt water outlet
2 Hose connector, black
Use: Water inlet
3 Hose connector, black with G2 outer thread
Use: Open end of the dirt water hose, the cover cap is screwed onto the outer thread
4 Union nuts G2, for installing the hose connectors
5 Cover cap G2, for closing the dirt water outlet
6 Flat seal for black hose connector and cover cap
7 Flow lug for transparent hose connector
8 Hose clip

34
Function description
The filter pump pushes the water into the pressure-tight container where it passes through sev-
eral cleaning stages before returning into the pond.
Cleaning stage “Filtration”
The water flows through the foam filters. Mechanical soiling is retained by the foam filters. Sus-
pended matter and bio sludge settle on the container bottom. Useful bacteria settle on the foam
filters, cleaning the water biologically. Their effect starts at a water temperature of +10 °C.
Foam filter Properties
Blue (10 ppi) High flow rate
Colonisation of bacteria for nitrification, which turns ammonia first into ni-
trite, then into nitrate
Purple (20 ppi)
Red (30 ppi) Lower flow rate
Colonisation of bacteria for nitrification and denitrification, which turns ni-
trate into nitrogen
Cleaning stage “UVC radiation”
Water is subjected to UV-C light from the UVC clarifier. Green algae die, pathogenic agents are
killed.
Bypass
The bypass ensures that only approx. 70 % of the water is subjected to UV-C light. This guaran-
tees sufficient radiation even at high flow rates.
Biological cleaning effect
The maximum biological cleaning effect is achieved when the foam filters are fully colonised by
filter bacteria. On new foam filters, colonisation may take several weeks. Adding starter bacteria
can significantly speed up colonisation.
Cleaning the foam filters
You can use the soiled water from cleaning the foam filters to fertilise your garden.
Recommended filter pump
FiltoClear
5000 13000 19000 31000
AquaMax Eco Premium 4000 8000 12000 16000

EN
35
Symbols on the unit
The unit is dust-proof, fully protected against contact and protected from con-
tinuous immersion in water to a depth of 0.1 m.
Dangerous UVC radiation
Protect the unit from direct sunlight
Protect the unit from freezing temperatures
Do not dispose of the unit with normal household waste
Read the operating instructions
Installation and connection
Installing the unit
To be taken into consideration for planning:
For operation at a swimming pond: Install the unit at a distance of at least 2 m from the water.
For operation at a pond: You can set up the unit directly at the edge of the pond.
Protect the pressure filter from direct sunlight.
Route the return hose into the pond so that the water returns to the pond e.g. through a wa-
ter course. This enriches the water with additional oxygen.
Ensure that the inlet into the pond is max. 2 m above the filter cover.
Burying the pressure filter
A buried container is barely visible. The stone grey FiltoCap (Art. No. 77831) cover available as an
accessory for the filter cover fits seamlessly into the pond scape.
Dig a hole close to the pond and place the container in the hole down to the maximum burying
depth.
The ground must be firm and horizontal.
FiltoClear Burying depth h
5000 0.12 m
13000 0.24 m
19000 0.36 m
31000 0.48 m

36
Installing the pressure filter on level ground
If you choose not to bury the pressure filter, position it so that it is hidden from sight e.g. cov-
ered by bushes.
Install the unit near the pond.
The ground must be firm and horizontal.
FCL0011

EN
37
Establishing the connections
Hoses with a diameter of 38 mm or 50 mm can be connected to the pressure filter. The respec-
tive hose connectors are part of our scope of delivery.
Use hoses with a diameter of 50 mm to keep the pressure losses in the hoses as low as pos-
sible.
If you use a filter starter for start-up, fill the product into the container prior to carrying out
the following installation steps.
It is easier to remove the filter cover if you first remove all hoses from the filter cover.
Connecting the inlet
Only use pressure hoses approved for at least the maximum pump pressure to connect the out-
let of the filter pump and the inlet of the pressure filter.
Always use a hose clip to fasten the hose on a hose connector.
Connecting the outlet
Use a transparent hose connector with a flow lug. The transparent hose connector will allow you
to assess the water quality after filtration. The flow lug will show you the water flow.
Push the hose onto the hose connector until only two segments on the hose connector re-
main uncovered.
– This will give you a sufficiently large view into the hose connector.
Always use a hose clip to fasten the hose on a hose connector.
FCL0014

38
Connecting the dirt outlet
The soiled water resulting from cleaning can be used for fertilisation. Connect a hose and route it
up to a suitable location (e.g. flower bed).
Use a transparent hose connector with a flow lug. The transparent hose connector will allow you
to assess the degree of soiling of the water when cleaning the foam filters. The flow lug will show
you the water flow.
Push the hose onto the hose connector until only two segments on the hose connector re-
main uncovered.
– This will give you a sufficiently large view into the hose connector.
Always use a hose clip to fasten the hose on a hose connector.
Install the black hose connector with the G2 outer thread on the outlet of the hose. Close the
hose connector with the cover cap and the flat seal.
NOTE
Close the dirt outlet or the outlet of the connected hose with the cover cap and the flat seal.
This prevents unintended emptying of the pond. Only remove the cover cap to drain dirty water.
FCL0028

EN
39
Commissioning/start-up
NOTE
The unit will be destroyed if it is operated with a dimmer. It contains sensitive electrical compo-
nents.
Do not connect the unit to a dimmable power supply.
The purely biological starter bacteria Oase AquaActiv BioKick activate the filter biology and
ensure maximum performance of your pond filter within only a few weeks. They immedi-
ately start removing nitrite, ammonium and ammonia from the water. We recommend fill-
ing the container with Oase AquaActiv BioKick
during initial start-up,
after manual cleaning or replacing the foam filters,
after long shut-down periods or during start-up after a long winter break.
Start-up sequence:
1. If required, fill the container with Oase AquaActiv BioKick. (→ Removing/positioning the filter
cover)
2. Ensure that the hoses, cover cap for the dirt water outlet and the clamping ring with the
safety latch are firmly connected.
3. Turn the turning valve to “Filter water”.
4. Switch on the pond pump.
5. Only switch on the UVC clarifier when water emerges from the water outlet. (→ Switching the
UVC clarifier on/off)
– Never run the UVC clarifier without water flowing through.
– If you are using Oase AquaActiv BioKick, leave the UVC clarifier turned off for 24 hours. This
allows the starter bacteria to achieve optimum effectiveness.

40
Switching the UVC clarifier on/off
Switching on: Plug the power plug into the outlet.
– The unit switches on immediately.
– The indicator lamp lights up.
– The flow lug on the outlet will show you that water is flowing.
Switching off: Pull the power plug from the outlet.
FCL0015
Operation
The pressure filter can remain in operation for the full pond season (the filter pump and the UVC
clarifier are switched on).
The biological filter elements are no longer active at water temperature of less than 10 °C.
Shut down the unit at water temperatures below 8 °C or at the latest when freezing tempera-
ture are to be expected. (→ Decommissioning/winter storage)
The UVC lamp is a wear part. Replace the UVC lamp after a specific operating duration to en-
sure optimum filter performance. (→ Replacing the UVC lamp)
Maintenance and cleaning
NOTE
Do not use aggressive cleaning agents or chemical solutions. These agents can damage the
housing, impair the function of the device and harm animals, plants and the environment.
Only clean the unit from the outside with clear water and a soft brush.

EN
41
Cleaning the foam filters
The Easy Clean function is used to clean the foam filters. During cleaning, the filter pump is
switched on so that the dirt water is transported out of the pressure filter.
Turn the turning valve to guide the water in the container to the dirt water outlet. This pre-
vents the dirt water from flowing back into the pond.
– Beforehand, remove the cover cap from the outlet hose for the dirt water.
Pull the cleaning handle to compress the foam filters. The dirt particles are removed and flow
with the water via the dirt water outlet, for instance to a flower bed.
The transparent hose connectors allow you to check the water flow and assess the degree of
soiling in the water during cleaning on the dirt water outlet. As soon as the water runs clear,
turn the turning valve back to “Filtering”.
After cleaning, close the dirt water hose or the dirt water outlet with the cover cap and the
flat seal.
FCL0020

42
Removing/positioning the filter cover
Removing the filter cover
How to proceed:
Switch off the filter pump and pull the power plug of the UVC clarifier from the outlet.
Remove all hoses from the filter cover (unscrew hose connectors).
Undo the locking latch.
– Use flat nose pliers if the locking latch is hard to move.
Open the clamping ring and remove the filter cover.
FCL0018

EN
43
Positioning the filter cover
Ensure that the O-ring on the container is positioned correctly on the container rim.
– Moisten the seal with water or grease the seal, if necessary, so that the filter head is easier
to push onto the container.
Evenly and forcefully push the filter cover as far as possible onto the container.
– The filter ring must make full contact with the container, otherwise the clamping ring will
not close.
Fasten the filter cover with the clamping ring and close the locking latch.
– The locking latch prevents the clamping ring from coming loose accidentally, which would
cause pond water to leak in an uncontrolled manner.
– Use flat nose pliers if the locking latch is hard to move.
Attach all hoses (screw hose connectors in place).
FCL0019

44
Cleaning the unit and washing or replacing the foam filters
Wear of the foam filters is caused by mechanical stress and normal ageing.
Insert new foam filters at the start of the season.
Disassembling the foam filter package
Prerequisite:
The filter cover has been removed. (→ Removing the filter cover)
Place the filter cover upside down on a soft clean surface so that the foam filter package is on
top.
Undo the two screws, remove the closing disc and remove the first foam filter.
For every additional foam filter, undo the two spacers and remove the spacer disc and the
foam filter.
FCL0023

EN
45
Cleaning
Clean the container, the clamping ring, the filter cover, the UVC water housing and the
meshed tube with a powerful water jet.
– Pull off the meshed tube by pulling and simultaneously turning it clockwise.
Wash each of the foam filters by forcefully compressing it under running water.
– If necessary, replace the foam filters.
FCL0030

46
Assembling the foam filter package
Push the foam filters onto the meshed tube in the intended order. (→ Installation sequence of
the foam filters)
Place a spacer disc on each foam filter and fasten it with two spacers each.
– Insert the spacer into the spacer disc up to the stop and fold over the spacer with a slight
rotary movement.
Place the closing disc on the final foam filter (purple, 20 ppi). Fasten the closing disc to the two
cleaning rods using the two screws.
Position the filter cover on the container. (→ Positioning the filter cover)
FCL0024
Installation sequence of the foam filters
FiltoClear 5000 FiltoClear 13000 FiltoClear 19000 FiltoClear 31000
Foam filters

EN
47
Removing/installing the UVC unit head
CAUTION
The ultra-violet radiation of the UVC lamp can damage your eyes and skin.
Never operate the UVC lamp outside out the casing or in a damaged casing.
Disconnect the unit from the power grid before starting any maintenance work or before re-
placing the UVC lamp.
CAUTION
The quartz glass and UVC lamp could break and cause cuts.
Act with caution when performing work on the UVC clarifier in order to avoid cuts.
Avoid shocks, impacts and abrupt movements to prevent the glass from breaking.
For safety reasons, the UVC lamp can only be turned on when the UVC clarifier is properly
installed in the unit.
Removing the UVC unit head
How to proceed:
First pull the power plug of the UVC clarifier before removing the UVC unit head.
Remove the locking screw, undo the opening ring and remove the UVC unit head.
If it is not possible to remove the UVC unit head, a vacuum has built up in the quartz glass as a
result of the UVC lamp cooling down.
– Remedy: Switch on the UVC clarifier. The heat of the UVC lamp reduces the vacuum and the
UVC unit head is pushed up with a plopping sound. Pull the plug of the UVC clarifier and re-
move the UVC unit head.
FCL0016
