Océ Safety Information &
Getting Started
Introduction
im7520/im6020 Safety Information and Getting Started 1
Thank you for selecting an Océ solution for your document produc-
tion and management needs. The following information will help you
get the most productive and reliable use out of your system.
Océ brand supplies are designed for Océ copiers, printers and fax
machines to ensure maximum product performance and quality.
Substituting other supplies may result in inferior image quality and
machine malfunction.
To order supplies call the Océ Supply Line:
1-800-462-6797 (US)
1-866-462-4478 (CAN)
01277 846 146 (UK)
Should your system develop a problem that cannot be remedied by
using the maintenance or troubleshooting procedures outlined in
this manual, please contact Océ Technical Support by calling:
1-800-243-5556 (US)
1-866-462-4478 (CAN)
08708 500 749 (UK)
For faster service, please have your machine model and serial num-
ber available before calling.
Serial Number:
This product was first introduced by Imagistics International Inc.
and is now a part of the Océ product line. Please be aware that
while some components may still carry the Imagistics name and
markings, they are fully compatible with the Océ brand system.
Support Information
2 im7520/im6020 Safety Information and Getting Started
This manual contains important safety information. To ensure that
this machine is used correctly and efficiently, carefully read this
manual before using the machine. The User’s Guides found on the
CD-ROM* provide details on the operation of the various functions
of the machine, precautions, and basic troubleshooting procedures.
The illustrations used in this manual and the User’s Guides on the
CD-ROM may appear slightly different from views of the actual
equipment.
Viewing PDF files found on the CD-ROM requires Adobe® Acro-
bat® ReaderTM. If you do not have Acrobat 5 or higher installed,
please visit www.adobe.com where you can download the free
software. After downloading, follow the instructions from Adobe for
installation.
Océ and the Océ logo are trademarks of Océ N.V., Registered in the
U.S. Patent and Trademark Office and/or other jurisdictions.
For sales, technical and account support, log on to:
www.oce.com
Contents
im7520/im6020 Safety Information and Getting Started 3
Introduction ...............................................................Page 1
Support Information .................................................. Page 2
Contents ....................................................................Page 3
User’s Guides CD-ROM ............................................Page 4
List of User’s Guides .................................................Page 6
Legal Restrictions on Copying ..................................Page 7
Installation Precautions .............................................Page 8
Safety Information ................................................Page 8
Regulation Notices .............................................Page 13
Ozone Release ................................................... Page 16

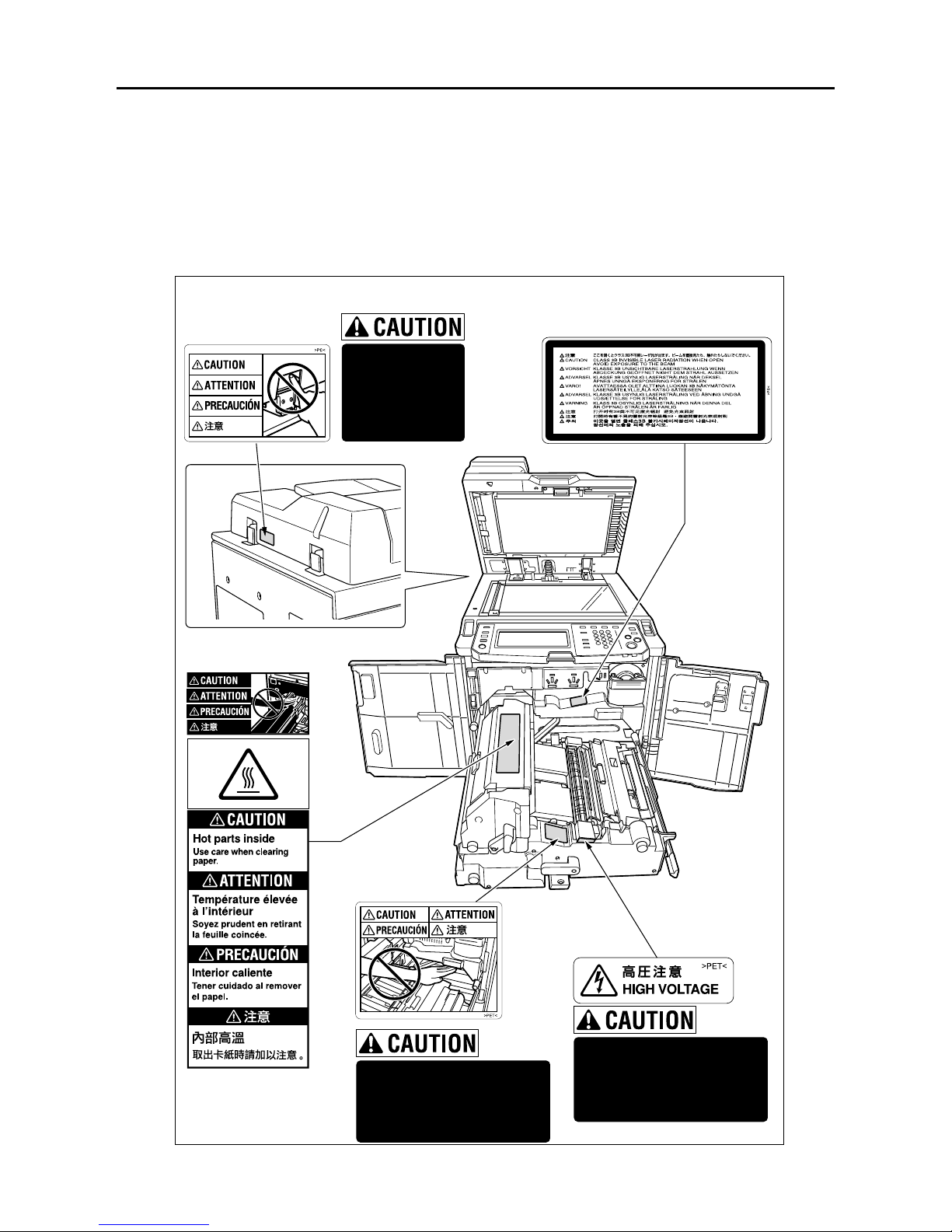

Caution Labels ...................................................Page 17

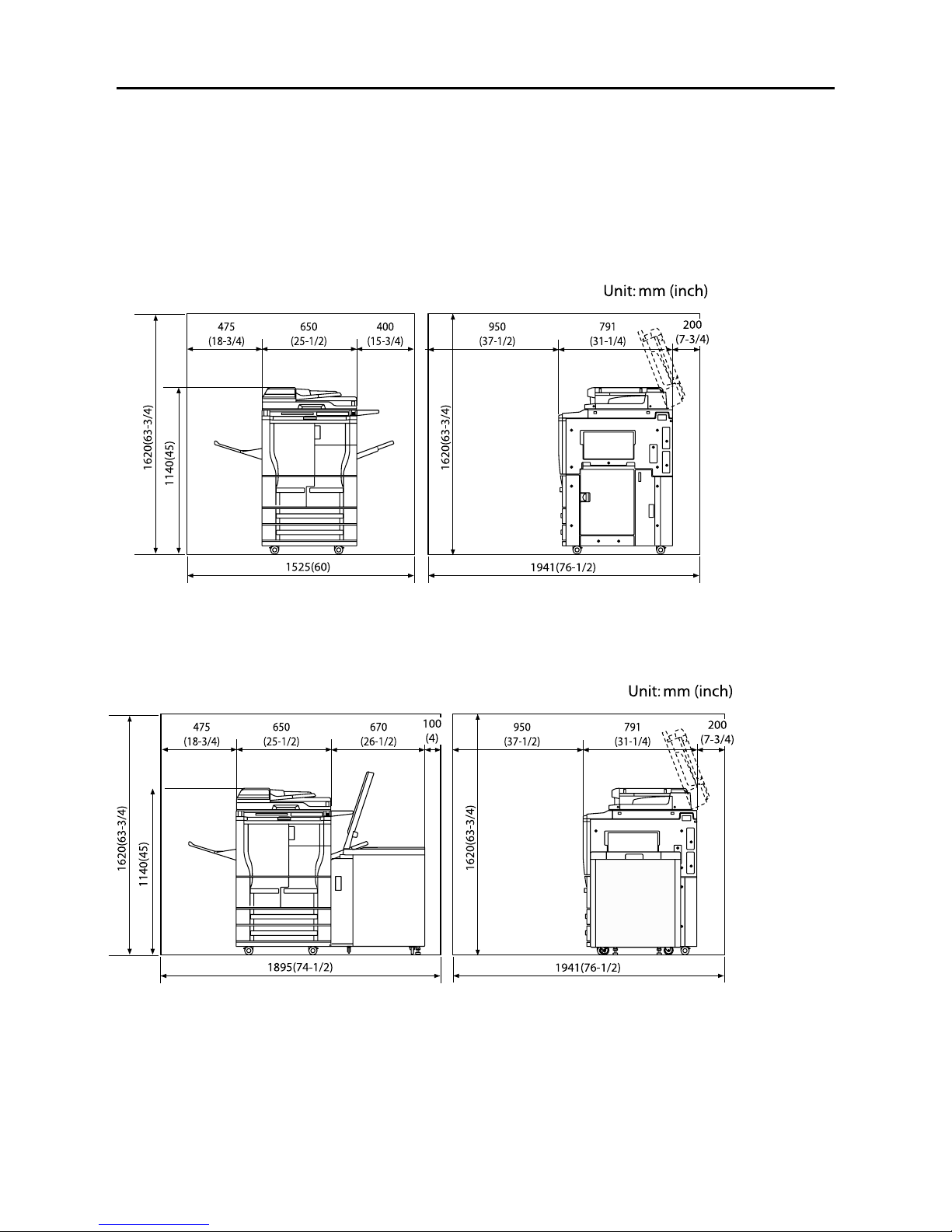

Space Requirements ..........................................Page 18
Power Requirements ..........................................Page 20

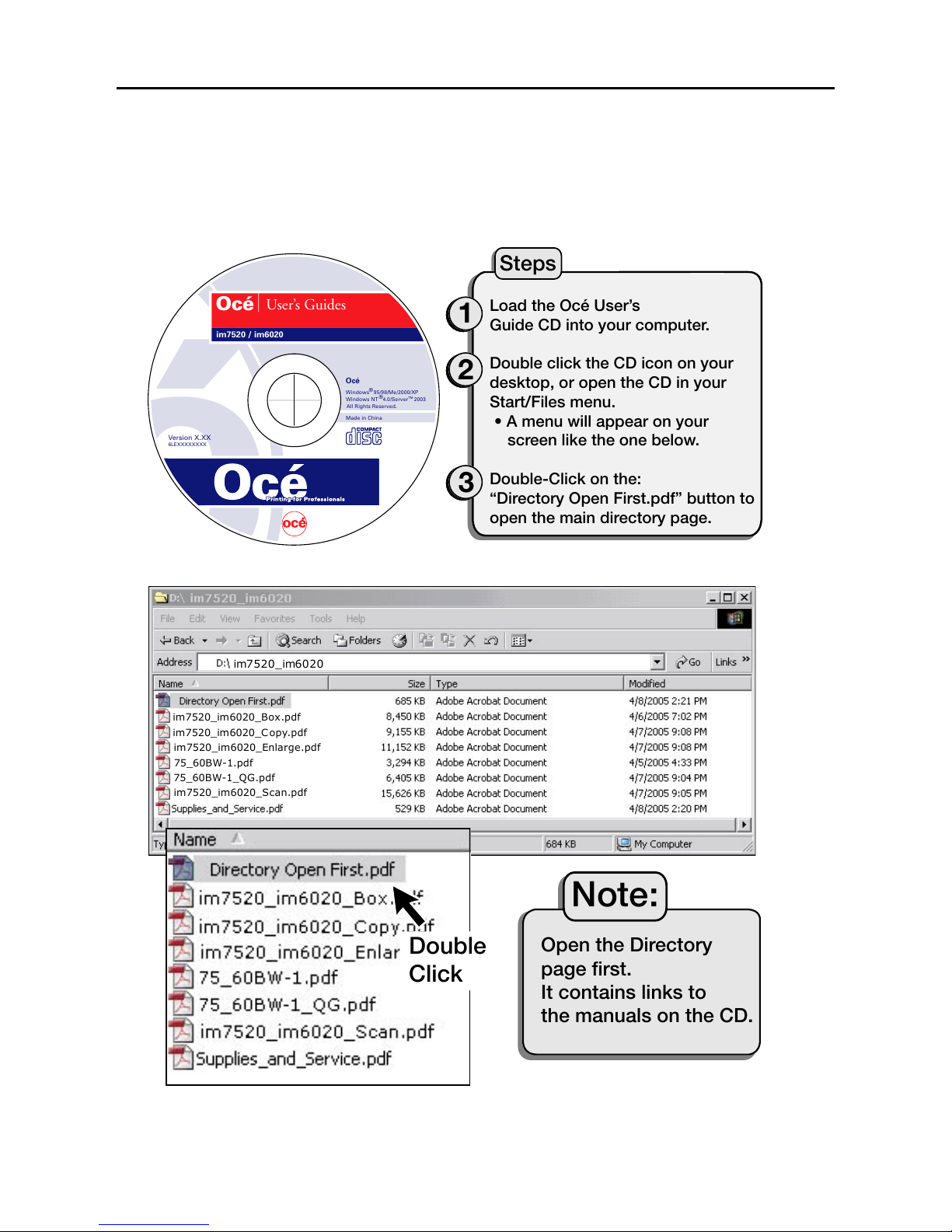

User’s Guides CD-ROM
4 im7520/im6020 Safety Information and Getting Started
Access the User’s Guides by following the quick and easy steps
listed below. Requires Adobe Acrobat 5 or Acrobat Reader 5 or
higher.
� �
im7520_im6020_Copy.pdf
im7520_im6020_Enlarge.pdf
im7520_im6020_Scan.pdf
75_60BW-1.pdf
75_60BW-1_QG.pdf
im7520_im6020_Box.pdf
im7520_im6020
User’s Guides can be opened from the directory page. Each guide
will open in a separate window. The Contents pages in each manual
contain links which allow you to navigate throughout the document.
You can search the PDFs using Acrobat’s Search feature.
User’s Guides CD-ROM
im7520/im6020 Safety Information and Getting Started 5
�
�
�
�
�
�
�
�
�
�
�
�
�
I
6 im7520/im6020 Safety Information and Getting Started
User’s Guides
The following User’s Guides have been prepared for this machine.
User’s Guide [Copy Operations]
This manual contains details on basic operations and the operating proce-
dures for the various copy functions.
-Refer to this User’s Guide for details on operating procedures for copy
functions, including precautions on installation/use, turning the machine
on/off, loading paper, and troubleshooting operations such as clearing
paper misfeeds.
User’s Guide [Network Scanner Operations]
This manual contains details on specifying network settings for standard
equipment and on operations for scanning functions.
-Refer to this User’s Guide for details on operating procedures for network
functions and for using Scan to E-Mail, Scan to FTP and Scan to PC
(SMB).
User’s Guide [Box Operations]
This manual contains details on operating procedures for using the boxes.
-Refer to this User’s Guide for details on operating procedures for using
the boxes on the hard disk.
User’s Guide [Enlarge Display Operations]
This manual contains details on operating procedures for using copy func-
tions in Enlarge Display mode.
-Refer to this User’s Guide for details on operating procedures in Enlarge
Display mode.
List of User’s Guides
6 im7520/im6020 Safety Information and Getting Started
Legal Restrictions on Copying
Certain types of original must never be copied with the purpose or intent to
pass copies of such documents off as the originals.
The following is not a complete list, but is meant to be used as a guide to
responsible copying.
<Financial Instruments>
-Personal checks
-Traveler’s checks
-Money orders
-Certificates of deposit
-Bonds or other certificates of indebtedness
-Stock certificates
<Legal Documents>
-Food stamps
-Postage stamps (canceled or uncanceled)
-Checks or drafts drawn by government agencies
-Internal revenue stamps (canceled or uncanceled)
-Passports
-Immigration papers
-Motor vehicle licenses and titles
-House and property titles and deeds
<General>
-Identification cards, badges, or insignias
-Copyrighted works without permission of the copyright owner
In addition, it is prohibited under any circumstances to copy domestic or for-
eign currencies, or works of art without permission of the copyright owner.
When in doubt about the nature of a document, consult with legal counsel.
Legal Restrictions on Copying
im7520/im6020 Safety Information and Getting Started 7
1
1 Installation and Operation Precautions
1.1 Safety Information
This section contains detailed instructions on the operation and maintenance
of this machine. To achieve optimum utility of this device, all operators
should carefully read and follow the instructions in this manual.
Please read the following section before connecting the machine to the sup-
ply. It contains important information related to user safety and preventing
equipment problems.
Please keep this manual in a handy place near the machine.
Make sure you observe all of the precautions appear in each section of this
manual.
2
Note
Some parts of the contents of this section may not correspond with the
purchased product.
Warning and Precaution Symbols
The following indicators are used on the warning labels or in this manual to
categorize the level of safety warnings.
Meaning of Symbols
WARNING
Ignoring this warning could cause serious injury
or even death.
CAUTION
Ignoring this caution could cause injury or dam-
age to property.
A triangle indicates a danger against which you should take pre-
caution.
This symbol warns against cause burns.
A diagonal line indicates a prohibited course of action.
This symbol warns against dismantling the device.
A solid circle indicates an imperative course of action.
This symbol indicates you must unplug the device.
Installation and Operation Precautions
8 im7520/im6020 Safety Information and Getting Started
1
Disassemble and modification
WARNING
• Do not attempt to remove the covers and pan-
els which have been fixed to the product. Some
products have a high-voltage part or a laser
beam source inside that could cause an electri-
cal shock or blindness.
• Do not modify this product, as a fire, electrical
shock, or breakdown could result. If the prod-
uct employs a laser, the laser beam source
could cause blindness.
Power cord
WARNING
• Use only the power cord supplied in the pack-
age. If a power cord is not supplied, only use
the power cord and plug that is specified in
POWER CORD INSTRUCTION. Failure to use
this cord could result in a fire or electrical
shock.
• Use the power cord supplied in the package
only for this machine and NEVER use it for any
other product. Failure to observe this precau-
tion could result in a fire or electrical shock.
• Do not scratch, abrade, place a heavy object
on, heat, twist, bend, pull on, or damage the
power cord. Use of a damaged power cord (ex-
posed core wire, broken wire, etc.) could result
in a fire or breakdown.
Should any of these conditions be found, im-
mediately turn OFF the power switch, unplug
the power cord from the power outlet, and then
call your authorized service representative.
Installation and Operation Precautions
im7520/im6020 Safety Information and Getting Started 9
1
Power source
WARNING
• Use only the specified power source voltage.
Failure to do that could result in a fire or electri-
cal shock.
• Connect power plug directly into wall outlet
having the same configuration as the plug. Use
of an adapter leads to the product connecting
to inadequate power supply (voltage, current
capacity, grounding), and may result in fire or
shock. If proper wall outlet is not available, the
customer shall ask qualified electrician for the
installation.
• Do not use a multiple outlet adapter nor an ex-
tension cord in principle. Use of an adapter or
an extension cord could cause a fire or electri-
cal shock.
Contact your authorized service representative
if an extension cord is required.
• Consult your authorized service representative
before connecting other equipment on the
same wall outlet. Overload could result in a fire.
CAUTION
• The outlet must be near the equipment and
easily accessible. Otherwise you can not pull
out the power plug when an emergency occurs.
Installation and Operation Precautions
10 im7520/im6020 Safety Information and Getting Started
1
Power plug
WARNING
• Do not unplug and plug in the power cord with
a wet hand, as an electrical shock could result.
• Plug the power cord all the way into the power
outlet. Failure to do this could result in a fire or
electrical shock.
CAUTION
• Do not tug the power cord when unplugging.
Pulling on the power cord could damage the
cord, resulting in a fire or electrical shock.
• Remove the power plug from the outlet more
than one time a year and clean the area be-
tween the plug terminals. Dust that accumu-
lates between the plug terminals may cause a
fire.
Grounding
WARNING
• Connect the power cord to an electrical outlet
that is equipped with a grounding terminal.
Installation and Operation Precautions
im7520/im6020 Safety Information and Getting Started 11
1
Installation
WARNING
• Do not place a flower vase or other container
that contains water, or metal clips or other
small metallic objects on this product. Spilled
water or metallic objects dropped inside the
product could result in a fire, electrical shock,
or breakdown.
Should a piece of metal, water, or any other
similar foreign matter get inside the product,
immediately turn OFF the power switch, unplug
the power cord from the power outlet, and then
call your authorized service representative.
CAUTION
• After installing this product, mount it on a se-
cure base. If the unit moves or falls, it may
cause personal injury.
• Do not place the product in a dusty place, or a
site exposed to soot or steam, near a kitchen
table, bath, or a humidifier. A fire, electrical
shock, or breakdown could result.
• Do not place this product on an unstable or tilt-
ed bench, or in a location subject to a lot of vi-
bration and shock. It could drop or fall, causing
personal injury or mechanical breakdown.
• Do not let any object plug the ventilation holes
of this product. Heat could accumulate inside
the product, resulting in a fire or malfunction.
• Do not use flammable sprays, liquids, or gases
near this product, as a fire could result.
Installation and Operation Precautions
12 im7520/im6020 Safety Information and Getting Started
1
1.2 Regulation Notices
CE Marking (Declaration of Conformity) for Users of the European Union
(EU)
This product complies with the following EU directives:
89/336/EEC, 73/23/EEC and 93/68/EEC directives.
This declaration is valid for the area of the European Union.
This device must be used with a shielded network (10 Base-T/100 Base-TX)
cable and a shielded parallel cable. The use of non-shielded cables is likely
to result in interference with radio communications and is prohibited under
CISPR rules and local rules.
USER INSTRUCTIONS FCC PART 15 - RADIO FREQUENCY DEVICES
(For U.S.A. Users)
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
WARNING: The design and production of this unit conform to FCC regula-
tions, and any changes or modifications must be registered with the FCC and
are subject to FCC control. Any changes made by the purchaser or user
without first contacting the manufacturer will be subject to penalty under
FCC regulations.
This device must be used with a shielded network (10 Base-T/100 Base-TX)
cable and a shielded parallel cable. The use of non-shielded cables is likely
to result in interference with radio communications and is prohibited under
FCC rules.
INTERFERENCE-CAUSING EQUIPMENT STANDARD (ICES-003
ISSUE 4) (For Canada Users)
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
Installation and Operation Precautions
im7520/im6020 Safety Information and Getting Started 13
1
For Users in countries not subject to Class B regulations
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
This device must be used with a shielded network (10 Base-T/100 Base-TX)
cable and a shielded parallel cable. The use of non-shielded cables is likely
to result in interference with radio communications and is prohibited under
CISPR rules and local rules.
Laser Safety
This product employs a Class 3B laser diode having maximum power of 15
mW and wavelength of 770 - 800 nm.
This product is certified as a Class 1 laser product. Since the laser beam is
concealed by protective housings, the product does not emit hazardous la-
ser radiation as long as the product is perated according to the instructions
in this manual.
For Denmark Users
ADVARSEL
Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for sråling.
Klasse 1 laser produkt der opfylder IEC 60825-1 sikkerheds kravene.
Dansk: Dette er en halvlederlaser. Laserdiodens højeste styrke er 15 mW og
bølgelængden er 770 - 800 nm.
For Norway Users
ADVARSEL
Dersom apparatet brukes på annen måte enn spesifisert I denne bruksan-
visning, kan brukeren utsettes for usynlig laserstråling som overskrider
grensen for laser klass 1.
Dette en halvleder laser. Maksimal effekt till laserdiode er 15 mW og bøkge-
lengde er 770 - 800 nm.
Installation and Operation Precautions
14 im7520/im6020 Safety Information and Getting Started
1
For Finland, Sweden Users
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
VAROITUS!
Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla
saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle la-
sersäteilylle.
Tämä on puolijohdelaser. Laserdiodin suurin teho on 15 mW ja aallonpituus
on 770 - 800 nm.
VARNING!
Om apparaten används på annat sätt än I denna bruksanvisning specificer-
ats, kan användaren utsättas för osynlig laserstrålning, som överskrider
gränsen för laserklass 1.
Det här är en halvledarlaser. Den maximala effekten för laserdioden är 15 mW
och våglängden är 770 - 800 nm.
Rear side of
main body
Installation and Operation Precautions
im7520/im6020 Safety Information and Getting Started 15
1
Ozone Release
Locate the Machine in a Well-Ventilated Room
A negligible amount of ozone is generated during normal operation of this
machine. An unpleasant odor may, however, be created in poorly ventilated
rooms during extensive machine operations. For a comfortable, healthy and
safe operating environment, it is recommended that the room be well venti-
lated.
Placer l’appareil dans une pièce largement ventilée
Une quantité d’ozone négligable est dégagée pendant le fonctionnement de
l’appareil quand celui-ci est utilisé normalement. Cependant, une odeur
désagréable peut être ressentie dans les pièces dont l’aération est insuff-
isante et lorsque une utilisation prolongée de l’appareil est effectuée. Pour
avoir la certitude de travailler dans un environnment réunissant des condi-
tions de confort, santé et de sécurité, il est préférable de bien aérer la pièce
ou se trouve l’appareil.
Acoustic noise (For European Users Only)
Maschinenlärminformations-Verordnung 3. GPSGV: Der höchste
Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779.
Installation and Operation Precautions
16 im7520/im6020 Safety Information and Getting Started
1
1.3 Caution Notations and Labels
Safety precaution notations and labels appear on this machine at the follow-
ing positions.
Be very careful that an accident does not occur when operations such as re-
moving paper misfeeds are performed.
DO NOT put your hand
between the main body and
developing fixing unit;
otherwise you may be
injured.
High voltage is present
around this part.
Do not touch this part
in order to reduce the risk
of electric shock.
DO NOT INSERT
your finger into
the two EDH
hinge portions;
otherwise you
may be injured.
Installation and Operation Precautions
im7520/im6020 Safety Information and Getting Started 17
1
1.4 Space Requirements
To ensure that machine operation, consumables replenishing, part replace-
ment, and regular maintenance can easily be performed, adhere to the rec-
ommended space requirements detailed below.

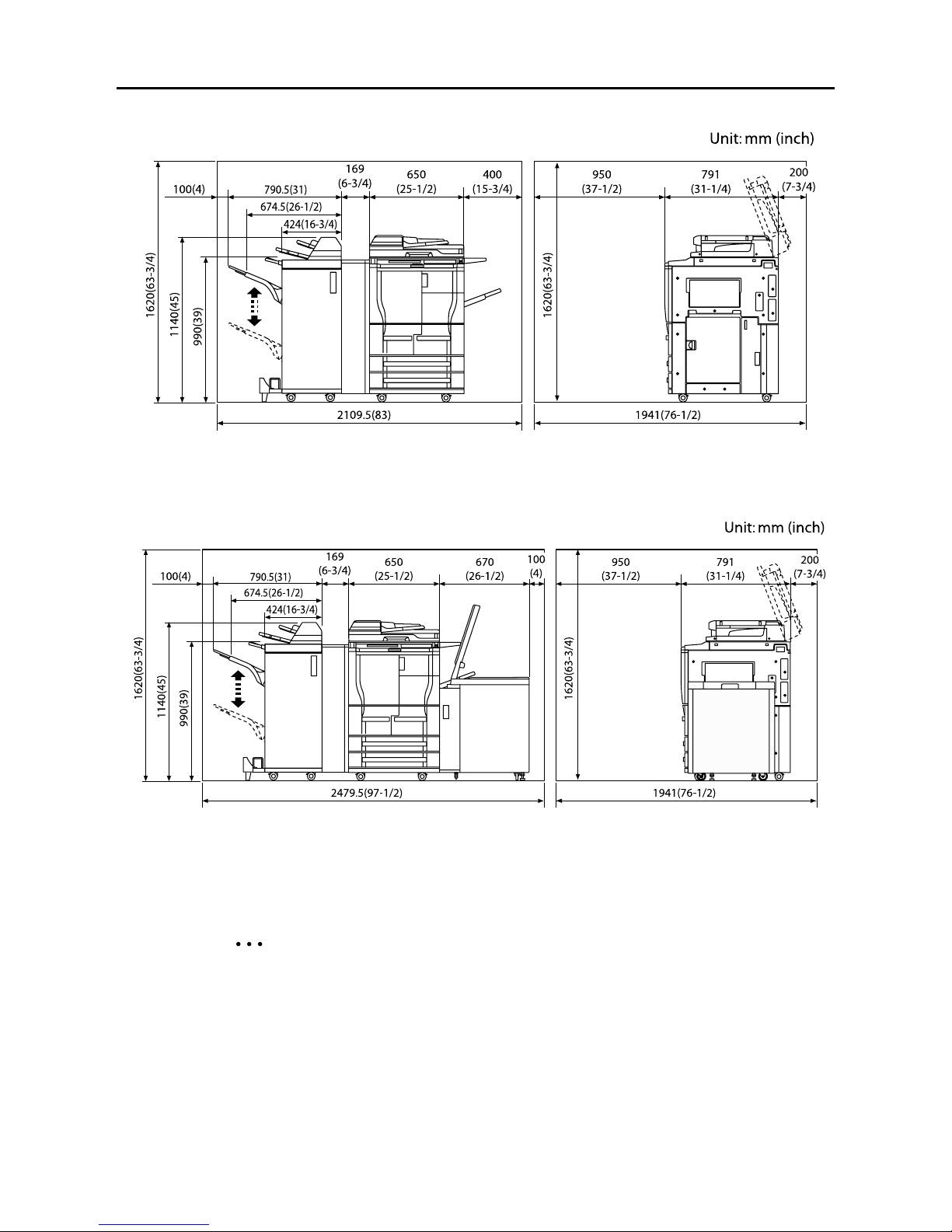

im7520/im6020
im7520/im6020 + 9209
Installation and Operation Precautions
18 im7520/im6020 Safety Information and Getting Started
1
2
Reminder
Be sure to allow a clearance of 200 mm (7-3/4 in.) or more at the back of
this machine for the ventilation duct.
im7520/im6020 + 9204 + 9262 + 9263
im7520/im6020 + 9204 + 9262 + 9208
Installation and Operation Precautions
im7520/im6020 Safety Information and Getting Started 19
Other manuals for im7520
6
This manual suits for next models
1
Table of contents
Other Oce All In One Printer manuals
