Q47e/Q47ce ASSEMBLY INSTRUCTIONS
PERSONAL RECORD KEEPING
IMPORTANT: Record the serial numbers of your Octane Fitness®elliptical in the spaces below. This will
make it easier for you to obtain accurate and timely response should any service issues occur with your
elliptical machine. Also, don’t forget to register your warranty on the web at www.octanefitness.com.
ATTENTION – All serial numbers begin with a letter.
Base Serial Number – located below front right chrome rail at the power inlet
__ __ __ __ __ __ __ __ __ __ __ __ __ __
Console Serial Number – located on the lower edge of the console
__ __ __ __ __ __ __ __ __ __ __ __ __ __
If you have any additional questions or need additional assistance in assembly, please contact your local service
provider or Octane Fitness Customer Service at 1.888.OCTANE4 ext. 1. You may also visit us on the web at
www.octanefitness.com.
WARNING: Machine contains moving parts. Use caution when assembling and operating this machine.
This product is intended for household use.

4
A
Q47e/Q47ce Contents
The Octane Fitness base box contains the following: Tools required:
 A) 1-OctaneFitnesscrosstrainerbase • Phillipsscrewdriver
 B) 1-Consolemast • 17mmwrenchoradjustablewrench
 C) 1-Topcover • 17mmsocketandratchet
D) 1 - Access panel • 6mmhexkeywrench
E) 1 - Detached right pedal lever
F) 1 - Left moving handlebar
G) 1 - Right moving handlebar
H) 2 - Handlebar covers
I) 1 - Mast boot
 J) 1-Hardwarepack(seeoppositepage)
Box Contents
D
HI
B
C
EFG

5

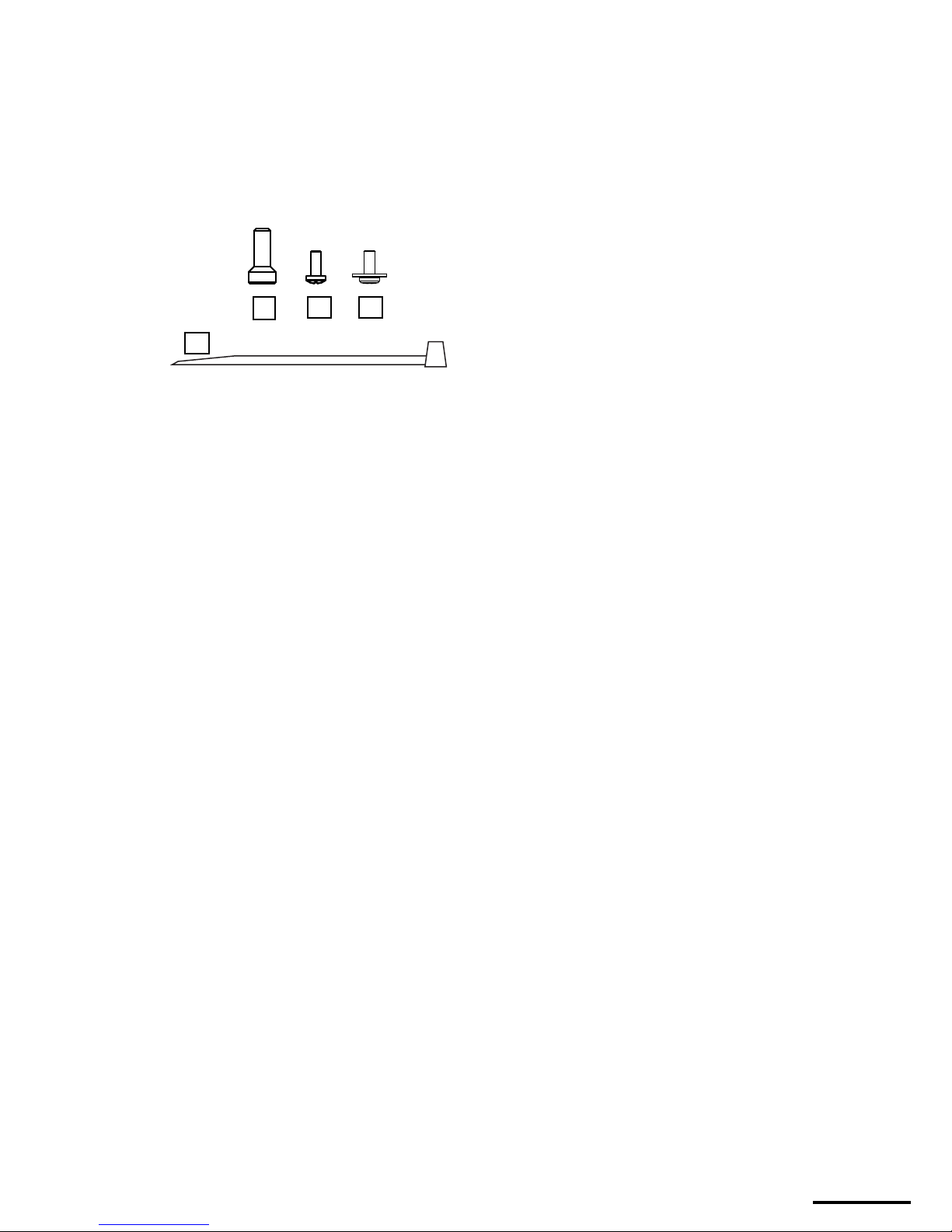

Hardware Pack (J) includes:
 K) 8-6mmhexkeychamferedbolt(formovinghandlebar)
 L) 2-Phillipsscrews(formountingaccesspanel)
 M) 2-Phillipsscrewswithwashers(formountingtopcover)
 N) 1-Cabletie(forsecuringloosewirestomast)
Moving the Product
It is safest to move the product to its installation location in its shipping carton. It may be easier to move the
productintoyourhome after you remove it from the packaging, but be careful not to hit any walls or doors.
TheQ47e/Q47cefeaturestransportwheelsonthefrontoftheunit.Becarefulwhenmovingfromonesurfaceto
another, such as hardwood floor to carpet.
Note: If you need to pick up your elliptical there are hand placement slots under the front shroud. Please take
caution when lifting. The elliptical weighs 280 lbs. when fully assembled.
Tip: When using the front transport wheels, it is easier to pull the unit rather than push it.
KL M
N

6

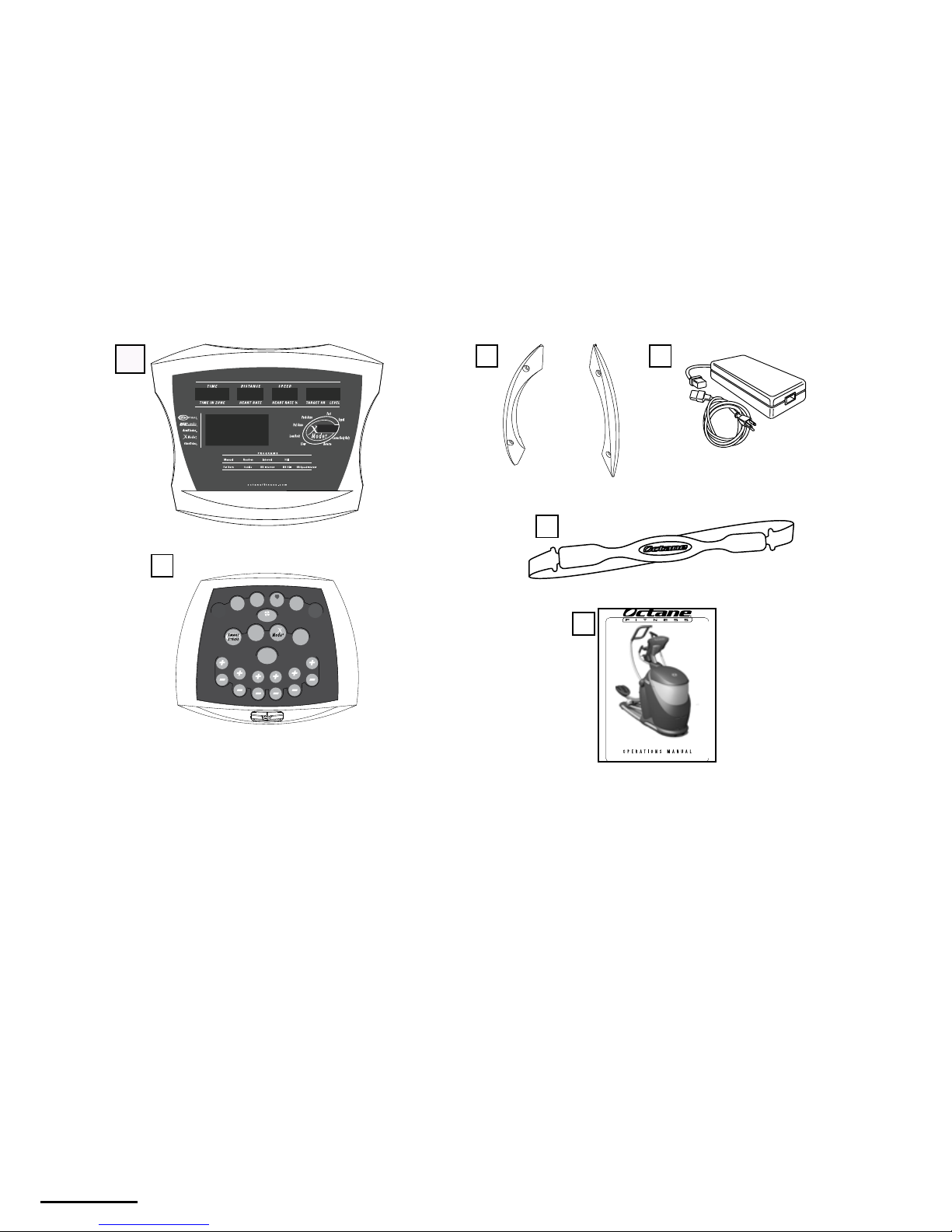

The Q47/Q47ce console box contains the following:
1) 1 - Deluxe console
 2) 1-Deluxekeypad
 3) 2-Consolebackarcs(leftandright)
 4) 1-Powersupply
5) 1 - Octane Fitness™wireless heart rate transmitter and elastic strap
 6) 1-Informationpacket
 7) 4-Phillips18mmscrews(notpictured)
 8) 4-Phillips12mmscrews(notpictured)
34
5
6
Q47/Q47e/Q47ce
2
1
Beginner
10K PowerWalk Stride Interval Dual Direction Stride Burst
CALORIES STRIDE
Quick
Start
My Q u ick
Start 1
My Q u ick
Start 2
ArmBlaster Glute
Kicker
Enter
Cool
Down Pause
Clear
Now-Zone
Time
1
Program
2
Stride
3
Level
4
Weight
6
Age
5
Fan
The Q47ce console box also contains the Contact Heart Rate (ce) kit(notpictured),whichincludes:
a) 1- Cable assembly for heart rate grips
b) 2 - Left side grips
c) 2 - Right side grips
 d) 2-Rubbergaskets
e) 4 - 2mm hex head screws
 f) 1-2mmhexkeywrench
 g) 2-Primary(top)contactplates
 h) 2-Secondary(bottom)contactplates

7
2. Attach moving handlebars—Moving handlebars are
labeled left and right, be sure to install accordingly.
a. Align the bottom of the handlebar with the four holes in
the pivot shaft and attach with four 6mm hex key bolts
(K)—make sure these bolts are very tight; torque to 30
ft-lbs.
b. Reaching inside from the front of the machine, carefully con-
nectthecablecomingfromthebaseofthehandlebar(For
G) to the cable by the pivot shaft. Gently tug both cables
to ensure the connectors are completely seated.
c. Position the handlebar cover (H) over the handlebar pivot
point and press firmly at top and bottom to attach.
d. Repeat for the other side.
Pivot shaft
Cable from
handlebar
Cable on
frame

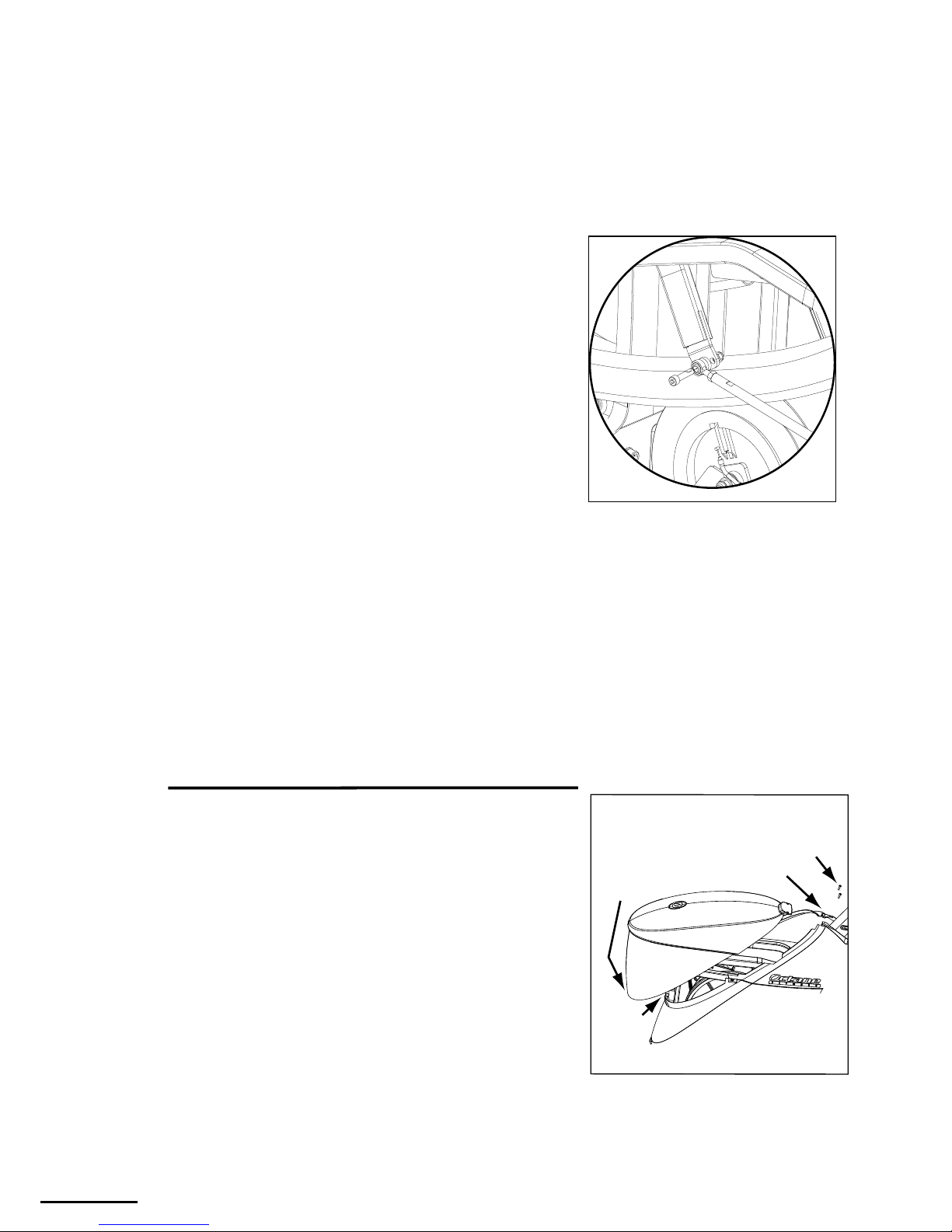

1. Attach pedal lever
a. Removeboltfrom3-pivotlink.
b. Placerightpedal lever(E)through legslotinrearshroudand
attachittothe3-pivotlink.Check to see that the rollers are
seated and properly aligned on the rails before securing
the pedal lever.
c. Tighten the bolt and nut securely using 17mm socket and
wrench.

8

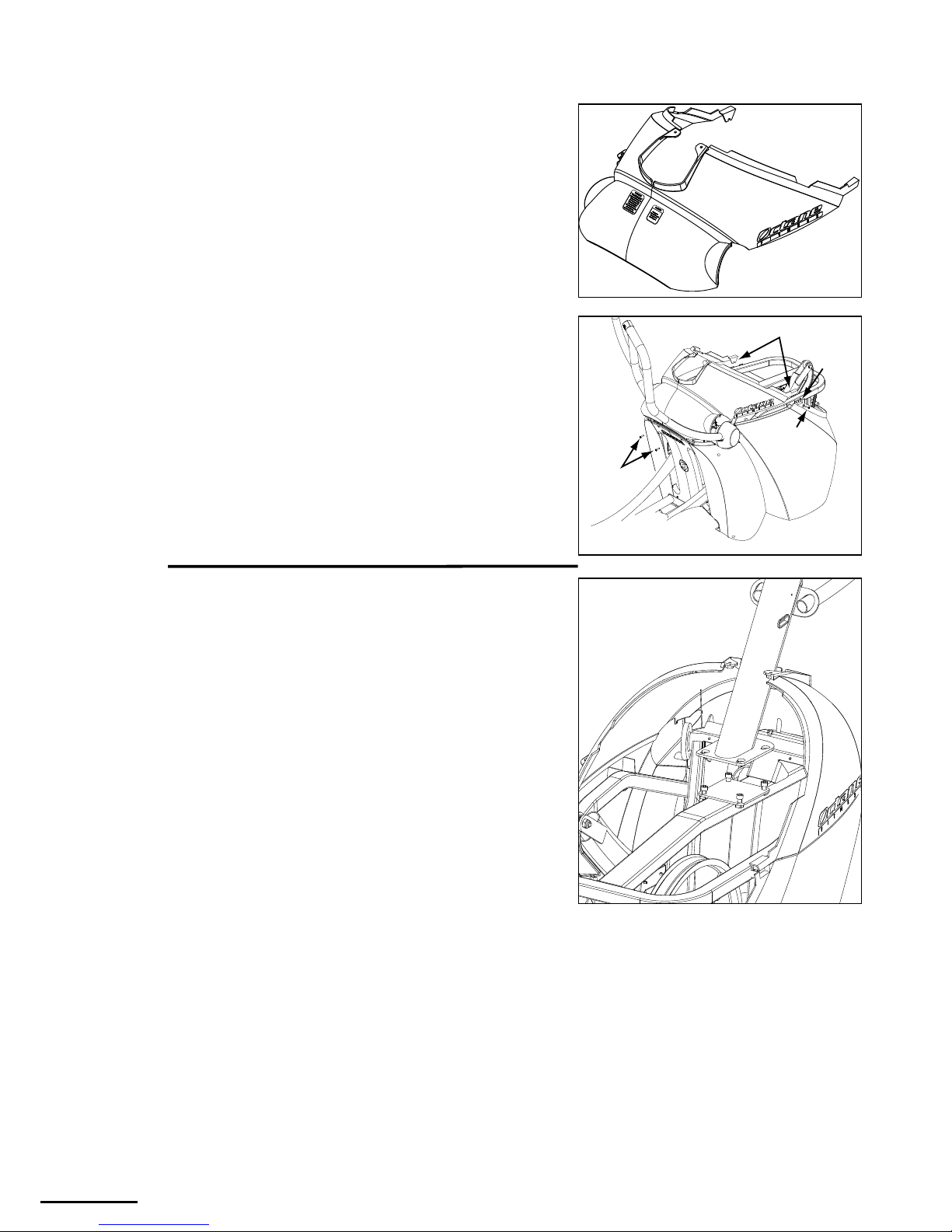

3. Install access panel
a. Loosen the screws on the left and right sides of the lower
shroudnearthefrontoftheunit.(Thesescrewssecurethe
side of the shroud and the access panel to the frame.)
b. Slidethemetalplate of theaccesspanel(D)behind the
backshroud.Fitthetabsoneachsideoftheaccesspanel
into the slots between the side of the main shroud and the
frame, over the top of the screws.
c. Tightenthescrewsoneachside,thensecurethebackof
theaccesspanelwith2Phillipsscrews(L).
Tabs Slot for
Tab
Back
Screws
Screw to
loosen on
both sides
4. Install console mast
a. Attachtheconsolemast(B)byplacingthekeyholeslotsinthe
mast plate over the bolts and sliding the console mast toward
the pedals.
b. Tightenthefour6mmhexkeyboltsattachingconsolemastto
frame.
c. Connect the black cable connector coming from the mast
to the black cable connector on the base frame. Tug the
cables gently to ensure the connectors are completely
seated.
d.Usethecabletie(N)tosecureanyloosecabletothebottom
of the mast; cut off any excess cable tie.

9

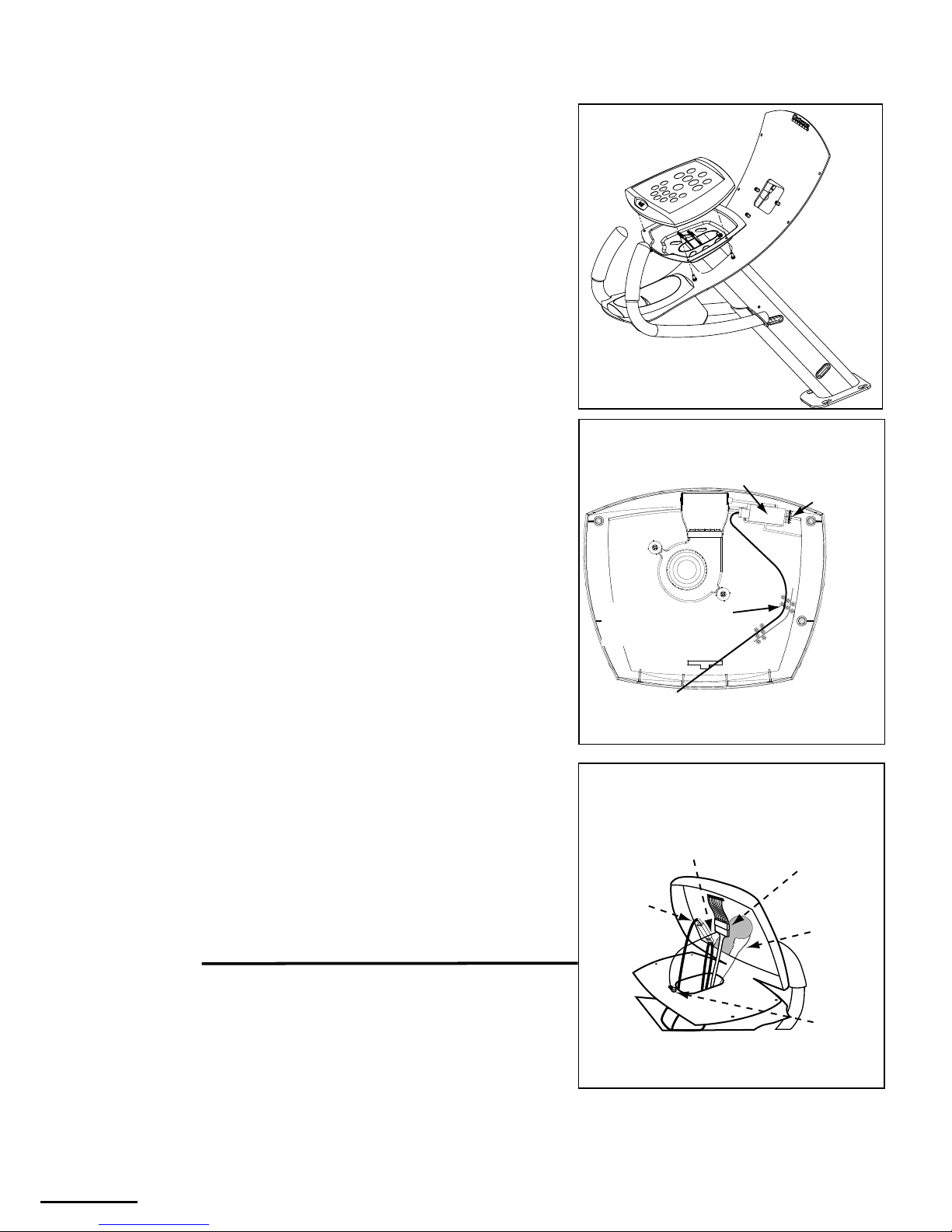

5. Mount the keypad to the console mast
If you have the Q47e keypad:
a. Removethetwoscrewssecuringtheconsolebackpiece
to the mast plate.
b. Route the cable from the heart rate board down through
the top of the mast tube and out of the hole beneath the
console plate.
c. Route the red and white fan wires with the white
connector down through the top of the mast tube and out
of the hole beneath the console plate.
d. Attachtheblackribboncableconnectorfromthetopof
theconsole mast tubeto its connection onthe back of
the keypad (2). Tug the cables gently to ensure the
connectors are completely seated.
e. Positionthekeypad(2)onthemast(B)andinserteachof
the 4 shorter screws through the mast holes and into the
keypadback.Tightenscrewstosecure.
If you have the Q47ce keypad:
a. Removethetwoscrewssecuringtheconsolebackpiece
to the mast plate.
b. Use a utility knife to cut the rubber grips and remove
them from the stationary handlebars.
c. Leading with the white plastic connector, insert the
contact heart rate cable (a) through the hole in the
“user’s right” side of the mast and feed it up through the
mast tube.
d. Feed the cable for the right grip, labeled “Right Hand
Contact”, up through the right handlebar tube.
e. Feed the cable for the left grip through the hole in the
“user’s right” side of the mast and through the hole on
the “user’s left” side, then feed it up through the left
handlebar tube.
f. Select a ‘left’ side grip (b), differentiated from a right
sidegrip(c)bytwoscrewholes.Placearubbergasket
(d)intothelefthalfofthecontactgrip,andpositionon
the left handlebar.
g. Positionthesmallwhitewireoutintheslotatthetopof
thelefthalfofthehandgrip(thesideclosesttoauser
standingonthepedals).Position thesmallredwirein
theslotatthebottomofthehandgrip(awayfromthe
user).
h. Selecta‘right’sidegrip(c),fititwiththelefthalfaround
the handlebar, and secure the two halves together using
two2mmscrews(e).Makesurethatthewiresareinthe
slots, not clamped between the grips; tighten the screws
until that the grip is stable.

10
i. Selectaprimarycontactplate(g)thatmatchesthecontour
ofthetopoftheplasticgrip(closesttoauser).Peelthe
blue protective film off of the tab on the primary contact
plate(g),thenslidethetabintotheconnectorattheend
of the small white wire.
j. Select a secondary contact plate (h) that matches the
contourof the bottom of theplastic grip (away from the
user).Peel the blue protecting film off of the tab on the
secondary contact plate (h) and slide the tab into the
connector at the end of the remaining wire.
k. Repeatsteps(f)through(k)fortherighthandlebar.
l. Pushanyextralengthsofwireintothemasttube.
m. Insert the connector at the end of the heart rate cable into
itsconnector on the heart rateboard on the back of the
keypad.(This is a two-wire cable ending in a single
connector.) Route the contact heart rate cable wires
aroundthepostsonthebackofthekeypad,inthesame
mannerthattheotherheartratecableisrouted(seefigure
at right).
n. Route the cable from the other end of the heart rate board
down through the top of the mast tube and out of the hole
beneath the console plate.
o. Route the red and white fan wires with the white connector
down through the top of the mast tube and out of the hole
beneath the console plate.
p. Attachtheblackribboncableconnectorfromthe keypad
(2) to its cable coming from the top of the mast. Tug
the cables gently to ensure the connectors are
completely seated.
q. Positionthekeypad(2)onthemast(B)andinserteachof
the 4 shorter screws with washers through the mast holes
andintothekeypadback.Tightenscrewstosecure.
r. Remove the film from the adhesives on the primary
contact plates (g) and secondary contact plates (h)
and carefully press the plates onto the grips, pushing
the tabs, connectors, and wires inside the grips.
It is recommended that you wait to adhere the grips
until after you have installed the console and verified
that the contact heart rate grips are transmitting a
reading to the console.
Console/Keypad
Connection
(all models)
Standard
Heart Rate
Connection—
Q47e/Q47ce only
Contact Heart Rate
Connection—
Q47ce only
Fan Wire—
Q47e/Q47ce only
Keypad Ground
Connection
(all models)
Route
Contact Heart Rate Cables
Here
Contact Heart Rate Board
Connector for
Grip Wire
Note: If you are using the optional LCD Mounting Arm,
skip step 6 of these instructions and instead follow the
instructions included with the LCD Mounting Arm. Once
you have completed those instructions, resume assembly
of your Q47e/Q47ce with step 7 of these instructions.

11
6. Mount the console to the console mast
Note: Record the serial number of your console, located on the lower edge of the console, before
attaching the console to the console mast. (If you have installed the optional LCD Mounting Arm,
and mounted the console to the mast according to those instructions, skip to Step 7.)
If you have the Q47e/Q47ce console:
a. Positiontheconsole(1)ontheplateatthetopofthemast
(B)andplacetheleftbackarc(3) behindit.Holdingboth
in place, insert 2 of the longer (18mm) Phillips screws
partiallythroughthebackarc(3)andthemastplateintothe
consoleback.Repeatontherightside.Tightenallscrews
to secure.
b. Attach the white 12-pin main connector to its connection on
thebackoftheconsole.Tug the cable gently to ensure
the connector is completely seated.
c. Attachtheblackkeypadconnectortoitsconnectiononthe
backoftheconsole.Tug the cable gently to ensure the
connector is completely seated.
d. Attach the metal connector on the green ground wire that
isconnectedtothebackofthemastplatetoitsconnection
onthebackoftheconsole.Tug the ground wire gently
to ensure the connector is completely seated.
e. Attach the white 3-pin heart rate connector to its connection
on the back of the console. Tug the cable gently to
ensure the connector is completely seated.
f. Attach the white 2-pin fan connector to its connection on
thebackoftheconsole.Tug the wires gently to ensure
the connector is completely seated.
g. PlugintheunitandverifythattheconsoleLEDslightand
that the Level and Stride control buttons on the moving
handlebars are working. If you have the Q47ce console,
grasp the contact heart rate handgrips and verify that a
heart rate reading appears on the console. If any issues are
detected,rechecktheconnections,orcontactOctaneFitness
Customer Service for assistance. Once you have verified
these functions, unplug and proceed with remaining steps.
h. Make sure excess cable is pushed into the mast tube.
i. Repositiontheconsolebackpieceandreattachitusingthe
two screws provided.
Keypad
(black)
All models
Heart Rate
(white, 3-pin)
Q47e/Q47ce only
Console to Base
(white, 12-pin)
All models
Fan
(white, 2-pin)
Q47e/Q47ce only
Console Ground
(metal; green wire)
All models

12
8. Place top cover
a Aligntopcover(C)ontopofmainhousing.Holdthebackedge
(nearthemast)inplaceandshiftthefrontedgeforwarduntil
it settles into position.
b. Whilestillholdingthebackedgeinplace,pressfirmlyonthe
bottom edge of the front of the cover until it snaps into place.
You will feel and hear it snap into place as the plastic
bracket on the inside of the front bottom edge clips
onto the steel tube at the front of the main frame.
c. Securethetopcovertotheframeusing2Phillipsscrewswith
washers(M).
7. Adjust arms (optional)
Note: Before completing this step, plug in and ride your elliptical cross trainer for a few
moments to get a feel for the arm motion. If the reach of the arm motion feels right (as it will for
most users), proceed to step 8. If the reach is too long or too short, carefully follow these steps
to shorten or extend the reach by approximately 1.5 inches:
a. Locatetherodendlinkthatconnectstotheblackbar(pivot)
insidethemachine.Theblackbarhasthreeholesinitwith
therodendlinkattachedthroughthecenterholewitha6mm
hexkeyboltanda13mmnut.Aspacerseparatestheblack
barandtherodendlink.
b. While supporting the arm, remove the 13mm nut from
the6mmhexkeyboltandcarefullyease theboltfromthe
centerholeintheblackbar.Toextendthereachofthearm,
re-insert the bolt in the hole closest to the front of your
elliptical trainer. To shorten the reach, re-insert the bolt in the
hole closest to the user end of the machine. Make sure that
the spacer remains in place between the rod end link
and the black bar, with the pocket side of the spacer
toward the rod end link.
c. Replace the nut and tighten. This connection must be
very tight.
d. Repeat for the other arm.
 Shouldyouhaveanyquestionsorconcernsinmakingthisadjustment,pleasecontactyourlocalservice
provider or contact Octane Fitness Customer Service at 1.888.OCTANE4, ext. 1.
Steel tube
Press here
Hold here
Secure with
screws

13

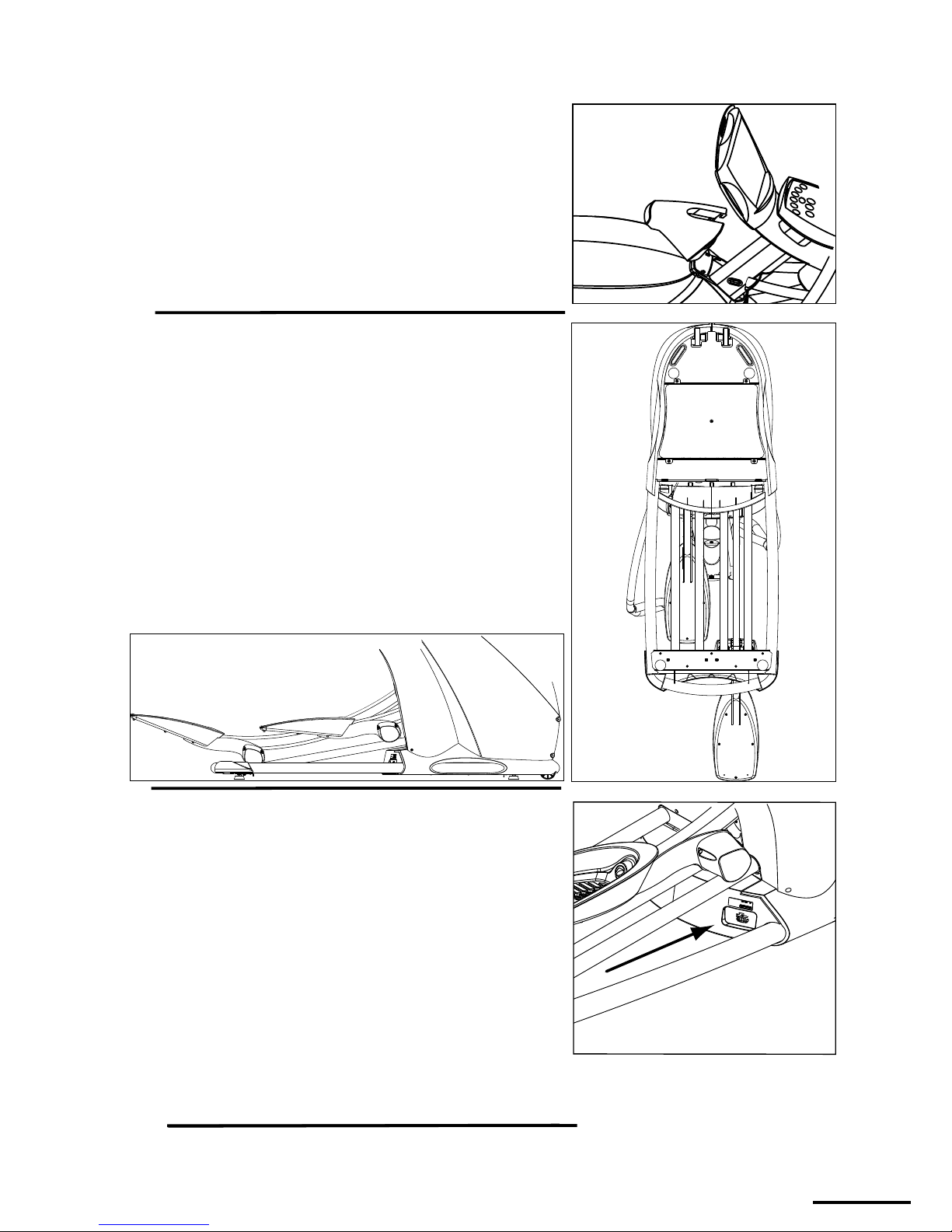

11. Plug in product
a. First,inserttheplugintotheproduct,locatedjustbelow
therightrollertrack.Next,routethecabletowardthewall
outlet. You can run it under the product to avoid seeing it
or tripping on the cable. Ensure that the cord will not be
pinchedandbecomedamaged. Plugtheproduct intothe
wall.
Note: There is no need to turn off your product—your
Q47e/Q47ce was designed with an intelligent sleep
mode—a virtual off button. This eliminates the
need for an on/off switch. When your product is in
sleep mode, it uses very little power. Unplugging
your elliptical will not harm or erase My QuickStart
profiles.
10. Adjust levelers
a. Adjustallfourlevelerstomakesuretheproductsitsflaton
the floor. For a lower step up height, screw the rear levelers
into the rear stabilizer bracket. Then level the machine
using the front levelers.
b. Tighten the leveler nut against the frame for each
leveler.
Note: If you move your Q47e/Q47ce, you may need
to adjust the levelers to make sure your
product is level with the floor.
CAUTION:If the unit is not level, it may not function
properly.
9. Install mast boot
a. Placetherubbermastboot(I)aroundthemast(B),covering
the open ends of the stationary handlebars.
b. Tucktheendsofthemastboot(I)intothechannelsinthe
accesspanel(D)justbelowthestationaryhandlebars.

14
NOTES

15
NOTES

FUEL YOUR LIFE™
9200 Wyoming Avenue North, Suite 380
BrooklynPark,MN55445
1.888.OCTANE4
www.octanefitness.com
© 2008 Octane Fitness, LLC™. All rights reserved. Octane Fitness, DedicatedLogic, Fuel Your Life, HeartLogic, Now-Zone and X-Mode are registered
trademarksofOctaneFitness.Anyuseofthesetrademarks,withouttheexpresswrittenconsentofOctaneFitness,isforbidden.
103346-001REVA
Are you passionate about your workout and the results?
Share your story with others on the Octane Fitness web site.
Go to: www.octanefitness.com/testimonials
Then click on “Share My Story” and
show the world how fueled you are.
