PRO3700 ASSEMBLY INSTRUCTIONS
PERSONAL RECORD KEEPING
Tip: Record the serial numbers of your Octane Fitness®elliptical in the spaces below. This will make it easier
for you to obtain accurate and timely response should any service issues occur with your elliptical machine.
ATTENTION – All serial numbers begin with a letter.
Base Serial Number – located below front right track above the CSAFE and video inputs
__ __ __ __ __ __ __ __ __ __ __ __ __ __
Console Serial Number – located on the lower edge of the console
__ __ __ __ __ __ __ __ __ __ __ __ __ __
If you have any additional questions or need additional assistance in assembly, please contact your local
service provider or Octane Fitness Customer Service at 1.888.OCTANE4 ext. 1, You may also send an email to
[email protected], or visit us on the web at www.octanefitness.com.
WARNING: Machine contains moving parts. Use caution when assembling and operating this machine.
This product is intended for commercial use.

4
A

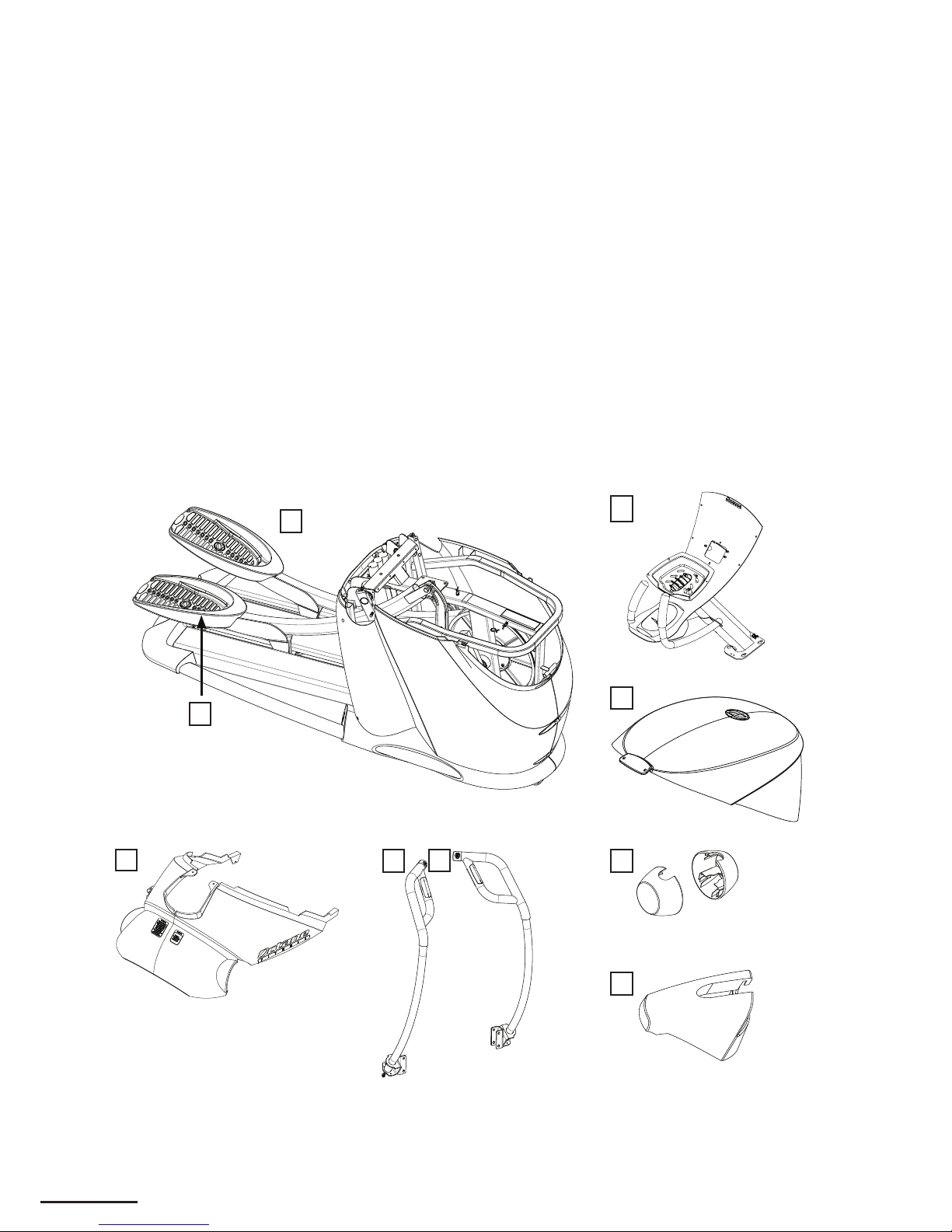

PRO3700 Contents
The Octane Fitness base box contains the following: Tools required:
 A) 1-OctaneFitnesscrosstrainerbase • Phillipsscrewdriver
 B) 1-Detachedrightpedallever • 17mmwrenchoradjustablewrench
 C) 1-Consolemast • 17mmsocketandratchet
D) 1 - Top cover • 6mmhexkeywrench
E) 1 - Access panel
F) 1 - Left moving handlebar
G) 1 - Right moving handlebar
H) 2 - Handlebar covers

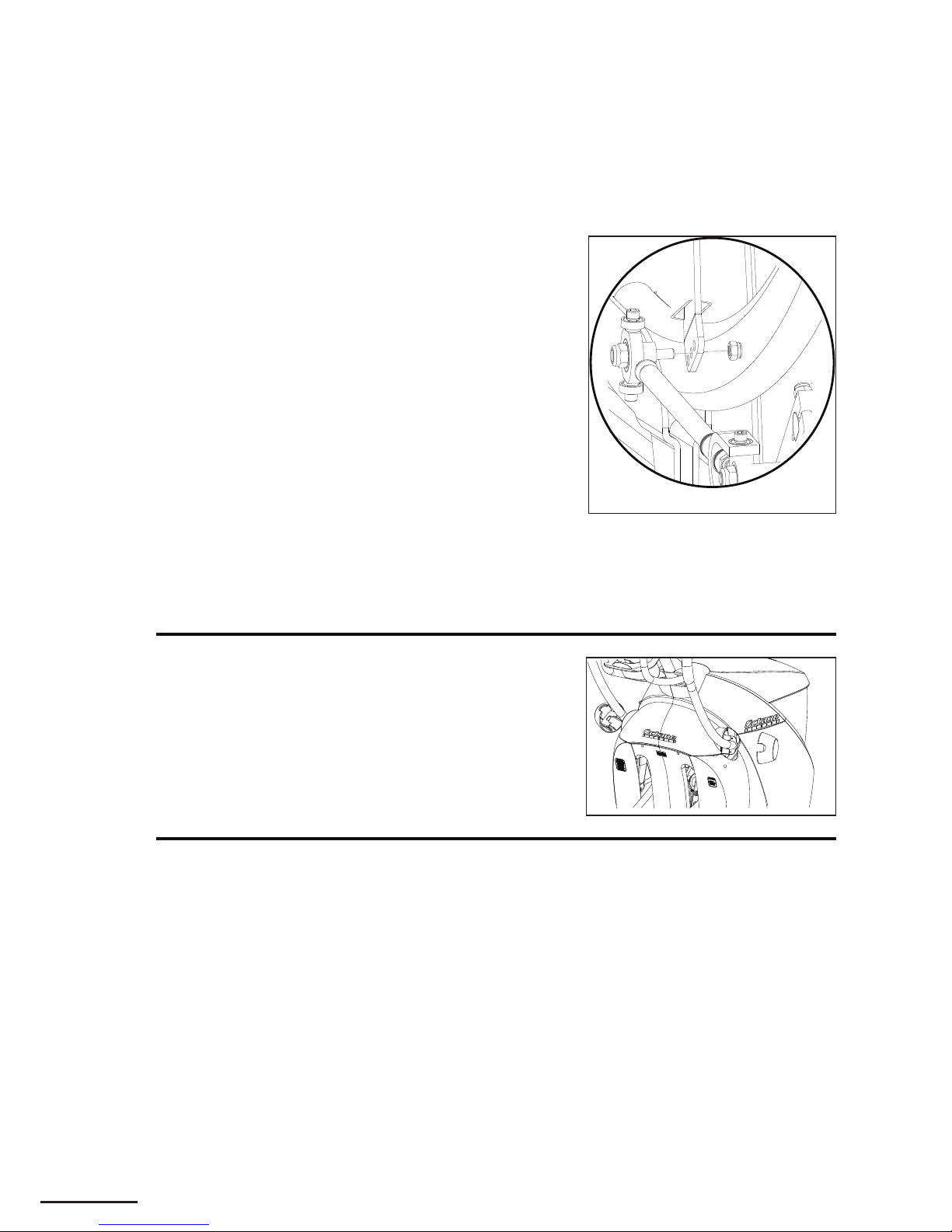

I) 1 - Mast boot
J) 1 - Hardware pack (see opposite page)
K) 1 - Console Box (not pictured)
Box Contents
D
H
I
B
C
EFG

5

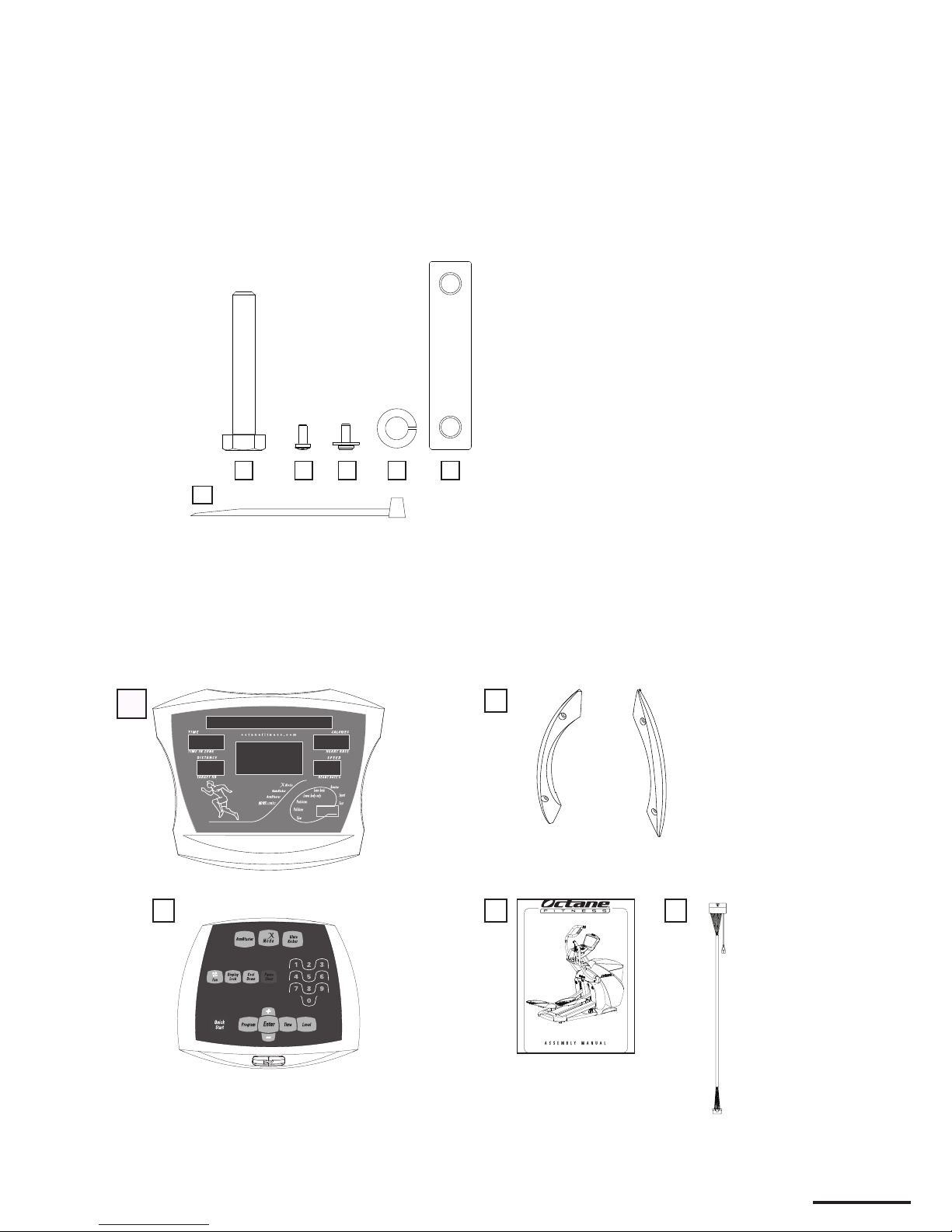

Hardware Pack (J) includes:

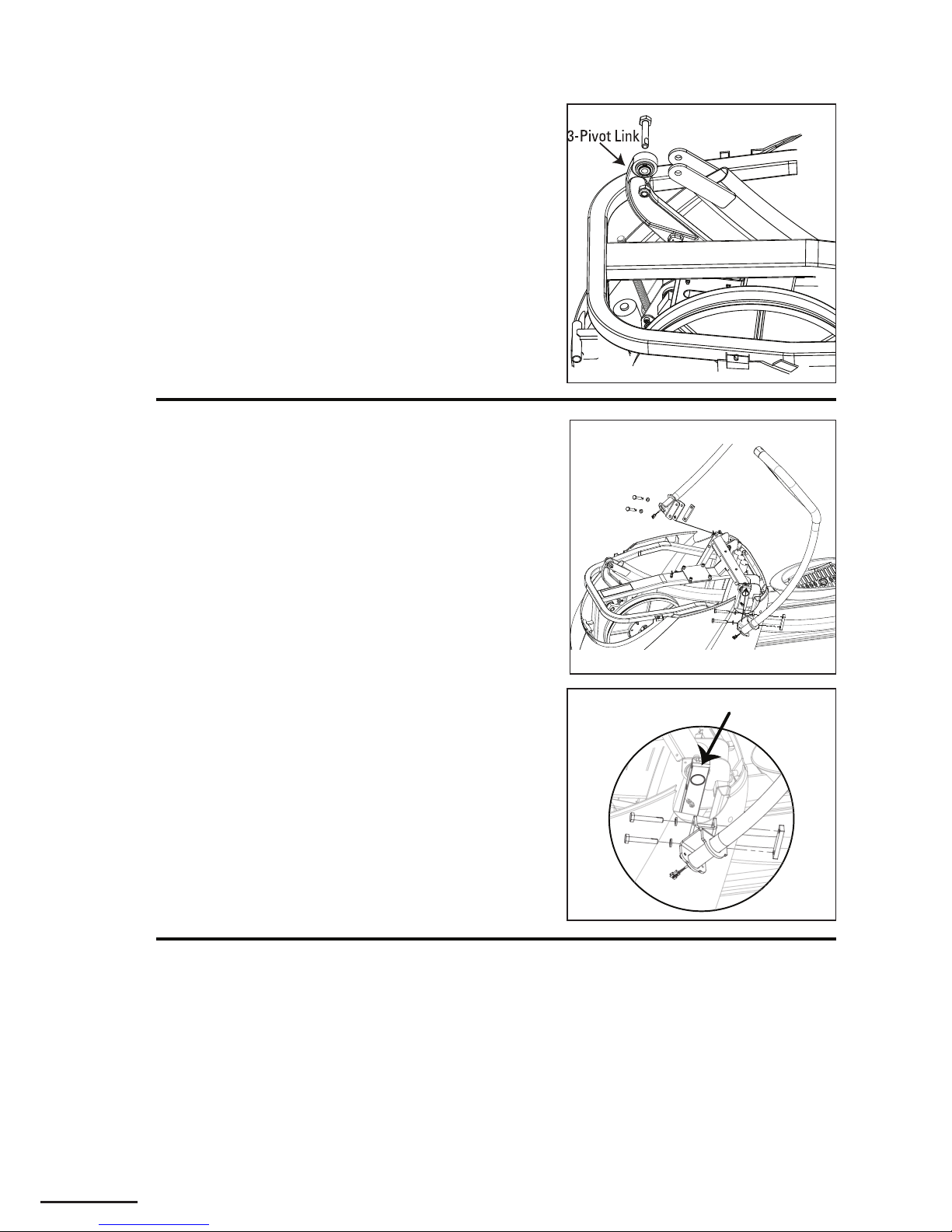

K) 4 - 17mm bolt (for moving handlebars)
L) 2 - Phillips screws (for mounting access panel)
M) 2 - Phillips screws with washers (for mounting top cover)
N) 1 - Cable tie (for securing loose wires to mast)
O) 4 - Lock washer (for moving handlebars)
P) 2 - Threaded plate (for moving handlebars)
N
POLK M

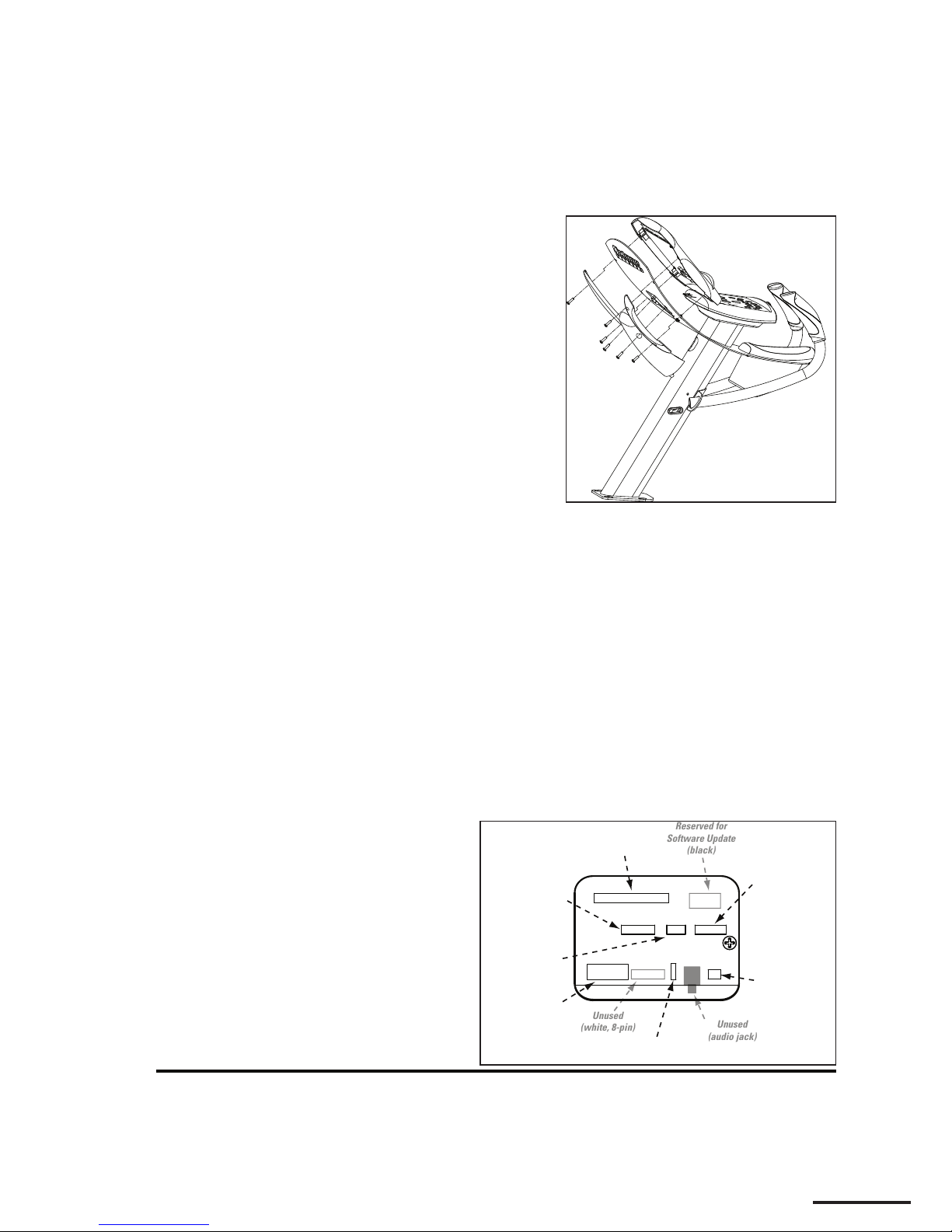

The PRO3700 console box contains the following:

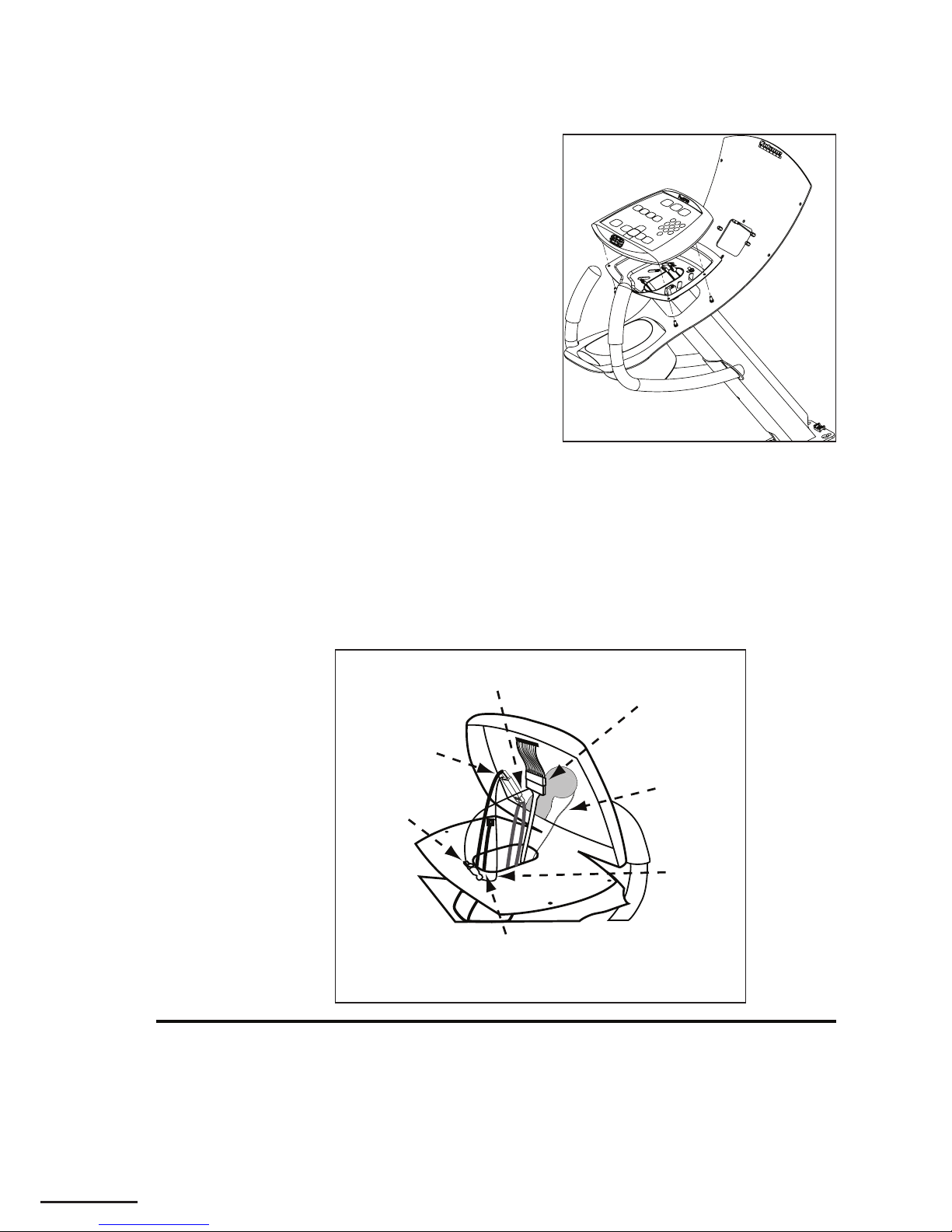

1) 1 - Console

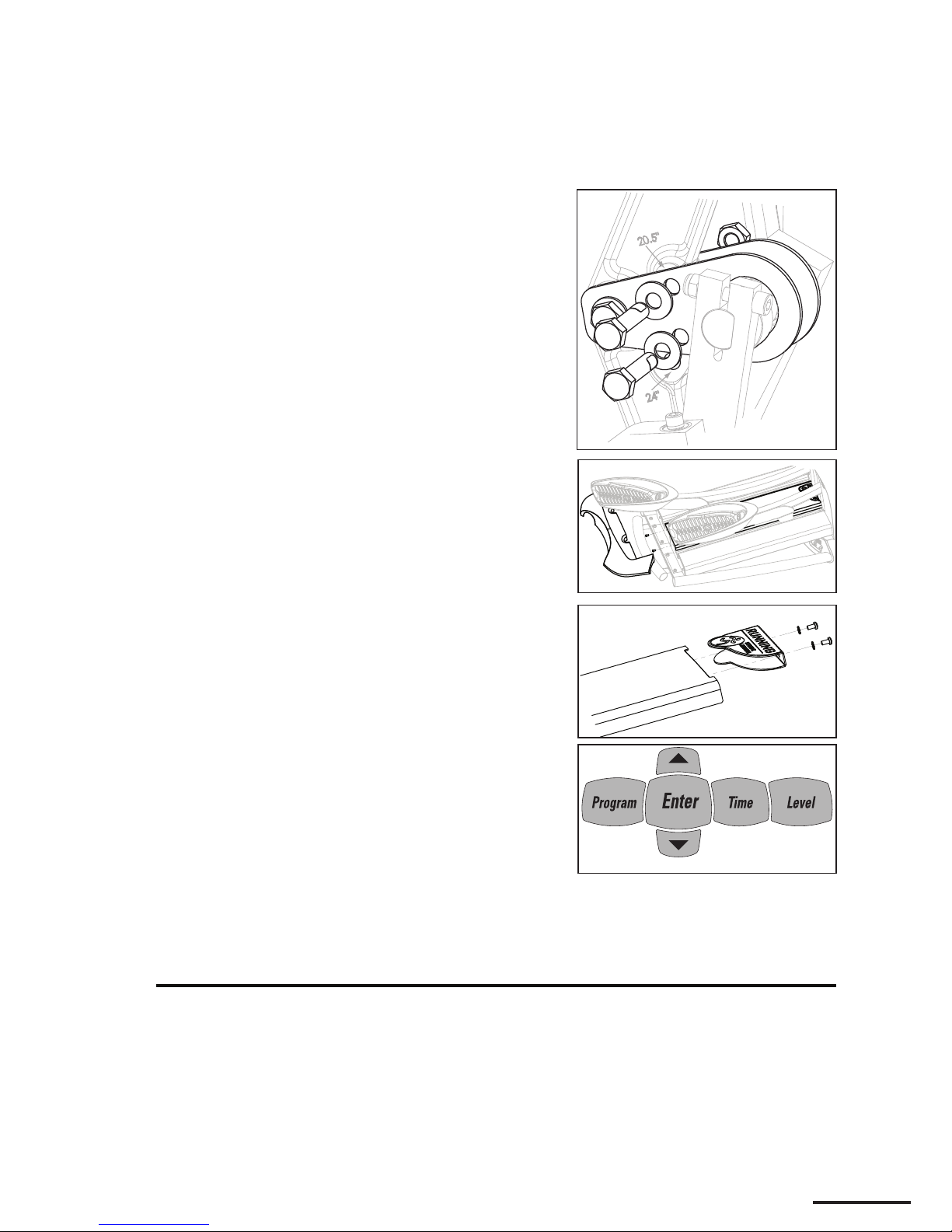

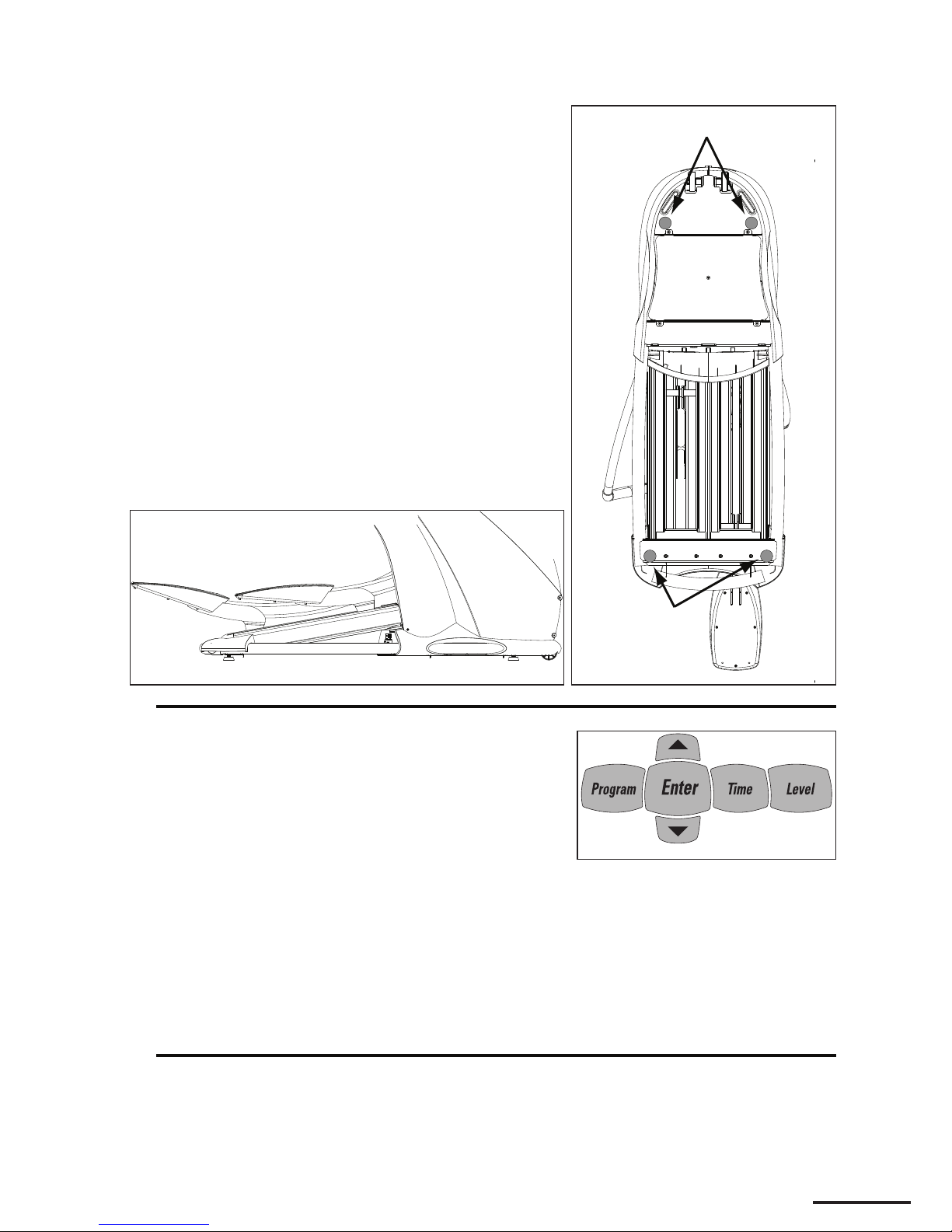

2) 1 - Keypad
3) 2 - Console back arcs
4) 1 - Information packet
5: 1 - Keypad cable
2
3
1
PRO3700
4 5
