Octane Fitness xRide xR3c User manual

/
OPERATIONS MANUAL

ii

iii
This product is intended for household use.
IMPORTANT SAFETY INSTRUCTIONS
Please Read and Save These Instructions
WARNING! Before beginning this or any exercise program, consult your physician. This is especially important
for persons over 35 or persons with pre-existing health conditions. If at any time during exercise you experience
chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and consult your physician
before starting again.
Read this Operations Manual before operating this seated elliptical cross trainer.
WARNING! When using an electrical product, basic precautions should always be followed.
To reduce the risk of burns, fire, electrical shock, or injury to persons:
• Use this exercise product for its intended use as described in this Operations Manual. Do not modify the
product in any way.
• Do not remove the plastic shrouds from the machine. Service should be performed only by an authorized
Octane Fitness service representative. Moving parts contained under the shrouds can be extremely
dangerous when not covered.
• Never operate this seated elliptical cross trainer if it has a damaged wire or plug, if it is not working prop-
erly, if it has been dropped or damaged, or dropped in water. Return the cross trainer to your local dealer
or Octane Fitness for examination and repair.
• Never operate this seated elliptical cross trainer with the air openings blocked. Keep the air openings free
of lint, hair, and the like.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• Do not operate this seated elliptical cross trainer where aerosol (spray) products are being used or where
oxygen is being administered.
• Never place the power cord under carpeting or place any object on top of the power cord which may pinch
and/or damage it.
• Use only the power cord provided with your Octane Fitness seated elliptical cross trainer.
• Unplug your Octane Fitness seated elliptical cross trainer before moving it.
SAVE THESE INSTRUCTIONS

iv
OTHER IMPORTANT SAFETY PRECAUTIONS
• Place the seated elliptical cross trainer on a level surface with at least 12 inches (30.5 cm) of clearance on
each side of the unit.
• To protect the floor or carpet from damage, place a mat under your seated elliptical cross trainer.
• Keep children under the age of 13 off the seated elliptical cross trainer at all times.
• When the seated elliptical cross trainer is in use, children and pets should be kept clear of the area.
• Wear appropriate exercise clothing and shoes for your workout—do not wear loose clothing.
• Use care when getting on or off the seated elliptical cross trainer. Never get on or off the unit while the foot
pedals and arms are still moving.
• When adjusting seat height or tilt, make sure you hear and feel the adjustment mechanism lock into
position.
• Always face forward. Never attempt to turn around on the seated elliptical cross trainer.
• Do not sit, stand, or climb on the plastic shrouds, electronic console, or stationary handlebars.
• Keep your hands and feet clear of any opening or moving parts.
• Keep your feet within the boundaries of the foot pedals; do not rest toes or any other part of the foot on the
edges of the pedals.
• Never insert or drop any object into any opening.
• Do not overexert yourself or work to exhaustion.
• If during your workout you feel any chest pain, nausea, dizziness, or abnormal symptoms, stop your
workout immediately and consult your physician.
• Wipe down external surfaces of your cross trainer after use to remove sweat and dust.
• Monitor and check your seated elliptical cross trainer regularly. Refer to the Cleaning and Maintenance
section of this manual for more information about the care of your Octane seated elliptical cross trainer. If
service is required, contact your local dealer or Octane Fitness Customer Service for assistance.
• Take caution in moving your seated elliptical cross trainer. Your elliptical weighs over 160 lbs. Use proper
lifting techniques and/or get assistance when moving your product.
This equipment complies where applicable with:
73/23/EEC Low Voltage Directive
89/36/EEC Electromagnetic Compatibility
(EN61000)
2002/95/EC Restriction of Hazardous Substances
(RoHS) Directive
2002/96/EC WEEE Directive
EN957-9 Stationary training equipment
EN957-1:1997 Stationary training equipment
EN60335-1:2002 Household and similar electrical
appliances - Safety
GPS General Product Safety Regulations 2005
Product Dimensions: 1446mm x 604mm x 1243mm
(57in x 24in x 49in)
Product Weight 161 lbs. (73 Kg)
Max User Weight 300 pounds (136 Kg)
Power Supply/Electrical Specifications:
Input Rating 100-240~0.4A
Frequency 50-60Hz
Output Rating +9V 1.5A
Output Ripple 90mV
Output Current 1.5A Max
Safety UL/CUL, TUV, PSE, CE, C-Tick, 3C, B-
Mark

v
HEART RATE FEATURE SAFETY GUIDELINES
Before using the Octane Fitness xR3c/xR3ci with HeartLogic™ Intelligence, read and follow these instructions:
Contact Heart Rate Grips
• Clean the contact heart rate grips periodically to remove sweat and oils. Use a damp cloth with a mild
detergent. Do not spray the hand grips directly with water or a cleaner; this could cause an electrical
short.
• For the most accurate heart rate reading possible, wrap your hands around each contact heart rate grip so
that the palm of your hand and your fingers make contact with the metal sensors on the top and bottom of
the grip. Grasp firmly, and keep your hands steady and in place.
Wireless Chest Strap (xR3ci only)
• Exercisers may use the wireless heart rate transmitter provided with the Octane Fitness xR3ci or any
Polar™-compatible (coded or non-coded) wireless heart rate transmitter.
• Do not allow users to use the chest strap if they have a cardiac pacemaker or are taking
prescription medication. Medication or electrical impulses from the cardiac pacemaker can cause
inaccurate heart rate readings.
• Please take care in handling the equipment as it is extremely sensitive.
• Do not bend the strips inside the chest strap as it can cause the strap to lose its conductivity.
• Handle the heart rate transmitter (chest strap) with care. Dropping the transmitter might cause damage
and this could void the warranty.
• If the receiver (console) tries to process several signals simultaneously, an incorrect heart rate reading
could result. This will prevent cross-talk, where the chest strap signal from a user on one machine can be
received and displayed on the console of another machine.
• Do not place the chest strap near devices that generate large magnetic fields. Television sets, electric
motors, radios, and high voltage power lines can affect the transmitter’s performance. These items can
interfere with the heart rate signal that is being transmitted to the receiver, possibly affecting the heart
rate readings that appear on the electronic console.
• Do not immerse the transmitter in water. However, some moisture is necessary for the transmitter to
function properly. Perspiration is usually sufficient, but you may need to moisten the electrodes with a
small amount of water. The electrodes are the ribbed portion on the side of the transmitter that sits against
your skin.
• The wireless chest strap has a battery which may fail after a period of time. A faulty battery or worn
electrodes may cause inaccurate readings. The electrodes are the ribbed portion on the side of the
transmitter that sits against your skin. If the battery has failed, a new chest strap must be purchased.
• To purchase wireless transmitter straps, contact your dealer or Octane Fitness sales representative.
Some individuals are unable to use the heart rate feature because they do not have the proper body chemistry
to provide accurate readings. If you experience difficulties in using the contact heart rate grips or a wireless
chest strap, contact your dealer or Octane Fitness Customer Service at 1.888.OCTANE4.
WARNING! The heart rate monitoring features of this product are for information only and are not to be used as
a measure of heart functioning or heart health. In a heart rate controlled program, you can use the Level controls
to reduce the resistance level at any time. You are responsible for monitoring how you feel and adjusting
the level of effort accordingly. If at any time during exercise you experience chest pains, nausea, dizziness, or
shortness of breath, stop exercising immediately and consult a physician before starting again.

vi
Base Serial Number
(on inside surface)
Console Serial Number
(on bottom edge)
S/N:R05680027943- 01
Max User Weight: 300lbs - Class HC
RoHS Compliant
Input Rating 100-240V~0.4A
9V 1.5A
Covered by one or more of U.S. Patents Nos. 6248044, 7270626, 7244218,
D547159,5938570, 6409635, and other patents pending. Made in Taiwan
9200 Wyoming Avenue North, Suite 380
Brooklyn Park, MN 55445 USA
OCTANE FITNESS, LLC

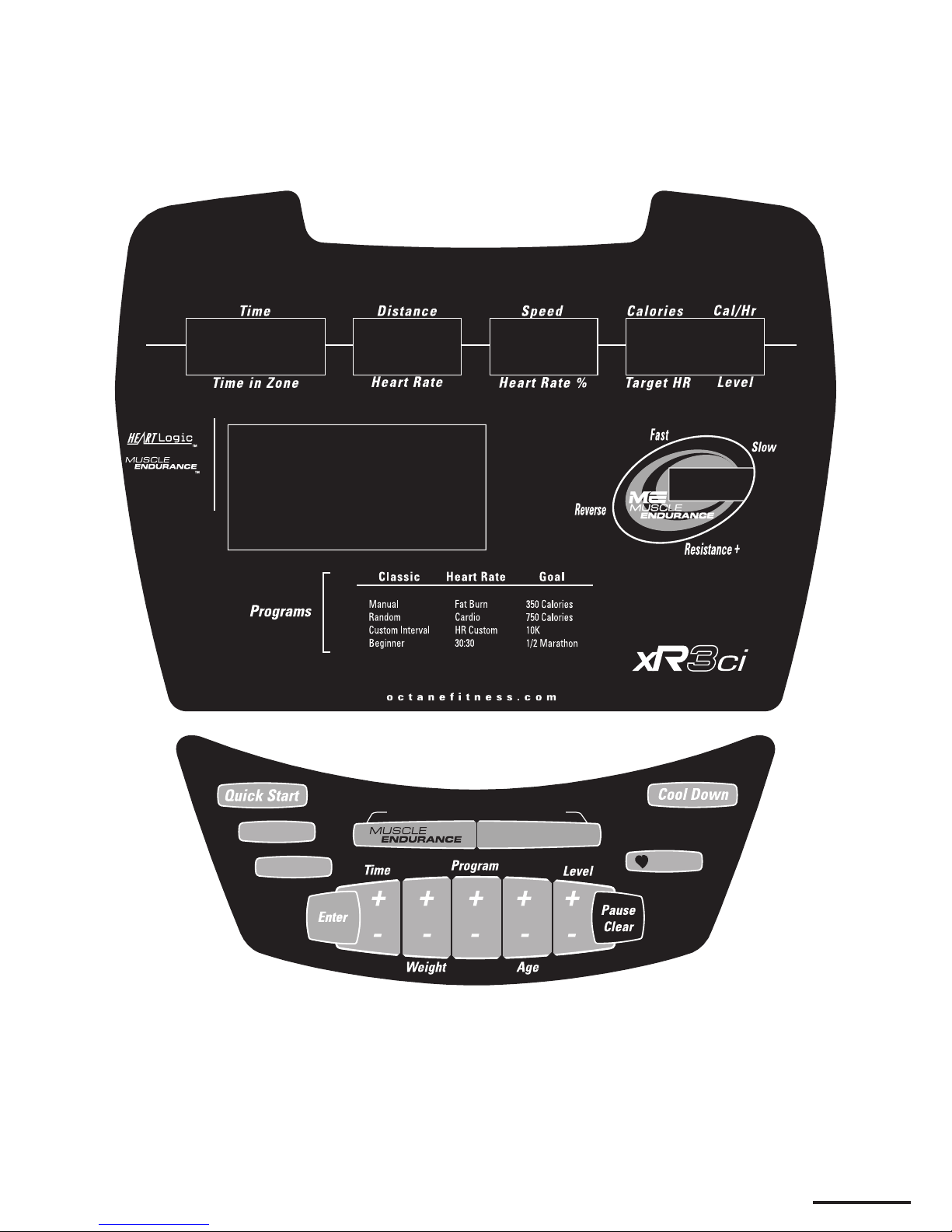

xR3 PRODUCT LABELS

vii
TABLE OF CONTENTS
Getting Started ............................................................................................................................... 1
• Adjusting the Seat ............................................................................................................... 1
• User Set-Up Functions........................................................................................................ 2
• Cleaning and Maintenance of the xR3 Series Seated Elliptical ............................... 3
• Troubleshooting & Frequently Asked Questions ........................................................... 3
• Warranty Information ......................................................................................................... 3
Electronics ...................................................................................................................................... 4
• xR3 Keypad Buttons ............................................................................................................ 4
• Console Windows ............................................................................................................... 9
xR3 Programs ............................................................................................................................... 11
• How Does Workload Resistance (Level) Work? ......................................................... 11
• xR3 Settings—Value Ranges ......................................................................................... 12
• xR3 Program Reference ................................................................................................... 13
xR3 Heart Rate Features ............................................................................................................ 16

1
GETTING STARTED
Welcome to a new breed of exercise equipment— xRide™ by Octane Fitness! You will soon be experiencing
a great ride as you challenge yourself with its sophisticated electronics and the variety of pre-programmed
workouts. Getting started is easy; just step across the base and have a seat. Adjust the seat, then follow the
prompts to program your workout, and you are on your way!
Adjusting the Seat
The comfort and effectiveness of the workout on the xR3 begins with proper seat position. Both the height of the
seat and the tilt of the seat back on the xR3 seat are adjustable, ensuring that you can find just the right position
to suit your preference and deliver the best possible workout.
Note: When adjusting seat height or tilt, make sure you hear and feel the adjustment mechanism lock
into position.
Adjusting seat height
Adjust seat height to one of the 15 positions on the xR3 Series
using the handle located just under the left front edge of the seat.
While bracing yourself with your feet on the platform, lift up on
the handle and use your legs to move the seat into a comfortable
height. Place your feet on the pedals and pedal forward, stopping
when one pedal is at its lowest point. Check the position of your
leg on this pedal; your knee should be slightly bent. If your leg is
fully extended, or your knee is bent too much, readjust the seat
height until you have the proper leg extension.
Adjusting seat back tilt
Adjust the tilt of the seat back on the xR3 Series using the handle
located just under the right handgrip. You may choose one of five
positions, with position 1 being the most upright and position 5
being the most reclined. To adjust, lift up on the yellow handle to
disengage the tilt lock. Press back to recline or shift your weight
slightly forward to tilt the seat back up. Release the handle, then
shift your weight slightly until you hear the tilt lock pop into
position.
Note: Once you have adjusted the tilt of the seat back to a comfortable position, pedal forward and
recheck your leg extension. You may need to readjust the seat height to compensate for the
change in tilt.
Tip: Be sure to record the position numbers of both the seat height (1-15) and the seat back tilt (1-5)
so that you can quickly set the seat when you are ready to begin your next workout.

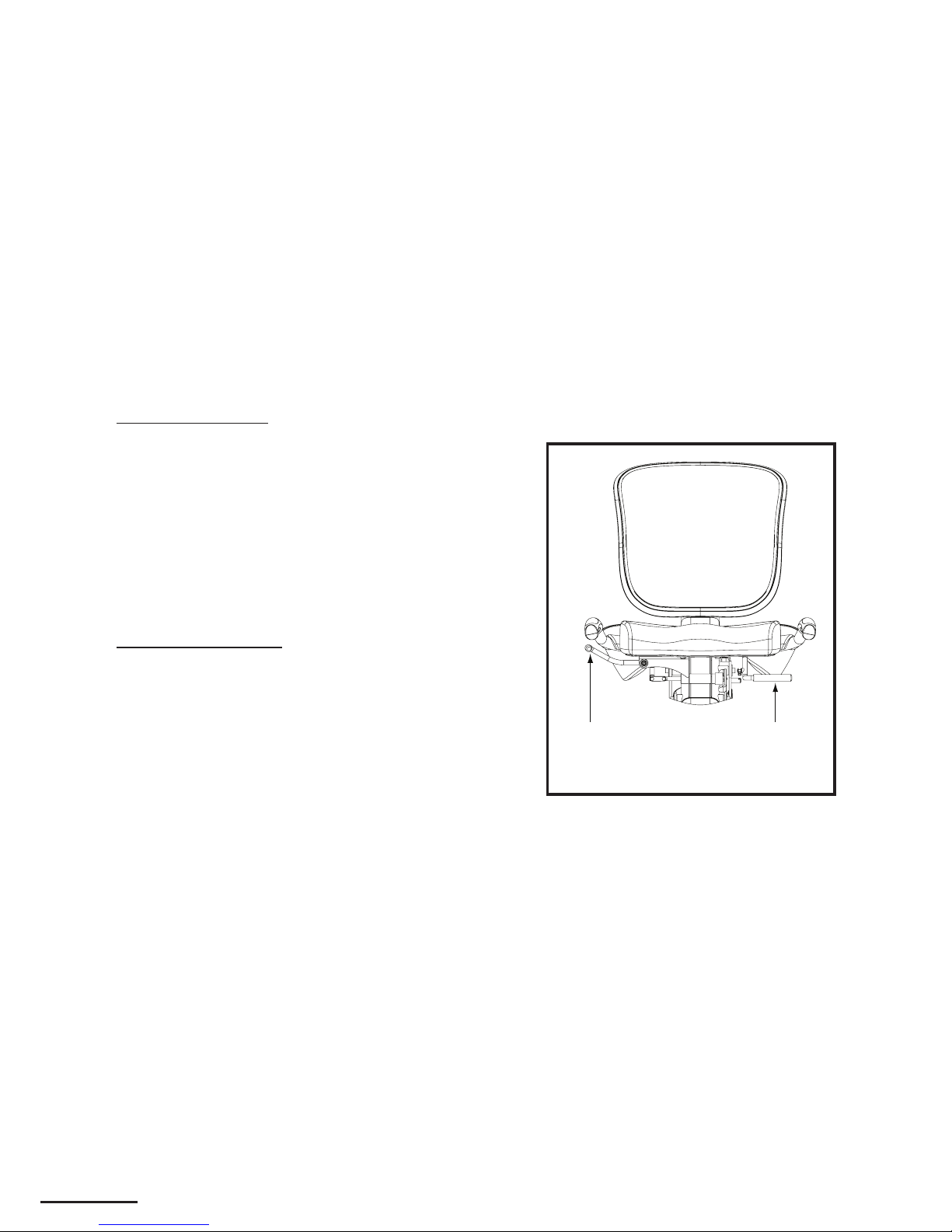

Tilt Adjustment
Handle
Height Adjustment
Handle

2
USER SET-UP FUNCTIONS
Program features, console settings, and controls of the xR3c/xR3ci can be adjusted to fit your personal preferences
or workout environment. To access the User Set-up functions, press and hold both the Level (+) and Level (–) keys
for three seconds, or until you hear a beep. The following customizable functions are displayed in sequence; use
the Enter key to toggle through the available options for each function, and press any (+) or (–) key to select a
setting and move to the next function. To exit without changing any values, press Pause Clear twice. Once saved,
values become the new standard and do not need to be reset for each use.
Warm-Up This feature may be turned “ON” (to include a 3-minute warm-up in each workout) or “OFF”.
The factory default setting is “ON”.
Pause
(xR3ci)
Turning this function to “OFF” lengthens the period of time before a program automatically
enters a parameter during programming to 10 minutes. The factory default setting is “ON”,
which is the appropriate setting for a typical user. The “OFF” setting is primarily used during
product demonstrations.
Clock
Direction
The xR3 cross-trainer can track workout time by counting “UP” or “DN” (down). The factory
default setting is “UP”.
Movement
Management
(MOM)
MOM mode is a unique control feature offered on Octane Fitness ellipticals. Activating MOM
mode disables the console buttons and increases the resistance in the movement of the ped-
als so that the pedals do not move as easily. This control feature may discourage children
from experimenting with the machine.
This User Set-Up function lets you enable (“On”) or disable (“OFF”) the MOM mode. The origi-
nal setting is “On”. To activate MOM mode after your workout, press and hold the Program
(+) and (–) keys for three seconds or until you hear the beep. The machine resistance then
increases to level 20 and the console buttons are inactive. The machine appears to be in
“Pause” mode, but if any console keys are pressed, “MOM MODE ACTIVE” scrolls across the
matrix display. To unlock MOM mode, press and hold the Program (+) and (–) keys again for
three seconds or until you hear the beep.
CAUTION! MOM mode is a feature provided to reduce the likelihood that children
can pedal the elliptical cross-trainer. This feature does not lock the machine; the
pedals still move and the potential for injury still exists. It is the responsibility of the
user to supervise children and keep them off the elliptical cross trainer to minimize
the likelihood of injury.
Units You may choose to have the weight and distance units displayed in “ENGLISH” (pounds and
miles) or “METRIC” (kilograms and kilometers). The factory default setting is “ENGLISH”.
Beep You may turn the console sounds “ON” or “OFF”. The factory default setting is “ON”.
30:30 Rest
Minutes
(xR3ci)
You may set the 30:30 program rest time to 1, 2, 3, 4 or 5 minutes. The original setting is 3
minutes.
Brightness You can adjust the intensity or brightness of the console LEDs, choosing any value between 1
and 8. A higher number represents more light. The factory default setting is 8.
Exit When EXIT is displayed, press Enter to leave User Set-up. All of your selections will be saved
and become the new standard settings for your machine. They may be changed at any time
by repeating these set-up procedures.

3
Workout Boosters: Muscle Endurance and Leg Press (xR3ci)
To customize a Workout Booster feature, press and hold the Muscle Endurance or Leg Press button for three
seconds, or until you hear a beep. Once you have saved your selections, they are set as the new standard for
your machine—you don’t need to reset them for each use.
Muscle
Endurance On
Time
The length of each Muscle Endurance interval. The original setting is 1:00. Use any (+) or
(–) button to increase or decrease this interval (displayed in the TIME window), choosing
any value between 0:30 and 10 minutes, in increments of 0:15. Press Enter to save the new
Muscle Endurance interval length; press Pause Clear to exit without changing.
Muscle
Endurance Off
Time
The length of time between Muscle Endurance intervals. The original setting is 1:00. Use any
(+) or (–) button to increase or decrease this interval, choosing any value between 0:30 and 10
minutes, in increments of 0:15. Press Enter to save the new time between Muscle Endurance
intervals; press Pause Clear to exit without changing.
Muscle
Endurance
Level Change
The number of resistance levels to be added to your cardio level for each Muscle Endurance
set. The original setting is 4. Use any (+) or (–) button to increase or decrease value (displayed
in the CALORIES window), choosing any value between 1 and 19. Press Enter to save the new
level change value; press Pause Clear to exit without changing.
Leg Press Off
Time
The length of time between Leg Press intervals. The original setting is 1:00. Use any (+) or
(–) button to increase or decrease this interval (displayed in the TIME window), choosing any
value between 0:30 and 10 minutes, in increments of 0:15. Press Enter to save the new time
between Leg Press intervals; press Pause Clear to exit without changing.
Leg Press
Reps
The number of repetitions in each Leg Press set. A press with both the right and left leg
equals one rep. The original setting is 15. Use any (+) or (–) button to increase or decrease this
number (displayed in the CALORIES window), choosing any value between 5 and 99. Press
Enter to save the new number of reps; press Pause Clear to exit without changing.
Leg Press
Level Change
The number of resistance levels to be added to your cardio level for the Leg Press “blasts”.
The original setting is 10. Use any (+) or (–) button to increase or decrease value (displayed in
the CALORIES window), choosing any value between 1 and 19. Press Enter to save the new
level change value; press Pause Clear to exit without changing.
Cleaning and Maintenance of the xR3 Series Elliptical
WARNING! This machine contains moving parts. Take caution when trying to locate and fix any problem.
Your Octane Fitness elliptical has been manufactured to withstand many hours of use with minimal required
maintenance. Simply wipe off the machine with a clean towel after a hard workout to remove any sweat to
keep the machine clean. Do not use bleach on the console as it will damage the surface.
Please contact your local Octane Fitness dealer should you have any questions or maintenance issues.
Troubleshooting & Frequently Asked Questions
Should you have any questions regarding your xR3 elliptical, please log on to www.octanefitness.com where you
will find answers to many common questions and tips on using your elliptical. If you would like to speak to an
Octane Fitness Customer Service specialist, please call 1-888-OCTANE4 or 763-757-2662 extension 1.
Warranty Information
The xR3 seated elliptical is warranted to be free of all defects in material and workmanship for a specific period
of time from original date of purchase. Please refer to the Octane Fitness Limited Consumer Warranty included in
your information packet for full terms and details of warranty coverage.

4
ELECTRONICS
The xR3c and xR3ci seated ellipticals feature a simple, easy to understand keypad and a console which includes
a workout profile matrix and four multi-function LED display windows that provide all the information you need to
get started and stay motivated during your workout. Check out the program descriptions found later in this manual
to choose the workout that is just right for you.
Getting started is easy—just hop on and start pedaling. DedicatedLogic™ programming gives you the ultimate in
ease of use and total flexibility for programming your console. This allows you to modify your workout once you’ve
started. You can even start your workout, then program the electronics. This ease of use starts by giving each key
only one function. This makes it easy to understand how each key works.
Keypad Buttons
Quick Start The easiest way for you to start your workout is to simply push the Quick Start button,
setting the machine in a manual program at resistance level one. The calories readout
will be based on a 150 lb. (68 kg) user, age 40. Once you have selected Quick Start, you
can program any item in any order.
My QuickStart 1 &
My QuickStart 2
(xR3ci)
The My QuickStart buttons makes programming your best workout even easier by
memorizing your workout profile. My QuickStart remembers your favorite program and
attributes and, with a simple push of the button, retrieves them for your next workout.
You can easily set your profile while using the machine. Simply begin your workout and
enter your information as usual—program, time, level, weight, and age (xR3ci only),
adding Muscle Endurance and/or Leg Press if you wish. Once your elliptical cross trainer
is set the way you like it, simply press and hold the My QuickStart 1 (or My QuickStart
2) button until you hear the console beep, indicating that this favorite profile has been
saved. If you decide during your workout to change what you have saved (for example, you
decide to increase the time or level), just enter the changes on the console. If you want
to save these new settings, just press and hold My QuickStart again for three seconds or
until you hear the beep. This resets your saved profile using the new attributes.
The next time you are ready for your favorite workout, simply press the My QuickStart
button and begin pedaling. You may also switch to your favorite program after you have
started a workout; to do this, press Pause Clear twice within two seconds to reset the
machine, then press My QuickStart to begin your program.
Tip: Use My QuickStart 1 and My QuickStart 2 to save two different workouts. Save
the first one according to the directions above, then press Pause Clear twice within two
seconds to reset the machine, and follow the steps again to save the second workout
using the other My QuickStart button. If you feel like doing something different after
you have started your favorite workout with My QuickStart, simply enter your new
information. This will only change the current workout, not your saved favorite.
Tip: View total workout statistics for these favorite workouts at any time by pressing and
holding My QuickStart 1 or My QuickStart 2 and Enter for 3 seconds.
Now-Zone
(xR3ci)
Press the Now-Zone button to move instantly into a heart rate-controlled program using
your current heart rate as the target. Press the button a second time to exit the heart
rate-controlled program and enter a manual program. Now-Zone can be activated while
in any program at any time as long as you are wearing your wireless transmitter.

5
Leg Press
5
6
7
8
1
2
3
4
Leg Press
Press to Fuel Your Workout
Workout Boosters
Enter
Enter Pause
Clear
+
-
+
- -
+ +
-
xR3c Console and Keypad

6
Leg Press
My QuickStart 1
My QuickStart 2 Now-Zone
Press to Fuel Your Workout
Workout Boosters
Leg Press
xR3ci Console and Keypad

7
Cool Down It is always a good idea to perform a cool-down at the end of your routine. This will
help transition your body from an aggressive workout to its normal pace. The time and
intensity of the cool-down is automatically customized to your workout duration and
resistance level. The time window will change to a countdown timer to tell you how long
the cool-down will last.
If you have set a time for your workout, the cool-down will automatically start when time
has expired. If you decide to end your workout early or have not set a time goal, simply
push the Cool Down button to activate the custom cool-down. At the completion of your
cool-down a workout summary will be displayed.
Pause Clear Press once to pause your workout. The standard pause time is 5 minutes. Use the Time
(+) or (–) keys to increase or decrease the pause time; this adjustment can be made at
any time while the machine is in pause mode. To restart a paused workout, push any key
or just begin pedaling. If you stop pedaling during a workout, the unit will automatically
begin a pause phase; simply start pedaling to resume your workout.
Press the Pause Clear button twice within two seconds, and your machine is reset and
ready for another workout. Press and hold the Pause Clear button until you hear the
beep to enter sleep mode, a virtual off mode. The matrix display reads “UNFUELING”,
and just one LED in the Muscle Endurance window remains lit. Your elliptical requires
very little power in this mode. To “wake” your elliptical, simply press any button or begin
pedaling.
Up and Down Keys
Time Press the Time (+) or (–) to increase or decrease the time of your workout, in 1 minute
increments. The standard workout time is 30:00. The maximum time is 99:00.
Weight Press Weight (+) or (–) to increase or decrease the value for user weight. This value is
used to give a more accurate calorie burn readout. Weight is displayed in pounds (English)
or kilograms (metric); use the User-Set up functions to change the display units.
Program Press the Program (+) or (–) to scroll through the programs, then press Enter to select a
program. Program changes can be made any time during your workout. When you change
programs, the matrix window prompts you to enter new program values as needed.
Note: The Program (+) or (–) keys are also used to activate the MOM (MOvement
Management) motion control feature of the Octane Fitness elliptical.
Age
(xR3ci)
Press Age (+) or (–) to enter the age to be used by heart rate programs on the xR3ci. The
program calculates a recommended target heart rate based on the formula (220 – age) =
theoretical maximum heart rate (TMHR). That number is then multiplied by the program
intensity value to determine your target heart rate(s).
Level Press Level (+) or (–) to increase or decrease the resistance level of the machine. There
are 20 levels of resistance for preset resistance programs and the 30:30 fitness number
program. For heart rate controlled programs, the Level button increases your target heart
rate. To save a change in target heart rate, press Enter.
Enter Selects any of the changed values or items from the above keys. Also, pressing
the Enter key during any workout will stop the LED readout windows from toggling
between display modes.
Note: The xR3c/xR3ci has an intelligent sleep mode—a virtual off button. Your elliptical requires very little
power in this mode. Just press and hold the Pause Clear button until you hear the beep. The matrix display
reads “UNFUELING”. To “wake” your elliptical, simply press any button or begin pedaling.

8
Workout Boosters
Leg Press Push Leg Press to activate an aggressive routine to help you build strength and
power in your leg muscles. Leg Press integrates cardio sessions with strength
sessions focused on the legs. The cardio session follows the selected program
profile. For each Leg Press interval, resistance increases 10 levels (or to the
maximum resistance of 20) for a muscle-building, 15-repetition set. During the
Leg Press set, the level of resistance can be changed by pressing the Level (+ / –)
buttons. Press this button a second time to deactivate.
Muscle Endurance Press Muscle Endurance to activate the ultimate cross training tool and take
advantage of the variety your seated elliptical cross trainer offers. This great
motivational tool keeps your workout fresh and exciting in any program. Every other
minute it kicks in, increasing your current resistance level by 4 and prompting you
to perform combinations of eight different challenges:
Reverse Pedal backwards to change the muscle focus in your legs.
Fast Pick up the pace—we recommend 60+ rpm, but you should find
your own comfort level.
Resistance+ Sweat it out as you work your entire body with a quick burst at
3 additional levels of resistance—a total of 7 levels higher than
your program resistance level!
Slow Slow down to 30-40rpm to allow yourself to recover.
Deactivate Muscle Endurance by pressing the button a second time.

9
Console Windows
Matrix Display The xR3ci matrix display prompts you to enter important information, shows the program
profile during the workout and highlights upcoming intervals and resistance changes.
Watch the matrix display as you set up and progress through your workout—it will guide
you, motivate you, and reward you with summary information at the end of your session.
Changing Target Heart Rates: When you are trying to reach a new target heart rate,
the left side of the matrix display shows an
illustration of the interval. The illustration blinks
the interval you are attempting to reach. Each
column represents one minute. An arrow on the
right side of the display shows whether resistance
(and therefore your target heart rate) is increasing
or decreasing. When decreasing, if the machine
reaches resistance level 1 and your heart rate
has still not reached your target low, the display
prompts you with the message “HR TOO HIGH–
SLOW DOWN”. When increasing, if the machine
reaches the highest resistance level (20) and your
heart rate has still not reached your target high,
the display prompts you to “INCREASE SPEED TO
DECREASE RESISTANCE”.
Interval Duration: Once you have reached or
surpassed the new target heart rate, the matrix
display switches to a countdown timer, counting
down the length of the interval. The bottom row
of the matrix displays a horizontal bar graph
representing the current resistance level.
xR3ci
Upcoming columns blink
xR3c

10
Time Displays workout time, counting up from 0:00. Time can be increased or decreased during
your workout. The maximum time that users can set is 99:00. When actual workout time is
displayed, the timer goes up to 99:59, then the display rolls over to 0:00. Refer to User Set-up
Functions to learn how to switch from a “count up” to “count down” display.
Distance Displays an estimate of how far you have traveled. Distance can be shown in either miles
(English) or kilometers (metric). When you first purchase your elliptical the display will be in
English. Refer to User Set-up Functions to learn how to switch from English to metric.
Speed Displays how fast you are going, in revolutions per minute (rpm).
Calories Displays an estimate of the total calories burned during the workout, based on the user’s
entered weight. If no specific weight is entered, calories are based on a 150 lb. (68 kg) user.
Cal/Hr Displays the number of calories that would be burned in one hour at the current resistance
level and speed.
Level Displays the resistance level (1-20), where 1 is the lowest resistance level and 20 is the
highest.
Heart Rate Displays heart rate in beats per minute (BPM). Note: You must be wearing a wireless heart
rate transmitter or grasping the contact heart rate sensor grips on the stationary handlebars.
Time-in-Zone
(xR3ci)
Tracks and displays the amount of time spent in the proper heart rate training zone for the
program on the xR3ci. Time-in-Zone is only displayed in a heart rate controlled program when
a heart rate is detected by the machine. Note: You must be wearing a wireless heart rate
transmitter or consistently grasping the contact heart rate sensor grips on the stationary
handlebars in order to get an accurate reading of Time-in-Zone.
Heart Rate %
(xR3ci)
Displays your current heart rate percentage (current heart rate / theoretical maximum heart
rate). Note: You must have entered your age and be wearing a wireless heart rate transmitter
or consistently grasping the contact heart rate sensor grips on the stationary handlebars in
order to get an accurate reading of Heart Rate %.
Target HR
(xR3ci)
Displays the heart rate reading that the machine is adjusting resistance to achieve when in a
heart rate controlled program on the xR3ci. In these programs, the machine adjusts resistance
level in response to your heart rate in order to achieve this target.

11
xR3 PROGRAMS
The xR3c features 8 built-in programs to keep your workouts interesting:
Classic programs: Manual—Random—Custom Interval—Beginner
Goal programs: 350 Calories—750 Calories—10K—1/2 Marathon
The xR3ci with wireless heart rate includes 4 additional programs to further challenge and motivate:
Heart rate programs: Fat Burn—Cardio—HR Custom Interval—30:30
Programs begin with a warm-up to ease your body into your intense workout. During the warm-up, the resistance
increases each minute. At the end of the warm-up, you will be at your selected resistance value or target heart
rate. You can change the level at any time during the warm-up.
How Does Workload Resistance (Level) Work?
Resistance Level The xR3 has 20 discrete levels of resistance. Level 1 is the easiest and level
20 is the most difficult. The Manual program and Quick Start give the user the
ability to totally control the resistance level. Interval Programs (Custom Interval
and 30-30) allow the user to select the resistance level for specific intervals.
The resistance level is represented by rows of LEDs in the matrix display. Each
row that is lit represents 3 resistance levels. The table below will help you
understand and interpret the matrix display:
Resistance Levels LED Rows Lit Resistance Levels LED Rows Lit
1-2 1 11-12 6
3-4 2 13-14 7
5-6 3 15-16 8
7-8 4 17-18 9
9-10 5 19-20 10
Program Level The Random program and Goal programs using the ‘Hills’ profile let you select
an overall resistance level for the program. This level is the average resistance
level for the workout. The range of resistance levels during these workouts are
plus (+) or minus (-) 4 of the entered program level. That is, for program Level
5, minimum resistance is Level 1 and maximum resistance is Level 9. During
the workout, the overall program resistance level is displayed. You can change
the Level at any time.
Resistance in Heart
Rate Controlled
Programs
These programs (Fat Burn, Cardio, and Heart Rate Custom Interval) allow you
to manually enter the target heart rate level for program. If the target HR is
reached during the warm-up, the warm-up ends and the selected heart rate
control program begins. The resistance level during the heart rate controlled
workout is controlled by the machine, increasing or decreasing as necessary to
keep your heart rate on target.

12
You choose the program that best fits your workout needs for any given day. You can decide how hard to work by
setting the resistance level and time for each program. Three programs—Manual, Custom Interval, Custom Heart
Rate Interval—provide great flexibility to program individual workouts to meet specific needs.
Use the quick-reference chart on the following pages to help select and set up the programs. Program your
workout your way!
xR3 SETTINGS—VALUE RANGES
Setting Standard Values* Minimum Value Maximum Value
Workout Time
Level
Age
Weight
Interval Time
Interval Level
How Many Intervals
Target Heart Rate
Calorie Goal
Distance Goal
Flat or Hills?
30:00
1
40
150 lbs. (68 kg)
00:30
1
3
(220 - Age) * %; varies by program
350 or 750
6.2 miles (10K) or 13.1 Miles (21K)
Flat
1:00
1
15
70 lbs. (32 kg)
00:15
1
2
80
25
.25 miles (.4 km)
n/a
99:00
20
99
300 lbs. (181 kg)
99:00
20
6
(220 - Age)
2000
50 miles (80 km)
n/a
*Standard program values are used if no values are entered within 4 seconds of Message Center prompts.

13
xR3 PROGRAM REFERENCE
Press Program (+) or (–) and Enter to choose a program.
CLASSIC PROGRAMS
Programs & Standard Settings Description
Level (1)
Get on and go; constant resistance simulates pedaling
on a flat surface. The oval racetrack equals 1/4 mile (or
400 meters); the counter in the matrix display shows laps
completed.
Level (1)
Enjoy computer-randomized resistance variation with a
virtually infinite number of combinations. Get a new course
each time you select the program or change the level. Each
interval lasts one minute.
Intervals (3)
Interval 1 — Time (00:30)
Interval 1— Level (1)
Interval n — Time (00:30)
Interval n — Level (1)
Design a custom workout of up to 6 alternating intervals of
user-defined duration and resistance. Use Level (+) or (–) to
adjust interval resistance mid-workout.
Day (1)
Follow a 14-day planned workout sequence to help jump-
start your exercise program. Each day’s workout includes
preset values for resistance level, time and a suggested
speed (RPM). The values gradually increase in intensity
each day, building up your stamina and getting you ready
to workout on your own. Use Level (+) or (–) to chose the
day (1-14) and you’re ready to go!
GOAL PROGRAMS
Programs & Standard Settings Description
GOAL!
350
Calories
350 Calories
or
350 Calories
GOAL!
350
Calories
Goal (350)
Weight (150 lbs./68 kg)
Flat or Hills (Flat; press (+) or (–) twice to select Hills)
Level (1)
Get moving on a flat or ‘hilly’ course until you have
burned 350 calories. Use Level (+) or (–) to adjust interval
resistance mid-workout. Watch the calories fall away!
Note: To select “hills”, press any (+) or (–) twice while
“FLAT OR HILLS” is displayed, then press ENTER.)
