Oki OKIPAGE18 User manual

OKI 70035001 & 70035101
SIMM Installation Instructions
Instructions pour l'installation des SIMM
70035001 et 70035101 OKI
Instrucciones de instalación del SIMM
OKI 70035001 y 70035101
Instruções para instalação do chip SIMM
OKI 70035001 e 70035101
OKIOKI
OKIOKI
OKI®

Every effort has been made to ensure that the information in this document is
complete, accurate, and up-to-date. Okidata assumes no responsibility for the
results of errors beyond its control. Okidata also cannot guarantee that
changes in software and equipment made by other manufacturers and
referred to in this guide will not affect the applicability of the information in
it. Mention of software products manufactured by other companies does not
necessarily constitute endorsement by Okidata.
Copyright 1999 by Okidata. All rights reserved.
First edition August, 1999.
Written and produced by the Okidata Training & Publications Department.
Please address any comments on this publication
by mail to:
Training & Publications Dept.
Okidata
2000 Bishops Gate Blvd.
Mt. Laurel, NJ 08054-4620
or by email to:
[email protected]
For the latest product information, printer drivers, manuals, special offers,
etc., we welcome you to visit our multilingual web site:
http://www.okidata.com
OKI is a registered trademark/marque déposée/marca registrada Oki Electric
Industry Company, Ltd.

3
3xx
Contents
Table des matières
Tabla de Contenido
Conteúdo
Getting Started....................................................................................4
Mise en route.......................................................................................4
Puesta en funcionamiento ..................................................................4
Início ....................................................................................................4
Installing SIMMs ................................................................................6
Installation des barrettes SIMM .......................................................6
Instalación de módulos SIMM ..........................................................6
Instalando SIMMs ..............................................................................6

4
Getting Started
Mise en route
Puesta en funcionamiento
Início
The OKIPAGE 18/24DX has three slots.You can use these slots to add up
to 64 MB of memory (two 32 MB SIMMs) to the standard 16 MB
OKIPAGE 18/24DX printer memory, and/or to install either the Adobe
PostScript SIMM Kit or the Flash ROM SIMM.
L’imprimante OKIPAGE 18/24DX comporte trois fentes. Il est possible
d’utiliser ces fentes pour ajouter jusqu’à 64 MO de mémoire (2 barrettes
SIMM de 32 MO) à la mémoire standard de l’imprimante OKIPAGE 18/
24DX de 16 MO, et/ou d’installer soit l’ensemble de barrette SIMM Adobe
PostScript ou la barrette SIMM de mémoire flash ROM.
La OKIPAGE 18/24DX tiene tres ranuras. Usted puede usar estar ranuras
para agregar hasta 64 MB de memoria (dos módulos SIMM de 32 MB) a la
memoria estándar de 16 MB de la impresora OKIPAGE 18/24DX y/o
instalar Adobe PostScript SIMM Kit o el módulo Flash ROM SIMM.
A OKIPAGE 18/24DX tem três slots. Você pode usar esses slots para
adicionar até 64 MB de memória (duas SIMMs de 32 MB) à memória
padrão de 16 MB da impressora OKIPAGE 18/24DX e/ou para instalar o
Adobe PostScript SIMM Kit ou Flash ROM SIMM.

5
CAUTION!
Circuit boards can be damaged by static electricity and rough handling.
Keep board in packaging until you're ready to install it. SIMMs are
sensitive to static electricity. To avoid damage, ground yourself by touching
the chassis of your computer each time before handling SIMMs.
ATTENTION!
Les circuits imprimées peuvent être endommagées par l'électricité statique
ou si'les sont maniés avec négligence. Conservez le circuit imprimé dans
son emballage jusqu'à ce que vous soyez prêt à l'installer. Les SIMM sont
sensibles à l’électricité statique. Pour éviter de les endommager, mettez-
vous à la terre en touchant le châssis de votre ordinateur à chaque fois que
vous manipulez des SIMM.
¡Precaución!
Las tarjetas de circuitos pueden malograrse con la electricidad estática y el
manjo descuidado. Mantenga la tarjeta en su paquete hasta el momento de
su instalación. Los SIMM son sensibles a la electricidad estática. Para
evitar dañarlos, conéctese a tierra tocando el chasis de la computadora
cada vez que va a tocar SIMMs.
Cuidado!
As placas de circuitos podem ser avariadas pela electicidade estática pelo
manuseio descuidado. Mantenha a placa na embalagem até a sua
instalação. os SIMMS são sensíveis à eletricidade estática. Para evitar
danos, faça contato terra tocando o gabinete do seu computador toda vez
que for manusear os SIMMs.

6
Installing SIMMs
Installation des barrettes SIMM
Instalación de módulos SIMM
Instalando SIMMs
Preparation
1Turn the printer off.
Préparation
1Éteindre l’imprimante.
Preparación
1Apague la impresora.
Preparação
1Desligue a impressora.

7
2Unplug the power cord and detach the interface cable from the back of the
printer.
2Déconnecter le cordon d’alimentation et débrancher le câble d’interface
de l’arrière de l’imprimante.
2Desenchufe el cable de alimentacióny e desconecte el cable de
interconexión de la parte posterior de la impresora.
2Desconecte o cabo de alimentação e desconecte o cabo de interface da
parte de trás da impressora.

8
3Push the OPEN button, then open the top cover.
3Appuyer sur le bouton OPEN, et ouvrir le capot.
3Oprima el botón OPEN y abra la cubierta superior.
3Empurre o botão OPEN, depois abra a tampa superior.

9

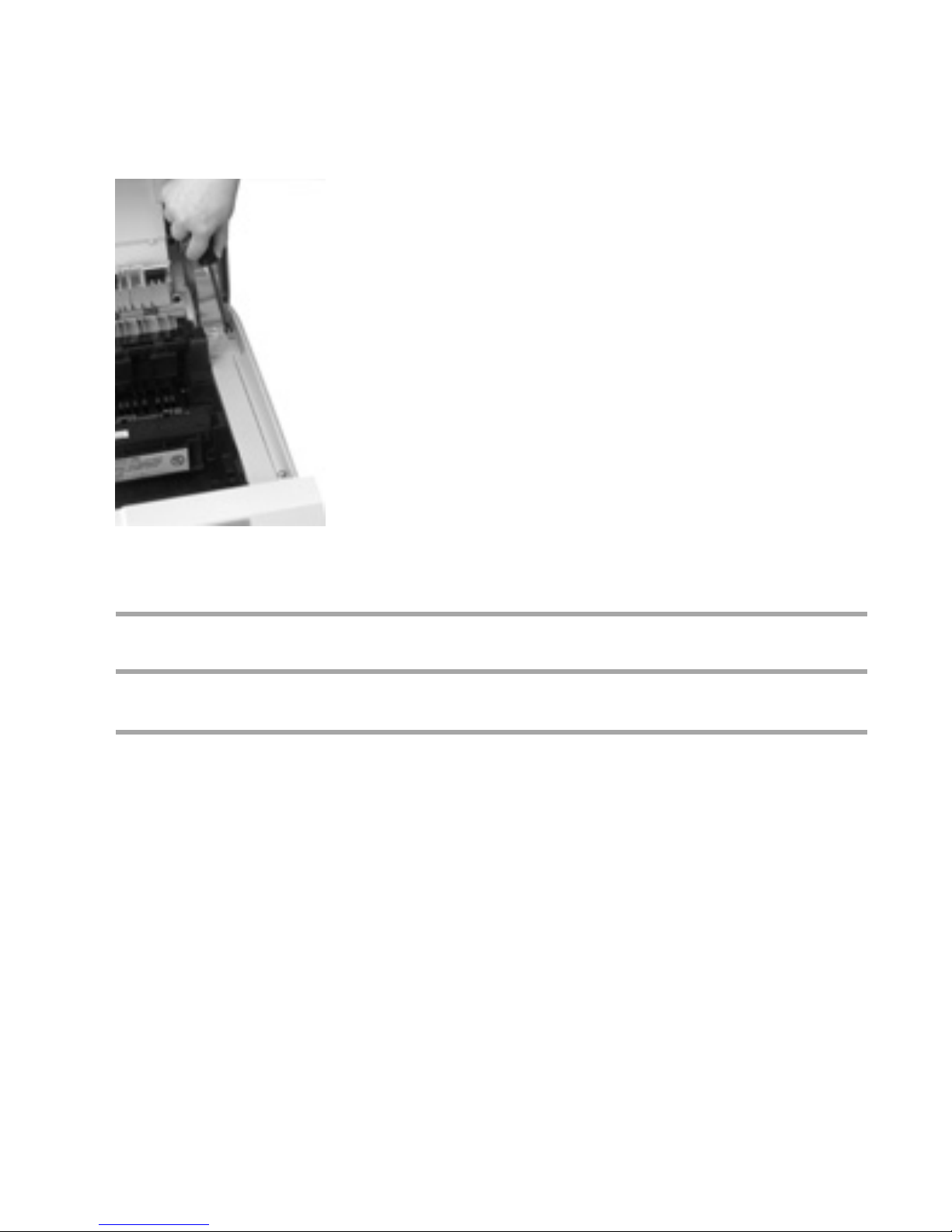

4Remove and save the two large screws on the right side, which hold the
side panel in place.
4Retirer les deux grosses vis du côté droit qui tiennent le panneau latéral en
place et les garder.
4Extraiga y guarde los dos tornillos largos del lado derecho que sujetan el
panel lateral en su lugar.
4Retire e guarde os dois parafusos grandes do lado direito, que seguram o
painel lateral em seu lugar.

10

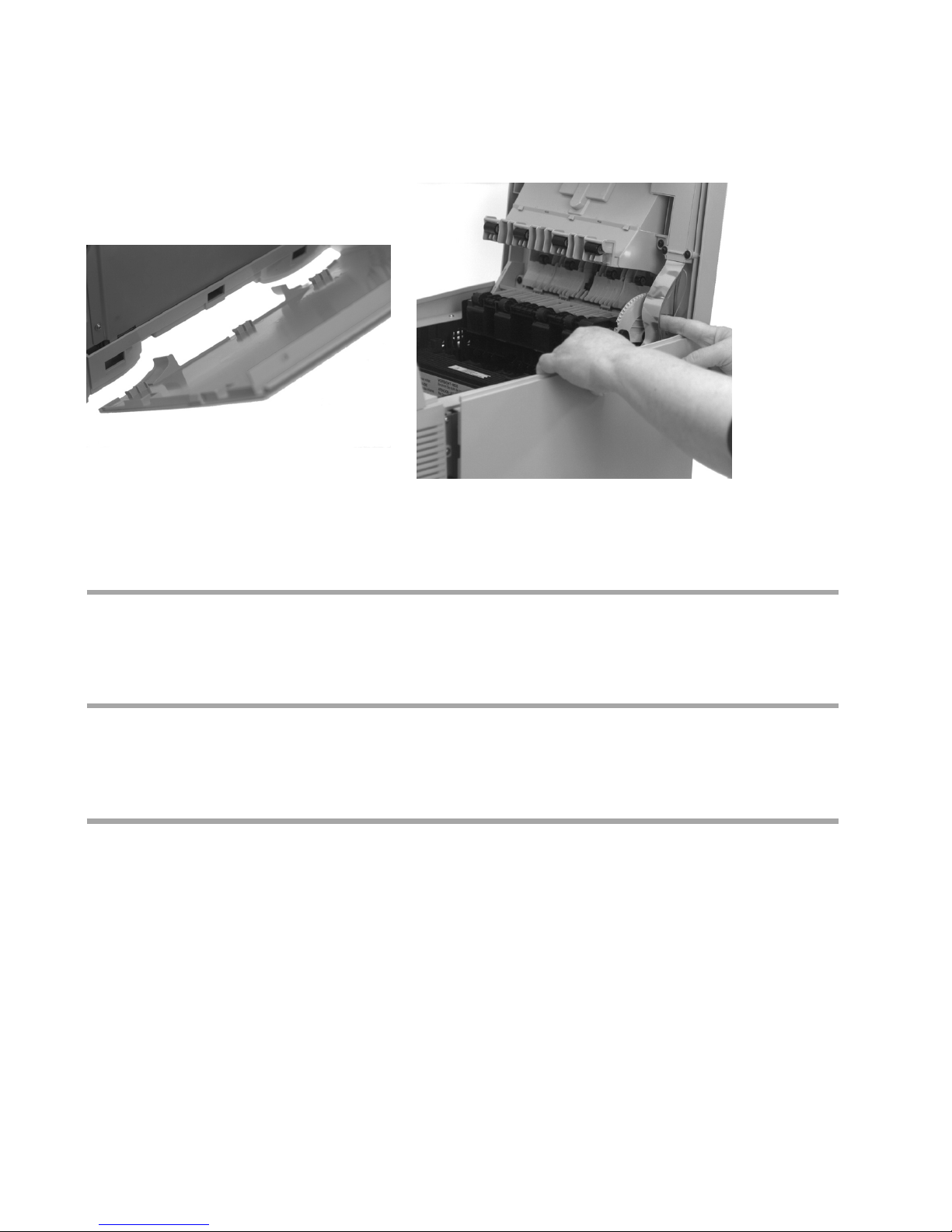

5Pull the side panel out and remove it from the printer.
5Tirer le panneau latéral et l’enlever de l’imprimante.
5Tire del panel lateral hacia fuera y retírelo de la impresora.
5Puxe o painel lateral para fora e retire-o da impressora.
