4 • English
English
Using the Printer Menu
Navigating
Note
Settings made in the printer
driver will override the printer
menu settings.
Navigating the Menu
1. Press
to enter the Menu mode.
2. Press
or
repeatedly to scroll through the
Categories, Items and Values.
3. Press
to select a Category, Item or
Value to change, or to engage
the new setting for a Value.
4. Press
to exit the Menu mode.
For Example
If the MP Tray will normally be
loaded with index cards, set the
printer menu as follows:
1. Press E
NTER .
2. Press the down arrow key to
move down to
Menus . Press
E
NTER
3. Press E NTER to select Tray
Configuration
.
4. Press the down arrow key to
move down to
MPTray Config .
Press E
NTER .
5. Press the down arrow key to
move down to
Media Type . Press
E
NTER .
6. Press the down arrow key to
move down to
Card Stock . Press
E
NTER .
An asterisk appears next to
your selection. The setting is
engaged.
Press O
N L INE .

5 • English
Using the Printer Menu
Menu Summary
Summary of Menu
Categories
 Configuration
•PageCount
• Supplies Life
•Network
•System
 Print Information
 Menus
• Tray Configuration
•MPTrayConfig
 System Adjust
 Admin Setup
For use by the System
Administrator. To access this
menu you must enter the
password. If you have no
administrator, the default
password is aaaaaa.
 Calibration
Printing the
Configuration Report
The Configuration report provides
a listing of the current printer
menu settings.
1. Press
E NTER .
2. Press the down arrow key to
select
Print Information .
3. Press
E NTER .
4. Press E NTER to select
Configuration .
5. Press E NTER . to select Execute .
The Configuration report prints
and the printer goes back on
line.

6 • English
Print Media Settings
Always make sure the media setting
matches the print media you are
using.
Improper media settings:
• cause poor quality printing
• cause flaking
• can damage the printer
Note
Printer driver settings override
printer menu settings.
Default Settings
The default media weight setting
for Tray1 is Light.
The default setting for the MP
(Multi Purpose) Tray is Medium.
Resetting to the Defaults
Note
A password is required to
access this area of the printer
menu. If you have a System
Administrator, only they can
reset the defaults.
1. Press E
NTER .
2. Press the down arrow key to
move down to
Admin Setup .
Press E
NTER .
3. Enter the administrative
password (the default
password is aaaaaa).
a. Press the up arrow key (a to
z, 0 to 9) or the down arrow
key (9 to 0, z to a) to scan
through the various
numbers and letters of the
alphabet.
b. Press Enter.
c. Repeat a and b above for
each digit of the password.
4. Press E
NTER .
5. Press the down arrow key to
move down to
Settings . Press
E
NTER .
6. Press E
NTER to select Reset
Settings
.
7. Press E
NTER to select Execute .
The printer resets and returns
to the on-line state.

7 • English
Print Media Settings
Temporarily Changing the
Media Weight for an
Individual Print Job
If you are printing a job on
special media, you can
temporarily load the media in a
tray and change the media
settings for that tray in the driver
as you print the job.
Media Weight Settings
Media weight settings can be
made in the printer menu or the
printer driver.
• Light: 17-19 lb. US Bond
(64-74 g/m²)
• Medium Light: 20-21 lb. US
Bond (75-82 g/m
2
)
• Medium: 22-30 lb. US Bond
(83-104 g/m
2
)
• Heavy: 28-32 lb. US Bond
(105-120 g/m
2
)
• Ultra Heavy1 (Tray 1): 32-50
lb. US Bond (121-188 g/m
2
)
•UltraHeavy2
-Trays 2 and 3: 3 2-54 lb. US
Bond (121-203 g/m
2)
-MP Tray: 32-58 lb. US Bond
(189-220 g/m2)

8 • English
Tray 1 and Optional Trays 2 and 3
Usable Print Media
Media Specifications
Weight Range
Tray 1: 17-50 lb. US Bond (64-188 g/m
2
)
Optional Trays 2 and 3: 17-54 l
b. US Bond
(6
4-203 g/m
2
)
Standard Sizes:
Tray 1: Letter, Legal-14, Legal-13.5, Legal-13,
Executive, A4, A5, A6, B5.
Optional Trays 2 and 3: Letter , Legal-14,
Legal-13.5, Legal-13, Executive, A4, A5, B5.
Custom Sizes:
•Min.: 5.5 x 8.3'' (140 x 211 mm)
• Max.: 8.5 x 14'' (216 x 356 mm)
Must be defined in driver before printing: see your
on-line User’s Guide.
Capacity:
530 sheets of 20-lb. (75 g/m
2
) paper

9 • English
Tray 1 and Optional Trays 2 and 3 (cont.)
Loading Paper
1
2
3
4 Important! Adjust the paper
size dial to the size of the
paper being used.
5
6
7
3

10 • English

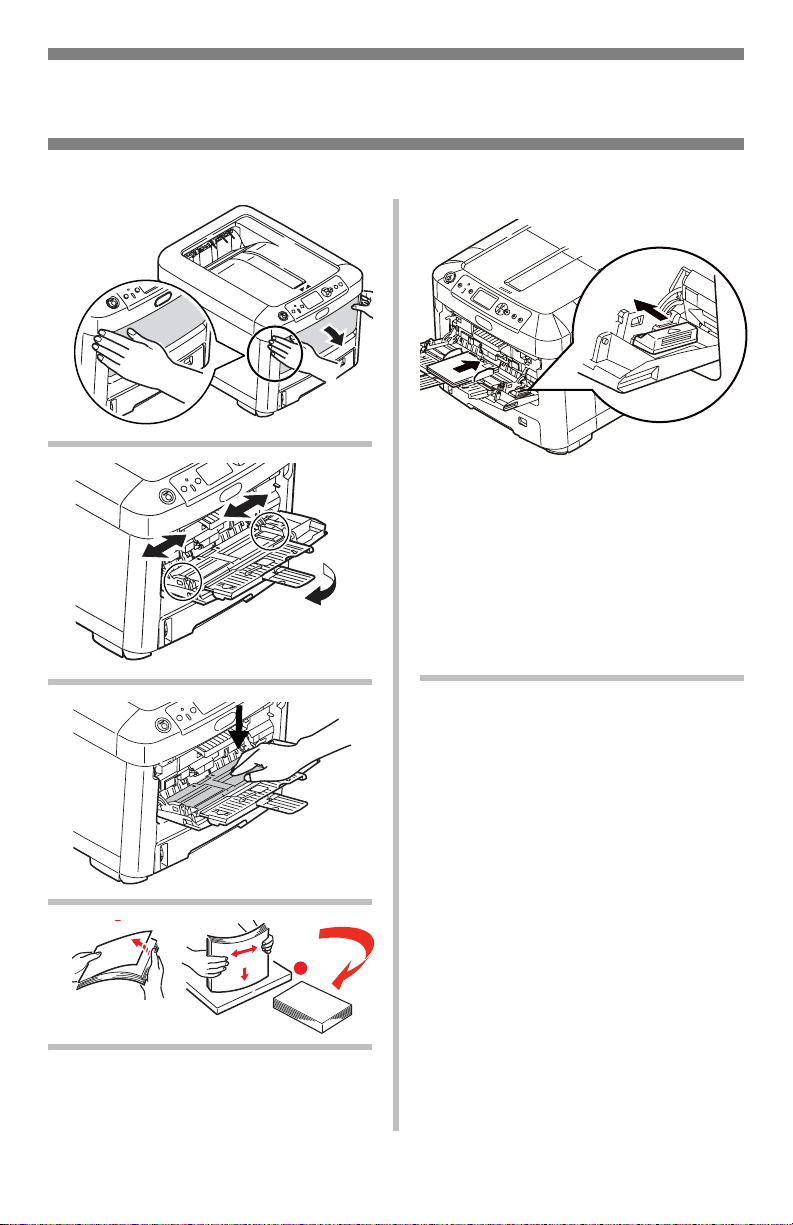

Multi-Purpose Tray
Usable Print Media
Media Specifications
Weight Range
32-58 lb. US Bond (189-220 g/m
2
)
Standard Sizes:
Letter, Legal-14, Legal-13.5, Legal-13, Executive, A4, A5,
A6, B5, Com-10 envelopes.
Custom Sizes:
Min. 3 x 11.7" (76 x 297 mm)
Max. 5" x 14" (127 x 356 mm)
Banners: 8.25 to 11.7" (216 to 297 mm) wide by up to
47.25"'' (1220 mm) long. Must be fed one sheet at a time.
Must be defined in driver before printing: see your on-
line User’s Guide.
Takes:
• 100 sheets 20-lb. (75 g/m
2
) paper
•10 envelopes
• 20 sheets of labels
• 50 transparencies
• Banners, one at a time
