Oliver 4470 User manual

4470 Industrial Planer 25”
Owner’s Manual
Oliver Machinery M-4470 9/2017
Kent, WA 98032
info@olivermachinery net Copyright 2003
www olivermachinery net

2

Warranty
Oliver makes every effort possible to assure that its equipment meets the highest possible standards of
quality and durability All products sold by Oliver are warranted to the original customer to be free from
defects for a period of 2 (two) years on all parts, excluding electronics and motors, which are warranted
for 1 year Oliver’s obligation under this warranty shall be exclusively limited to repairing or replacing (at
Oliver’s option) products which are determined by Oliver to be defective upon delivery F O B (return
freight paid by customer) to Oliver, and on inspection by Oliver This warranty does not apply to defects
due, directly or indirectly, to misuse, abuse, negligence, accidents, unauthorized repairs, alterations, lack
of maintenance, acts of nature, or items that would normally be consumed or require replacement due to
normal wear In no event shall Oliver be liable for death, personal or property injury, or damages arising
from the use of its products
Warning
Read this manual thoroughly before operating the machine Oliver Machinery disclaims any liability for
machines that have been altered or abused Oliver Machinery reserves the right to effect at any time,
without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem
necessary for any reason whatsoever
F r M re Inf rmati n
Oliver Machinery is always adding new Industrial Woodworking products to the line For complete, up-to-
date product information, check with your local Oliver Machinery distributor, or visit
www olivermachinery net
3

WARNING
Read this manual completely and observe all warning labels on the machine Oliver Machinery has made
every attempt to provide a safe, reliable, easy-to-use piece of machinery Safety, however, is ultimately
the responsibility of the individual machine operator As with any piece of machinery, the operator must
exercise caution, patience, and common sense to safely run the machine Before operating this product,
become familiar with the safety rules in the following sections
•Always keep guards and c vers in place and in pr per perating c nditi n.
1 If you are not properly trained in the use of a planer do not use until the proper training has been
obtained
2. Read, understand and follow the safety instructions found in this manual Know the limitations and
hazards associated with this machine
3 Make certain that the machine frame is electrically grounded and that a ground lead is included in the
incoming electrical service In cases where a cord and plug are used, make certain that the
grounding plug connects to a suitable ground Follow the grounding procedure indicated in the
National Electrical Code
4 Wear an approved safety shield, goggles, or glasses to protect eyes Common eyeglasses are only
impact-resistant, they are not safety glasses
5 Before operating the machine, remove tie, rings, watch and other jewelry and roll up sleeves above
the elbows Remove all loose outer clothing and confine long hair Protective type footwear should
be used Where the noise exceeds the level of exposure allowed in Section 1910 95 of the OSHA
Regulations, use hearing protective devices Do not wear gloves
6 Keep the machine guards and covers in place for every operation If any guards and covers are
removed for maintenance, DO NOT OPERATE the machine until the guards and covers are
reinstalled
7 Keep the floor around the machine clean and free of scrap material, saw dust, oil and other liquids to
minimize the danger of tripping or slipping Be sure the table is free of all scrap, foreign material and
tools before starting the planer Make certain the work area is well lighted and that a proper exhaust
system is used to minimize dust Use anti-skid floor strips on the floor area where the operator
normally stands and mark off machine work area Provide adequate work space around the machine
8 Maintain a balanced stance and keep your body under control at all times
9 Before turning on machine, remove all extra equipment such as keys, wrenches, scraps, and cleaning
rags away from the machine
10 Give the work you are doing your undivided attention Looking around, carrying on a conversation,
and “horseplay” are careless acts that can result in serious injury
11 Before performing any service, maintenance, adjustments or when changing knives disconnect the
machine from power source A machine under repair should be RED TAGGED to show it should not
be used until the maintenance is complete
4

12 Do not plane boards with loose knots, nails or any foreign material in the workpiece Irregular, or
warped stock should be jointed first on one side before planing a parallel surface
13 If the operator leaves the machine area for any reason, the planer should be turned "off" and the
cutterhead should come to a complete stop before their departure In addition, if the operation is
complete, they should clean the planer and the work area NEVER clean the planer with power "on"
and never use hands to clear sawdust and debris; use a brush or air hose
14 Use only genuine Oliver Machinery factory authorized replacement parts and accessories; otherwise
the warranty and guarantee is null and void
15 Do not use this Oliver planer for other than its intended use If used for other purposes, Oliver
disclaims any real or implied warranty and holds itself harmless for any injury or damage which may
result from that use
16 Do not operate this machine while under the influence of drugs, alcohol, or any medication
17 This machine is deigned for planing wood products only Do not use to plane any kind of substance
other then wood
18 Never start the planer while a workpiece is in contact with the cutterhead or knives
19 Always feed workpiece against the rotation of the cutterhead
20 Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm Some examples
of these chemicals are:
•Lead from lead-based paint
•Crystalline silica from bricks and cement and other masonry products
•Arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specifically designed to filter out microscopic particles
Familiarize yourself with the following safety notices used in this manual:
CAUTION: (This means that if precautions are not heeded, it may result in minor or moderate injury
and/or possible machine damage)
WARNING: (This means that if precautions are not heeded, it could result in serious injury or possibly
even death)
5

Table f C ntents Page Number
Warranty 2
Warnings 3-4
Table of Contents 5
Specifications 5
Contents of the Shipping Container 6
Uncrating the Machine 6
Machine Preparation and Setup 6
Electrical Connections 7
Assembly 8
Control Panel 8
Digital Controller 8-9
Changing Units of Measure 9
Calibrating the Display 9
Planing to a Specific Thickness 9
Raising and Lowering Table 10
Adjusting Thickness Scale 10
Table Roller Adjustment 10
Changing Feed Rate 10
Table Stop 10
Opening Hood 10
Setting / Changing Knives 11
Setup of Feed Rollers, Chipbreaker and Pressure Bar 12
Anti-Kickback Fingers 13
Adjustment of In-Feed Roller 13
Adjustment of Chipbreaker 13
Adjustment of Pressure Bar 14
Adjustment of Out-feed Rollers 14
Helical Cutterhead 15
V-Belt Adjustment 15
Adjusting Table Gibs 15
Adjusting Table Rollers 16
Maintenance 16
Lubrication 17
Troubleshooting 18
Specificati ns
Stock No (10HP, 1Ph HSS Straight Knife) 4470 001
Stock No (15HP, 3Ph HSS Straight Knife) 4470 002
Stock No (10HP, 1Ph Carbide Helical Cutterhead) 4470 101
Stock No (15HP, 3Ph Carbide Helical Cutterhead) 4470 102
Maximum Stock Width (in ) 25
Maximum Depth of Cut (in ) 1/4
Maximum Stock Thickness (in ) 9-1/4
Minimum Stock Thickness (in ) 1/8
Minimum Stock Length (in ) 10
Dust Port Diameter (in ) 5
Minimum CFM Required 900
Segmented Infeed Roller Diameter (in ) 3
Two Steel Outfeed Roller Diameter (in ) 3
Feed Speeds (FPM) 20, 25 and 30
Bed Rollers 2, Adjustable
Table Size (L x W/in ) 32 x 26
Cutterhead Diameter (in ) 3-1/2
Number of Knives 4
Cutterhead Speed (RPM) 4,800
Table Support 2-Column
Motor 10HP, 1Ph, 220V Only
10HP, 3Ph, 220V/440V, Prewired 220V
Gross Weight (lbs ) 1,837
6

Oliver 4470 - 25” Industrial Planer
1 25” Planer
Box 1
4 Leveling Pads
3 Hex Key Wrenches
3 Open End Wrenches
1 Screwdriver
2 Knife Setting Gauges
1 Knife Setting Gauge Shaft
4 E-Clips
1 Handle
Box 2
1 Dust Chute
8 Hex Head Screws M6x10
Uncrating the Machine
Retain all packaging materials in case it
becomes necessary to ship the machine to
another site
Machine Preparati n and Setup
WARNING!
The equipment used t lift this machine must
have a rated capacity at, r ab ve the weight
f the planer. Failure t c mply may cause
seri us injury!

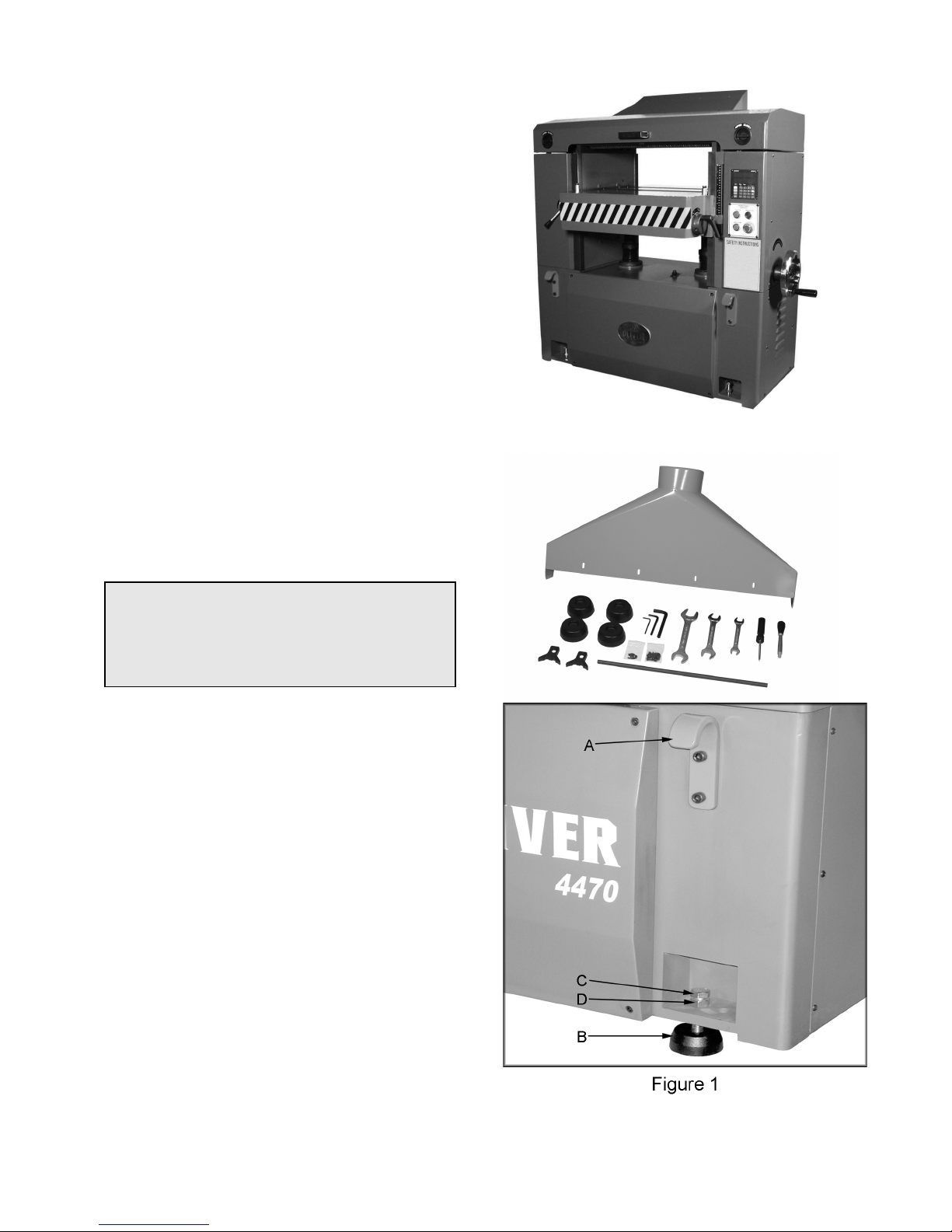

The planer can be lifted from over head using
slings and the four lifting hooks (A, Figure 1)
The planer must be positioned on a smooth,
level surface Install the leveling pads (B, Figure
1) under the four corners of the planer
Clean all rust protected surfaces with a
commercial solvent Do not use acetone,
gasoline, lacquer thinner or any type of
flammable solvent, or a cleaner that may
damage paint Cover cleaned surfaces with
WD-40 or a 20W machine oil
Place a level on the table of planer and adjust
leveling bolts (C, Figure 1) until the machine is
resting level Tighten the hex nuts (D, Figure 1)
against the base of the planer to keep the
leveling bolts from turning
7

Electrical C nnecti ns
WARNING!
Electrical c nnecti ns and wiring must be
d ne by a qualified electrician. The machine
must be pr perly gr unded. Failure t
c mply may cause seri us injury!
This planer is available in both 1-Phase and 3-
Phase versions
•Electrical C nnecti ns f r a 3-Phase Unit
This planer is 3-Phase, 220V/440V pre-wired
220V If you need to switch the planer from
220V to 440V have a qualified electrician make
the changes
Make sure the voltage of your power supply
matches the specifications on the motor plate of
the machine
1. Disc nnect machine fr m p wer s urce!
2 Remove screws that secure the cover to
connection box
3 Insert the power cable through strain relief,
and attach the wires to terminals
4. Re-install connection box cover With 3-
Phase power verify table raises when
pressing the “Table Up” button If it does
not, disconnect machine from power source
and reverse any two incoming power leads
5 When wiring is completed, tape all power
box joints to keep out dust
•Electrical C nnecti ns f r a 1-Phase Unit
This planer is 1-Phase, 220V nly
Make sure the voltage of your power supply
matches the specifications on the motor plate of
the machine
1. Disc nnect machine fr m p wer s urce!
2 Remove screws that secure the cover to
connection box
3 Insert the power cable through strain relief,
and attach the wires to the terminals
4 Re-install connection box cover
5 When wiring is completed, tape all power
box joints to keep out dust
8

Dust Chute Assembly
Mount the dust chute (A, Figure 2) to the planer
hood with eight M6x10 hex head screws (B,
Figure 2) Make sure the dust collection system
has sufficient capacity and suction for your
planer Always turn on the dust collection
system before starting the planer
Table R ller Handle Assembly
Thread the handle (C, Figure 3) into the hub
C ntr l Panel
D Emergency St p Butt n: Stops all
functions of machine, but the planer still has
power To reset rotate switch clockwise until
the button pops out
E Main M t r: Starts rotation of cutterhead
Will not work if the “Emergency Stop” switch
is engaged, or hood is open
F Digital Thickness C ntr ls: Displays and
controls table position, units, etc
G Table Up: Raises the table N te: Table
will contact the upper limit switch at about
5/8” and will automatically shut down You
can continue to raise manually by using the
handwheel
H Table D wn: Lowers the table N te:
Table will contact the lower limit switch at
about 8-5/8” and will automatically shut
down You can continue to lower manually
by using the handwheel
Digital C ntr ller
I LED readout displays the thickness setting
J The digital thickness controls are capable of
operating and displaying in either inches, or
millimeters by pressing the “Units” button
K The “+” and “-“ buttons can be used to move
the table up or down without keying in an
exact numerical thickness value N te: The
“-“ button raises the table to subtract from
workpiece thickness The “+“ button lowers
the table
L “Start” button is used to begin table travel
after a numeric value has been keyed in
M The “Stop” button is used to stop the table
travel after it has started
N The “Set” button is used when calibrating or
setting the thickness scale
9

Changing Units f Measure
Press unit button (A, Figure 5) to toggle back
and forth between inches and millimeters
Calibrating the Display
The following sections will describe the use of a
calibrating board The calibrating board should
be made of a hardwood and have one side that
has been run through a jointer
1. With the planer turned “OFF – cutterhead
NOT spinning”, place your calibrating board
jointed surface down on the table and slide it
into the machine
2 Use the table “UP” button to raise the table
so that the in-feed roller is about 1/32"
above the calibrating board
3 Remove calibrating board from planer and
turn the planer “ON”
4 Use the table “UP” button to raise the table
about 0 1", as indicated by LED and run the
calibrating board through the planer
5 Repeat Step 4 until the planer removes the
entire top surface of your calibrating board
6 Measure the thickness of the board using a
pair of calipers
7 Press the “SET” button (C, Figure 5) and
then type in the measured thickness from
step 6 Press the “SET” button again and
hold in until the decimal point stops blinking
(about three seconds)
Planing t a Specific Thickness
1 Measure thickest section of the workpiece
2 Subtract the amount you wish to remove
from the current thickness of the workpiece
3 Press the “SET” button and enter the
amount from step 2
4 Press “START” button (D, Figure 5) to begin
the table movement up, or down until the set
value is achieved
N te: Do not feed material through the
planer while the table is raising or lowering
Fracti n Decimal Metric
1/32 0 031 0 794
1/16 0 063 1 588
3/32 0 094 2 381
1/8 0 125 3 175
5/32 0 156 3 969
3/16 0 188 4 763
7/32 0 219 5 556
1/4 0 250 6 350
9/32 0 281 7 144
5/16 0 313 7 938
11/32 0 344 8 731
3/8 0 375 9 525
13/32 0 406 10 319
7/16 0 438 11 113
15/32 0 469 11 906
1/2 0 500 12 700
17/32 0 531 13 494
9/16 0 563 14 288
19/32 0 594 15 081
5/8 0 625 15 875
21/32 0 656 16 669
11/16 0 688 17 463
23/32 0 719 18 256
3/4 0 750 19 050
25/32 0 781 19 844
13/16 0 813 20 638
27/32 0 844 21 431
7/8 0 875 22 225
29/32 0 906 23 019
15/16 0 938 23 813
31/32 0 969 24 606
1 1 00 25 400
Figure 6
10

Raising and L wering Table
Turn the handwheel (A, Figure 7) clockwise to
raise the table One revolution equals 1/32” or
0 03” N te: The handwheel is spring loaded
Push in on the handwheel and rotate until the
pins engage the detents
Adjusting Thickness Scale
1 Run a board through the planer and
measure the thickness of the planed board
with a pair of calipers
2 Adjust the pointer (B, Figure 7) by loosening
the screw that holds it in place N te: This
measurement should be the same as digital
readout
Table R ller Adjustment
Loosen the handle (C, Figure 7) and move the
table rollers up, or down by raising, or lowering
the handle (D, Figure 7) When you reach the
desired position tighten the handle
The rollers are usually set higher when planing
rough stock When planing smooth stock the
table rollers should be set slightly above, or flush
with the table
Changing Feed Rate
The planer has three selectable feed speeds
that feed stock at 20, 25 and 30 feet per minute
To adjust speed, turn lever (E, Figure 8) until it
clicks into place Change feed speed nly
while the feed system is RUNNING!
Table St p
The socket head cap screws (F, Figure 8) act as
a stop and prevent you from running the table
into the cutting and feeding assembly
Opening H d
Turn the locks (G, Figure 8) to open the hood
The hood will open automatically Use the
handle (H, Figure, 8) to shut the hood
11

Setting / Changing Knives
WARNING!
Knives are extremely sharp. Be very careful
when handling knives. Failure t c mply
may cause seri us injury!
The Oliver 25” planer was designed to accept
25-1/8” x 1” x 1/8”) knives Installing straight
knives accurately is an important step to achieve
a smooth finish End to end, and knife to knife
adjustment must be accurate within 001" Use
a dial indicator if available to check results and
fine tune Remove and replace the knife in one
slot before changing the next knife Any knife
sharpening, or replacement should be done to
all four knives at the same time
1. Disc nnect machine fr m p wer s urce.

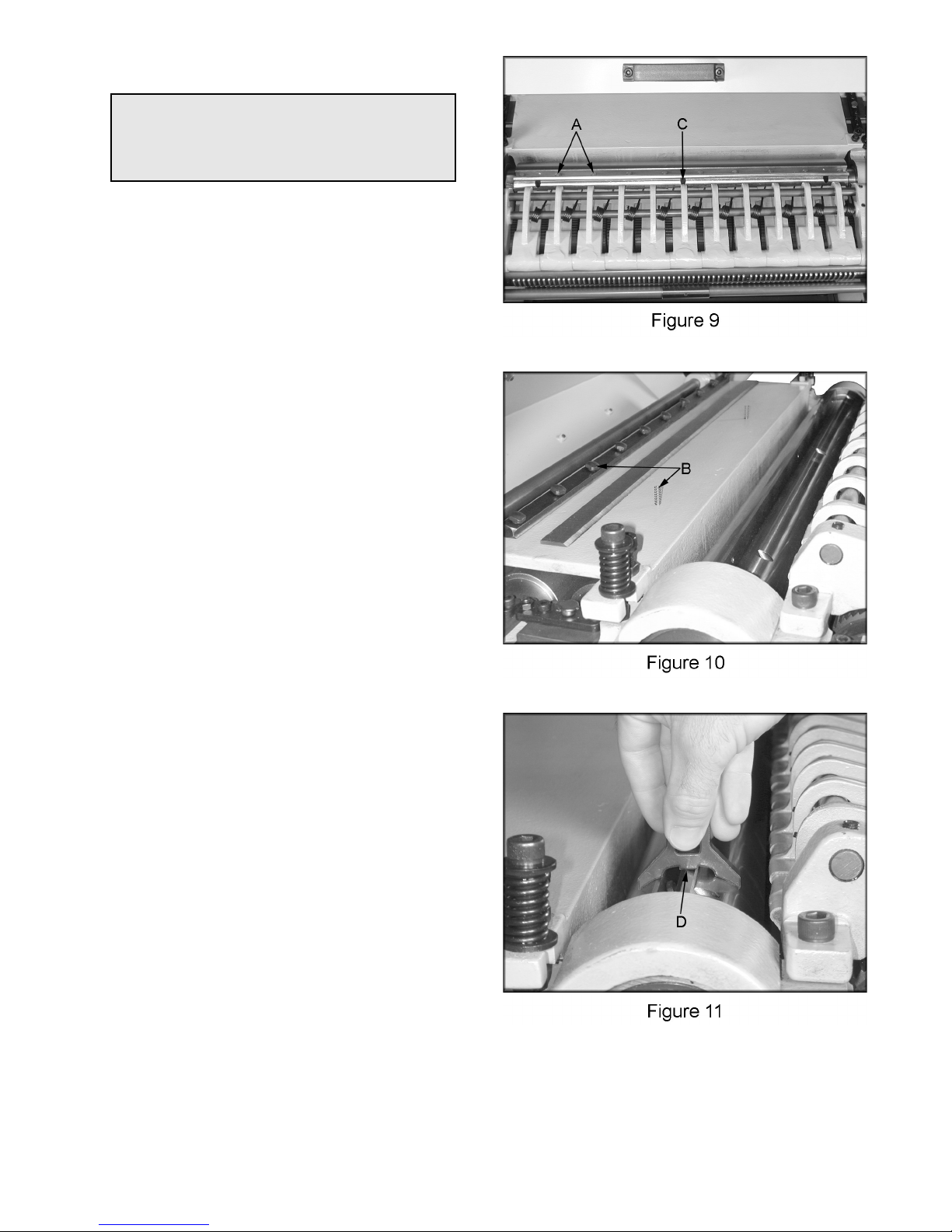

2 Open the hood, loosen ten locking bolts (A,
Figure 9) on the clamping block and remove
the knife Remove and clean the clamping
block, and springs (B, Figure 10) Also
clean cutterhead knife slot before re-
installing the sharpened, or new knife
3. Re-install the springs, knife and clamping
block, and just snug the ten locking bolts (A,
Figure 9) N te: You should still be able to
raise and lower the knife
4 Notice that the knife does not rest at the
bottom of the knife slot Instead, the knife
rests on three jack screws (C, Figure 9), and
two springs These jack screws are used to
support and raise the knife
5 Place the knife setting gauge (D, Figure 11)
on to the cutterhead as shown in Figure 11
Use the jackscrew to raise the knife so that
the point just touches the raised portion of
the gauge
6 Once knife is set to the proper height,
tighten two center locking bolts and, work
your way towards the ends until all bolts are
tight
7 Re-check knife with the knife setting gauge
after tightening all of the locking bolts
8 Repeat for the remaining three knives
12

Setup f Feed R llers, Chipbreaker and
Pressure Bar
WARNING!
Disc nnect machine fr m the p wer s urce
bef re perf rming any adjustments r
maintenance. Failure t c mply may cause
seri us injury!
The planer comes set up from the factory and
shouldn’t need any adjustment
If you find adjustment is necessary, follow the
below listed sections for setting the in-feed roller,
chipbreaker, pressure bar and outfeed rollers
Make a hardwood block to the specifications in
drawing Figure 13 You can use this wood
gauge along with 0 02” feeler gauge to set the
planer up as shown in Figure 12
Figure 12 shows setup for general planing
applications Depending on the stock and
cutterhead you may find that a different setup
may work better for your particular planing
operation
13

Anti-Kickback Fingers
Anti-kickback fingers help prevent stock from
being kicked out of the machine towards the
user Keep the fingers clean and free from
sawdust, pitch gum, etc so they operate
smoothly
Adjustment f In-Feed R ller
The in-feed roller should be set 0 02” below the
lowest point of knife Make sure the knives are
set properly see the “Setting / Changing Knives”
section on page 11 prior to making any
adjustments
1. Disc nnect machine fr m p wer s urce.

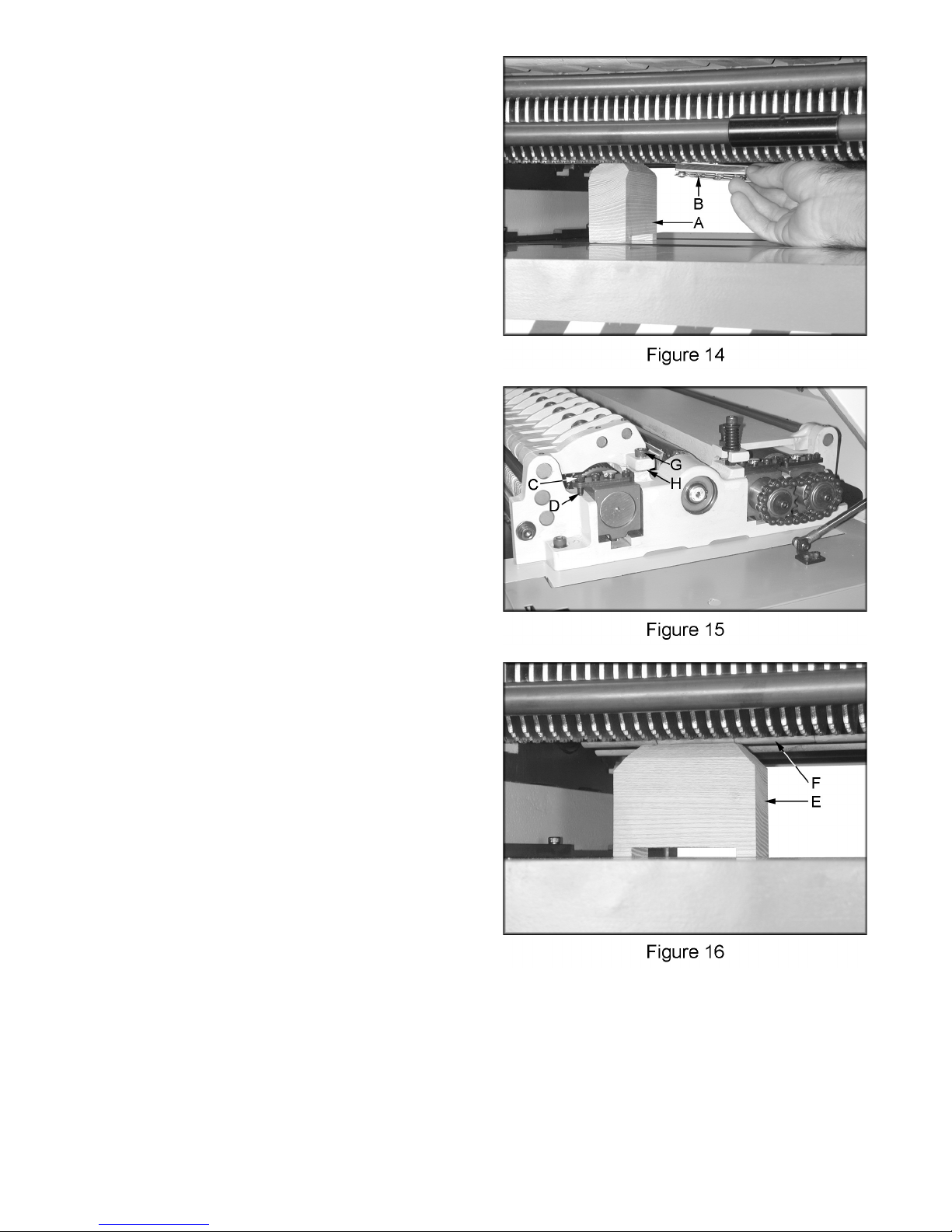

2 Place a hard wood gauge (A, Figure 14)
under a knife in cutterhead Place a 0 02”
feeler gauge (B, Figure 14) on top of wood
block and raise table until feeler gauge
contacts the knife in its lowest position
3 Remove feeler gauge and place wood block
under the left side of in-feed roller The top
of wood gauge should just contact the in-
feed roller If it doesn’t, loosen jam nut (C,
Figure 15) and turn the adjusting screw (D,
Figure 15) to raise, or lower the in-feed roller
until it contacts wood gauge Repeat for
opposite side of the in-feed roller
Adjustment f Chipbreaker
Chipbreaker should be set 0 02” below the
lowest point of knife Make sure the knives are
set properly see the “Setting / Changing Knives”
section on page 11 prior to making any
adjustments
1. Disc nnect machine fr m p wer s urce.
2 Place a hard wood gauge (A, Figure 14)
under a knife in the cutterhead Place a
0 02” feeler gauge (B, Figure 14) on top of
wood block and raise table until the gauge
contacts the knife in its lowest position
3 Remove feeler gauge and place wood
gauge (E, Figure 16) under the left side of
chipbreaker (F, Figure 16) The top of the
wood gauge should just contact the
chipbreaker If it doesn’t, remove the socket
head cap screw (G, Figure 15) and remove
washer (H, Figure 15), or replace with a
shim of proper thickness to raise, or lower
the chipbreaker until it contacts the wood
gauge Repeat for opposite side of the
chipbreaker
14

Adjustment f Pressure Bar
The pressure bar should be set even with the
lowest point of knife Make sure the knives are
set properly see the “Setting / Changing Knives”
section on page 11 prior to making any
adjustments
1. Disc nnect machine fr m p wer s urce.
2 Place a hard wood gauge under a knife in
cutterhead Raise table until wood gauge
contacts the knife in its lowest position
3 Place wood block (A, Figure 17) under the
left side of pressure bar (B, Figure 17) The
top of wood gauge should just contact the
pressure bar If it doesn’t, loosen jam nut
(C, Figure 18) and turn the adjusting screw
(D, Figure 18) to raise, or lower the pressure
bar until it contacts wood gauge Repeat for
opposite side of the pressure bar
Adjustment f Out-feed R llers
The out-feed rollers should be set 0 02” below
the lowest point of knife Make sure the knives
are set properly see the “Setting / Changing
Knives” section on page 11 prior to making any
adjustments
1. Disc nnect machine fr m p wer s urce.
2 Place a hard wood gauge (A, Figure 14)
under a knife in the cutterhead Place a
0 02” feeler gauge (B, Figure 14) on top of
wood block and raise table until the gauge
contacts the knife in its lowest position
3 Remove feeler gauge and place wood block
(E, Figure 19) under the left side of out-feed
roller (F, Figure 19) The top of wood gauge
should just contact the out-feed roller If it
doesn’t, loosen jam nut (G, Figure 18) and
turn the adjusting screw (H, Figure 18) to
raise, or lower the out-feed roller until it
contacts wood gauge Repeat for opposite
side of the out-feed roller
4 Repeat for second out-feed roller
15

Helical Cutterhead
WARNING!
Knives are extremely sharp. Be very careful
when handling knives. Failure t c mply
may cause seri us injury!
The helical cutterhead is set-up with the same
relationship to the in-feed roller, chipbreaker,
pressure bar and outfeed rollers as the straight
knife cutterhead The planer comes set up from
the factory and shouldn’t need any adjustment
If you find adjustment is necessary, follow the
steps on pages 12-14 for setting the in-feed
roller, chipbreaker, pressure bar and outfeed
rollers in relation to the helical cutterhead
When it is time to rotate the carbide knives ALL
knives must be rotated at the same time This is
the same when replacing carbide knives ALL
knives must be replaced at the same time Mark
the knives with a marker so you know which
knives have been rotated You can rotate the
knives three times before replacing Use the
provided tork wrench to rotate, or remove
knives
V-Belt Adjustment
Three v-belts (A, Figure 21) drive the cutterhead
The single v-belt (B, Figure 21) drives the in-
feed and out-feed rollers Belt tension has been
set at the factory If the belts have stretched and
need adjustment
1. Disc nnect machine fr m p wer s urce.
2. Open lower rear, and lower left-hand side
panels Loosen and tighten four adjustment
nuts (C, Figure 21) to move motor plate up,
or down to increase, or decrease belt
tension Tighten nuts against motor plate
after adjustment is made
3 Belts are tensioned properly when moderate
finger pressure can deflect the v-belts about
a 1/4"-1/2” midway between the pulleys
Adjusting Table Gibs
Adjust gibs (D, Figure 22) by loosening the hex
nuts (E, Figure 22), and turning gib screws (F,
Figure 22) so that the ways (G, Figure 22) are
lightly contacted You should be able to get a
0 005” feeler gauge in between the gib and way
16

Adjusting Table R llers
The table rollers come pre-set from the factory
and shouldn’t need any adjustment If you find
adjustment is necessary, follow the below listed
steps

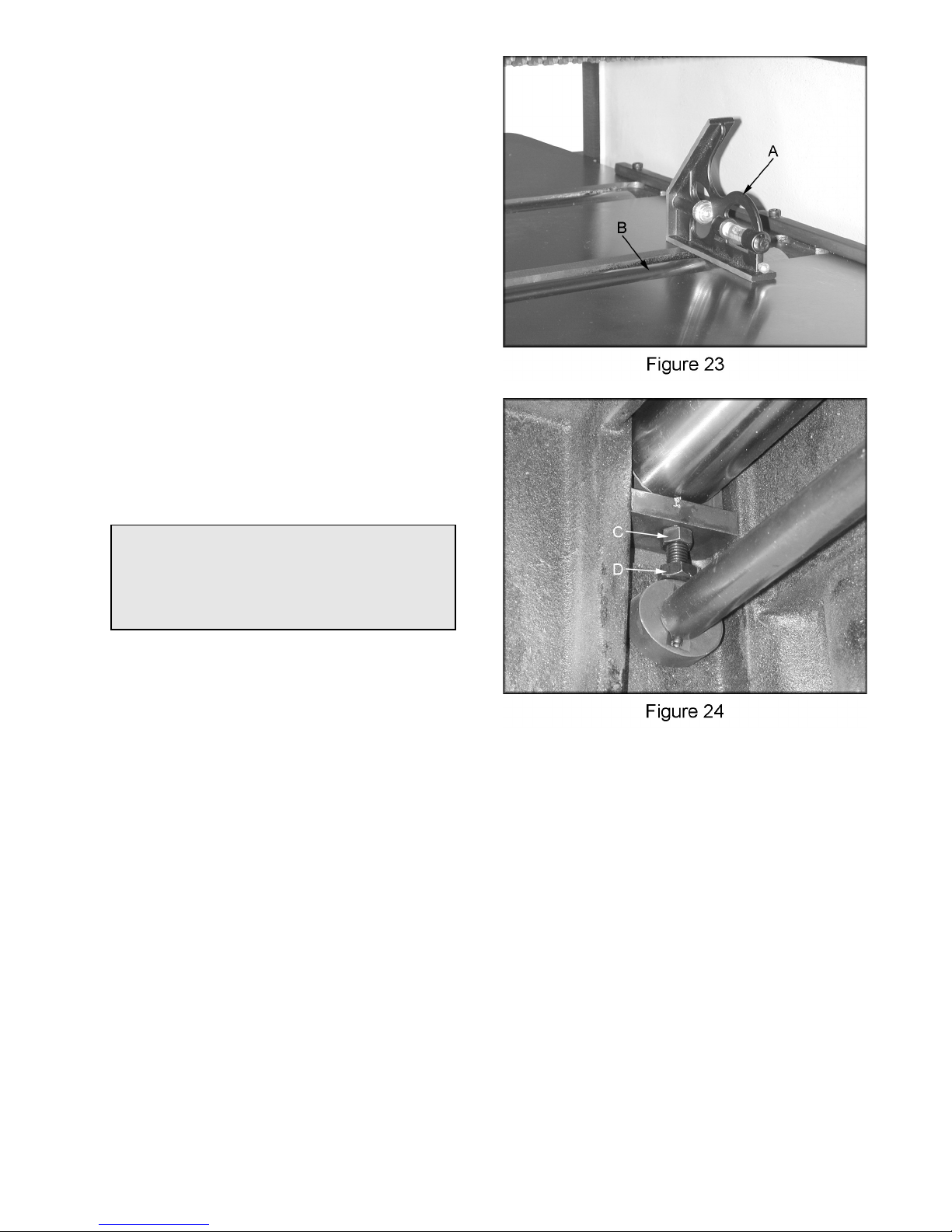

1 Lay a straight edge (A, Figure 23) on the
table across the roller (B, Figure 23)
2 Raise the rollers until it contacts the straight
edge and lock the handle The pointer
should be set at “0” If not adjust the pointer
to read zero N te: Spin the roller by hand
to know when roller makes contact with the
straight edge
3 Move straight edge to the opposite side of
bed roller and check to see that the roller
just contacts straight edge If not loosen the
hex nut (C, Figure 24) and turn the hex cap
bolt (D, Figure 24) to raise or lower the bed
roller until it just contacts the straight edge
Maintenance
WARNING!
Disc nnect the machine fr m p wer s urce
bef re pr ceeding with any maintenance,
lubricati n r assembly! Failure t c mply
may cause seri us injury!
•Periodic, or regular inspections are required
to ensure that the machine is in proper
adjustment, and that all hardware is tight
•Clean out-feed rollers and table with a non-
flammable solvent to remove pitch, gum and
other unwanted build-up
•Periodically clean the inside of the machine
for dust control
•Keep pulleys and belts free from dirt, dust,
oil and grease Replace worn v-belts as
needed
•Replace worn knives or sharpen If a knife
gets nicked stagger the knives Move one
knife no more than 1/8” to the right and
another knife no more than 1/8” to the left
•There are three limit switches on the planer,
one that triggers if the hood is open, and a
raising and a lowering limit switch to prevent
the table from automatically traveling too far
Keep these clean and blown out with an air
hose
17

Lubricati n
•Add a few drops of medium weight oil to the
six oil cups (A, Figure 25) weekly or every
eight hours of use (which ever comes first)
•Lubricate the two table elevation screws (B,
Figure 26) as needed Raise the table and
remove the two screws holding the top of
the accordion cover (C, Figure 26) in place
Pull the cover down and lightly grease the
elevating screws, see Figure 26
•Use an oiled cloth to wipe the ways (D,
Figure 26) weekly
•Lubricate the chain system with an oiled
cloth as needed
•The gear box oil should be changed once a
year Remove the drain plug (E, Figure 27)
to drain the oil Refill the gear box with 60-
90 weight gear oil through the fill hole (F,
Figure 27) until the sight glass reads full
The sight glass (G, Figure 27) should be
checked periodically and oil added as
necessary
18

19

Halted Feeding
If the in-feed roll takes stock away from you while feeding, then feeding stops before contacting the
knives, the chipbreaker is probably too low Or the in-feed roller is not set low enough, or does not have
enough pressure In a similar situation, the in-feed roll takes the stock, the chipbreakers lift, and stops as
you hear the knives contact the material In this case the pressure bar is too low Follow the steps on
pages 12-14 for setting the in-feed roller, chipbreaker, pressure bar and outfeed rollers in relation to the
cutterhead
Tr ublesh ting
Descripti n f Sympt ms P ssible Cause C rrective Acti n
Machine will not start
1 Fuse blown or circuit breaker
tripped
2 Cord Damaged
3 Not connected to power
source
4 Connected to wrong voltage
5 Top cover is open
6 Emergency stop button
pressed
7 Table is in contact with either
the upper or lower limit switch
1 Replace fuse or reset circuit
breaker
2 Have cord replaced
3 Check connection
4 Check voltage
5 Close top cover
6 Rotate emergency stop button
clockwise until it pops out
7 Manually lower or raise the
table by using the handwheel
Cutterhead does not come up to
speed
1 Low current
2 Motor not wired for correct
voltage
1 Contact local electric
company
2 Refer to motor nameplate for
correct voltage
Workpiece stops when feeding
1 Too much material being
removed in one pass
2 Chipbreaker or pressure bar
set too low
3 Insufficient pressure on in-
feed or out-feed rollers
1 Reduce the amount of
material being removed
2 Raise the Chipbreaker or
pressure bar per Figure 12,
page 12
3 Increase pressure on in-feed
or out-feed rollers per Figure
12, page 12
Snipe
1 Incorrect setting for in-feed,
out-feed rollers, pressure bar
or chipbreaker
2 Inadequate support of long
boards
3 Table rollers not set properly
1 Adjust feed system per Figure
12, page 12
2 Support long boards with
extension rollers
3 Adjust table rollers until
desired results are achieved
Fuzzy Grain
1 Planing wood with a high
moisture content
2 Dull knives
1 Allow wood to dry properly
2 Sharpen knives
Poor feeding of lumber
1 Inadequate feed roll pressure
2 Planer bed dirty
3 V-belts slipping
4 Dirty feed rollers
5 Incorrect setting for in-feed,
out-feed rollers, pressure bar
or chipbreaker
1 Adjust feed roll tension or
lower feed rollers
2 Clean pitch and residue off
table with a non-flammable
solvent
3 Increase v-belt tension
4. Clean feed rollers with a non-
flammable solvent
5 Adjust feed system per Figure
12, page 12
20
