olympia electronics GR-2110 User manual

220-240V AC/50-60Hz
3 h
24 h
IP 30
3.6V/1Ah
3W / 3.5VA
EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
o
5 to 40 C
up to 95%
Bayblend FR3010, transparent polycarbonate
495gr.
292 x 111 x 54 mm
40lm / 100lm
12 White LEDs
923211002_09_004
Page 1 from 3

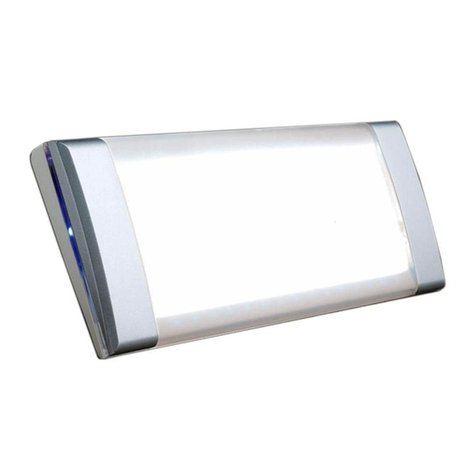

‘’ SLIM CLASSIC LIGHT ‘’ SERIES FOR NON MAINTAINED / MAINTAINED
(OPTIONAL) EMERGENCY LUMINAIRES
GENERAL
o
These luminaires are used indoors (ta 40 C)
where emergency light is needed.
Each luminaire must be permanently
connected to mains power supply. In normal
operation the illumination LEDs are lit as well
as the green indicating charge LEDs when
the battery is charging.
In case of a mains power supply failure the
luminaire will light the led strip automatically
in emergency mode. When the mains power
supply is restored the device turns to normal
operation.
Non Maintained / maintained operation
th e re i s an o pti o n t o sel e ct t he n o n
maintained or maintained operation by
placing the jumper to the appropriate place
according to the figure 3 (page 2).
INSTALLATION
To install the luminaire follow the installation
instructions on page 2.
ΑΤΤΕΝΤΙΟΝ!!!
1. Operations for installation, maintainance or
testing must be done by authorized personel
only.
2. The device must be connected to the
m a i n s p o w e r su p p l y th r o u gh a f u s e
dependent by the total amount of the line’s
power load.
3. It is suggested to check every month the
indication LED for battery charging, and by
pushing the TEST button to check the
emergency circuit. The led strip should light as
long as the TEST button is pressed. If the
luminaire doesn’t work as described above
contact the installer.
4. It is suggested to check every 6 months the
m i n i m u m a u t o n o n o u s d u r a t i o n b y
disconnecting the mains power supply. Count
the time that the led strip lights and in case of
less time than the minimum autonomous
duration the battery must be replaced. If the
measured time is considerably less than the
minimum autonomous duration contact the
installer. In case of battery or led strip
replacement, these must be replaced by parts
of the same type, by the manufacturer or by a
competent person.
5. In case of inactive use for a period greater
than 2 months, disconnect the battery by
pulling out the battery’s connector.
6. I s not allowed to discard batteries in to t i
c o m m o n t r a s h b i n s , t h e y m u s t b e
discarded only in battery recycling
points. Do not incinerate.
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
EXTERNAL DIMENSIONS
CONSTRUCTION MATERIALS
TYPICAL WEIGHT
GUARANTEE
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
BATTERIES (Ni-Cd)
CHARGING TIME
INDICATIONS - CONTROLS
MINIMUM AUTONOMOUS DURATION
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
ILLUMINATION (230V AC / emergency)
ILLUMINATION SOURCE
Battery charge indication LEDs, TEST button
3 years (1 year for the battery)
GR-2110
Thank you for your trust in our products.
Olympia Electronics - European manufacturer.
TECHNICAL CHARACTERISTICS (for LED MODULE Specifications see page 3)

923211002_09_004
Page 2 from 3
Figure 4
Figure 1
Figure 3
Non-maintained
operation
Maintained
oparation
1. To instal the device you have to dismantle carefully the device with a flat screwdriver as
shown in figure 1.
2. Pass the mains cables through the hole (point 1 in figure 2). The luminaire must be
connected to a permanent electrical installation to ensure the immobilization of the cable.
3. Mount the base plastic on the wall by using the included mounting accessories in points 2
and 3 in figure 2.
4. Connect the battery`s cable with the appropriate terminal (figure 3).
5. Connect the mains cables to the terminal block as shown in figure 4.
6. Refit with care the removed plastic parts and power on the luminaire.
NOTE!!
After finishing the installation you must power the luminaire at least for 24 hours for
battery charging to perform the nominal autonomy.
4
Installation instructions
Connection terminal
block on the PCB
For fuce ratings
see text
Battery replacement.
It can be done only by a competent person and after the mains supply interruption.
1. Dismantle the device (step 1 of the installation instructions).
2. Disconnect the connector and remove the old battery.
3. Connect the new battery with the same type (step 4 of the installation instructions) and
place it in the position of the old one.
4. Follow the step 6 of the installation procedure and power the device.
(*) Maintained operation: The luminaire lights its
illumination source, when it is powered by the mains
power supply or not.
Non Maintained operation: The luminaire lights its
illumination source, only in power supply’s failure.
Note!! The installer should fill in, on the specification label,
the letter G if the luminaire is used as a safety sign.
X1 1 8 0A G
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
1: Maintained (*)
A: Including test device
G: Internally illuminated
180: 3 hours duration
Figure 2
12
3
