olympia electronics OLY-500 User manual

923500000_09_003923500000_09_003
45
OLY-500
220-240V AC / 50-60Hz
3.4W / 3.6VA
OLY-500
Olympia Electronics S.A.
2.9-3.6V DC
780mW
40 °C max. across the board
2102205
Warranty
Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty is
specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which accompanies
each product. This warranty ceases to exist if the buyer does not follow the technical instructions included in
official documents given by Olympia Electronics or if the buyer modifies the goods provided or has any repairs
or re-setting done by a third party, unless Olympia Electronics has fully agreed to them in writing. Products that
have been damaged can be returned to the premises of our company for repair or replacement, as long as the
warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the buyer
depending on the reason of defection. Olympia Electronics reserves the right to charge or not the buyer the
transportation cost.
72nd km. O.N.R. Thessaloniki-Katerini
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.gr
[e-mail]
Warranty
Technical Characteristics
LED Characteristics
MANUFACTURER
MODEL NUMBER
VOLTAGE RANGE
CONNECTIONS
NOMINAL POWER
TEMPERATURE (tc)
OPERATION VOLTAGE
MAXIMUM POWER CONSUMPTION
3.6V/1Ah
BATTERY (Ni-Cd)
From overcharge and deep discharge
BATTERY PROTECTION
3 hours
16 white LEDs
CHARGE TIME
MINIMUM DURATION
LIGHT SOURCE
24 hours
Battery charge indication LED, TEST button
38lm / 100lm
IP42
25m
VIEWING DISTANCE (as safety sign)
DEGREES OF COVER PROTECTION
OPERATION TEMPERATURE RANGE
LUMINOUS FLUX (MAINS / EMERGENCY)
o
5 to 40 C
ABS/PC, PC
620gr.
RELATIVE HUMIDITY
CONSTRUCTION MATERIAL
EXTERNAL DIMENSION (L x W x H)
WEIGHT
GUARANTEE
Up to 95%
3 years (1 year for the battery)
INDICATIONS
EN 60598-1, EN 60598-2-22, ΕΝ 55015,
ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3
PRODUCED IN ACCORDANCE WITH
NOTE: LED= Light Emitting Diode
LABELING EXPLANATION:
X: Self contained
1: Maintained operation (*)
A: Including test device
G: Internally illuminated safety sign
180: 3 hours duration
(*) Maintained operation: The luminaire lights its illumination source, when it is powered by the mains
power supply or not.
Non Maintained operation: The luminaire lights its illumination source, only in mains power supply’s
failure.
NOTE!! The installer should fill in, on the specification label, the letter G if the luminaire is used as a safety
sign.
X18 0 A1
G
ATTENTION!!!
CAUTION : Do not view directly with bare eyes.
OLY-500
MAINTAINED/NON MAINTAINED
EMERGENCY LUMINAIRE
IP42
European
manufacturers
Non
maintained
NM
Thank you for your trust in our products
Olympia Electronics - European manufacturer
25m
Maintained
Μ
100lm
Light output
3h
Duration
Manual Test
Lens Removal
22
1
3
1
Non reversible connection between main pcb and led module
270 x 147 x 48 mm
The light source contained in this luminaire shall only be replaced by the manufacturer, or
his agent, or a similar qualified person.
NOTE!! The light source is non-user replaceable.
22
11

1
2
1
Pictogram Installation
3
1. Operations for installation, maintainance or
testing must be done by authorized personnel
only.
ΑΤΤΕΝΤΙΟΝ!!!
When the luminaire is used without the pictograms
or the SP-1100 and you require more light output
then remove the lens that covers the LEDs.
Lens Removal
Remove the diffusor and then by pressing the test
button briefly an operation test is initiated. The light
source and the emergency circuit of the device are
tested. The manual test can be conducted only if the
mains power supply and the battery are connected.
During this test period the LAMP TEST LED will blink.
The battery must have adequate charge. This test
lasts for 3 seconds.
Manual Operational Test
2. Always use in any case round mains cable, with a
diameter of 5-10mm (H05RN-F type 2x1mm² or
any other type, at least equal to it’s mechanical
and electrical properties). ATTENTION!! The cable
o
These luminaires are used indoors (ta 40 C) where
emergency light is needed. Each luminaire must be
permanently connected to mains power supply. In
normal operation the led strip lights and the battery
is charging. In case of a mains power supply
failure the luminaire will light the led strip
automatically in emergency mode. When the mains
power supply is restored the device turns to
normal operation.
CN5: LED connector
CN4: LED connector
CN3: Battery connector
CN1: Maintained, Non maintained selection
KL1: Power connector
Connectors
6. I s not allowed to discard batteries into t i
common trash bins, they must be discarded
only in battery recycling points. Do not
incinerate.
5. In case of inactive use for a period greater than 2
months, disconnect the battery by pulling out the
battery’s connector.
3. The device must be connected to the mains
power supply through a circuit breaker that is
depends on the total line’s power load.
4. In case of battery replacement, it must be
replaced by the same type, by the manufacturer
or a competent person.
must not be deformed in any way (This
requirement is important to ensure the ΙΡ rating).
General
Commissioning
—During commissioning of the luminaire write the commissioning date on the battery.
—A full duration test should be conducted after 24 hours of continuous charging. The test is initiated by isolating
the mains power supply. Verify that the LED lamp is lit during the test period for at least the stated duration.
—When power is applied to the unit inspect that the CHARGE indicator is steady, and that the led lamp is lit
(maintained operation) or OFF (non-maintained operation)
—After installation, a 24 hours charging cycle must be completed, in order to achieve the nominal autonomy.
2
56
Ν for neutral and L for live wire.

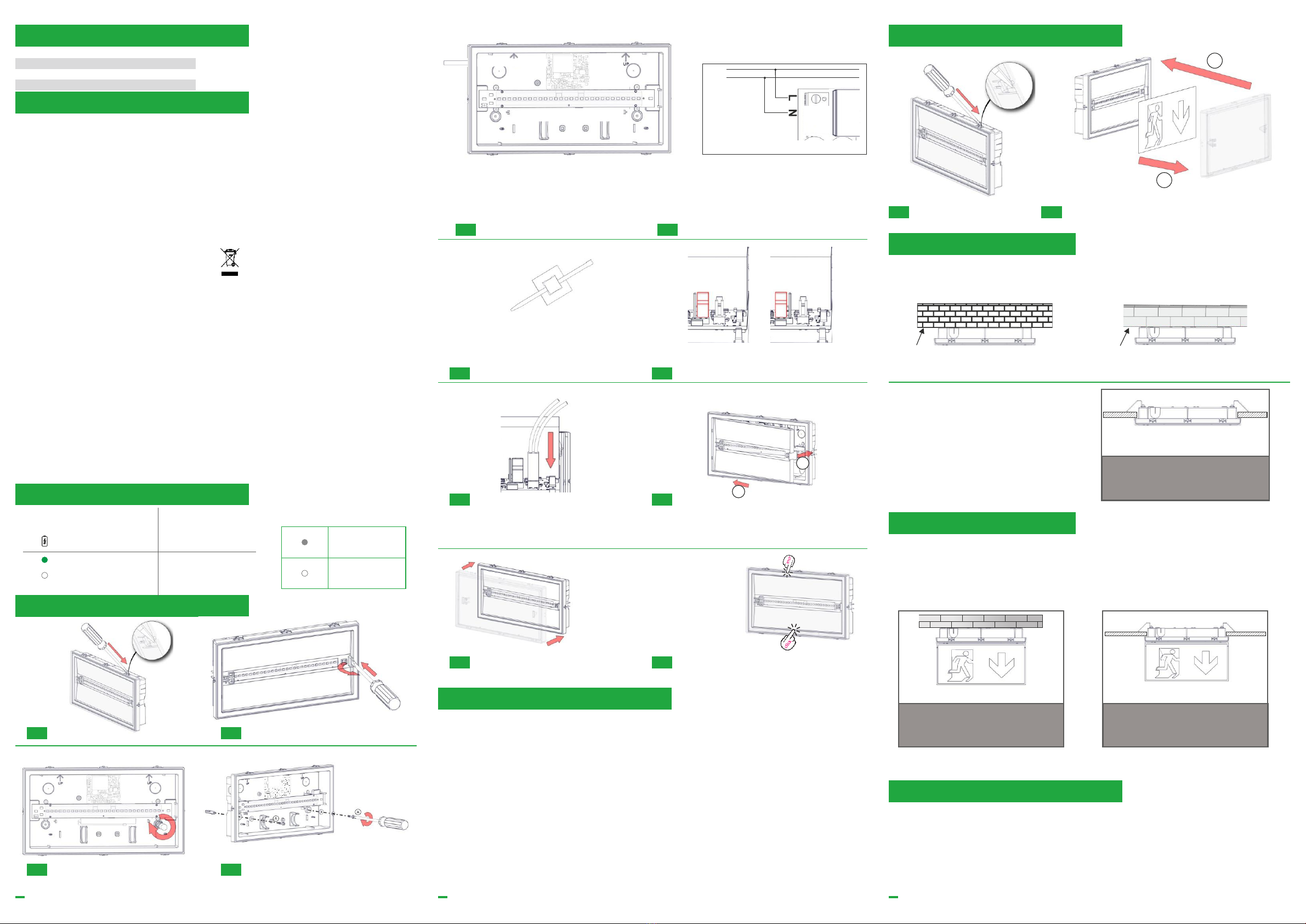

Installation Instructions
34
2
2
1
1
Power Connections
7
9
11
8
10
12
Install the included tie (if needed) to fasten
securely the power cables.
Battery Connection
This unit has replaceable batteries that can be replaced or changed by the manufacturer or a competent person.
1
1
1
1
Luminaire
Set of Pictograms
Mounting accessories
Manual
Package Contents
4. Replace the removed parts (previous steps 1 and 2).
3. Remove the old battery and place a new one of the same type and characteristics.
2. Follow step 2 of the installation instructions and remove the reflector.
1. Follow step 1 of the installation instructions and remove the diffusor.
It can be done only by a competent person and after the mains interruption.
Battery Replacement
923500000_09_003 923500000_09_003923500000_09_003
Non maintained
operation
Maintained
operation
Description
Indications LED Status
CHARGE
(green)
Charging
Emergency mode or
battery disconnected
Note:
Permanently
ON
Off
N
L
A
B
AA
A
AA
A
Attention!! The 6 plastic latches (A)
must be secured (click sound). This
requirement is important to ensure
the IP42 rating. Power on the
luminary.
Mounting Methods
Oly luminaires can be surface mounted on walls or ceilings. For these mounted installations, special
accessories are included.
Wall
bottom
view Wall installation Ceiling installation
Ceiling
* ATTENTION!!! The below mounting methods can be done after request of the necessary
mounting accessories!!
Extra Mounting Methods *
Suspended ceiling installation
with mounting accessory
A-3018
Suspended installation with A-3018 accessory
The luminary can be installed in a suspended
ceiling.
A marking panel (SP-1100) can be installed on the luminary pointing the desired direction.
Suspended ceiling installation
with mounting accessories
and marking panel
Ceiling installation
with marking panel
Install the included rubber gasket and pass through the
power cables. 1. Fit the pictogram you need to the diffuser, be careful to
secure it on the 3 plastic holders.
2. Refit the diffusor with the pictogram.
