Olympus SZ61 User manual

INSTRUCTIONS
AX6611
This instruction manual is for the Olympus Zoom Stereo Microscopes. To ensure the safety, obtain
optimum performance and to familiarize yourself fully with the use of this microscope, we recom-
mend that you study this manual thoroughly before operating the microscope.
Retain this instruction manual in an easily accessible place near the work desk for future reference.
SZ2-ST
WHSZ Series Eyepieces
Auxiliary Objectives
SZX-STAD1
SZH-STAD1
SZ2-FO
SZH-SG
SZH-SC
SZ61/SZ61-60
SZ61TR
SZ51/SZ51-60
Modules described
in this manual
ZOOM STEREO MICROSCOPES

This device complies with the requirements of directive 98/79/EC concerning in vitro diagnostic
medical devices. CE marking means the conformity to the directive.

SZ2 series
4 TROUBLESHOOTING GUIDE 11
5 SPECIFICATIONS 12
CONTENTS
IMPORTANT – Be sure to read this section for safe use of the equipment. – 1-2
1 MODULES AND NOMENCLATURE 3-4
2 SUMMARY OF OBSERVATION PROCEDURE 5
3 OPERATION 6-10
6 OPTICAL PERFORMANCE 13

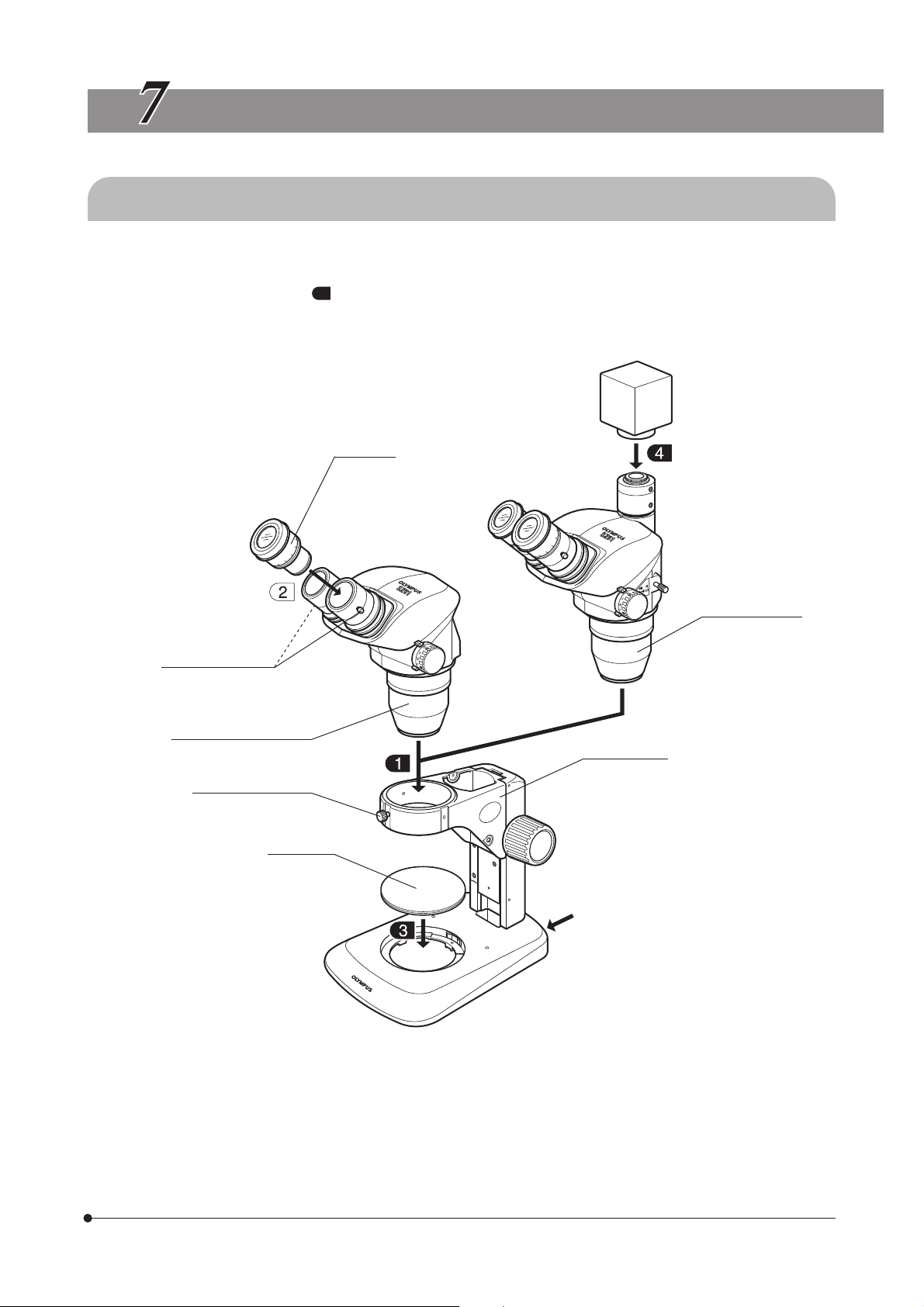

7 ASSEMBLY 14-16
8 OPTIONAL MODULES 17-23
8-1 BX Stage Adapter Type 1 SZX-STAD1 ..................................................................................................... 17- 18
8-2 Stage Adapter Type 1 SZH-STAD1 ........................................................................................................................ 19
8-3 Up/Down Moving Stage SZ2-FO ................................................................................................................... 19-21
8-4 Gliding Stage SZH-SG ................................................................................................................................................... 21-22
8-5 Cup Stage SZH-SC............................................................................................................................................................ 22-23
1Using the Stage Plate ............................................................................................................................................................................................................. 6
2Adjusting the Focus Adjustment Knob Tension .............................................................................................................................. 6
3-2 Microscope Body ......................................................................................................................................................................... 6-10
3-1 Base ........................................................................................................................................................................................................................... 6
1Adjusting the Interpupillary Distance ............................................................................................................................................................... 6
2Adjusting the Diopter (Zoom Confocality Adjustment) ......................................................................................................... 6
3Using the High/Low Zoom Magnification Stopper ..................................................................................................................... 7
4Using the Eye Shades............................................................................................................................................................................................................ 8
5Using an Eyepiece Micrometer Disk................................................................................................................................................................ 8
6Using the Auxiliary Objectives ................................................................................................................................................................................... 9
7Selecting the Light Path (SZ61TR) ....................................................................................................................................................................... 9
8Adjusting the Confocality of TV Camera (SZ61TR) ................................................................................................................. 10

1
IMPORTANT
The SZ2 series of stereo microscopes are provided with ESD (Electro-Static Discharge) protection specifications. They are
provided with electroconductive coating in their external finish to reduce the surface resistance and grounding lead wires in
their standard base or frame to eliminate static electricity from them.
CAUTION To maintain the ESD protection performance, always use the microscope in combination with the
modules described in this manual or options having the ESD protection specifications. Otherwise,
the grounding will not work properly.
· The eye shades of the eyepieces are not provided with the ESD protection performance. Be sure to
remove them.
· The SZ2-SPBW stage plate is provided with the ESD protection performance only in the black surface.
SAFETY PRECAUTIONS
1. After the equipment has been used in an observation of a specimen that
is accompanied with a potential of infection, clean the parts coming in
contact with the specimen to prevent infection.
· Moving this microscope is accompanied with the risk of dropping
the specimen. Be sure to remove the specimen before moving
this product.
1. A microscope is a precision instrument. Handle it with care and avoid subjecting it to sudden or severe impact.
2. Do not use the microscope where it is subjected to direct sunlight, high temperature and humidity, dust or vibrations.
(For the operating conditions, see “SPECIFICATIONS” on page 12.)
3. Be careful not to leave stains and fingerprints on the lens surfaces.
Contamination of the lens and mirror deteriorates the view of images.
4. Do not turn the left and right zoom adjustment knobs in the opposite directions, as this will result in a failure.
5. The rubber parts of the eyepiece sleeves are fragile and should be handled carefully. If they are damaged, dirt will
penetrate inside the microscope.
1Getting Ready
Fig. 1
@
²
· Hold the bottom of the stand with one hand while holding base column with the other hand to avoid tilting the
microscope.
· In case the specimen is damaged by erroneous operation, promptly take the infection prevention measures.
2. When the optional 0.5X auxiliary objective @ is used, the microscope become unstable due to the use of the SZ2-ET
auxiliary sleeve ². Be careful not to topple down the microscope. (Fig. 1)
In addition, when a TV camera is mounted on the SZ61TR, special care is required because the microscope becomes
more unstable.

2
SZ2 series
If the microscope is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition,
the equipment may also be damaged. Always use the equipment as outlined in this instruction manual.
The following symbols are used to set off text in this instruction manual.
: Indicates that failure to follow the instructions in the warning could result in bodily harm to the
user and/or damage to equipment (including objects in the vicinity of the equipment).
# : Indicates that failure to follow the instructions could result in damage to equipment.
} : Indicates commentary (for ease of operation and maintenance).
2Maintenance and Storage
3Caution
1. To clean the lenses and other glass components, simply blow dirty away using a commercially available blower and wipe
gently using a piece of cleaning paper (or clean gauze).
If a lens is stained with fingerprints or oil smudges, wipe it gauze slightly moistened with commercially available absolute
alcohol.
Since the absolute alcohol is highly flammable, it must be handled carefully.
Be sure to keep it away from open flames or potential sources of electrical sparks –– for example, electrical
equipment that is being switched on or off.
Also remember to always use it only in a well-ventilated room.
2. Do not attempt to use organic solvents to clean the microscope components other than the glass components. To clean
them, use a lint-free, soft cloth slightly moistened with a diluted neutral detergent.
3. Do not disassemble any part of the microscope as this could result in malfunction or reduced performance.
4. When disposing of the microscope. Check the regulations and rules of your local government and be sure to observe
them.
4Intended use
This instrument has been designed to be used to observe magnified images of specimens in routine and research
applications.
Do not use this instrument for any purpose other than its intended use.

3
MODULES AND NOMENCLATURE
Eye shade (Page 8)
Eyepiece
· WHSZ10X
· WHSZ10X-H
· WHSZ15X-H
· WHSZ20X
· WHSZ20X-H
· WHSZ30X-H
Body clamping knob
(Threaded for accessory mounting)
Microscope Body
· SZ61 · SZ51
· SZ61-60 · SZ51-60
· SZ61TR
Auxiliary objective mount thread
Optional auxiliary objectives
· 110ALK0.3X · 110AL0.75X-2
· 110ALK0.4X · 110AL1.5X
· 110AL0.5X-2 · 110AL2X-2
· 110AL0.62X
Stage Plate
· SZ2-SPBW
(ESD protection on black surface)
· SP-C
Eyepiece clamping knob
(x 2)
Zoom adjustment knob (Page 6 & 7)
· SZ61/61-60/TR: 0.67X to 4.5X
· SZ51/51-60: 0.8X to 4X
Accessory mount thread
(x 5)
Focus adjustment knob
(Page 6)
Stroke: 120 mm
Standard Base
SZ2-ST
Optional stage mounting holes
M4 screw (x 2)
Accessory mount holes

4
SZ2 series

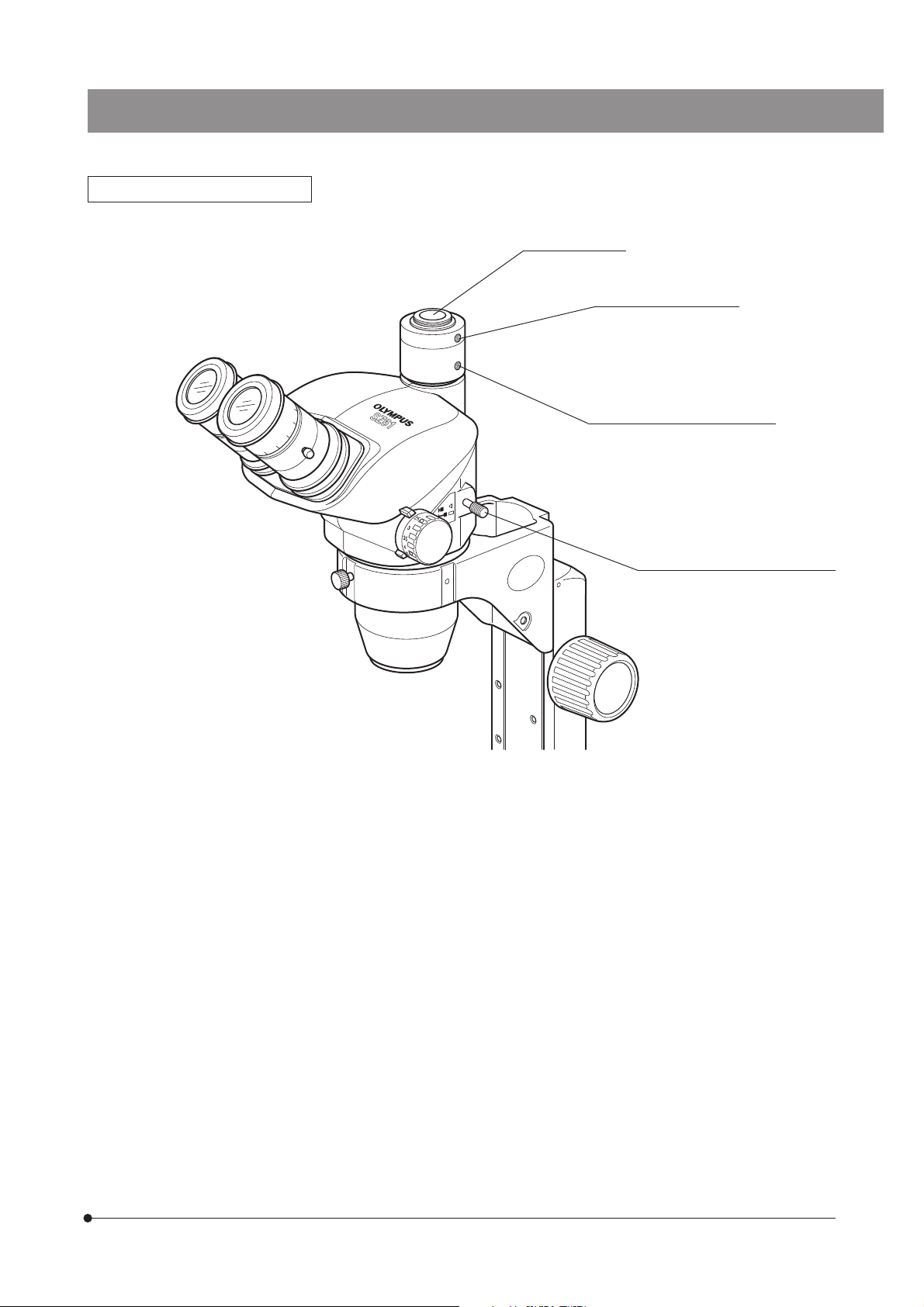

Observation Tube of SZ61TR
C-mount (Page 10)
C-mount clamping screw
Confocality adjustment clamping
screw (Page 10)
(x 2)
Light path selector lever (Page 9)
Pulled out: TV path 100%
(Right eyepiece sleeve
light path 0%)
Pushed in: Right eyepiece sleeve
light path 100%

5
......................................................................................................................................
..................................................................................
....................................................................................................................................................................
(Page)
1. Confirm the mounting, particularly that of the microscope body. (P. 14 - 16)
2. Confirm that the eyepieces are positioned correctly with respect to the standard base. (P. 15)
3. Adjust the rotation tension of the focus adjustment knob. (P. 6)
4. Prepare the light source as required.
SUMMARY OF OBSERVATION PROCEDURE
2-1 Preparation
2-2 Observation Procedure
1. Place the specimen on the stage plate. (Page 6)
2. Adjust the interpupillary distance. (Page 6)
3. Adjust the eyepiece diopter. (Pages 6 & 7)
(Note) This operation is not possible with the eyepieces without
helicoids (WHSZ10X/20X).
The operation is slightly difference when a micrometer is mounted in
one of the eyepieces with helicoids.
4. Set the zoom adjustment knob @ for the lowest magnification and rotate
the focus adjustment knob ² to bring the specimen into approximate
focus.
5. Rotate the zoom adjustment knob @ to the target magnification and
rotate the focus adjustment knob ² to bring the specimen into accurate
focus.
@²

6
SZ2 series

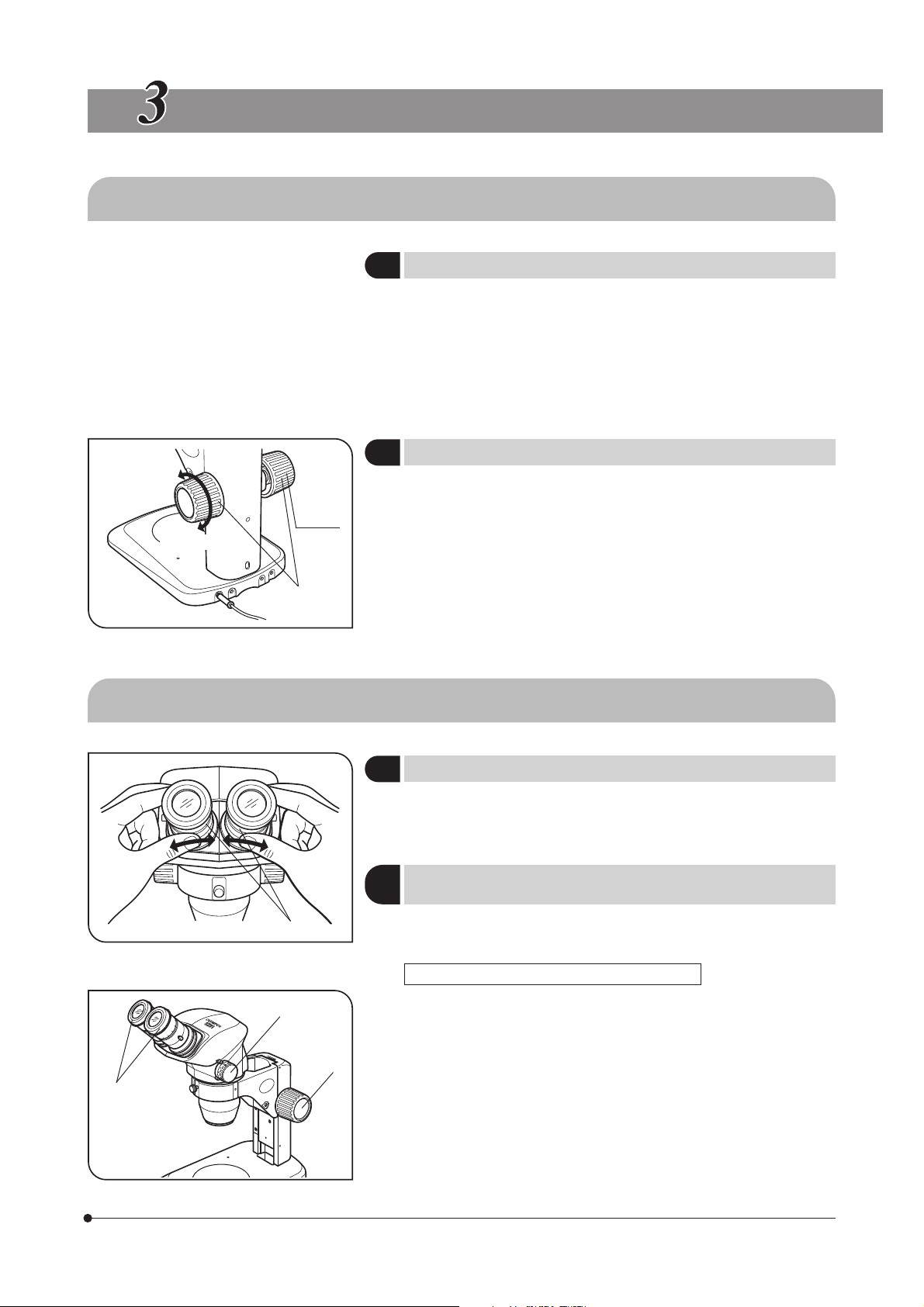

OPERATION
3-1 Base
1Using the Stage Plate
When reflected light illumination is used, the stage plate can be placed
either the white or black surface facing up depending on which side
makes the specimen easier to view.
#To maintain the ESD performance, use the black surface of the SZ2-
SPBW stage plate.
#When transmitted light illumination is used, use the optional SP-C
transparent glass stage plate.
}This operation is intended to facilitate the rotation of the knobs while
preventing spontaneous drop of the microscope body. It is recommended
to set the knob tension to a slightly higher level than the point where
spontaneous drop occurs.
· Hold the left and right focus adjustment knobs @ with both hands, fix the
left knob and rotate the right knob. The rotation tension of the knobs
increases or decreases according to the direction in which the right knob
is rotated.
1Adjusting the Interpupillary Distance (Fig. 3)
While holding the left and right eyepiece sleeves @ with both hands,
look through the eyepieces and adjust for binocular vision until the left
and right fields of view coincide completely.
}The adjustment operation is variable whether the eyepieces use an eye-
piece micrometer disks or not.
Eyepieces without eyepiece micrometer disk
1. Turn the diopter adjustment rings ² of the left and right eyepieces to
positions “0”.
2. Place an easy-to-observe specimen on the stage plate.
3. Set the zoom adjustment knob ³ for the lowest magnification and rotate
the focus adjustment knob | to bring the specimen into focus.
4. Set the zoom adjustment knob ³ for the highest magnification and ro-
tate the focus adjustment knob | to bring the specimen into focus.
5. Set the zoom adjustment knob ³ for the lowest magnification and rotate
the diopter adjustment rings ² of the left and right eyepieces, instead of
the focus adjustment knob, to bring the specimen into focus.
2
Adjusting the Focus Adjustment Knob Tension
(Fig. 2)
3-2 Microscope Body
Fig. 3
@
Fig. 4
²
³
|
Fig. 2
2(Figs. 4 & 5)
Adjusting the Diopter
(Zoom Confocality Adjustment)
To decrease
@
Clamp.
To increase

7

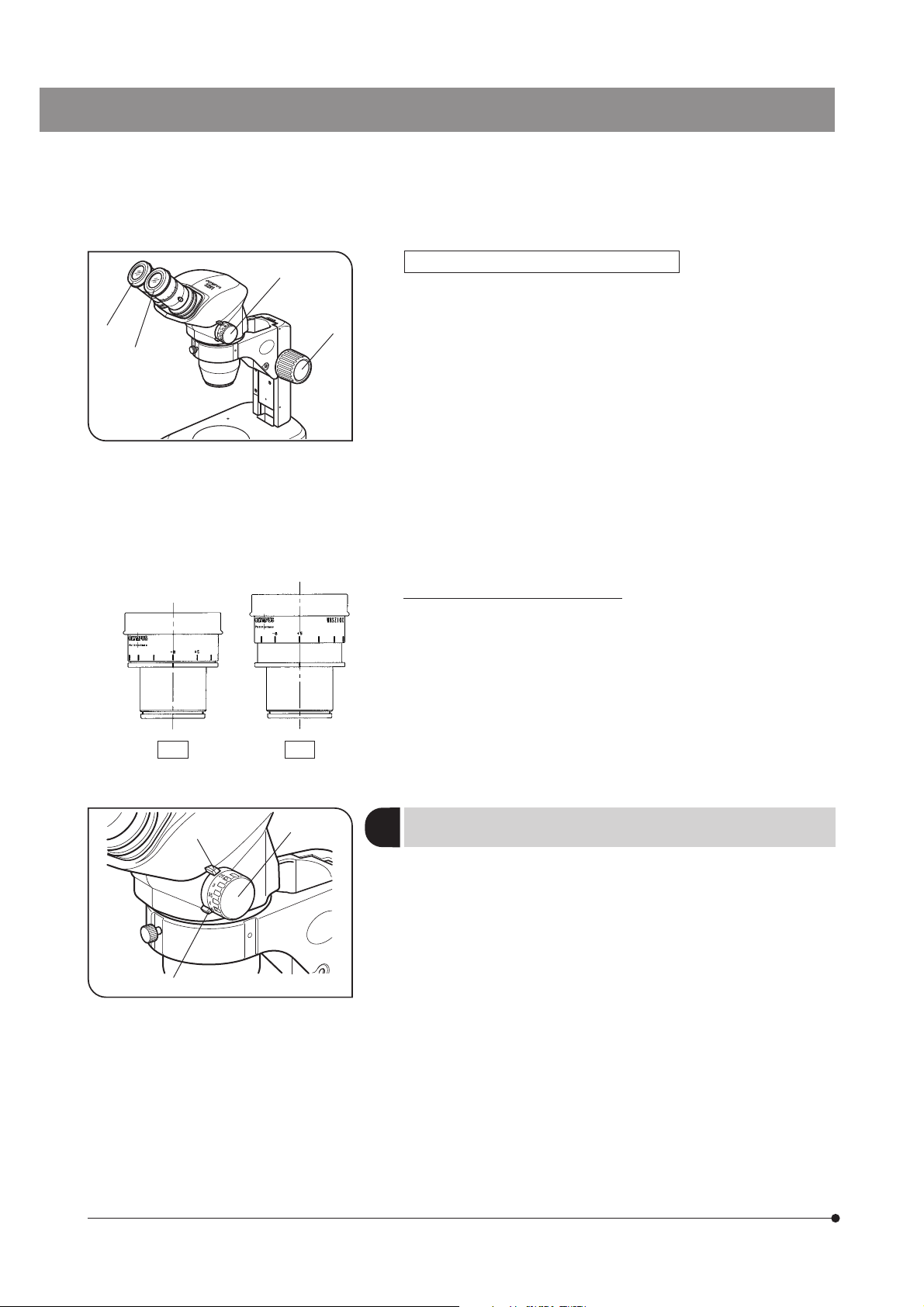

Eyepieces with eyepiece micrometer disk
1. Look through the eyepiece with eyepiece micrometer disk and rotate its
diopter adjustment rings ² to bring the micrometer scale into focus.
2. Place an easy-to-observe specimen on the stage plate.
3. Set the zoom adjustment knob ³ for low magnification, look through the
eyepiece with eyepiece micrometer disk and rotate the focus adjustment
knob | to bring the specimen into focus.
4. Set the zoom adjustment knob ³ for the highest magnification and
rotate the focus adjustment knob | to bring the specimen into focus.
5. Set the zoom adjustment knob ³ for the lowest magnification and rotate
the diopter adjustment ring ƒ of the eyepiece without eyepiece micrometer
disk, instead of the focus adjustment knob |, to bring the specimen into
focus.
}Note the left and right diopter scale values so that it can be quickly
duplicated in future observations.
Diopter scale of the 10X eyepieces
}The valid range of the diopter scale is between –8 and +5 but a slight
margin is added to it. Therefore, the diopter value may exceed +5 or –8
when it is adjusted to the maximum. In this case, whether the diopter
value is over +8 or under –5 can be identified by the length of the
eyepiece.
Fig. 5
ƒ
³
|
²
3(Fig. 6)
}The magnification can be limited in the desired range by setting each
stopper on the microscope body (also used as the magnification indices)
and the stopper ring on each zoom adjustment knob. The right zoom
adjustment knob is used to limit the higher end of the magnification, and
the left knob is used to limit the lower end.
1. Using an Allen wrench, loosen the clamping screw of the right stopper
ring @ and free it. (Also free the left knob in this way.)
2. Rotate the right zoom adjustment knob ² to align the desired higher-limit
magnification with the index (stopper) ³.
3. Gently apply the stopper ring @ to the stopper ³ and tighten the clamping
screw using the Allen wrench to retain this condition.
4. Set the left zoom adjustment knob according to the desired lower-limit
magnification by rotating the left knob and clamping the left stopper ring
in the same way as above.
Using the High/Low Zoom Magnification
Stopper
Fig. 6
@
²
³
– 8 + 5

8
SZ2 series
WHSZ10X-H/15X-H/20X-H (Fig. 8)
1. Rotate the disk-mounting ring @ of the eyepiece counterclockwise to
remove.
2. Prepare an eyepiece micrometer disk ² (24 mm dia. x 1.5 mm thick),
remove dust and dirt from its surface, and fit it into the disk-mounting ring
@ so that the engraving on the micrometer disk faces downward.
3. Gently screw in the disk-mounting ring @ incorporating the eyepiece
micrometer disk into the eyepiece. Turn the ring clockwise to attach it
firmly.
WHSZ30X-H (Fig. 9)
1. Rotate the disk-mounting ring ³ of the eyepiece counterclockwise to
remove.
2. Rotate the push ring | of the eyepiece micrometer disk counterclock-
wise to remove.
3. Prepare an eyepiece micrometer disk ƒ (24 mm dia. x 1.5 mm thick),
remove dust and dirt from its surface, place it on the disk-mounting ring
³ with the engraving facing downward, and fix it with the push ring |.
4. Gently screw in the disk-mounting ring ³ incorporating the eyepiece
micrometer disk into the eyepiece. Turn the ring clockwise to attach it
firmly.
#Due to their structures the WHSZ20X-H/30X-H eyepieces apply a
magnification on the focused plane of the eyepiece micrometer disk.
These magnifications are 1.3X with the WHSZ20X-H and 2X with the
WHSZ30X-H. Be sure to compensate for these magnifications when
using the eyepiece micrometer disk in measurements.
Also, insertion of the eyepiece micrometer disk extends the light
path length and deviates the position of the diopter scale. Correct
this deviation by turning the diopter adjustment ring of the eyepiece
toward “+”.
}When the eyepiece micrometer disk is not used, store it by wrapping in a
clean, soft cloth.
Fig. 8
Indication engraved
surface
5Using an Eyepiece Micrometer Disk (Figs. 8 & 9)
@
²
#The eye shades are not provided with ESD protection performance.
When ESD protection is required, do not use the eye shades.
When Wearing Eyeglasses
Use with the eye shades in the normal, folded-down position. This will
prevent the eyeglasses from being scratched.
When Not Wearing Eyeglasses
Extend the folded eye shades in the direction of the arrow to prevent
extraneous light from entering between the eyepieces and eyes.
4Using the Eye Shades (Fig. 7)
Fig. 7
Fig. 9
Indication engraved
surface
³
|ƒ

9
7Selecting the Light Path (SZ61TR) (Fig. 11)
# Always move the light path selector lever @ until it hits the stop
position.
1. For observation through the binocular light path, push in the light path
selector lever @ till the stop position. (Fig. 11)
In this position, the whole light (100%) goes to the binocular tube.
2. For the TV camera light path, pull out the light path selector lever @ till
the stop position. (Fig. 11)
In this position, a mirror is inserted into the light path so the whole light
for the right eyepiece sleeve (100%) is sent to the TV light path.
Fig. 11
@
}All of the auxiliary objectives are provided with the ESD protection
performance.
#The 0.3X and 0.4X auxiliary objectives cannot be used in combina-
tion with the standard base because their working distances are
too long.
# The 0.5X auxiliary objective (110AL0.5X-2) also has a long working
distance, but this can be combined with the standard base pro-
vided that the auxiliary sleeve (SZ2-ET) is used. In this case, how-
ever, the microscope becomes unstable and needs care against
toppling it down.
· Screw the auxiliary objective firmly into the auxiliary objective mount thread
at the bottom of the microscope body.
6Using the Auxiliary Objectives (Fig. 10)
Microscope body
Auxiliary sleeve
SZ2-ET
Standard
base
Fig. 10

10
SZ2 series
8(Fig. 12)
}Ensuring the confocality between the observation image and the TV
camera monitor image makes it possible to maintain accurate focusing
of the observation image or monitor image even when the light path is
switched.
1. Adjust the diopter of the eyepiece (see pages 6 and 7) and bring the
specimen into focus.
2. Pull out the light path selector lever @ and set the magnification to the
minimum.
3. Slightly loosen the two confocality adjustment clamping screws ² and
C-mount clamping screw ³.
4. Hold the TV camera | and rotate the confocality ƒ to focus on the
monitor image.
After the adjustment, tighten the clamping screws ² and ³.
Applicable cameras (image pickup device size) and field numbers
}The TV camera light path incorporates a 0.5X lens.
Adjusting the Confocality of TV Camera
(SZ61TR)
2/3 in. image pickup device
(Diagonal length 22 mm)
1/2 in. image pickup device
(Diagonal length 16 mm)
FN 22
(With 10X eyepiece)
Rotation of monitor image
The monitor image is rotated slightly because the right observation light
path, which is tilted slightly, is used as the TV light path.
The monitor image can be aligned with the observation image by rotating
the TV camera.
Fig. 12
³
²
|
ƒ
@

11
TROUBLESHOOTING GUIDE
Under certain conditions, performance of the microscope may be adversely affected by factors other than defects. If
problems occur, please review the following list and take remedial action as needed. If you cannot solve the problem after
checking the entire list, please contact Olympus.
Problem Cause Remedy Page
1. The left and right fields of view do
not coincide.
Interpupillary distance is adjusted im-
properly.
Adjust it correctly.
The parallax is not corrected. Adjust it correctly.
The magnifications of the left and right
eyepieces are different.
Use the eyepieces with the same
magnification for the left and right by
replacing one of them.
2. Dirt or dust is visible in the field of
view.
Dirt/dust on specimen. Clean thoroughly.
Dirt/dust on eyepieces
3. Visibility of observed image is poor. Dirt/dust on the dustproof glass on the
tip of the objective.
Clean thoroughly.
4. Zooming causes defocusing of the
observed image.
The eyepiece diopter is adjusted im-
properly.
Adjust it correctly.
The focus adjustment is inaccurate. Adjust the focus accurately.
5. The focus adjustment knob does
not rotate smoothly.
The rotation tension of the knob is set
too high.
Decrease the rotation tension to an op-
timum level.
6. The microscope body drops spon-
taneously, causing the focusing to
be deviated during observation.
The rotation tension of the knob is set
too low.
Increase the rotation tension to an op-
timum level.
7. The right field of view or the moni-
tor image is cut off.
The light path selector lever is not set
properly to a stop position.
Push in or pull out the lever all the way
till the stop position.
8. Zooming causes important defocusing
of the monitor image.
The confocality of the TV camera is ad-
justed improperly.
Adjust it properly.
6
6-7
3
2
2
6-7
5
6
6
9
10

12
SZ2 series
SPECIFICATIONS
Item SZ61 SZ61-60 SZ61TR SZ51 SZ51-60
Microscope body Magnification 0.67X to 4.5X 0.8X to 4X
Zoom ratio 6.7 5
Working distance 110 mm
Tube tilting angle 45° 60° 45° 60°
Left/right interlocked.
Adjustment range: 52 to 76 mm (using the WHSZ10X eyepieces)
TV camera
compatibility
Interpupillary distance
adjustment
C-mount
(0.5X lens built in)
Zoom adjustment
knobs
Left/right single-shaft horizontal knobs
(with high/low zoom magnification stopper)
Auxiliary objective Mounting by screwing into the thread at the bottom of frame (M48 thread x 0.75)
Eyepieces** WHSZ10X-H: FN 22, 24 mm eyepiece micrometer disk mountable
WHSZ15X-H: FN 16, 24 mm eyepiece micrometer disk mountable*
WHSZ20X-H: FN 12.5, 24 mm eyepiece micrometer disk mountable*
WHSZ30X-H: FN 7, 24 mm eyepiece micrometer disk mountable*
Base Frame installation Mounting diameter 76 mm
Focus adjustment Rack-and-pinion using ball guide
Knob rotation tension adjustable
Focusing stroke 120 mm
Stage plate Diameter 100 mm, milky white (back side black)
Light source
installation
Oblique illumination system (LSGA), light guide illumination system (SZ2-LGB) or
transmitted light illumination base mountable.
Operating environment · Indoor use
· Altitude: Max. 2000 m
· Ambient temperature: 5° to 40°C (41° to 104°F)
· Maximum relative humidity: 80% for temperatures up to 31°C (88°F), decreasing
linearly through 70% at 34°C (93°F), 60% at 37°C (99°F), to 50% relative humidity
at 40°C (104°F)
· Supply voltage fluctuations: ±10%
· Pollution degree: 2 (in accordance with IEC60664)
· Installation (overvoltage) category: II (in accordance with IEC60664)
* The micrometer and squared scale outside the field number are invisible.
** The WHSZ10X and WHSZ20X eyepieces without helicoids are also available. (An eyepiece micrometer cannot be mounted.)

13
OPTICAL PERFORMANCE
# The following data shows only the typical magnifications of each zoom magnification.
Zoom
Magnification
Working
Distance
(mm)
Eyepieces
WHSZ10X
FN 22
WHSZ15X
FN 16
WHSZ20X
FN 12.5
WHSZ30X
FN 7
Total Power Actual Field
(mm) Total Power Actual Field (mm) Total Power Actual Field (mm) Total Power Actual Field (mm)
0.67X 6.7X 32.8 10X 23.8 13.4X 18.7 20X 10.4
0.8X 8X 27.5 12X 20 16X 15.6 24X 18.8
1X 11010X 22 15X 16 20X 12.5 30X 07
2X 20X 11 30X 08 40X 06.3 60X 13.5
4X 40X 05.5 60X 04 60X 03.1 120X 01.8
4.5X 45X 04.89 67.5X 03.6 90X 02.8 135X 01.6
Auxiliary objectives (optional)
Auxiliary Objective Working Distance (mm) Auxiliary Objective Working Distance (mm)
110ALK 0.3X 350 - 250 110AL 0.75X -2 130
110ALK 0.4X 250 - 180 110AL 1.5X 61
110AL 0.5X -2 200 110AL 2X -2 38
110AL 0.62X 160
# The working distances of the 110ALK0.3X and 0.4X can be varied according to the system.
The indicated magnifications (0.3X and 0.4X) are the values when the working distances are 350 mm and 240
mm respectively.
# The 110AL2X-2 cannot be combined with the optional SZ2-LGR ring light guide illumination system.
}The working distance is constant regardless of the zoom magnification.
}The total power and actual field can be calculated with the following formulae.
Total power = Zoom magnification x Eyepiece magnification x Auxiliary objective magnification*
Actual field = Eyepiece FN
Zoom magnification x Auxiliary objective magnification*
*This value is 1X when the auxiliary objective is not used.

14
SZ2 series
ASSEMBLY
7-1 Assembly Diagram
The diagram below shows the sequence of assembly of the various modules. The numbers indicate the order of
assembly.
Assembly steps enclosed in will be detailed on the subsequent pages.
# When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any
parts or touching glass surfaces.
Eyepieces
Eyepiece clamping
knobs**
Microscope body other
than the SZ61TR
Body clamping knob
Stage plate
Commercially available
C-mount TV camera
(optional)
Microscope body
of the SZ61TR
Standard base
Ground lead wire*
**To reserve the ESD protection performance, be sure to ground the equipment using a grounding lead wire having a 4
mm banana plug.
** The eyepieces are provided with theft prevention screws (which can be retained using a flat-blade screw driver). If required,
replace the clamping knobs with these screws.

15
Fig. 15
Fig. 14
Mounting
Dismounting
7-2 Detailed Assembly Procedures
· Loosen the body clamping knob @ and insert the microscope body
gently.
}The body clamping knob @ can be attached to any of the three posi-
tions ² around the arm. After installation, attach the knob to a position so
that the knob does not come in the way of the light source, etc.
}If you always perform observation from the side of the focus adjustment
knobs, the microscope body can be installed in the opposite orientation
to that shown in Fig. 13 (at the 180° rotated position).
1. While applying the stage plate ³ to the stage plate holder spring |, fit
the stage plate into the hole and push it from upward to secure the
mounting.
}The stage plate ³ has the milky white and black surfaces. Select the
side facing up according to the specimen.
2. To dismount the stage plate ³, push the stage plate edge near the
holder spring |. As this moves up the opposite edge of the stage plate,
dismount it by holding that edge.
1Installing the Microscope Body (Fig. 13)
Fig. 13
@
²
³
|
³
3Mounting the Stage Plate (Figs. 14 & 15)

16
SZ2 series
1. Using the Allen wrench, loosen the C-mount clamping screw @ and
remove the C-mount seat ².
2. Screw the C-mount seat ² into the TV camera ³.
3. Place the C-mount seat in the original position and tighten the clamping
screw @.
4. Connect the cables and monitor to the TV camera.
Fig. 16
@
²
³
4Mounting the TV Camera (SZ61TR only) (Fig. 16)

17
OPTIONAL MODULES
8-1 BX Stage Adapter Type 1 SZX-STAD1
The SZX-STAD1 is an adapter for use in mounting the U-SRG or U-SRP rotary stage on the SZ2-ST standard base, SZ-
ST standard base, large base or SZX illumination base. The U-SRP is used in combination with the U-FMP mechanical
stage to enable movement in the X- and Y-directions, which is convenient for framing in photomicrography or TV
observation. To compensate for the height of the stage adapter, it is recommended to use also the SZ2-ET auxiliary
sleeve when the SZ2-ST is used or the SZH-P400 auxiliary column (and the SZX-R drop prevention ring also) when the
SZX-ST or SZX illumination base is used.
Base Applicable Auxiliary Objectives Restrictions
1Introduction
2Applicable Bases and Restrictions
· Standard base
SZ2-ST
SZX-ST
· Large base
SZ-STL
SZX-STL
0.5X to 2X None
· Transmitted illumination base
SZX-ILLK
SZX-ILLB2
SZX-ILLD2
The restrictions are identical whether or not the stage adapter is used.
(Refer to the instruction manual for the SZX illumination base.)
The transmitted light illumination field may be limited depending on the
diameter of the hole on the stage center plate in use.
# Darkfield observation is not available with the SZX-ILLD2.
# The brightness drops when a frost filter is used.
