Olympus SZX16 User manual

INSTRUCTIONS
A X 7 5 0 0
Modules described in this manual
SZX16
SZX-R/SZH-P400/SZH-P600
SZX-2-2RE16
SZX-STAD1
SZX2-AN
SZX-PO
SZX-STAD2
SZH-STAD1
SZX16
RESEARCH HIGH-CLASS STEREO
MICROSCOPE
This instruction manual is for the Olympus SZX16 Research High-Class Stereo Microscope System.
To ensure the safety, obtain optimum performance and to familiarize yourself full with the use of this
microscope, we recommend that you study this manual thoroughly before operating the microscope.
Retain this instruction manual in an easily accessible place near the work desk for future reference.

This device complies with the requirements of directive 98/79/EC concerning in vitro diagnostic
medical devices. CE marking means the conformity to the directive.

SZX16
CONTENTS
IMPORTANT — Be sure to read this section for safe use of the equipment. —
1 NOMENCLATURE
2 CONTROLS
3 SUMMARY OF OBSERVATION PROCEDURE
4 USING THE CONTROLS
1-3
4
5
6
7-13
4-1 Base ...................................................................................................................................................................................................................... 7
1Using the Stage Plate 2Placing the Specimen
4-2 Microscope Body and Focusing Assembly ......................................................................................... 7-9

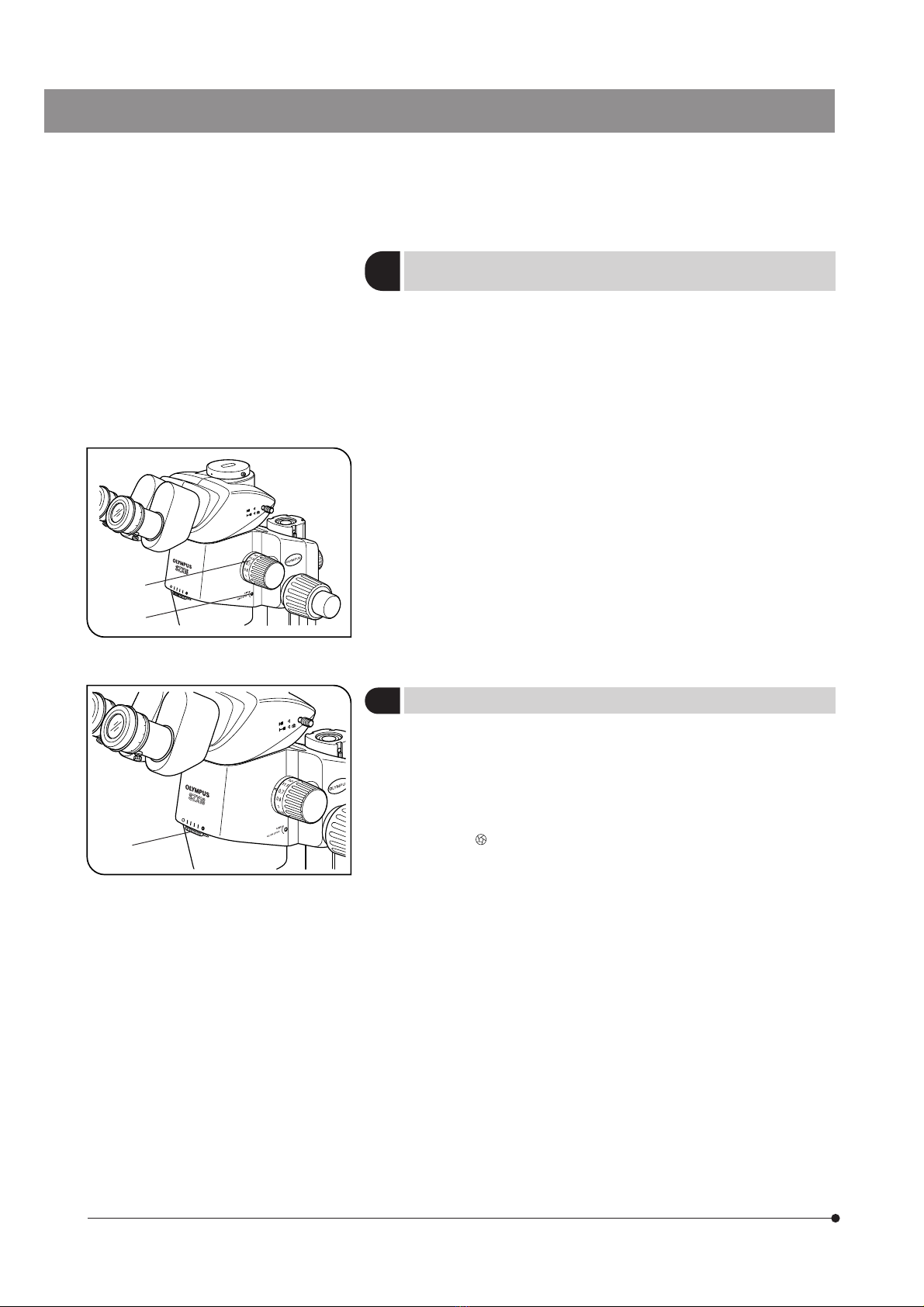

1Adjusting the Tension of the Coarse Focus Adjustment Knob
2 Engaging and Disengaging the Zooming Knob Click Stop Function

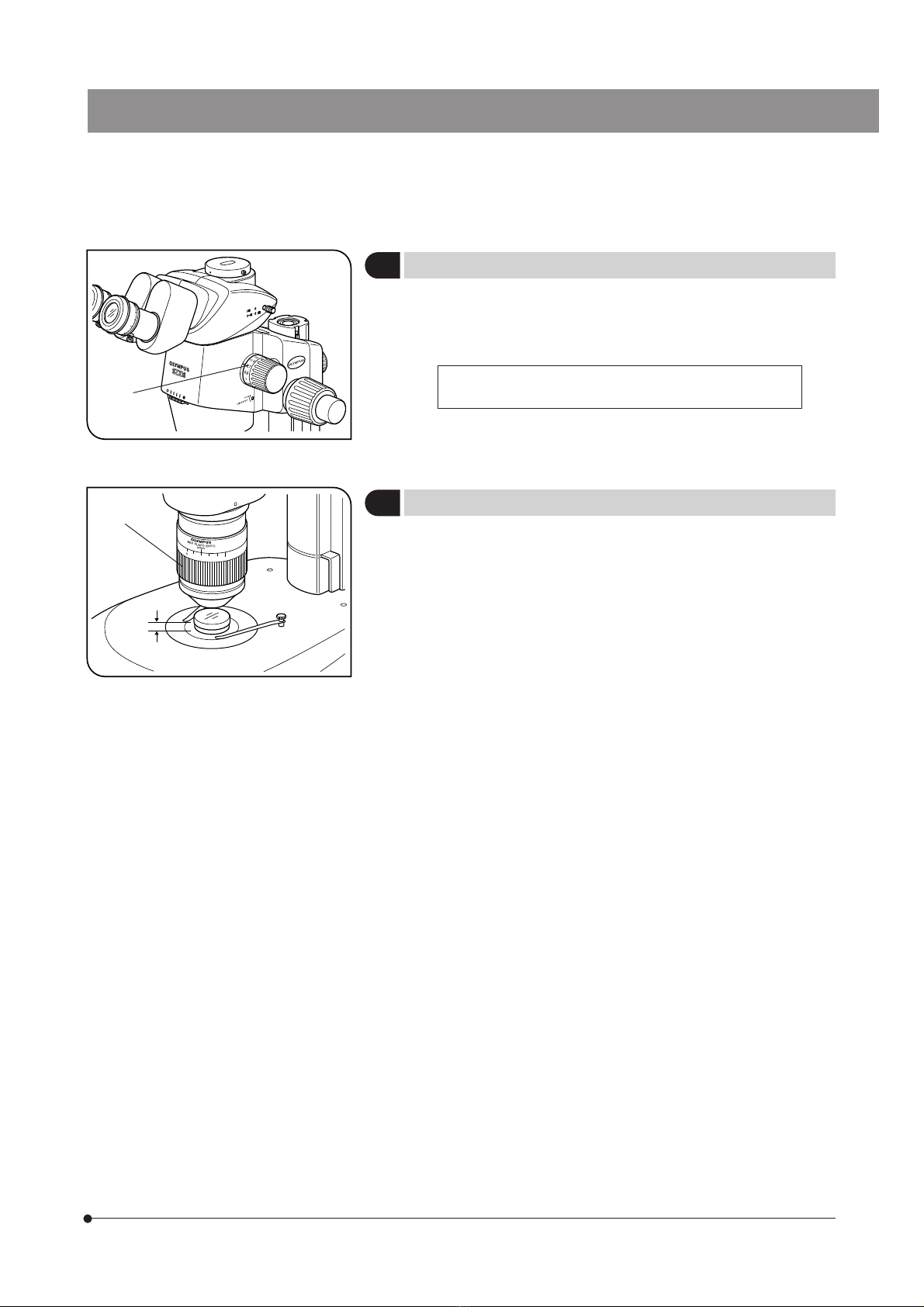

3Adjusting the Aperture Iris Diaphragm 4Zoom Magnification Indication
52X Objective Correction Collar

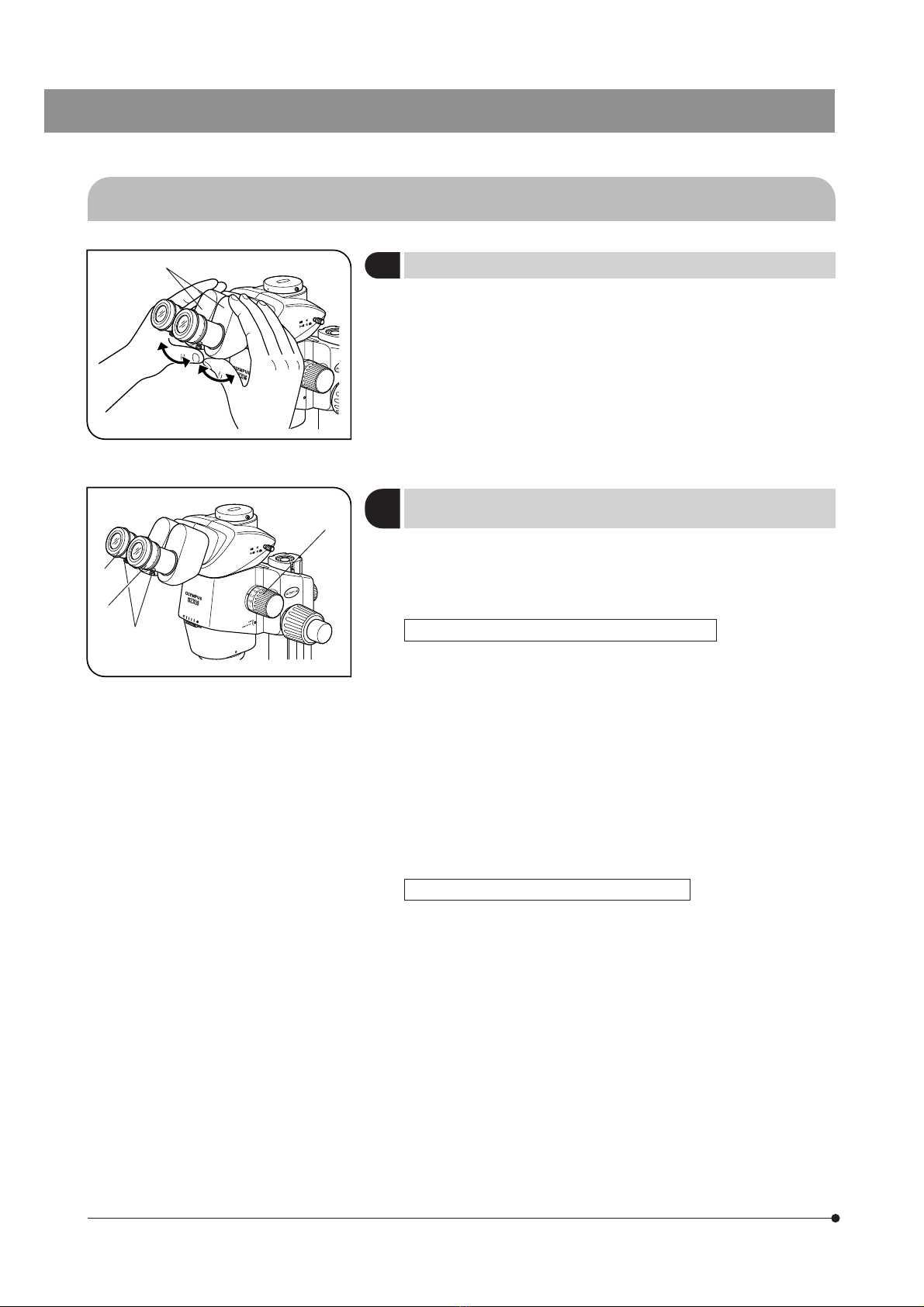

4-3 Observation Tube.................................................................................................................................................................. 10-12
1Adjusting the Interpupillary Distance
2Adjusting the Diopter (Zoom Parfocal Adjustment)

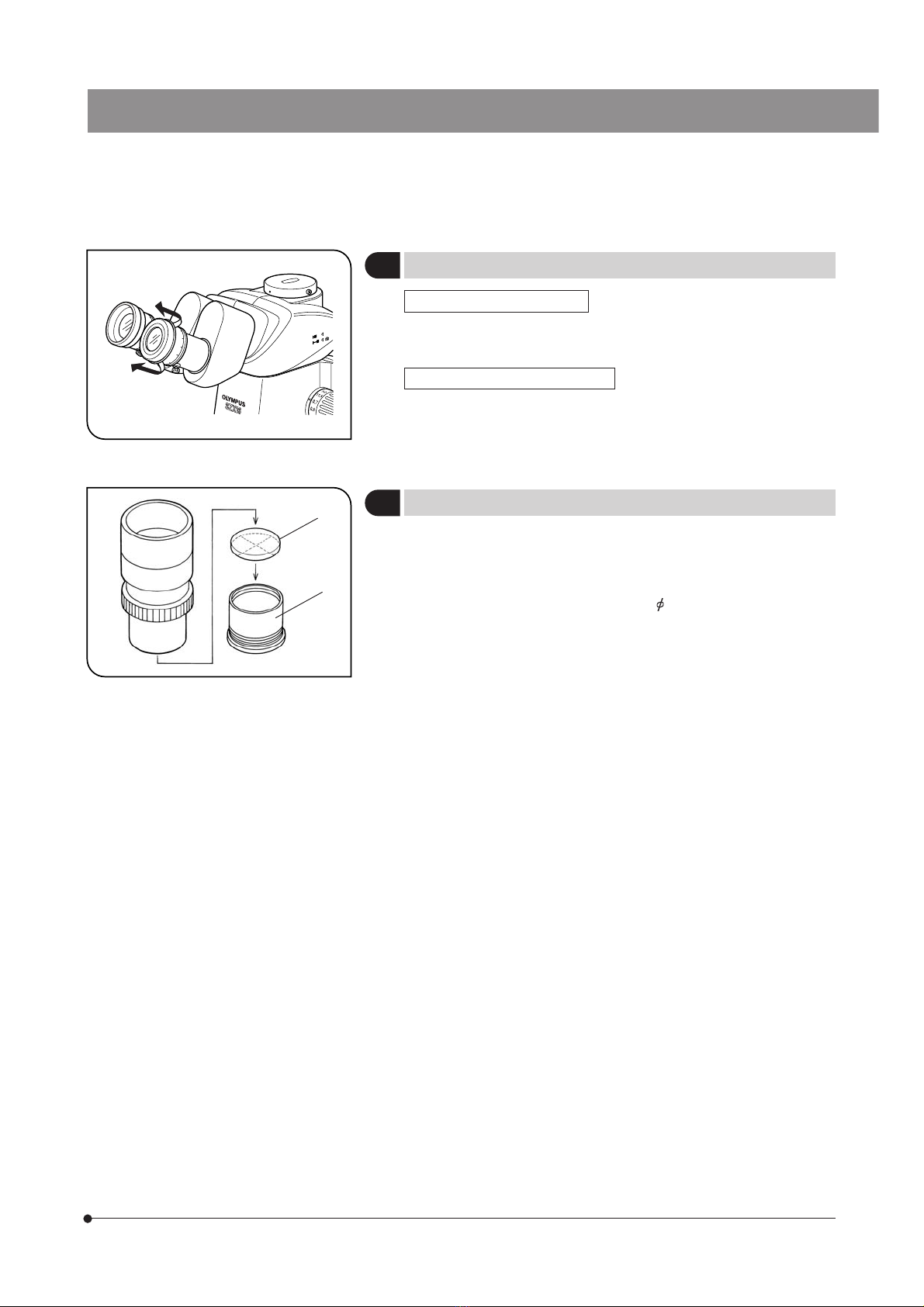

3Using the Eye Shades 4Using the Eyepiece Micrometer Disk

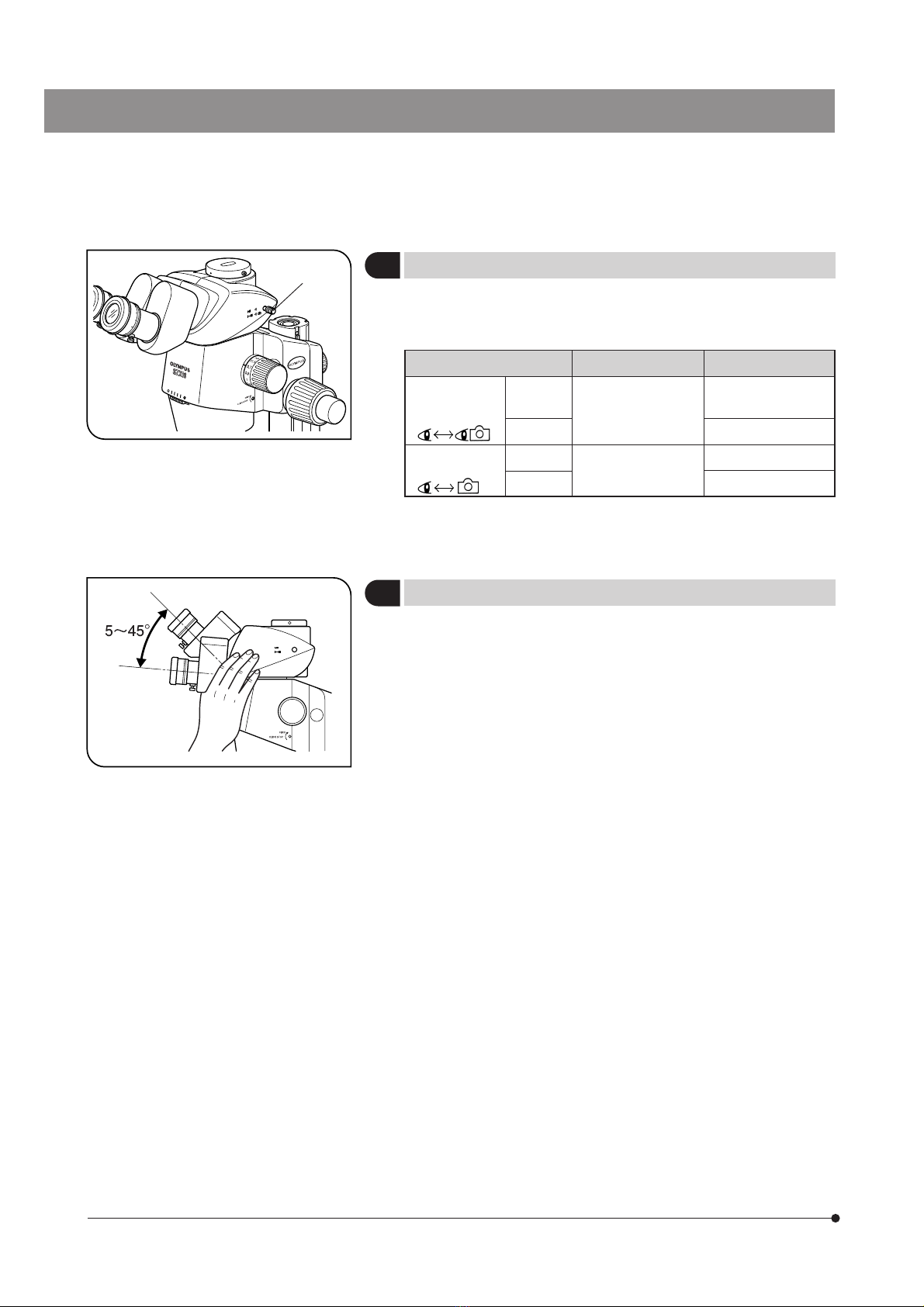

5Selecting the Light Path 6Adjusting the Tilt

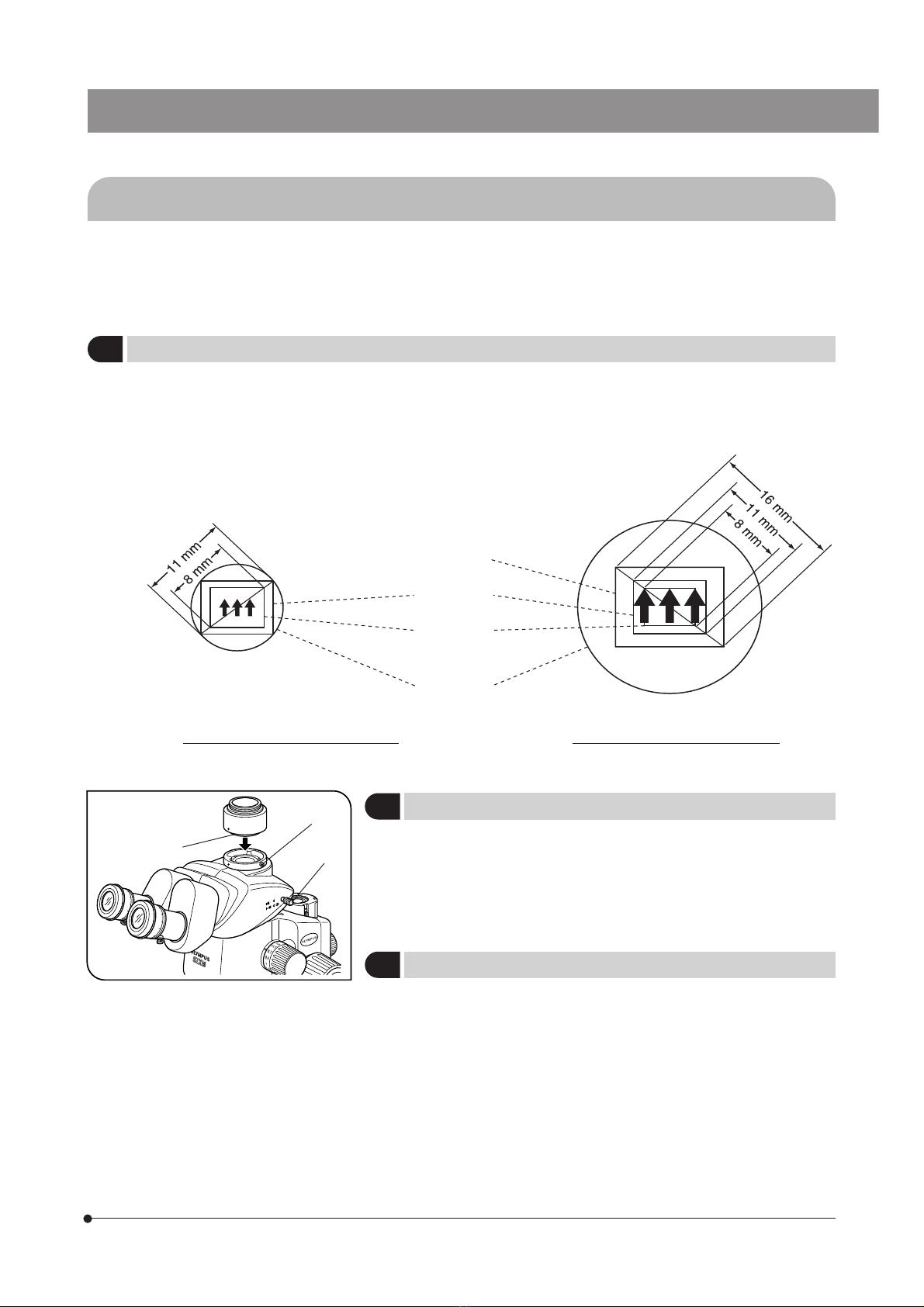

4-4 TV Observation and Photomicrography ........................................................................................................ 13
1Selecting the TV Adapter Magnification 2Mounting the TV Adapter
3Selecting the TV Camera Light Path
6 SPECIFICATIONS
7
OBSERVATION MAGNIFICATIONS AND OBSERVATION AREAS
5 TROUBLESHOOTING GUIDE 14
15,16
17

8 ASSEMBLY
9 OPERATION OF OTHER MODULES
9-1 Drop Prevention Collar SZX-R and Auxiliary Pillar SZH-P400/SZH-P600 ........ 22
9-2 Revolving Nosepiece SZX2-2RE16.......................................................................................................... 23-25
9-3 BX Stage Adapter Type 1 SZX-STAD1 ................................................................................................. 26-28
9-4 BX Stage Adapter Type 2 SZX-STAD2 ................................................................................................. 29-30
9-5 Stage Adapter Type 1 SZH-STAD1 ...................................................................................................................... 30
18-21
22-30

SZX16
1
IMPORTANT
SAFETY PRECAUTIONS
1. After the equipment has been used in an observation of a specimen that is accompanied with a potential of infection,
clean the parts coming in contact with the specimen to prevent infection.
· Moving this microscope is accompanied with the risk of dropping the specimen and causing infections. Be sure to
remove the specimen before moving this product.
· In case the specimen is damaged by erroneous operation, promptly take the infection prevention measures.
· The microscope may become unstable when certain intermediate attachments and/or photography unit are mounted
on it. Take the measures so that the microscope does not turn over.
Fig. 1
2. To prevent the microscope body from turning over, its left-right pivot angle
must be limited to 30° as shown in Fig. 1. The tilt of the desktop surface
should be no more than 5°.
3. Sufficient care is required during observation with a low-magnification
objective, because the objective’s long WD (Working Distance) can
displace the microscope body to a higher position.
The measures for prevention of turning over are also required when using
an auxiliary pillar (SZH-P400/P600), because this also makes the
microscope body to be displaced to a higher position.
4. To adjust the microscope body height, be sure to hold the microscope
body with one hand while loosening the focusing assembly clamping
knob @. (Fig. 1)
(Use the drop prevention collar (SZX-R) to prevent a hazard from occurring.)
Be careful not to pinch your finger during the adjustment.
@

2

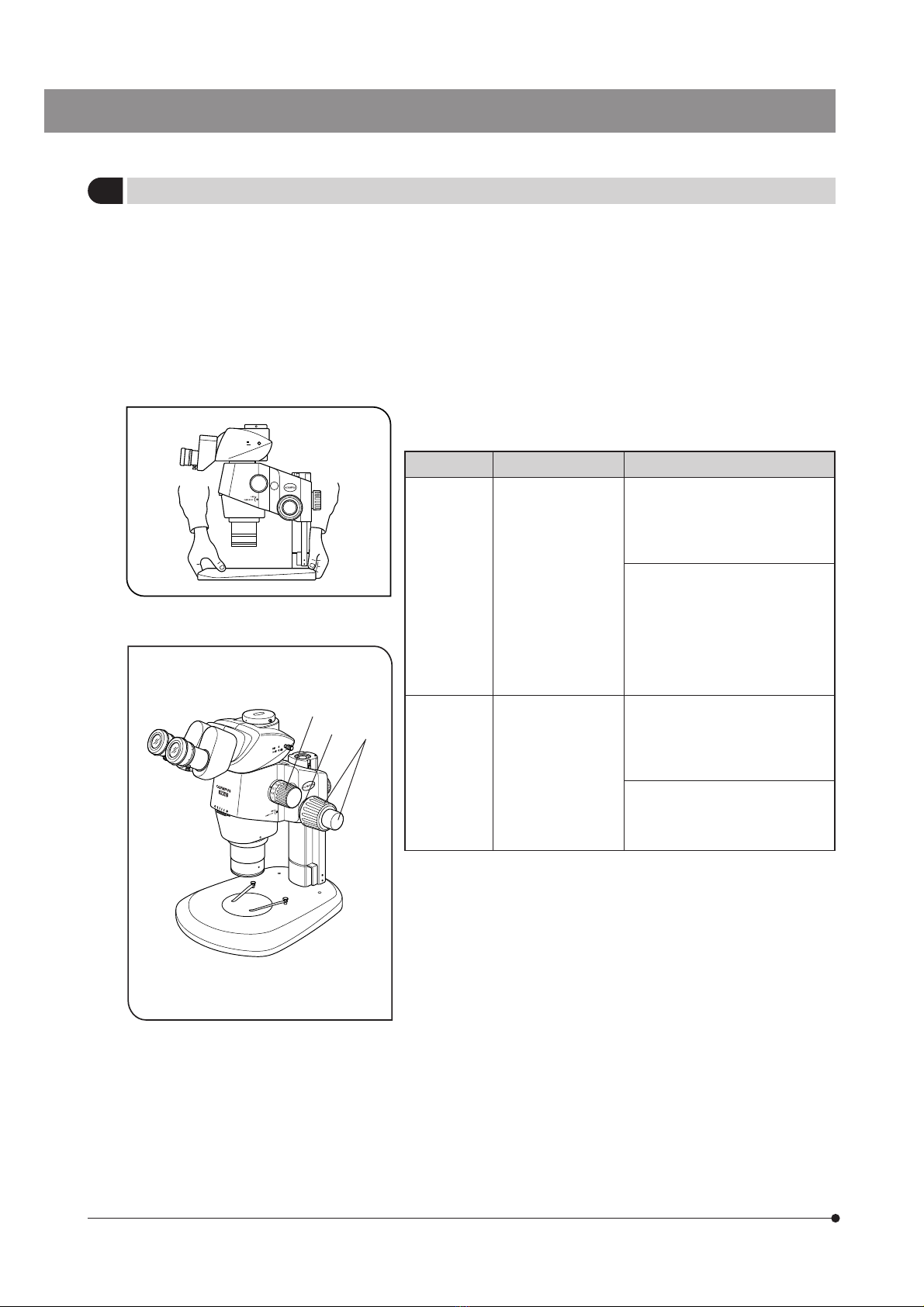

1Getting Ready
1. A microscope is a precision instrument. Handle it with care and avoid
subjecting it to sudden or severe impact.
2. Do not use the microscope where it is subjected to direct sunlight, high
temperature and humidity, or vibration. (For the operating environment,
see Chapter 6, “SPECIFICATIONS” on page 16.)
3. When moving the microscope, remove the specimen in advance. Then,
hold the front part of the base with one hand and hold the rear part of the
base with the other hand to avoid tilting the microscope.
Also remove any module or attachment from the microscope to minimize
the weight before moving.
4. Observe the following cautions when operating the coarse focus
adjustment knob or the zooming knob.
Operation Manipulated Controls Caution
Focusing Coarse/fine focus
adjustment knobs @
(Fig. 3)
1. If the knob hits the upper or lower
limiting mechanism violently or
it is rotated after it hits a limiting
mechanism, the internal
mechanism may be damaged.
2. If the knobs on the left and right
are rotated in opposite directions,
the internal mechanism will be
damaged. (The rotation tension
of the coarse focus adjustment
knob should be adjusted using
the rotation tension adjustment
ring ³ on the knob.)
Zooming Zooming knob ²
(Fig. 3) 1. If the knob hits the upper or lower limiting mechanism violently or
it is rotated after it hits a limiting
mechanism, the internal
mechanism may be damaged.
2. If the knobs on the left and right
are rotated in opposite directions,
the internal mechanism will be
damaged.
Fig. 2
Fig. 3
5. Only one intermediate attachment can basically be used, but two
attachments may also be used though the peripheral part of the image
may be obscured.
For the coaxial vertical illuminator (SZX2-ILLC16) and reflected fluorescent
light illuminator (SZX2-RFA16), only either can be attached because they
must always be attached at the lowest position.
}The SZX2-ILLC16 is not considered to be an attachment. Therefore, the
SZX2-LBS can be mounted above it without any restriction.
²³@

SZX16
3
2Maintenance and Storage
1. To clean the lenses and other glass components, simply blow dirty away using a commercially available blower and wipe
gently using a piece of cleaning paper (or clean gauze).
If a lens is stained with fingerprints or oil smudges, wipe it gauze slightly moistened with commercially available absolute
alcohol.
Since the absolute alcohol is highly flammable, it must be handled carefully.
Be sure to keep it away from open flames or potential sources of electrical sparks -- for example, electrical
equipment that is being switched on or off.
Also remember to always use it only in a well-ventilated room.
2. The equipment uses plastic resins extensively in its external finish. Do not attempt to use organic solvents to clean them
but simply wipe them using a lint-free, soft cloth. To clean an extremely dirty part, use a soft cloth lightly moistened with a
diluted neutral detergent.
3. Never disassemble any part of the microscope as this could result in malfunctions or reduced performance.
4. When not using the microscope, keep it covered with the dust cover provided. If a module containing a source of heat is
mounted on the microscope, wait until it has cooled down before covering.
5. This equipment should be disposed of by following the rules and regulations of your national or local government.
3Caution
If the microscope is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition,
the microscope may also be damaged. Always use the microscope as outlined in this instruction manual.
The following symbols are used to set off text in this instruction manual.
: Indicates that failure to follow the instructions in the warning could result in bodily harm to the
user and/or damage to equipment (including objects in the vicinity of the equipment).
# : Indicates that failure to follow the instructions could result in damage to equipment.
} : Indicates commentary (for ease of operation and maintenance).
4Intended use
This instrument has been designed to be used to observe magnified images of specimens in routine and research
applications.
Do not use this instrument for any purpose other than its intended use.

4
Eyepieces
{WHN10X-H
· WHSZ15X-H
· WHSZ20X-H
· WHSZ30X-H
1

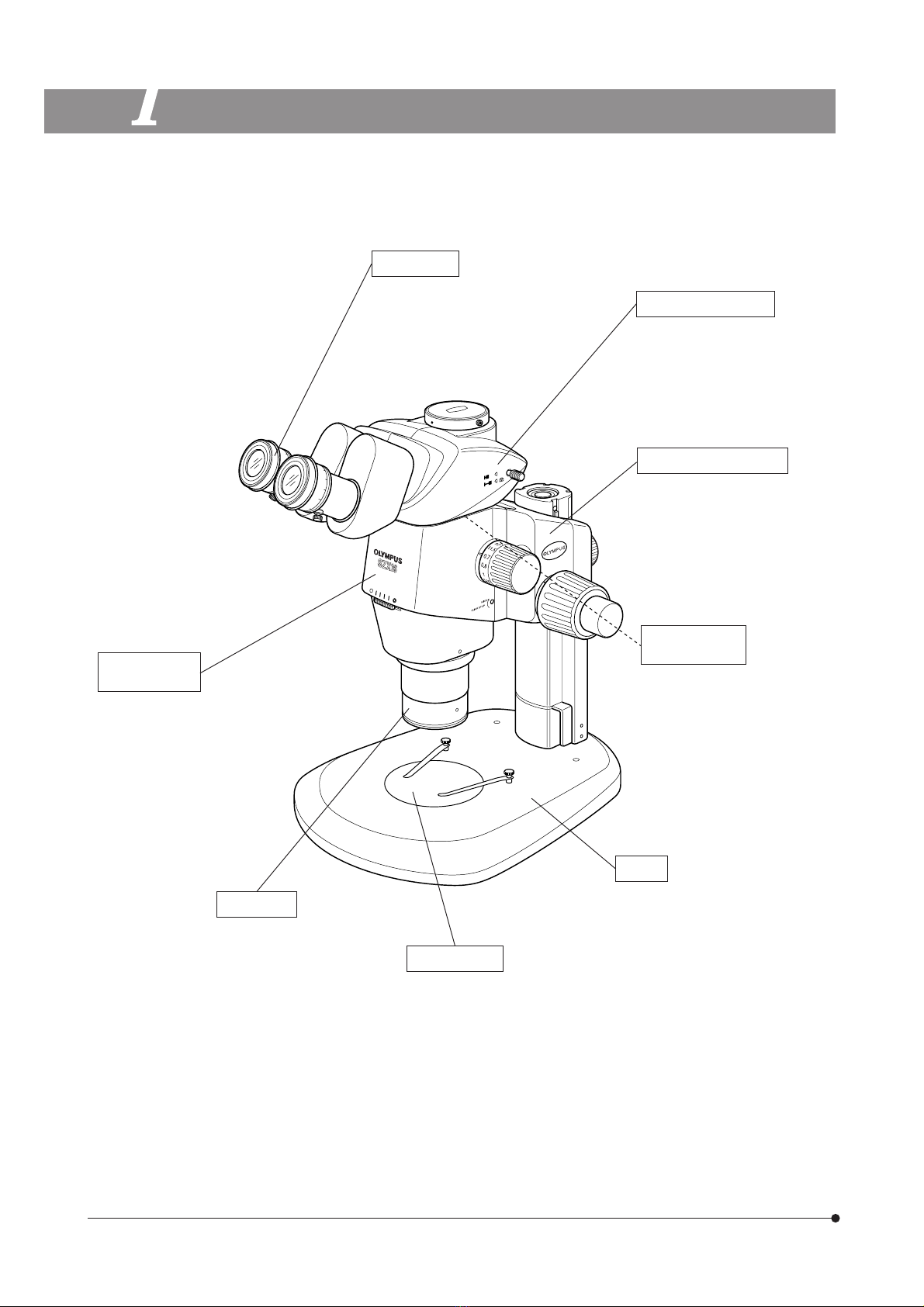

NOMENCLATURE
}The following illustration shows a typical system composed of modules marked with “{” in the list of each module, and
other modules may also be used in place of them. For the modules that are not shown in the module lists below, please
contact Olympus or the latest catalogues.
Microscope
body
{16X zoom microscope
body: SZX2-ZB16
Objective
· SDFPLFL0.3X**
· SDFPLAPO0.5XPF
· SDFPLAPO0.8X
{SDFPLAPO1XPF
· SDFPLAPO1.6XPF
· SDFPLAPO2XPFC
Observation tube
{Trinocular observation
tube: SZX2-TR30/TR30PT
· Tilting trinocular observation
tube: SZX2-TTR/TTRPT
Focusing assembly
· Coarse/fine focusing assembly:
SZX2-FOF
· Focusing assembly: SZX2-FO
{Coarse/fine focusing assembly
for heavy load: SZX2-FOFH
· Motorized focusing assembly:
SZX2-FOA2
Intermediate
attachments
· Coaxial vertical illuminator:
SZX2-ILLC16*
· Beam splitter: SZX2-LBS*
· Vertical fluorescent light
illuminator: SZX2-RFA16*
Base
{Standard base: SZX2-ST**
· Large base: SZX2-STL
· Transmitted light base: SZX2-ILLB*
SZX2-ILLD*
SZX2-ILLK*
SZX2-ILLT*
Stage plate
{Monochrome plate: SZ2-SPBW/SP-BW2
· Glass plate: SP-C
· Fluorescence center plate: SP-FL
*A separate instruction manual is available for the module marked *.
**The standard base (SZX2-ST) requires use of the optional auxiliary pillar (SZH-P400) and optional drop prevention collar
(SZX-R). The large base (SZX2-STL) comes with the auxiliary pillar (SZH-P400) mounted as standard. This enables the
large base to be used as is. However, be sure to use the drop prevention collar (SZX-R) in combination.

SZX16
5
CONTROLS
}If the microscope is not yet assembled, see Chapter 8, “ASSEMBLY” (pages 18 to 21) before the following.
Diopter adjustment ring (P.10)
±5m-1 (per meter)
Eyepiece clamping knob
Aperture iris diaphragm ring (P. 8)
Zoom magnification indication (P. 9)
0.7 to 11.5 (14 indications)
Click stop ON-OFF screw (P. 8)
Engages or disengages the click stop
function for each zoom magnification.
Light path selector knob (P. 12)
Zooming knob
0.7X to 11.5X
Coarse focus adjustment knob
tension adjustment ring (P. 7)
Fine focus adjustment knob
(SZX2-FOF/FOFH)
Stroke: 80 mm
Stroke per turn: 0.77 mm
Coarse focus adjustment knob
Total Stroke: 80 mm
Stroke per turn (SZX2-FOF/FOFH): 36.8 mm
Stroke per turn (SZX2-FO): 21 mm
Specimen holder
Locks the specimen.
Focusing assembly
clamping knob

6

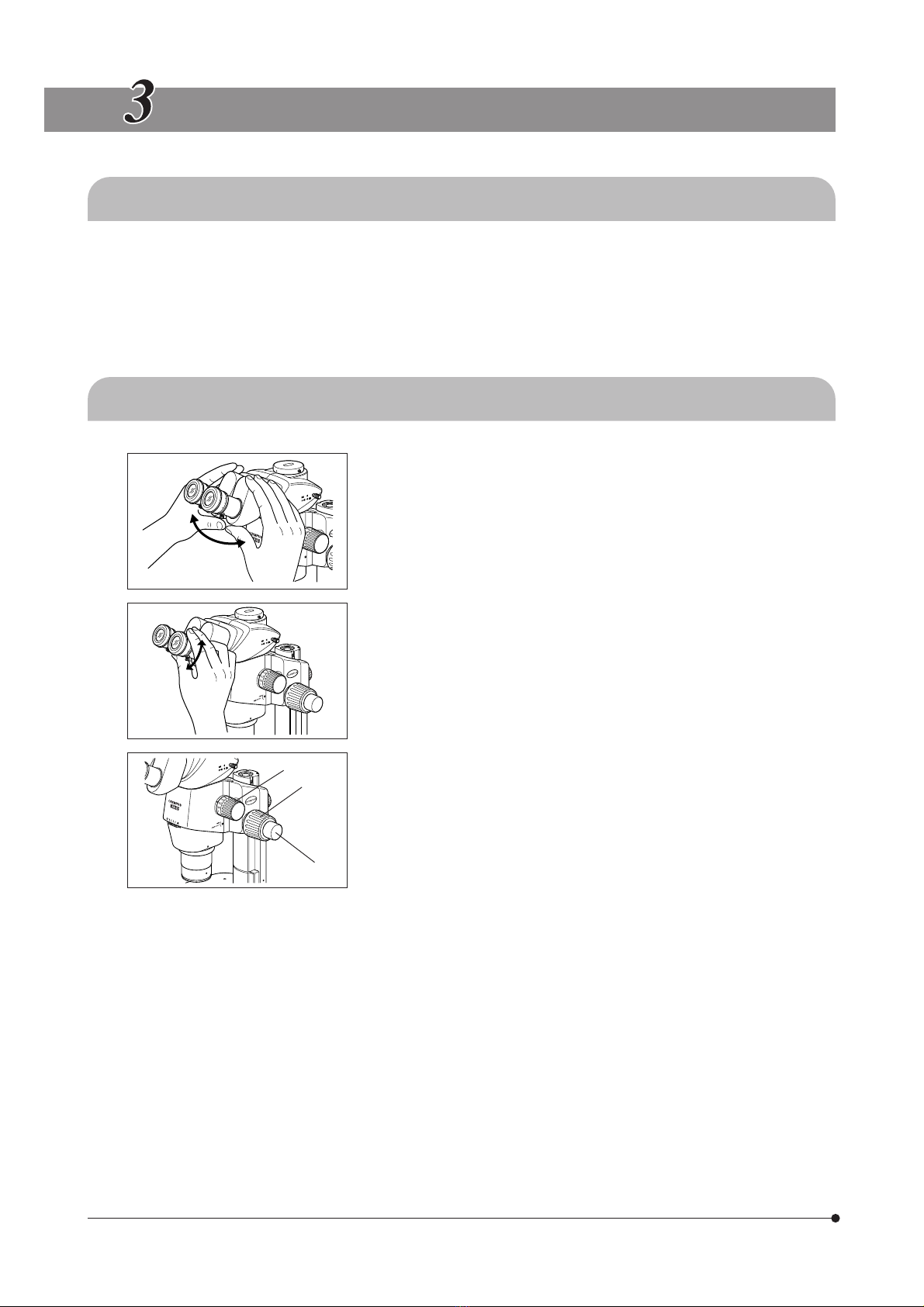

SUMMARY OF OBSERVATION PROCEDURE
3-1 Preparation
Ref. Page
1. Check and tighten the connection of each component, especially the observation tube................................................... (Page 20)
2. Check that the angled formed by the microscope body with respect to the base is less than the
turning-over prevention angle. .................................................................................................................................................................................................................................(Page 19)
3. Adjust the tension of the coarse focus adjustment knob. .................................................................................................................................................. (Page 7)
4. Confirm the correct settings.
3-2 Observation Procedure
1. Place a specimen on the stage. (Page 7)
2. Adjust the interpupillary distance. (Page 10)
3. Make diopter adjustment of the eyepieces. (Page 10)
(The adjustment procedure is variable depending on whether the eyepiece
micrometer disk is used or not.)
4. Set the zooming knob @ to the lowest zoom magnification and bring the
microscope into focus by rotating the coarse focus adjustment knob ².
5. Rotate the zooming knob @ to the desired magnification and precisely
focus the microscope on the specimen with the coarse focus adjustment
knob ² and fine focus adjustment knob ³ (the fine focus adjustment
knob is not provided with the SZX2-FO).
}The contrast of the observed image and the focal depth of the specimen
can be adjusted with the aperture iris diaphragm ring.
²
³
@

SZX16
7
USING THE CONTROLS
4-1 Base
1Using the Stage Plate
In reflected light observation, the stage plate can be placed either the
white or black side facing up.
#Win transmitted light observation, use the transparent glass stage
plate (SP-C).
2Placing the Specimen
1. Place the specimen on the approximate center of the stage plate. Hold
the specimen with the specimen holder as required.
2. Illuminate the specimen with an illuminator selected according to the
specimen under observation.
4-2 Microscope Body and Focusing Assembly
Fig. 4
1Adjusting the Tension of the Coarse
Focus Adjustment Knob (Fig. 4)
}This operation is intended to facilitate the rotation of the knobs while
preventing the spontaneous drop of the microscope body. It is
recommended to set the knob tension to a slightly higher level than the
point where spontaneous drop occurs.
If the knobs are hard to move because of the weight of option modules
and/or TV camera mounted on the microscope body, it is recommended
to use the focusing assembly for heavy load (SZX2-FOFH).
#The tension of the coarse focus adjustment knob can be adjusted
with the tension adjustment ring @. Do not rotate the knobs on the
left and right in opposite directions, for this will damage the internal
mechanism.
1. Rotate the tension adjustment ring @ by inserting the Allen screwdriver
³ into the hole ² on the ring periphery.
Rotating the ring clockwise increases the tension of the coarse focus
adjustment knob, and rotating counterclockwise decreases it.
#If the microscope body falls down by its own weight or the focus
obtained by fine focusing is lost immediately, the tension adjustment
may be too light. In this case, rotate the ring clockwise to increase
the tension.
#If the tension adjustment is too tight, delicate focusing will be
impossible and the knob may be damaged. Particularly, to prevent
damage, never rotate the fine focus adjustment knob quickly while
its tension is extremely tight.
@
³
²

8
Fig. 5
Fig. 6
2Engaging and Disengaging the Zooming
Knob Click Stop Function (Fig. 5)
}When the click stop knob is set to ON, the click stop function is engaged
for each magnification indicated with the zooming knob. When the knob
is set to OFF, the zoom magnification can be varied continuously and
finely near the click groove.
The click stop knob has been set to OFF before the microscope is shipped
from the factory.
}A click stop is provided for each of the 12 intermediate indication positions
of the zoom microscope body.
1. To engage the click stop function, rotate the click stop ON-OFF screw @
fully clockwise (in the direction of the arrow) using the Allen screwdriver.
The zooming knob then stops at every position corresponding to the
magnification indicated on the zoom magnification indication ².
2. To disengage the click stop function, rotate the click stop ON-OFF screw
@ fully by three turns from the ON position, in the direction opposite to
the arrow, using the Allen screwdriver.
#Do not rotate the screw too much, or the cover may be damaged.
3Adjusting the Aperture Iris Diaphragm (Fig. 6)
}Adjusting the aperture iris diaphragm increases the contrast of the
observed image as well as the depth of focus.
However, setting the aperture iris diaphragm too narrowly degrades
resolution.
1. Adjust the aperture iris diaphragm ring @ to the left or right.
Rotating the ring toward the left (\) opens the aperture; rotating it toward
the right ( ) closes it. Adjust while monitoring the observed image to
confirm the contrast and focal depth improvement effects.
#Do not close the aperture too much, for this may cause degradation
in resolution and/or lack of ambient light.
2. Use the scale gradations as references for memorizing the ring position.
#When the microscope is combined with the coaxial vertical illuminator
(SZX2-ILLC16), minimizing the aperture may obscure a part of the
observed field of view. In this case, open the aperture to an intermediate
position.
@
²
@

SZX16
9
Fig. 7
Fig. 8
4Zoom Magnification Indication (Fig. 7)
The body zoom magnification is indicated on the zooming knob on the
right side.
The total magnification of observation can be calculated with the following
formula:
52X Objective Collection Collar (Fig. 8)
}The SDFPLAPO2XPFC objective is provided with a correction collar @ for
use in compensating for the aberration caused due to the observation
medium such as water and plastic container.
When observing a specimen in a liquid or through a petri dish cover, turn
the collar to obtain the optimum contrast.
· Correction is possible for aberration corresponding to water depth of
about 5 mm.
· The correction effect may be less tangible when the zoom magnification
is low or the aperture iris diaphragm is stopped down.
}When using the SZX2-2RE16 revolving nosepiece, hold the objective
during rotation of the ring so that the revolving nosepiece is not deviated
the click position.
@
@
Objective xBody zoom xEyepiece
magnification magnification magnification
Water
depth:
5 mm
or less

10
Fig. 9
Fig. 10
4-3 Observation Tube
1Adjusting the Interpupillary Distance (Fig. 9)
#Be sure to hold the binocular assembly @ with both hands to make
this adjustment.
To prevent damaging the mechanism, do not apply an excessive
force beyond the stop position.
While looking through the eyepieces, hold the left and right of the binocular
assembly @ and adjust the eyepieces by opening or closing them for
binocular vision until the left and right fields of view coincide completely.
2Adjusting the Diopter
(Zoom Parfocal Adjustment) (Fig. 10)
}Ensure that the eyepiece clamping knob @ is tightened before starting
the adjustment.
Adjusting the diopter specific to the two eyes of each observer allows the
parfocality to be ensured across zoom magnifications.
When Not Using the Eyepiece Micrometer Disk
1. Look into the right eyepiece and rotate its diopter adjustment ring ² so
that the peripheral part of the visual field looks sharply.
2. Place an easy-to-observe specimen on the stage plate.
3. Rotate the zooming knob ³ to a low magnification and, looking only into
the right eyepiece, focus the specimen using the coarse and fine focus
adjustment knobs.
4. Rotate the zooming knob ³ to the highest magnification and, looking
only into the right eyepiece, focus the specimen using the coarse and
fine focus adjustment knobs.
5. Rotate the zooming knob ³ to the lowest magnification, look only into
the left eyepiece, and focus the specimen by rotating the left diopter
adjustment ring | instead of the coarse and fine focus adjustment knobs.
When Using the Eyepiece Micrometer Disk
1. Look into the right eyepiece that includes the eyepiece micrometer disk,
and focus the micrometer disk by rotating the diopter adjustment ring ².
2. Place an easy-to-observe specimen on the stage plate.
3. Rotate the zooming knob ³ to the highest magnification and, looking
only into the right eyepiece, focus the specimen using the coarse and
fine focus adjustment knobs.
Ensure that both the eyepiece micrometer disk and specimen are focused
accurately.
4. Rotate the zooming knob ³ to the lowest magnification, , look only into
the left eyepiece, and focus the specimen by rotating the left diopter
adjustment ring | instead of the coarse and fine focus adjustment knobs.
}Note (or memorize) the diopter readings of the left and right eyepiece
scales so that they can be duplicated quickly in the next observation.
@
@
²
³
|

SZX16
11
Fig. 11
Fig. 12
3Using the Eye Shades (Fig. 11)
When Wearing Eyeglasses
Use with eye shades in their normal folded-down position. (This will prevent
eyeglasses from being scratched by the eyepiece.)
When Not Wearing Eyeglasses
Extend the folded eyeshades in the direction of the arrow. This makes
observation easier by preventing the inverse incidence of light from
between the eyepiece and your eyes.
4Using the Eyepiece Micrometer Disk (Fig. 12)
}A variety of eyepiece micrometer disks can be inserted into the WHN10X-
H, WHSZ15X-H and WHSZ20X-H eyepieces.
1. Unscrew the ring @ by turning it counterclockwise to remove it from the
bottom of the eyepiece.
2. Clean the eyepiece micrometer disk ² ( 24 mm, thickness 1.5 mm) to
remove dust and dirt, then place the disk into the ring @ so that the side
with reticule faces downward.
3. Attach the ring @ with the eyepiece micrometer disk ² by gently screwing
it onto the eyepiece.
#The WHSZ20X-H eyepiece is designed to apply a magnification to
the focusing plane of the micrometer disk.
As the magnification coefficient is 1.35, be sure to perform magnification
compensation when using this eyepiece in measurement.
When the micrometer disk is engaged in their light path, the light
path length will extend and the diopter scale may deviate toward
the + direction from the normal indication. However, this does not
pose any problem in actual observation.
}When the eyepiece micrometer disk is not used, wrap it in a clean sheet
of soft paper before storage.
@
²
WHN10X

12
Fig. 13
Fig. 14
5Selecting the Light Path (Fig. 13)
}Pull out the light path selector knob @ to set the light path for the right
eyepiece to the TV/photomicrography light path.
(The following table shows the intensity ratio of each light path in %.)
Light Path Selector Knob Pushed-in Pulled-out
SZX2-TR30
SZX2-TTR
( )
Right Binocular 100% Binocular 50%,
TV/photo 50%
Left Binocular 50%
SZX2-TR30PT
SZX2-TTRPT
( )
Right Binocular 100% TV/photo 100%
Left Binocular 100%
#Always push or pull the light path selector knob @ all the way into a
stop position. Do not attempt to force the knob past the stop position.
Applying excessive force could destroy the mechanism.
6Adjusting the Tilt (Fig. 14)
}Adjust the height and tilt of the observation tube to the most comfortable
viewing position.
Holding the binocular assembly with both hands, raise or lower it to the
desired position.
#Do not attempt to force the binocular assembly past the upper or
lower stop position. Applying excessive force could destroy the
mechanism.
@

SZX16
13
Fig. 15
4-4 TV Observation and Photomicrography
A TV camera and/or digital camera unit can be mounted on the straight tube mount of the trinocular tube by means of
the TV adapter and/or camera mount adapter*.
*The camera mount adapter is not necessary if a TV adapter equipped with a camera mount is used.
For details, please also read the instruction manuals for the TV adapter and digital camera.
1Selecting the TV Adapter Magnification
Set the magnification of the TV adapter according to the size of the CCD in the TV camera or digital camera.
(Example) The following figures show the TV observation/photomicrography areas when the WHN10X eyepieces with FN
22 are used.
1 in. CCD
2/3 in. CCD
1/2 in. CCD
WHN10X
FN 22
When the 0.5X TV adapter is used When the 1X TV adapter is used
2Mounting the TV Adapter (Fig. 15)
1. Using the Allen screwdriver, fully loosen the straight tube clamping screw
@ of the straight tube mount on the top of the trinocular tube.
2. Fit the round dovetail ² of the TV adapter into the straight tube mount of
the trinocular tube, and tighten the clamping screw @.
3. Mount the TV camera on the TV adapter. A camera mount adapter may
be required with certain TV adapters.
3Selecting the TV Camera Light Path (Fig. 15)
Pull out the light path selector knob ³ to select the Binocular 50%/TV &
Photo 50% light path setting for the SZX2-TR30/TTR or the TV & Photo
100% light path setting for the SZX2-TR30PT/TTRPT.
@
²³

14
TROUBLESHOOTING GUIDE
Under certain conditions, performance of this unit may be adversely affected by factors other than defects. If a problem
occurs, please review the following list and take remedial action as needed. If you cannot solve the problem after
checking the entire list, contact Olympus.
Problem Cause Remedy Page
1. The left and right fields of view
do not coincide.
The interpupillary distance is adjusted
improperly.
Adjust it correctly. 10
The diopter is adjusted incorrectly. Adjust it correctly. 10
The left and right eyepieces are different. Use a pair of matched eyepieces. 21
2. The field of view is obscured
partially or illuminated
unevenly.
The aperture iris diaphragm is stopped
down excessively.
Open the aperture iris diaphragm. 8
The trinocular observation tube and/or
intermediate attachments are installed
improperly.
Mount them properly.
20
The light path selector knob is in an in-
termediate position.
Set it correctly to the desired position. 12
3. The monitor image is cut off
partially.
The light path selector knob is pulled out
incompletely.
Pull it out all the way.
4. Dirt or dust is visible in the field
of view.
Dirt/dust on the specimen.
5. Details of observed image are
solid.
Clean thoroughly.
Dirt/dust on eyepiece.
The aperture iris diaphragm is stopped
down excessively.
Open the aperture to a proper diameter.
6. Visibility of observed image is
poor.
· Image is not sharp.
· Contrast is insufficient.
The objective is tilted. Screw it correctly until it stops.
The objective is dirty. Clean thoroughly.
The top and/or bottom lenses of the mi-
croscope body are dirty.
The bottom lens of the observation tube
is dirty.
7. Zooming causes defocusing
of the observed image.
The eyepiece diopter is adjusted improperly. Adjust it correctly.
The focus adjustment is in accurate. Adjust focus at a high magnification.
8. The coarse focus adjustment
knob does not rotate smoothly.
The rotation tension of the knob is set
too high.
Decrease the rotation tension to an opti-
mum level.
9. The microscope body drops
spontaneously, causing the
focusing to be deviated during
observation.
The rotation tension of the coarse focus
adjustment knob is set too low.
Increase the rotation tension to an opti-
mum level.
The microscope body dropped spontaneously
because the weight exceeded 10 kg.
Use a focusing assembly withstanding
heavy loads. (SZX2-FOF: 2.7 to 15 kg. SZX2-
FOFH: 8 to 25 kg.)
Clean thoroughly.
12
3
3
8
20
3
10
10
7
7
15

15
SZX16
SPECIFICATIONS
Item Specifications
1. Zoom microscope body
· SZX2-ZB16
Left/right zoom magnification system.
Zoom drive system: Horizontal knob.
Click stop ON-OFF switchable per zoom magnification.
Zoom ratio: 16.4 (0.7X to 11.5X)
Magnification indications: 14 indications. 0.7, 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10,
11.5.
Objective mount: Threaded mount
Built-in aperture iris diaphragm.
2. Focusing assembly
· SZX2-FOFH
· SZX2-FOF
· SZX2-FO
SZX2-FOFH SZX2-FOF SZX2-FO
Focusing system: Rack & pinion roller guide
(with coarse focus adjustment knob tension adjustment ring).
Built-in gas spring counter
balance.
Coaxial coarse/fine focus
adjustment knobs.
Built-in counter balance.
Coaxial coarse/fine focus
adjustment knobs.
–––
Coarse focus adjustment
knob only.
Coarse focus adjustment knob stroke: 80 mm
Coarse knob stroke per turn: 36.8 mm Coarse knob stroke per turn
: 21 mm
Fine focus adjustment knob stroke: 80 mm
Fine knob stroke per turn: 0.77 mm
Load: 8 to 25 kg
–––
Load: 2.7 to 15 kg Max. load: 10 kg
3. Observation tube
· SZX2-TR30
· SZX2-TR30PT
· SZX2-TTR
· SZX2-TTRPT
SZX2-TR30 SZX2-TR30PT SZX2-TTR SZX2-TTRPT
Trinocular observation tube. Tilting binocular observation tube
Tube inclination: 30° Tube inclination: 5° to 45°
Light path selection:
2 steps.
(Bi 100%, Bi 50% +
TV/photo 50%)
Light path selection:
2 steps.
(Bi 100%, TV/photo
100%)
Light path selection:
2 steps.
(Bi 100%, Bi 50% +
TV/photo 50%)
Light path selection:
2 steps.
(Bi 100%, TV/photo
100%)
Interpupillary distance adjustment: 51 to 76 mm.
Eyepiece clamping knobs provided.
Eyepieces: WHN10X-H, WHSZ15X-H/20X-H/30X-H
4. Standard base
· SZX2-ST
Pillar support sleeve height: 270 mm.
Base dimensions: 284(W) x 335(D) x 31(H) mm.
Specimen holder attachable.
With stage adapter mounting holes.
5. Large base
· SZX2-STL
Pillar height: 400 mm.
Base dimensions: 400(W) x 350(D) x 28(H) mm.
Specimen holder attachable.
With stage adapter mounting holes.
Drop prevention collar: Optional SZX-R.

16
Item Specifications
6. Objectives
WD: Working distance
PF: Parfocal lens
*Auxiliary pillar is required when the
SZX2-ST is used.
SDFPLFL0.3X WD 141 mm*
SDFPLAPO0.5XPF WD 70.5 mm
SDFPLAPO0.8X WD 81 mm
SDFPLAPO1XPF WD 60 mm
SDFPLAPO1.6XPF WD 30 mm
SDFPLAPO2XPFC WD 20 mm
7. Eyepieces
** 24 mm dia., 15 mm thick eyepiece
micrometer disk can be inserted.
(Note) The micrometer area outside the
FN is invisible.
**WHN10X-H FN 22, diopter adjustment ring provided.
**WHSZ15X-H FN 16, diopter adjustment ring provided.
**WHSZ20X-H FN 12.5, diopter adjustment ring provided.
WHSZ30X-H FN 7, diopter adjustment ring provided.
8. Operating environment · Indoor use.
· Altitude: Max. 2,000 m.
· Ambient temperature: 5°C to 40°C. (41°F to 104°F)
· Maximum relative humidity 80% for temperatures up to 31°C (88°F), decreasing
linearly through 70% (at 34°C), 60% (at 37°C) to 50% (at 40°C).
