Omron SYSMAC C200H User manual

Cat.No. W124–E1–5
Temperature Sensor Unit
SYSMAC
C200H
OPERATION MANUAL

C200H Temperature Sensor Unit
Operation Manual
Revised April 2000

!
!
!
v
Notice:
OMRON products are manufactured for use according to proper procedures by a qualified operator
and only for the purposes described in this manual.
The following conventions are used to indicate and classify precautions in this manual. Always heed
the information provided with them. Failure to heed precautions can result in injury to people or dam-
age to property.
DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
Caution Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury, or property damage.
OMRON Product References
All OMRON products are capitalized in this manual. The word “Unit”is also capitalized when it refers
to an OMRON product, regardless of whether or not it appears in the proper name of the product.
The abbreviation “Ch,”which appears in some displays and on some OMRON products, often means
“word”and is abbreviated “Wd”in documentation in this sense.
The abbreviation “PC”means Programmable Controller and is not used as an abbreviation for any-
thing else.
Visual Aids
The following headings appear in the left column of the manual to help you locate different types of
information.
Note Indicates information of particular interest for efficient and convenient operation
of the product.
1, 2, 3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.
OMRON, 1989
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any
form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permis-
sion of OMRON.
No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is
constantly striving to improve its high-quality products, the information contained in this manual is subject to change
without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the informa-
tion contained in this publication.

vii
TABLE OF CONTENTS
PRECAUTIONS xi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Intended Audience xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 General Precautions xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Safety Precautions xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Operating Environment Precautions xiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Application Precautions xiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1
Introduction 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1 Nomenclature and Features 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 System Configuration 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2
Wiring 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1 Setup 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 3
I/O Allocation 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1 Word Allocation 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-2 Bit Allocation 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 4
Settings and Displays 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1 Temperature Specification Settings 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-2 Temperature Data Display 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendices
A. Troubleshooting 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
B. Standard Models 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C. Specifications 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D. Table of Temperature-Sensing Elements 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E. Using the C200H Temperature Sensor Unit with CS1-series PCs 37. . . . . . . . . . . . . . . . . . .
Glossary 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Index 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Revision History 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ix
About this Manual:
This manual describes the installation and operation of the C200H Temperature Sensor Unit and includes
the sections described below.
Please read this manual carefully and be sure you understand the information provided before attempting
to install and operate the C200H Temperature Sensor Unit.
Section 1 provides an introduction to the C200H Temperature Sensor Unit and includes details on no-
menclature and functions as well as the system configuration.
Section 2 explains the wiring procedure required when setting up the Unit.
Section 3 gives details on the word and bit allocations for the Unit.
Section 4 explains how to make temperature settings and how to read the display.
Appendices, a Glossary, and an Index are also included.
WARNING Failure to read and understand the information provided in this manual may result in
personal injury or death, damage to the product, or product failure. Please read each
section in its entirety and be sure you understand the information provided in the section
and related sections before attempting any of the procedures or operations given.
!

xi
PRECAUTIONS
This section provides general precautions for using the C200H Temperature Sensor Unit and related devices.
The information contained in this section is important for the safe and reliable application of the C200H Temperature
Sensor Unit. You must read this section and understand the information contained before attempting to set up or oper-
ate the C200H Temperature Sensor Unit.
1 Intended Audience xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 General Precautions xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Safety Precautions xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Operating Environment Precautions xiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Application Precautions xiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

!
!
!
!
!
3Safety Precautions
xii
1 Intended Audience
This manual is intended for the following personnel, who must also have knowl-
edge of electrical systems (an electrical engineer or the equivalent).
•Personnel in charge of installing FA systems.
•Personnel in charge of designing FA systems.
•Personnel in charge of managing FA systems and facilities.
2 General Precautions
The user must operate the product according to the performance specifications
described in the relevant manuals.
Before using the product under conditions which are not described in the manual
or applying the product to nuclear control systems, railroad systems, aviation
systems, vehicles, combustion systems, medical equipment, amusement ma-
chines, safety equipment, and other systems, machines, and equipment that
may have a serious influence on lives and property if used improperly, consult
your OMRON representative.
Make sure that the ratings and performance characteristics of the product are
sufficient for the systems, machines, and equipment, and be sure to provide the
systems, machines, and equipment with double safety mechanisms.
This manual provides information for programming and operating the Unit. Be
sure to read this manual before attempting to use the Unit and keep this manual
close at hand for reference during operation.
WARNING It is extremely important that a PC and all PC Units be used for the specified
purpose and under the specified conditions, especially in applications that can
directly or indirectly affect human life. You must consult with your OMRON
representative before applying a PC system to the above-mentioned
applications.
3 Safety Precautions
WARNING Do not attempt to take any Unit apart while the power is being supplied. Doing so
may result in electric shock.
WARNING Do not touch any of the terminals or terminal blocks while the power is being
supplied. Doing so may result in electric shock.
WARNING Do not attempt to disassemble, repair, or modify any Units. Any attempt to do so
may result in malfunction, fire, or electric shock.
WARNING Provide safety measures in external circuits (i.e., not in the Programmable
Controller), including the following items, in order to ensure safety in the system
if an abnormality occurs due to malfunction of the PC or another external factor
affecting the PC operation. Not doing so may result in serious accidents.
•Emergency stop circuits, interlock circuits, limit circuits, and similar safety
measures must be provided in external control circuits.
•The PC will turn OFF all outputs when its self-diagnosis function detects any
error or when a severe failure alarm (FALS) instruction is executed. As a coun-
termeasure for such errors, external safety measures must be provided to en-
sure safety in the system.

!
!
!
!
5Application Precautions
xiii
•The PC outputs may remain ON or OFF due to deposition or burning of the
output relays or destruction of the output transistors. As a countermeasure for
such problems, external safety measures must be provided to ensure safety in
the system.
•When the 24-VDC output (service power supply to the PC) is overloaded or
short-circuited, the voltage may drop and result in the outputs being turned
OFF. As a countermeasure for such problems, external safety measures must
be provided to ensure safety in the system.
4 Operating Environment Precautions
Caution Do not operate the control system in the following locations:
•Locations subject to direct sunlight.
•Locations subject to temperatures or humidity outside the range specified in
the specifications.
•Locations subject to condensation as the result of severe changes in tempera-
ture.
•Locations subject to corrosive or flammable gases.
•Locations subject to dust (especially iron dust) or salts.
•Locations subject to exposure to water, oil, or chemicals.
•Locations subject to shock or vibration.
Caution Take appropriate and sufficient countermeasures when installing systems in the
following locations:
•Locations subject to static electricity or other forms of noise.
•Locations subject to strong electromagnetic fields.
•Locations subject to possible exposure to radioactivity.
•Locations close to power supplies.
Caution The operating environment of the PC system can have a large effect on the lon-
gevity and reliability of the system. Improper operating environments can lead to
malfunction, failure, and other unforeseeable problems with the PC system. Be
sure that the operating environment is within the specified conditions at installa-
tion and remains within the specified conditions during the life of the system.
5 Application Precautions
Observe the following precautions when using the PC system.
WARNING Always heed these precautions. Failure to abide by the following precautions
could lead to serious or possibly fatal injury.
•Always ground the system to 100 Ωor less when installing the Units. Not con-
necting to a ground of 100 Ωor less may result in electric shock.
•Always turn OFF the power supply to the PC before attempting any of the fol-
lowing. Not turning OFF the power supply may result in malfunction or electric
shock.
•Mounting or dismounting I/O Units, CPU Units, Memory Units, or any other
Units.
•Assembling the Units.
•Setting DIP switches or rotary switches.
•Connecting cables or wiring the system.
•Connecting or disconnecting the connectors.

!
5Application Precautions
xiv
Caution Failure to abide by the following precautions could lead to faulty operation of the
PC or the system, or could damage the PC or PC Units. Always heed these pre-
cautions.
•Fail-safe measures must be taken by the customer to ensure safety in the
event of incorrect, missing, or abnormal signals caused by broken signal lines,
momentary power interruptions, or other causes.
•Always use the power supply voltages specified in this manual. An incorrect
voltage may result in malfunction or burning.
•Take appropriate measures to ensure that the specified power with the rated
voltage and frequency is supplied. Be particularly careful in places where the
power supply is unstable. An incorrect power supply may result in malfunction.
•Install external breakers and take other safety measures against short-circuit-
ing in external wiring. Insufficient safety measures against short-circuiting may
result in burning.
•Do not apply voltages to the Input Units in excess of the rated input voltage.
Excess voltages may result in burning.
•Do not apply voltages or connect loads to the Output Units in excess of the
maximum switching capacity. Excess voltage or loads may result in burning.
•Disconnect the functional ground terminal when performing withstand voltage
tests. Not disconnecting the functional ground terminal may result in burning.
•Be sure that all the mounting screws, terminal screws, and cable connector
screws are tightened to the torque specified in this manual. Incorrect tighten-
ing torque may result in malfunction.
•Leave the label attached to the Unit when wiring. Removing the label may re-
sult in malfunction if foreign matter enters the Unit.
•Remove the label after the completion of wiring to ensure proper heat dissipa-
tion. Leaving the label attached may result in malfunction.
•Double-check all wiring and switch settings before turning ON the power sup-
ply. Incorrect wiring may result in burning.
•Wire correctly. Incorrect wiring may result in burning.
•Mount Units only after checking terminal blocks and connectors completely.
•Be sure that the terminal blocks, Memory Units, expansion cables, and other
items with locking devices are properly locked into place. Improper locking
may result in malfunction.
•Check the user program for proper execution before actually running it on the
Unit. Not checking the program may result in an unexpected operation.
•Confirm that no adverse effect will occur in the system before attempting any of
the following. Not doing so may result in an unexpected operation.
•Changing the operating mode of the PC.
•Force-setting/force-resetting any bit in memory.
•Changing the present value of any word or any set value in memory.
•Resume operation only after transferring to the new CPU Unit the contents of
the DM Area, HR Area, and other data required for resuming operation. Not
doing so may result in an unexpected operation.
•Do not pull on the cables or bend the cables beyond their natural limit. Doing
either of these may break the cables.
•Do not place objects on top of the cables or other wiring lines. Doing so may
break the cables.
•Use crimp terminals for wiring. Do not connect bare stranded wires directly to
terminals. Connection of bare stranded wires may result in burning.
•When replacing parts, be sure to confirm that the rating of a new part is correct.
Not doing so may result in malfunction or burning.

5Application Precautions
xv
•Before touching a Unit, be sure to first touch a grounded metallic object in order
to discharge any static built-up. Not doing so may result in malfunction or dam-
age.

1
SECTION 1
Introduction
1-1 Nomenclature and Features 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 System Configuration 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2
1-1 Nomenclature and Features
The Temperature Sensor Unit detects temperatures and sends the resultant
BCD (Binary Coded Decimal) data to the PC (Programmable Controller). This
data can be further manipulated and transferred to other I/O Units for ex-
tended system control.
The C200H Temperature Sensor Unit is available in four models. The
C200H-TS001/002 are for use with thermocouples, and can be used with K
(CA), J (IC) and L (Fe-CuNi) thermocouples. The C200H-TS101/102 are for
use with platinum resistance sensors.
The Unit has the following components:
Front Panel
Indicator
panel
Unit no.
selector
Input terminal
block. Refer to
Section 2 Wiring
for details.
Cold- junction
compensating
resistor
C200H-TS001/002
(Thermocouple) C200H-TS101/102 (Platinum RTD)
Indicator
panel
Unit no.
selector
Input termi-
nal block.
Refer to
Section 2
Wiring for
details.
Unit Number Selector
(7)
(9)
(5)
(1) (3)
0
8
6
4
2
The arrow on the selector indicates the unit number. Use a standard screw-
driver to rotate the switch and set the desired unit number. Be sure to set dif-
ferent unit numbers from those of other Special I/O Units connected to the
same PC. Otherwise, an “I/O Unit Over” error is generated and the Unit will
not operate properly. IR word numbers are assigned as shown in the follow-
ing table.
Nomenclature and Features Section 1-1

3
Unit no. IR word
0100 through 109
1110 through 119
2120 through 129
3130 through 139
4140 through 149
5150 through 159
6160 through 169
7170 through 179
8180 through 189
9190 through 199
Indicator panel There are two LEDs in the indicator panel, which function as follows:
Indicator Color Function
RUN Green Lit during normal operation. Unlit during errors.
BROKEN
WIRE Red Lit when input is disconnected. Blinks when data is outside of set range.
DIP Switch Setting
C200H-TS001/002
1234ON
2
0
1 No. of Input Points
0 0 4 input points (Inputs
1 through 4)
01
10
11
1 input point (Input 1)
2 input points (Inputs
1 and 2)
Not Used
3 Function
Either K (CA) (0°through 400°C), J
(IC) (0°through 300°C), or L (Fe-
CuNi) (0°through 300°C). Once this
pin has been set to ON, this setting
becomes invalid and the tempera-
ture must be set through the PC
program.
1 Set the temperature depending on
PC program.
4
0
1
Function
K ( CA)
J (IC), L(Fe-
CuNi)
OFF: 0
ON: 1
Number of Input Points Temperature Selector Sensor Selector
All switches are OFF before shipment from the factory.
The temperature specifications must be set identically for all four points.
These points cannot be used for different thermocouples or with different
temperature specifications.

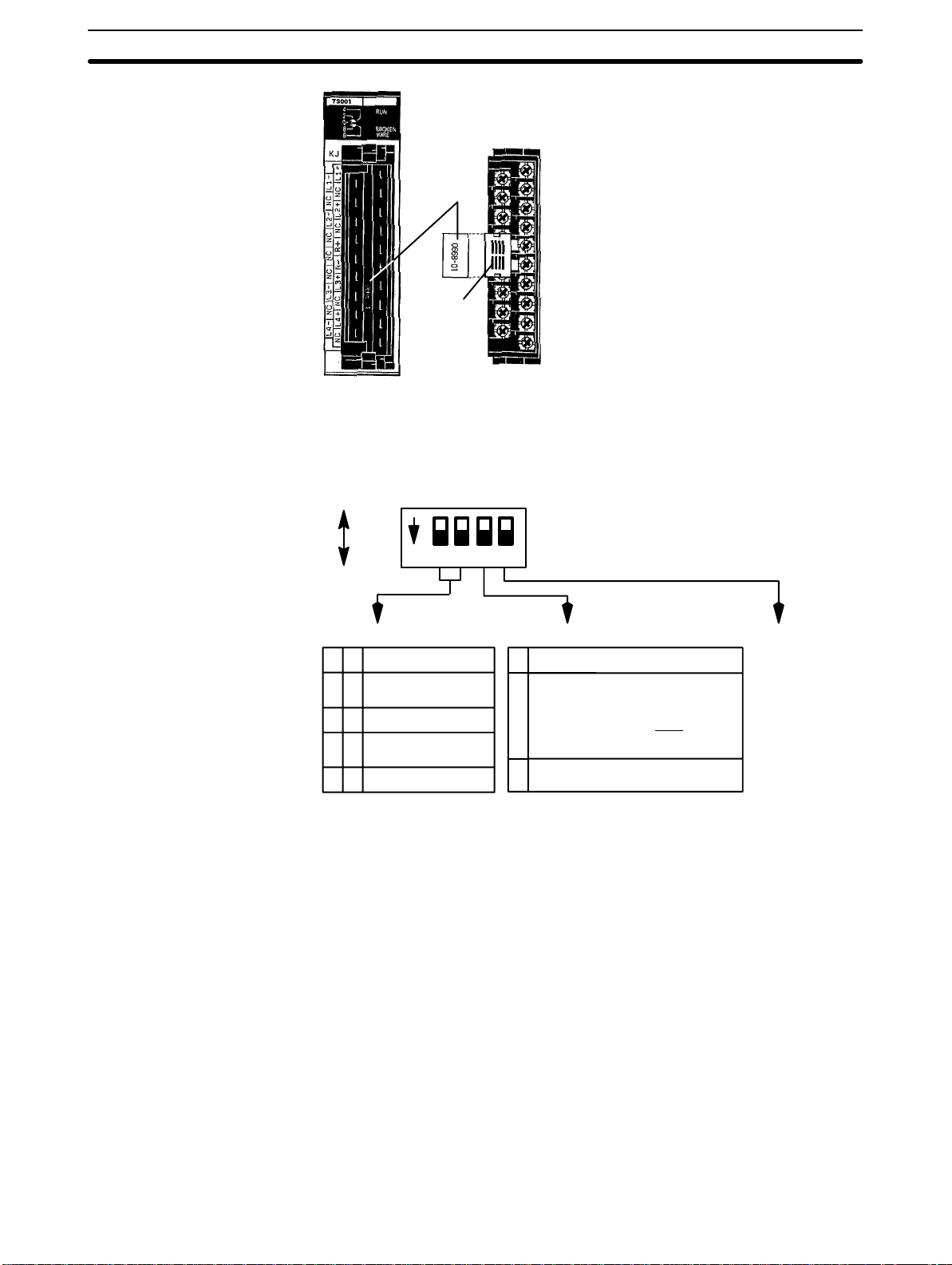

The cold-junction compensating resistor connected to the C200H-TS001/002
terminal block (for the thermocouple) has been preset to the Unit’s internal
circuits. Do not remove or replace it. If it is necessary to remove it, when
reattaching, confirm that the number marked on the resistor matches the
number on the Unit, as shown in the following diagram. The output tempera-
ture data may be incorrect if the numbers do not match.
Nomenclature and Features Section 1-1

4
Terminal
block
Cold-junc-
tion com-
pensating
resistor
These two
numbers
must
match
DIP Switch Setting
C200H-TS101/102
1234ON
2
0
1 No. of Input Points
0 0 4 input points (Inputs
1 through 4)
01
10
11
1 input point (Input 1)
2 input points (Inputs
1 and 2)
Not Used
3 Function
J Pt (0°through 100°C)/Pt (0°
through 100°C). Once this pin is set
to ON, this setting becomes invalid
and the temperature must be set
through the PC program.
1 Set the temperature depending on
PC program.
OFF: 0
ON: 1
Number of Input Points Temperature Selector Not Used
All switches are set to OFF before shipment from the factory.
1-2 System Configuration
The Special I/O Units are not allocated the word number of the slot they are
mounted to. They are allocated word numbers according to the unit number
setting on the front panel (refer to page 2).
If possible, avoid mounting the Temperature Sensor Units in either of the two
rightmost CPU Rack slots. However, if this is unavoidable, use one of the
Programming Console Base Units (C200H-BP001 or C200H-BP002) when
mounting peripheral devices to the PC.
No Special I/O Units can be mounted on a C200H Slave Rack connected to a
Master on a PC other than a C200H.
The thermocouple or RTD registers the temperature and sends the data
through the Temperature Sensor Unit to the PC in 4-digit BCD. After the PC
processes this data, the data can be output to a display, or used for control-
ling system devices.
System Configuration Section 1-2
