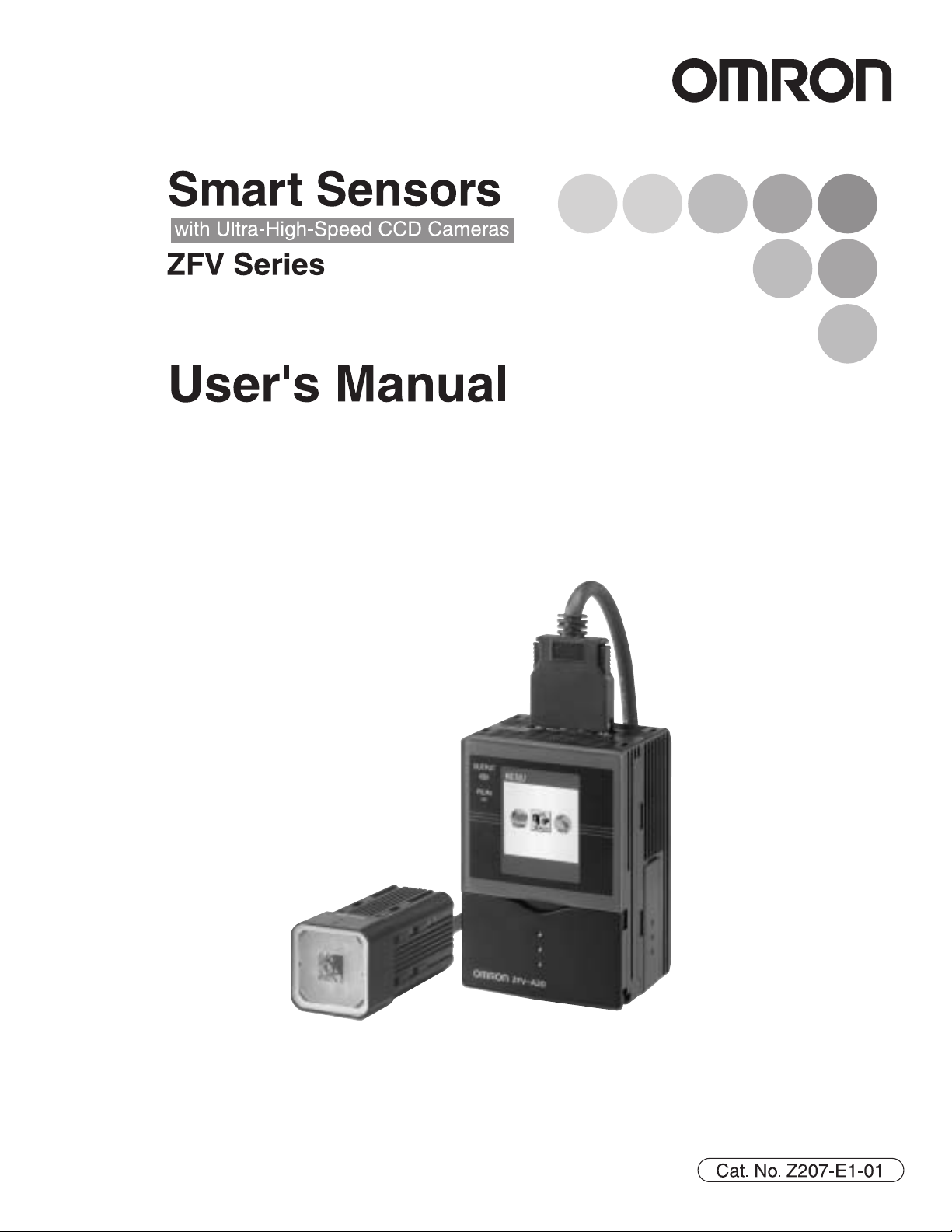

Cat. No. Z207-E1-01
USER MANUAL
Smart Sensors
ZFV Series
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

䈲 䈛 䉄䈮 ╙㩷㪈㩷┨ ╙㩷㪉㩷┨ ╙㩷㪊㩷┨ ╙㩷㪋㩷┨
Introduction
Section 1 Section 2 Section 3 Section 4
INTRODUCTION
SECTION 1
SECTION 2
SECTION 3
SECTION 4
╙㩷㪍㩷┨
User’s Manual
Smart Sensors
with Ultra-high-speed CCD Camera
ZFV Series
APPLICATION CONSIDERATIONS (Please read first)
FEATURES
INSTALLATION & CONNECTION
SETUP
APPENDIX
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2
Introduction
ZFV
User’s Manual
Introduction
READ AND UNDERSTAND THIS DOCUMENT
Please read and understand this document before using the products. Please consult your OMRON
representative if you have any questions or comments.
WARRANTY
OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for
a period of one year (or other period if specified) from date of sale by OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING
NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE
PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR
INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY
OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE
PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR
STRICT LIABILITY.
In no event shall responsibility of OMRON for any act exceed the individual price of the product on which
liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS
REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS
WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO
CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
SUITABILITY FOR USE
OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to
the combination of products in the customer’s application or use of the product.
At the customer’s request, OMRON will provide applicable third party certification documents identifying
ratings and limitations of use that apply to the products. This information by itself is not sufficient for a
complete determination of the suitability of the products in combination with the end product, machine,
system, or other application or use.
The following are some examples of applications for which particular attention must be given. This is not
intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the
uses listed may be suitable for the products:
• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or
uses not described in this document.
• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical
equipment, amusement machines, vehicles, safety equipment, and installations subject to separate
industry or government regulations.
• Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3
ZFV
User’s Manual
Introduction
Introduction
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR
PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED
FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PERFORMANCE DATA
Performance data given in this document is provided as a guide for the user in determining suitability and
does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users
must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.
CHANGE IN SPECIFICATIONS
Product specifications and accessories may be changed at any time based on improvements and other
reasons.
It is our practice to change model numbers when published ratings or features are changed, or when
significant construction changes are made. However, some specifications of the product may be
changed without any notice. When in doubt, special model numbers may be assigned to fix or establish
key specifications for your application on your request. Please consult with your OMRON representative
at any time to confirm actual specifications of purchased products.
DIMENSIONS AND WEIGHTS
Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when
tolerances are shown.
ERRORS AND OMISSIONS
The information in this document has been carefully checked and is believed to be accurate; however, no
responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.
PROGRAMMABLE PRODUCTS
OMRON shall not be responsible for the user’s programming of a programmable product, or any
consequence thereof.
COPYRIGHT AND COPY PERMISSION
This document shall not be copied for sales or promotions without permission.
This document is protected by copyright and is intended solely for use in conjunction with the product.
Please notify us before copying or reproducing this document in any manner, for any other purpose. If
copying or transmitting this document to another, please copy or transmit it in its entirety.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

4
Introduction
ZFV
User’s Manual
Introduction
Precautions for Safe Use
Please observe the following precautions for safe use of the products.
(1) Installation Environment
• Do not use the product in environments where it can be exposed to inflammable/
explosive gas.
• Install the Amplifier Unit in such a way that the ventilation holes are not blocked.
• To secure the safety of operation and maintenance, do not install the product close to
high-voltage devices and power devices.
• During installation, make sure that screws are tightened firmly.
(2) Power Supply and Wiring
• The supply voltage must be within the rated range (DC24V±10%).
• Reverse connection of the power supply is not allowed.
• Open-collector outputs should not be short-circuited.
• Use the power supply within the rated load.
• High-voltage lines and power lines must be wired separately from this product. Wiring
them together or placing them in the same duct may cause induction, resulting in mal-
function or damage.
(3) Others
• During installation, make sure that screws are tightened firmly.
• Do not attempt to dismantle, repair, or modify the product.
• Dispose of this product as industrial waste.
• Should you notice any abnormalities, immediately stop use, turn OFF the power sup-
ply, and contact your OMRON representative.
Precautions for Safe Use
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

5
ZFV
User’s Manual
Introduction
Introduction
Precautions for Correct Use
Please observe the following precautions to prevent failure to operate, malfunctions, or
undesirable effects on product performance.
(1) Installation Site
Do not install the product in locations subjected to the following conditions:
• Ambient temperature outside the rating
• Rapid temperature fluctuations (causing condensation)
• Relative humidity outside the range of 35 to 85%
• Presence of corrosive or flammable gases
• Presence of dust, salt, or iron particles
• Direct vibration or shock
• Reflection of intense light (such as other laser beams or electric arc-welding
machines)
• Direct sunlight or near heaters
• Water, oil, or chemical fumes or spray
• Strong magnetic or electric field
(2) Power Supply and Wiring
• When using a commercially available switching regulator, make sure that the FG ter-
minal is grounded.
• If surge currents are present in the power lines, connect surge absorbers that suit the
operating environment.
• Before turning ON the power after the product is connected, make sure that the power
supply voltage is correct, there are no incorrect connections (e.g. load short-circuit)
and the load current is appropriate. Incorrect wiring may result in breakdown of the
product.
• Before connecting/disconnecting the Sensor Head, make sure that the Smart Sensor
is turned OFF. The Smart Sensor may break down if the Sensor Head is connected or
disconnected while the power is ON.
• Use only combinations of Sensor Heads and Sensor Controllers specified in this man-
ual.
• Do not turn the power OFF in the following instances
-Immediately after the MENU mode or ADJ mode is switched to the RUN mode
-During startup in the RUN mode
-Wait for the ENABLE signal to turn ON before turning the power OFF as the bank
data may be initialized.
Precautions for Correct Use
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6
Introduction
ZFV
User’s Manual
Introduction
Precautions for Correct Use
(3) Orientation when Installing the Amplifier Unit
(4) Maintenance and Inspection
• Do not use thinner, benzene, acetone or kerosene to clean the Sensor Head and
Amplifier Unit.
• If large dust particles adhere to the front Panel of the Sensor Head, use a blower
brush (used to clean camera lenses) to blow them off. Do not blow the dust particles
with your mouth.
• To remove smaller dust particles, wipe gently with a soft cloth. Do not use excessive
force to wipe off dust particles. Scratches on the front Panel may cause errors.
(5) Optical Axis and Detection Range
The center of the guide light and detection range are for reference only.
The center of the optical axis sometimes differs according to each Sensor Head. Dur-
ing installation, be sure to check the center of the image and the detection range on the
LCD monitor of the Amplifier Unit.
(6) Ventilation Film
• Do not peel off or probe the ventilation film with a sharp-pointed object. If you so, the
specifications of the protective structure may no longer be satisfied.
• Do not block the ventilation film. Doing so might cause the front panel to be con-
densed.
Right
Wrong Wrong
To improve heat radiation, install the Amplifier Unit only in the
orientation shown below.
Do not install the Amplifier Unit in the following orientations.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

7
ZFV
User’s Manual
Introduction
Introduction
Precautions for Correct Use
Editor's Note
Page Format
60
Section 3 SETUP
ZFV
User’s Manual
Section 3
Setting Banks
Setting Banks
The ZFV Series can hold up to eight sets of settings. These settings can be switched
externally when changing the device setup
A set of these settings is called a “bank.”
Switching banks
BANK 1 is selected as the default. BANK 2 and 8 are also available.
MENU mode-[BANK]
Copying banks
Copy the settings of other bank numbers to an already selected bank number.
MENU Mode-[SYS1]-[BANKSET]-[COPY]
Clearing banks
“Clearing” deletes the settings of the currently selected bank number.
MENU Mode-[SYS1]-[BANKSET]-[CLEAR]
Setting the bank switching method
Select how to switch banks.
MENU Mode-[SYS1]-[BANKSET]-[SWITCH]
Setting Description
BANK 1~BANK 8
(default value: BANK 1)
Selects the target bank.
Setting Description
KEY (default value) Banks are switched by the control keys on Amplifier Unit.
I/O Banks are switched by the control keys on Amplifier Unit and input lead sig-
nals.
Switching by input lead signals is enabled only in the RUN mode.
BANKs can also be switched from an external device.
Setting the bank switching method p.60
[SYS1], [SYS2] settings and RUN Mode display settings cannot be cleared.
Header
Overview
Cross-header
Title of each section
Index label
Movement through
menus up to setting
items
Supplementary Explanation
㪟㪼㫃㫇㪽㫌㫃㩷㫀㫅㪽㫆㫉㫄㪸㫋㫀㫆㫅㩷㫉㪼㪾㪸㫉㪻㫀㫅㪾㩷㫆㫇㪼㫉㪸㫋㫀㫆㫅㩷㪸㫅㪻㩷㫉㪼㪽㪼㫉㪼㫅㪺㪼㩷㫇㪸㪾㪼㫊㩷
㪸㫉㪼㩷㫀㫅㫋㫉㫆㪻㫌㪺㪼㪻㩷㪿㪼㫉㪼㩷㫌㫊㫀㫅㪾㩷㫊㫐㫄㪹㫆㫃㫊㪅
㪁㪫㪿㫀㫊㩷㫇㪸㪾㪼㩷㪿㪸㫊㩷㪹㪼㪼㫅㩷㫄㪸㪻㪼㩷㫇㫌㫉㪼㫃㫐㩷㪽㫆㫉㩷㪼㫏㫇㫃㪸㫅㪸㫋㫆㫉㫐㩷㫇㫌㫉㫇㫆㫊㪼㫊㩷㪸㫅㪻㩷㪻㫆㪼㫊㩷㫅㫆㫋㩷㪼㫏㫀㫊㫋㪅
Overview of the
cross-header
Explanation of options
Indicates the section number and title.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

8
Introduction
ZFV
User’s Manual
Introduction
Editor's Note
■Meaning of Symbols
Menu items that are displayed on the Amplifier Unit’s LCD screen are indicated
enclosed by brackets [aa].
■Visual Aids
Indicates points that are important to ensure full product performance, such as operational
precautions and application procedures.
Indicates pages where related information can be found.
Indicates information helpful in operation.
Indicates functions that can be set only when the setup menu has been switched
to EXP menu.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

㪐
ZFV
User’s Manual
Introduction
CONTENTS
䈲 䈛 䉄䈮 ╙㩷㪈㩷┨ ╙㩷㪉㩷┨ ╙㩷㪊㩷┨ ╙㩷㪋㩷┨
Introduction
Section 1 Section 2 Section 3 Section 4
CONTENTS
Precautions for Safe Use 4
Precautions for Correct Use 5
Editor's Note 7
Page Format 7
CONTENTS 9
SECTION 1 FEATURES 13
ZFV Smart sensor Features 14
Basic Configuration 16
Part Names and Functions 18
SECTION 2 INSTALLATION & CONNECTION 21
About Installation and Connection 22
Amplifier Unit 23
Attaching the ferrite core 23
Installing the Amplifier Unit 23
Gang mounting 27
About the I/O cable 31
Timing charts 34
Sensor Head 37
Attaching the ferrite core 37
Installing the mounting fixture 37
Installing the Sensor Head 38
Connecting the Sensor Head 40
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

10
Introduction
ZFV
User’s Manual
Introduction
CONTENTS
SECTION 3 SETUP 41
Setting Flow 42
About Setup 44
Basic Knowledge for Operation 44
List of Setting Items in MENU mode 46
Executing Teaching 48
Teaching Flow 48
Types of Teaching 49
Adjusting Threshold Values 53
Performing Measurement 57
Setting Banks 58
Switching banks 58
Copying banks 58
Clearing banks 58
Setting the bank switching method 58
Setting the System Environment 59
Adjusting the measurement speed 59
Selecting the measurement timing 59
Selecting the teaching mode from an external device 59
Setting/canceling the “Eco” mode 60
Initializing setup data 60
Checking the version 60
Changing the Input/output Conditions 61
Selecting the ON conditions 61
One-shot output 61
Setting the ON delay time 62
Setting the OFF delay time 63
Settings during application extended connection 63
Specifying the Amplifier Unit to input the trigger 64
Setting the presence of Sensor Head 64
Setting output content 64
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

㪈㪈
ZFV
User’s Manual
Introduction
CONTENTS
䈲 䈛 䉄䈮 ╙㩷㪈㩷┨ ╙㩷㪉㩷┨ ╙㩷㪊㩷┨ ╙㩷㪋㩷┨
Introduction
Section 1 Section 2 Section 3 Section 4
Customizing Measurement conditions 65
Common items 65
PATTERN/SEARCH, MATCH 66
BRIGHT 67
AREA 68
WIDTH 69
POSITION 70
COUNT 71
CHARA/CHARA 1, CHARA 2 72
SECTION 4 APPENDIX 77
Troubleshooting 78
Error Messages and Remedies 79
Q&A 80
Run Mode Display Item List 81
Specifications and External Dimensions 83
Sensor Head 83
Amplifier Unit 85
Panel Mount Adapters 87
Control Link Unit 88
INDEX 89
Revision History 92
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

12
Introduction
ZFV
User’s Manual
Introduction
CONTENTS
MEMO
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Section 1 FEATURES
13
ZFV
User’s Manual
Section 1
FEATURES
ZFV Smart sensor Features 14
Basic Configuration 16
Part Names and Functions 18
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

14
Section 1 FEATURES
ZFV
User’s Manual
Section 1
ZFV Smart sensor Features
ZFV Smart sensor Features
The ZFV sensor senses objects by its “surface.” How objects are being sensed can be
easily set while verifying on the LCD monitor.
The ZFV also incorporates a 250,000-pixel CCD equivalent to that of a Conventional
machine vision sensor. This allows presence detection and recognition of different objects,
which have up till now been performed visually, to be executed fast and accurately.
(1) Compact Sensor Head
The LED light emitting section and lens are built into the compact Sensor Head. The
Sensor Head takes up little installation space.
(2) Easy Installation and Adjustment
The range that can be sensed by Sensor Head can be confirmed by the guide light. So,
the Sensor Head can be installed by viewing the position of the guide light and its
focus.
■Recognition of top/rear side and orientation of electronic components
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Section 1 FEATURES
Section 1
ZFV Smart sensor Features
15
ZFV
User’s Manual
(3) Business Card-size Amplifier Unit
• The Amplifier Unit is designed to be compact so that it can be installed at a wide
range of sites.
Specifications and External Dimensions p.83
• Outstanding operate ease has been achieved by a 1.8″color LCD motor, an industry-
first icon-based menu, and simple key layout.
Basic Knowledge for Operation p.44
• The ZFV incorporates an extensive range of measurement items which means that
numerous applications are supported.
Types of Teaching p.49
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

16
Section 1 FEATURES
ZFV
User’s Manual
Section 1
Basic Configuration
Basic Configuration
The figure below shows the Basic Configuration of the ZFV Series.
■Application Expanded Configuration
Up to five Amplifier Units can be gang-mounted.
When the Amplifier Unit is gang-mounted, a wider range of applications can be sup-
ported as simultaneous processing of multiple areas and measurement items can be
combined.
The image captured by the Sensor Head is transferred to the leftmost Amplifier Unit, so
connect to the rightmost Amplifier Unit.
Amplifier Unit
Detects workpieces as images.
• Narrow view type ZFV-SR10
• Wide view type ZFV-SR50
Sensor Head
Used for confirming images and menus, performing
measurement processing, and outputting the result
of processing.
• Single-function type ZFV-A10/-A15
• Standard type ZFV-A20/-A25
Recommended OMRON power supply
(1) When 1 Amplifier Unit is connected
S82K-01524 (DC24V, 0.6A)
(2) When 2 or 3 Amplifier Units are connected
S82K-05024 (DC24V, 2.1A)
(3) When 4 or 5 Amplifier Units are connected
Prepare the required number of (1) and (2) power supplies above.
Power supply
DC24V (+10%, -15%)
Recommended power supply unit
Right
Wrong
Right
Wrong
• The maximum number of Amplifier Units that can be connected is five regardless of the number
of connected Sensor Heads.Six or more Amplifier Units cannot be connected.
• Provide power to all gang-mounted Amplifier Units.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
