Thank you for purchasing the OMRON HEM-7080 Intellisense
Upper Arm Blood Pressure Monitor.
The OMRON HEM-7080 Intellisense is a fully automatic blood
pressure monitor, operating on the oscillometric principle. It
measures your blood pressure and pulse rate simply and
quickly. For comfortable controlled inflation without the need
for pressure pre-setting or re-inflation the device uses its
advanced “Intellisense” technology.
The monitor stores measurement results for two people and
features morning and evening averages. The auto mode
allows for three consecutive measurements with timed
intervals for an average reading.
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.
HEM-7080-C1_B_M.fm Page 3 Tuesday, March 9, 2010 9:05 AM

4
Important Safety Information
Consult your doctor during pregnancy, arrhythmia and
arteriosclerosis.
Use the unit only to store the designated users measurement
results.
Please read this section carefully before using the unit.
Caution:
(General Usage)
• Always consult your doctor. You should never stop or
change the dosage of medication prescribed by your
doctor.
• Do not leave the unit unattended with infants or persons
who cannot express their consent.
• Do not use the unit for any purpose other than
measuring blood pressure.
• Use only the approved arm cuff for this unit. Use of other
arm cuffs may result in incorrect measurement results.
• Do not disassemble the unit or arm cuff.
• Make sure that the air tube is not wrapped around other
parts of your body when taking measurements at night.
This could result in injury when the air pressure in the air
tube is increased.
• Do not wrap the arm cuff tightly when taking
measurements at night. This could result in injury.
• Do not inflate the arm cuff over 299 mmHg.
(Optional AC Adapter Usage)
• Use only AC adapter specified by Omron dealers. Use of
unsupported adapters may damage and/or may be
hazardous to the unit. Plug the AC adapter into the
appropriate voltage outlet. Do not overload power outlets
or use extension cords.
• Do not use the AC adapter if the unit or the power cord is
damaged. Turn off the power and unplug the power cord
immediately.
HEM-7080-C1_B_M.fm Page 4 Tuesday, March 9, 2010 9:05 AM

5
Important Safety Information
• Never plug in or unplug the power cord from the electric
outlet with wet hands.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse
with plenty of clean water. Consult a doctor immediately.
• If battery fluid should get on your skin or clothing,
immediately rinse with plenty of clean water.
• Use only four “AA” alkaline batteries with this unit. Do not
use other types of batteries.
• Do not insert the batteries with their polarities incorrectly
aligned.
• Replace old batteries with new ones immediately.
Replace all four batteries at the same time.
• Remove the batteries if the unit will not be used for three
months or more. If the batteries have been removed for
more than 30 seconds, the date and time setting will
need to be reset.
• Do not use new and used batteries together.
• Read and follow the “Important information regarding
Electro Magnetic Compatibility (EMC)” in the Technical
Data Section.
General Safety Precautions
• Do not forcefully bend the arm cuff or bend the air tube
excessively.
• When removing the air tube, pull on the air plug at the
connection with the main unit not the tube itself.
• Do not apply strong shocks and vibrations to or drop the
main unit and arm cuff.
• Do not inflate the arm cuff when it is not wrapped around
your arm.
• Do not wash the arm cuff or immerse it in water.
• Do not take measurements after bathing, drinking
alcohol, smoking, exercising or eating.
• Read and follow the “Correct Disposal of This Product” in
the Technical Data Section when disposing of the device
and any used accessories or optional parts.
HEM-7080-C1_B_M.fm Page 5 Tuesday, March 9, 2010 9:05 AM

6
1. Overview

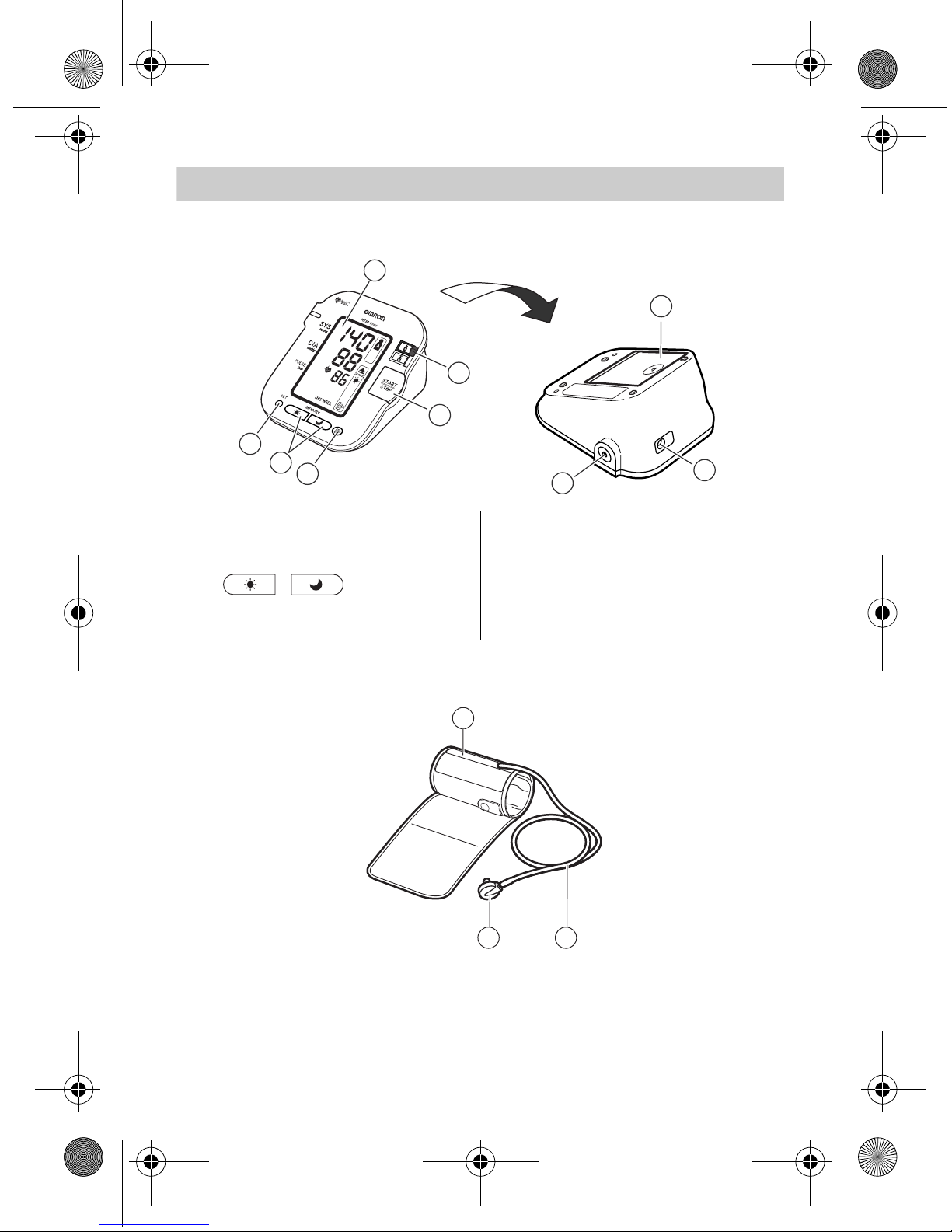

Main Unit
A. Display
B. SET button
C. Morning/Evening Average
( / ) buttons
D. MEMORY button
E. START/STOP button
F. User ID selection switch
(A & B)
G. Battery compartment
H. Air jack
I. AC adapter jack (for AC
adapter)
J. Arm cuff
(Cuff: arm circumference 22-42 cm)
K. Air Plug
L. Air Tube
E
F
B
A
CD
G
I
H
J
LK
Arm Cuff
HEM-7080-C1_B_M.fm Page 6 Tuesday, March 9, 2010 9:05 AM

7
1. Overview
Display
M. Systolic blood pressure
N. Diastolic blood pressure
O. Heartbeat symbol
1. (Flashes during
measurement)
2. (If flashing after
measurement completed
indicates blood pressure out
of recommended range)
P. Movement symbol
(Displayed if you move your
body during the
measurement.)
Q. Irregular heartbeat symbol
R. Deflation symbol
S. Auto mode symbol
(Displayed when Auto Mode is
set.)
T. Battery low symbol
U. User ID symbol (A or B)
(Indicates user A or user B as
selected by the user to take a
measurement or when using
the memory function.)
V. Pulse display
W. Early morning hypertension
symbol
(Displayed if the morning
average reading for a week is
above 135 for the systolic
blood pressure value and/or
85 for the diastolic blood
pressure value.)
X. Morning average symbol
(Displayed when viewing
morning averages using the
memory function.)
Y. Evening average symbol
(Displayed when viewing
evening averages using the
memory function.)
Z. Average value symbol
(Displayedwhenviewingvalue
for the last three
measurements)
AA.Memory symbol
(Displayed when viewing
values stored in memory)
AB.Week display
AC.Date/Time display
MU
X
P
N
R
T
O
Q
W
Y
AA
AC
V
Z
AB
S
HEM-7080-C1_B_M.fm Page 7 Tuesday, March 9, 2010 9:05 AM

8
1. Overview
Package Contents
AD.Soft storage bag
AE.Four “AA” alkaline (LR6) batteries
• Main unit
•Cuff
• Instruction manual
AEAD
HEM-7080-C1_B_M.fm Page 8 Tuesday, March 9, 2010 9:05 AM

9
2. Preparation
2.1 Installing/Replacing the Batteries
1. Turn the main unit upside down.
2. Slide the battery
cover in the direction
of the arrow while
pressing the ribbed
part of the cover.
3. Install orreplacefour
“AA”size batteries
so that the +
(positive) and -
(negative) polarities
match the polarities
indicated on the
battery
compartment.
4. Put the battery cover back in place.
Slide the battery cover as indicated, until it clicks into place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
HEM-7080-C1_B_M.fm Page 9 Tuesday, March 9, 2010 9:05 AM

10
2. Preparation
Battery Life & Replacement
If the battery low symbol ( ) appears on the display,
replace all four batteries at the same time.
- When the battery low symbol ( ) starts to blink, you
will still be able to use the unit for a short while. You
should replace the batteries with new ones ahead of
time.
- When the symbol ( ) remains lit, the batteries are
exhausted. You should replace the batteries with new
ones at once.Turn the unit off before replacing the
batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• If the batteries have been removed for more than 30
seconds, the Date/Time setting will need to be reset. See
page 14 for details.
• Dispose of batteries according to applicable local
regulations.
Four new “AA”alkaline batteries will last for approximately
1400 measurements, when used to take six measurements a
day.
Since the supplied batteries are for monitoring use only, they
may have a shorter life and not last for 1400 measurements.
HEM-7080-C1_B_M.fm Page 10 Tuesday, March 9, 2010 9:05 AM

11
2. Preparation
2.2 Setting the Date and Time
Your blood pressure monitor automatically stores up to 84
measurement values per user with date and time.
To make use of the memory and average values functions:
• Set the unit to the correct date and time before taking a
measurement for the first time.
• If the batteries have been removed for more than 30
seconds, the Date/Time setting will need to be reset.

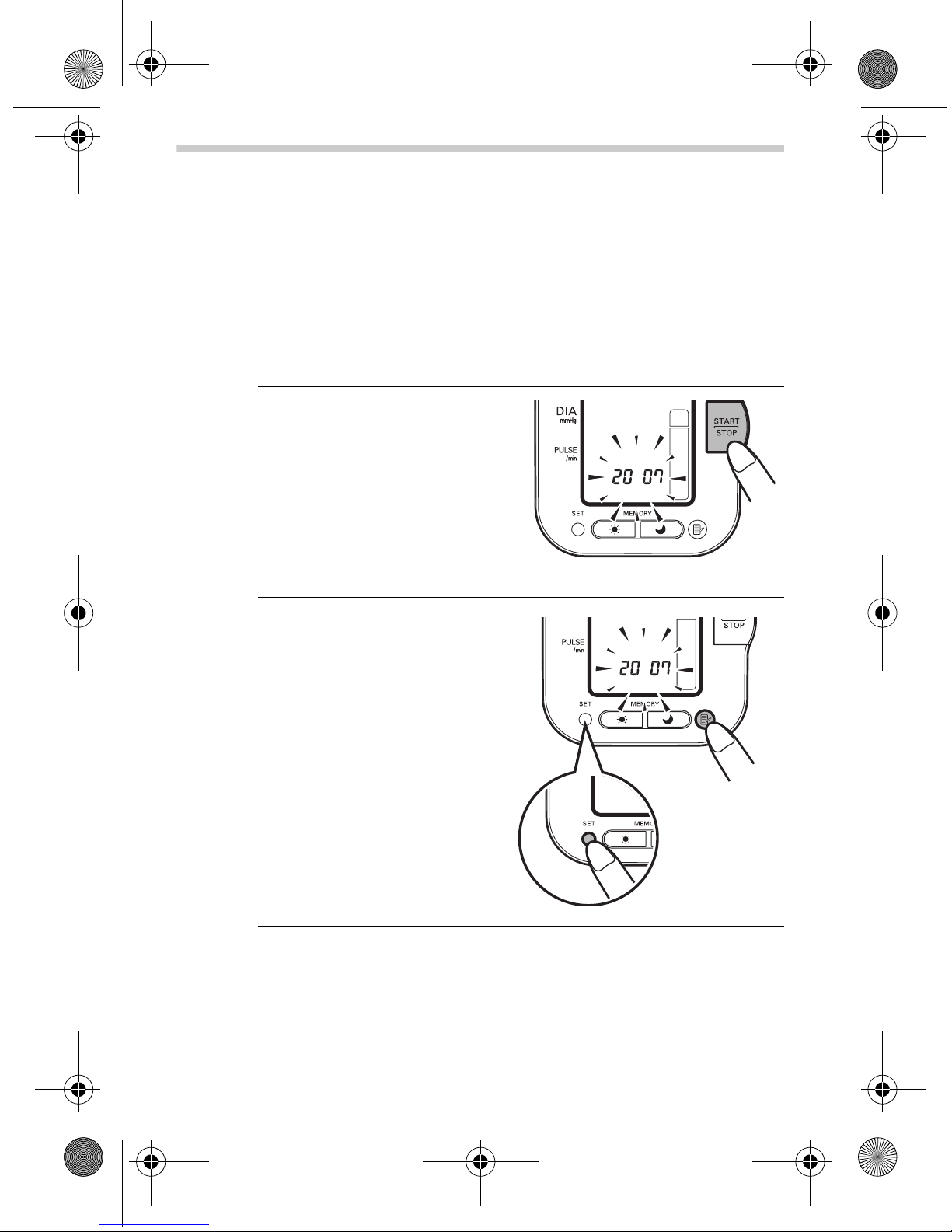

1. When the START/STOP
button is pressed to turn
the unit on for the first time
after inserting batteries,
the year digits (2007) will
flash on the display.
2. PresstheMEMORYbutton
to advance the digits one
at a time.
Notes:
• The range for the year
setting is 2007 to 2030. If
the year reaches 2030, it
will return to 2007.
• If you hold down the
MEMORY button, the
digits will advance
rapidly.
3. Press the SET button to confirm the setting when the
desired number appears on the display.
The year is set and the month digits flash on the display.
HEM-7080-C1_B_M.fm Page 11 Tuesday, March 9, 2010 9:05 AM

12
2. Preparation

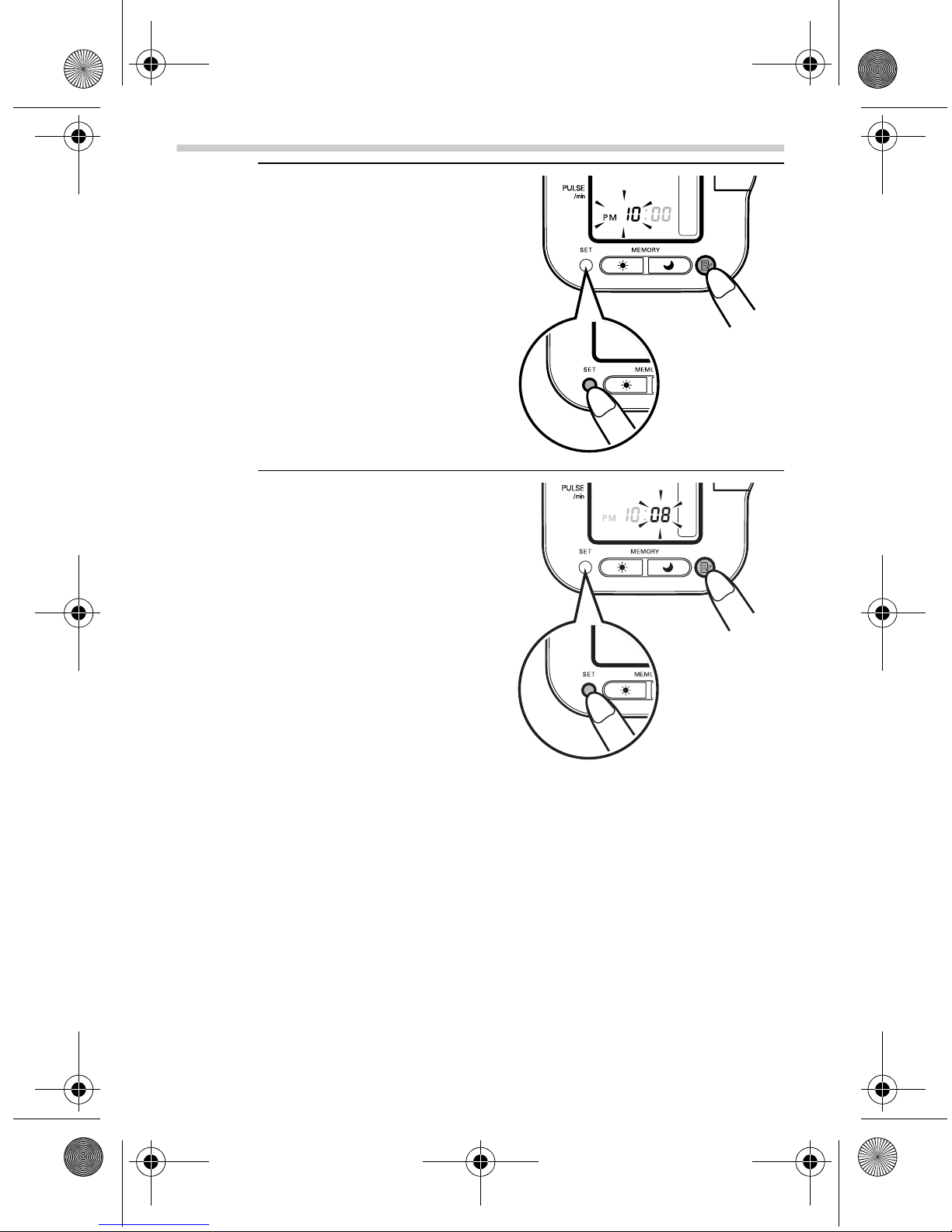

4. Repeat steps 2 and 3 to
set the month.
The month is set and the
day digits flash on the
display.
5. Repeat steps 2 and 3 to
set the day.
The day is set and the hour
digits flash on the display.
HEM-7080-C1_B_M.fm Page 12 Tuesday, March 9, 2010 9:05 AM

13
2. Preparation

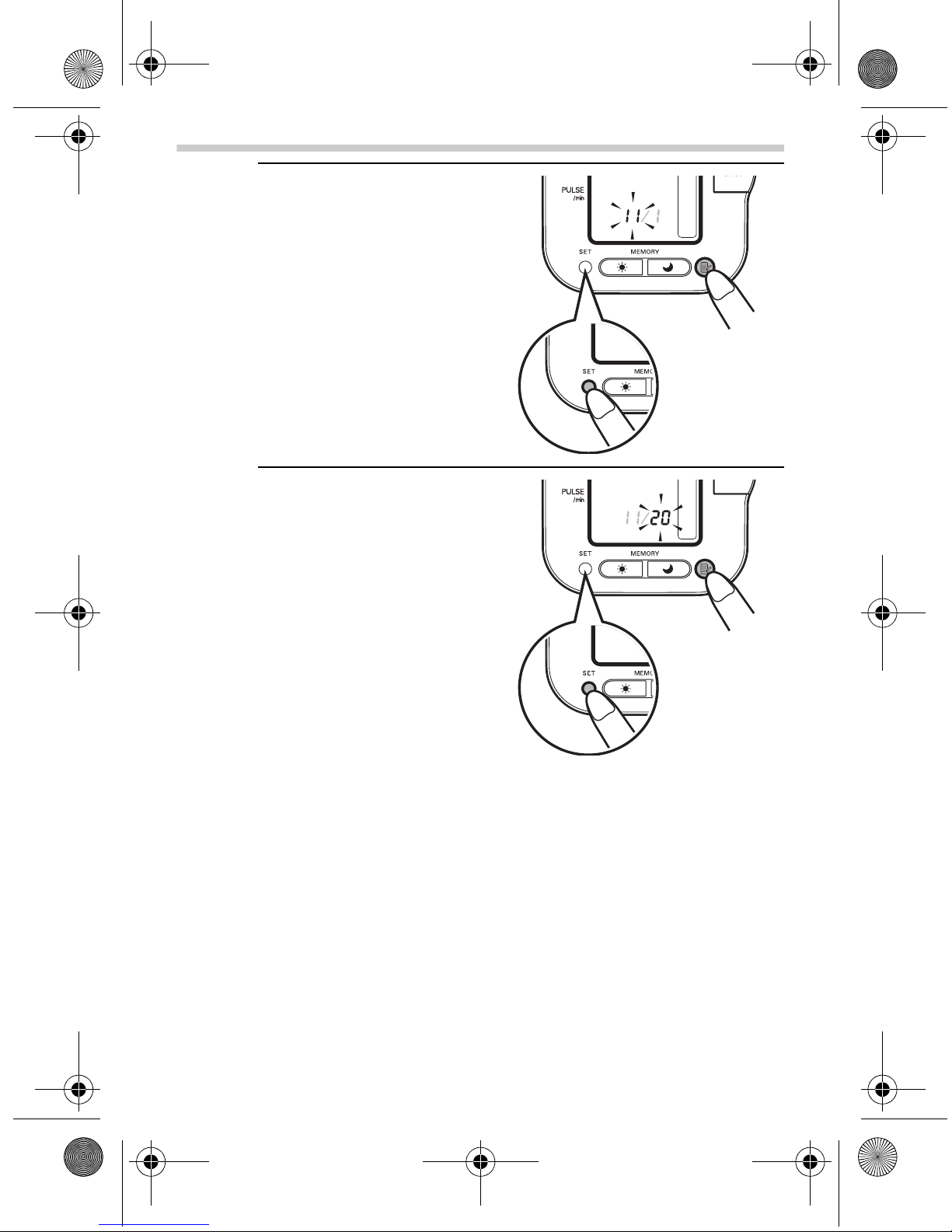

6. Repeat steps 2 and 3 to
set the hour.
The hour is set and the
minutes digits flash on the
display.
7. Repeat steps 2 and 3 to
set the minutes.
The minutes settings is
set.
The unit automatically
turns itself off after the
minute setting has been
set.
To adjust the date and
time, press the SET button
while the unit is in standby
mode.
HEM-7080-C1_B_M.fm Page 13 Tuesday, March 9, 2010 9:05 AM

14
2. Preparation
Notes on Adjusting the Date and Time Setting
If you need to adjust the date and time for some reason, or if
the date and time has been reset after replacing the batteries,
adjust the date and time between 10:00 AM and 6:59 PM.
This will avoid problems with morning and evening weekly
averages stored in memory.
To adjust the date or time at a later stage, start the unit in the
off position. Follow the steps below.
1. Press and hold the SET button.
The auto mode symbol and the current setting (on
or oFF) will appear on the display for the user ID selected.
If the year is not flashing, press the SET button once or
twice until the year is flashing.
The year flashes on the display.
2. Refer to page 11 to start setting the date and time.
With this manual setting of date and time the unit needs to
be manually shut off. It will not automatically turn off after
the minutes have been set.
Notes:
• Please ensure that the date and time have been set
correctly so that the weekly averages will be displayed
correctly. If the Date/Time settings have been
accidentally set incorrectly, press the SET button to
circle through the settings in order to adjust to their
correct values.
• In the case where the time displays incorrectly after a
long period of non-use of the unit, reset the Date and
Time (refer to page 11 for instructions on setting the
clock values). Erase the recorded values when reusing
the unit (refer to page 37 for directions on erasing the
recorded values).
HEM-7080-C1_B_M.fm Page 14 Tuesday, March 9, 2010 9:05 AM

15
3. Using the Unit
3.1 How to Sit Correctly When Taking a
Measurement
You can take a measurement on either your left or right arm.
Notes:
• Measurements should be taken in a quiet place and you
should be in a relaxed, seated position. Make sure that
the room is not too hot or cold.
• Avoid eating, smoking, or exercising for at least 30
minutes before taking a measurement.
• Do not move or talk during measurement.

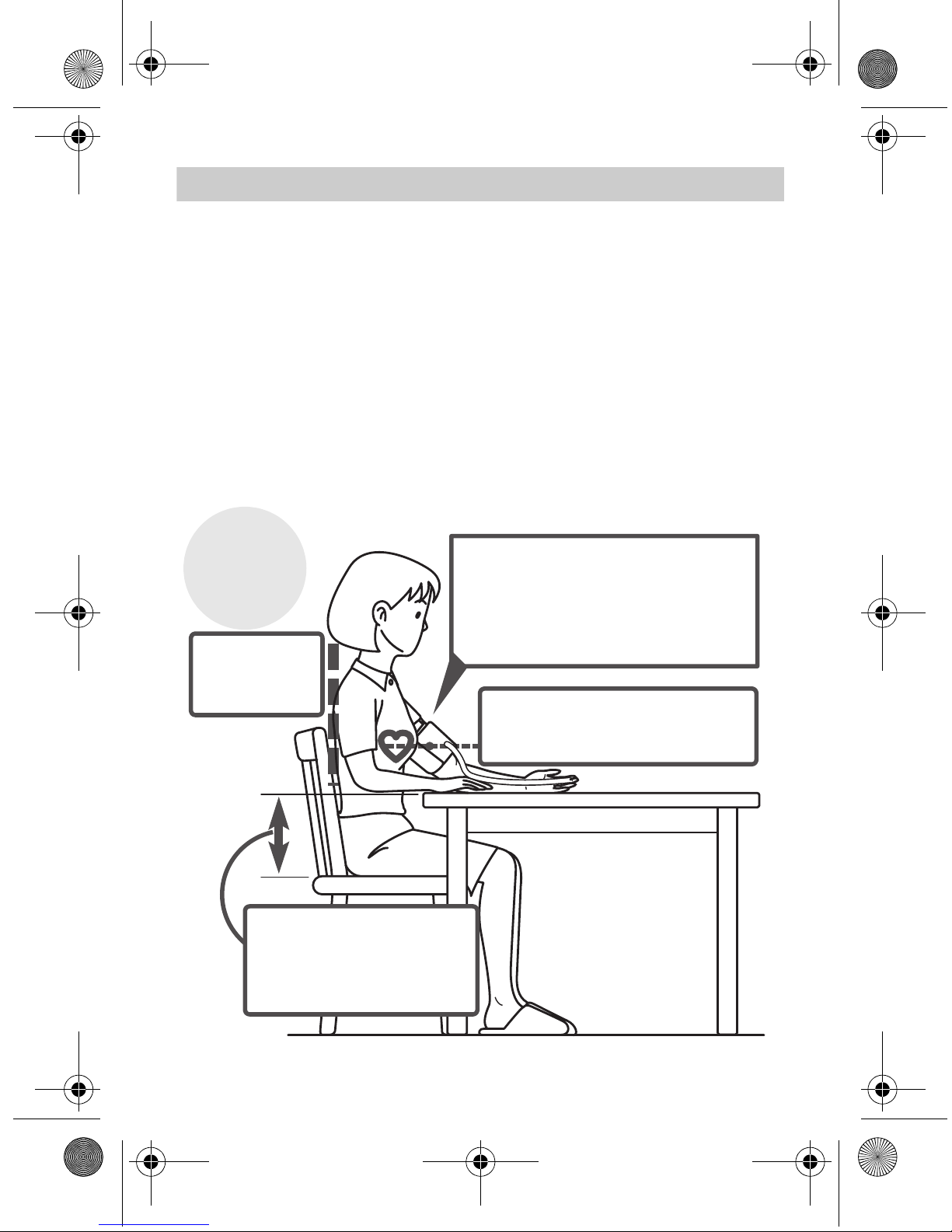

Correct
Posture Remove tight fitting clothing from
your upper arm, and any thick
clothing such as a sweater.
Do not place the cuff over thick clothes
and do not roll up your sleeve if it is too
tight.
Sit upright
with your
back straight. Place your arm on a table so
that the cuff will be at the same
level as your heart.
The gap between the chair
and the top of the table
should be between 25cm
to 30cm.
Operating instructions
HEM-7080-C1_B_M.fm Page 15 Tuesday, March 9, 2010 9:05 AM

16
3. Using the Unit
Notes:
• Correct posture during measurement is necessary to get
accurate results.
• You should also try to measure your blood pressure at
the same time each day. (Within 1 hour after waking up
is recommended.)

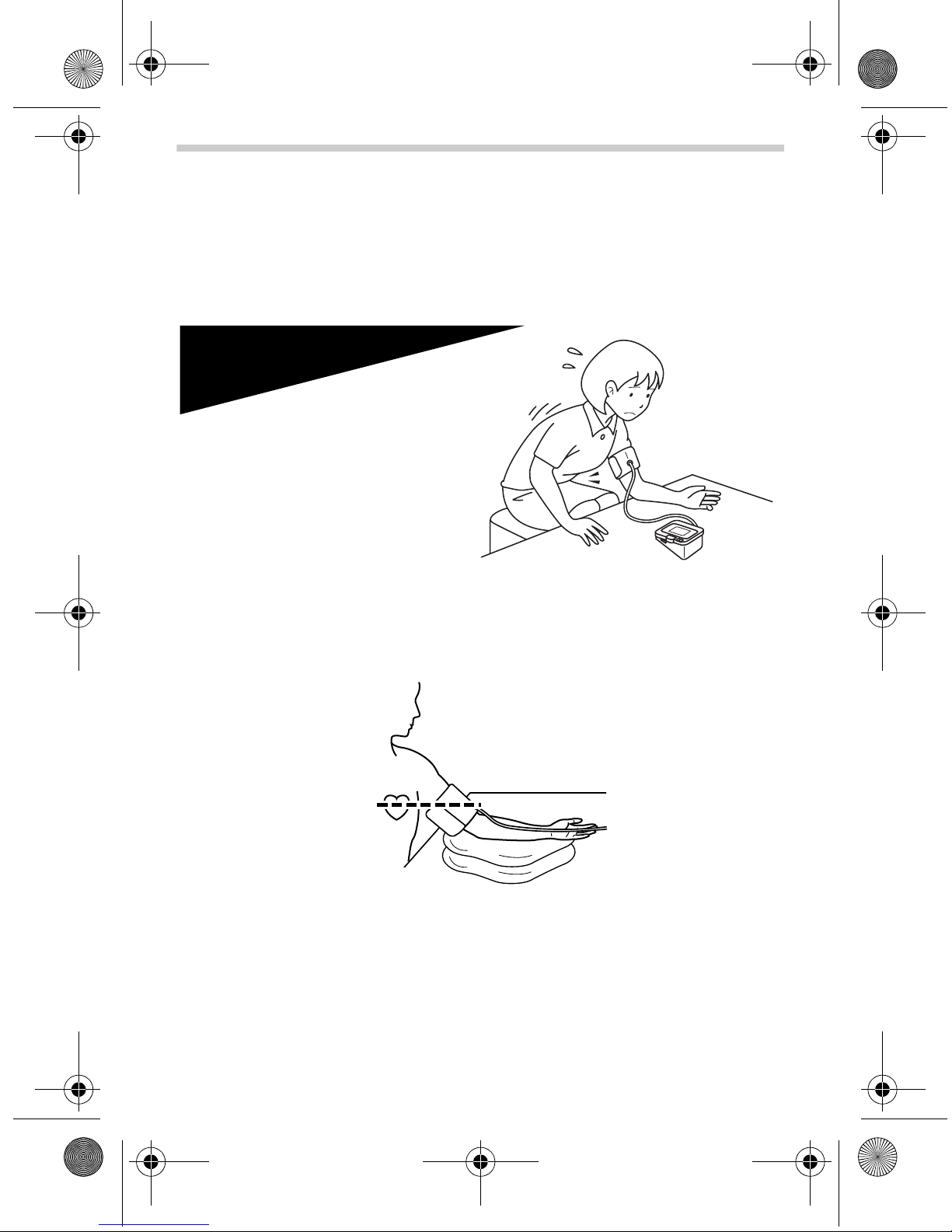

Incorrect Posture
These situations could lead to higher blood pressure values due to strain or
the arm cuff being lower than the heart.
If the arm cuff is at a lower position than your heart use cushions etc., to adjust
the height of your arm.
•Arched back (leaning forwards)
•Sitting cross-legged
•Sitting on a sofa or at a low table
so that you tend to lean forward
HEM-7080-C1_B_M.fm Page 16 Tuesday, March 9, 2010 9:05 AM

17
3. Using the Unit
3.2 Applying the Arm Cuff
You can wrap the cuff either on your right or left arm.
• Remove tight-fitting
clothing from your upper
arm.
• Do not place the cuff over
thick clothes and do not
roll up your sleeve if it is
too tight.
1. Insert the air plug into the air jack (on the left side of the
device).
The cuff must be fully deflated when it is inserted into the
air jack.
2. Sit in a chair with your feet flat on the floor and place your
arm on a table so that the cuff will be at the same level as
your heart.
Air plug
Air jack
HEM-7080-C1_B_M.fm Page 17 Tuesday, March 9, 2010 9:05 AM

18
3. Using the Unit

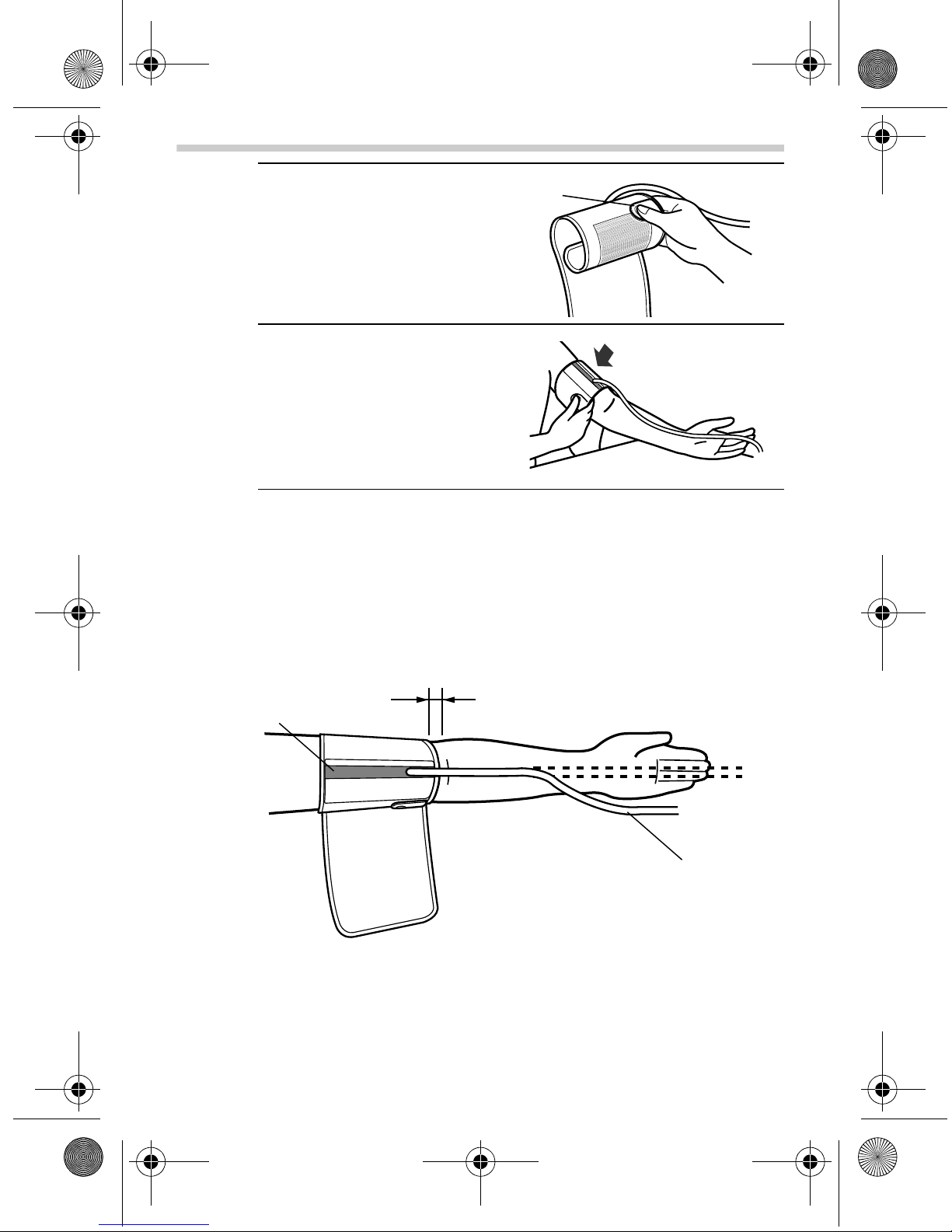

3. Hold the grip on the cuff
securely with your hand.
4. Turn the palm of your
hand upward.

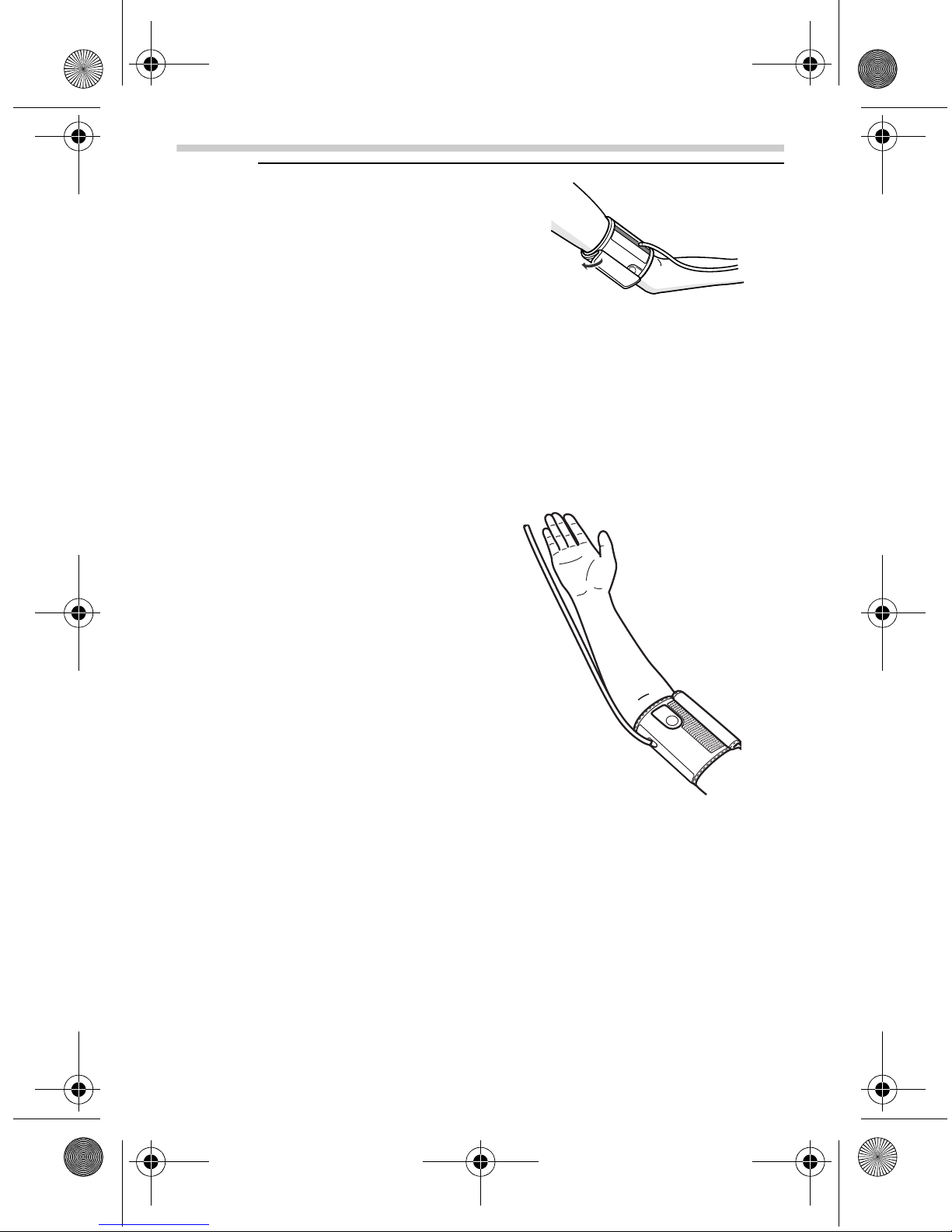

5. Apply the cuff to your left upper arm so that the blue strip
is centred on the middle of your inner arm and points
down the inside of the arm. The air tube should run down
the inside of your forearm and be in line with your middle
finger.
The bottom of the cuff should be approximately 1 to 2 cm
above the elbow.
Grip
Fabric fastener
Blue strip
Bottom edge 1 to 2 cm
Air tube
HEM-7080-C1_B_M.fm Page 18 Tuesday, March 9, 2010 9:05 AM

19
3. Using the Unit
6. When the cuff is positioned
correctly, close the fabric
fastener FIRMLY.
Notes:
• Make certain the cuff fits snugly around your arm.
• The cuff should make good contact with your skin. You
should be able to fit your index finger between the cuff
and your arm easily, so you can pull the cuff off and on.
• Make sure that there are no kinks in the air tubing.
Taking measurements on the right arm
Please note the following
points when applying the
cuff to your right arm. Apply
the cuff so that the air tube is
at the side of your elbow.
Notes:
• Be careful notto rest your
arm on the air tube as it
will restrict the flow of air
to the cuff.
• Apply the arm cuff so that
no part of the cuff is
positionedovertheelbow
joint. The cuff should be 1 to 2 cm above the elbow.
• If used 2 times per day, the cuff will last for 3 years.
• The blood pressure can differ between the right arm and
the left arm, and therefore also the measured blood
pressure values can be different. Omron recommends to
always use the same arm for measurement. If the values
between the two arms differ substantially, please check
with your doctor which arm to use for your measurement.
HEM-7080-C1_B_M.fm Page 19 Tuesday, March 9, 2010 9:05 AM

20
3. Using the Unit
3.3 Taking a Reading
The unit is designed to take measurements and store the
measurement values in the memory for two people using user
ID A and user ID B.
The unit can also be used to take a single measurement for
other persons using the guest mode. The user ID symbol is
not displayed when using the guest mode. Measurements
taken using the guest mode are not stored in the memory.
Using the Guest Mode

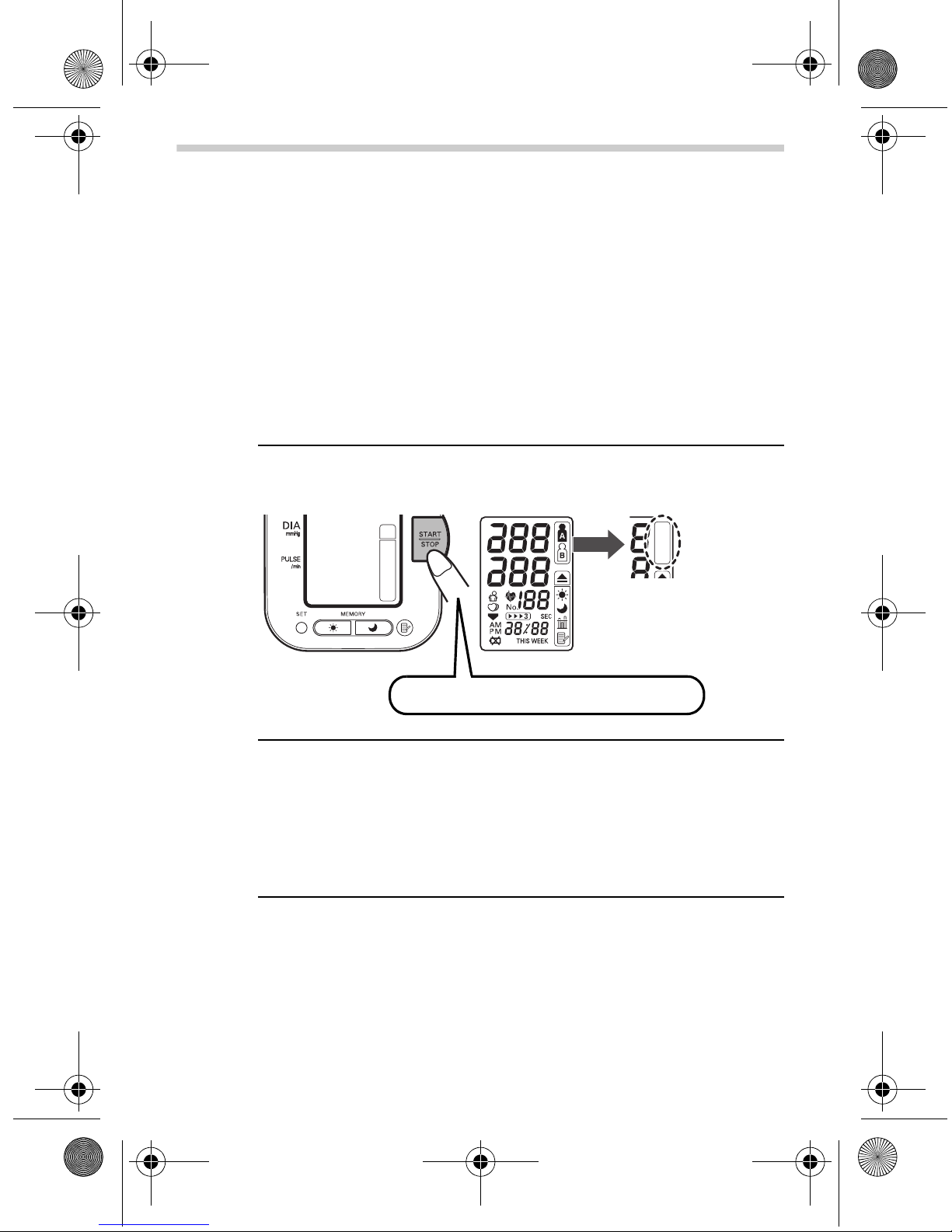

1. Press and hold the START/STOP button until the A and B
user symbols disappear from the display.
2. Release the START/STOP button.
The cuff starts to inflate automatically.
Note: To stop the inflation press and release the START/
STOP button. The unit will stop inflating, start
deflation and turn off.
3. Inflation stops and the measurement is started. When the
measurement is completed, your blood pressure and
pulse rate appear on the display.
Press for at least 3 seconds
A and B display goes
out
HEM-7080-C1_B_M.fm Page 20 Tuesday, March 9, 2010 9:05 AM
