Enclosed Switches ZE/ZV/XE/XV F-119
Limit
Switches
Enclosed Switches
ZE/ZV/XE/XV
Long Service Life and Large Breaking Power
• ZE, ZV, and ZV2 incorporate Model Z Basic Switches with rug-
ged diecast cases.
• Available with various models of built-in switches (including split
contact model, maintained operation type, magnetic blowout
model) and various actuators.
Model Number Structure
■Model Number Legend
1. Built-in Switch
Z: SPDT (AC)
X: SPDT (DC)
2. Mounting Direction
E: Side mounting
V: Base mounting
V2: Diagonal side mounting
3. Actuator
Q: Plunger
Q22: Roller plunger
Q21: Crossroller plunger
QA2: Roller arm lever
QA277: One-way action roller arm lever
N: Sealed plunger
N22: Sealed roller plunger (ZE, ZV, ZV2 only)
N21: Sealed crossroller plunger (ZE, ZV, ZV2 only)
NA2: Sealed roller arm lever
NA277: Sealed one-way action roller arm lever
4. Conduit/Ground Terminal
None: G 1/2/without ground terminal
G1: G 1/2/with ground terminal
G: Pg13.5/with ground terminal
SG1: 1/2-14NPSM/with ground terminal
YG1: M20/with ground terminal
S: 1/2-14NPSM/without ground terminal
Y: M20/without ground terminal
12
3
4
@@-@-2@

F-120 Enclosed Switches ZE/ZV/XE/XV
Ordering Information
■List of Models
Standard Switches
Note: 1. The diagonal side mounting model feature improved sealing property, improved mounting strength through use of M5 screws, increased
stability in seating with large mounting width (31 x 75 mm) and permit coupling of a number of Switch units.
2. ZE, ZV, and ZV2 series are approved by UL and CSA.
Specifications
■Approved Standards
Note: Models XE, XV, and XV2 are not approved by UL and CSA.
■Approved Standard Ratings
UL/CSA
Contact Actuator Side mounting Diagonal side mounting Base mounting
General
purpose Sealed (Booted) General purpose Sealed (Booted) General purpose Sealed (Booted)
AC/DC
load SPDT Plunger ZE-Q-2 ZE-N-2 ZV2-Q-2 ZV2-N-2 ZV-Q-2 ZV-N-2
Roller plunger ZE-Q22-2 ZE-N22-2 ZV2-Q22-2 ZV2-N22-2 ZV-Q22-2 ZV-N22-2
Crossroller plung-
er ZE-Q21-2 ZE-N21-2 ZV2-Q21-2 ZV2-N21-2 ZV-Q21-2 ZV-N21-2
Roller arm lever ZE-QA2-2 ZE-NA2-2 ZV2-QA2-2 ZV2-NA2-2 ZV-QA2-2 ZV-NA2-2
One-way action
arm lever ZE-QA277-2 ZE-NA277-2 ZV2-QA277-2 ZV2-NA277-2 ZV-QA277-2 ZV-NA277-2
DC load SPDT Plunger XE-Q-2 XE-N-2 XV2-Q-2 XV2-N-2 XV-Q-2 XV-N-2
Roller plunger XE-Q22-2 --- XV2-Q22-2 --- XV-Q22-2 ---
Crossroller plung-
er XE-Q21-2 --- XV2-Q21-2 --- XV-Q21-2 ---
Roller arm lever XE-QA2-2 XE-NA2-2 XV2-QA2-2 XV2-NA2-2 XV-QA2-2 XV-NA2-2
One-way action
arm lever XE-QA277-2 XE-NA277-2 --- XV2-NA277-2 XV-QA277-2 XV-NA277-2
Agency Standard File No.
UL UL508 E76675
CSA CSA C22.2 No. 14 LR45746
Model Rated voltage Current Horsepower
ZE 125 VAC 15 A 1/8 HP
1/4 HP
250 VAC
480 VAC
125 VDC 0.5 A ---
250 VDC 0.25 A

Enclosed Switches ZE/ZV/XE/XV F-121
Limit
Switches
■Ratings
Note: 1. The above figures are for standard currents.
2. Inductive loads have a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.
■Characteristics
Note: 1. The above figures are initial values.
2. IP65 for @E-N models and IP60 for @E-Q models.
3. The values are calculated at an operating temperature of 5°C to 35°C, and an operating humidity of 40% to 70%. Contact your OMRON
sales representative for more detailed information on other operating environments.
4. At the operation limit positions.
5. Only for plunger, sealed plunger, roller arm lever, and sealed roller arm lever.
6. Only for crossroller plunger, sealed crossroller plunger, roller plunger, and sealed roller plunger.
Contact Contact Rated voltage Non-inductive load Inductive load
Resistive load Lamp load Inductive load Motor load
NC NO NC NO NC NO NC NO
ZE-@
ZV-@
ZV2-@
125 VAC 15 A 3 A 1.5 A 15 A 5 A 2.5 A
250 VAC 15 A 2.5 A 1.25 A 15 A 3 A 1.5 A
480 VAC 10 A 1.5 A 0.75 A 6 A 1.5 A 0.75 A
125 VDC 0.5 A 0.5 A 0.05 A 0.05 A
250 VDC 0.25 A 0.25 A 0.03 A 0.03 A
XE-@
XV-@
XV2-@
8 VDC 15 A 3 A 3 A 15 A 15 A 10 A 10 A
14 VDC 15 A 3 A 3 A 15 A 10 A 10 A 10 A
30 VDC 15 A 3 A 3 A 10 A 10 A 10 A 6 A
125 VDC 10 A 3 A 1.5 A 7.5 A 6 A 6 A 4 A
250 VDC 3 A 1.5 A 0.75 A 2 A 1.5 A 2 A 1 A
Inrush current NC 30 A max.
NO 15 A max.
Degree of protection IP65 (see note 2)
Durability (see note 3) Mechanical:
Z@: 10,000,000 operations min.
X@: 1,000,000 operations min.
Electrical:
Z@: 500,000 operations min., for 15 A, 250 VAC resistive load
X@: 100,000 operations min., for 10 A, 125 VDC resistive load
Operating speed Plunger type: 0.01 mm to 0.5 m/s
Lever type: 0.02 mm to 0.5 m/s
Operating frequency Mechanical: 120 operations/min
Electrical: 20 operations/min
Rated frequency 50/60 Hz
Insulation resistance 100 MΩmin. (at 500 VDC)
Contact resistance 15 mΩmax. (initial value)
Terminal temperature rise 50°max.
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity
2,000 VAC, 50/60 Hz for 1 min between current-carrying metal part and ground, and between each
terminal and non-current-carrying metal part (1,500 VAC for Z@models and X@models)
Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude (see note 4)
Shock resistance (see note 4) Destruction: 1,000 m/s2min.
Malfunction: 100 m/s2min. (see note 5), 50 m/s2min. (see note 6)
Ambient temperature (see note 1) Operating: –10°C to 80°C (with no icing)
Ambient humidity Operating: General-purpose type: 85% max.
Sealed type: 95% max.
Weight Approx. 260 to 280 g

F-122 Enclosed Switches ZE/ZV/XE/XV
■Operating Characteristics
Note: 1. The OP of ZV2-Q-2/XV2-Q-2 is 24.2±0.8 mm.
2. The OP of ZV2-Q22-2/XV2-Q22-2 is 35.7±1 mm.
3. The OP of ZV2-Q21-2/XV2-Q21-2 is 35.7±0.8 mm.
Note: 1. The OP of ZV2-N-2/XV2-N-2 is 31.9±0.8 mm.
2. The OP of ZV2-N22-2/ZV2-N21-2 is 35.7±0.8 mm.
Model ZE-Q-2 XE-Q-2 ZE-Q22-2 XE-Q22-2 ZE-Q21-2
OF 2.45 to 3.43 N 5.00 N max. 2.45 to 3.43 N 5.00 N max. 2.45 to 3.43 N
RF min. 1.12 N 1.12 N 1.12 N 1.12 N 1.12 N
PT max. 0.4 mm 0.9 mm 0.5 mm 0.9 mm 0.5 mm
OT min. 5.5 mm 5.5 mm 3.6 mm 3.6 mm 3.6 mm
MD max. 0.05 mm 0.47 mm 0.05 mm 0.47 mm 0.05 mm
OP 38.2±0.8 mm 49.7±1 mm 49.7±1 mm
Model XE-Q21-2 ZE-QA2-2 XE-QA2-2 ZE-QA277-2 XE-QA277-2 ZE-N-2
OF 5.00 N max. 5.59 N max. 6.47N max. 5.59 N 6.47 N 7.85 N
RF min. 1.12 N 1.67 N 1.67 N 1.67 N 1.67 N 2.35 N
PT max. 0.9 mm 4 mm 6 mm 4 mm 6 mm 2 mm
OT min. 3.6 mm 6 mm 5.5 mm 6 mm 5.5 mm 5 mm
MD max. 0.47 mm 0.4 mm 0.72 mm 0.4 mm 0.72 mm 0.1 mm
OP 49.7±1 mm --- 45.8±0.8 mm
Model XE-N-2 ZE-N22-2 ZE-N21-2 ZE-NA2-2 XE-NA2-2 ZE-NA277-2
OF 10.20 N 4.90 N 6.28 N 7.26 N 6.28 N
RF min. 2.35 N 0.98 N 2.26 N 2.26 N 2.26 N
PT max. 3 mm 1 mm 5 mm 6 mm 5 mm
OT min. 4 mm 3.5 mm 6 mm 5.5 mm 6 mm
MD max. 0.47 mm 0.12 mm 0.4 mm 0.72 mm 0.4 mm
OP 45.8±0.8 mm 49.7±0.8 mm ---
Model XE-NA277-2 ZV(2)-Q-2 XV(2)-Q-2 ZV(2)-Q22-2 XV(2)-Q22-2
OF 7.26 N 2.45 to 3.43 N 5.00 N max. 2.45 to 3.43 N 5.00 N max.
RF min. 2.26 N 1.12 N 1.12 N 1.12 N 1.12 N
PT max. 6 mm 0.4 mm 0.9 mm 0.5 mm 0.9 mm
OT min. 5.5 mm 5.5 mm 5.5 mm 3.6 mm 3.6 mm
MD max. 0.72 mm 0.05 mm 0.47 mm 0.05 mm 0.47 mm
OP --- 63.7±0.8 mm (ZV-Q-2, XV-Q-2) (see note 1) 75.2±0.8 mm (ZV-Q-22.2, XV-Q21-2) (see note 2)
Model ZV(2)-Q21-2 XV(2)-Q21-2 ZV(2)-QA2-2 XV(2)-QA2-2 ZV(2)-QA277-2
OF 2.45 to 3.43 N 5.00 N max. 5.59 N max. 6.47 N max. 5.59 N
RF min. 1.12 N 1.12 N 1.67 N 1.67 N 1.67 N
PT max. 0.5 mm 0.9 mm 4 mm 6 mm 4 mm
OT min. 3.6 mm 3.6 mm 6 mm 5.5 mm 6 mm
MD max. 0.05 mm 0.47 mm 0.4 mm 0.72 mm 0.4 mm
OP 75.2±0.8 mm (ZV-Q22-2, XV-Q21-2) (see note 3) ---
Model XV(2)-QA277-2 ZV(2)-N-2 XV(2)-N-2 ZV(2)-N22-2 ZV(2)-N21-2 ZV(2)-NA2-2
OF 6.47 N 7.85 N 10.20 N 4.90 N 6.28 N
RF min. 1.67 N 2.35 N 2.35 N 0.98 N 2.26 N
PT max. 6 mm 2 mm 3 mm 1 mm 5 mm
OT min. 5.5 mm 5 mm 4 mm 3.5 mm 6 mm
MD max. 0.72 mm 0.1 mm 0.47 mm 0.12 mm 0.4 mm
OP --- 71.4±0.8 mm (ZV-N-2, XV-N-2) (see note 1) 75.2±0.8 mm (ZV-N22-2, ZV-N21-2) (see note 2) ---
Model XV(2)-NA2-2 ZV(2)-NA277-2 XV(2)-NA277-2
OF 7.26 N 6.28 N 7.26 N
RF min. 2.26 N 2.26 N 2.26 N
PT max. 6 mm 5 mm 6 mm
OT min. 5.5 mm 6 mm 5.5 mm
MD max. 0.72 mm 0.4 mm 0.72 mm
FP max. ---
OP ---

Enclosed Switches ZE/ZV/XE/XV F-123
Limit
Switches
■Contact Form
Engineering Data
■Electrical Durability
COM
NC
NO
ZE-@, ZV-@, ZV2-@
XE-@, XV-@, XV2-@
COM
NC
N
O
EN60947-5-1
Note: With the XE-@, XV-@, and
XV2-@, be sure to connect
COM to the + terminal.
ZE (cosφ= 1)
Durability (x 104operations)
Durability (x 104operations)
Durability (x 104operations)
Durability (x 104operations)
Operating frequency:
20 operations/min
OT: Full stroke
Operating frequency:
20 operations/min
OT: Full stroke
Operating frequency:
20 operations/min
OT: Full stroke
Operating frequency:
20 operations/min
OT: Full stroke
Switching current (A)
Switching current (A)
Switching current (A)
Switching current (A)
ZE (cosφ= 0.4) XE (L/R = 7 ms)
XE (L/R = 0)
480 VAC
125 VAC
250 VAC
125 VAC
125 VDC
125 VDC
250 VAC
250 VDC
250 VDC
480 VAC

F-124 Enclosed Switches ZE/ZV/XE/XV

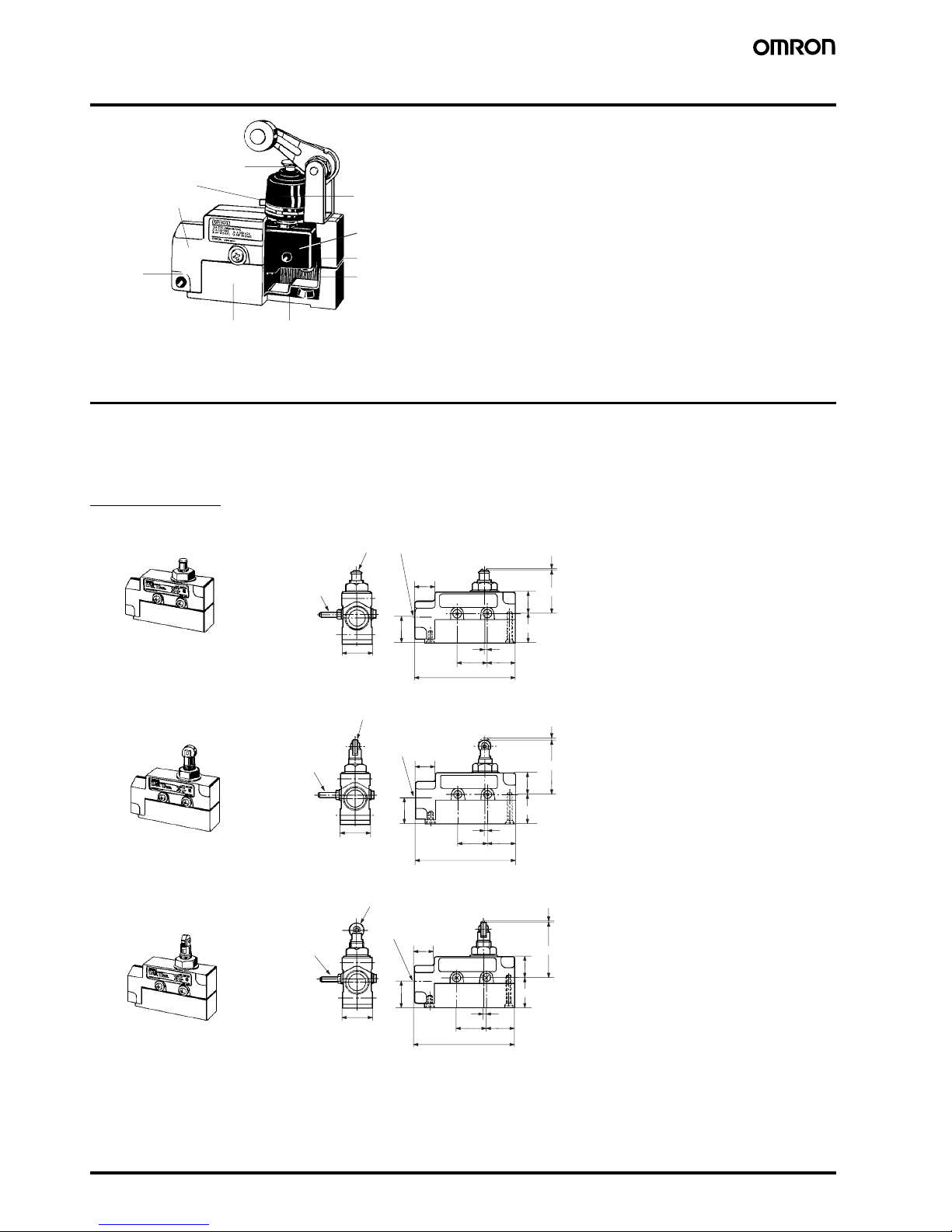

Nomenclature
Dimensions
Note: 1. All units are in millimeters unless otherwise indicated.
2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
3. In the drawings for the Base Mounting Type Switches (ZV), the mounting surfaces (flanges) are shown by lines of alternate long and two
short dashes.
Side Mounting
Pin plunger
Separator
Built-in switch
Terminal
Seal rubber (NBR)Cover
Conduit
opening
Case
Tightening band
Rubber cap (CR)
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.1
25.4±0.3
25.4±0.3
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.1
25.4±0.3
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.1
Plunger
ZE-Q-2, XE-Q-2 12R
(see note)
JIS B0202 G1/2
Effective thread: 4 threads min. PT
OP
Two, M4
(length: 45)
Note: Stainless steel plunger
Two, M4
(length: 45)
PT
OP
12.7 dia. ×4.8 (see note)
JIS B0202 G1/2
Effective thread:
4 threads min.
Note: Stainless steel roller
Crossroller Plunger
ZE-Q21-2, XE-Q21-2
Two, M4
(length: 45)
PT
OP
12.7 dia. ×4.8 (see note)
JIS B0202 G1/2
Effective thread:
4 threads min.
Roller Plunger
ZE-Q22-2, XE-Q22-2
Note: Stainless steel roller

Enclosed Switches ZE/ZV/XE/XV F-125
Limit
Switches
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.1
25.4±0.3
19.3
39.7
44±0.8
(23.1)
(40)
17.4R
39.7
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.1
25.4±0.3
44±0.8
19.3
19
25.5
24
86
23
25.4±0.12
2.1
±0.1
25.4±0.3
17
19
25.5
24
86
23
25.4±0.12
2.1
±0.1
25.4±0.3
17
19
25.5
24
86
23
25.4±0.12
2.1
±0.1
25.4±0.3
17

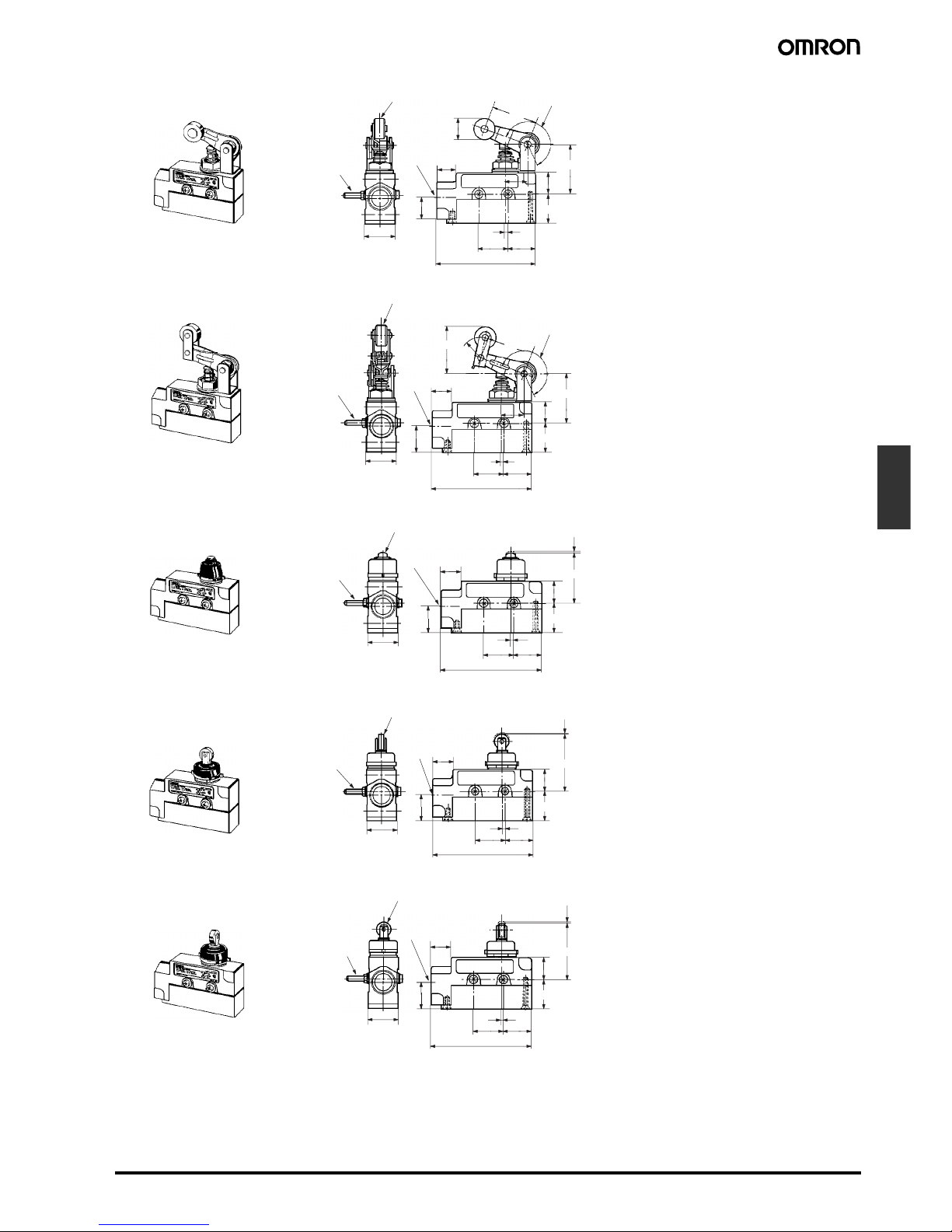

Roller Arm Lever
ZE-QA2-2, XE-QA2-2
Two, M4
(length: 45)
Note: 1. Stainless sintered roller
2. Adjustable between 0°and 225°
Two, M4
(length: 45)
Two, M4
(length: 45)
(See note 2)
19.1 dia. ×7.9 (see note 1)
JIS B0202 G1/2
Effective thread:
4 threads min.
One-way Action Roller Arm Lever
ZE-QA277-2, XE-QA277-2 18.7 dia. ×9 (see note 1)
←Operate in this direction only
JIS B0202
G1/2
Effective
thread: 4
threads min.
17.4R
(See note 2)
Note: 1. Stainless sintered alloy roller
2. Adjustable between 0°and 225°
Sealed Plunger
ZE-N-2, XE-N-2
Note: Stainless steel plunger
JIS B0202 G1/2
Effective thread:
4 threads min.
12R (see note) PT
OP
Two, M4
(length: 45)
JIS B0202 G1/2
Effective thread:
4 threads min.
PT
OP
Note: Stainless steel roller
12.7 dia. ×4.8 (see note)
Sealed Roller Plunger
ZE-N22-2
Note: Stainless steel roller
Two, M4
(length: 45)
JIS B0202 G1/2
Effective thread:
4 threads min.
PT
OP
12.7 dia. ×4.8 (see note)
Sealed Crossroller Plunger
ZE-N21-2

F-126 Enclosed Switches ZE/ZV/XE/XV
Base Mounting/Diagonal Side Mounting
25.4±0.3
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.1
53.4±0.8
(23.1)
39.7
19.3
Two, M4
(length: 45)
19.1 dia. ×7.9 (see note 1)

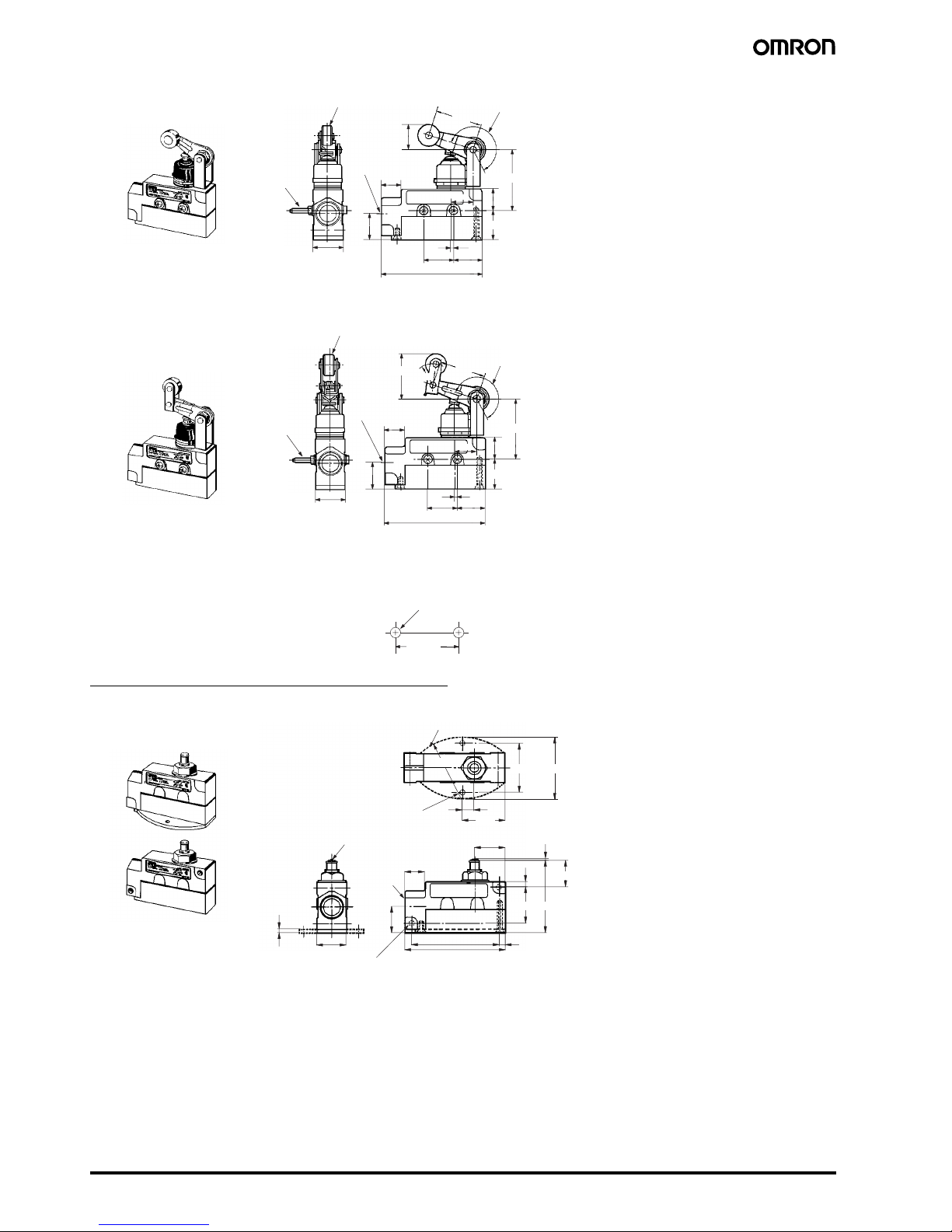

Sealed Roller Arm Lever
ZE-NA2-2, XE-NA2-2
JIS B0202
G1/2
Effective thread:
4 threads min.
Note: 1. Stainless steel roller
2. Adjustable between 0°and 225°
(See note 2)
19.3
25.4±0.3
19
25.5
24
86
23
17
25.4±0.12
2.1
±0.12
53.4±0.8
(40) 39.7
25.4±0.1
Two, M4
(length: 45)
18.7 dia. ×9 (see note 1)
Note: 1. Stainless steel roller
2. Adjustable between 0°and 225°
One-way Action Sealed Roller Arm Lever
ZE-NA277-2, XE-NA277-2
(See note 2)
17.4R
JIS B0202
G1/2
Effective thread:
4 threads min.
←Operates in this direction only
Mounting Hole
Two, 4.3 dia.
mounting holes or
M4 screw holes
25.4±0.3
5
26.1
54
86
23
17
75±0.2 5.5
31±0.2
36.6
41.3±0.2
3
10.5±0.3
PT
12R (see note 1.) Note: 1. Stainless steel plunger
2. Only the ZV2-Q-2 and
XV2-Q-2 incorporate
mounting holes.
3. OP for ZV2-Q-2 and
XV2-Q-2 is 24.2 ±0.8 mm.
Plunger
ZV(2)-Q-2, XV(2)-Q-2
JIS B0202
G1/2 Ef-
fective
thread: 4
threads min.
Two, 4.3±0.2 dia. holes
OP (see note 3)
OP (see note 4)
53R
−0
Two, 5.4+0.2dia. holes (see note 2)
t = 3 (ZV-Q-2/XV-Q-2 flange)

Enclosed Switches ZE/ZV/XE/XV F-127
Limit
Switches
25.4±0.3
26.1
23
75±0.2
5.5
31±0.2
41.3±0.2
5
54
36.6
10.5±0.3
17
3
86
31±0.2
PT
12.7 dia. ×4.8 (see note 1)
Note: 1. Stainless steel roller
2. Only the ZV2-Q22-2 and
XV2-Q22-2 incorporate mount-
ing holes.
3. OP for ZV2-Q22-2 and
XV2-Q22-2 is 35.7 ±1 mm.
Roller Plunger
ZV(2)-Q22-2, XV(2)-Q22-2
Two, 4.3±0.2 dia. holes
OP (see note 3)
OP (see note 4)
53R
−0
Two, 5.4+0.2dia. holes (see note 2)
JIS B0202 G1/2
Effective thread:
4 threads min.
t = 3 (ZV-Q22-2/XV-Q22-2 flange)
25.4±0.3
26.1
23
75±0.2
5.5
41.3±0.2
5
54
36.6
10.5±0.3
17
3
86
31±0.2
41.3±0.2
54
36.6
10.5±0.3
3
25.4±0.3
23
17
86
23.1 max.
39.7
30±0.8
69.5±0.8
19.3
PT
12.7 dia. ×4.8 (see note 1)
Note: 1. Stainless steel roller
2. Only the ZV2-Q21-2 and XV2-Q21-2
incorporate mounting holes.
3. OP for ZV2-Q21-2 and XV2-Q21-2 is
35.7 ±0.8 mm.
Crossroller Plunger
ZV(2)-Q21-2, XV(2)-Q21-2
Two, 4.3±0.2 dia. holes
OP (see note 3)
OP (see note 4)
53R
−0
Two, 5.4+0.2dia. holes (see note 2)
JIS B0202
G1/2
Effective
thread: 4
threads min.
Two, 4.3±0.2 dia. holes
53R
Note: 1. Stainless sintered alloy roller
2. Adjustment between 0°to 225°.
3. Only the ZV2-QA2-2 and XV2-QA2-2
incorporate mounting holes.
19.1 dia. ×7.9 (see note 1)
−0
Two, 5.4+0.2dia. holes (see note 3)
JIS B0202
G1/2
Effective
thread: 4
threads min.
23.1 max.
(See note 2)
Roller Arm Lever
ZV(2)-QA2-2, XV(2)-QA2-2
t = 3 (ZV-Q21-2/XV-Q21-2 flange)
t = 3 (ZV-QA2-2/XV-QA2-2 flange)

F-128 Enclosed Switches ZE/ZV/XE/XV
25.4±0.3
26.1
23
75±0.2 5.5
5
17
3
86
PT
41.3±0.2 54
10.6±0.3
36.6
41.3±0.2 54
10.6±0.3
36.6
25.4±0.3
26.1
23
5.5
5
17
3
31±0.2
75±0.2
86
31±0.2
53R
One-way Action Roller Arm Lever
ZV(2)-QA277-2, XV(2)-QA277-2
Two, 4.3±0.2 dia. holes
t = 3 (ZV-QA277-2/XV-QA277-2 flanges)
18.7 dia. ×9 (see note 1)
Note: 1. Stainless steel roller
2. Adjustment between 0°to 225°.
3. Only the ZV2-QA277-2 and
XV2-QA277-2 incorporate mounting
holes.
(See note 2)
−0
Two, 5.4+0.2dia. holes (see note 3)
JIS B0202
G1/2
Effective
thread: 4
threads min.
Operates in this direction only
PT
Two, 4.3±0.2 dia. holes
OP (see note 3)
OP (see note 4)
−0
Two, 5.4+0.2dia. holes (see note 2)
JIS B0202
G1/2
Effective
thread: 4
threads min.
12CR (see note 1)
53R
Note: 1. Stainless steel plunger
2. Only the ZV2-N-2 and XV2-N-2
incorporate mounting holes.
3. OP for ZV2-N-2 and XV2-N-2 is
31.9 ±0.8 mm.
Two, 4.3±0.2 dia. holes
53R
12.7 dia. ×4.8 (see note 1)
JIS B0202
G1/2
Effective
thread: 4
threads min.
PT
OP (see note 3)
OP (see note 4)
−0
Two, 5.4+0.2dia. holes (see note 2)
Note: 1. Stainless steel roller
2. Only the ZV2-N22-2 incorpo incorpo-
rate mounting holes.
3. OP for ZV2-N22-2 is 35.7 ±0.8 mm.
Sealed Roller Plunger
ZV(2)-N22-2
Sealed Plunger
ZV(2)-N-2, XV(2)-N-2
t = 3 (ZV-N-2/XV-N-2 flange)
t = 3 (ZV-N22-2 flange)

Enclosed Switches ZE/ZV/XE/XV F-129
Limit
Switches
25.4±0.3
26.1
23
75±0.2 5.5
41.3±0.2
5
36.6
10.6±0.3
3
86
31±0.2
PT
54
53R
PT
12.7 dia. ×4.8 (see note 1)
Note: 1. Stainless steel roller
2. Only the ZV2-N21-2 in-
corporate mounting holes.
3. OP for ZV2-N21-2 is 35.7
±0.8 mm.
Sealed Crossroller Plunger
ZV(2)-N21-2
Two, 4.3±0.2 dia. holes
OP (see note 3)
OP (see note 4)
t = 3 (ZV flange)
−0
Two, 5.4+0.2dia. holes (see note 2)
JIS B0202 G1/2
Effective thread: 4
threads min.
53R
17.4R
19.1 dia. ×7.9 (see note 1)
Note: 1. Stainless steel roller
2. Adjustment between 0°to 225°.
3. Only the ZV2-NA2-2 and XV2-NA2-2
incorporate mounting holes.
Sealed Roller Arm Lever
ZV(2)-NA2-2, XV(2)-NA2-2
Two, 4.3±0.2 dia.
(See note 2)
t=3 (ZV-NA2-2/XV-NA2-2 flanges)
−0
Two, 5.4+0.2dia. holes (see note 3)
JIS B0202 G1/2
Effective thread:
4 threads min.
One-way Action Sealed Roller Arm Lever
ZV(2)-NA277-2, XV(2)-NA277-2
18.7 dia. ×9 (see note 1)
Two,
4.3±0.2 dia.
t=3 (ZV-NA277-2/XV-NA277-2 flanges)
Operates in this direction only
(See note 2)
−0
Two, 5.4+0.2dia. holes (see note 3)
Note: 1. Stainless steel roller
2. Adjustment between 0°to 225°.
3. Only the ZV2-NA277-2 and
XV2-NA277-2 incorporate mounting
holes.
JIS B0202
G1/2
Effective
thread: 4
threads min.
53R

F-130 Enclosed Switches ZE/ZV/XE/XV

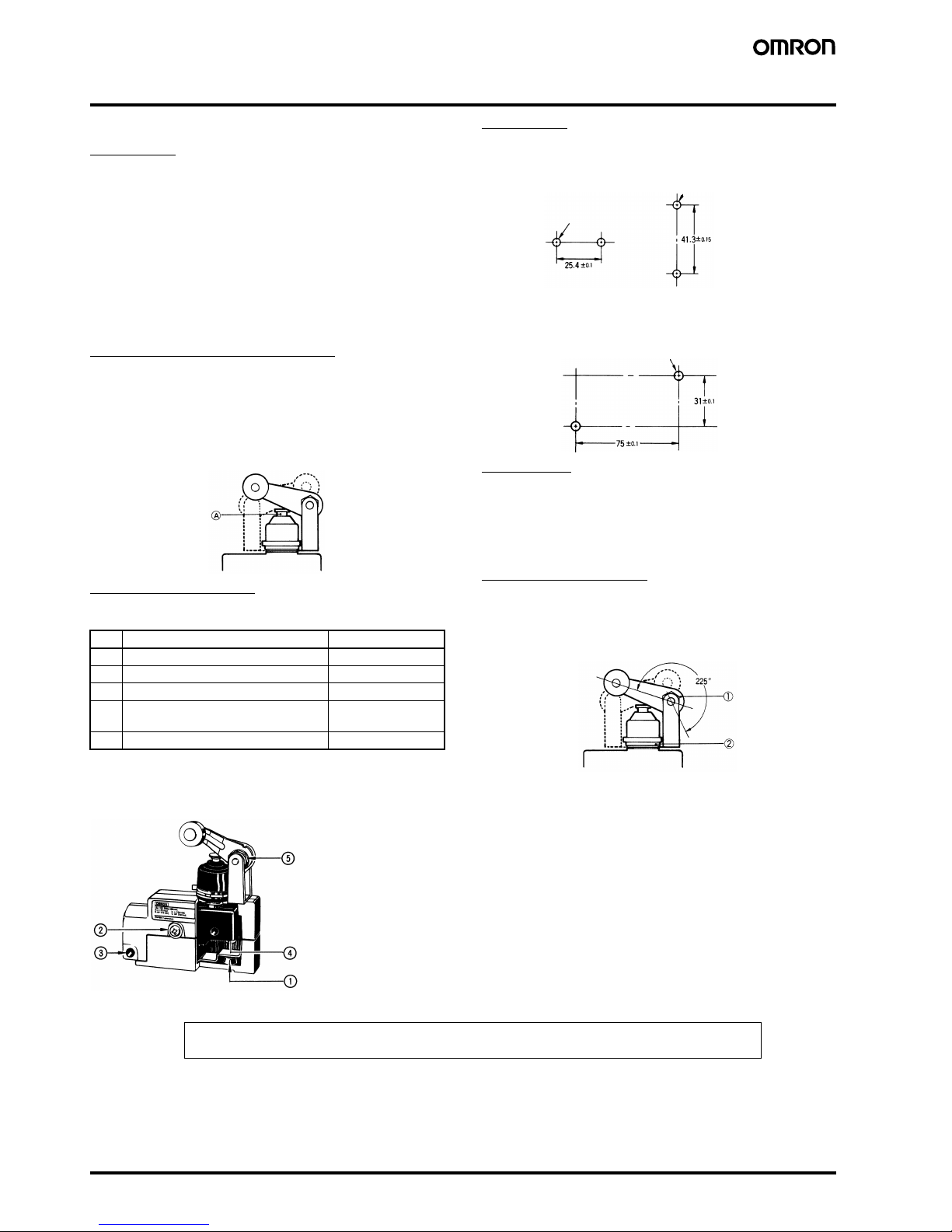

Precautions
■Correct Use
Mounting
With the Roller Lever-type Enclosed Switches, the roller arm has
been temporarily tightened prior to shipment, so that its position may
be adjusted later. When mounting the Switch, be sure to re-tighten
the roller arm so as to prevent it from becoming loose during opera-
tion.
To adequately maintain the seals at the mounting screw section on
the side of the Enclosed Switch, insert each O-ring correctly and
secure it with the lock nut.
To provide the Switch with improved sealing property, use of the SC
Connector is recommended.
When routing wires into the conduit opening, be sure that cuttings
and other foreign matter do not enter the Switch.
Environmental Precautions
Sealing materials may deteriorate when used outdoors or when
exposed to cutting oil, solvents, or chemicals. Check this on actual
equipment and, if deterioration is foreseen, consult your OMRON
representative in advance.
Be sure to protect part A with grease in order to maintain the
mechanical life and performance of the Limit Switch. The use of
molybdenum disulfide grease is recommended.
Tightening Torque
A loose screw may result in a malfunction. Be sure to tighten each
screw to the proper tightening torque as shown below.
Note: 1. This torque range applies to side mounting or bottom
mounting. (M4 screws for head)
2. This torque range applies to side diagonal mounting. (M5
Allen-head bolt)
Mounting
Mounting Holes
Operation
•Operating method, shape of cam or dog, operating frequency, and
the overtravel (OT) have significant effect on the service life and
precision of the Limit Switch. Make sure that the shape of the cam
is smooth enough.
•Check that OT has a sufficient margin. The actual OT should be
rated OT x 0.7 to 1.
Dedicated Wrench
The roller arm can be set freely within a range of 225°after loosening
the nut.
The roller arm mounting bracket can be set in any direction after
loosening the nut.
A dedicated wrench is provided separately.
Model: SUPANA FOR ZE
Make sure that the nut is free of foreign substances when the nut is
loosened.
No. Type Torque
1 Cover mounting screw 1.18 to 1.37 N·m
2 Switch mounting screw (see note 1) 1.18 to 1.37 N·m
3 Switch mounting screw (see note 2) 4.90 to 5.88 N·m
4 Switch terminal screw (M4 screws for
head)
0.78 to 1.18 N·m
5 Roller arm mounting nut 4.90 to 5.88 N·m
Side Mounting Bottom Mounting
Side Diagonal Mounting
Two, 4.3 dia.
mounting holes or
M4 screw holes
Two, 4.3 dia.
mounting holes or
M4 screw holes
Two, 5.4 dia.
mounting holes or
M5 screw holes
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. C020-E1-09
