Orbit AF1005 User manual

AF1005
Deluxe Smith/Functional training/Power cage combo
CAUTION!
Read all precautions and instructions in this manual before using this equipment.
All manuals and user guides at all-guides.com
all-guides.com

ASS MBLY MANUAL
B FOR YOU START
Remove all parts from the packaging and separate and count each various component to ensure
everything has been correctly provided.

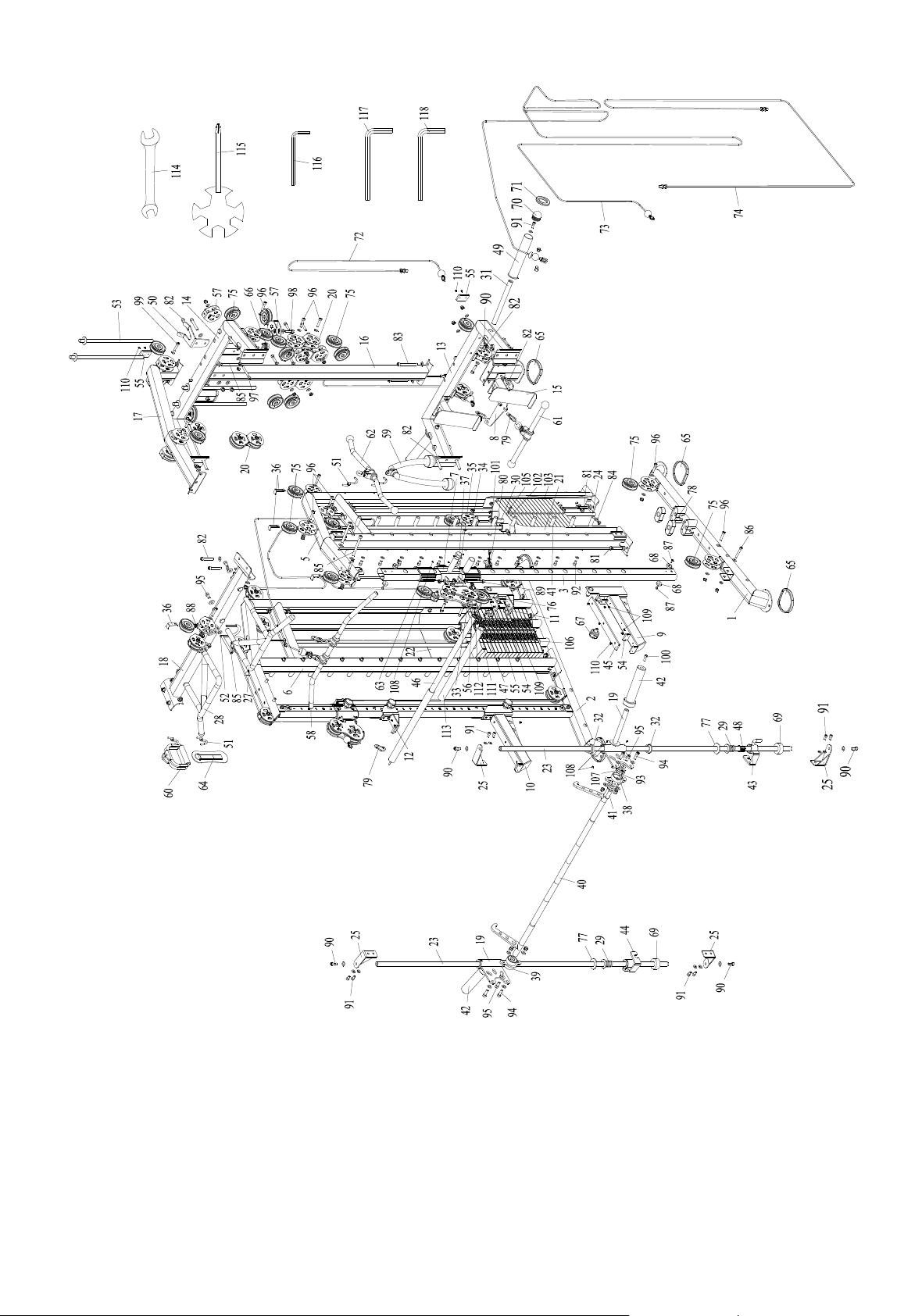

Follow the instructions and consult both the individual assembly pages and the overall expanded
views of the equipment.
Certain parts may arrive pre-assembled from the factory.
It is the owner s responsibility to ensure that all users of this unit have read the owner s manual
and are familiar with the safety precautions.
SAF TY PR CAUTIONS
•Highly recommended for two or more people to assemble the equipment to avoid injury.
•Assemble the equipment on a flat level surface.
•Consider placing a mat under the equipment to protect your floor.
•Wear appropriate footwear and clothing during assembly and use.
•Only tighten nuts and bolts by hand until the whole equipment is assembled
•Ensure you correctly orientate each piece before attaching
•Do not allow children and pets to be unsupervised around the assembly or usage of this
equipment.
•Ensure all parts are in full working order before use.
•Only one person should use the machine at any one time.
•Do not use the equipment outdoors or around water.
•Keep hair, fingers or clothing away from moving parts.
•Only use attachments recommended by the manufacturer.
•Never operate if any parts are not functioning correctly.
•Always correctly stretch and warm up before using the equipment.
•Stop immediately if your experience any pain, dizziness or nausea. See a doctor at once.
PLEASE NOTE: Descriptions of pieces as LEFT and RIGHT are from the point of view of standing
behind the equipment facing towards the front.
B FOR STARTING ANY X RCIS PROGRAM, CONSULT YOUR DOCTOR.
SP CIALLY IF YOU AR OV R TH AG OF 35 OR HAV PR - XISTING
H ALTH PROBL MS.
R AD ALL INSTRUCTIONS B FOR ASS MBLING OR USING ANY FITN SS
QUIPM NT.
FORC USA FITN SS QUIPM NT ASSUM S NO R SPONSIBILITY FOR
P RSONAL INJURY OR PROP RTY DAMAG SUSTAIN D BY OR THROUGH TH
US OF THIS PRODUCT.
SAV TH S INSTRUCTIONS.
ASSEMBLY INSTRUCTIONS
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com

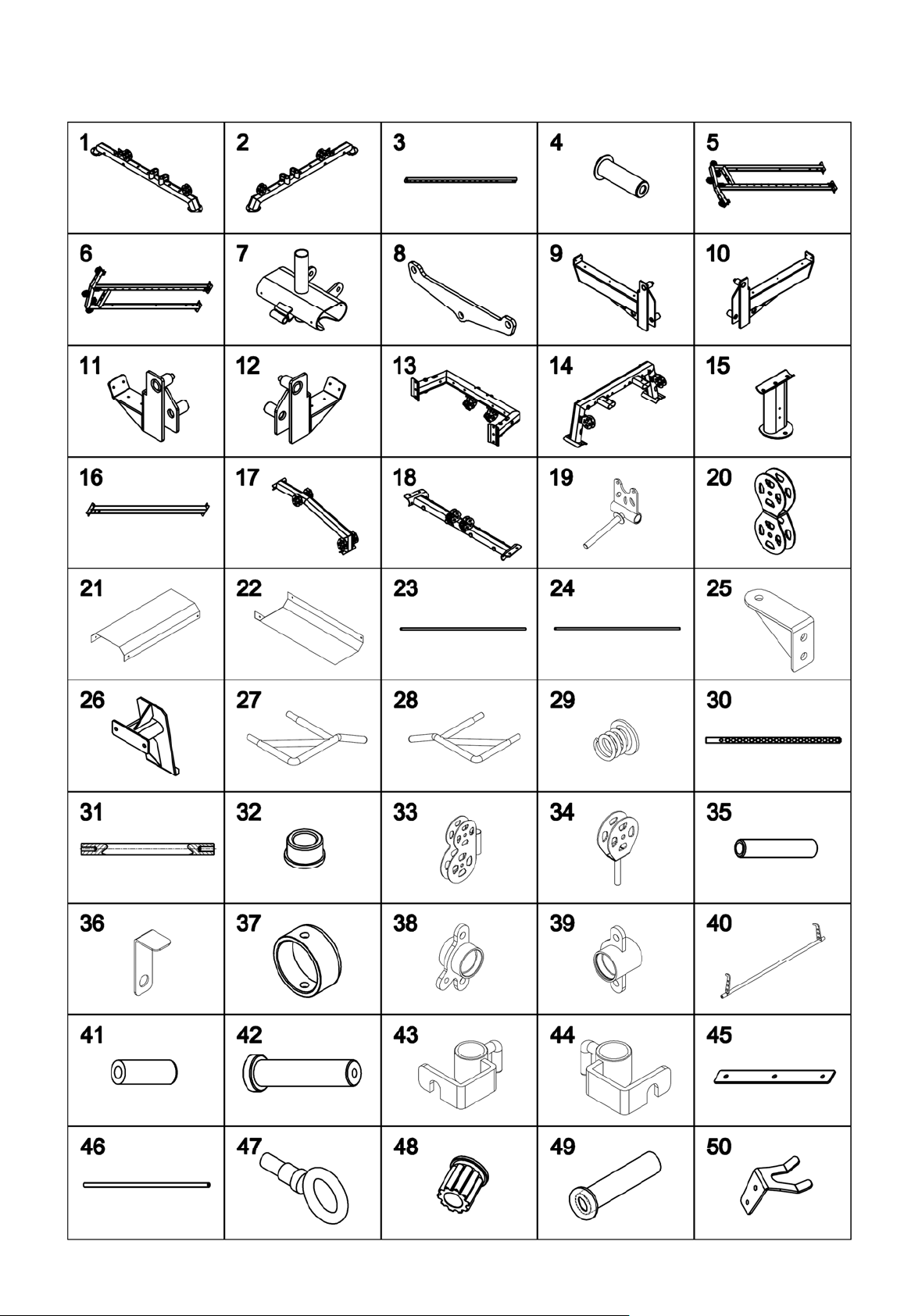

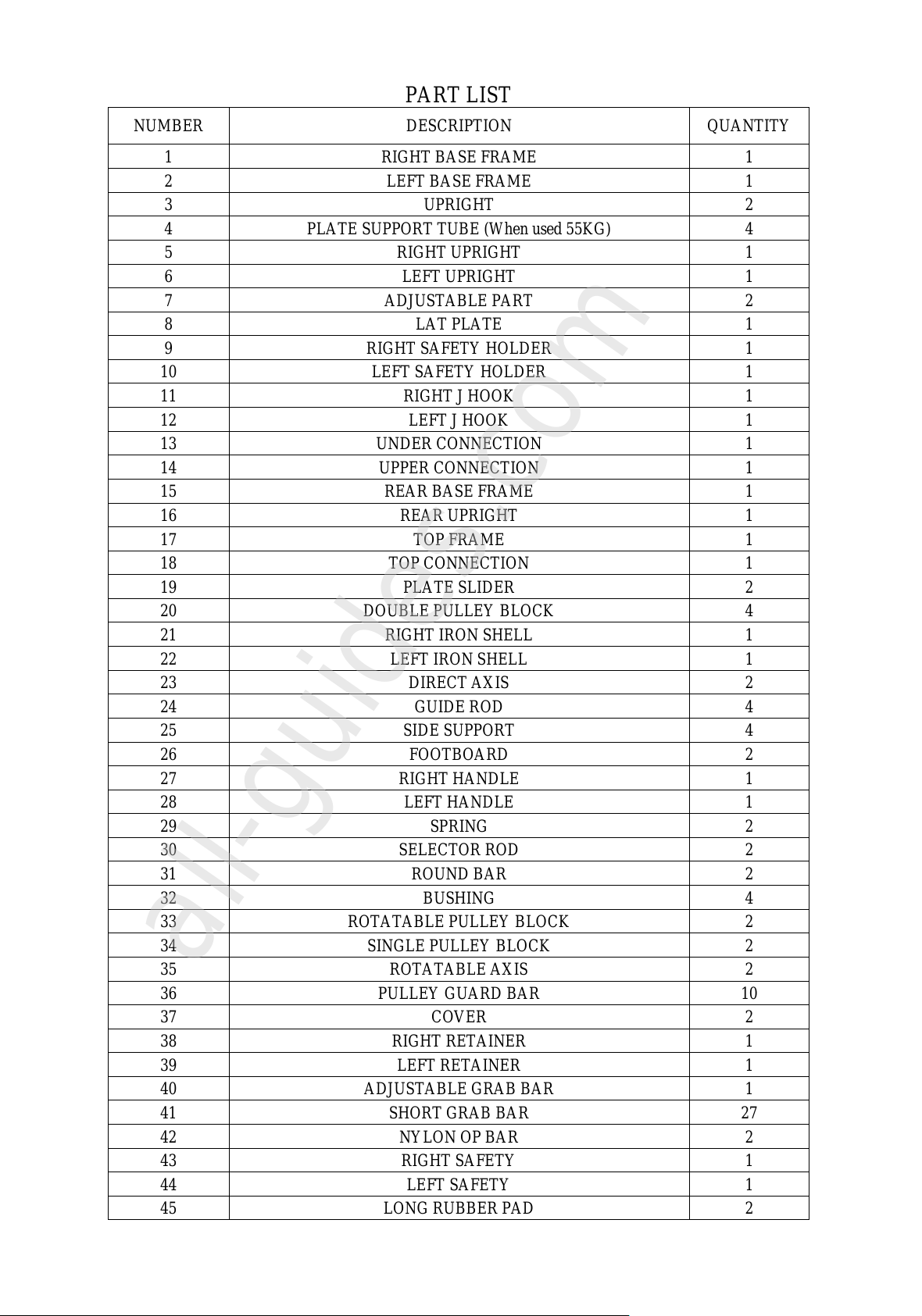

PART LIST
NUMBER DESCRIPTION QUANTITY
1 RIGHT BASE FRAME 1
2 LEFT BASE FRAME 1
3 UPRIGHT 2
4 PLATE SUPPORT TUBE (When used 55KG) 4
5 RIGHT UPRIGHT 1
6 LEFT UPRIGHT 1
7 ADJUSTABLE PART 2
8 LAT PLATE 1
9 RIGHT SAFETY HOLDER 1
10 LEFT SAFETY HOLDER 1
11 RIGHT J HOOK 1
12 LEFT J HOOK 1
13 UNDER CONNECTION 1
14 UPPER CONNECTION 1
15 REAR BASE FRAME 1
16 REAR UPRIGHT 1
17 TOP FRAME 1
18 TOP CONNECTION 1
19 PLATE SLIDER 2
20 DOUBLE PULLEY BLOCK 4
21 RIGHT IRON SHELL 1
22 LEFT IRON SHELL 1
23 DIRECT AXIS 2
24 GUIDE ROD 4
25 SIDE SUPPORT 4
26 FOOTBOARD 2
27 RIGHT HANDLE 1
28 LEFT HANDLE 1
29 SPRING 2
30 SELECTOR ROD 2
31 ROUND BAR 2
32 BUSHING 4
33 ROTATABLE PULLEY BLOCK 2
34 SINGLE PULLEY BLOCK 2
35 ROTATABLE AXIS 2
36 PULLEY GUARD BAR 10
37 COVER 2
38 RIGHT RETAINER 1
39 LEFT RETAINER 1
40 ADJUSTABLE GRAB BAR 1
41 SHORT GRAB BAR 27
42 NYLON OP BAR 2
43 RIGHT SAFETY 1
44 LEFT SAFETY 1
45 LONG RUBBER PAD 2
All manuals and user guides at all-guides.com
all-guides.com

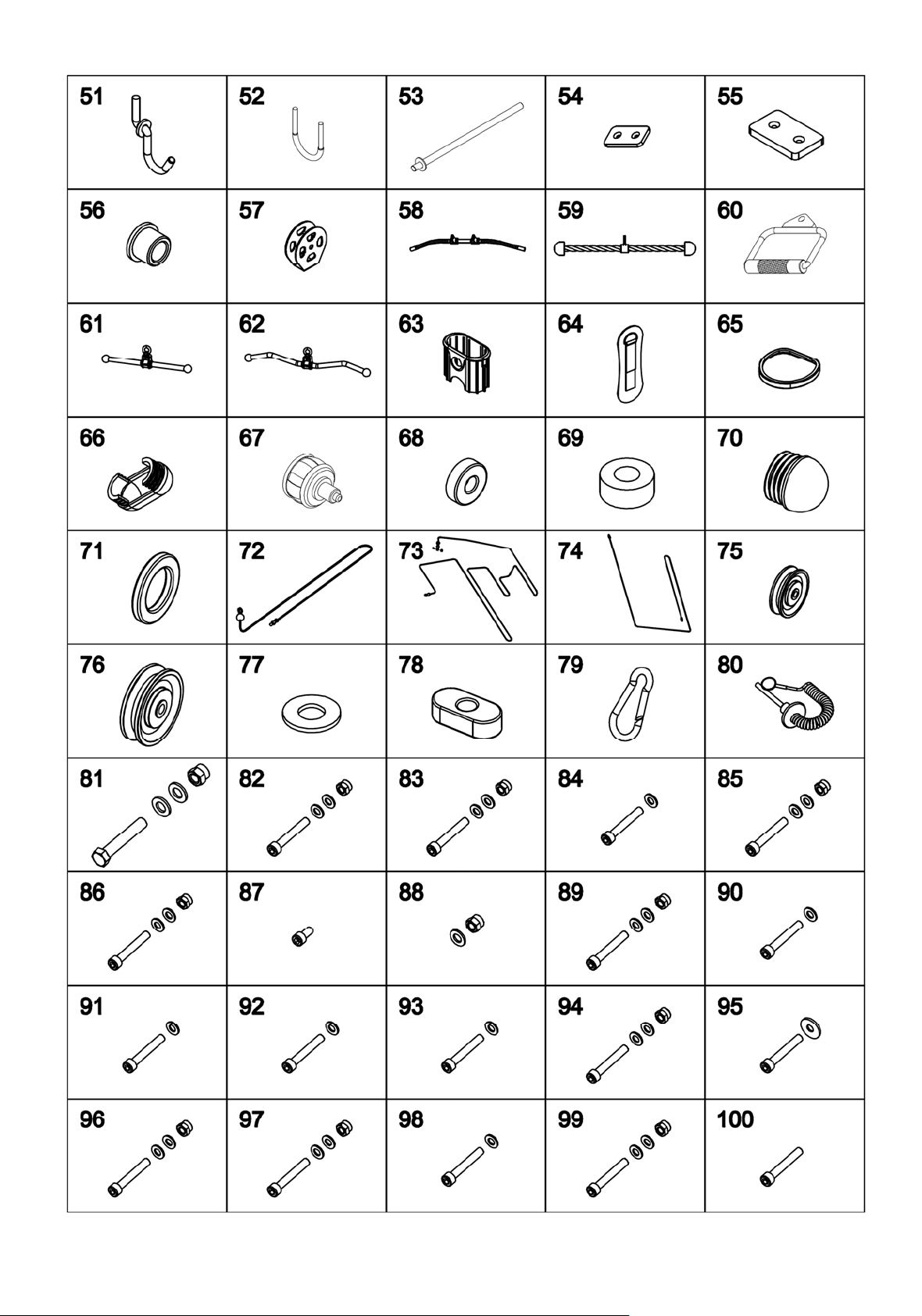

46 BODY BAR 1
47 EYEBOLTS 2
48 NYLON BUSHING 2
49 OP BAR 2
50 BAR HOLDER 1
51 HOOK 4
52 U HOOK 1
53 POWER BAND PEGS 4
54 SMALL RUBBER PAD 8
55 RUBBER PAD 4
56 COPPER BUSHING 4
57 PULLEY BLOCK 4
58 CURVED HANDLE 1
59 ROPE HANDLE 1
60 RINGS 2
61 LOW ROW BAR 1
62 LAT BAR 1
63 HOLLOW SLEEVE 4
64 ANKLE STRAP 1
65 FOOT PAD 5
66 ELLIPTIC PLUG 2
67 FAST PIN 6
68 SMALL BUFFER 8
69 THICK BUFFER 2
70 ROUND PLUG 2
71 CUSHION RING 2
72 CABLE WITH ONE BALL 2
73 CABLE WITH TWO BALL 2
74 CABLE WITH NO BALL 2
75 PULLEY 38
76 BIG PULLEY 2
77 THIN BUFFER 2
78 ELLIPTIC BUFFER 4
79 HOIST HOOK 7
80 PIN WITH ROPE 2
81 HEX BOLT M12×75 + TWO WASHERS + LOCK NUT 8
82 BOLT M12×75 + TWO WASHERS + LOCK NUT 18
83 BOLT M12×125 + TWO WASHERS + LOCK NUT 2
84 BOLT M10×20 + WASHER 6
85 BOLT M12×120 + TWO WASHERS + LOCK NUT 8
86 BOLT M10×65 + TWO WASHERS + LOCK NUT 4
87 BOLT M6×10 8
88 WASHER + LOCK NUT M10 2
89 BOLT M10×105 + TWO WASHERS + LOCK NUT 2
90 BOLT M12×30 + WASHER 6
91 BOLT M10×30 + WASHER 10
92 BOLT M10×130 + WASHER 26
All manuals and user guides at all-guides.com

93 BOLT M10×35 + WASHER 1
94 BOLT M12×35 + TWO WASHERS + LOCK NUT 4
95 BOLT M12×30 + BIG WASHER 8
96 BOLT M10×50 + TWO WASHERS + LOCK NUT 32
97 BOLT M10×90 + TWO WASHERS + LOCK NUT 2
98 BOLT M10×50 + WASHER 2
99 BOLT M10×185 + TWO WASHERS + LOCK NUT 2
100 BOLT M12×30 2
101 NUT M12 2
102 TOP WEIGHT 2
103 WEIGHT 30 / 20
104 BOLT M10×70 + WASHER 4
105 PIN 2
106 WEIGHT LABELING 2
107 BIG BEARING 4
108 SELF-TAPPING SCREW M4×6 16
109 HEX SOCKET HEAD SCREWS M5×10 20
110 HEX SOCKET HEAD SCREWS M5×16 10
111 CIRCLIPS FOR SHAFT 2
112 BEARING 2
113 FOAM 2
114 17-19 WRENCH 2
115 COMBINATION WRENCH 1
116 ALLEN-WRENCH 3 1
117 ALLEN-WRENCH 8 1
118 ALLEN-WRENCH 10 1
All manuals and user guides at all-guides.com

STEP 01
1．Attach RIGHT UPRIGHT (5) to RIGHT BASE FRAME (1) with four bolt assemblies (81).
2．Attach LEFT UPRIGHT (6) to LEFT BASE FRAME (2) with four bolt assemblies (81).
All manuals and user guides at all-guides.com

STEP 02
1. Attach RIGHT IRON SHELL (21) to RIGHT UPRIGHT (5) with three bolt assemblies (84). Attach LEFT
IRON SHELL (22) to LEFT UPRIGHT (6) with three bolt assemblies (84).
2. Attach REAR BASE FRAME (15) and REAR UPRIGHT (16) to UNDER CONNECTION (13) with two
bolt assemblies (83).
3. Attach UNDER CONNECTION (13) to RIGHT UPRIGHT (5) and RIGHT IRON SHELL (21) with two
bolt assemblies (82). Attach UNDER CONNECTION (13) to LEFT UPRIGHT (6) and LEFT IRON SHELL
(22) with two bolt assemblies (82).
4. Attach two ELLIPTIC PLUG S (66) to UPPER CONNECTION (14), and attach UPPER CONNECTION
(14) to RIGHT UPRIGHT (5) and LEFT UPRIGHT (6) with four bolt assemblies (82).
