Oricom OBH930 User manual

USER’S GUIDE
Model: OBH930
The features described in this user’s guide are subject to modifications without prior notice.
5" Smart HD Baby Monitor with Night Light

Welcome...
to your new Oricom Video Baby Monitor!
Thank you for purchasing your new Oricom Smart Nursery product. Now you
can see and hear your baby sleeping in another room or you can monitor
your older children in their playroom.
Please retain your original dated sales receipt for your records.
For warranty service of your Oricom product, you will need to provide a
copy of your dated sales receipt to confirm warranty status. Registration is
not required for warranty coverage.
For product related questions, please contact:
Australia:
[phone] / Monday - Friday 8am – 6pm AEST
Email: [email protected] / www.oricom.com.au
New Zealand:
0800 674 266 / Monday - Friday 10am - 8pm NZST
Email: [email protected]
Visit [email protected] to download the User Guide with instructions,
answers to frequently asked questions, and more to help you get the most
from your product.
Inside the Box
• 1 x Parent Unit
• 1 x Baby Unit (Camera)
• 2 x Power adapters (Parent Unit and Baby Unit)
• 1 x Quick Start Quide
In multi-camera packs, you will nd one or more additional Baby Units with
power adapters.

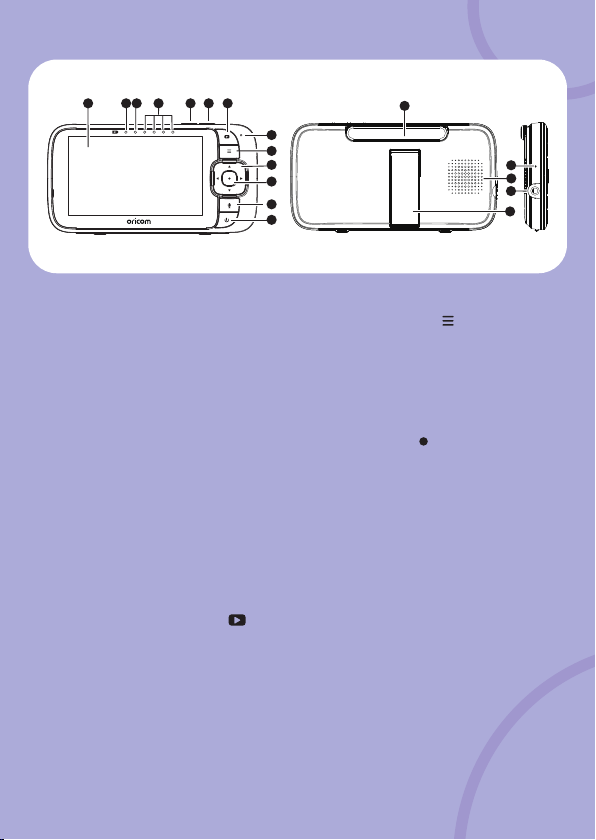

Overview of the Parent Unit
2 43
8
10
9
56
11
12
13
7
16
17
18
15
14
1
1. Display (LCD screen)
2. Charging LED
RED when mains power
connected.
3. Parent Unit ON/OFF LED
(Green)
4. Sound Level indicators (Green,
Amber, Red, Red)
Show the sound level detected
by the Baby Unit - the louder of
sound detected, the more LEDs
light up.
5. Volume -
Press to decrease Volume level.
6. Volume +
Press to increase Volume level.
7. Display ON/OFF button
Press to turn the LCD screen
ON/OFF (Note: audio is
maintained.)
8. Microphone
9. MENU button
Press to open / close the Menu
options.
10. Navigation button + - < >
Move Up/Down/Right/Left menu
options.
11. OK button
12. TALK button T
Press and hold to speak to your
baby.
13. Power button 0
Press and Hold to turn the Parent
Unit ON/OFF.
14. Antenna
15. RESET pin hole (recessed - use
small pin)
16. Speaker
17. Power Socket
18. Stand

Parent Unit menu icons
Signal Level (4 Levels)
Night Vision Mode (Video also changes to Black/White).
Talk Mode On.
Indicates the screen off timer is set.
Volume Level Control (8 Levels).
No Baby Unit detected.
Battery Level Indication (4 Levels).
Zoom Level Control (1X, 2X).
LCD Brightness Level Control (8 Levels).
Lullaby Control (5 Song Selections).
Alarm Setting (6h, 4h, 2h, OFF)
On status bar, indicates alarm set, and when ashing, that alarm time
has been reached or missed.
Temperature scale select (°C/°F)
Readings display in BLUE, but turn RED if > 29 °C / 84 °F or < 14 °C /
57 °F.
Displays HH °C / °F if >36 °C / 97 °F.
Displays LL °C / °F if < 1 °C / 34 °F.
Camera Control [ - (delete) / + (add) / (view) / (scan) ].
Set Screen Off Timer (Off , 5 mins, 15 mins, 30 mins).
View multiple cameras on screen. Available when you have more than 1
Baby Unit (Camera).

Overview of Your Baby Unit
Important guidelines for installing your Digital Video Baby Monitor
• To use your Baby Unit and Parent Unit together, you must be able to establish
a radio link between them, and the range will be affected by environmental
conditions.
• Any large metal object, like a refrigerator, a mirror, a ling cabinet, a metallic
door or reinforced concrete, between the Baby Unit and Parent Unit may block
the radio signal.
• The signal strength may also be reduced by other solid structures, like walls, or
by radio or electrical equipment, such as TVs, computers, cordless or mobile
phones, uorescent lights or dimmer switches.
• Other 2.4GHz products, such as wireless networks (Wi-Fi® routers),
Bluetooth™ systems, microwave ovens or other Baby Monitors, may cause
interference with this product, so keep the Baby Monitor at least 5ft (1.5m)
away from these types of product, or switch them off if they appear to be
causing interference.
• If the signal is weak, try moving the Parent and/or the Baby Unit to different
positions in the rooms.
9
10
7
8
12
11
5
1
3
4
2
6
1. Light Sensor
2. Infrared LEDs (x8, for night vision)
3. Camera Lens
4. High Sensitivity Microphone
5. Power/Link indicatior
6. Mood Light
7. Power Socket
8. Speaker
9. PAIR button
10. Screw mounting hole
11. Antenna
12. Temperature Sensor

6
Table of contents
Table of contents
1. Safety Instructions ............................................................................... 8
2. Getting Started ................................................................................... 11
2.1 Connecting the Power Supply for the Baby Unit.............................11
2.2 Connecting the Power Supply of the Parent Unit ...........................11
2.3 Desktop Stand of the Parent Unit ................................................... 12
2.4 Registration (Pairing)........................................................................ 13
3. Using the Baby Monitor ..................................................................... 14
3.1 Setting Up........................................................................................14
3.2 Night Vision Mode...........................................................................14
3.3 Pan and Tilt ......................................................................................14
3.4 Talk Mode.........................................................................................14
3.5 Video ON/OFF.................................................................................14
3.6 Temperature Display (HH °C / °F or LL °C / °F) ...............................14
4. Parent Unit Menu Options ................................................................ 15
4.1 Volume .............................................................................................15
4.2 Brightness ........................................................................................15
4.3 Zoom................................................................................................15
4.3.1 Lullaby/Playback....................................................................15
4.4 Alarm................................................................................................15
4.5 Camera Control................................................................................16
4.5.1 Add (pair) a camera...............................................................16
4.5.2 View a camera .......................................................................16
4.5.3 Delete a camera....................................................................17
4.5.4 Scan camera .......................................................................... 17

7
English
Table of contents
4.6 Temperature.....................................................................................17
4.7 Power Saving mode ......................................................................... 18
4.8 View multiple cameras on screen ....................................................18
5. Wi-Fi® Internet Viewing ..................................................................... 19
5.1 Minimum System Requirements ......................................................19
5.2 Getting started - Connecting Devices ............................................. 19
5.3 Setup................................................................................................19
5.4 User Account and Camera Setup on Android™ Devices or iPhone®/
iPad® ...............................................................................................20
5.4.1 Power ON and Connect the Camera....................................20
5.4.2 Download HubbleClub for Partners App..............................20
5.4.3 Sign up with Hubble on your smart device...........................20
5.4.4 Add the Camera to your account ........................................21
6. Disposal of the Device (environment) ............................................ 24
7. Cleaning ................................................................................................. 25
8. Help.......................................................................................................... 26
9. General Information ........................................................................... 28
10.Technical Specifications .................................................................... 32

8Safety Instructions
1. Safety Instructions
WARNING:

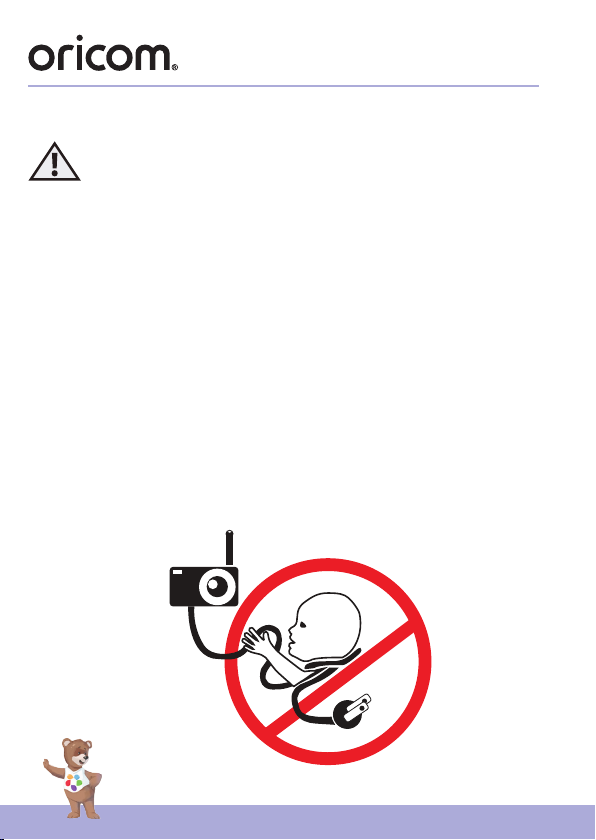

Strangulation Hazard: Children have
STRANGLED in cords. Keep this cord
out of the reach of children (more than
3ft (1m) away). Never use extension
cords with AC Adapters. Only use the
AC Adapters provided.

9
Safety Instructions
English
BABY UNIT SET UP & USE:
• Choose a location for the Baby Unit that will provide the best view of
your baby in his/her crib.
• Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf,
or mount the Baby Unit with Hubble Grip (Not Included).
• NEVER place the Baby Unit or cords within the crib.
Warning:
This Baby Monitor is compliant with all relevant standards regarding
electromagnetic fields and is, when handled as described in the User’s
Guide, safe to use. Therefore, always read the instructions in this User’s
Guide carefully before using the device.
• Adult assembly is required. Keep small parts away from children when
assembling.
• This product is not a toy. Do not allow children to play with it.
• This Baby Monitor is not a substitute for responsible adult supervision.
• Keep this User’s Guide for future reference.
• Keep the cords out of reach of children.
• Do not cover the Baby Monitor with a towel or blanket.
• Test this monitor and all its functions so that you are familiar with it prior to
actual use.
• Do not use the Baby Monitor in damp areas or close to water.
• Do not install the Baby Monitor in extreme cold or heat, direct sunlight, or
close to a heat source.

10 Safety Instructions
• Only use the chargers and power adapters provided. Do not use other
chargers or power adapters as this may damage the device and battery
pack.
• Do not touch the plug contacts with sharp or metal objects.
• Connect the power adapters to easily accessible electrical sockets.
Caution:
There is a risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to their instructions. Use only the
rechargeable battery pack with rating: 3.8V 2100mAh.

11
Getting Started
English
2. Getting Started
2.1 Connecting the Power Supply for the Baby Unit
• Insert the DC plug of the power
adapter into the DC socket on the
back of the Baby Unit.
• Connect the other end of the power
adapter to mains power.
• The baby unit turns on and the power
indicator lights in Green colour.
Note:
Only use the supplied power adapter
(DC5V/1500mA).
2.2 Connecting the Power Supply of the Parent Unit
A rechargeable battery (Lithium ion battery 2100mAh) inside the Parent Unit
allows you to move it without losing the link and picture from the Baby Unit. We
recommend charging the for at least 16 hours before rst use, and when the
Parent Unit indicates the battery is low.
• Connect the small plug of the power adapter to the parent unit and the other
end to mains power. Only use the enclosed adapter (5VDC/1500mA).
• Press and hold the 0button to turn the Parent unit on, the Parent unit and
Baby unit are automatically linked and ready to use.

12 Getting Started
Note:
When the Baby and Parent Units are both turned on and within range, the Parent
Unit should show a color image from the Baby Unit camera, but if the room is
dark, the image will be in black and white, with an icon showing the Baby Unit
is in Night Vision mode.
2.3 Desktop Stand of the Parent Unit
• The parent unit comes with a desktop stand attached to the back of the
parent unit.
• To place the parent unit on a desk, simply pull out the stand, as shown.
Note:
Place the parent unit on a at, even surface.

13
Getting Started
English
2.4 Registration (Pairing)
The Baby Unit is pre-registered to your Parent Unit. You do not need to
register it again unless the Baby Unit loses its link with the Parent Unit.
To re-register your Baby Unit, or register a new Baby Unit, follow the
procedures below:
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the - (delete) / + (add) / (view) / (scan) menu will pop up.
3. Press the +UP button or - DOWN button to select + (add), and press
the button to conrm.
4. Camera 1/ 2/ 3/ 4will pop up. Press the +UP button or - DOWN
button to select the desired Camera, and press the button to start
searching for a camera unit.
Note: If a camera is currently paired with the Parent Unit, its camera
location (with a * beside it) cannot be selected for a new registration.
5. Press and hold the PAIR button on the bottom of the Baby Unit until
the Parent Unit nds the camera, beeps and PAIR OK appears on the
screen. The video from the camera will then appear.
Note:
A camera can only be registered to one Parent Unit at any one time.

14 Using the Baby Monitor
3. Using the Baby Monitor
3.1 Setting Up
Place the Baby Unit in a convenient location (e.g. on a table) and point the
camera lens towards the area you want to monitor. Adjust the angle of the Baby
Unit's camera until you are satised with the image shown on the Parent Unit.
Note: Do not place the Baby Unit within the baby’s reach! If there is inter-
ference with the picture or sound, try moving the units to different locations,
and ensure they are not close to other electrical equipment.
3.2 Night Vision Mode
The Baby Unit has 8 high-intensity infrared LEDs for picking up clear images
in the dark. When the built-in Light sensor on the top of the Unit detects
a low level of ambient light, the LEDs will automatically activate and the
screen on the Parent Unit will display in black and white. The icon will be
displayed at the top of the screen.
3.3 Pan and Tilt
The camera can be remotely controlled from the Parent Unit when in a
camera viewing mode.
1. Press the +UP button or -DOWN button to tilt up or down.
2. Press the <LEFT button or >RIGHT button to pan left or right.
3.4 Talk Mode
Press and hold the TALK button Ton the Parent Unit to talk to your baby
through the Baby Unit’s speaker.
The Ticon will be displayed at the top of the LCD screen.
3.5 Video ON/OFF
Press Display On/Off button to turn the LCD screen on or off, while still
leaving the audio monitor on.
3.6 Temperature Display (HH °C / °F or LL °C / °F)
The temperature reading from the temperature sensor at the back of the Baby
Unit will be displayed at the top of the LCD screen. The readings will turn RED
if the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading
will change to HH °C / °F if the temperature goes above 36°C / 97°F. The
reading will change to LL °C / °F if the temperature goes below 1°C / 34°F.

15
Parent Unit Menu Options
English
4. Parent Unit Menu Options
4.1 Volume
Press the + or - button to adjust the volume level.
The icon will pop up and you can select the desired volume from level
0~8. (The default volume level setting is level 4, and level 0 is OFF.)
4.2 Brightness
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or - DOWN button to select the desired
brightness from level 1 ~ 8. (The default brightness is level 4.)
4.3 Zoom
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted
3. Press the +UP button or - DOWN button to select 1X to 2X zoom.
4.3.1 Lullaby/Playback
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or - DOWN button to view the desired Lullaby.
4. Select the desired Lullaby to soothe your baby.
4.4 Alarm
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press the +UP button or -DOWN button to select alarm, off after 2
hours, 4 hours or 6 hours.

16 Parent Unit Menu Options
4.5 Camera Control
4.5.1 Add (pair) a camera
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the - (delete) / + (add) / (view) / (scan) menu will pop up.
3. Press the +UP button or - DOWN button to select + (add), and press
the button to conrm.
4. Camera 1/ 2/ 3/ 4will pop up. Press the +UP button or - DOWN
button to select the desired Camera, and press the button to start
searching for a camera unit.
Note: If a camera is currently paired with the Parent Unit, its camera
location (with a * beside it) cannot be selected for a new registration.
5. Press and hold the PAIR button on the bottom of the Baby Unit until
the Parent Unit nds the camera, beeps and PAIR OK appears on the
screen. The video from the camera will then appear.
Note:
A camera can only be registered to one Parent Unit at any one time.
4.5.2 View a camera
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the - (delete) / + (add) / (view) / (scan) menu will pop up.
3. Press the +UP button or - DOWN button to select (view), and
press the button to conrm.
4. Camera 1/ 2/ 3/ 4will pop up, press the +UP button or - DOWN
button to select the desired Camera, and press the button to view the
picture from that camera.
Note:
Only camera locations with a * can be selected.
TIP
You can also press the button repeatedly to select the available camera
options from 1/ 2/ 3/ 4, (scan).

17
Parent Unit Menu Options
English
4.5.3 Delete a camera
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the - (delete) / + (add) / (view) / (scan) menu will pop up.
3. Press the +UP button or - DOWN button to select - (delete), and
press the button to conrm.
4. Camera 1/ 2/ 3/ 4will pop up, press the +UP button or - DOWN
button to select the desired Camera, and press the button.
5. Press the +UP button or -DOWN button to select , then press the
button to delete that camera.
Note:
You are not allowed to delete the camera if there is only one registered
camera in the system.
4.5.4 Scan camera
This function is only available when you have more than 1 Baby Unit
(Camera).
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted, and
the - (delete) / + (add) / (view) / (scan) menu will pop up.
3. Press the +UP button or - DOWN button to select (scan), and
press the button to conrm.
4. The screen will then display images from the different cameras in a loop
of Camera 1/ 2/ 3/ 4, changing about every 12 seconds.
TIP
You can also press the button repeatedly to select the available camera
options from 1/ 2/ 3/ 4
,
(scan).
4.6 Temperature
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press + UP / - DOWN to select °C or °F.

18 Parent Unit Menu Options
4.7 Power Saving mode
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until Vis highlighted.
3. Press the +UP button or -DOWN button to select auto video off after
5 mins, 15 mins or 30 mins (if operating on batteries only).
Note:
The audio will remain and you can press any key to switch the video back on.
4.8 View multiple cameras on screen
This function is only available when you have more than 1 Baby Unit
(Camera). When the Split Screen function is On, you can view multiple
cameras on the screen.
1. Press the button and the menu bar will pop up.
2. Press the <LEFT button or >RIGHT button until is highlighted.
3. Press+ UP button or - DOWN button to select Split Screen On /
Off .
4. When the Split Screen function is On, you can press the <LEFT button
/ >RIGHT button / +UP button / -DOWN button to switch between
cameras to hear the audio from the selected camera.

19
Wi-Fi® Internet Viewing
English
5. Wi-Fi® Internet Viewing
5.1 Minimum System Requirements
Android™ System
• Version 8.0 or above
iPhone®/iPad® iOS
• Version 12.0 or above
High Speed (Wi-Fi®) Internet
• At least 0.6 Mbps upload bandwidth per camera (you can test your
internet speed on this site: http://www.speedtest.net)
5.2 Getting started - Connecting Devices
How does it work?
Access your
Camera locally
View your Camera from any
compatible device remotely
Wi-Fi RouterWi-Fi®
Camera
Hubble
Service
When a user tries to access the Camera, our Hubble server authenticates
the user’s identity and permits access to the Camera.
5.3 Setup
Connect the Wi-Fi® Camera to the Power Adapter, then plug into mains power.
The Camera must be within range of the Wi-Fi® router with which you want to
connect. Make sure the password of the router is available for entering during
the in-app setup process.

20 Wi-Fi® Internet Viewing
Status of LED Indication:
- Pair / Setup state: LED is Green and Flashing.
- Unconnected state: LED is Red and Flashing.
- Connected state: LED is Green and always on.
- Video streaming:LED is Green and Flashing.
Note:You can only setup via a compatible smartphone or tablet and not via
a PC.
5.4 User Account and Camera Setup on Android™ Devices or
iPhone®/iPad®
What you need
• Wi-Fi® Camera Unit
• Power adapter for the Camera
• Device with Android™ system version 8.0 and above
• Or iPhone®/iPad® with iOS version 12.0 and above
5.4.1 Power ON and Connect the Camera
• Switch the parent unit off before connect the camera to Wi-Fi®.
• Connect the power adapter to mains power and insert the plug into the
power socket on the back of the Camera Unit, the unit turns on.
5.4.2 Download HubbleClub for Partners App
• Scan the QR code with your smart device
and download the HubbleClub for Partners
App from the App Store for iOS devices or
from the Google Play™ Store for Android™
devices.
• Install the HubbleClub for Partners App on
your device.
5.4.3 Sign up with Hubble on your smart device
• Ensure that your smart device is connected to your Wi-Fi® router.
• Run HubbleClub for Partners App, tap Sign Up with Hubble (fig.1),
read through the Privacy Policy, Terms and Conditions, by signing up
you agree to our terms of service, tap Done (fig.2), enter your account
information to sign up with Hubble.
