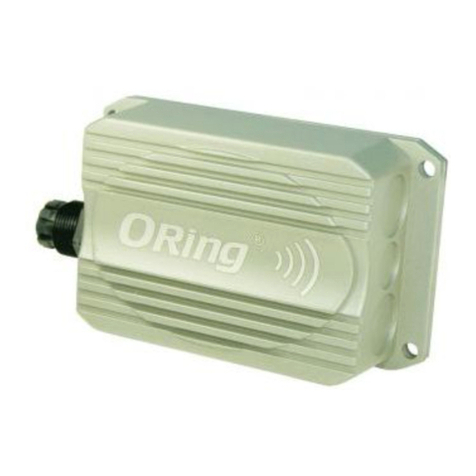

ORiNG IAP-W510 User manual

ORing WLAN Access Point
Model IAP-W510
10/100 Base-T(X) Ports in
RJ45 Auto MDI/MDIX 1
Physical Ports
Technology
Modulation
Power
Input power
Power consumption(Typ.)
48 DC over Ethernet
9 Watts
Physical Characteristic
Enclosure IP-67
Dimension(WxDxH) 162(W) x 102(D) x 58(H) mm (6.38 x 4.02 x2.28inch.)
Weig ht (g ) 600 g
Environmental
-30to85C(-22to185F)
oo
Storage Temperature
-30to70C(-22to158F)
oo
Operating Temperature
Regulatory approvals
FCC Part 15, CISPR (EN55022) class A
EMI
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-1
EMS
IEC60068-2-27
Shock
IEC60068-2-32
IEC60068-2-6
Vibration
Free Fall
Warranty
3 years
WLAN interface
Operating Mode AP/Bridge/Repeater/AP-Client/Client
Antenna Connector Build-in 15dBi panel antenna
Radio Frequency Type OFDM
Frequency Band
Transmission Rate IEEE802.11a: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
IEEE801.11n: 300Mbps
Encryption Security
WEP: (64-bit, 128-bit key supported)
WAP/WAP2: 802.11 (WEP and AES encryption)
WAPPSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption
Wireless Security SSID broadcast disable
Features
High Speed Air Connectivity: WLAN interface support up to
300Mbps link speed
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
High output power 500mw
Far Distance Air Connectivity up to 10KM
Support X-Roaming < 100ms
Support wireless load balance
Support external N-type antenna install (IAP-W512 Only)
Support AP/Bridge/Repeater/AP-Client/Client Mode
Wireless connecting status monitoring
HTTPs protocol supported for secured management
IP table to prevent unauthorized IP address from accessing
Event Warning by Syslog, Email, SNMP Trap
Rigid IP-67 housing design
Pole and Wall-mount enabled
reliable IP-67 outdoor IEEE 802.11 a/n WLAN
Access Point with a w Ethernet port. It can be configured
to operate in AP/Bridge/Repeater/AP-Client/Client In
combination with its IP-67 design and the superb management
functionality, is specifically designed for the toughest
industrial environments and provides a waterproof, dust-tight
connection and two N-type connectors , that can
install any N-type antennas to extend communication distance. In
addition, provide high output power up to 500mw and
high throughput to satisfy far distance connection. You are able to
configure by WEB interface via LAN port or WLAN
interface. can be easily adopted in almost all kinds
of applications and provides the most rugged solutions for managing
your network in outdoor. Therefore, the best
outdoor communication solutions for wireless applications
IAP-W510/W512
IAP-W510/512
(IAP-W512 only)
IAP-W510/W512
IAP-W510/W512
IAP-W510/W512
IAP-W510/W512
are
aterproofed
mode.
are

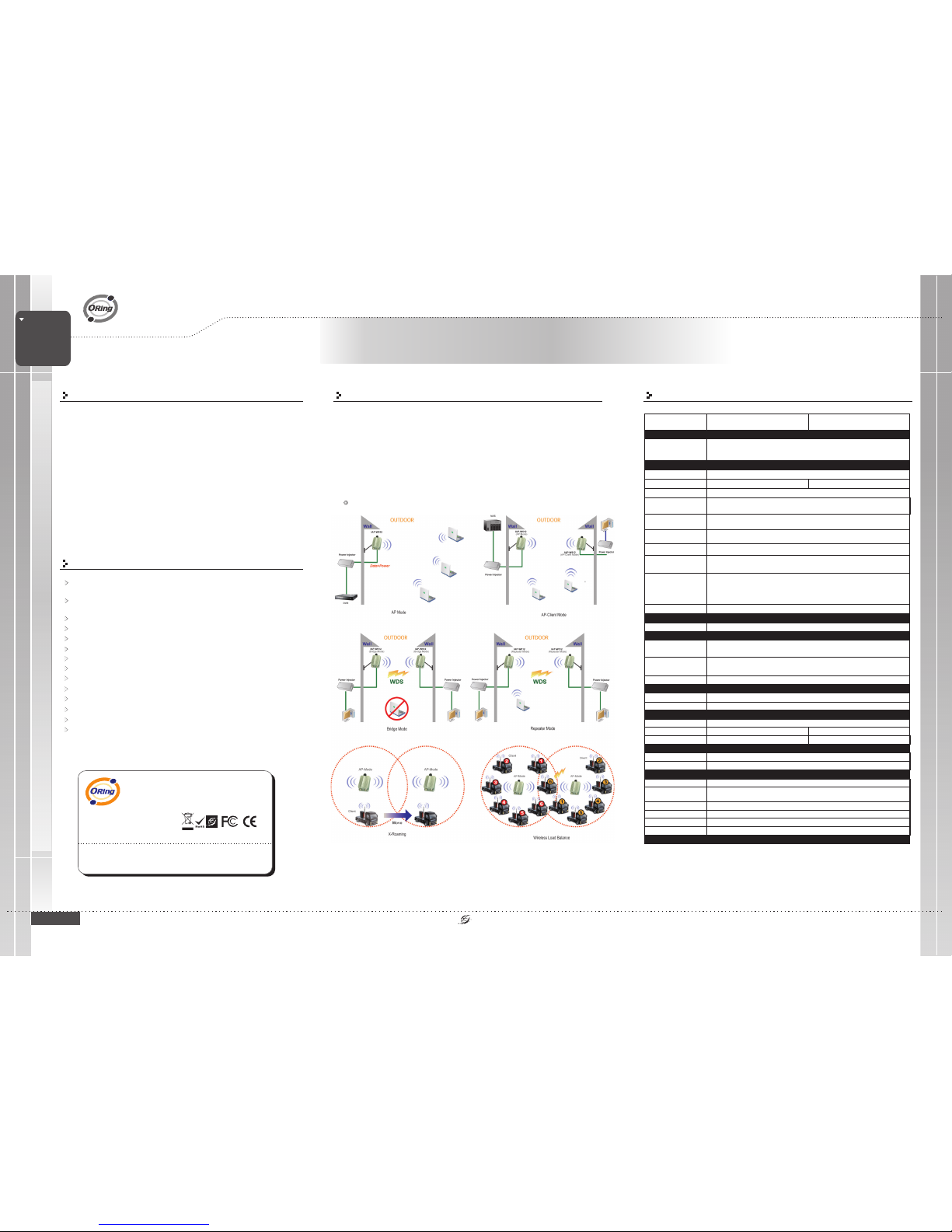

Introduction SpecificationsApplications
QIG Quick Installation Guide
In practical operation of wireless access point, Windows utility (AP-Tool) is supported.
This utility is very helpful for you to search and configure IP of access point on the
industrial wireless network. In addition, the wireless access point support various kinds
of operation modes include AP/Bridge/Repeater/AP-Client/Client mode.
also can connect to each other up to 10,000 meters. You can build up
the wireless network easily.
IAP-
W510/W512
Tra n sm i t Po we r IEEE802.11a/n: 500mW Max
Receiver Senstivity
-82dBm @ 54Mbps, PER< 10%;
-78dBm @ MCS 15(11n, 20MHz), PER<10%;
-75dBm @ MCS 15(11n, 40MHz), PER<10%;
Version 1.0
Quick Installation Guide
ORing Industrial Networking Corp.
Wireless
ACCESS POINT
IAP-W510/W512
IAP-W510/W512 PRINTED ON RECYCLED PAPER
IEEE802.11a:OFDM with BPSK, QPSK, QAM, 64QAM
IEEE802.11n : BPSK, QPSK, 16-QAM, 64-QAM
America / FCC: 5.15 to 5.825 GHz (13 channels)
Europe / ETSI: 5.15 to 5.724 GHz (19 channels)
ORing Industrial Networking Corp.
Copyright© 2010 ORing
All rights reserved.
TEL: [phone]
FAX: [phone]
Website: www.oring-networking.com
E-mail: [email protected]
IP-67
Various kinds of operation modes
Protocol Support
Protocol ARP,BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
LED indicators
Power indicator
10/100Base-T(X) Rj45 port
indicator
PWR/Ready:1xLED
Green On: Power is on and functioning Normally.
1xLED,
Green On: Port Link
Green Blinking: Transmitting data
WLAN 1xLED,GreenforWLANLink/Act
EN60950-1
Safety
Industrial IP-67 Outdoor Access Point
IAP-W512
2 x External N-type antenna connector
162(W) x 102(D) x 48(H) mm (6.38 x 4.02 x 1.89 inch.)
1907-2-29-IAPW51X-0
700 g

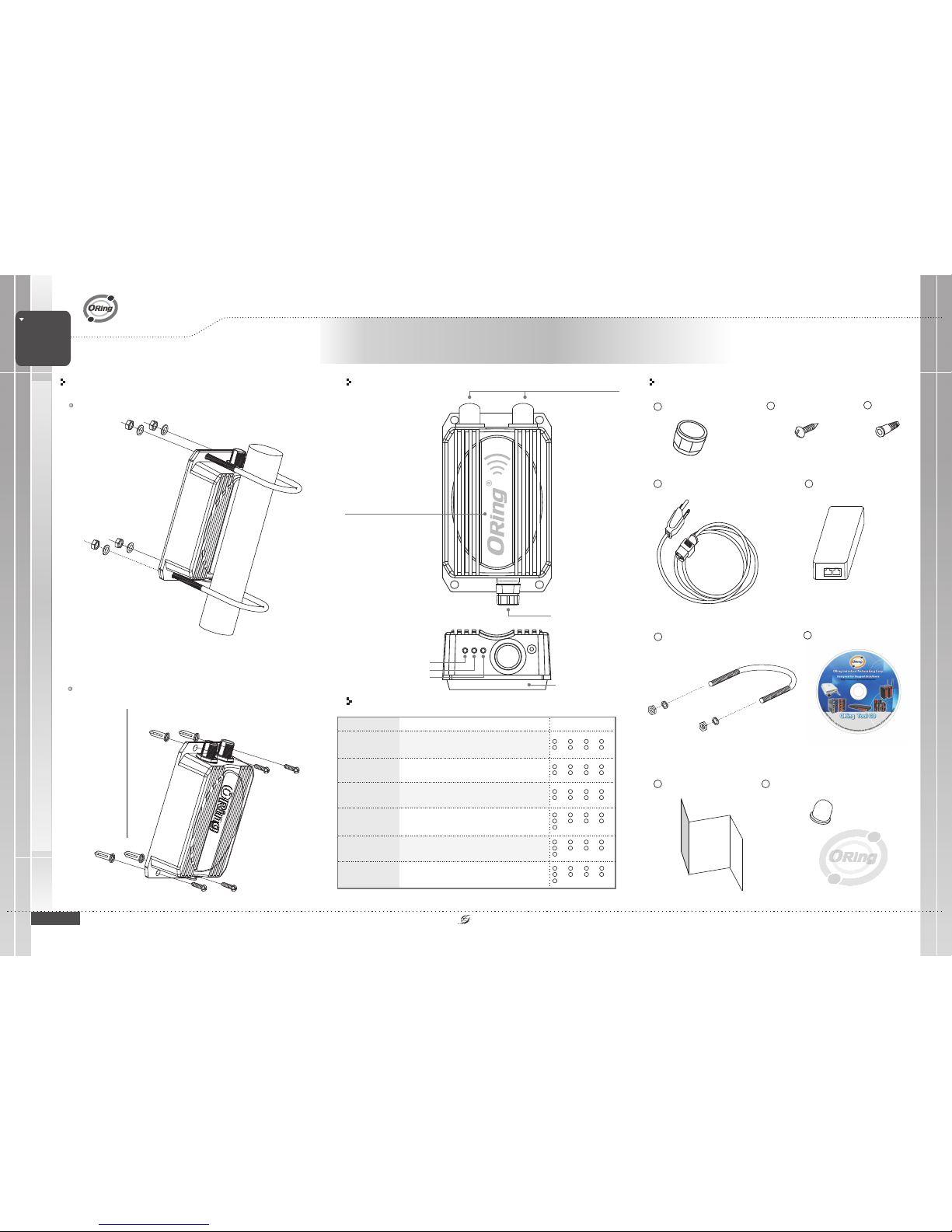

Front Panel Accessory
RJ-45 Rubber Seal
1Anchor
3
Tapping Screw
2
Pole-mounted kit
6CD
7
QIG
8
QIG
Version 1.0
Quick Installation Guide
ORing Industrial Networking Corp.
Quick Installation Guide
10/100 Base-T(x) Rj45
Installation
Wall-mounted Install Step (IAP-W512 Only)
Pole-mounted Install Step
Pole
PRINTED ON RECYCLED PAPER
Industrial IP-67 Outdoor Access Point
Wireless
ACCESS POINT
IP-67
Wall
Power LED
10/100 LAN Port LED
WLAN LED
Build-in
panel antenna (IAP-W510 Only)
Industrial outdoor IEEE 802.11 a n wireless access
point with 1x10/100Base-T(X), IP-67 grade, band
/
EU
Packing list
Description Accessory
1X1, 2X4, 3X4,
5X1, 6X2, 7X1,
4X1,
8X1
IAP-W510_EU
Model name
IAP-W510_US
IAP-W510_JP
Industrial outdoor IEEE 802.11 a n wireless access
point with 1x10/100Base-T(X), IP-67 grade, US band
/
Industrial outdoor IEEE 802.11 a n wireless access
point with 1x10/100Base IP-67 grade, J band
/
-TX), P(
Power Cord
4Power Injector
5
1X1, 2X4, 3X4,
5X1, 6X2, 7X1,
4X1,
8X1
1X1, 2X4, 3X4,
5X1, 6X2, 7X1,
4X1,
8X1
Industrial IP-67 Outdoor Access Point
IAP-W510/W512
IAP-W510/W512
N-type RF connector
(IAP-W512 only )
N-type ANT. Rubber Seal
9
Industrial outdoor IEEE 802.11 a n wireless access
point with x10/100Base-T(X), IP-67 grade, N-type
antenna connector, US band
/
1
IAP-W512_US
IAP-W512_EU
1X1, 2X4, 3X4,
5X1, 6X2, 7X1,
4X1,
8X1,
1X1, 2X4, 3X4,
5X1, 6X2, 7X1,
4X1,
8X1,
IAP-W512_JP
1X1, 2X4, 3X4,
5X1, 6X2, 7X1,
4X1,
8X1,
Industrial outdoor IEEE 802.11 a n wireless access
point with x10/100Base-T(X), IP-67 grade, N-type
antenna connector, EU band
/
1
Industrial outdoor IEEE 802.11 a n wireless access
point with x10/100Base-T(X), IP-67 grade, N-type
antenna connector, JP band
/
1
9X2
9X2
9X2
Internal Antenna
(IAP-W510 Only)
