Oxford Instruments ANDOR Kymera 328i Series User manual

The Kymera 328i
User Guide
andor.com © Andor Technology 2019
Version 1.2 revised 22 July 2019

Kymera 328i
2
Version 1.2 rev 22 July 2019
TABLE OF CONTENTS
SECTION 1: INTRODUCTION............................................................................................................. 10
1.1 TECHNICAL SUPPORT.......................................................................................................... 11
1.2 DISCLAIMER .......................................................................................................................... 12
1.3 COPYRIGHT AND PROTECTIVE NOTICES........................................................................... 12
1.4 TRADEMARKS AND PATENT INFORMATION....................................................................... 12
1.5 PACKING LIST........................................................................................................................ 13
1.5.1 Optional Supplied Accessories ................................................................................ 14
1.6 ACCESSORIES FOR THE KYMERA 328I .............................................................................. 14
SECTION 2: PRODUCT OVERVIEW................................................................................................... 15
2.1 EXTERNAL FEATURES AND MODEL OPTIONS................................................................... 15
2.1.1 External Features of the Kymera 328i...................................................................... 15
2.2 SIGNAL AND POWER CONNECTIONS ................................................................................. 16
2.3 POWER SUPPLY .................................................................................................................... 17
2.4 GAS PURGE PORT................................................................................................................. 17
SECTION 3: INSTALLATION ............................................................................................................... 18
3.1
AN OVERVIEW FOR GETTING STARTED WITH YOUR KYMERA 328I SPECTROGRAPH .... 19

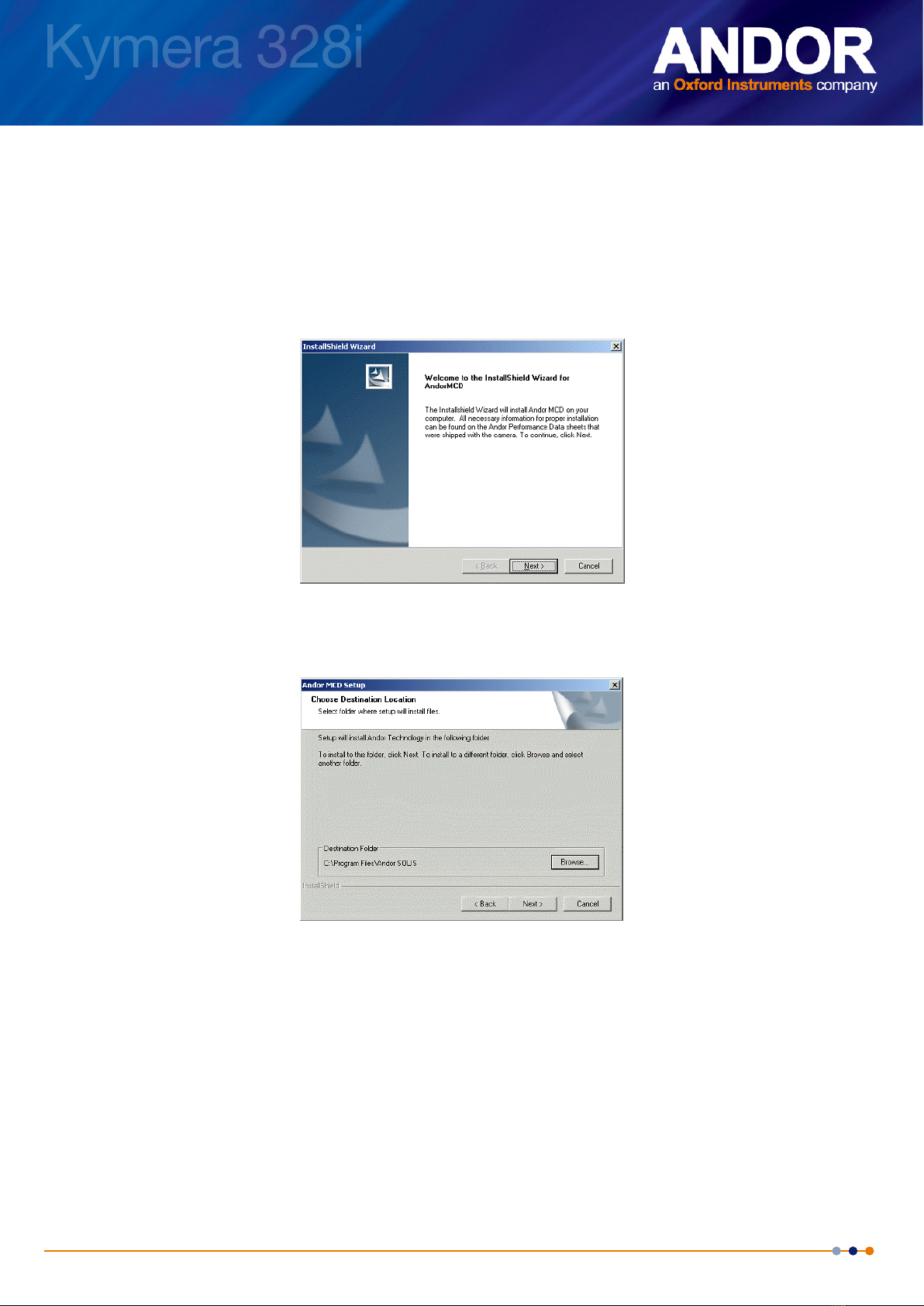

3.1.1 Installing the Solis/SDK Software ........................................................................... 20
3.1.2 Software and Driver Installation............................................................................... 21
3.2 ATTACHING A CAMERA TO A KYMERA OR SHAMROCK SPECTROGRAPH .................... 22
3.2.1 Connecting the Camera to the Spectrograph via USB ........................................... 23
3.2.2 Disconnecting the USB Interface............................................................................. 24
3.2.3 Connecting the Camera to the Spectrograph via I2C.............................................. 24
3.2.4 Adjusting the Level and Height of the Spectrograph.............................................. 25
3.2.5 Standalone Spectrograph ........................................................................................ 26
3.2.5.1 Attaching the Camera.............................................................................. 26
3.3 CONNECTING THE SPECTROGRAPH TO A MICROSCOPE ............................................... 26

Kymera 328i
3
Version 1.2 rev 22 July 2019
3.4 INSTALLATION OF ACCESSORY PARTS .............................................................................. 27
3.4.1 Grating Turret Replacement and xPressIDTM ........................................................... 28
3.4.2 Installing a Filter Wheel ............................................................................................ 30
3.4.3 Accessing the Filters ................................................................................................ 30
3.4.3.1 Accessing and Changing the Filters ....................................................... 31
3.4.3.2 Initializing the Filter Wheel ...................................................................... 32
3.4.3.3 Filter Wheel Control and Updating the Filter Details in the
Spectrograph Memory............................................................................. 32
3.4.4 Shutter ...................................................................................................................... 33
3.4.5 Manual, Motorized and Wide Aperture Slits............................................................ 34
3.4.6 Flange (iXon, iKon-M and sCMOS) .......................................................................... 34
SECTION 4: OPERATION ................................................................................................................... 35
4.1 EMERGENCY MAINS DISCONNECTION .............................................................................. 35
4.2 DETECTOR CONTROLS ........................................................................................................ 36
4.2.1 Exposure Time Control ............................................................................................. 36
4.2.2 Read Mode Control................................................................................................... 36
4.3 SPECTROGRAPH CONTROLS.............................................................................................. 37
4.3.1 Reset Menu Options ................................................................................................. 37
4.3.2 Wavelength Drive Control......................................................................................... 37
4.3.2.1 Changing the Wavelength Range............................................................ 38
4.3.3 Step ‘and’ Glue ......................................................................................................... 39
4.3.3.1 Relative Efciency Correction ................................................................. 41
4.4 GRATING TURRET CONTROL............................................................................................... 42
4.5 OFFSET ADJUSTMENT PANEL............................................................................................. 43
4.5.1 Focus Mirror.............................................................................................................. 44
4.6 SLIT DRIVE CONTROL........................................................................................................... 46
4.7 FILTER WHEEL CONTROL .................................................................................................... 47
4.8 SHUTTER CONTROL ............................................................................................................. 48
4.8.1 Shutter Operation Management............................................................................... 49
4.8.2 Control of Shutters via External TTL Signal............................................................. 49
4.8.2.1 External Control of the Shutter ............................................................... 49
4.9 FLIPPER MIRROR CONTROL................................................................................................ 50

Kymera 328i
4
Version 1.2 rev 22 July 2019
4.10 DISPERSION OPTIMISER...................................................................................................... 51
4.10.1 Steps to use the Dispersion Optimiser .................................................................... 52
SECTION 5: MAINTENANCE.............................................................................................................. 55
5.1 REGULAR CHECKS ............................................................................................................... 55
5.2 ANNUAL ELECTRICAL SAFETY CHECKS ............................................................................ 55
5.3 FUSE REPLACEMENT ........................................................................................................... 55
5.4 CLEANING (EXTERNAL) ........................................................................................................ 55
5.5 GRATING ADJUSTMENT ....................................................................................................... 56
5.5.1 Warning Information if Lid is Removed.................................................................... 57
5.5.1.1 Correcting for Yaw ................................................................................... 57
5.5.1.2 Correcting for Roll and Tilt ...................................................................... 57
5.6 ELECTRICAL CONNECTIONS FOR ACCESSORIES ............................................................ 59
SECTION 6: TROUBLESHOOTING .................................................................................................... 60
SECTION 7: SPECIFICATIONS........................................................................................................... 61
7.1 ELECTRICAL AND ENVIRONMENTAL .................................................................................. 61
7.2 OPTICAL................................................................................................................................. 61
APPENDIX A: MECHANICAL DRAWINGS ......................................................................................... 62
APPENDIX B: OTHER INFORMATION ............................................................................................... 63

Kymera 328i
5
Version 1.2 rev 22 July 2019
Revision HistoRy
Version Released Description
1.0 23 Oct 2017 Initial release.
1.1 29 May 2019 Updated USA and Asia-Pacic addresses (page 11) and technical drawings
(page 62)
1.2 22 July 2019 Updated reference on page 34, updated table in section 3.4.6

Kymera 328i
6
Version 1.2 rev 22 July 2019
safety and WaRning infoRmation
PLEASE READ THIS INFORMATION FIRST
CAUTION – USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
1. If the equipment is used in a manner not specied by Andor, the protection provided by the equipment may be
impaired.
2. Do not position this product so that it is difcult to operate the mains disconnecting device. See “Section 4.1
Emergency Mains Disconnection”.
3. Before using the system, please follow and adhere to all warnings, safety, manual handling and operating
instructions located either on the product or in this user guide.
4. This equipment has not been designed and manufactured for the medical diagnosis of patients.
5. Protective earth is an integral part of the protection against electric shock in this product, and is provided via
the earth pin of the external power supply. Ensure that this is plugged into the building earth system via the
mains socket. Do not tamper with any of the earthing measures.
6. Always disconnect the power supply from the product before accessing the grating turret or before replacing a
fuse.
7. Only the correctly specied mains supply should be used.
8. Only the AC/DC external power supply provided with the product should be used.
9. Only the power supply cord provided with the product should be used. Should this not be correct for your
geographical area, contact your local Andor representative.
10. Make sure the power supply cord is located so that it will not be subject to damage. If replacement of the
detachable power supply cord is required, ensure replacement is of same type and rating.
11. Users must be authorised and trained personnel only otherwise this may result in personal injury, and/ or
equipment damage and impaired system performance.
12. While running an experiment, try to keep room temperature as stable as possible.
13. Performance of the system may be adversely affected by rapidly changing environmental conditions or
operation outside of the operating conditions specied in “SECTION 7: TECHNICAL SPECIFICATIONS”.
14. Electromagnetic Compatibility: This is a Class A product. In a domestic environment this product may cause
electromagnetic interference, in which case the user may be required to take adequate measures.
15. This product has been designed and tested to perform successfully in a normal (basic) electromagnetic
environment, e.g. a typical life science test laboratory, as per the EU EMC Directive. It is not designed to
operate in a harsh electromagnetic environment, e.g. close to the following equipment: EMI/RFI generators,
electrostatic eld generators, electromagnetic or radioactive devices, plasma sources, arc welders, x-ray
instruments, intense pulsed sources, or other similar sources of high energy elds for which emissions are not
within the normal range expected under the EU EMC Directive.
16. Please note that this product is not designed to provide protection from ionising radiation. Any customer using
this product in such an application should provide their own protection.
17. Your product is a precision scientic instrument containing fragile components. Always handle it with care.

Kymera 328i
7
Version 1.2 rev 22 July 2019
18. Optical surfaces are delicate and should never be touched. To avoid accidental damage, and to minimise dust
settling on the optical surfaces, always keep the turret lid on and avoid exposure to a dusty environment.
19. Use gloves to remove grating turret and further minimize the risk of damage to the gratings. Store unused
grating turrets in a dust-free environment, ideally a desiccator.
20. There are no user-serviceable or replaceable parts inside the product beyond those specied in this manual.
Only authorised service personnel may service this equipment.
21. Do not touch the shutter assembly when the lid is open. This component can get hot during use and there may
be a risk of burns - this is highlighted by a hot warning symbol beside the shutter assembly.
22. Always ensure that the spectrograph is powered down if the lid must be opened, unless for the maintenance
procedures outlined in this manual as internal moving parts may be potential pinch hazards. Refer to specic
warnings detailed in the relevant procedures of this manual.
23. If using the gas purge feature, please be aware of any dangers associated with the gas that you are using
and take the necessary precautions, e.g. adequate ventilation. Even seemingly benign gases like nitrogen can
displace air and cause asphyxiation.
24. Do not wet or spill liquids on the product, and do not store or place liquids on the product.
25. If spillage occurs on the product, switch off power immediately, and wipe off with a dry, lint-free cloth.
26. If any ingress of liquids has occurred or is suspected, unplug the mains cables, do not use, and contact Andor
Customer Support.
27. For cleaning information please refer to “Section 5.4 Cleaning (External)”.
28. Do not expose the product to extreme hot or cold temperatures.
29. Do not expose the product to open ames.
30. Do not allow objects to fall on the product.
31. Keep this user guide in a safe place for future reference.

Kymera 328i
8
Version 1.2 rev 22 July 2019
safety symbols
The following are explanations of the safety symbols found on this product:
Caution, potential hazard, refer to manual for information.
Caution, risk of electric shock.
Caution, hot surface. Risk of burns- shutter assembly gets hot in operation. Ensure shutter assembly is
allowed to cool if the lid is removed for the maintenance procedures described in this manual.
Caution, pinch hazard. Do not place ngers in the input/output slit aperture(s) as slit mechanism within is a
potential pinch hazard.
Caution, pinch hazard. The lid needs to be removed for the grating adjustment maintenance procedure - do
not place ngers in the focus mirror assembly. The focus mirror moves during grating adjustment creating
a potential pinch hazard. Do not place ngers between the turret assembly and side wall when the lid is
removed for maintenance - if the turret was activated it could rotate and trap ngers against the side wall.
ATTENTION
Poids: >18kg.
Deux personnes sont
requises. Soulever avec
précaution - charge
inégalement répartie.
CAUTION
Weight: >18kg.
Two person lift required.
Take care when lifting -
unbalanced load.
Caution, take care when lifting. Refer to “Unpacking the
Spectrograph & Manual Handling” section for information.
Baseplate- Access cover
The electronics board access cover should only be
removed after the unit has been disconnected from the
power supply for installing or replacing accessories as
outlined in Section 5.6 on this manual.
Purge Port
Regulatory Information
The Kymera 328i spectrograph complies with the requirements of the EU Electromagnetic Compatibility and Low Voltage
Directives, specically by satisfying the requirements of EN61326-1 and EN61010-1.
This product requires a DC power supply which is polarity sensitive.
WARNING: Please be aware of any dangers associated with the gas that you are using and take the necessary precautions, e.g.
adequate ventilation. Even seemingly benign gases like nitrogen can displace air and cause asphyxiation.

Kymera 328i
9
Version 1.2 rev 22 July 2019
sHipping & stoRage pRecautions
Unpacking and Inspection:
• Carefully unpack the unit and retain packaging to return equipment for servicing as shown in the following
section.
• If the equipment appears damaged in any way, return it to sales outlet in its original packaging.
No responsibility for damage arising from the use of non-approved packaging will be accepted.
• Ensure all items and accessories specied at the time of ordering and as detailed on the packing list are
present: if any items are missing, please contact your local sales outlet.
unpacking tHe spectRogRapH & manual Handling
A warning label (shown below) highlights that due caution should be taken when lifting the unit.
ATTENTION
Poids: >18kg.
Deux personnes sont
requises. Soulever avec
précaution - charge
inégalement répartie.
CAUTION
Weight: >18kg.
Two person lift required.
Take care when lifting -
unbalanced load.
Please follow the information below on unpacking, installing or moving the spectrograph:
• Correct manual handling techniques are important when installing Kymera and Shamrock spectrographs so that the
integrity of the products is safeguarded, and individuals involved are not exposed to unnecessary risks or possible
injury.
• The provided lifting straps/harness should be used during installation.
• The spectrograph weighs ~18 kg without accessories, and has an uneven weight distribution- it is therefore
recommended that two persons are required to lift the spectrograph.
• Never attempt to lift the spectrograph by using external accessories as grab points.
• After unpacking, it is recommended to leave the spectrograph for a few hours to settle in the installation environment
before use.
Lifting straps are provided to aid lifting the
spectrograph from the packaging. These
should be retained in case the spectrograph
needs to be moved at a later time.

Kymera 328i
10
Version 1.2 rev 22 July 2019
SECTION 1: INTRODUCTION
Thank you for choosing an Andor Kymera 328i spectrograph. Please read this user guide before using your
spectrograph.
Figure 1: Andor Kymera 328i spectrograph shown with Andor Newton CCD and Zyla sCMOS cameras attached.

Kymera 328i
11
Version 1.2 rev 22 July 2019
1.1 tecHnical suppoRt
If you have any questions regarding the use of this equipment, please contact the representative* from whom your
system was purchased, or:
Europe USA
Andor Technology
7 Millennium Way
Springvale Business Park
Belfast
BT12 7AL
Northern Ireland
Tel. [phone]
Fax. [phone]
Andor Technology
300 Baker Avenue
Suite # 150
Concord
MA 01742
USA
Tel. [phone]
Fax. [phone]
Asia-Pacic China
Andor Technology (Japan)
5F IS Building
3-32-42 Higashi-Shinagawa
Tokyo 140-0002
Japan
Tel: [phone]
Fax: [phone]
Andor Technology
Unit 1, Building A,
66 Zhufang Rd, Haidian Dist.
Beijing 100085
China
Tel: [phone]
Fax. [phone]
* The latest contact details for your local representative can be found on our website https://andor.oxinst.com/contact

Kymera 328i
12
Version 1.2 rev 22 July 2019
1.2 disclaimeR
THE INFORMATION CONTAINED HEREIN IS PROVIDED “AS IS” WITHOUT WARRANTY, CONDITION OR
REPRESENTATION OF ANY KIND, EITHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING BUT NOT
LIMITED TO, ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR
PURPOSE.
IN NO EVENT SHALL ANDOR BE LIABLE FOR ANY LOSS OR DAMAGE, WHETHER DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR OTHERWISE HOWSOEVER CAUSED WHETHER ARISING IN CONTRACT TORT
OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THE USE OF THE INFORMATION PROVIDED HEREIN.
1.3 copyRigHt and pRotective notices
The copyright in this document and the associated drawings are the property of Andor Technology and all rights are
reserved. This document and the associated drawings are issued on condition that they are not copied, reprinted or
reproduced, nor their contents disclosed.
The publication of information in this documentation does not imply freedom from any patent or proprietary right of
Andor Technology or any third party.
1.4 tRademaRks and patent infoRmation
Andor, eXpressID and the Andor logo are trademarks of Andor Technology. Andor Technology is an Oxford Instruments
company. All other marks are property of their owners.
Changes are periodically made to the product and these will be incorporated into new editions of the manual. New
releases of the manual are available through MyAndor: http://my.andor.com/login.aspx.

Kymera 328i
13
Version 1.2 rev 22 July 2019
1.5 packing list
After having removed the spectrograph from its packaging, conrm that the following standard items are included:
Item Quantity
Kymera
328i
Spectrograph
1
Description Quantity
Power Supply
Unit (PSU) 1
Power Cable
(3 m, country
specic)
1
USB 2.0 cable
Type A to Type B
(3 m)
1
I2C to I2C cable 1
User Guide CD 1
Description Quantity
System
performance
booklet
1
Hex key set
(2 mm, 3 mm & 5
mm)
1
Filter insertion/
removal tool* 1
Certicate of
Conformity 1
Spectrograph
Interface
software**
1
* Optional - supplied with systems tted with lter wheel only.
**Solis or SDK are ordered as separate items.

Kymera 328i
14
Version 1.2 rev 22 July 2019
1.5.1 optional supplied accessoRies
Depending on the options purchased, the following optional accessories may also be included:
• Additional grating turrets
• Light-coupling interfaces: Accessories such as shutter, lter wheel & motorized slits may already have been
installed on the spectrograph, prior to shipping
• Detector(s) (normally pre-installed if ordered with the spectrograph)
• Purpose-built accessories as ordered through Andor’s Customer Special Request (CSR) programme
If any of the items you ordered are missing or for further information on any of the accessories, please contact your local
Andor representative.
1.6 accessoRies foR tHe kymeRa 328i
A wide range of accessories are available for the Andor Kymera and Shamrock spectrographs to further expand the
functionality if your experimental requirements change. For further information on any of the accessories, refer to the
‘Kymera and Shamrock Accessories’ guide or please contact your local Andor sales representative.

Kymera 328i
15
Version 1.2 rev 22 July 2019
SECTION 2: PRODUCT OVERVIEW
The Kymera 328i is a research-grade high performance spectrograph, yet it is compact and easy to use. It has been
designed to work with demanding low-light applications, but is equally suited to routine measurements. The Kymera
328i is the latest addition to the Kymera series of spectrographs and is compatible with a wide range of Andor and other
detectors. This section provides a description of signal and power connections of the spectrograph(s).
2.1 exteRnal featuRes and model options
2.1.1 exteRnal featuRes of tHe kymeRa 328i
The main external features of the Kymera 328i are shown below (features will vary depending on options tted).
Figure 2: The Kymera 328i
Model Side input port Direct input
port
Direct output
port
Side output
port
Motorized port
selection
KYMERA-328i-A Manual slit - Camera - -
KYMERA-328i-B1 Manual slit - Camera Manual slit √
KYMERA-328i-B2 Manual slit - Camera Camera √
KYMERA-328i-C Manual slit Manual slit Camera - √
KYMERA-328i-D1 Manual slit Manual slit Camera Manual slit √
KYMERA-328i-D2 Manual slit Manual slit Camera Camera √
KYMERA-328i-XX-SIL Protected silver-coated optics options for models shown above (replace X with relevant model number)
Signal and power
connections panel
Removable lid for
access to grating turret
Side output
Port
Input port
Front (direct)
output port
Thumbscrews (x7)
securing lid in place
Input port
Height
adjustable
feet

Kymera 328i
16
Version 1.2 rev 22 July 2019
2.2 signal and poWeR connections
Signal and power connections are grouped together on the front panel as shown below:
Figure 3: Signal and Power connections
Power input (24V)
Power input connection (24 V DC, 3 A max) from the external power supply unit.
I2C
For connection to camera/detector via I2C connection (replaces USB cable connection to spectrograph).
USB
USB connection for connection of the spectrograph to the PC, allowing control of the spectrograph through the PC.
Shutter
Shutter(s) may also be operated by an external TTL signal. This allows the shutter(s) to be operated by, and synchronised
to, other laboratory equipment using a BNC type connection. This connection facilitates the discrete control of both
shutters (if installed) via the software, through the single connection.
Note: do not connect the I2C and the shutter BNC connection at the same time.
Power switch
Turn power to the spectrograph On/Off.
Filter wheel
A 9 pin connection enables connection to optional accessories e.g. a lter wheel.
I2CUSB
Shutter
(BNC)
Accessory Connector
(e.g. lter wheel)
Connection Panel of the Kymera 328i
Power
Input
Power
Switch

Kymera 328i
17
Version 1.2 rev 22 July 2019
2.3 poWeR supply
The Kymera 328i is powered by external PSU- details are shown in the table below.
Parameter
Mains Power Supply
Requirements 100 - 240 V AC, 47 - 63 Hz
PSU Output 24 V DC, 5A
NOTES:
1. The electrical mains lead must be certied for use in your country, and where regulations demand must be
tted with a 5 Amp 250 VAC rated fuse. The cable gauge of the AC mains lead must be minimum 0.75 mm2. In
addition the mains lead must contain a Protective Earth connection, and must be terminated using an IEC type
C13 connector to permit connection to the power supply unit.
2. The mains lead power connection to the building AC supply must be made using a removable plug-in arrangement
i.e. it must not be hard wired. The AC mains plug must be readily accessible to permit disconnection from the
mains supply.
3. The length of the mains power lead, from the building power outlet point to the C13 connector at the power
supply unit, must be less than 3 meters.
4. Do not use power supply units other than that supplied with the spectrograph.
5. The Kymera 328i is intended for indoor use only.
2.4 gas puRge poRt
Absorption in air (mainly by water vapour) may decrease useful signal on measurements in the UV or IR regions. To
mitigate this, the Kymera 328i has a gas purge port. To use the gas purge port the protective plug should be replaced by
a 1/8” NPT barb hose connector. The use of hose made of black material is strongly recommended to avoid light leaks
to the spectrograph. An inert gas, such as nitrogen or argon, should be used (certied as being dry, scientic research
grade) to maintain a slow steady ow of the gas into the spectrograph. The connection type is 1/8” NPT.
Figure 4: Location of the gas purge port
WARNING: When using the gas purge feature, please be aware of any dangers associated with the gas that you are using and take the
necessary precautions, e.g. adequate ventilation. Even seemingly benign gases like nitrogen can displace air and cause asphyxiation.
Purge
port

Kymera 328i
18
Version 1.2 rev 22 July 2019
SECTION 3: INSTALLATION
Please read before installation:
• The spectrograph is intended for installation with the 4 feet sitting on a horizontal, at surface.
• It is intended for lab use only and should not be subject to dynamic loads or vibrations in excess of 1g.
• The mounting feet are compatible with clamping forks to allow the unit to be secured to an optical bench if
required.
• To prevent possible ingress of moisture, dust and foreign bodies, ensure the turret, input and camera ports are
not left uncovered.
Refer to the preface of this manual for further information before installation.

Kymera 328i
19
Version 1.2 rev 22 July 2019
3.1 anoveRvieW foR getting staRted WitH youR kymeRa 328ispectRogRapH
After removing the spectrograph from the box and checking all components are correct as shown in the preface of
this manual, and as ordered, carry out the following actions as described in this Section to complete set-up of your
spectrograph. An overview of the main steps is shown below:
1. Install Solis or SDK software (software must be specied at time of ordering).
2. Connect power and signal cables to spectrograph and computer.
3. Attach the camera(s) to the spectrograph output port(s) – if applicable.
4. Connect camera data and power interface, e.g. USB and power supply or PCI card (refer to relevant manual for
instruction on how to install the PCI card into your computer).
5. Follow the instructions for installation of the spectrograph and detector drivers.
6. The Kymera 328i performs system checks on power-up and emits a short start-up tone when these are
complete.
Once these steps are complete your spectrograph is installed and ready for use.

Kymera 328i
20
Version 1.2 rev 22 July 2019
3.1.1 installing tHe solis/sdk softWaRe
1. Terminate and exit any programs which are running on the PC.
2. Insert the Andor software CD. The InstallShield Wizard now starts. If it does not start automatically, run the le
setup.exe directly from the CD then follow the on-screen prompts that then appear (Software screens may differ
slightly from those shown, depending on your Operating system and software version).
3. Tick the required camera e.g Andor iDus.
4. Click Next > (alternatively, click on Browse…, choose your own le destination then click Next >).
5. Click Next> and an update progress bar will begin.
6. When the update progress bar stops, a dialog box appears.
7. Select the ‘Yes, I want to restart my computer now’ option then click Finish.
After the PC has been restarted, the Solis icon should now be installed on your desktop. Click on this to start the
application.
