Before Initial Use
2
Thank you for purchasing your new Panasonic
integrated telephone.
Contents
For your future reference
Serial No. Date of purchase
(found on the bottom of the unit)
Name and address of dealer
PQQX13329ZA-BM-E07.7.255:41PMページ2

3
ENGLISH
Accessories (included)
∑Handset . . . . . . . . . . . . . . . one
(p. 4)
∑Telephone Line Cord . . . . . one
(p. 4)
∑Handset Cord. . . . . . . . . . . one
(p. 4)
∑Wall Mounting Adaptor . . . . one
(p. 5)

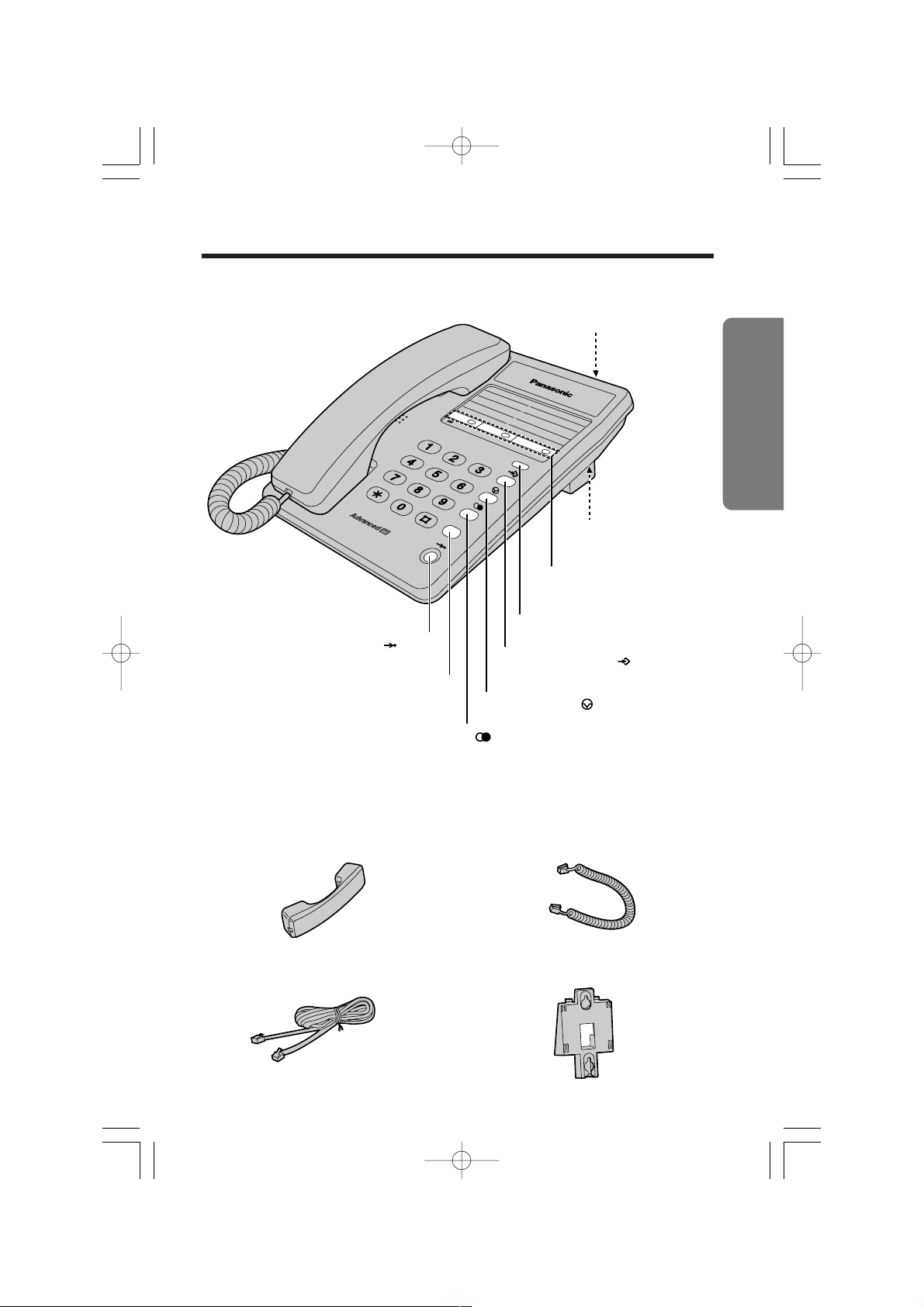

Location of Controls
ABC
DEF
JKL MNO
GHI
TUV WXYZ
PQRS
50
M1 M2 M3
1
2
3
4
6
1
7
8
9
R
Recall Button (R) (p. 12)
RINGER Selector (p. 7)
One-Touch Auto Dial
Buttons (p. 10, 11)
Ringer Indicator (p. 7)
HANDSET VOLUME
Selector (p. 6)
Auto Button (\\\) (p. 9)
Redial Button (\\\) (p. 6)
Program Button (\\\) (p. 8, 10)
Pause Button (\\\) (p. 12)
PQQX13329ZA-BM-E07.7.255:41PMページ3

4

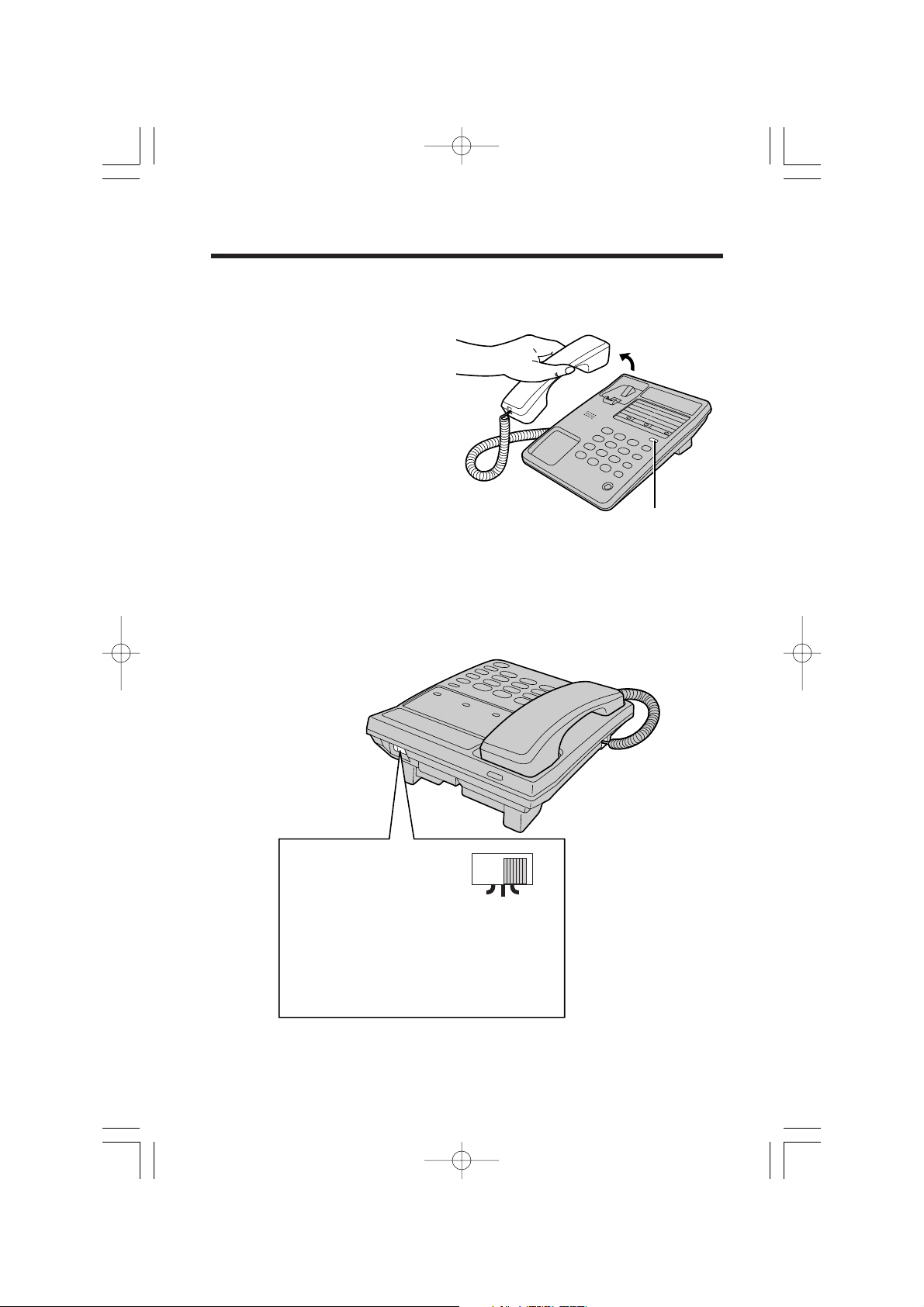

Settings
≥Use only a Panasonic Handset for the KX-TS100EXW.
Connecting the Handset/Telephone Line Cord
After connection, lift the handset to check for a dial tone.
To Single-Line
Telephone Jack
Handset Cord
Handset
Telephone Line
Cord
LINE
LINE
DA
DA
TA
≥Computer
≥Modem
≥Fax
≥Answering machine
To Single-Line
Telephone Jack
LINE
LINE
DA
DA
TA
Connecting a Communication Device
If you connect a communication device (computer, modem, fax,
answering machine, etc.) to the telephone line, you can connect it through
this unit using the DATA jack.
After connecting the handset and telephone line cord (see above),
connect the communication device telephone line cord to the DATA jack.
≥Make sure the communication device is not in use before using this unit (making
calls, storing phone numbers in memory etc.) or the communication device may
not operate properly.
PQQX13329ZA-BM-E07.7.255:41PMページ4

5
ENGLISH
Wall Mounting
This unit can be mounted on a wall.
To temporarily set the handset down
during a conversation, place it as
shown here.
1Pull down the handset hook until it locks, so the tab holds the handset.
2Tuck the telephone line cord inside the wall mounting adaptor, and
push it in the direction of the arrow.
≥“UP” should be facing upward.
3Install screws using the wall template below. Connect the
telephone line cord. Mount the
unit, and slide down.
Screws
To Single-Line
Telephone Jack
8.3 cm
Wall Template
8.3 cm
PQQX13329ZA-BM-E07.7.255:41PMページ5

6
1Lift the handset.
2Dial a phone number.
≥If you misdial, hang up and start
from step 1.
3When finished talking, hang up.

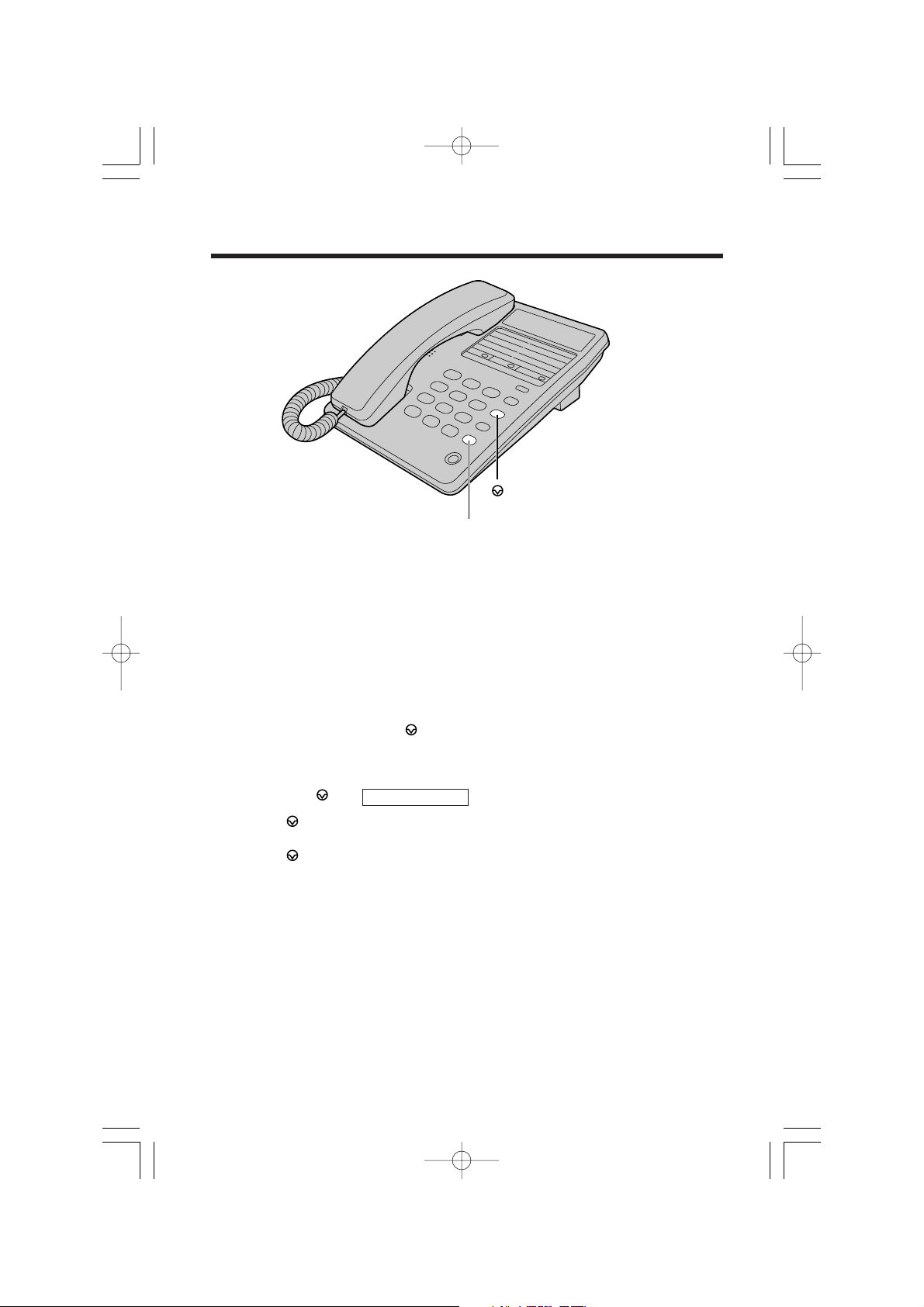

To redial the last number
Lift the handset. ¤Press .
≥While lifting the handset, each time you press , the line will be automatically
disconnected and the number will be redialed.
≥will dial the last number you called manually, not a Speed Dialer number
(p. 9) or One-Touch Dialer number (p. 11).
(\\\)
(\\\)
(\\\)
HIGH
HANDSET
VOLUME
LOW
≥When you make additional dialing after speed dialing such as AUTO (p. 9), One-
Touch Dialer (p. 11) or REDIAL, please make sure to do it after finishing the
speed dialing. Otherwise, the unit may not dial properly.
Making Calls
(\\\)
To select the receiver volume
Set the HANDSET VOLUME selector to HIGH, MEDIUM (preset) or LOW.
PQQX13329ZA-BM-E07.7.255:41PMページ6

7
ENGLISH
Answering Calls
While a call is being received, the unit rings and the ringer indicator
flashes.
1When the unit rings, lift the handset.
2When finished talking, hang up.
Ringer Indicator
≥While the ringer volume is set to OFF (see below), the unit will not ring.
RINGER Selector:
Set to HIGH, LOW or
OFF.
≥When set to OFF, the
unit will not ring.
HIGH
RINGER
OFF LOW
To select the ringer volume
PQQX13329ZA-BM-E07.7.255:41PMページ7

8
Speed Dialer
Storing Phone Numbers in Memory
You can store up to 10 phone numbers in the memory stations. The
dialing buttons ((0) to (9)) function as memory station numbers. Do not
press any memory stations before storing to prevent misoperation.
1Lift the handset.
2Press .
3Enter a phone number up to 16 digits.
≥If you enter a wrong number,
hang up and start again from
step 1.
4Press .
5Press a memory station number ((0) to (9)).
6When finished, hang up.
≥To store other numbers, repeat steps 1 through 6.
≥If a pause is required for dialing, press where needed. Pressing
counts as one digit (p. 12).
(\\\)
(\\\)
(\\\)
(\\\)
(\\\)
Memory Station Numbers
(\\\)
(\\\)
PQQX13329ZA-BM-E07.7.255:41PMページ8

9
ENGLISH
To store a dialed number in memory
1Lift the handset.
2Dial a phone number up to 16 digits.
3During a conversation, press twice.
4Press the memory station number ((0) to (9)).
5Hang up.
Dialing a Stored Number
1Lift the handset.
2Press .
3Press the memory station number ((0) to (9)).
≥The stored number is dialed.
≥The button does not work for Speed Dialer.
To dial the number again, hang up and repeat steps 1 to 3.
≥If the telephone line cord is disconnected more than 3 days, the stored numbers
may be erased. Store phone numbers again.
(\\\)
(\\\)
(\\\)

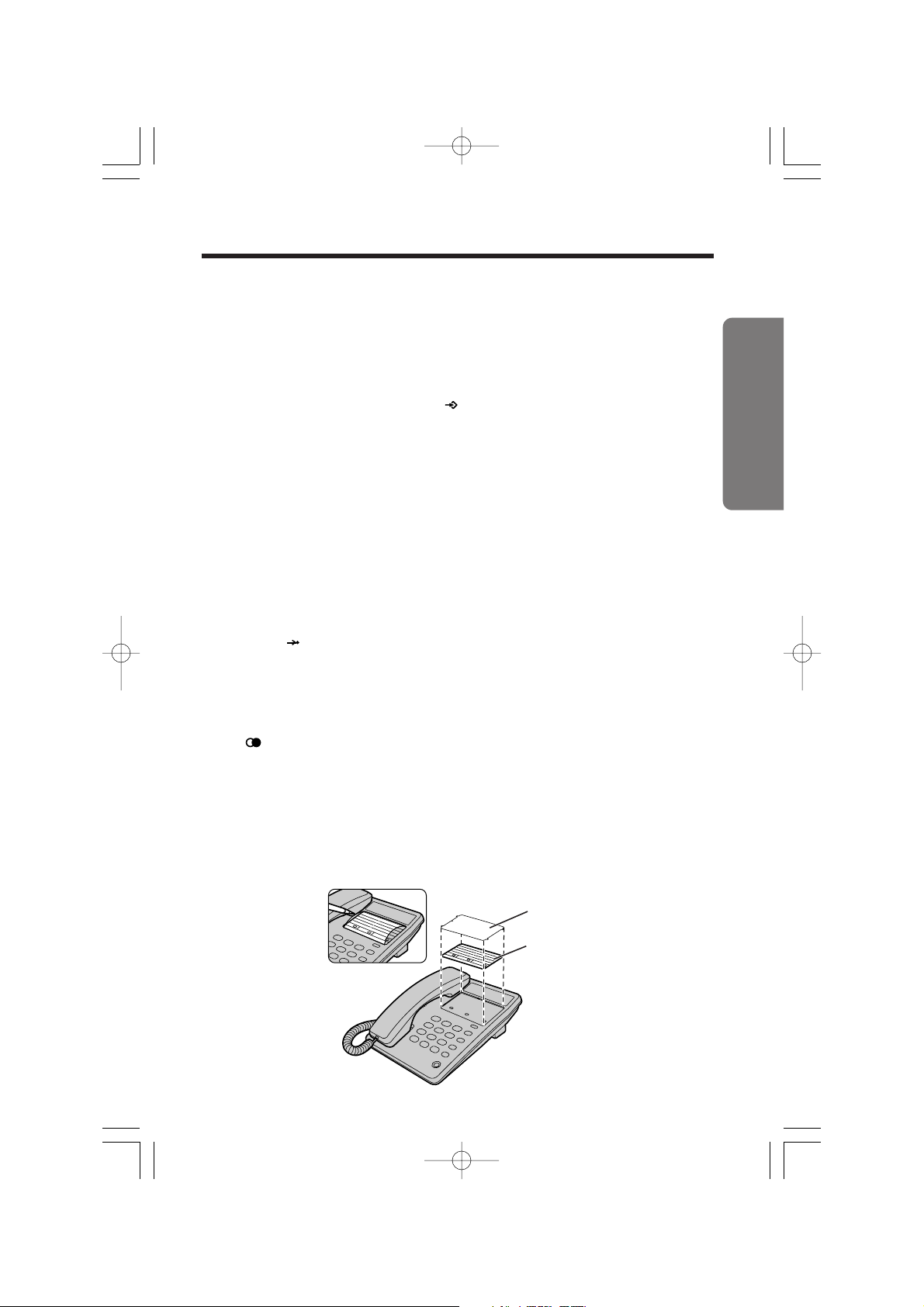

Memory Card
Remove the memory card and use it as a name or phone number index
for the stored numbers.
Cover
Memory
Card
PQQX13329ZA-BM-E07.7.255:41PMページ9

10
One-Touch Dialer
Storing Phone Numbers in Memory
You can store up to 3 phone numbers in the one-touch auto dial buttons
((M1) to (M3)).
1Lift the handset.
2Press .
3Enter a phone number up to 16 digits.
≥If you enter a wrong number,
hang up and start again from
step 1.
4Press .
5Press a one-touch auto dial button ((M1) to (M3)).
6When finished, hang up.
≥To store other numbers, repeat steps 1 through 6.
≥If a pause is required for dialing, press where needed. Pressing
counts as one digit (p. 12).
(\\\)
(\\\)
(\\\)
(\\\)
Do not press any one-touch auto dial buttons before storing to prevent
misoperation.
One-Touch Auto Dial Buttons
(\\\)
(\\\)
