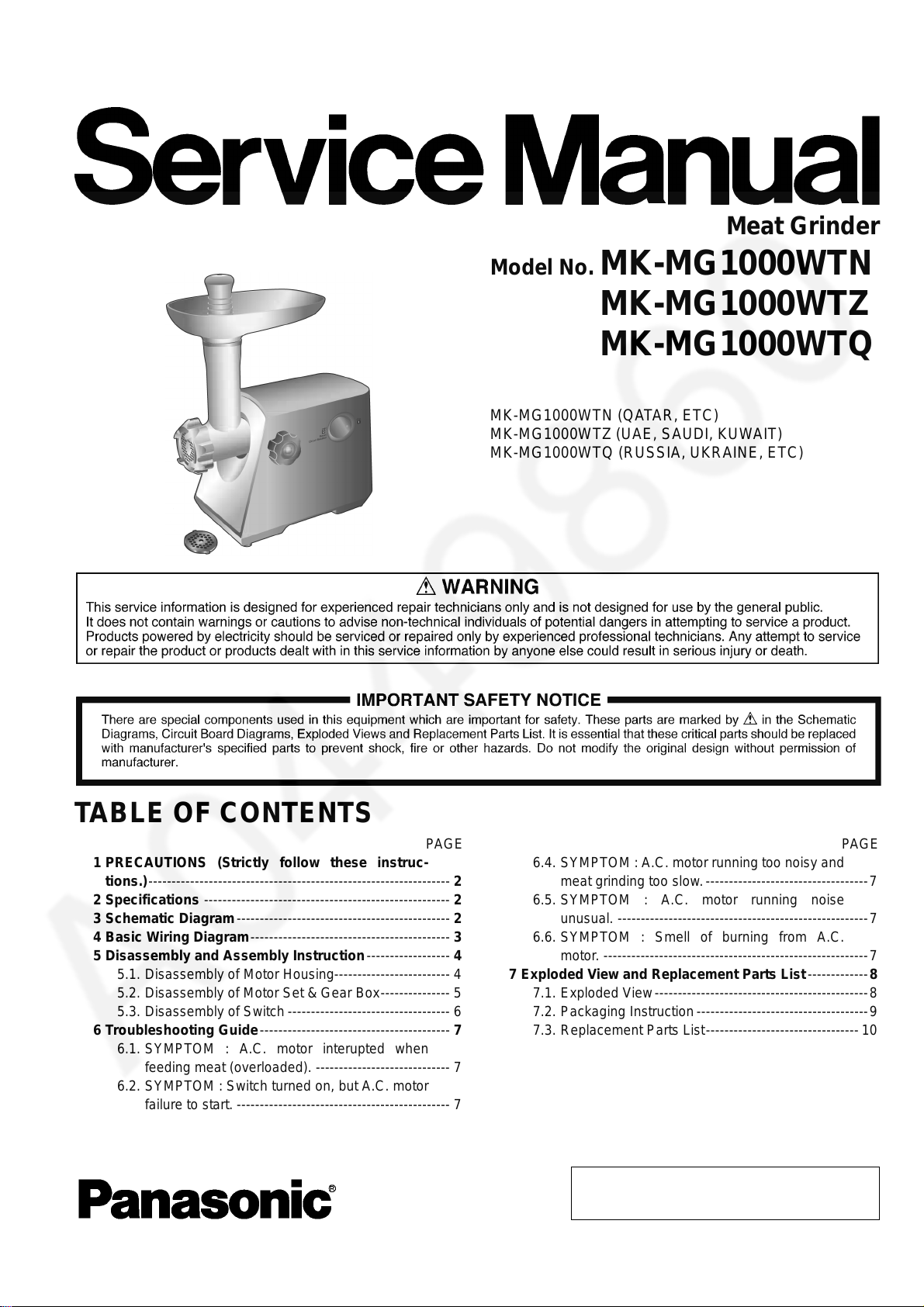

Panasonic MK-MG1000WTN User manual

© 2011 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.
PMMA111237CE
Meat Grinder
Model No. MK-MG1000WTN
MK-MG1000WTZ
MK-MG1000WTQ
MK-MG1000WTN (QATAR, ETC)
MK-MG1000WTZ (UAE, SAUDI, KUWAIT)
MK-MG1000WTQ (RUSSIA, UKRAINE, ETC)
TABLE OF CONTENTS PAGE PAGE
1 PRECAUTIONS (Strictly follow these instruc-
tions.)----------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Schematic Diagram---------------------------------------------- 2
4 Basic Wiring Diagram------------------------------------------- 3
5 Disassembly and Assembly Instruction------------------ 4
5.1. Disassembly of Motor Housing------------------------- 4
5.2. Disassembly of Motor Set & Gear Box--------------- 5
5.3. Disassembly of Switch ----------------------------------- 6
6 Troubleshooting Guide----------------------------------------- 7
6.1. SYMPTOM : A.C. motor interupted when
feeding meat (overloaded). ----------------------------- 7
6.2. SYMPTOM : Switch turned on, but A.C. motor
failure to start. ---------------------------------------------- 7
6.3. SYMPTOM : A.C. motor running, but feed
screw failure to turn. -------------------------------------- 7
6.4. SYMPTOM : A.C. motor running too noisy and
meat grinding too slow.-----------------------------------7
6.5. SYMPTOM : A.C. motor running noise
unusual. ------------------------------------------------------7
6.6. SYMPTOM : Smell of burning from A.C.
motor. ---------------------------------------------------------7
7 Exploded View and Replacement Parts List-------------8
7.1. Exploded View----------------------------------------------8
7.2. Packaging Instruction-------------------------------------9
7.3. Replacement Parts List---------------------------------10

2
1 PRECAUTIONS (Strictly follow these instructions.)
CAUTION
Do not grind too hard meat. If the grinder gets stuck, do not force meat into it.
CAUTION
You may feel the feed screw vibrating during use. It is not a trouble. Do not over tighten the locking knob.
CAUTION
Keep in mind that some parts of the grinder cannot be washed in a dishwasher.
CAUTION
This meat grinder is for household use only.
2 Specifications

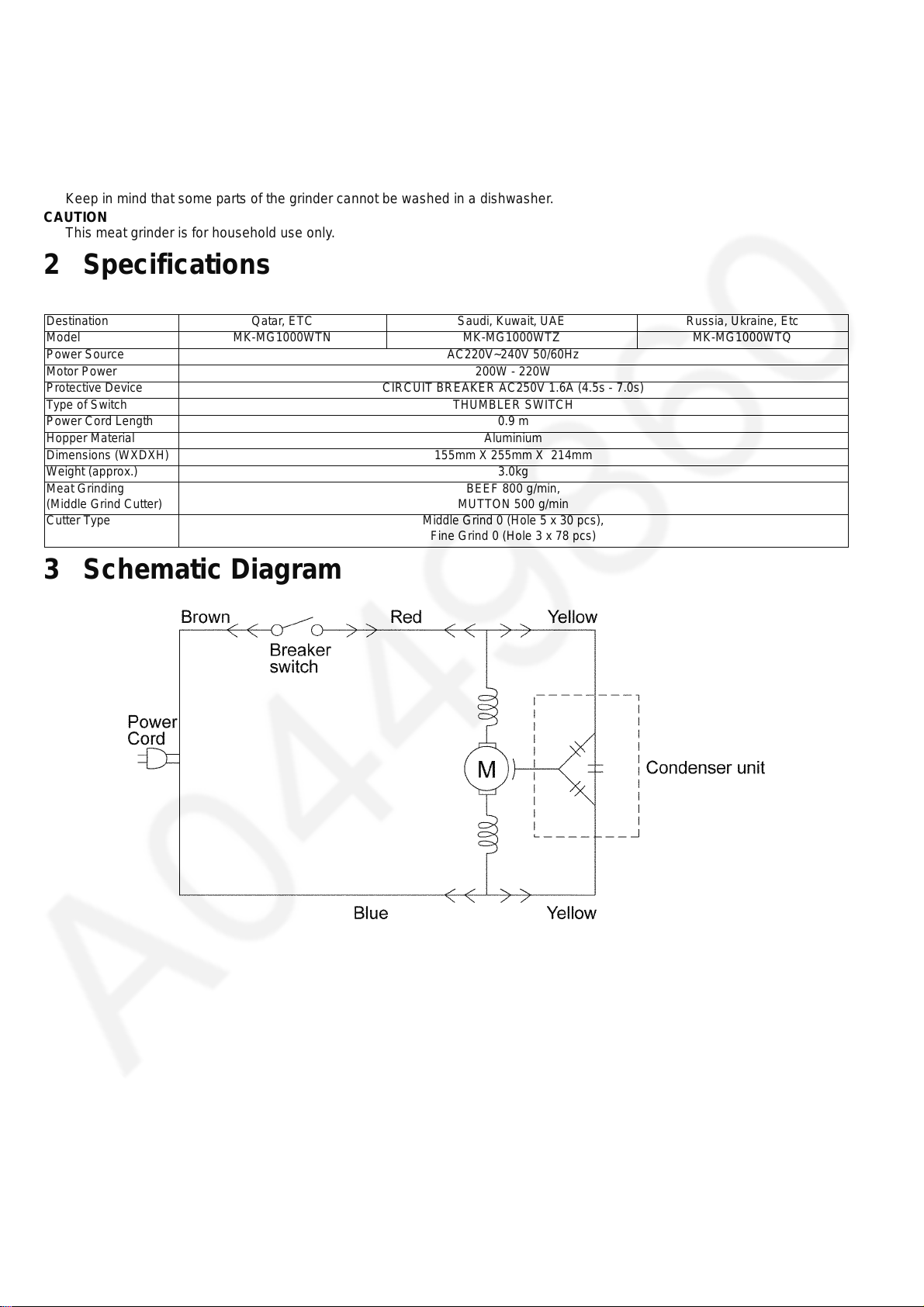

3 Schematic Diagram
Destination Qatar, ETC Saudi, Kuwait, UAE Russia, Ukraine, Etc
Model MK-MG1000WTN MK-MG1000WTZ MK-MG1000WTQ
Power Source AC220V~240V 50/60Hz
Motor Power 200W - 220W
Protective Device CIRCUIT BREAKER AC250V 1.6A (4.5s - 7.0s)
Type of Switch THUMBLER SWITCH
Power Cord Length 0.9 m
Hopper Material Aluminium
Dimensions (WXDXH) 155mm X 255mm X 214mm
Weight (approx.) 3.0kg
Meat Grinding
(Middle Grind Cutter) BEEF 800 g/min, MUTTON 500 g/min
Cutter Type Middle Grind 0 (Hole 5 x 30 pcs),
Fine Grind 0 (Hole 3 x 78 pcs)

3

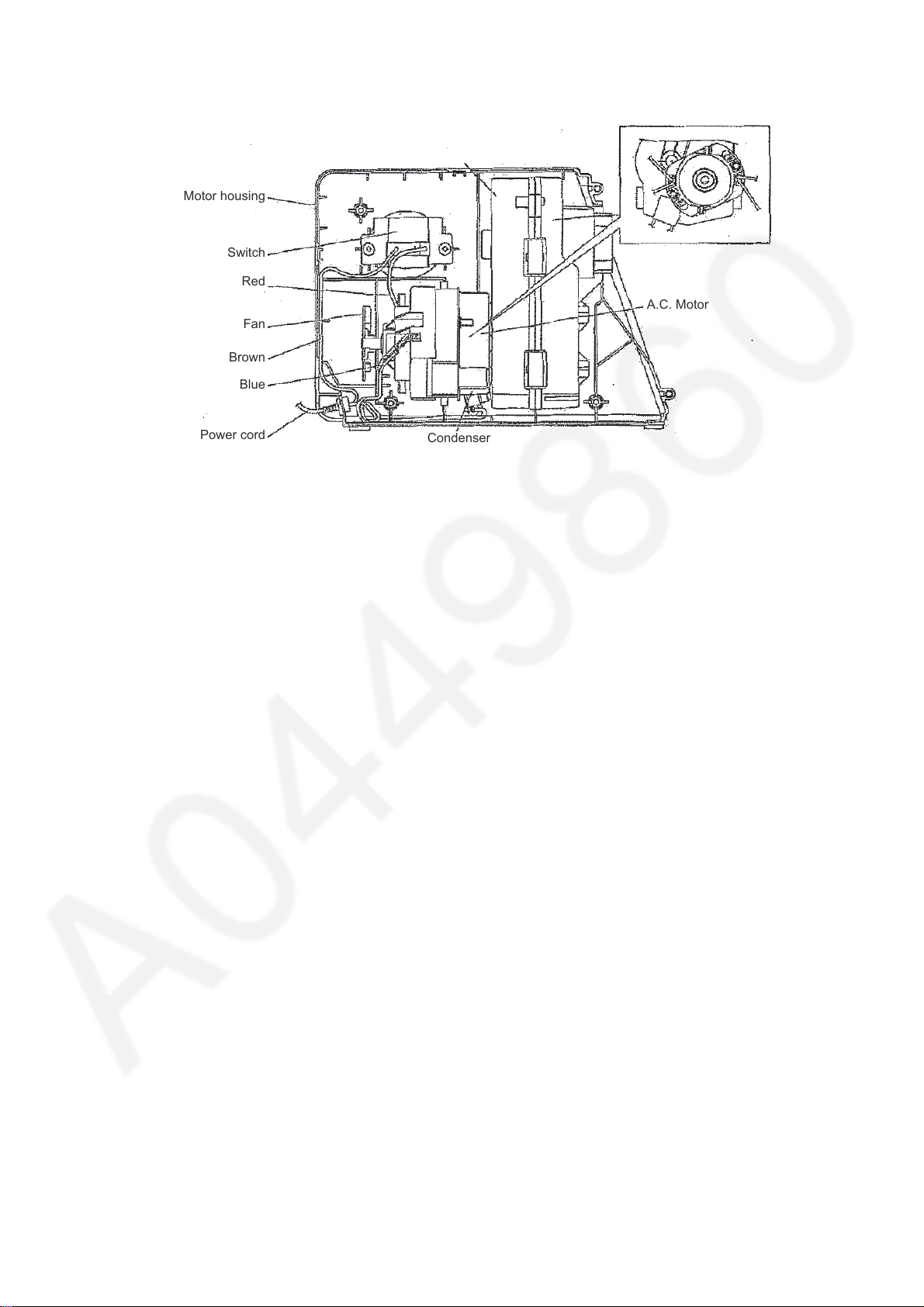

4 Basic Wiring Diagram
Motor housing
Switch
Red
Fan
Brown
Blue
Power cord Condenser
Gear case
A.C. Motor

4
5 Disassembly and Assem-
bly Instruction

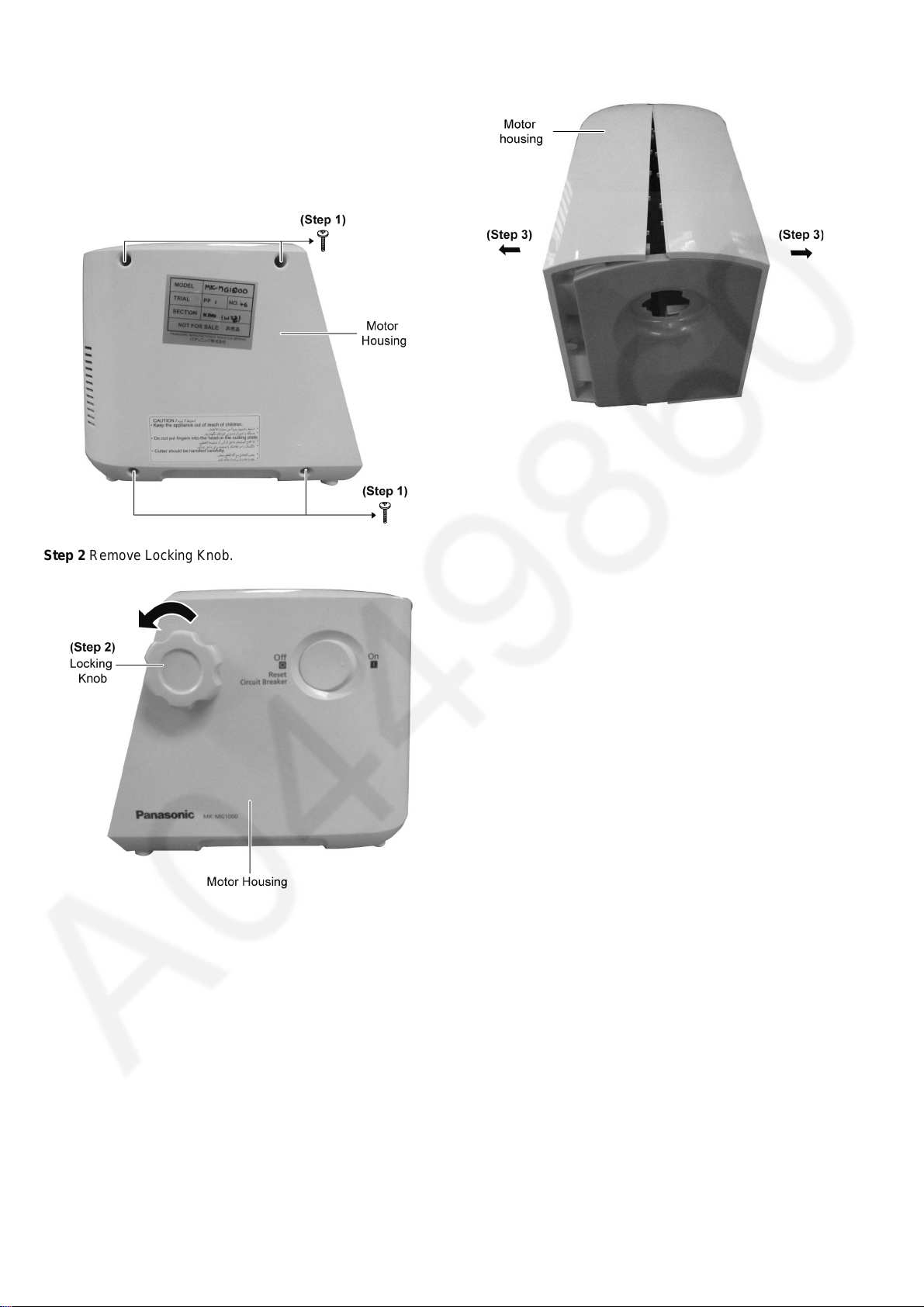

5.1. Disassembly of Motor Housing
Step 1 Remove 4 screws.
Step 2 Remove Locking Knob.
Step 3 Open Motor Housing.

5
5.2. Disassembly of Motor Set &
Gear Box
Step 1 Pull up Gear box.
Step 2 Place the Motor Unit as shown in diagram to remove 2
screws.
Step 3 Detach connectors from Motor Unit.
Step 4 Remove 4 screws.
Step 5 Release 2 Rubber Holders.

6

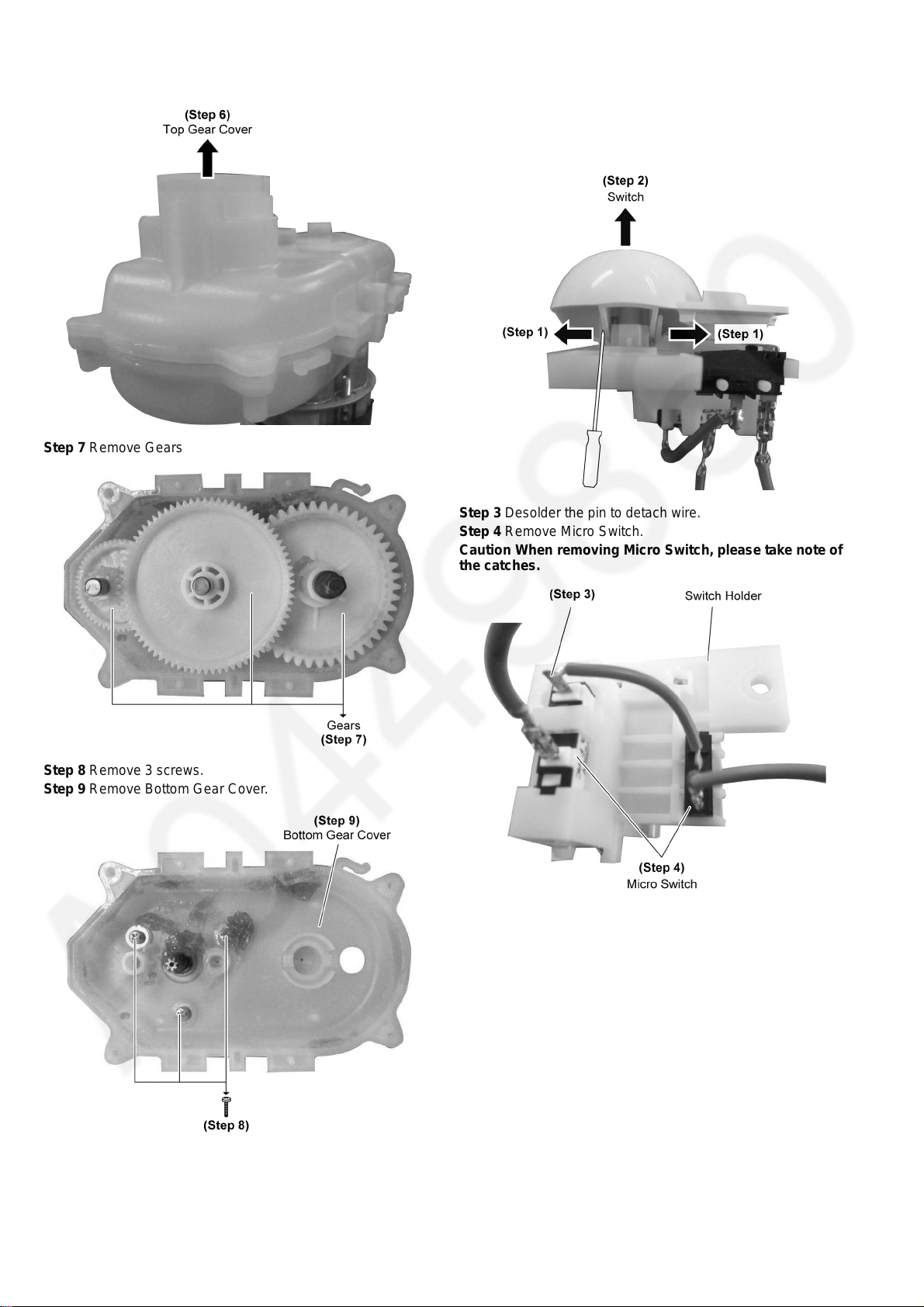

Step 6 Remove Top Gear Cover.
Step 7 Remove Gears
Step 8 Remove 3 screws.
Step 9 Remove Bottom Gear Cover.
5.3. Disassembly of Switch
Step 1 Use small screwdriver to push out the catch as diagram
shown.
Step 2 Remove Switch.
Step 3 Desolder the pin to detach wire.
Step 4 Remove Micro Switch.
Caution When removing Micro Switch, please take note of
the catches.

7

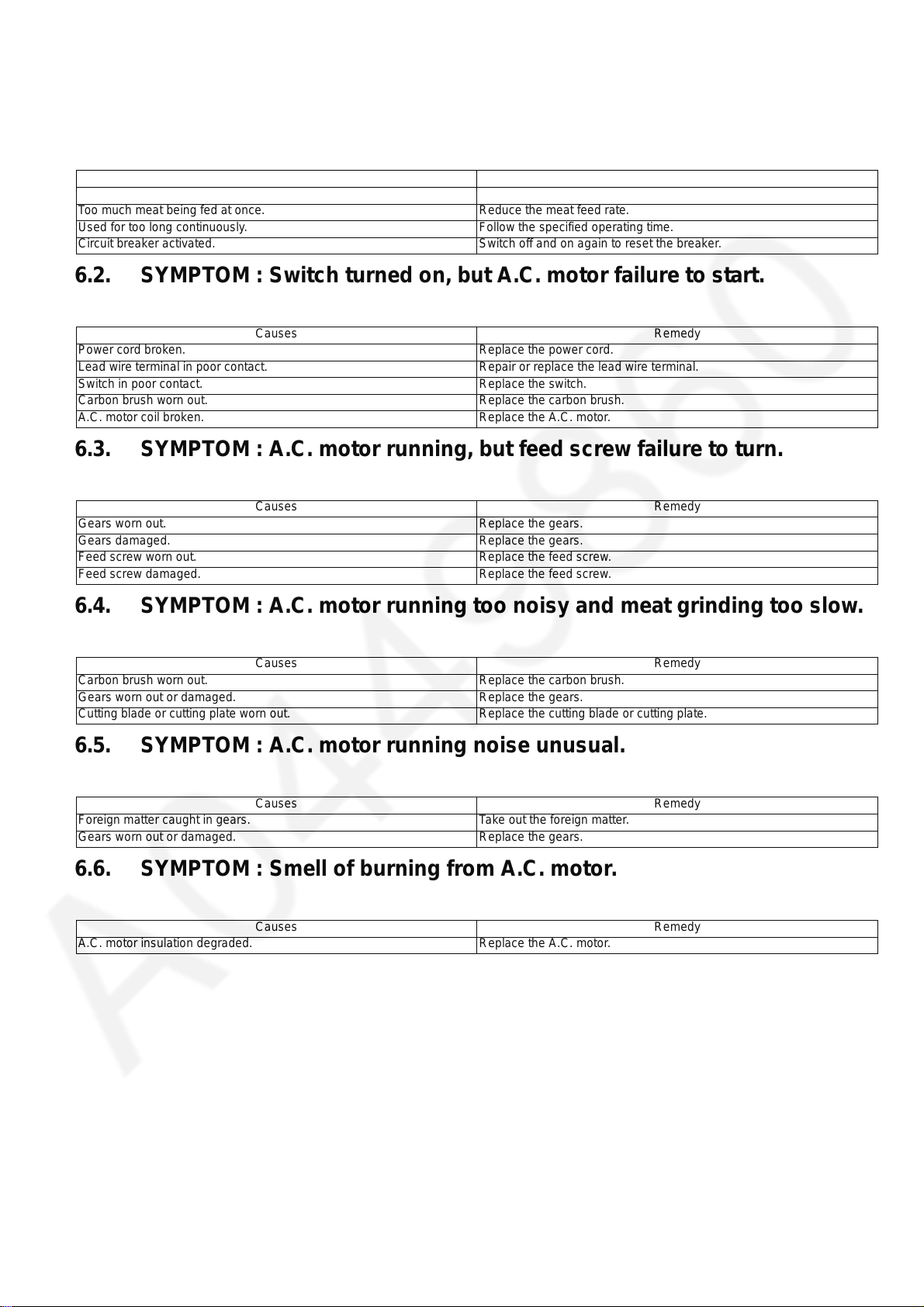

6 Troubleshooting Guide
6.1. SYMPTOM : A.C. motor interupted when feeding meat (overloaded).
6.2. SYMPTOM : Switch turned on, but A.C. motor failure to start.
6.3. SYMPTOM : A.C. motor running, but feed screw failure to turn.
6.4. SYMPTOM : A.C. motor running too noisy and meat grinding too slow.
6.5. SYMPTOM : A.C. motor running noise unusual.
6.6. SYMPTOM : Smell of burning from A.C. motor.
Causes Remedy
Too hard meat being fed. Take out the hard meat.
Too much meat being fed at once. Reduce the meat feed rate.
Used for too long continuously. Follow the specified operating time.
Circuit breaker activated. Switch off and on again to reset the breaker.
Causes Remedy
Power cord broken. Replace the power cord.
Lead wire terminal in poor contact. Repair or replace the lead wire terminal.
Switch in poor contact. Replace the switch.
Carbon brush worn out. Replace the carbon brush.
A.C. motor coil broken. Replace the A.C. motor.
Causes Remedy
Gears worn out. Replace the gears.
Gears damaged. Replace the gears.
Feed screw worn out. Replace the feed screw.
Feed screw damaged. Replace the feed screw.
Causes Remedy
Carbon brush worn out. Replace the carbon brush.
Gears worn out or damaged. Replace the gears.
Cutting blade or cutting plate worn out. Replace the cutting blade or cutting plate.
Causes Remedy
Foreign matter caught in gears. Take out the foreign matter.
Gears worn out or damaged. Replace the gears.
Causes Remedy
A.C. motor insulation degraded. Replace the A.C. motor.

8
7 Exploded View and Replacement Parts List

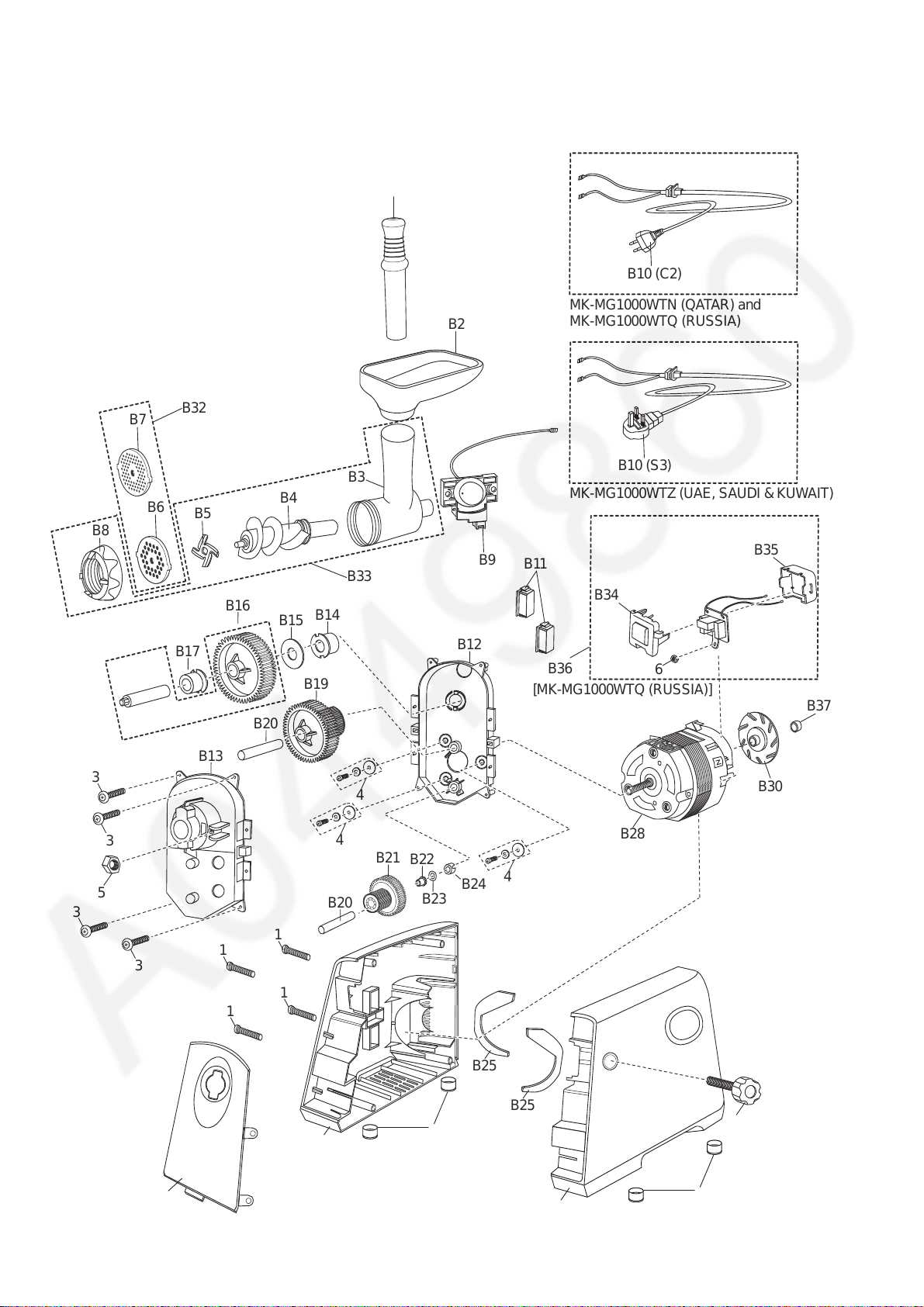

7.1. Exploded View
faiz
B30
B10 (C2)
B10 (S3)
MK-MG1000WTZ (UAE, SAUDI & KUWAIT)
MK-MG1000WTN (QATAR) and
MK-MG1000WTQ (RUSSIA)
B37
B36
B1
B2
B3
B4
B5
B6
B7
B8
B9 B11
B12
B13
B14
B33
B32
B15
B16
B17
B19
B20
B21 B22
B23 B24
B25
B25
B29
B26
3
3
11
1
1
3
3
2
B27
5
B28
B20
4
4
4
B31
B31
6
B34
B35
[MK-MG1000WTQ (RUSSIA)]

9

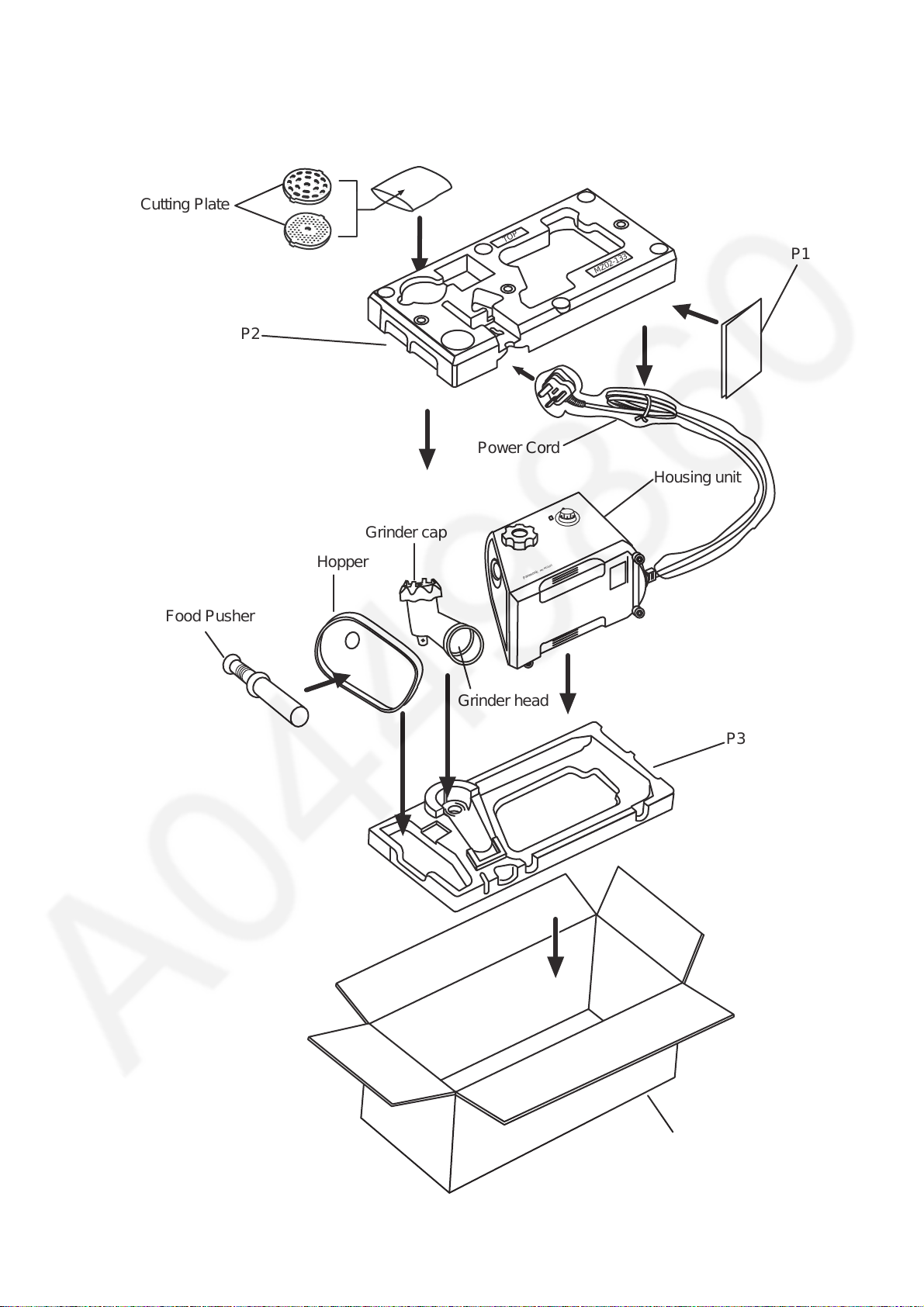

7.2. Packaging Instruction
Housing unit
Cutting Plate
Food Pusher
P4
Hopper
Grinder cap
Power Cord
Grinder head
Panasonic
MK-MG1500
P1
MZ02-133
TOP
P2
P3

10
7.3. Replacement Parts List
7.3.1. MK-MG1000WTN (QATAR)
Safety Ref. No. Part No. Part Name & Description Qty Remarks
B1 AME04-1072W0 PLUNGER 1
B2 AME03-126-W4 HOPPER 1 PLASTIC
B3 AME01-121 SCREW BODY 1
B4 AME97-121 SCREW (U) 1
B5 AM12C18000 ROTATING CUTTER 1
B6 AM08C18100 CUTTER A 1
B7 AM10C18100 CUTTER C 1
B8 AME02-121 BODY COVER 1
B9 AMN98-126-W4 COMPLETE SWITCH ASS’Y 1
B10 AMP96-126 CORD UNIT 1 C2 PLUG
B11 AMB34-133 GEAR CUSHION RUBBER 2
B12 AMB26-1073 GEAR CASE 1
B13 AMB89-1073 GEAR CASE COVER LID UNIT 1
B14 AM04B18100 OILLESS BEARING A 1
B15 AM18B18000 WASHER B 1
B16 AM95B27300 C GEAR UNIT 1
B17 AM05B18100 OILLESS BEARING B 1
B19 AM09B27300 B GEAR 1
B20 AM26B18300 A GEAR SHAFT 2
B21 AM96B18300 A GEAR UNIT 1
B22 AM06B18000 OILLESS BEARING C 1
B23 AMA36B18100 WASHER C 1
B24 AMB38-126 GEAR CASE CAP 3
B25 AMB35-133 MOTOR CUSHION RUBBER 2
B26 AMB91Y126-W4 BODY LEFT UNIT 1
B27 AMB21-126-W4 FRONT PLATE 1
B28 ATXM120A MOTOR 1
B29 AMB19-126-W4 BODY RIGHT 1
B30 AMM31-121 FAN 1
B31 AJ33A53000 FOOT 4
B32 AMA20-126 FIXED CUTTER COMPLETE 1
B33 AMA32-121 COMPLETE SCREW BODY 1
B37 ASPN-8 PUSH NUT
1 XTN4+20BFJ SCREW 4
2 AMB85-133-W4 FIX KNOB UNIT 1
3 XTN4+20BFJ PLUS TAPPING SCREW 4
4 XYN4+20BFJ SCREW WITH SPRING AND ROUND WASHER 3
5 XNG8BFJ HEXAGONAL NUT 1
PACKING LIST
P1 AMZ50Y126 OPERATING INSTRUCTION 1
P2 AMZ02-126 TOP CUSHION 1
P3 AMZ03-126 BOTTOM CUSHION 1
P4 AMZ01Y126 CARTON BOX 1

11
7.3.2. MK-MG1000WTZ (UAE, SAUDI & KUWAIT)
Safety Ref. No. Part No. Part Name & Description Qty Remarks
B1 AME04-1072W0 PLUNGER 1
B2 AME03-126-W4 HOPPER 1 PLASTIC
B3 AME01-121 SCREW BODY 1
B4 AME97-121 SCREW (U) 1
B5 AM12C18000 ROTATING CUTTER 1
B6 AM08C18100 CUTTER A 1
B7 AM10C18100 CUTTER C 1
B8 AME02-121 BODY COVER 1
B9 AMN98-126-W4 COMPLETE SWITCH ASS’Y 1
B10 AMP91J126 CORD UNIT 1 S3 PLUG WITH
CAP
B11 AMB34-133 GEAR CUSHION RUBBER 2
B12 AMB26-1073 GEAR CASE 1
B13 AMB89-1073 GEAR CASE COVER LID UNIT 1
B14 AM04B18100 OILLESS BEARING A 1
B15 AM18B18000 WASHER B 1
B16 AM95B27300 C GEAR UNIT 1
B17 AM05B18100 OILLESS BEARING B 1
B19 AM09B27300 B GEAR 1
B20 AM26B18300 A GEAR SHAFT 2
B21 AM96B18300 A GEAR UNIT 1
B22 AM06B18000 OILLESS BEARING C 1
B23 AM36B18100 WASHER C 1
B24 AMB38-126 GEAR CASE CAP 3
B25 AMB35-133 MOTOR CUSHION RUBBER 2
B26 AMB91Y126-W4 BODY LEFT UNIT 1
B27 AMB21-126-W4 FRONT PLATE 1
B28 ATXM120A MOTOR 1
B29 AMB19-126-W4 BODY RIGHT 1
B30 AMM31-121 FAN 1
B31 AJ33A53000 FOOT 4
B32 AMA20-126 FIXED CUTTER COMPLETE 1
B33 AMA32-121 COMPLETE SCREW COMPLETE 1
B37 ASPN-8 PUSH NUT 1
1 XTN4+20BFJ SCREW 4
2 AMB85-133-W4 FIX KNOB UNIT 1
3 XTN4+20BFJ PLUS TAPPING SCREW 4
4 XYN4+20BFJ SCREW WITH SPRING AND ROUND WASHER 3
5 XNG8BFJ HEXAGONAL NUT 1
PACKING LIST
P1 AMZ50Y126 OPERATING INSTRUCTION 1
P2 AMZ02-126 TOP CUSHION 1
P3 AMZ03-126 BOTTOM CUSHION 1
P4 AMZ01Y126 CARTON BOX 1

12
7.3.3. MK-MG1000WTQ (RUSSIA)
MMH1112

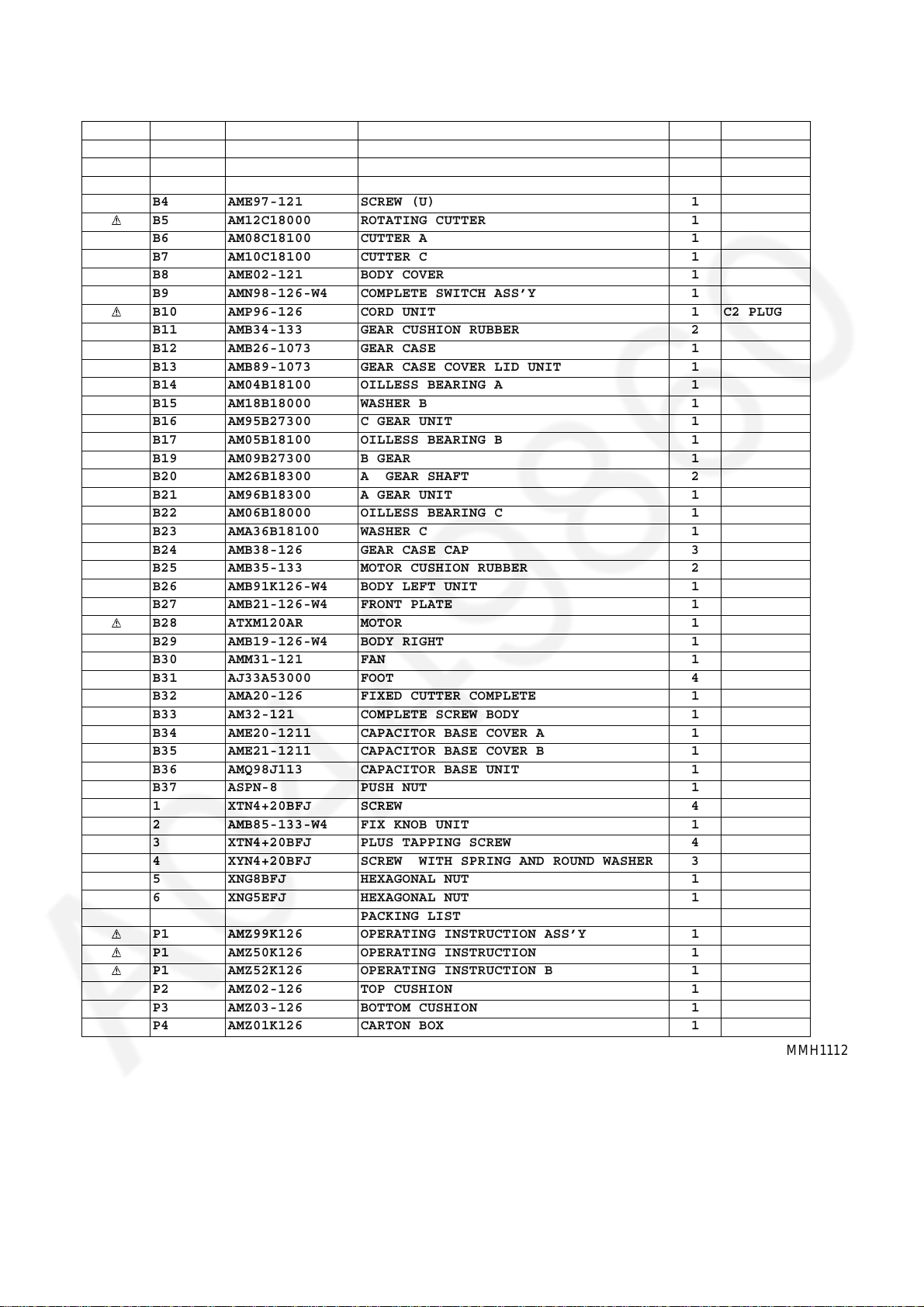

Safety Ref. No. Part No. Part Name & Description Qty Remarks
B1 AME04-1072W0 PLUNGER 1
B2 AME03-126-W4 HOPPER 1 PLASTIC
B3 AME01-121 SCREW BODY 1
B4 AME97-121 SCREW (U) 1
B5 AM12C18000 ROTATING CUTTER 1
B6 AM08C18100 CUTTER A 1
B7 AM10C18100 CUTTER C 1
B8 AME02-121 BODY COVER 1
B9 AMN98-126-W4 COMPLETE SWITCH ASS’Y 1
B10 AMP96-126 CORD UNIT 1 C2 PLUG
B11 AMB34-133 GEAR CUSHION RUBBER 2
B12 AMB26-1073 GEAR CASE 1
B13 AMB89-1073 GEAR CASE COVER LID UNIT 1
B14 AM04B18100 OILLESS BEARING A 1
B15 AM18B18000 WASHER B 1
B16 AM95B27300 C GEAR UNIT 1
B17 AM05B18100 OILLESS BEARING B 1
B19 AM09B27300 B GEAR 1
B20 AM26B18300 A GEAR SHAFT 2
B21 AM96B18300 A GEAR UNIT 1
B22 AM06B18000 OILLESS BEARING C 1
B23 AMA36B18100 WASHER C 1
B24 AMB38-126 GEAR CASE CAP 3
B25 AMB35-133 MOTOR CUSHION RUBBER 2
B26 AMB91K126-W4 BODY LEFT UNIT 1
B27 AMB21-126-W4 FRONT PLATE 1
B28 ATXM120AR MOTOR 1
B29 AMB19-126-W4 BODY RIGHT 1
B30 AMM31-121 FAN 1
B31 AJ33A53000 FOOT 4
B32 AMA20-126 FIXED CUTTER COMPLETE 1
B33 AM32-121 COMPLETE SCREW BODY 1
B34 AME20-1211 CAPACITOR BASE COVER A 1
B35 AME21-1211 CAPACITOR BASE COVER B 1
B36 AMQ98J113 CAPACITOR BASE UNIT 1
B37 ASPN-8 PUSH NUT 1
1 XTN4+20BFJ SCREW 4
2 AMB85-133-W4 FIX KNOB UNIT 1
3 XTN4+20BFJ PLUS TAPPING SCREW 4
4 XYN4+20BFJ SCREW WITH SPRING AND ROUND WASHER 3
5 XNG8BFJ HEXAGONAL NUT 1
6 XNG5EFJ HEXAGONAL NUT 1
PACKING LIST
P1 AMZ99K126 OPERATING INSTRUCTION ASS’Y 1
P1 AMZ50K126 OPERATING INSTRUCTION 1
P1 AMZ52K126 OPERATING INSTRUCTION B 1
P2 AMZ02-126 TOP CUSHION 1
P3 AMZ03-126 BOTTOM CUSHION 1
P4 AMZ01K126 CARTON BOX 1
