Panasonic MK-ZJ3500KTN User manual

© Panasonic Corporation 2017 Unauthorized copy-
ing and distribution is a violation of law.
Order Number KAD1704001CE
Meat Grinder
Model No. MK-ZJ3500KTN
Model No. MK-ZJ2700KTN
Model No. MK-ZJ3500KTZ
Model No. MK-ZJ2700KTZ
Chassis MK-ZJ3500
Product Color Black (K)
Destination MIddle East, Sudan, Nigeria, Egypt,
Pakistan
TABLE OF CONTENTS PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 4
4 Operating Instructions------------------------------------------ 6
5 Troubleshooting Guide----------------------------------------13
6 Disassembly and Assembly Instructions ---------------16
7 Wiring Connection Diagram ---------------------------------20
8 Schematic Diagram---------------------------------------------24
9 Exploded View and Replacement Parts List -----------26

2
1 Safety Precautions

3
2 Specifications
2.1. Specifications (MK-ZJ3500 / MK-ZJ2700)
2.2. Important Information

4
3 Location of Controls and Components

5

6
4 Operating Instructions
4.1. How to use

7

8

9

10
4.2. After use

11

12
4.3. Troubleshooying / Circuit Breaker Protection

13

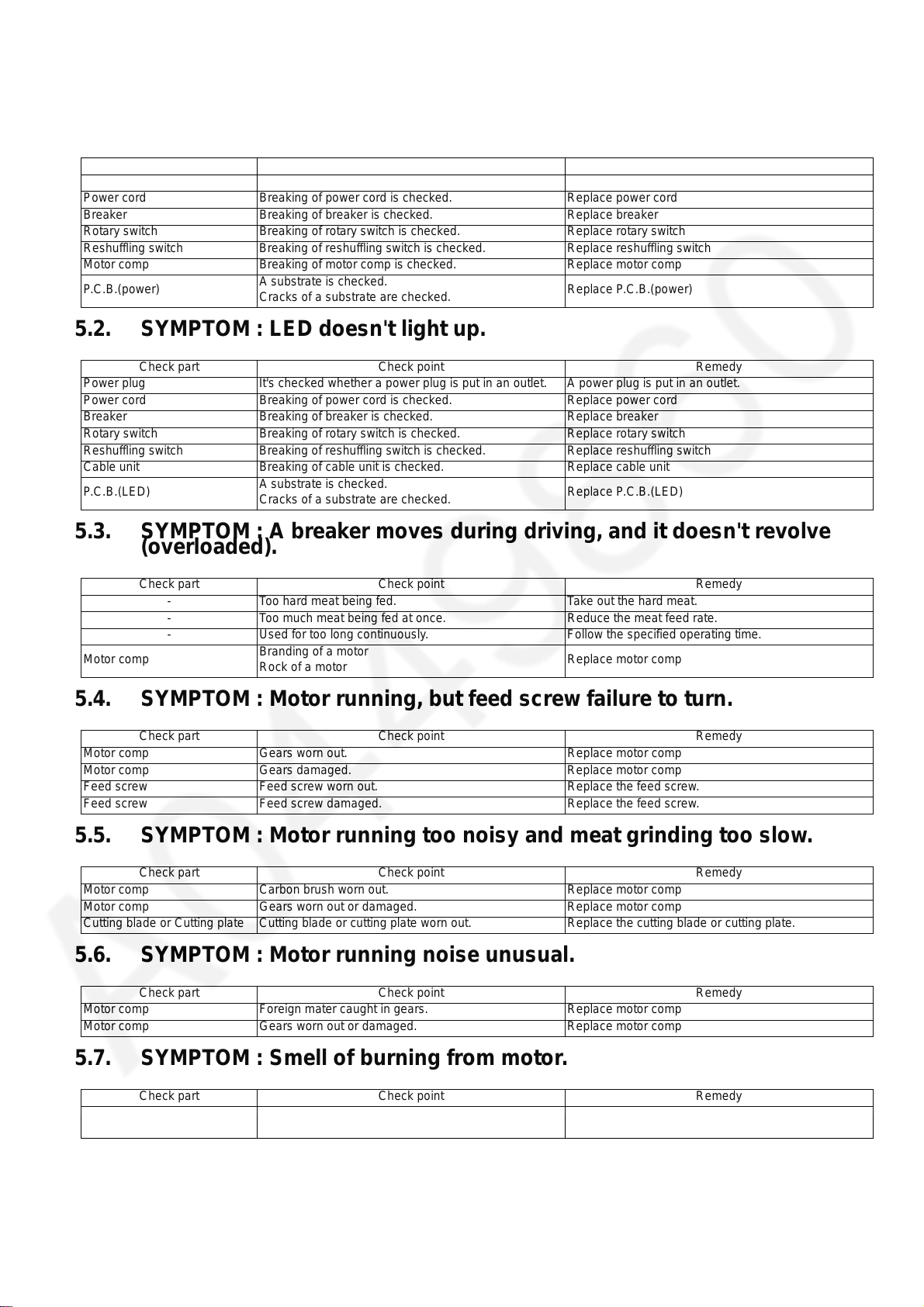

5 Troubleshooting Guide
5.1. SYMPTOM : Switch turned on, but motor failure to start.
5.2. SYMPTOM : LED doesn't light up.
5.3. SYMPTOM : A breaker moves during driving, and it doesn't revolve
(overloaded).
5.4. SYMPTOM : Motor running, but feed screw failure to turn.
5.5. SYMPTOM : Motor running too noisy and meat grinding too slow.
5.6. SYMPTOM : Motor running noise unusual.
5.7. SYMPTOM : Smell of burning from motor.
Check part Check point Remedy
Power plug It's checked whether a power plug is put in an outlet. A power plug is put in an outlet.
Power cord Breaking of power cord is checked. Replace power cord
Breaker Breaking of breaker is checked. Replace breaker
Rotary switch Breaking of rotary switch is checked. Replace rotary switch
Reshuffling switch Breaking of reshuffling switch is checked. Replace reshuffling switch
Motor comp Breaking of motor comp is checked. Replace motor comp
P.C.B.(power) A substrate is checked.
Cracks of a substrate are checked. Replace P.C.B.(power)
Check part Check point Remedy
Power plug It's checked whether a power plug is put in an outlet. A power plug is put in an outlet.
Power cord Breaking of power cord is checked. Replace power cord
Breaker Breaking of breaker is checked. Replace breaker
Rotary switch Breaking of rotary switch is checked. Replace rotary switch
Reshuffling switch Breaking of reshuffling switch is checked. Replace reshuffling switch
Cable unit Breaking of cable unit is checked. Replace cable unit
P.C.B.(LED) A substrate is checked.
Cracks of a substrate are checked. Replace P.C.B.(LED)
Check part Check point Remedy
- Too hard meat being fed. Take out the hard meat.
- Too much meat being fed at once. Reduce the meat feed rate.
- Used for too long continuously. Follow the specified operating time.
Motor comp Branding of a motor
Rock of a motor Replace motor comp
Check part Check point Remedy
Motor comp Gears worn out. Replace motor comp
Motor comp Gears damaged. Replace motor comp
Feed screw Feed screw worn out. Replace the feed screw.
Feed screw Feed screw damaged. Replace the feed screw.
Check part Check point Remedy
Motor comp Carbon brush worn out. Replace motor comp
Motor comp Gears worn out or damaged. Replace motor comp
Cutting blade or Cutting plate Cutting blade or cutting plate worn out. Replace the cutting blade or cutting plate.
Check part Check point Remedy
Motor comp Foreign mater caught in gears. Replace motor comp
Motor comp Gears worn out or damaged. Replace motor comp
Check part Check point Remedy
Motor comp Branding of a motor
Rare short circuit of a motor Replace motor comp

14
5.8. Check point
[ MK-ZJ3500 ]

15
[ MK-ZJ2700 ]

16
6 Disassembly and Assembly Instructions
For assembly, refer to the Assembly Instructions, and perform the procedures in the opposite order of disassembly.
6.1. Attachment
1. Remove the Fixing lever for removal of the Grinder head
section.
6.2. Storage part for attachment
1. Storage part for attachment in the body rear is drawn out
and removed from the Body ass'y.
6.3. Lid of cord storage
1. Lift the Lid of cord storage, decide to push a hinge part of
a lid inside and remove a lid from the Body ass'y.
2. Power cord is drawn out.
6.4. Switch knob
1. The body stave, and remove the Switch Knob using a
minus driver.

17
6.5. Bottom plate
1. Remove the torx screws (T20 / 8 pcs.) from the Bottom
plate for removal there of
6.6. Cord box
1. Power cord is removed from a stopper part and the Cord
box is removed from the Body ass'y.
6.7. Body(left)
1. A minus driver is put in a gap of the Body ass'y and the
Body(left) and Body(left) is removed from the Body ass'y
while open the clows of Body(left).
6.8. P.C.B. (power)
1. Disconnect the connector from the P.C.B. (power).
2. Disconnect the fasuton terminals from the P.C.B. (power).
3. The P.C.B. case is taken out from the Body ass'y and a
lead line is removed from a cord clamp.
4. A fixed screw (1) is removed and the P.C.B. (power) is
removed from the P.C.B. case.
6.9. Switch unit
1. The fixed screws (3 pcs.) are removed, switch unit, tem-
porary removal trout.
6.9.1. Resolution of switch unit
Cover of rotary switch
• Cover of rotary switch is removed while forcing clows.

18
Switch cam
• Remove the Switch cam Spring for switch cam and Spring
for breaker.
P.C.B. (LED)
• A clow is opened and the P.C.B. (LED) is removed.
• Disconnect the connector from the P.C.B. (LED).
Breaker
• A clow is opened and the Breaker is removed.
• Disconnect the fasuton terminals from the Breaker.
Reshuffling switch (Microswitch)
• The Reshuffling switch is taken out from the Case of rotary
switch.
• Disconnect the fasuton terminals from the Reshuffling
switch.
6.10. Motor comp.
1. Open the clows of the Unit cover from the boss of the
Motor comp..
2. Remove a Unit cover from the Motor comp..
3. The Handle shaft is removed and the Fixing lever is
removed.

19
4. The fixed screws (3 pcs.) are removed, switch unit, tem-
porary removal trout.
5. The Wire band B on which a condenser is being fixed is
cut.
6. The Protection tube is shifted and a connector of the
Motor comp. is removed.
7. Remove a fixed screw (4 pcs.)
8. Remove the Motor comp. from the Body ass'y.
• Motor comp.

20
7 Wiring Connection Diagram
7.1. Actual wiring diagram
[ MK-ZJ3500 ]
