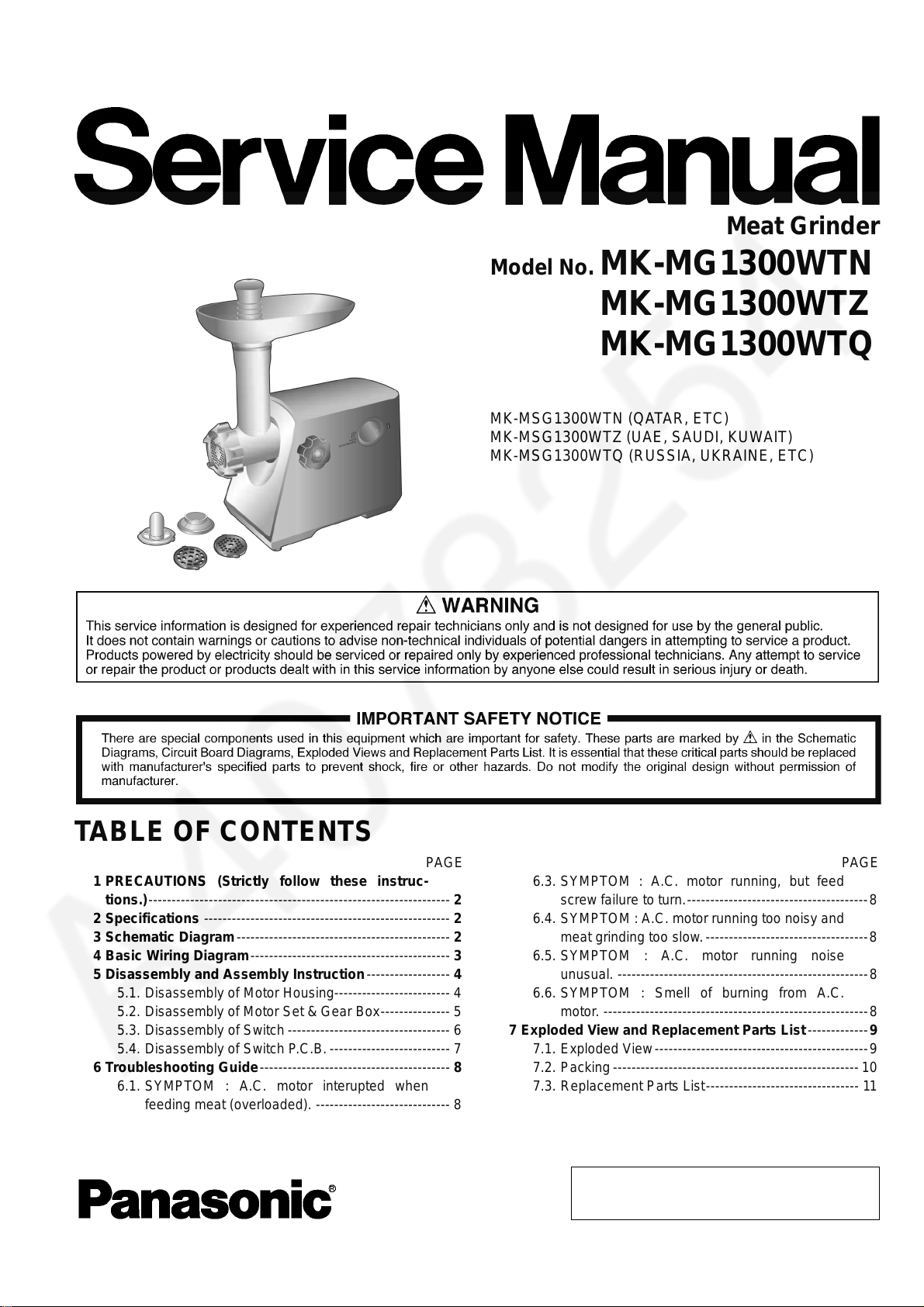

Panasonic MK-MG1300WTN User manual

© 2011 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.
PMMA111136CE
Meat Grinder
Model No. MK-MG1300WTN
MK-MG1300WTZ
MK-MG1300WTQ
MK-MSG1300WTN (QATAR, ETC)
MK-MSG1300WTZ (UAE, SAUDI, KUWAIT)
MK-MSG1300WTQ (RUSSIA, UKRAINE, ETC)
TABLE OF CONTENTS PAGE PAGE
1 PRECAUTIONS (Strictly follow these instruc-
tions.)----------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Schematic Diagram---------------------------------------------- 2
4 Basic Wiring Diagram------------------------------------------- 3
5 Disassembly and Assembly Instruction------------------ 4
5.1. Disassembly of Motor Housing------------------------- 4
5.2. Disassembly of Motor Set & Gear Box--------------- 5
5.3. Disassembly of Switch ----------------------------------- 6
5.4. Disassembly of Switch P.C.B.-------------------------- 7
6 Troubleshooting Guide----------------------------------------- 8
6.1. SYMPTOM : A.C. motor interupted when
feeding meat (overloaded). ----------------------------- 8
6.2. SYMPTOM : Switch turned on, but A.C. motor
failure to start. ---------------------------------------------- 8
6.3. SYMPTOM : A.C. motor running, but feed
screw failure to turn.---------------------------------------8
6.4. SYMPTOM : A.C. motor running too noisy and
meat grinding too slow.-----------------------------------8
6.5. SYMPTOM : A.C. motor running noise
unusual. ------------------------------------------------------8
6.6. SYMPTOM : Smell of burning from A.C.
motor. ---------------------------------------------------------8
7 Exploded View and Replacement Parts List-------------9
7.1. Exploded View----------------------------------------------9
7.2. Packing-----------------------------------------------------10
7.3. Replacement Parts List--------------------------------- 11

2
1 PRECAUTIONS (Strictly follow these instructions.)
CAUTION
Do not grind too hard meat. If the grinder gets stuck, do not force meat into it.
CAUTION
You may feel the feed screw vibrating during use. It is not a trouble. Do not over tighten the locking knob.
CAUTION
Keep in mind that some parts of the grinder cannot be washed in a dishwasher.
CAUTION
This meat grinder is for household use only.
2 Specifications

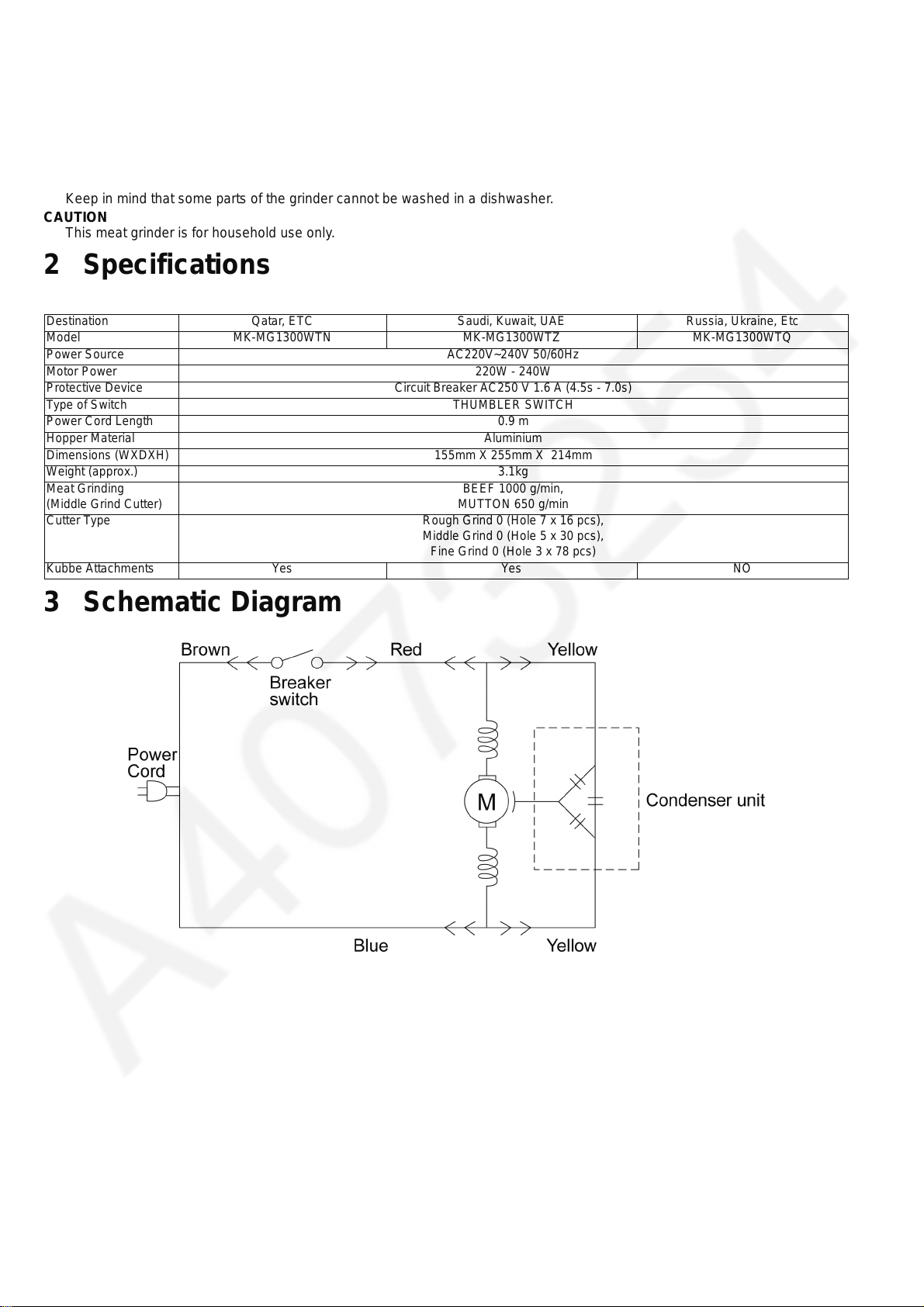

3 Schematic Diagram
Destination Qatar, ETC Saudi, Kuwait, UAE Russia, Ukraine, Etc
Model MK-MG1300WTN MK-MG1300WTZ MK-MG1300WTQ
Power Source AC220V~240V 50/60Hz
Motor Power 220W - 240W
Protective Device Circuit Breaker AC250 V 1.6 A (4.5s - 7.0s)
Type of Switch THUMBLER SWITCH
Power Cord Length 0.9 m
Hopper Material Aluminium
Dimensions (WXDXH) 155mm X 255mm X 214mm
Weight (approx.) 3.1kg
Meat Grinding
(Middle Grind Cutter) BEEF 1000 g/min, MUTTON 650 g/min
Cutter Type Rough Grind 0 (Hole 7 x 16 pcs),
Middle Grind 0 (Hole 5 x 30 pcs),
Fine Grind 0 (Hole 3 x 78 pcs)
Kubbe Attachments Yes Yes NO

3
4 Basic Wiring Diagram
Motor housing
Switch
Red
Fan
Brown
Blue
Power cord Condenser
Gear case
A.C. Motor

4
5 Disassembly and Assem-
bly Instruction

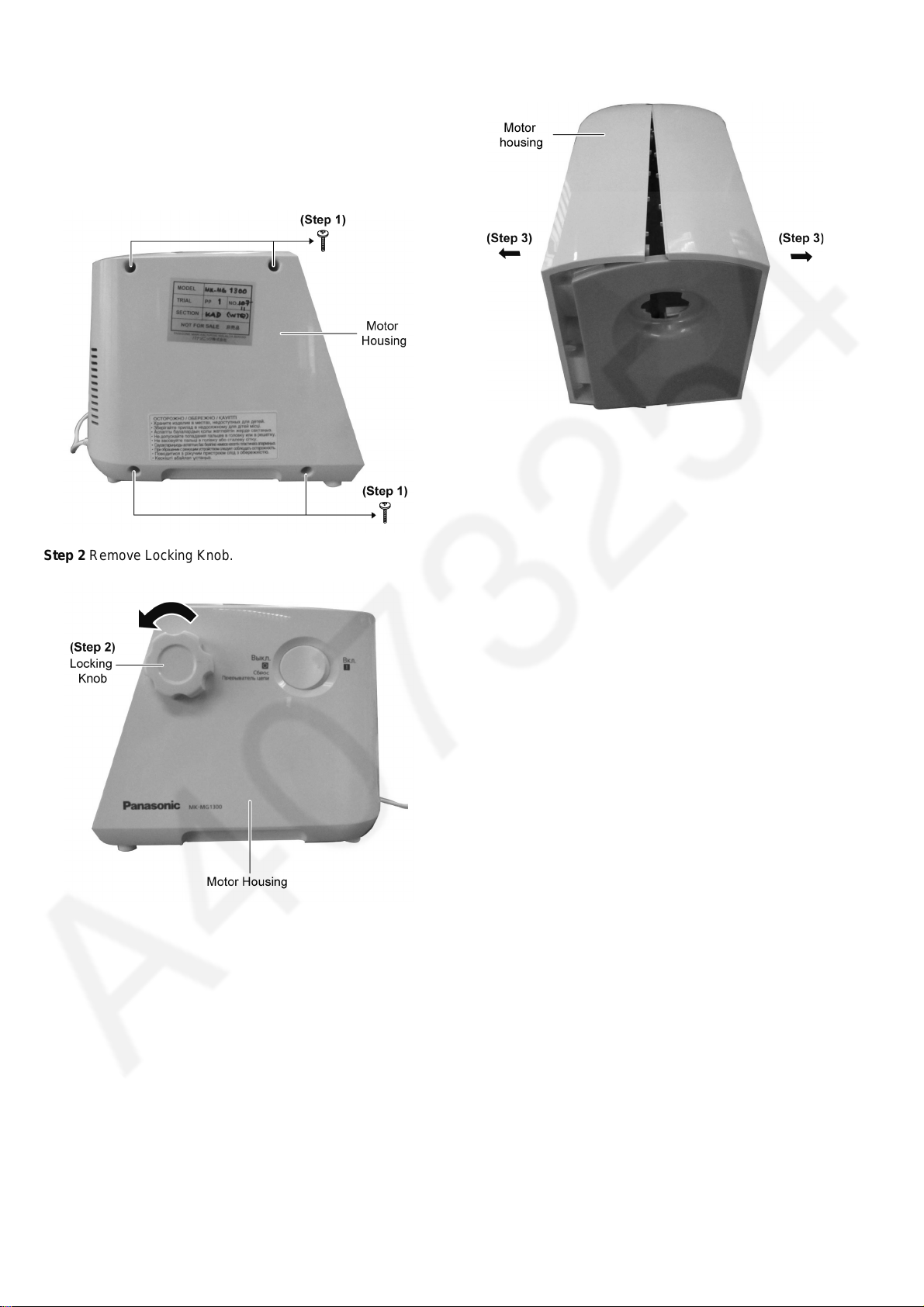

5.1. Disassembly of Motor Housing
Step 1 Remove 4 screws.
Step 2 Remove Locking Knob.
Step 3 Open Motor Housing.

5
5.2. Disassembly of Motor Set &
Gear Box
Step 1 Pull up Gear box.
Step 2 Place the Motor Unit as shown in diagram to remove 2
screws.
Step 3 Detach connectors from Motor Unit.
Step 4 Remove 4 screws.
Step 5 Release 2 Rubber Holders.

6

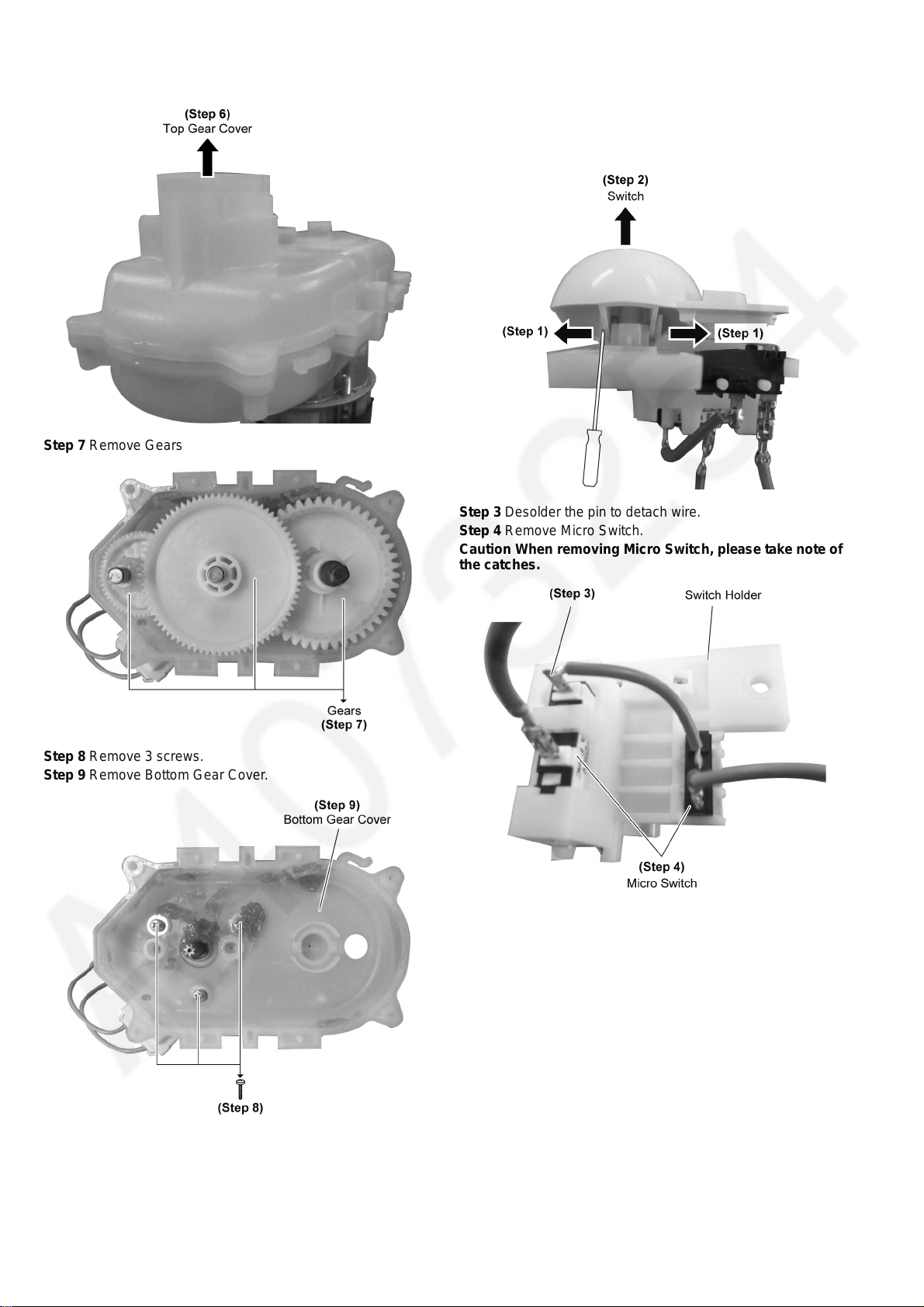

Step 6 Remove Top Gear Cover.
Step 7 Remove Gears
Step 8 Remove 3 screws.
Step 9 Remove Bottom Gear Cover.
5.3. Disassembly of Switch
Step 1 Use small screwdriver to push out the catch as diagram
shown.
Step 2 Remove Switch.
Step 3 Desolder the pin to detach wire.
Step 4 Remove Micro Switch.
Caution When removing Micro Switch, please take note of
the catches.

7

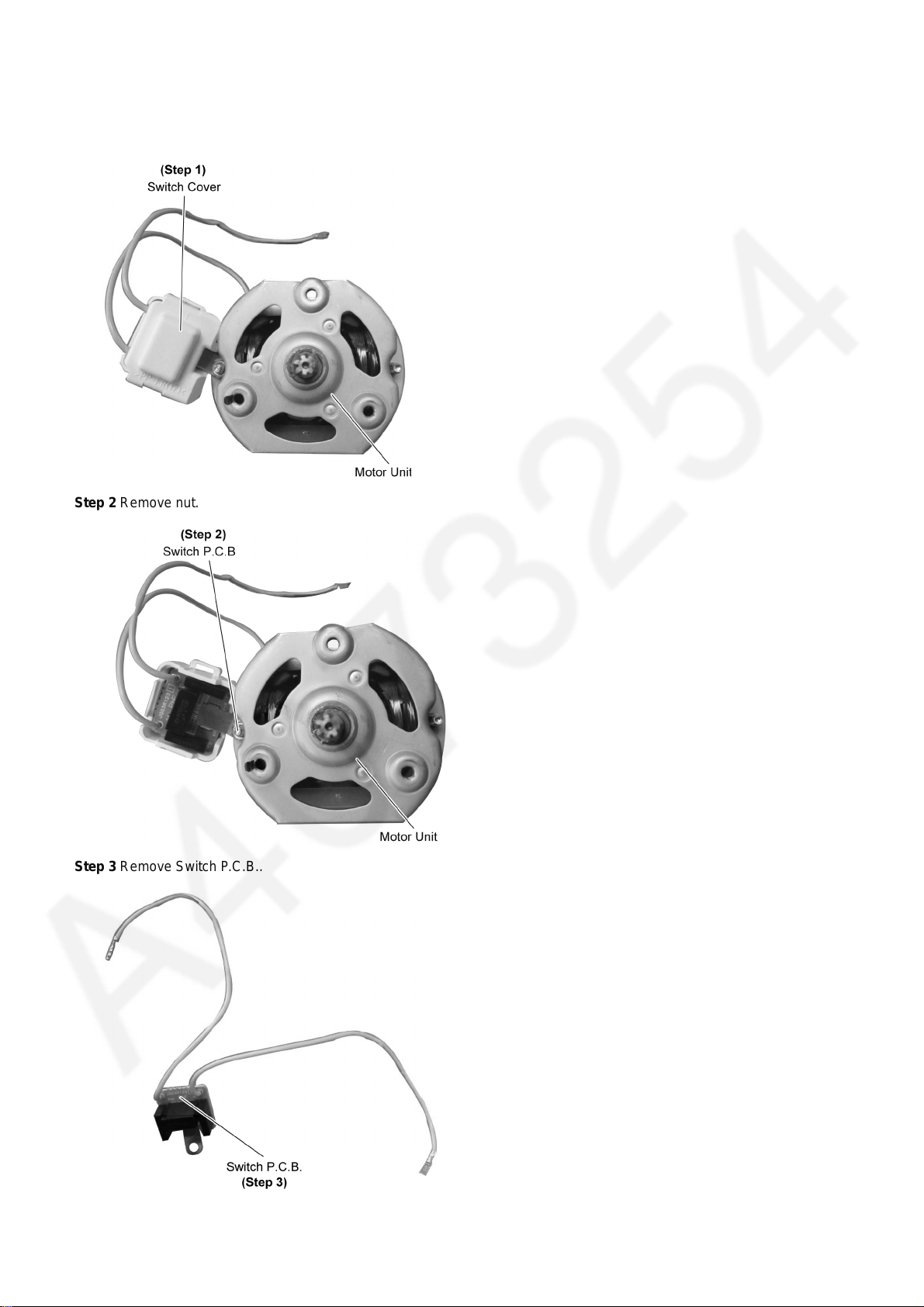

5.4. Disassembly of Switch P.C.B.
Step 1 Remove Switch Cover.
Caution When removing Micro Switch, please take note of
the catches.
Step 2 Remove nut.
Step 3 Remove Switch P.C.B..

8
6 Troubleshooting Guide
6.1. SYMPTOM : A.C. motor interupted when feeding meat (overloaded).
6.2. SYMPTOM : Switch turned on, but A.C. motor failure to start.
6.3. SYMPTOM : A.C. motor running, but feed screw failure to turn.
6.4. SYMPTOM : A.C. motor running too noisy and meat grinding too slow.
6.5. SYMPTOM : A.C. motor running noise unusual.
6.6. SYMPTOM : Smell of burning from A.C. motor.
Causes Remedy
Too hard meat being fed. Take out the hard meat.
Too much meat being fed at once. Reduce the meat feed rate.
Used for too long continuously. Follow the specified operating time.
Circuit breaker activated. Switch off and on again to reset the breaker.
Causes Remedy
Power cord broken. Replace the power cord.
Lead wire terminal in poor contact. Repair or replace the lead wire terminal.
Switch in poor contact. Replace the switch.
Carbon brush worn out. Replace the carbon brush.
A.C. motor coil broken. Replace the A.C. motor.
Causes Remedy
Gears worn out. Replace the gears.
Gears damaged. Replace the gears.
Feed screw worn out. Replace the feed screw.
Feed screw damaged. Replace the feed screw.
Causes Remedy
Carbon brush worn out. Replace the carbon brush.
Gears worn out or damaged. Replace the gears.
Cutting blade or cutting plate worn out. Replace the cutting blade or cutting plate.
Causes Remedy
Foreign matter caught in gears. Take out the foreign matter.
Gears worn out or damaged. Replace the gears.
Causes Remedy
A.C. motor insulation degraded. Replace the A.C. motor.

9
7 Exploded View and Replacement Parts List
7.1. Exploded View
faiz
B1
B2
B3
B4
B5
B33
B7
B6
B8 B9
B11
B12
B13
B14
B15
B16
B17
B19
B20
B21 B22
B23
B24
B25
B25
B31
B26
3
7
7
3
1
1
1
1
3
3
2
B27
5
6
B28
B38
B40
B39
B20
4
4
4B32
B37
B37
B10 (C2)
B10 (S3)
MK-MG1300WTZ (UAE, SAUDI & KUWAIT)
MK-MG1300WTN (QATAR) and
MK-MG1300WTQ (RUSSIA)
MK-MG1300WTQ (RUSSIA)
except MK-MG1300WTQ (RUSSIA)
B29 B30
B34
B18
B35
B36

10

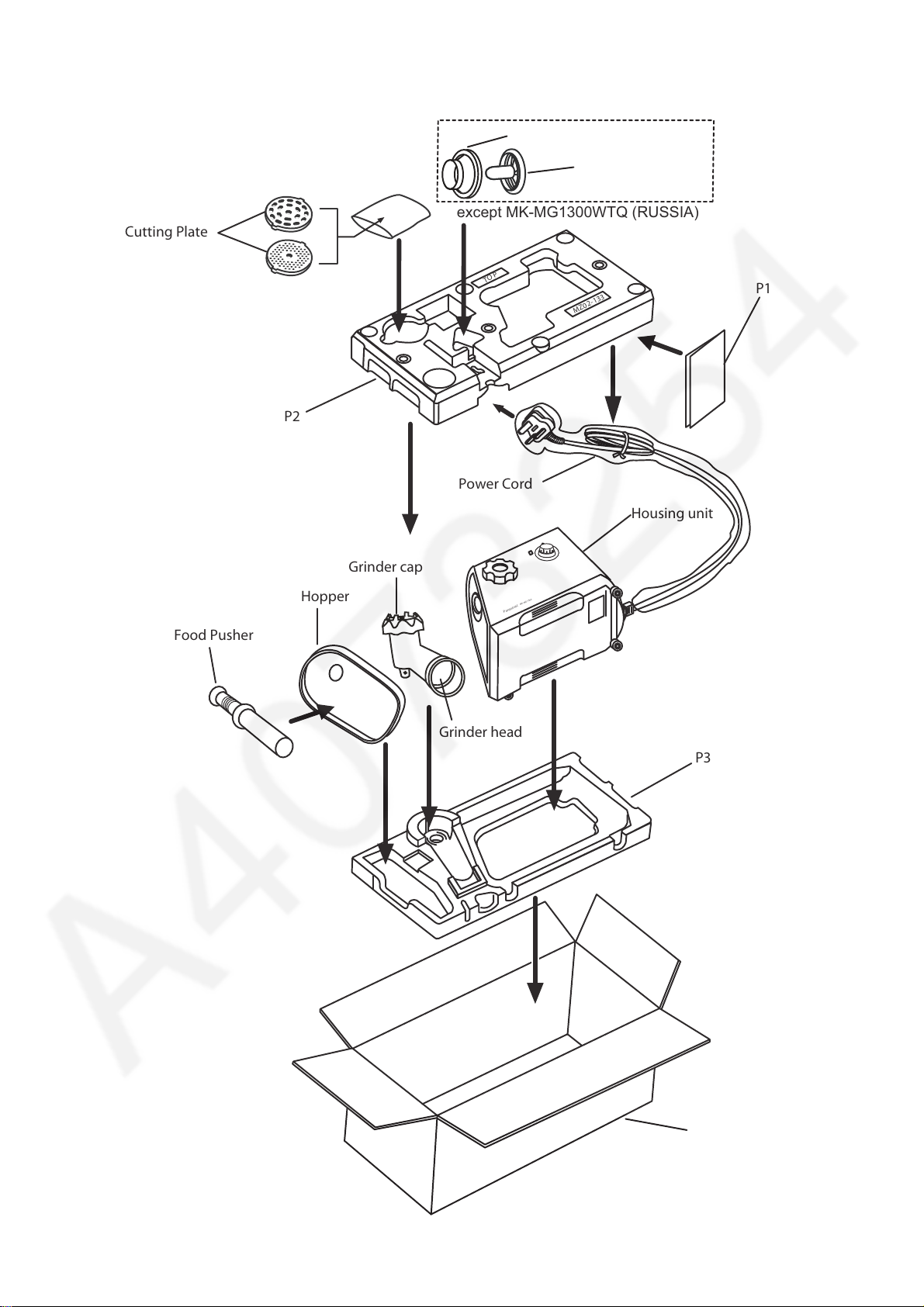

7.2. Packing
Housing unit
Cutting Plate
Food Pusher
P4
Hopper
Grinder cap
Kubbe attachment A
Power Cord
Grinder head
Panaso nic
MK-MG1500
Kubbe attachment B
P1
MZ02-133
TO P
P2
P3
except MK-MG1300WTQ (RUSSIA)

11
7.3. Replacement Parts List
7.3.1. MK-MG1300WTN (QATAR, ETC)
Safety Ref.
No.
Part No. Part Name & Description Qty Remarks
B1 AME04-1072W0 PLUNGER 1
B2 AME03-133-KS HOPPER 1 ALUMINIUM
B3 AME01-121 SCREW BODY 1
B4 AME97-121 SCREW (U) 1
B5 AM12C18000 ROTATING CUTTER 1
B6 AM08C18100 CUTTER A 1
B7 AM10C18100 CUTTER C 1
B8 AME02-121 BODY COVER 1
B9 AMN98-126-W4 COMPLETE SWITCH ASS'Y 1
B10 AMP96-126 CORD UNIT 1 C2 PLUG
B11 AMB34-133 GEAR CUSHION RUBBER 2
B12 AMB26-1073 GEAR CASE 1
B13 AMB89-1073 GEAR CASE COVER LID UNIT 1
B14 AM04B18100 OILLESS BEARING A 1
B15 AM18B18000 WASHER B 1
B16 AM95B27300 C GEAR UNIT 1
B17 AM05B18100 OILLESS BEARING B 1
B18 AM24Q27300 KUBBE COMPLETE 1
B19 AM09B27300 B GEAR 1
B20 AM26B18300 A GEAR SHAFT 2
B21 AM96B18300 A GEAR UNIT 1
B22 AM06B18000 OILLESS BEARING C 1
B23 AM56B18100 WASHER C 1
B24 AMB38-126 GEAR CASE CAP 3
B25 AMB35-133 MOTOR CUSHION RUBBER 2
B26 AMB91Y132-W4 BODY LEFT UNIT 1
B27 AMB21-126-H3 FRONT PLATE 1
B28 ATXM121A MOTOR 1
B29 AM24C27300 KUBBE COVER 1
B30 AM96C27300 KUBBE UNIT 1
B31 AMB19-126-W4 BODY RIGHT 1
B32 AMM31-121 FAN 1
B33 AME05-121 CUTTER F 1
B34 AMA20-121 FIXED CUTTER COMPLETE 1
B35 AMA32-121 COMPLETE SCREW BODY 1
B36 ASPN-8 PUSH NUT 1
B37 AJ33A53000 FOOT 4
1 XTN4+20BFJ SCREW 4
2 AMB85-133-W4 FIX KNOB UNIT 1
3 XTN4+20BFJ PLUS TAPPING SCREW 4
4 XYN4+20BFJ SCREW WITH SPRING AND ROUND WASHER 3
5 XNG8BFJ HEXAGONAL NUT 1
6 XNG5EFJ HEXAGONAL NUT 1
7 XTT4+16BFJ THRUST TAPPING SCREW 2
PACKING LIST
P1 AMZ50Y132 OPERATING INSTRUCTION 1
P2 AMZ02-126 TOP CUSHION 1
P3 AMZ03-126 BOTTOM CUSHION 1
P4 AMZ01Y132 CARTON BOX 1

12

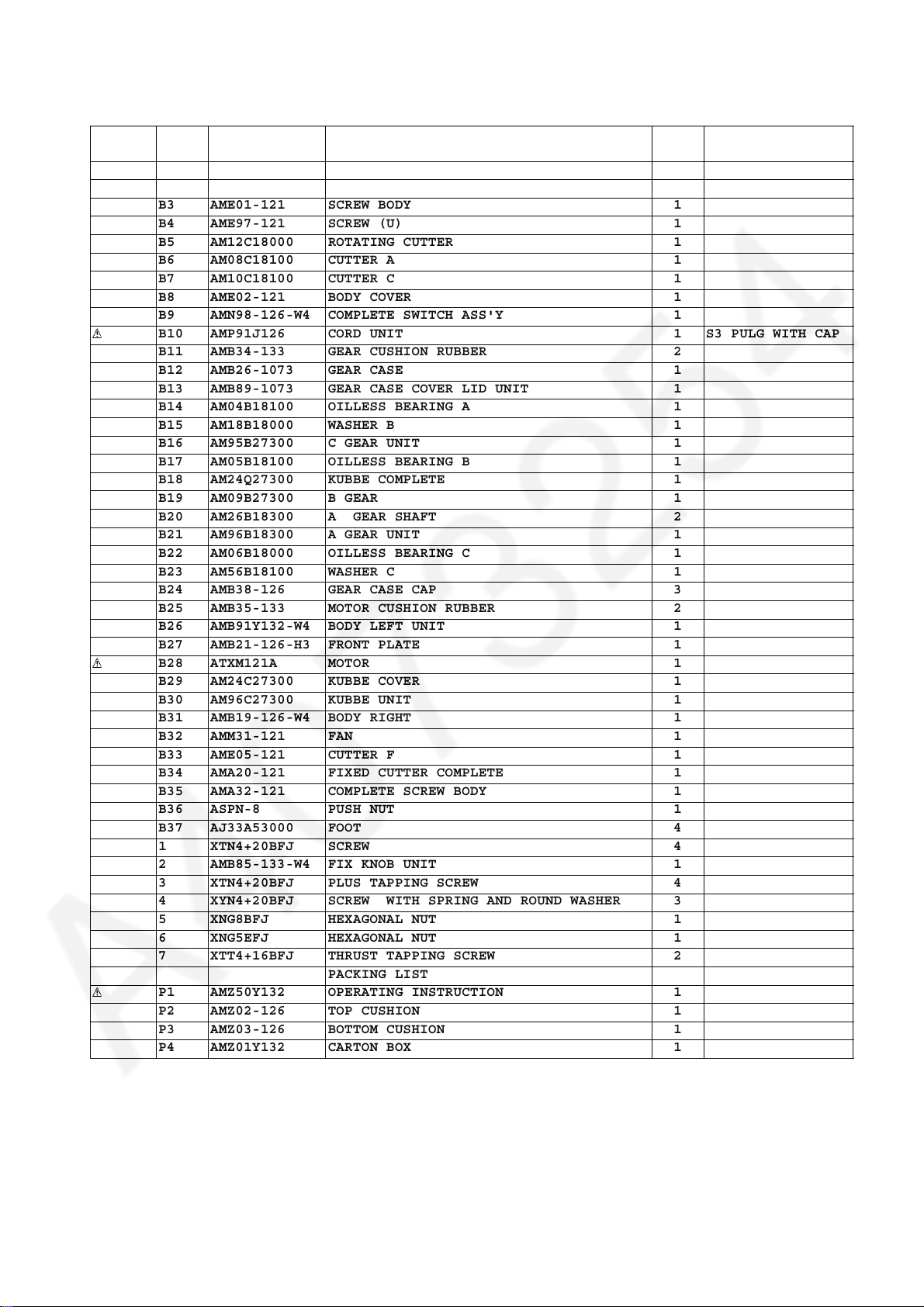

7.3.2. MK-MG1300WTZ (SAUDI, KUWAIT, UAE)
Safety Ref.
No.
Part No. Part Name & Description Qty Remarks
B1 AME04-1072W0 PLUNGER 1
B2 AME03-133-KS HOPPER 1 ALUMINIUM
B3 AME01-121 SCREW BODY 1
B4 AME97-121 SCREW (U) 1
B5 AM12C18000 ROTATING CUTTER 1
B6 AM08C18100 CUTTER A 1
B7 AM10C18100 CUTTER C 1
B8 AME02-121 BODY COVER 1
B9 AMN98-126-W4 COMPLETE SWITCH ASS'Y 1
B10 AMP91J126 CORD UNIT 1 S3 PULG WITH CAP
B11 AMB34-133 GEAR CUSHION RUBBER 2
B12 AMB26-1073 GEAR CASE 1
B13 AMB89-1073 GEAR CASE COVER LID UNIT 1
B14 AM04B18100 OILLESS BEARING A 1
B15 AM18B18000 WASHER B 1
B16 AM95B27300 C GEAR UNIT 1
B17 AM05B18100 OILLESS BEARING B 1
B18 AM24Q27300 KUBBE COMPLETE 1
B19 AM09B27300 B GEAR 1
B20 AM26B18300 A GEAR SHAFT 2
B21 AM96B18300 A GEAR UNIT 1
B22 AM06B18000 OILLESS BEARING C 1
B23 AM56B18100 WASHER C 1
B24 AMB38-126 GEAR CASE CAP 3
B25 AMB35-133 MOTOR CUSHION RUBBER 2
B26 AMB91Y132-W4 BODY LEFT UNIT 1
B27 AMB21-126-H3 FRONT PLATE 1
B28 ATXM121A MOTOR 1
B29 AM24C27300 KUBBE COVER 1
B30 AM96C27300 KUBBE UNIT 1
B31 AMB19-126-W4 BODY RIGHT 1
B32 AMM31-121 FAN 1
B33 AME05-121 CUTTER F 1
B34 AMA20-121 FIXED CUTTER COMPLETE 1
B35 AMA32-121 COMPLETE SCREW BODY 1
B36 ASPN-8 PUSH NUT 1
B37 AJ33A53000 FOOT 4
1 XTN4+20BFJ SCREW 4
2 AMB85-133-W4 FIX KNOB UNIT 1
3 XTN4+20BFJ PLUS TAPPING SCREW 4
4 XYN4+20BFJ SCREW WITH SPRING AND ROUND WASHER 3
5 XNG8BFJ HEXAGONAL NUT 1
6 XNG5EFJ HEXAGONAL NUT 1
7 XTT4+16BFJ THRUST TAPPING SCREW 2
PACKING LIST
P1 AMZ50Y132 OPERATING INSTRUCTION 1
P2 AMZ02-126 TOP CUSHION 1
P3 AMZ03-126 BOTTOM CUSHION 1
P4 AMZ01Y132 CARTON BOX 1

13

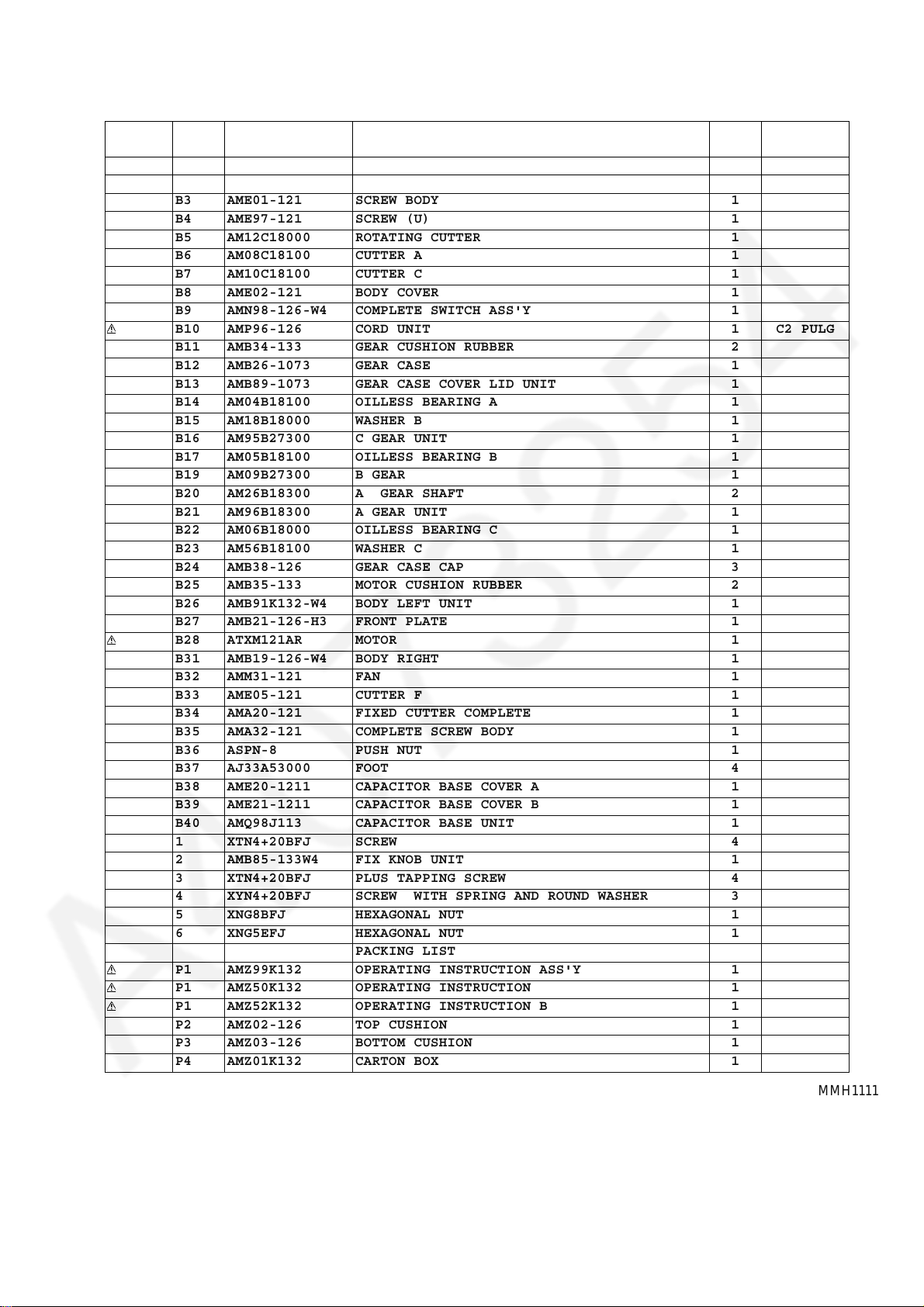

7.3.3. MK-MG1300WTQ (RUSSIA, UKRAINE, ETC)
MMH1111
Safety Ref.
No.
Part No. Part Name & Description Qty Remarks
B1 AME04-1072W0 PLUNGER 1
B2 AME03-133-KS HOPPER 1 ALUMINIUM
B3 AME01-121 SCREW BODY 1
B4 AME97-121 SCREW (U) 1
B5 AM12C18000 ROTATING CUTTER 1
B6 AM08C18100 CUTTER A 1
B7 AM10C18100 CUTTER C 1
B8 AME02-121 BODY COVER 1
B9 AMN98-126-W4 COMPLETE SWITCH ASS'Y 1
B10 AMP96-126 CORD UNIT 1 C2 PULG
B11 AMB34-133 GEAR CUSHION RUBBER 2
B12 AMB26-1073 GEAR CASE 1
B13 AMB89-1073 GEAR CASE COVER LID UNIT 1
B14 AM04B18100 OILLESS BEARING A 1
B15 AM18B18000 WASHER B 1
B16 AM95B27300 C GEAR UNIT 1
B17 AM05B18100 OILLESS BEARING B 1
B19 AM09B27300 B GEAR 1
B20 AM26B18300 A GEAR SHAFT 2
B21 AM96B18300 A GEAR UNIT 1
B22 AM06B18000 OILLESS BEARING C 1
B23 AM56B18100 WASHER C 1
B24 AMB38-126 GEAR CASE CAP 3
B25 AMB35-133 MOTOR CUSHION RUBBER 2
B26 AMB91K132-W4 BODY LEFT UNIT 1
B27 AMB21-126-H3 FRONT PLATE 1
B28 ATXM121AR MOTOR 1
B31 AMB19-126-W4 BODY RIGHT 1
B32 AMM31-121 FAN 1
B33 AME05-121 CUTTER F 1
B34 AMA20-121 FIXED CUTTER COMPLETE 1
B35 AMA32-121 COMPLETE SCREW BODY 1
B36 ASPN-8 PUSH NUT 1
B37 AJ33A53000 FOOT 4
B38 AME20-1211 CAPACITOR BASE COVER A 1
B39 AME21-1211 CAPACITOR BASE COVER B 1
B40 AMQ98J113 CAPACITOR BASE UNIT 1
1 XTN4+20BFJ SCREW 4
2 AMB85-133W4 FIX KNOB UNIT 1
3 XTN4+20BFJ PLUS TAPPING SCREW 4
4 XYN4+20BFJ SCREW WITH SPRING AND ROUND WASHER 3
5 XNG8BFJ HEXAGONAL NUT 1
6 XNG5EFJ HEXAGONAL NUT 1
PACKING LIST
P1 AMZ99K132 OPERATING INSTRUCTION ASS'Y 1
P1 AMZ50K132 OPERATING INSTRUCTION 1
P1 AMZ52K132 OPERATING INSTRUCTION B 1
P2 AMZ02-126 TOP CUSHION 1
P3 AMZ03-126 BOTTOM CUSHION 1
P4 AMZ01K132 CARTON BOX 1
