Panasonic KX-TD816E User manual

Digital Super Hybrid System
KX-TD816E
KX-TD1232E
Added Features for
User Manual
In this manual, the last letter “E” of each model number is omitted.

2
Table of Contents
Additional Features
Section 2.2, Programming
Flexible Button Assignment
Night Button.................................................................................................................... 3
One-Touch Dialling with Auto Hold Button .................................................................. 4
Phantom Button .............................................................................................................. 5
Phantom Extension Bell On / Off Set.................................................................................. 6
Ringing Tone Selection for the Intercom Button................................................................. 7
Section 4.2, DPT Features
Call Forwarding — to ISDN Line....................................................................................... 8
Calling / Connected Line Identification Presentation (CLIP / COLP)................................ 11
Phantom Extension.............................................................................................................. 12
Section 6.2, SLT and ISDN Telephone Features
Call Forwarding — to ISDN Line....................................................................................... 14
Section 7, Quick Reference............................................................................................... 17

3
2.2 Station Programming
Flexible Button Assignment
Night Button (Assignment)
Allows you to assign a Flexible (CO, DSS) button as a Night button.
Pressing the Night button allows you to switch between the day mode and night mode.
The button indicator turns on when the night mode is assigned and turns off when the day
mode is assigned.
— Be sure that you are in the Station Programming mode: Press [PROGRAM] [9] [9].
1. Press the desired Flexible (CO, DSS) button you wish to assign as
the Night button.
2. Dial 8.
• The display shows:
3. Press the STORE button.
• The STORE indicator light turns on.
• The display shows the initial programming mode.
— To exit the Station Programming mode: Press [PROGRAM] or lift the handset.
Condition
• “Class of Service” programming determines the extensions that can perform this feature.
Programming References
• System Programming — Installation Manual
[513] Night Service Access
[601] Class of Service
1
2
3
AUTO DIAL
STORE
Night
8

4
2.2 Station Programming
One-Touch Dialling with Auto Hold Button (Assignment)
Allows you to assign a Flexible (CO, DSS, PF) button as an One-Touch Dialling with Auto
Hold button.
During a conversation, the call is put on hold and transferred to the assigned number.
You can make a call to the assigned number by pressing this button as well as pressing the
One-Touch dialling button.
— Be sure that you are in the Station Programming mode: Press [PROGRAM] [9] [9].
1. Press the desired Flexible (CO, DSS, PF) button you wish to assign
as an One-Touch Dialling with Auto Hold button.
2. Dial 8#.
3. Dial the desired number.
• Up to 16 digits can be stored.
• To erase an incorrect entry, press the CLR (S2) button or the
TRANSFER (CLEAR) button.
(The TRANSFER button becomes the CLEAR button when using the overlay.)
4. Press the STORE button.
• The STORE indicator light turns on.
• The display shows the initial programming mode.
— To exit the Station Programming mode: Press [PROGRAM] or lift the handset.
1
2
8
3
Dial the desired number
4
AUTO DIAL
STORE

5
2.2 Station Programming
Phantom Button (Assignment)
Allows you to assign a Flexible (CO, DSS) button as the Phantom button.
— Be sure that you are in the Station Programming mode: Press [PROGRAM] [9] [9].
1. Press the desired Flexible (CO, DSS) button which you wish to
assign as the Phantom button.
2. Dial 88.
• The display shows:
3. Dial the phantom extension number.
• The display shows:
(— xxxx: phantom extension
number)
• To erase an incorrect entry, press the CLR (S2) button or the
TRANSFER (CLEAR) button.
(The TRANSFER button becomes the CLEAR button while in the programming
mode.)
4. Press the STORE button.
• The STORE indicator light turns on.
• The display shows the initial programming mode.
— To exit the Station Programming mode: Press [PROGRAM] or lift the handset.
Conditions
• The phantom extension number must be assigned in program [130] “Phantom Extension
Number Assignment” before assigning the Phantom button.
• A DSS button can be assigned as the Phantom button so that the operator can use it for
transferring a call.
• If you assigned the Phantom button to one of the CO buttons (13 through 24) on your KX-
T7230 telephone and change the telephone to a KX-T7235 model, you must re-program the
setting as the KX-T7235 telephone has only 12 CO buttons. If you do not change the
setting, the phantom extension call reaches the INTERCOM button.
Programming References
• System Programming — Installation Manual
[130] Phantom Extension Number Assignment
1
2
4
AUTO DIAL
STORE
3
Phantom extension number
8
8
EXT-
CLR
EXT-xxxx
CLR

6
2.2 Station Programming
Phantom Extension Bell On / Off Set
You can select whether or not the bell will ring when a call is received at a phantom
extension.
— Be sure that you are in the Station Programming mode: Press [PROGRAM] [9] [9].
1. Press the Phantom button.
2. Press the same Phantom button again.
3. Dial 1or 2.
– 1 : Ring off
– 2 : Ring on
4. Press the STORE button.
• The STORE indicator light turns on.
— To exit the Station Programming mode: Press [PROGRAM] or lift the handset.
1
2
3
1
2
or
4
AUTO DIAL
STORE

7
2.2 Station Programming
Ringing Tone Selection for Intercom Button
Allows you to assign a ringer frequency to the intercom button.
— Be sure that you are in the Station Programming mode: Press [PROGRAM] [9] [9].
1. Press the INTERCOM button which you wish to change the ringing
tone.
2. Press the same INTERCOM button again.
• The display shows the current status.
3. Enter the tone type number (1 through 8).
• The display shows the selected tone type number and you hear the
selected tone until the STORE button is pressed.
(— x: tone type number)
• If you want to change the tone type, enter another tone type
number in succession.
4. Press the STORE button.
• The STORE indicator light turns on.
• The display shows the initial programming mode.
— To exit the Station Programming mode: Press [PROGRAM] or lift the handset.
Condition
• The default is Ringing Tone Type 2.
Tone Type–x
1
2
4
AUTO DIAL
STORE
3
tone type number
INTERCOM
INTERCOM

C4.2 DPT Features
8

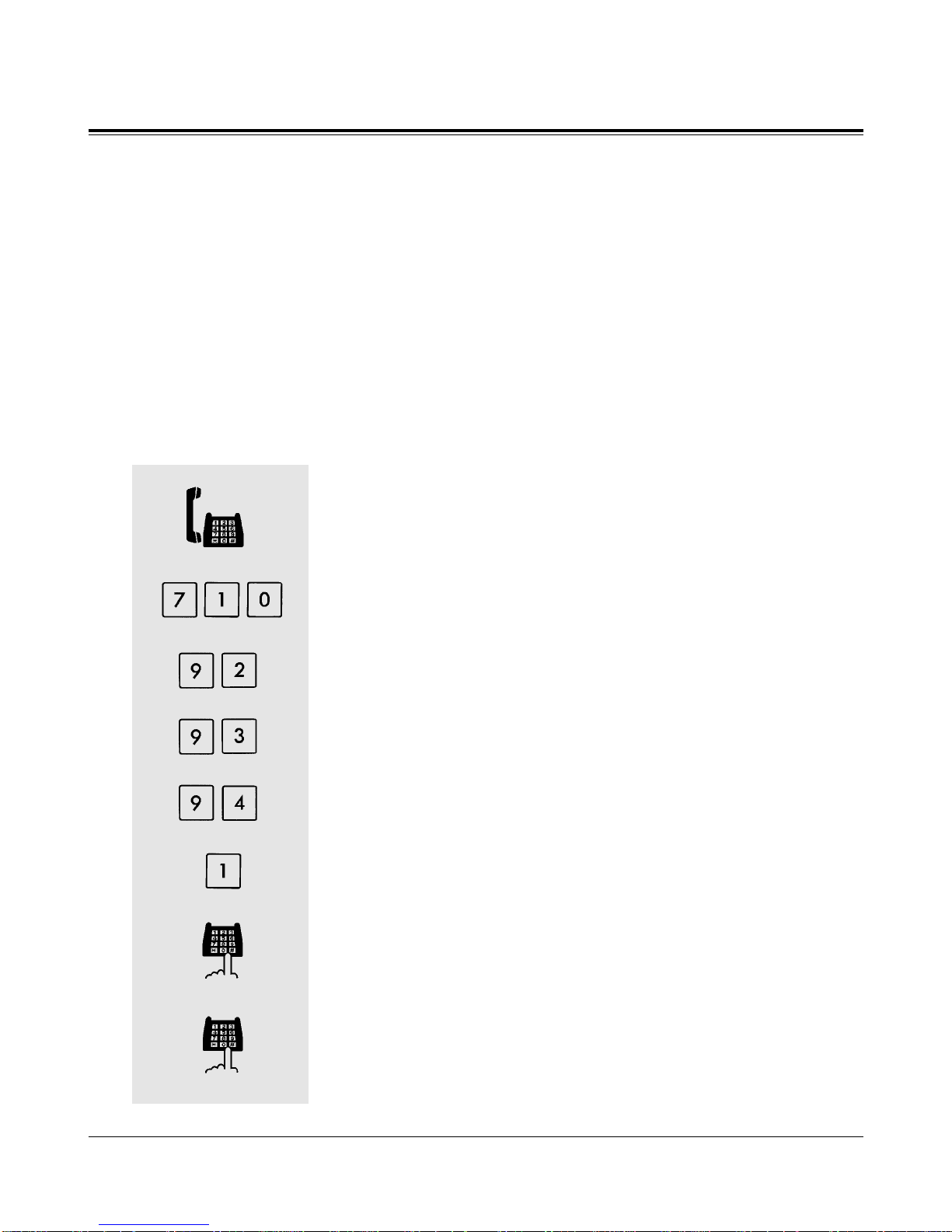

Call Forwarding — to ISDN Line
The call forwarding to ISDN line feature can be assigned to each extension.
There are the following three types:
– Call Forwarding Unconditional (CFU): All incoming calls to an extension
are transferred to an ISDN line.
– Call Forwarding No Reply (CFNR): An incoming call to an extension is transferred to an
ISDN line when the extension does not answer before
a time that a telephone company assigns.
– Call Forwarding Busy (CFB): An incoming call to an extension is transferred to an ISDN
line when the extension is busy.
Standard Operation
Setting
1. Lift the handset or press the SP-PHONE button.
2. Press the FWD/DND button.
• You may dial the feature number (710) instead.
3. Dial 92, 93 or 94.
– 92 : CFU
– 93 : CFB
– 94 : CFNR
4. Dial 1.
5. Dial your multi subscriber number (MSN) and press #.
6. Dial the telephone number where the call is to be forwarded and
press #.
• You hear a confirmation tone and then a dial tone.
• The display shows the assignment (example).
TD816
✔TD1232 ✔
DPT (72**)
30
✔35 ✔50 ✔
1
2
3
2
9
or
3
9
or
4
9
FWD/DND
Your MSN + #
4
5
telephone number + #
6
1
CFU:1234567890&

4.2 DPT Features C
9
7. Hang up or press the SP-PHONE button.

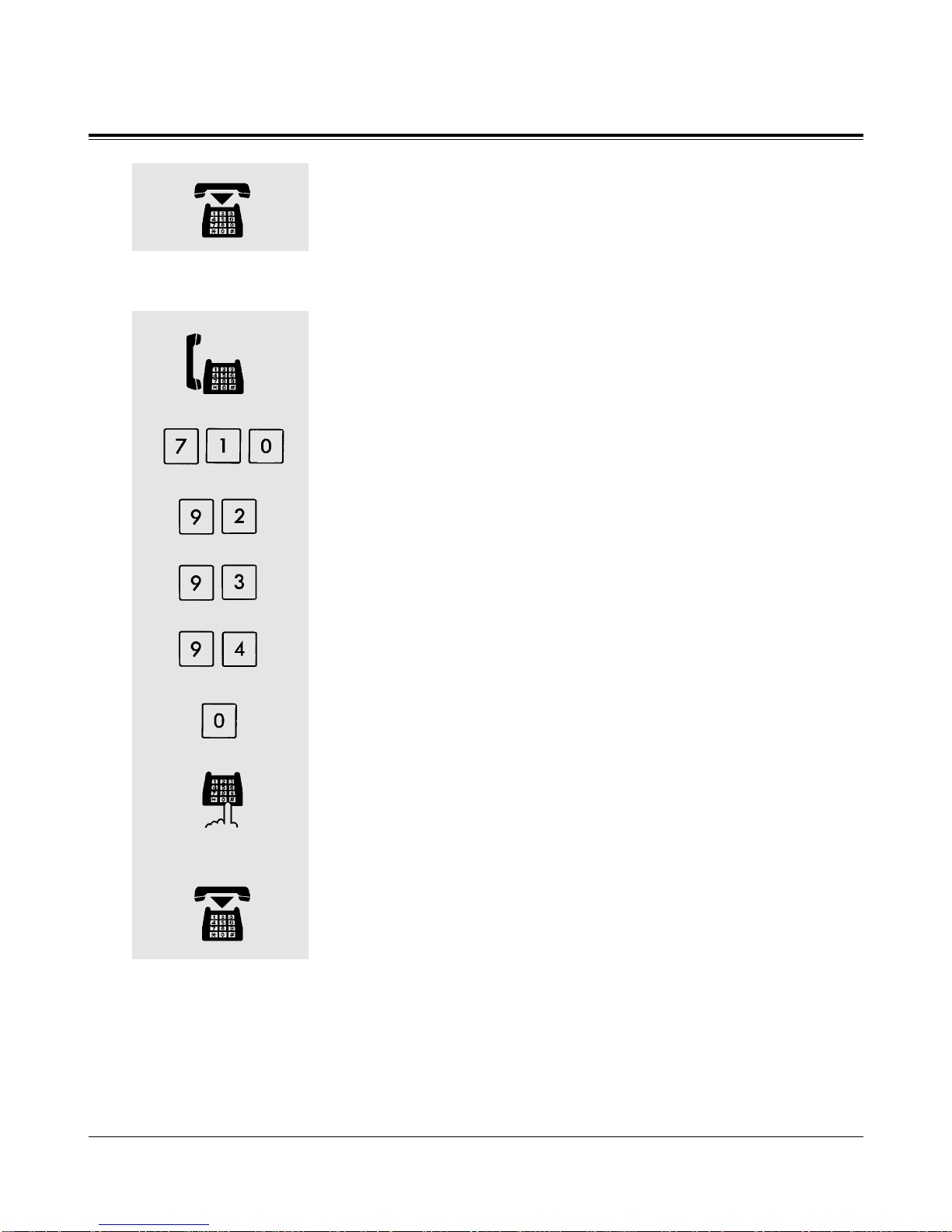

Cancelling (individually)
1. Lift the handset or press the SP-PHONE button.
2. Press the FWD/DND button.
• You may dial the feature number (710) instead.
3. Dial 92, 93 or 94.
– 92 : CFU
– 93 : CFB
– 94 : CFNR
4. Dial 0.
5. Dial your multi subscriber number (MSN) and press #.
• You hear a confirmation tone and then a dial tone.
• The display shows the assignment (example).
6. Hang up or press the SP-PHONE button.
7
1
2
3
2
9
or
3
9
or
4
9
FWD/DND
Your MSN + #
4
5
6
0
CFU Cancel

C4.2 DPT Features
10
Cancelling (all)
1. Lift the handset or press the SP-PHONE button.
2. Press the FWD/DND button.
• You may dial the feature number (710) or press the flexible
button assigned as the FWD/DND button instead.
3. Dial 90.
4. Dial your multi subscriber number (MSN) and press #.
• You hear a confirmation tone and then a dial tone.
5. Hang up or press the SP-PHONE button.
Condition
• When an error occurs, the display shows as follows:
– when an error is caused by the system
– when an error is caused by the network
Programming References
• Station Programming (Section 2)
Flexible Button Assignment — FWD/DND Button
• System Programming — Installation Manual
[518] CFU / CFB / CFNR Assignment
1
2
3
FWD/DND
5
9
0
Your MSN + #
4
Not Valid
Not Accepted

4.2 DPT Features C
11
Calling / Connected Line Identification Presentation
(CLIP / COLP)
Allows you to display the calling party’s number on the LCD of the called
party’s telephone when making a call (CLIP), or allows you to display
the called party’s number on the LCD of the calling party’s telephone when answering a call
(COLP).
Condition
• The number sent to the other party is assigned by system programming.
Programming References
• System Programming — Installation Manual
[622] CLIP / COLP Number Assignment
Feature References
Calling Line Identification Restriction (CLIR)
Connected Line Identification Restriction (COLR)
TD816
✔TD1232 ✔
DPT (72**)
30
✔35 ✔50

P4.2 DPT Features
12
1
2
Phantom Extension
Allows you to route calls to a phantom extension. The call arrives at the
extension which has the corresponding Phantom button. A flexible CO or DSS
button can be assigned as the Phantom button. The lighting patterns of
Phantom button and status are as follows:
Off : Idle
Red on : You are calling a phantom extension.
Flashing green rapidly : Incoming call
To call a phantom extension
While the Phantom button indicator light is off ;
1. Lift the handset or press the SP-PHONE button.
2. Press the flexible button which is assigned as the Phantom button.
• You may dial the phantom extension number instead.
• The Phantom indicator light turns red (steady).
To transfer a call to a phantom extension
During a conversation with an outside party;
1. Press the flexible button which is assigned as the Phantom button.
• You may dial the phantom extension number after pressing the
TRANSFER button instead.
To answer a phantom extension call
While the Phantom button indicator light is flashing green;
1. Press the flexible button which is assigned as the Phantom button.
Conditions
• A phantom number must be assigned by System Programming before assigning the
Phantom button by Station Programming.
• If several extensions have the same phantom extension number, they will ring
simultaneously.
• A maximum of 128 phantom numbers can be assigned.
• The phantom number cannot be used for feature settings such as “Call Forwarding”.
•Phantom button on the DSS Console:
Allows the operator to transfer the call to a phantom extension by the phantom button on
the DSS Console. An incoming call cannot be received at the phantom button on the DSS
Console, only the indicator turns red
1
TD816
✔TD1232 ✔
DPT (72**)
30
✔35 ✔50 ✔
1
1

4.2 DPT Features P
13
Programming References
• Station Programming (Section 2)
Flexible Button Assignment — Phantom Button
• System Programming — Installation Manual
[130] Phantom Extension Number Assignment
[136] ISDN DDI Number / Phantom Extension Number Transformation

14
C6.2 SLT and ISDN Telephone Features
Call Forwarding — to ISDN Line
The call forwarding to ISDN line feature can be assigned to each extension.
There are the following three types:
– Call Forwarding Unconditional (CFU): All incoming calls to an extension are transferred
to an ISDN line.
– Call Forwarding No Reply (CFNR): An incoming call to an extension is transferred to an
ISDN line when the extension does not answer
before a time that a telephone company assigns.
– Call Forwarding Busy (CFB): An incoming call to an extension is transferred to an ISDN
line when the extension is busy.
Setting
1. Lift the handset.
2. Dial the feature number (710).
3. Dial 92, 93 or 94.
– 92 : CFU
– 93 : CFB
– 94 : CFNR
4. Dial 1.
5. Dial your multi subscriber number (MSN) and press #.
6. Dial the telephone number where the call is to be forwarded and
press #.
• You hear a confirmation tone and then a dial tone.
1
2
3
5
4
your MSN + #
or
or
6
telephone number + #

15
6.2 SLT and ISDN Telephone Features C
7. On-hook.
Cancelling (individually)
1. Lift the handset.
2. Dial the feature number (710).
3. Dial 92, 93 or 94.
– 92 : CFU
– 93 : CFB
– 94 : CFNR
4. Dial 0.
5. Dial your multi subscriber number (MSN) and press #.
• You hear a confirmation tone and then a dial tone.
6. On-hook.
7
6
1
2
3
5
4
your MSN + #
or
or

16
C6.2 SLT and ISDN Telephone Features
Cancelling (all)
1. Lift the handset.
2. Dial the feature number (710).
3. Dial 90.
4. Dial your multi subscriber number (MSN) and press #.
• You hear a confirmation tone and then a dial tone.
5. On-hook.
Programming References
• System Programming — Installation Manual
[518] CFU / CFB / CFNR Assignment
1
2
5
3
4
your MSN + #

17
7 Quick Reference
❐Flexible Button Assignment
—Night Button
•Press the PROGRAM button and dial 99.
•Press the desired Flexible button.
•Dial 8 .
•Press the STORE button.
•Press the PROGRAM button to exit or lift the
handset.
—One-Touch Dialling with Auto Hold
Button
•Press the PROGRAM button and dial 99.
•Press the desired Flexible button.
•Dial 8#.
•Dial the desired number.
•Press the STORE button.
•Press the PROGRAM button to exit or lift the
handset.
—Phantom Button
•Press the PROGRAM button and dial 99.
•Press the desired Flexible button.
•Dial 88.
•Dial the phantom extension number.
•Press the STORE button.
•Press the PROGRAM button to exit or lift the
handset.
❐Phantom Extension Bell On / Off Set
•Press the PROGRAM button and dial 99.
•Press the phantom button twice.
•Dial 1 or 2
– 1 : Ring off
– 2 : Ring on
•Press the STORE button.
•Press the PROGRAM button to exit or lift the
handset.
2Station Programming ❐Ringing Tone Selection for Intercom
Button
•Press the PROGRAM button and dial 99.
•Press the Intercom button.
•Press the same Intercom button again.
•Dial the tone type number (1 through 8).
•Press the STORE button.
•Press the PROGRAM button to exit or lift the
handset.

18
7Quick Reference
4DPT Features
❐Call Forwarding — to ISDN Line
Setting
•Off-hook.
•Press the FWD/DND button.
•Dial 92, 93 or 94.
– 92: CFU
– 93: CFB
– 94: CFNR
• Dial 1.
•Dial your MSN + #.
•Dial the phone number + #.
•On-hook.
Cancelling (individually)
•Off-hook.
•Press the FWD/DND button.
•Dial 92, 93 or 94.
– 92: CFU
– 93: CFB
– 94: CFNR
• Dial 0.
•Dial your MSN + #.
•On-hook.
Cancelling (all)
•Off-hook.
•Press the FWD/DND button.
•Dial 90.
•Dial your MSN + #.
•On-hook.
❐Phantom Extension
To call a phantom extension
•Off-hook.
•Press the Phantom button.
To transfer a call to a phantom extension
•Press the Phantom button.
To answer a phantom extension call
•Press the Phantom button (flashing green).
8
SLT and ISDN Telephone Features
❐Call Forwarding — to ISDN Line
Setting
•Off-hook.
•Dial 710.
•Dial 92, 93 or 94.
– 92: CFU
– 93: CFB
– 94: CFNR
• Dial 1.
•Dial your MSN + #.
•Dial the phone number + #.
•On-hook.
Cancelling (individually)
•Off-hook.
•Dial 710.
•Dial 92, 93 or 94.
– 92: CFU
– 93: CFB
– 94: CFNR
• Dial 0.
•Dial your MSN + #.
•On-hook.
Cancelling (all)
•Off-hook.
•Dial 710.
•Dial 90.
•Dial your MSN + #.
•On-hook.

Printed in the United Kingdom PSQX1272ZA KK0797MT0
