Paradox ZX82 User manual

ZX82-EI03 03/2020 PARADOX.COM
ZX82
8-Zone Input Expansion Module
Installation Manual V1.20 and higher
Introduction
The ZX82, 8-zone Expansion Module, provides 8 zones input expansion to
Paradox panels; connects on the keypad bus of EVO, Spectra, or MG
panels. The ZX82 comes with its own tamper-proof enclosure and provides
Zone Status LED indicators as well as Power and Data.
Compatibility
• All Paradox control panels v6.80 or higher
• BabyWare v5.1 and higher
• Infield v5.1 and higher
Connections
Connect the four bus terminals labeled
+ -
GRN
YEL
of the module to the
corresponding terminals on the control panel as shown.
To enable anti-tamper switch input on EVO, use input terminal Z8 and enable
section
[001]
option
[1]
.
To enable anti-tamper switch input on MG/SP, use input terminal Z1 and enable
section
[706] option [4] for panel +1, option [5] for panel +9 and option [6] for
panel +17.
LED Indicators
*If control panel has an AC Loss all LEDs are turned off.
Programming EVO
1. Enter section [4003].
2. Enter the eight-digit module serial number.
3. Enter the three-digit module section number.
Module Tamper on Input-8
Section 001 - Bit 1, 0 = Disabled, 1 = Enabled
Note: If this option is enable the on-board tamper is disabled.
Input Speed (Base Time Selection)*
[002]-[016] Even Numbered
(Default = all inputs @ 600ms)
Even numbered sections represent inputs terminals Z1 to Z8. Using []
and [] keys. Select a Base Time value from 000 to 002. Press [ENTER].
000= Input Speed is X by 15 milliseconds
001= Input Speed is X by 1 second
002= Input Speed is X by 1 minute
Input Speed (Time Value)*
[003]-[017] Odd Numbered
Odd numbered sections represent inputs Z1 to Z8. Enter a 3-digit
decimal time value (000 to 255). Multiply by the Input Speed.
* Can only be programmed via a keypad.
EOL/ATZ per Zone Input
Section 401 - Zone Input Options
Zone Input Options Individual Settings
EOL Resistor Value Selection
Section 402 - Zone Input Options
LED OFF ON
POWER OFF OK (10.5V to 16V)
RX / TX No clock or data
exchange
Clock and data OK
ZONE1 to ZONE8* Zone Closed Zone Opened /
Tamper
ATZ Enabled on EVO
ZONE1 to ZONE8
Both zones connected
to this input are Closed
Any Zone connected
to this input is
Opened / Tamper
External Anti-Tamper
Switch (N.C.)
Zone1 / Zone2 Zone3 / Zone4 Zone5 / Zone6 Zone7 / Zone8
_ / _
(0/0)
_ / _
(0/0)
_ / _
(0/0)
_ / _
(0/0)
OPTION DESCRIPTION
0System default; zone will follow global panel settings for EOL
1 EOL / ATZ disabled
2 EOL enabled / ATZ disabled
3 EOL disabled / ATZ enabled
4 EOL / ATZ enabled
Zone1 / Zone2 Zone 3 / Zone4 Zone5 / Zone6 Zone7 / Zone8
_ / _
(0/0)
_ / _
(0/0)
_ / _
(0/0)
_ / _
(0/0)
Display
Power
Lock
Data
ZX82-EI03 03/2020 PARADOX.COM
Zone Input Options Individual Settings
Programming MG/SP
1. Enter section [001] - [032].
2. Enter the two-digit zone definition.
3. Assign a partition.
4. Select or deselect zone options.
5. Press Enter.
6. Repeat steps 1 - 5 for remaining zones.
For more information on how to program zones, please refer to the MG/SP
Programming Guide.
Module Tamper on Input-1
Section 706 - Panel Programming
Note: If this option is enable the on-board tamper is disabled.
MG/SP Jumper Settings (Panel ATZ Off)
MG/SP Jumper Settings (Panel ATZ On)
Upgrading Firmware
The ZX82’s firmware can be upgraded in Infield via BabyWare using a
307USB Direct Connect Interface.
Technical Specifications
* Control Panel shall be certified to EN 50131-6 and used as the power supply
for the expansion module. If an external power supply is used, it must be
certified for EN 50131-6.
The security grade of the ZX82 is dependent on the security grade of the
system where it is installed. The maximum security grade is 3.
OPTION EOL Value Zone Value
01K 1K
12K2 1K5
23K3 3K3
34K7 4K7
44K7 6K8
52K2 4K7
68K2 8K2
72K2 2K2
Option Description Off ON
4ZX82 ID A (panel +1) Input 1 Zone input Tamper input
5ZX82 ID B (panel + 9) Input 1 Zone input Tamper input
6ZX82 ID C (panel + 17) Input 1 Zone input Tamper input
Module #
(Jumper) MG5000 MG5050 SP4000 SP5500 SP6000 SP65 SP7000
+1 3-10 6-13 5-12 6-13 9-16 10-17 17-24
+2 11-18 14-21 13-20 14-21 17-24 18-25 25-32
+3 19-26 22-29 21-28 22-29 25-32 26-32 N/A
Module #
(Jumper) MG5000 MG5050 SP4000 SP5500 SP6000 SP65 SP7000
+1 5-12 11-18 9-16 11-18 17-24 19-26 N/A
+9 13-20 19-26 17-24 19-26 25-32 27-32 N/A
+17 21-28 27-32 25-32 27-32 N/A N/A N/A
Input Voltage 10.5 to 16 Vdc
Current Consumption 100mA MAX all LEDs On
Number of Inputs 8 standard zone inputs
Operating Temperature -20 C to +50 C (-4 F to 122 F)
Humidity 95% maximum
Dimensions (H x W x D) 16.5 cm x 10.2 cm x 2.5 cm
(6.5 in x 4 in x 1 in)
Certification*
CE, EN 50131-3 Security Grade: 3
Environmental Class: II
Certification Body: Applica Test and
Certification AS
Warranty
For complete warranty information on this product, please refer to the
Limited Warranty Statement which can be found on our website:
paradox.com/terms or contact your local distributor. Specifications may change without prior notice.
Patents
US, Canadian and international patents may apply. Paradox is a trademark or registered trademark of Paradox Security
Systems (Bahamas) Ltd.

Other Paradox Control Unit manuals

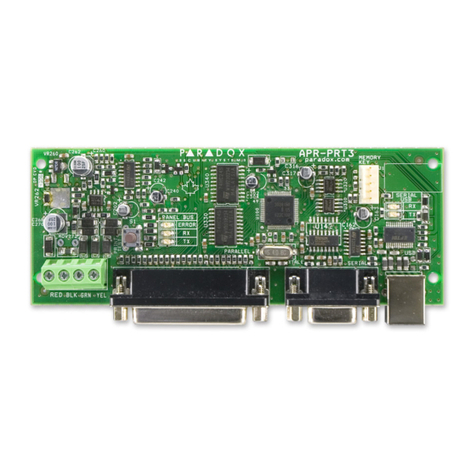

Paradox Digiplex EVO PRT3 Installation manual

Paradox

Paradox Digiplex EVO PRT3 Installation manual

Paradox ZX32D User manual

Paradox

Paradox ZX32D User manual

Paradox Digiplex Liberator DGP-319 Assembly instructions

Paradox

Paradox Digiplex Liberator DGP-319 Assembly instructions

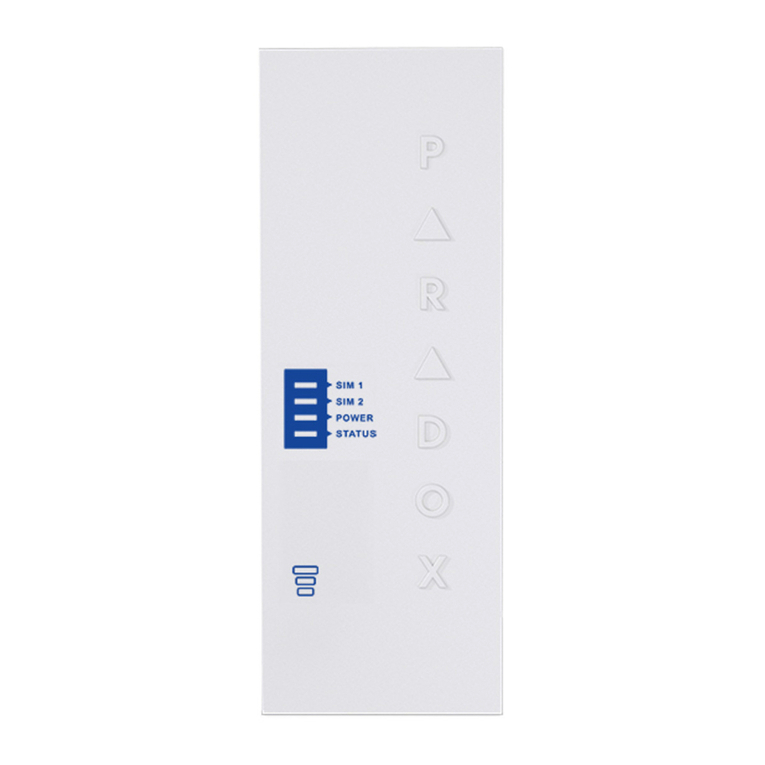

Paradox PCS265 User manual

Paradox

Paradox PCS265 User manual

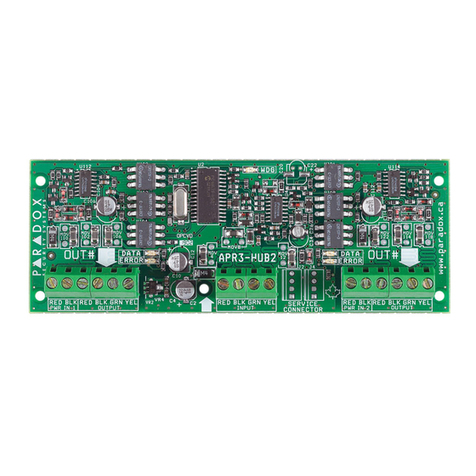

Paradox APR3-HUB2 User manual

Paradox

Paradox APR3-HUB2 User manual

Paradox ZX16D User manual

Paradox

Paradox ZX16D User manual

Paradox MG-RCV3 User manual

Paradox

Paradox MG-RCV3 User manual

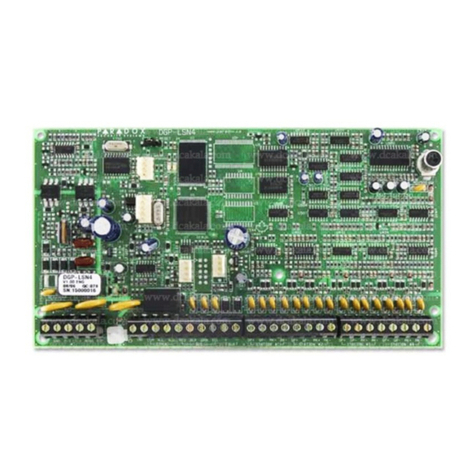

Paradox DGP-LSN4 V1.1 Operating instructions

Paradox

Paradox DGP-LSN4 V1.1 Operating instructions

Paradox VDMP3 User manual

Paradox

Paradox VDMP3 User manual

Paradox Digiplex EVO EVO192 V7.11 Operating instructions

Paradox

Paradox Digiplex EVO EVO192 V7.11 Operating instructions

Paradox MG-RCV3 User manual

Paradox

Paradox MG-RCV3 User manual

Paradox PCS265 LTE Installation guide

Paradox

Paradox PCS265 LTE Installation guide

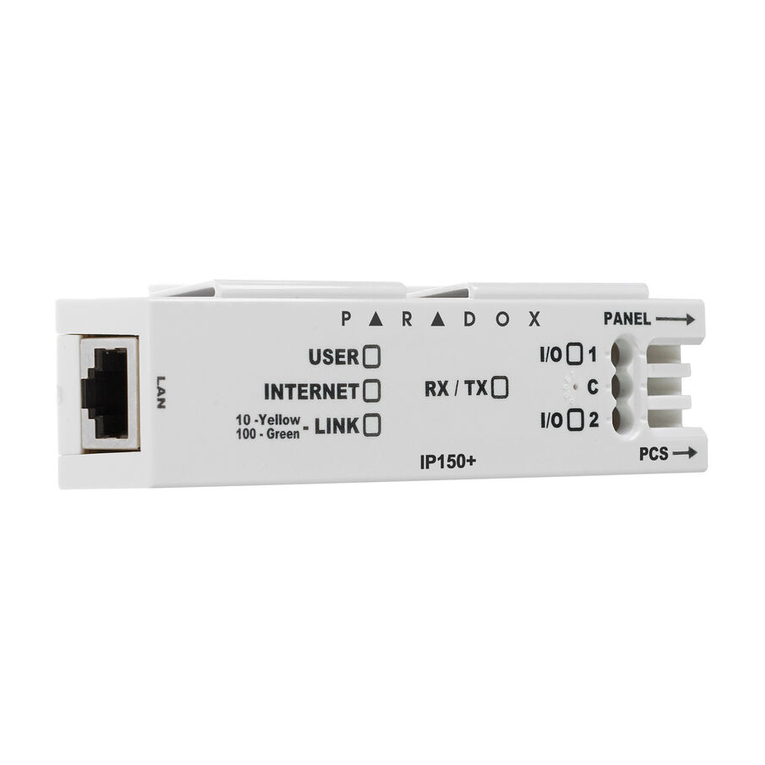

Paradox IP150+ User manual

Paradox

Paradox IP150+ User manual

Paradox IP150+ User manual

Paradox

Paradox IP150+ User manual

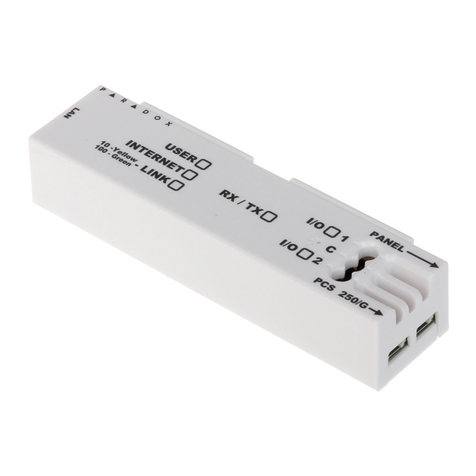

Paradox IP150 User manual

Paradox

Paradox IP150 User manual

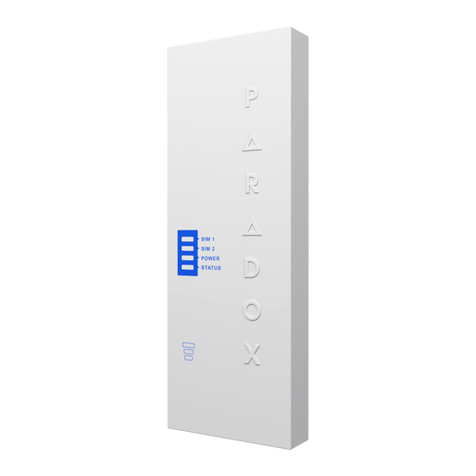

Paradox PCS265LTE Installation guide

Paradox

Paradox PCS265LTE Installation guide

Paradox PCS265 LTE Installation guide

Paradox

Paradox PCS265 LTE Installation guide

Paradox Spectra Digiplex NE APR3-HUB2 User manual

Paradox

Paradox Spectra Digiplex NE APR3-HUB2 User manual

Paradox ZX8 User manual

Paradox

Paradox ZX8 User manual

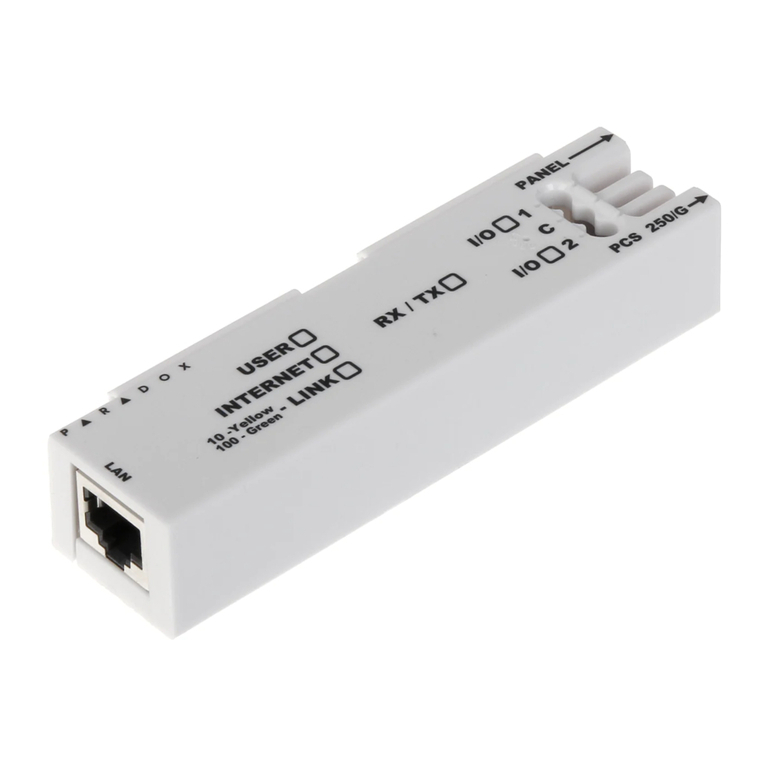

Paradox IP150 User manual

Paradox

Paradox IP150 User manual

Paradox IP150+ User manual

Paradox

Paradox IP150+ User manual

Paradox Digiplex APR-ADM2 User manual

Paradox

Paradox Digiplex APR-ADM2 User manual

Paradox PCS265 Installation guide

Paradox

Paradox PCS265 Installation guide

Paradox Magellan VG-RTX3 User manual

Paradox

Paradox Magellan VG-RTX3 User manual

Popular Control Unit manuals by other brands

Power integrations Scale-2 1SC0450E2B0 Applications manual

Power integrations

Power integrations Scale-2 1SC0450E2B0 Applications manual

New Leader MultiBin Replacement instructions

New Leader

New Leader MultiBin Replacement instructions

Velleman HAA80 user manual

Velleman

Velleman HAA80 user manual

SimCom SIM900B EVB user guide

SimCom

SimCom SIM900B EVB user guide

WURM DOC-XP quick start guide

WURM

WURM DOC-XP quick start guide

National Instruments NI-9208 CALIBRATION PROCEDURE

National Instruments

National Instruments NI-9208 CALIBRATION PROCEDURE

ETAS ES581.4 user guide

ETAS

ETAS ES581.4 user guide

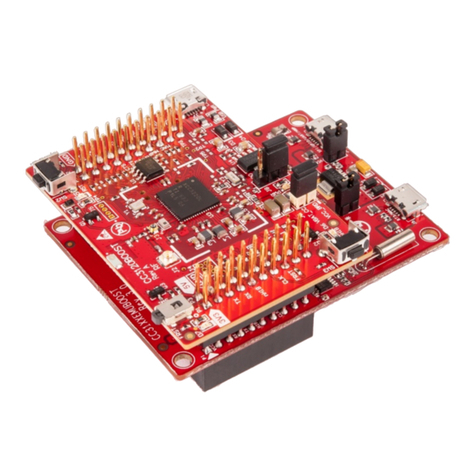

Texas Instruments SimpleLink Wi-Fi CC3 20 Series user guide

Texas Instruments

Texas Instruments SimpleLink Wi-Fi CC3 20 Series user guide

rako RAIPC Installation and operating instructions

rako

rako RAIPC Installation and operating instructions

Danfoss EH Series Service manual

Danfoss

Danfoss EH Series Service manual

Bray 752 Series Installation, operation and maintenance manual

Bray

Bray 752 Series Installation, operation and maintenance manual

Motorola MVME2300SC Series Installation and use

Motorola

Motorola MVME2300SC Series Installation and use

Wolf FWS-2-60 installation instructions

Wolf

Wolf FWS-2-60 installation instructions

Bosch Rexroth H-4WEH...XE Series operating instructions

Bosch

Bosch Rexroth H-4WEH...XE Series operating instructions

Böning AHD 903BS manual

Böning

Böning AHD 903BS manual

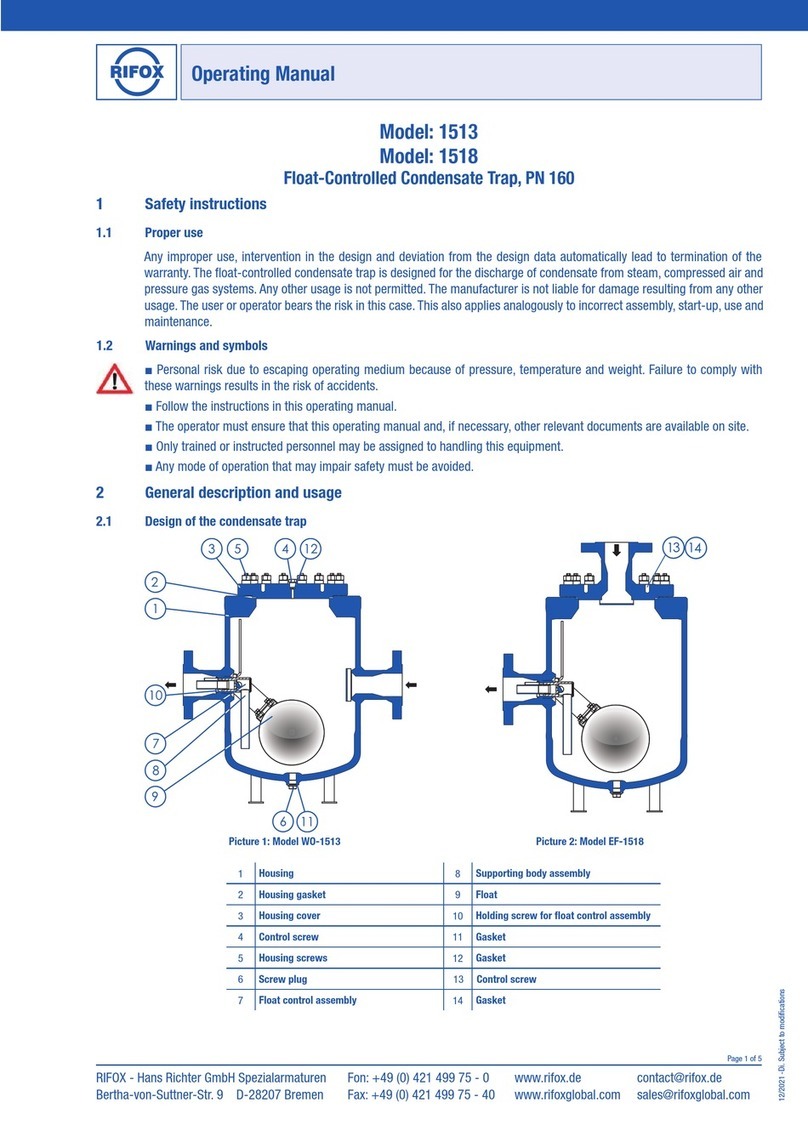

Rifox 1513 manual

Rifox

Rifox 1513 manual

Theben LUXOR Installation and operating instructions

Theben

Theben LUXOR Installation and operating instructions

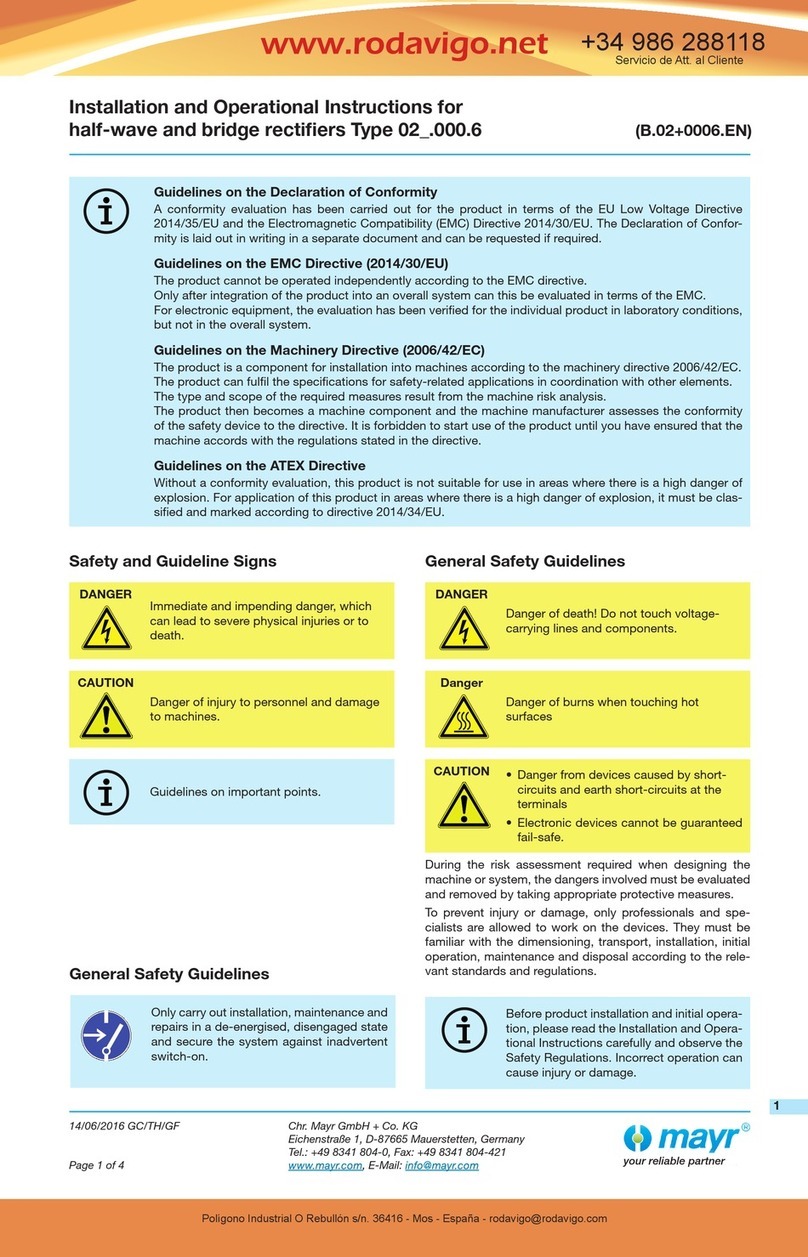

Mayr 0802459 Installation and operational instructions
