Parkside PLEM 20 A1 User manual

LASER DISTANCE MEASURER
20 M PLEM 20 A1
IAN 289679
LASER-ENTFERNUNGS-
MESSER 20M PLEM 20 A1
Bedienungs- und Sicherheitshinweise
LASER DISTANCE MEASURER
20 M PLEM 20 A1
Operation and Safety Notes
LASERAFSTANDSMÅLER
20 M PLEM 20 A1
Brugs- og sikkerhedsanvisninger
LASER-AFSTANDSMETER
20 M PLEM 20 A1
Bedienings- en veiligheidsinstructies
TÉLÉMÈTRE LASER 20 M
PLEM 20 A1
Instructions d‘utilisation et consignes de
sécurité

GB/ IE/ NI Operation and Safety Notes Page 5
DK Brugs- og sikkerhedsanvisninger Side 18
FR/ BE Instructions d‘utilisation et
consignes de sécurité Page 31
NL/ BE Bedienings- en veiligheidsinstructies Pagina 45
DE/ AT/CH Bedienungs- und Sicherheitshinweise Seite 59

B
12a
9
12
2
12b 8
11
MEAS
A
7
10
1
4
3
6
AAA
1
2
AAA
1
2
5

5GB/IE/NI
List of pictograms used................................Page 6
Introduction...........................................................Page 6
Intended use................................................................Page 7
Parts description..........................................................Page 7
Scope of delivery........................................................Page 8
Technical data.............................................................Page 8
General safety instructions......................Page 9
Safety instructions for batteries/
rechargeable batteries................................................Page 10
Before using..........................................................Page 12
Inserting/ replacing the batteries...............................Page 12
Start-up .....................................................................Page 12
Switching on/ off ........................................................Page 12
Selecting the unit of length .........................................Page 13
Measuring lengths ......................................................Page 13
Error, faults & troubleshooting.............Page 14
Maintenance and Cleaning......................Page 14
Storage .....................................................................Page 15
Disposal....................................................................Page 15
Warranty.................................................................Page 16

6 GB/IE/NI

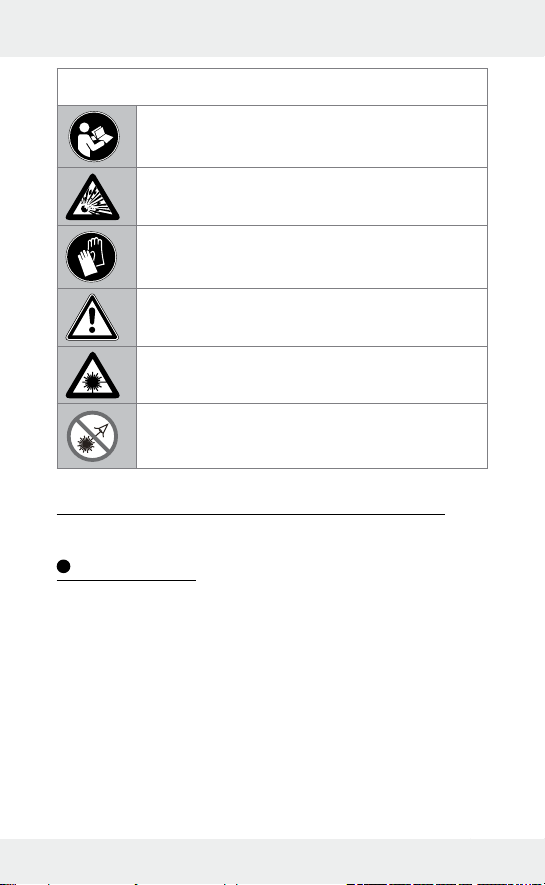

List of pictograms used
Read the instruction manual.
Danger of explosion!
Wear protective gloves!
Attention!
Protect yourself from laser radiation!
Do not stare into the laser beam!
Laser distance measurer 20m PLEM 20 A1
Introduction
We congratulate you on the purchase of your new product.
You have chosen a high quality product. The instructions for
use are part of the product. They contain important information
concerning safety, use and disposal. Before using the product,
please familiarise yourself with all of the safety information and
instructions for use. Only use the product as described and for
the specified applications. If you pass the product on to anyone
else, please ensure that you also pass on all the documentation
with it.

7GB/IE/NI
Intended use
This product is suitable for measuring distances, lengths and
heights in indoor spaces. Any other use or product modification
shall be considered improper use and hold considerable safety
hazards. The manufacturer assumes no liability for damages
due to improper use. Not intended for commercial use.
Parts description
1Receiver lens
2Laser beam output opening
3Display
4MEAS button (Switch on and off, selection of measure-
ment unit, activation of laser beam for measuring lengths)
5Battery compartment cover
6Battery compartment
Display
7Laser on
8Battery charge level display
9First (previous) measured value
10 Length unit
11 Second (latest) measured value
12 Reference plane
12a The measurement is taken from the top side of the product
12b The measurement is taken from the bottom side of the
product
Note: First (previous) measured value will move to the top
row when the second (latest) measurement is successfully
completed.

8 GB/IE/NI
Scope of delivery
1 Laser distance measurer
2 1.5V-batteries LR03 (AAA)
1 Instructions for use
Technical data
Measurement range: 0.075–20m* (reference point
top side)
0.175–20m* (reference point
bottom side)
Measuring accuracy (typical): ± 3,0mm**)
Smallest display unit: 1mm
Operating temperature: 0°–40 °C (For indoor use)
Relative humidity max.: ≤ 75%
Laser category: 2
Wavelength of the laser (λ): 620–690nm
Maximum power P max: <1mW
Operating voltage: 3V (Direct current)
Batteries: 2 x 1.5V LR03 (AAA)
Weight: 58g (without batteries)
Dimensions: 10 x 3.8 x 2.45cm
Degree of protection: IP20
*) The range improves the better the laser light is returned from
the surface of the target (dispersing, not refl ecting) and the
brighter the laser is compared to the ambient light (interior
rooms, twilight).
**) In unfavourable conditions such as strong sunlight or
poorly refl ective surfaces, the maximum deviation is ± 8mm
at 20m. In favourable conditions, a deviation infl uence of
± 0.1mm/m must be taken into account.

9GB/IE/NI
General safety
instructions
Choking hazard! Packaging material (e. g. foils or polystyrol)
are not to be toyed with. Keep children away from packaging
material. The packaging material is not a toy.
Do not use the product in locations where there is a risk of
fi re or explosion, e.g. in the vicinity of infl ammable liquids
or gases.
This product can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the haz-
ards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Do not leave the product unattended when switched on,
and switch off the product directly after use. Other people
could be blinded by the laser beam.
Protect the product from wetness or direct sunlight.
Do not expose the product to any extremes of temperature
or temperature fluctuations. For example, do not leave it in a
car for extended periods. After exposure to large temperatu re
fluctuations, allow the product to acclimatise before using it
again. The precision of the product can be adversely aff ected
by extreme temperatures or temperature fluctuations.
Avoid hefty knocks or dropping the measuring tool.
Protect yourself from laser
radiation!

10 GB/IE/NI
EN 60825-1:2014
CAUTION LASER RADIATION! DO NOT STARE
INTO BEAM! CLASS 2 LASER PRODUCT!
Never look directly into the laser beam or into the opening
from which it emerges.
Looking at a laser beam through optical
instruments (e.g. magnifying glasses etc.) can cause eye
injuries.
ATTENTION! If operating and adjustment equipment is used
or procedures other than those specified here are carried
out, this may result in hazardous radiation exposure.
Never aim the laser beam at reflective surfaces, people or
animals. Even brief visual contact with a laser beam can
result in eye injuries.
Safety instructions for batteries/
rechargeable batteries
DANGER TO LIFE! Keep batteries/ rechargeable batter-
ies out of reach of children. If accidentally swallowed seek
immediate medical attention.
DANGER OF EXPLOSION! Never recharge
non-rechargeable batteries. Do not short-circuit
batteries/ rechargeable batteries and/or open
them. Overheating, fire or bursting can be the result.
Never throw batteries/ rechargeable batteries into fire or
water.

11GB/IE/NI
Do not exert mechanical loads to batteries/ rechargeable
batteries.
Risk of leakage of batteries/rechargeable batteries
Avoid extreme environmental conditions and temperatures,
which could affect batteries/ rechargeable batteries, e.g.
radiators/direct sunlight.
Avoid contact with the skin, eyes and mucous membranes.
In the event of contact with battery acid, thoroughly flush
the affected area with plenty of clean water and seek
immediate medical attention.
WEAR PROTECTIVE GLOVES! Leaked or
damaged batteries/ rechargeable batteries can
cause burns on contact with the skin. Wear suit-
able protective gloves at all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries,
immediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries.
Do not mix used and new batteries/rechargeable batteries.
Remove batteries/ rechargeable batteries if the product will
not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
Insert batteries/rechargeable batteries according to polar-
ity marks (+) and (-) on the battery /rechargeable battery
and the product.
Clean the contacts on the battery/rechargeable battery
and in the battery compartment before inserting!
Remove exhausted batteries/rechargeable batteries from
the product immediately.

12 GB/IE/NI
Before using
Check the consignment for completeness and for signs of
visible damage.
Remove all packaging material from the product.
Inserting/replacing the batteries
When the low battery icon appears in the display 3, you
can still make measurements. As soon as the battery icon turns
empty , however, you must replace the batteries. Measure-
ments are no longer possible.
Open the battery compartment cover 5by gently pushing
down the battery compartment cover latch.
Remove the used batteries from the battery compartment, if
necessary.
Insert the (new) batteries. Ensure the correct polarity as
shown on the diagram inside the battery compartment 6.
Replace the battery compartment cover 5as shown
(fig. A).
Start-up
Switching on/off
To switch the product on, press the MEAS button 4.
When the product is switched on, the laser beam is activate d.
To switch the product off, press and hold the MEAS button
4for approx. 5 seconds until the “OFF“ is shown on
display. If no button is pressed for about 3 minutes, the
product turns off automatically to save the batteries.

13GB/IE/NI
To Switch Measuring Reference point: Press and hold
MEAS button 43 seconds to change measurement base
from the top side of the product to its bottom side or vice
versa.
Selecting the unit of length
During the OFF mode
Press and hold the MEAS button 4until the number with
unit is displayed.
Now press once the MEAS button 4to choose the unit
(XXXXm, XX'XX", XXXXin, XXXXft).
To confirm the selection, press and hold the MEAS button 4
to save until the product turns on.
The following units of length are available:
m metre
in inch
ft foot/feet
' " feet/inches
Measuring lengths
Briefly press the MEAS button 4again to activate the laser
beam.Once the laser is switched on, this is indicated on
the top left corner of the display by the icon 7.
Note: If laser beam is already activated, the above
mentioned step can be skipped.
Now aim the laser at the target point. Briefly press the
MEAS button 4again. If the measurement is successful
the measured value will be shown on the bottom line of the
display and the laser beam will be turned off.

14 GB/IE/NI
If needed to measure another distance, repeat above steps.
Newly measured value will be shown on the bottom line of
the display and the previous measured value will be shown
in the middle of the display. Now, the laser beam will be
turned off.
Error, faults & troubleshooting
Faults Cause Solution
----- Calculation error Pay attention to the
correct operating
measuring range.
301 Operating temperature
too low or too high
Pay attention to the
correct operating
temperature range
(0°–40 °C).
401 Hardware failure If the icon appears de-
s
pite repeated switching o n
and off, take the product
to a specialist workshop
Maintenance and Cleaning
The product is maintenance-free.
CAUTION! Never submerse the product in water or other
liquids. Do not allow any moisture to penetrate into the
product during cleaning.
Clean the laser beam output opening 2and the receiver
lens 1with a gentle air stream. In the case of more

15GB/IE/NI
serious contamination, remove the dirt with a damp cotton
swab. Do not exert any strong pressure!
Never use petrol, solvents or cleaning agents that attack
plastic.
The product should only be opened by
a qualified person for repairs.
To clean the casing, use a soft dry cloth.
Keep the product clean to ensure fault-free operation.
Storage
If you decide not to use the product for a long period, re-
move the batteries and store it in a clean, dry place away
from direct sunlight.
Disposal
The packaging is made entirely of recyclable materi-
als, which you may dispose of at local recycling
facilities. The Green Dot is not valid for Germany.
b
a
Observe the marking of the packaging materials for
waste separation, which are marked with abbrevia-
tions (a) and numbers (b) with following meaning:
1–7: plastics/20–22: paper and fibreboard /
80–98: composite materials.
The product and packaging materials are recyclable,
dispose of it separately for better waste treatment.
The Triman logo is valid in France only.

16 GB/IE/NI
Contact your local refuse disposal authority for more
details of how to dispose of your worn-out product.
To help protect the environment, please dispose of
the product properly when it has reached the end of
its useful life and not in the household waste. Informa-
tion on collection points and their opening hours can
be obtained from your local authority.
Faulty or used batteries /rechargeable batteries must be
recycled in accordance with Directive 2006/66/EC and its
amendments. Please return the batteries/rechargeable batteries
and/ or the product to the available collection points.
Environmental damage through
incorrect disposal of the batteries/
rechargeable batteries!
Batteries/ rechargeable batteries may not be disposed of with
the usual domestic waste. They may contain toxic heavy metals
and are subject to hazardous waste treatment rules and regula-
tions. The chemical symbols for heavy metals are as follows:
Cd = cadmium, Hg = mercury, Pb = lead. That is why you
should dispose of used batteries/ rechargeable batteries at a
local collection point.
Warranty
The product has been manufactured to strict quality guidelines
and meticulously examined before delivery. In the event of
product defects you have legal rights against the retailer of this
product. Your legal rights are not limited in any way by our
warranty detailed below.

17GB/IE/NI
The warranty for this product is 3 years from the date of purchase.
Should this product show any fault in materials or manufacture
within 3 years from the date of purchase, we will repair or re-
place it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please
keep the original sales receipt in a safe location. This document
is required as your proof of purchase. This warranty becomes
void if the product has been damaged, or used or maintained
improperly.
The warranty applies to defects in material or manufacture.
This warranty does not cover product parts subject to normal
wear, thus possibly considered consumables (e.g. batteries) or
for damage to fragile parts, e.g. switches, rechargeable batteries
or glass parts.

18 DK
De anvendte piktogrammers
legende..................................................................... Side 19
Indledning .............................................................. Side 19
Formålsbestemt anvendelse ....................................... Side 20
Beskrivelse af de enkelte dele.................................... Side 20
Leverede dele.............................................................. Side 21
Tekniske data............................................................... Side 21
Generelle sikkerhedshenvisninger... Side 22
Sikkerhedshenvisninger for batterier/ akkuer ........... Side 23
Inden ibrugtagningen .................................. Side 24
Isættelse/ udskiftning af batterier............................... Side 25
Ibrugtagning........................................................ Side 25
Tænd-/ slukning .......................................................... Side 25
Vælg længdeenhed.................................................... Side 25
Måling af længder...................................................... Side 26
Fejl, forstyrrelser og fejlfinding............ Side 27
Vedligeholdelse og rengøring.............. Side 27
Opbevaring........................................................... Side 28
Bortskaffelse........................................................ Side 28
Garanti...................................................................... Side 29

19DK
De anvendte piktogrammers legende
Læs betjeningsvejledningen.
Eksplosionsfare!
Bær beskyttelseshandsker!
Obs!
Sørg for beskyttelse mod laserstråling!
Kig aldrig ind i laserstrålen!
Laserafstandsmåler 20 m PLEM 20 A1
Indledning
Hjerteligt tillykke med købet af deres nye produkt. Du har be-
sluttet dig for et produkt af høj kvalitet. Brugervejledningen er
en del af dette produkt. Den indeholder vigtige informationer
om sikkerhed, brug og bortskaffelse. Gør dig inden ibrugtag-
ning af produktet fortrolig med alle betjenings- og sikkerheds-
anvisninger. Benyt kun produktet som beskrevet og til de
oplyste formål. Videregiv alle papirer, hvis du giver produktet
videre til tredjemand.

20 DK
Formålsbestemt anvendelse
Produktet egner sig til måling af afstande, længde- og højdeaf-
stande. Enhver anden anvendelse eller ændring hos produktet
er ikke bestemmelsesmæssigt korrekt og kan forårsage alvor-
lige skader. Producenten fralægger sig ethvert ansvar for ska-
der som følge af uhensigtsmæssig anvendelse. Ikke bestemt til
den erhvervsmæssige indsats.
Beskrivelse af de enkelte dele
1Indgangslinse
2Laserstråleudgang
3Display
4MEAS-knap (tænd og sluk, valg af enheder,
aktivering af laserstrålen til måling af afstande)
5Batterirumslåg
6Batterirum
Display
7Laseren er tændt
8Batteriindikator
9Tidligere målt værdi
10 Længdeenhed
11 Sidst målte værdi
12 Referenceniveau
12a Målingen gennemføres fra produktets øverste kant
12b Målingen gennemføres fra produktets nederste kant
Bemærk: Første (sidste) målte værdi vises i midten, hvorefter
anden (nye) målte værdi blev fundet.

21DK
Leverede dele
1 Laser-afstandsmåleenhed
2 1,5 V-batterier, type LR 03 (AAA)
1 Betjeningsvejledning
Tekniske data
Måleområde: 0,075–20 m*
(udgangspunkt øverste kant)
0,175–20 m*
(udgangspunkt nederste kant)
Målenøjagtighed - (typisk): + 3,0 mm **)
Mindste visningsenhed: 1 mm
Drifttemperatur: 0–40°C
(til indendørs anvendelse)
Relativ luftfugtighed maks.: ≤ 75 %
Laserklasse: 2
Laserens bølgelængde (λ): 620–690 nm
Maksimal effekt P maks.: < 1 mW
Driftspænding: 3V (jævnstrøm)
Batterier: 2 x 1,5V LR03 (AAA)
Vægt: 58g (uden batterier)
Mål: 10 x 3,8 x 2,45cm
Beskyttelsesgrad: IP20
*) Rækkevidden bliver større, jo bedre laserlyset bliver tilbage-
kastet fra målets overflade (strøet, ikke reflekterende) og jo lysere
laserpunktet er overfor omgivelseslysheden (indendørs rum,
skumring).
**) Under ufordelagtige betingelser som f. eks. stærkt sollys eller
dårlig reflekterende overflade er den maksimale afvigelse ± 8
