All Parkside tools and the chargers
PLG 20 A1/PLG 20 A2/PLG 20 A3/PDSLG 20 A1
of the X20V Team series are compatible with the
PAP 20 A1/PAP 20 A2/PAP 20 A3 battery pack.
Charging times
Charging currents
2 Ah
Battery pack
PAP 20 A1
3 Ah
Battery pack
PAP 20 A2
4 Ah
Battery pack
PAP 20 A3
max. 2,4 A
Charger
PLG 20 A1
60 min
2,4 A
90 min
2,4 A
120 min
2,4 A
max. 3,5 A
Charger
PLG 20 A2
45 min
3,5 A
60 min
3,5 A
80 min
3,5 A
max. 4,5 A
Charger
PLG 20 A3
35 min
3,8 A
45 min
4,5 A
60 min
4,5 A
max. 4,5 A
Charger
PDSLG 20 A1
35 min
3,8 A
45 min
4,5 A
60 min
4,5 A

PAP 20 A3 GB│CY │ 1 ■
Contents
Introduction........................2
Intended use............................. 2
Features ................................ 3
Package contents ......................... 3
Technical data ........................... 3
General Power Tool Safety Warnings ..5
Extended safety guidelines.................. 7
Charging the battery pack (seefig.A) ..8
Checking the battery charge level ............ 9
Maintenance and storage ...........10
Kompernass Handels GmbH warranty 10
Service ...........................14
Importer .........................15
Disposal..........................15
Notes concerning the EC
Declaration of Conformity ...........17
Ordering a replacement battery......18
Telephone ordering ......................18

PAP 20 A3■ 2 │ GB│CY
Introduction
Congratulations on the purchase of your new appli-
ance. You have chosen a high-quality product. The
operating instructions are part of this product. They
contain important information about safety, usage and
disposal. Before using the product, please familiarise
yourself with all operating and safety instructions.
Use the product only as described and for the range
of applications specified. Please also pass these
operating instructions on to any future owner.
Intended use
This rechargeable battery is suitable for:
This rechargeable battery is not intended for com-
mercial use. Any other usage of or modification to
the appliance is deemed to be improper and carries
a significant risk of accidents. The manufacturer
accepts no responsibility for damage(s) attributable
to misuse.

PAP 20 A3 GB│CY │ 3 ■

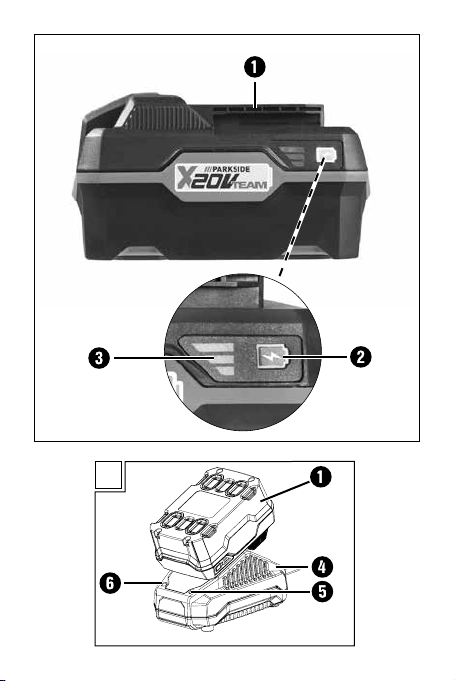

Features
Battery pack
Battery charge level button
Battery display LED
High-speed charger (not supplied)
Red charge control LED
Green charge control LED
Package contents
1 4 Ah battery
1 set of operating instructions
Technical data
4 Ah Battery PAP 20 A3
Type LITHIUM ION
Rated voltage 20 V (DC)
Capacity 4.0 Ah (80 Wh)
Cells 10

PAP 20 A3■ 4 │ GB│CY
To charge the battery pack, use only the
following high-speed battery charger:
X20V Team Serie
(not supplied).
PLG 20 A2
INPUT
Rated voltage 230–240 V ∼, 50 Hz
(AC)
Rated power consumption 85 W
Fuse (internal) 3.15 A
T3.15A
OUTPUT
Rated voltage 21.5 V (DC)
Rated current 3.5 A
Charging time approx. 80 min
Protection class II/ (double insulation)
ATTENTION!
♦ This charger can only charge the following
batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3 .
♦ A current list of battery compatibility can be
found at www.lidl.de/Akku.

PAP 20 A3 GB│CY │ 5 ■
General Power Tool
Safety Warnings
WARNING!
■Read all safety warnings and all instructions.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for
future reference.
a) Charge a rechargeable battery unit using only
the charger recommended by the manufacturer.
Chargers are often designed for a particular type
of rechargeable battery unit. There is the danger
of fire if other types of rechargeable battery units
are used.
b) Only the rechargeable battery units supplied
are to be used with an electrical power tool.
The use of other rechargeable battery units may
lead to the danger of injury or fire.

PAP 20 A3■ 6 │ GB│CY
c) When they are not being used, store recharge-
able battery units away from paperclips, coins,
keys, nails, screws or other small metal objects
that could cause the contacts to be bridged.
Short-circuiting the contacts of a rechargeable
battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery
units if they are misused. If this happens, avoid
contact with the fluid. If contact occurs, flush
the affected area with water. Seek additional
medical help if any of the fluid gets into your
eyes. Escaping battery fluid may cause skin
irritation or burns.

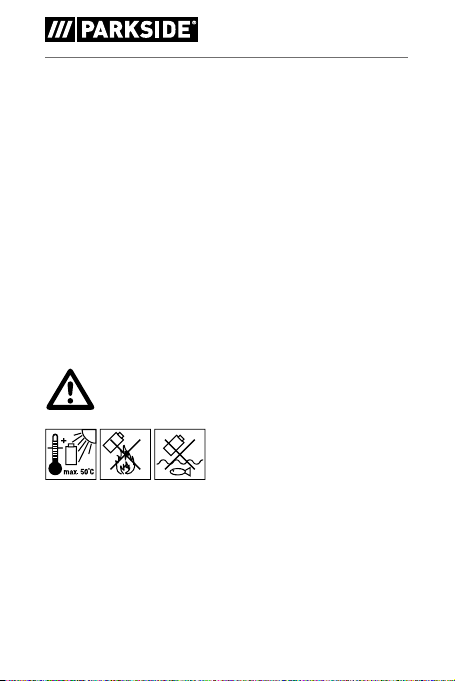

CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries!
Protect the rechargeable
battery from heat, for example from continu-
ous exposure to sunlight, fire, water and
moisture. There is a risk of explosion.

PAP 20 A3 GB│CY │ 7 ■
Extended safety guidelines
■Do not use a damaged or modified battery.
Damaged or modified batteries may behave
unexpectedly and cause fires, explosions or pose
a risk of injury.
■Do not expose a battery to fire or excessively
high temperatures. Fire or temperatures in excess
of 130°C (265°F) can cause an explosion.
■Follow all instructions regarding charging and
never charge the battery or the cordless tool
outside the temperature range given in the
operating instructions.
Incorrect charging or charging outside of the
permissible temperature range can destroy the
battery and increase the risk of fire.

PAP 20 A3■ 8 │ GB│CY
Charging the battery pack
(seefig.A)
CAUTION!
► Always unplug the appliance before you
remove the battery pack from or connect the
battery pack to the charger.
NOTE
► Never charge the battery pack if the ambient
temperature is below 10°C or above 40°C.
If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The storage climate
should be cool and dry and the ambient tem-
perature should be between 0°C and 50°C.
♦ Connect the battery pack to the high-speed
battery charger (see fig. A).
♦ Insert the power plug into the socket. The control
LED lights up red.
♦ The green LED indicates that the charging
process is complete and the battery pack is
ready.

PAP 20 A3 GB│CY │ 9 ■
CAUTION!
♦ If the red control LED flashes, this means
that the battery pack has overheated and
cannot be charged.
♦ If the red and green control LEDs both
flash, this means that the battery pack is
broken.
♦ Switch off the charger for at least 15 minutes
between successive charging sessions. Also
disconnect the power plug from the mains power
socket.
Checking the battery charge level
♦ Press the battery charge level button to check
the status of the battery (see also main diagram).
The status/remaining charge will be shown on the
battery display LED as follows:
RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge
RED = low charge – charge the battery

PAP 20 A3■ 10 │ GB│CY
Maintenance and storage
■ If you do not intend to use the battery for an ex-
tended period, remove it from the appliance and
store it in a clean, dry place out of direct sunlight.
■ If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
environment is cool and dry.
■Never try to repair damaged batteries.
Maintenance of batteries should only be carried
out by the manufacturer or an approved customer
service centre.
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 3-year warranty valid from the
date of purchase. If this product has any faults, you,
the buyer, have certain statutory rights. Your statutory
rights are not restricted in any way by the warranty
described below.

PAP 20 A3 GB│CY │ 11 ■
Warranty conditions
The warranty period starts on the date of purchase.
Please keep your receipt in a safe place. This will be
required as proof of purchase.
If any material or manufacturing fault occurs within
three years of the date of purchase of the product,
we will either repair or replace the product for you or
refund the purchase price (at our discretion). This war-
ranty service requires that you present the defective
appliance and the proof of purchase (receipt) within
the three-year warranty period, along with a brief writ-
ten description of the fault and of when it occurred.
If the defect is covered by the warranty, your product
will either be repaired or replaced by us. The repair
or replacement of a product does not signify the
beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs
come with a 3-year warranty valid from the date of
purchase.

PAP 20 A3■ 12 │ GB│CY
Warranty period and statutory claims for
defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must be
reported immediately after unpacking. Repairs car-
ried out after expiry of the warranty period shall be
subject to a fee.
Scope of the warranty
This appliance has been manufactured in accord-
ance with strict quality guidelines and inspected
meticulously prior to delivery.
The warranty covers material faults or production
faults. The warranty does not extend to product parts
subject to normal wear and tear or to fragile parts
which could be considered as consumable parts
such as switches or parts made of glass.
The warranty does not apply if the product has been
damaged, improperly used or improperly main-
tained. The directions in the operating instructions
for the product regarding proper use of the product
are to be strictly followed. Uses and actions that are
discouraged in the operating instructions or which
are warned against must be avoided.

PAP 20 A3 GB│CY │ 13 ■
This product is intended solely for private use and
not for commercial purposes. The warranty shall be
deemed void in cases of misuse or improper han-
dling, use of force and modifications/repairs which
have not been carried out by one of our authorised
Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity
overtime
■ Commercial use of the product
■ Damage to or alteration of the product by the
customer
■ Non-compliance with safety and maintenance
instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item number
(e.g.IAN12345) available as proof of purchase.
■ You will find the item number on the type plate on the
product, an engraving on the product, on the front
page of the operating instructions (below left) or on
the sticker on the rear or bottom of the product.
■ If functional or other defects occur, please con-
tact the service department listed either by tel-
ephone or by e-mail.

PAP 20 A3■ 14 │ GB│CY
■ You can return a defective product to us free of
charge to the service address that will be pro-
vided to you. Ensure that you enclose the proof of
purchase (till receipt) and information about what
the defect is and when it occurred.
You can download these instructions
along with many other manuals,
product videos and installation
software at www.lidl-service.com.
This QR code will take you directly to the Lidl service
page (www.lidl-service.com) where you can open
your operating instructions by entering the item
number (IAN) 346159_2004.
Service
Service Great Britain
Tel.: [phone]
E-Mail: kom[email protected]
CY Service Cyprus
Tel.: [phone]
E-Mail: kom[email protected]
IAN 346159_2004

PAP 20 A3 GB│CY │ 15 ■
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
The packaging protects the device from
damage during transport. The packaging
materials have been selected for their
environmental friendliness and disposal attributes,
and are therefore recyclable.
Returning the packaging into the material cycle
conserves raw materials and reduces the amount
of waste generated. Dispose of packaging materials
that are no longer needed in accordance with
applicable local regulations.

PAP 20 A3■ 16 │ GB│CY
Do not dispose of batteries in
your normal household waste!
Defective or worn-out rechargeable
batteries must be recycled according to
Directive 2006/66/EC. Take the battery pack and/
or appliance to a nearby collection facility.
Please consult your local authorities regarding
suitable disposal of worn out power tools/battery
packs.
Dispose of the packaging in an
environmentally friendly manner.
Note the labelling on the packaging and
separate the packaging material
components for disposal if necessary. The packaging
material is labelled with abbreviations (a) and
numbers (b) with the following meanings:
1–7: Plastics, 20–22: Paper and cardboard,
80–98: Composites.
Your local community or municipal
authorities can provide information on
how to dispose of the worn-out product.
