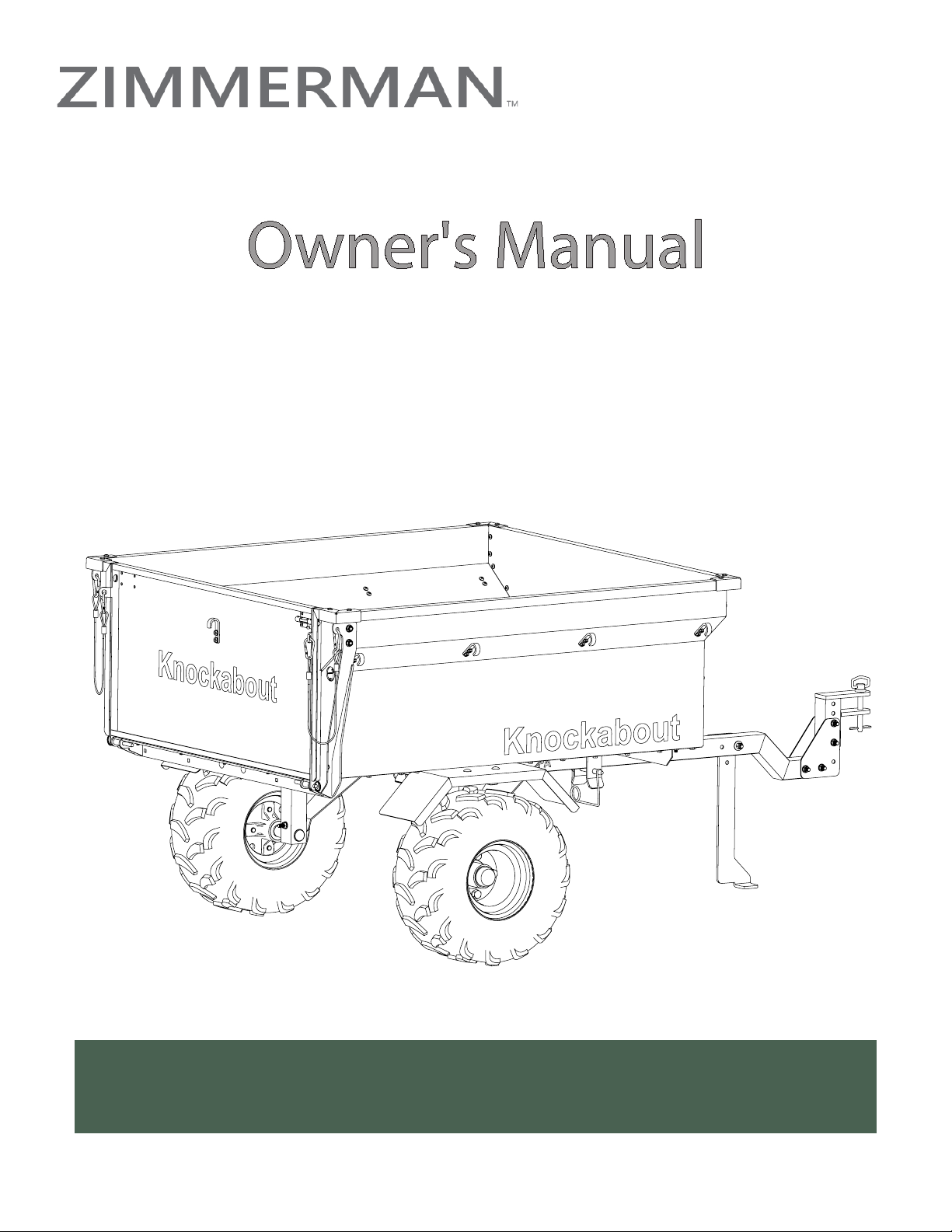

PBZ ZIMMERMANN KT1800 User manual

Knockabout Trailer
Model: KT1800
Form: KT1800OM
Rev. A Date: 08/22
Manufactured by PBZ LLC
A Paul B Zimmerman Inc. Company
www.zimmermanequipment.com
Owner's Manual

2
Table Of Contents
Identication of Machine ...............................................................................................................................................................................................................2
Specications......................................................................................................................................................................................................................................2
Introduction ........................................................................................................................................................................................................................................3
Safety .....................................................................................................................................................................................................................................................3
Signal Words.............................................................................................................................................................................................................................3
General Guidelines.................................................................................................................................................................................................................4
Before Operation ....................................................................................................................................................................................................................4
During Operation ...................................................................................................................................................................................................................4
Following Operation .............................................................................................................................................................................................................4
Pinch Points..............................................................................................................................................................................................................................5
Assembly Instructions .................................................................................................................................................................................................................6-7
Operation .............................................................................................................................................................................................................................................8
Maintenance and Adjustments................................................................................................................................................................................................8-9
Routine Maintenance............................................................................................................................................................................................................8
Maintenance Materials.........................................................................................................................................................................................................9
Adjustments.............................................................................................................................................................................................................................9
Breakdowns and Parts Lists ..................................................................................................................................................................................................10-13
Base Unit Breakdown...................................................................................................................................................................................................10-11
Base Unit Parts List........................................................................................................................................................................................................ 12-13
Limited Warranty............................................................................................................................................................................................................................ 14
Ordering Parts ................................................................................................................................................................................................................................. 14
Specications
Trailer Size .............................................................49” wide x 80” long
Bed Size..................................................................36” wide x 48”long
Bed Volume ......................................................................18 cubic feet
Load Capacity ..........................................................................1,200 lbs
Hitch Height .................................................................................. 9”-21”
Ground Clearance ............................................................................. 18”
The Knockabout (Model# KT1800):
Identication of Machine
• Model #’s: KT1800

3
Safety
The safety alert symbol for safety signs & decals that contain one of the three signal words (DANGER, WARNING, & CAUTION) will
appear as shown in Figure 1.
Safety Alert Symbol
Figure 1: Safety Alert Symbol
Signal Words
There are three signal words; DANGER, WARNING, and CAUTION. The signal words bring attention to the existence and relative
seriousness of a hazard.
• DANGER: The signal word DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury
• WARNING: The signal word WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
• CAUTION: The signal word CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Introduction
• Read and understand your tow vehicles owner’s manual and towing safety instructions.
• This unit is intended for o road use only. Do not use on public roads or highways.
• Tow vehicle stability may be aected by the attachment and towing of this unit. Be aware of conditions on slopes, and rough
or uneven terrain.
• Do not allow anyone to ride or sit in tow behind equipment during operation.
Please read and understand this manual and its instructions and warnings completely before using the trailer.
Additional Signal Words.
• NOTE: The signal word NOTE provides information on operator safety and operator tips.
• IMPORTANT: The signal word IMPORTANT indicates a recommended action or a restriction that will ensure correct equipment
operation and performance.

4
Every year many unnecessary accidents occur due to improper equipment handling and a disregard for safety precautions. You, the
operator, can avoid accidents by observing the precautions listed in this section.
General Guidelines
• The operator should be a responsible adult. Do not allow persons to operate this equipment until they have displayed a
thorough understanding of equipment safety precautions and operational use!
• Never attempt to operate this unit when under the inuence of alcohol or drugs.
• The best defense against accidents is a careful and responsible operator.
• This unit is intended for o road use only. Do not use on public roads or highways.
• Tow vehicle stability may be aected by the attachment and towing of this unit. Be aware of conditions on slopes, and rough
or uneven terrain.
• Do not allow anyone to ride or sit in tow behind equipment during operation.
• Remember that accidents can even happen to seasoned operators. Always take your time and follow all safety instructions.
• If there is any portion of this manual that you do not fully understand, please contact the original retailer of this product.
Safety
Before Operation
• Carefully study and understand this owner's manual.
• Do not wear loose-tting clothing which may catch in
moving parts.
• Never exceed the tow vehicle manufacturer's load
rating.
• Give the equipment a visual inspection for any worn
parts, loose bolts, or other visible problems, and make
the necessary repairs. See the “Maintenance and
Adjustments” section for instructions.
• Make sure the area is clear of any people or obstructions
before using the equipment.
• Have all operators practice operating the equipment
and its attachments.
During Operation
• Always be aware of bystanders, particularly children!
Always look before moving the equipment or the tow
vehicle.
• Do not allow anyone to ride on tow behind equipment
while in use.
• Keep hands and body parts clear of all moving parts.
• Be aware of dangerous terrain such as holes, slopes,
drop-os, banks, rocks, and hidden hazards.
Following Operation
• WARNING: Be aware of the possibility of tipping if
operating across too steep an incline. Ideally, operate
the tow vehicle and equipment up and down slopes,
not across.
• Allow for equipment size when making turns.
• WARNING: Do not unhitch trailer with a load in the
bed, or attempt to dump the trailer with a load when
unhitched.
• Following operation, stop the tow vehicle, set brakes,
shut o engine, and remove ignition key.
• Park the equipment on a hard level surface
• Do not permit children to play on or around equipment.

5
Safety

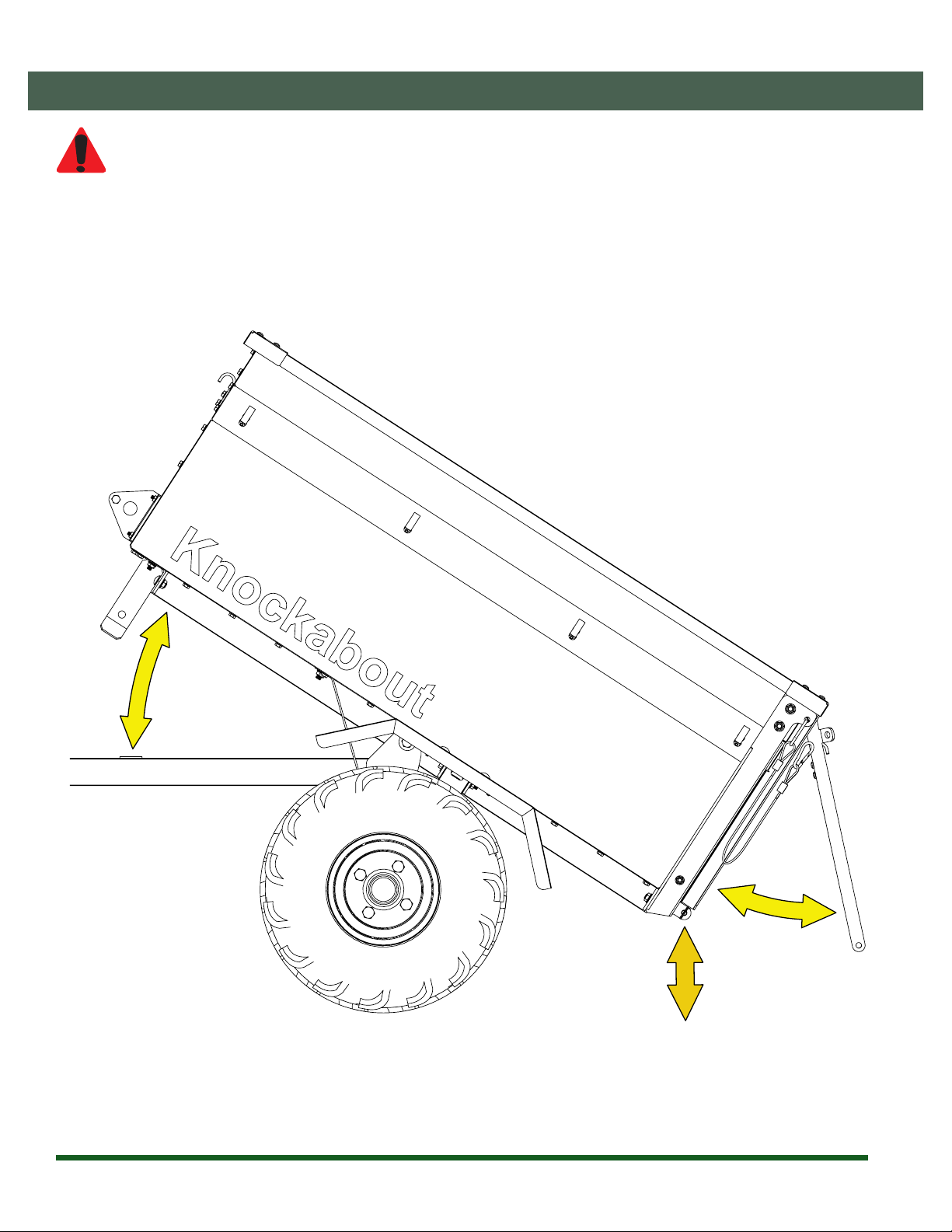

Pinch Points
Be aware of the following pinch points when using the trailer:
• Between the bottom of the bed frame and the hitch.
• Between the ground and the bed when dumping.
• Around the sides and bottom of the tailgate.

6
Ref# Qty. Part Number
1 1 Bed & Axle Frame
2 1 Hitch
3 2 Washers
4 1 Bolt
5 1 Lock Nut
Assembly Instructions
Use the assembly instructions to ensure proper assembly. Before assembling, ensure that the pallet contains the necessary
components and parts.
Installation Time:
• Approximately 15 minutes
Recommended Tools
• 3/4” socket or wrenches
• Battery or air powered impact

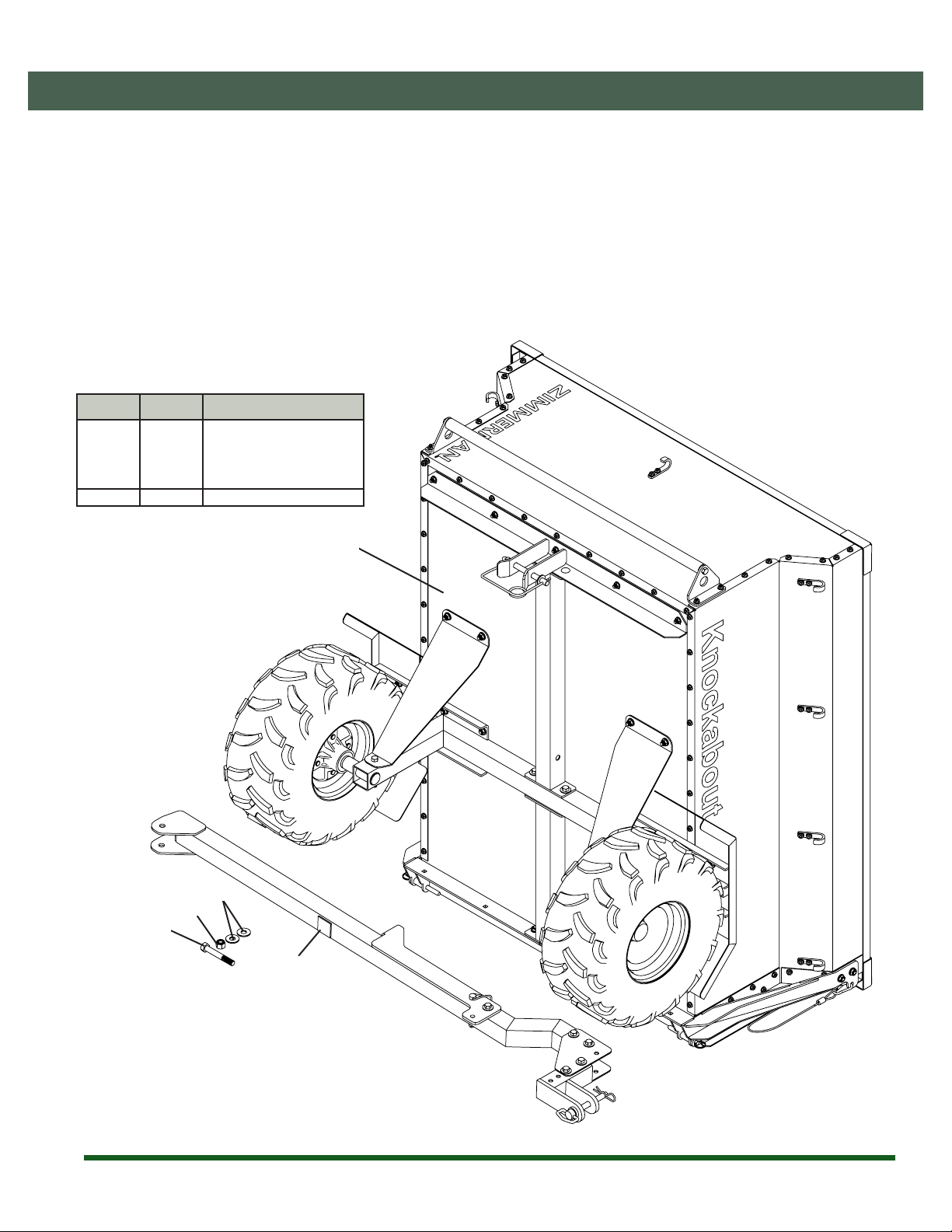

Pallet Contents
3
4
5
2
1

7

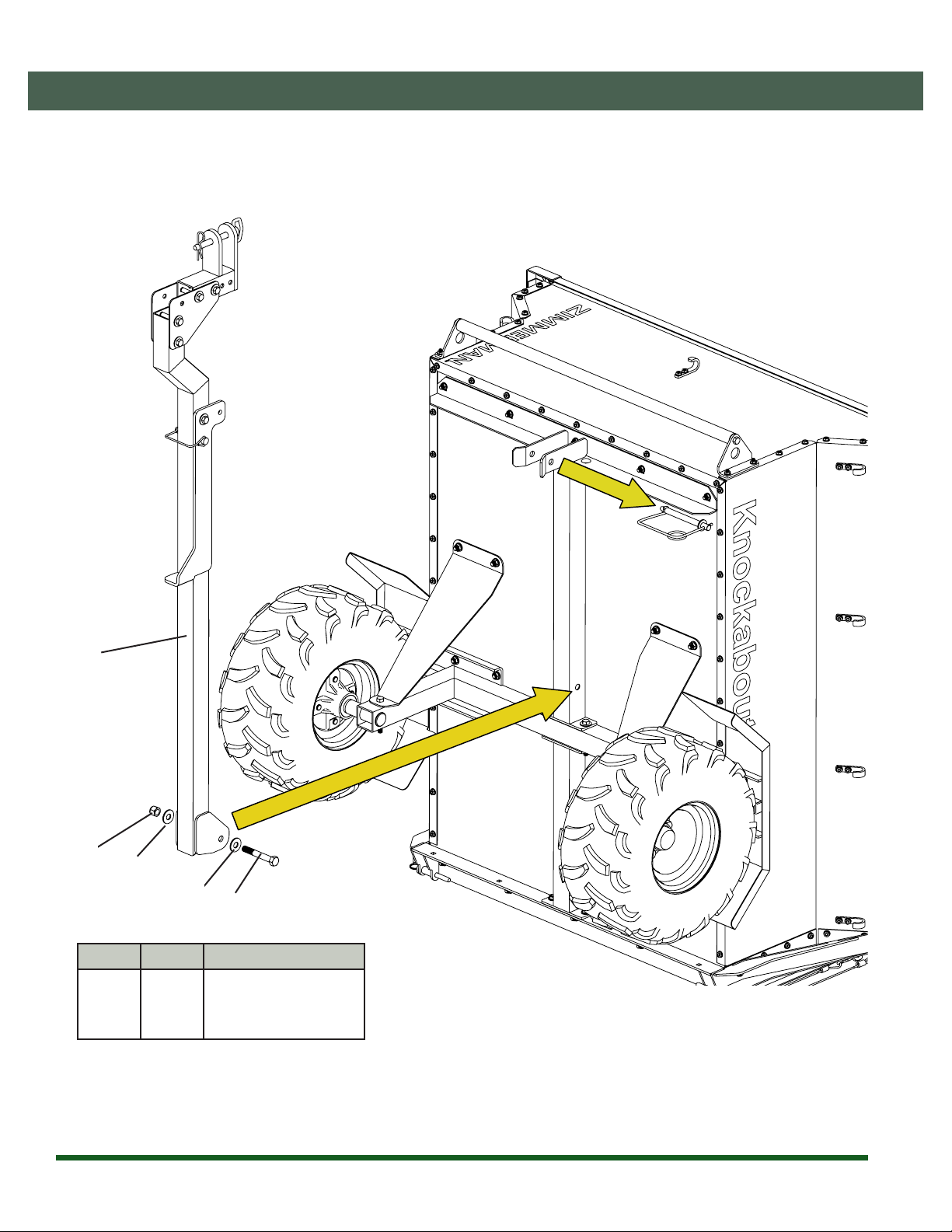

Assembly Instructions
Step 1
Ref# Qty. Part Number
1 1 Hitch
2 2 Washers
3 1 Bolt
4 1 Lock Nut
1
2
2
3
4

8
IMPORTANT: Before use, read this entire manual and know all safety precautions. Always take your time and be alert when
operating your equipment in order to avoid an accident.
Operation
Operation
• To use the dump capability of the trailer, remove the pin (a) from underneath the front of the bed (Figure 1).
• The tailgate can be removed completely by removing the hinge pins (a) , sliding the latch bolts (b), and unclipping the cables
(c) (Figure 2).
Routine Maintenance
IMPORTANT: Perform routine maintenance on your equipment before and after each use. Good maintenance practices will help to
guard against any unnecessary equipment breakdowns or accidents.
Maintenance and Adjustments
1. It is recommended to perform a visual and physical inspection for worn parts, loose bolts, or other visible problems. Make all
necessary repairs before use. Contact the original retailer for instructions on ordering parts and technical help.
2. Check tire pressure.
3. Keeping the unit as clean and dry as possible when not in use will improve the life span of the unit.
4. The wheel hubs use sealed tapered bearings. Repack wheel hub bearings with general purpose grease annually.

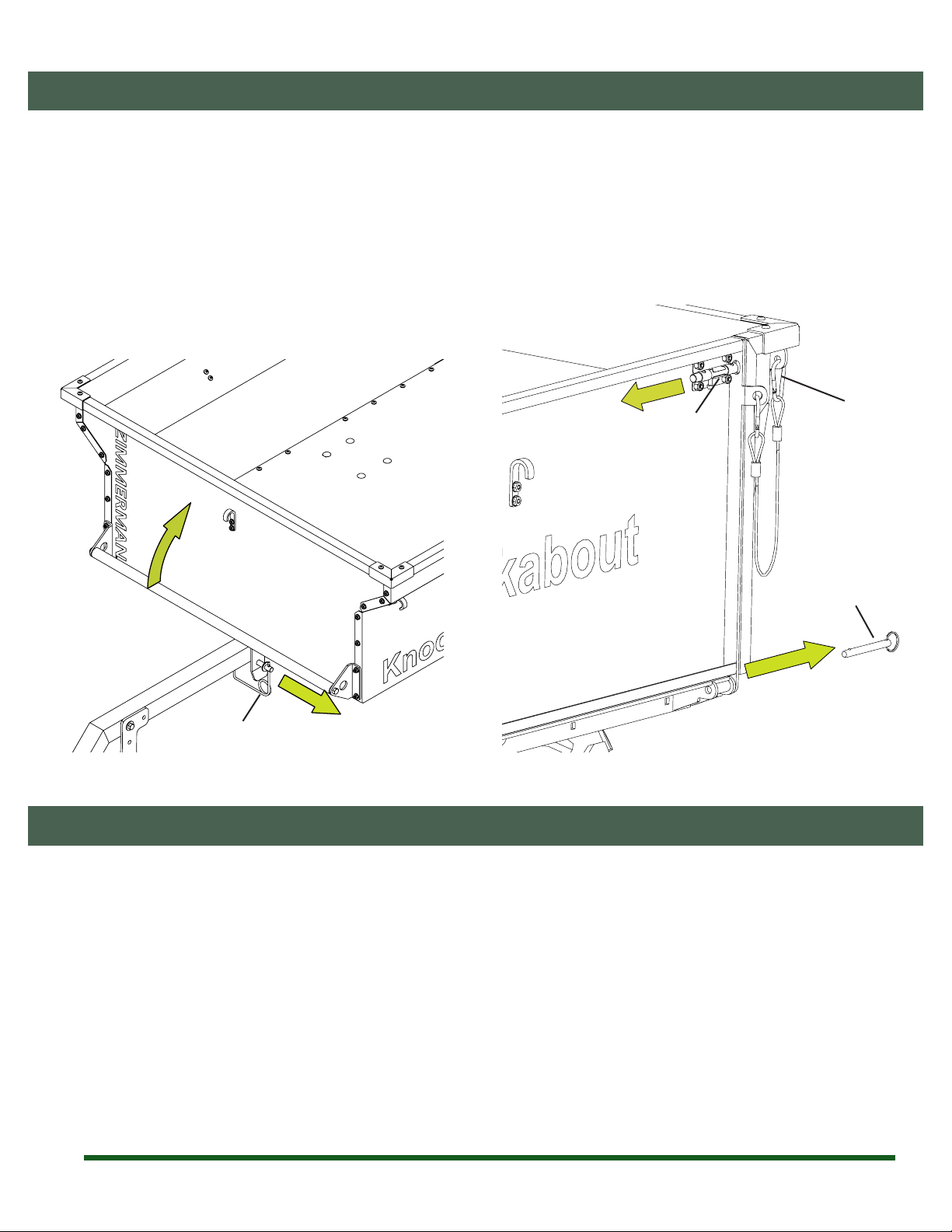

Figure 1: Remove Pin to Dump Trailer Figure 2: Tailgate Removal
a
a
b
c

9
Maintenance and Adjustments
Maintenance Materials
-Specications, including quantities / capabilities for normal maintenance materials, such as:
1. General-purpose lithium grease (See “Routine Maintenance” section)
Adjustments

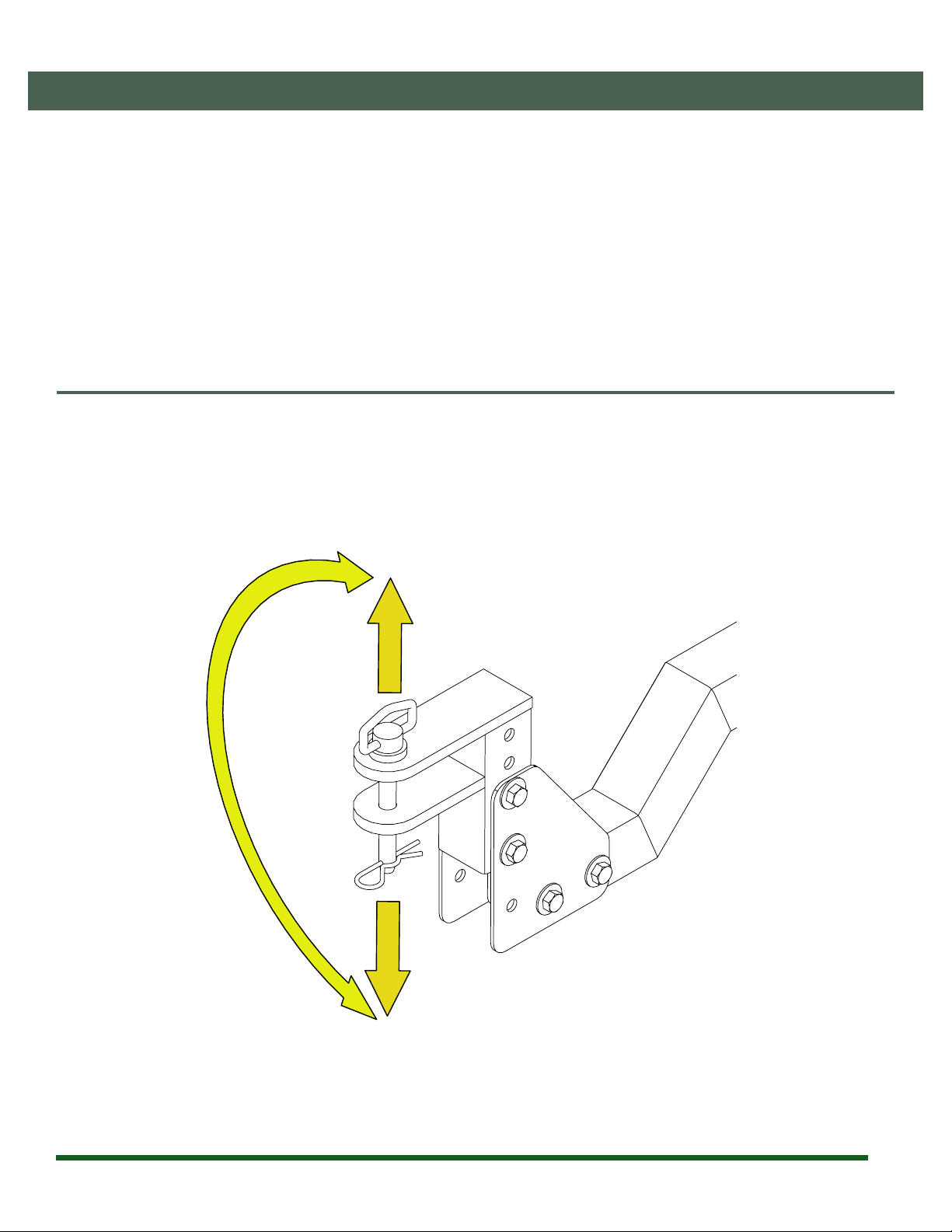

The trailer hitch is able to be bolted on or rotated to t the hitch height of the tow vehicle.

10
11

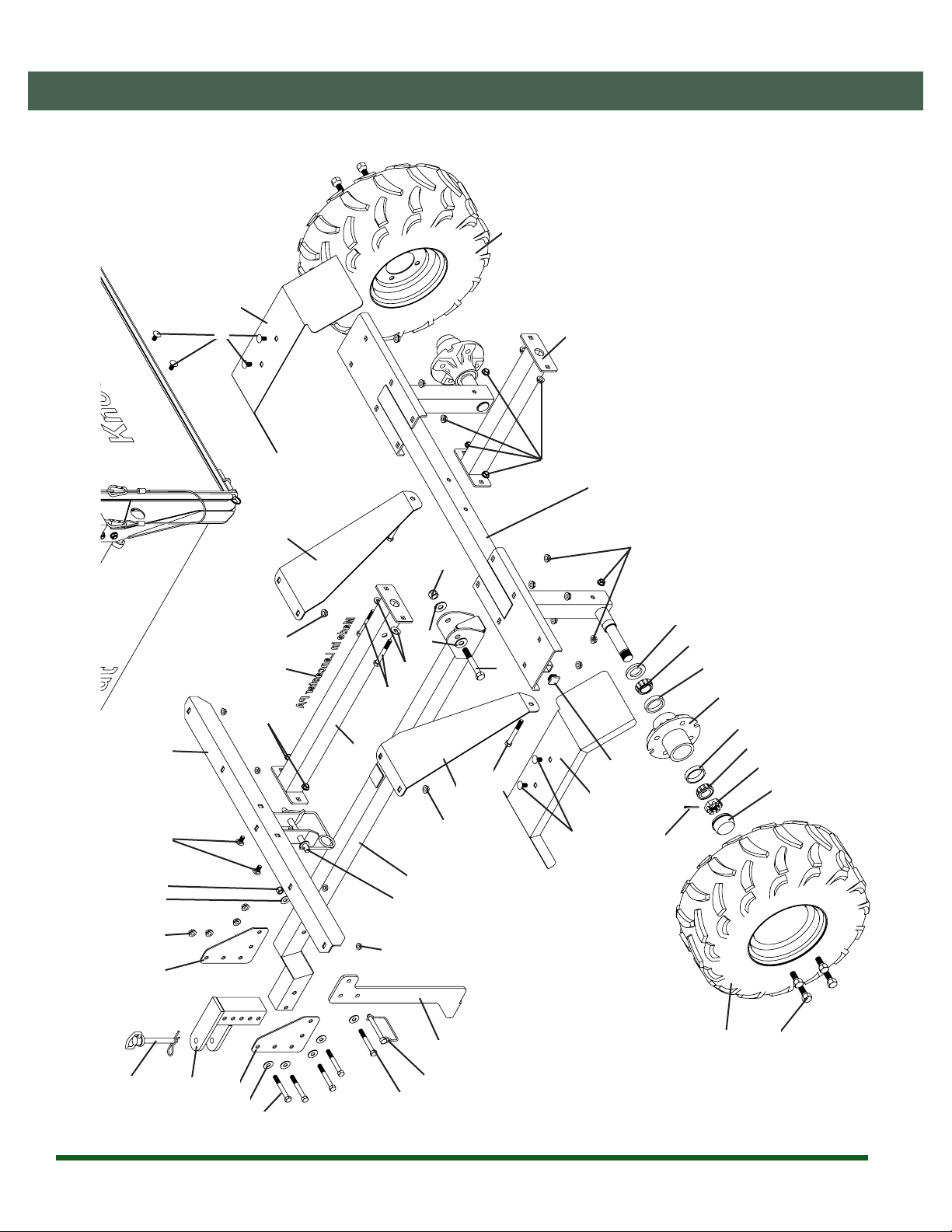

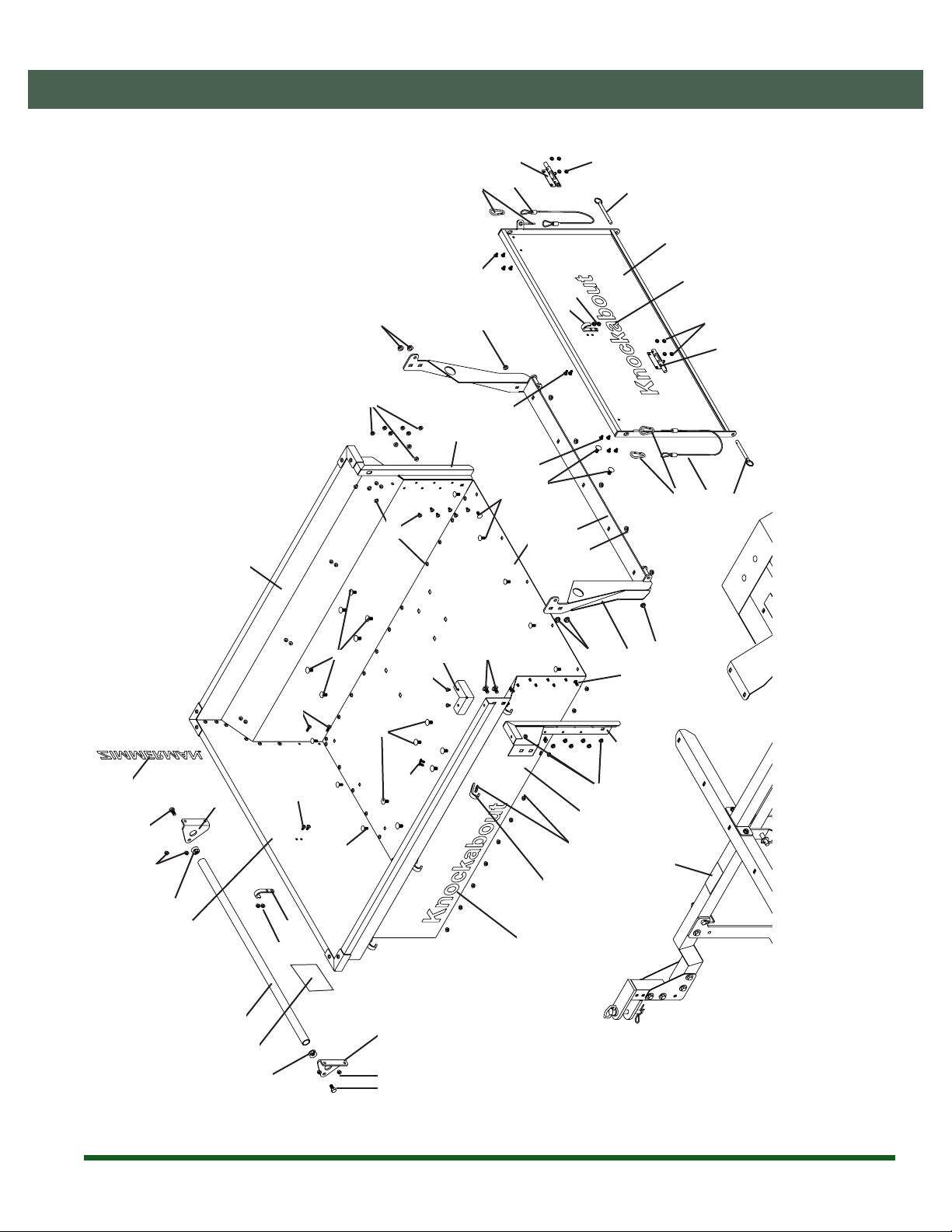

Breakdowns & Parts Lists
Base Unit Breakdown
4
4
15
16
6
7
823
30
32
33
34
35
36
37
38
40
44
55
56
41
57
58
59
60
61
5
5
5
5
6
67
8
8
8
8
9
9
10
10
10
15
16
30
33
34 34
36
38
38 39
40
40
41
44
40
8
62
63

10
11
Breakdowns & Parts Lists
Base Unit Breakdown
3
2
1
5
9
10
11
13
14
24
25
29
31
22
26
27
28
21
17
18
19
20
43
45
49
50
51 52
53
54
42
46
47
48
5
5
9
9
9
9
9
12
12
12
14
14 14
18
26
47
48

12
Base Unit Parts List
Breakdowns & Parts Lists
Ref# Qty. Part Number Description
1 1 00267 Pin, Square Lock 3/8" x 3"
2 1 01500X Hitch Pin, 1/2"x3-5/8", Red G5
3 1 15195 Pin, Snap-Lock 1/2" x 4 1/4"
4 2 2417T18 Leveling Mount Insert, Round Tube, 1" OD x 15/16" ID, 3/8-16 threads
5 24 CB38*34G5 Bolt, Carriage 3/8-16 x 3/4" Gr 5
6 12 CB516*34G5 Bolt, Carriage 5/16-18 x 3/4" Gr 5
7 2 DRP38X3 Detent Ring Pin 3/8" x 3"
8 93 NNC14 Nut, Flange 1/4-20
9 32 FN38 Nut, Flange 3/8-16
10 12 FN516 Nut, Flange 5/16-18
11 2 FW12 Washer, Flat 1/2" USS
12 8 FW38 Washer, Flat 3/8"
13 1 H5C12*312 Bolt, Hex 1/2-13 x 3-1/2" Gr 5
14 9 H5C38*3 Bolt, Hex 3/8-16 x 3" Gr 5
15 2 H5C38*34 Bolt, Hex 3/8-16 x 3/4" Gr 5
16 8 JNNC14 Nylon Lock Jam Nut, 1/4-20
17 1 KT101-SGB ATV/UTV Trailer, Tongue, Black
18 2 KT102-SGB ATV/UTV Trailer, Hitch Connector Plate, Black
19 1 KT103-SGB ATV/UTV Trailer, Hitch, Black
20 1 KT104A-SGB ATV/UTV Trailer, Center Frame, Front, Black
21 1 KT104B-SGB ATV/UTV Trailer, Center Frame, Rear, Black
22 1 KT105-SGB ATV/UTV Trailer, Front Frame, Black
23 1 KT106-1003 ATV/UTV Trailer, Rear Frame, RAL1003 (Yellow)
24 1 KT109A-1003 ATV/UTV Trailer, Axle Brace, A, RAL1003 (Yellow)
25 1 KT109B-1003 ATV/UTV Trailer, Axle Brace, B, RAL1003 (Yellow)
26 2 KT110-SGB ATV/UTV Trailer, Fender, Black
27 1 KT114-SGB ATV/UTV Trailer, Jackstand, Black
28 1 KT115A ATV/UTV Trailer, Wheel, Side A
29 1 KT115B ATV/UTV Trailer, Wheel, Side B
30 3 KT116 Decal, Knockabout
31 1 KT117 Decal, Made in Location
32 1 KT118 Decal, Zimmerman
33 2 KT120 ATV/UTV Trailer, Tailgate Cable
34 10 KT131-7004 ATV-UTV Trailer, Bed Hook, Coated
35 1 KT132-7004 ATV/UTV Trailer, Tailgate, RAL7004 (Gray)
36 2 KT133-1003 ATV/UTV Trailer, Bed Handle Mount, Yellow
37 1 KT134-7004 ATV/UTV Trailer, Bed Handle, Gray
38 89 BHC14X12Z Button Head Cap Screw, 1/4-20 x 1/2", Zinc Plated
39 4 BHC14X34Z Button Head Cap Screw, 1/4-20 x 3/4", Zinc Plated
40 8 MR14X38 Machine Screw Combo 1/4-20 x 3/8
41 2 N162370 Barrel Bolt Latch, 4", Zinc
42 1 NNC12 Nut, Lock Nylon 1/2-13
43 1 NNC38 Nut, Lock Nylon 3/8-16
44 4 SL14 Snap Link, all purpose, Zinc, 1/4"

13
Ref# Qty. Part Number Description
45 1 KT108-SGB ATV/UTV Trailer, Axle Weldment, Black
46 2 MWH4C Hub, F/Wheel W-4" Bolt Center
47 4 L44643 * + Tapered bearing, 1"
48 4 L44610 * Bearing cup, 1.98" O.D.
49 2 12192VB * Oil seal, 1.25" I.D. x 1.979" O.D. x .25" W
50 2 1550 * Hub cap, 1.988" O.D. x 1.21" I.D.
51 8 5400820 * wheel bolt, 1/2-20 x 1"
52 2 CJNF1 * Castle jam nut, 1-14
53 2 CT18*2 * Cotter pin, 1/8” x 2"
54 2 PPSQ1*14-20 Plug, Plastic 1" x 1" x 14-20 Ga Black
55 1 KT126-7004 ATV-UTV Trailer, Bed Front, Coated
56 1 KT127A-7004 ATV-UTV Trailer, Bed Side A, Coated
57 1 KT127B-7004 ATV-UTV Trailer, Bed Side B, Coated
58 1 KT128-7004 ATV-UTV Trailer, Bed Bottom, Coated
59 1 KT129A-7004 ATV-UTV Trailer, Bed Rear Section, Side A, Coated
60 1 KT129B-7004 ATV-UTV Trailer, Bed Rear Section, Side B, Coated
61 4 KT130-7004 ATV-UTV Trailer, Bed Corner Guard, Coated
62 1 DE240 Decal, WARNING, Pinch Point
63 1 DE241 Decal, WARNING, Read Owner's Manual and Do Not Ride
* Included in item 46.
+ Use Part# L44649 if spindle is 1.0625” in diameter.
Base Unit Parts List
Breakdowns & Parts Lists

14
Limited Warranty
PBZ, LLC hereby provides a Limited One (1)Year Warranty on the Knockabout, manufactured by PBZ, LLC. Knockabouts manufactured
by PBZ, LLC are warranted against any manufacturer’s defects in any of the equipment’s components in the 12 months following the
original date of purchase.
Defective components will be repaired or replaced at the discretion of the manufacturer. It is the responsibility of the purchaser to
return warranted components to the manufacturer. This warranty is limited to the repair or replacement of equipment components
only. PBZ, LLC is not to be held liable for incidental or consequential damages of any kind. This warranty covers the purchaser of this
equipment and any other owners who own it during the one year warranty period.
To retain the warranty, the equipment must be operated and maintained as ascribed by its owner’s manual. For warranty service,
please have a copy of the purchase invoice available.
All warranty claims must be made through the original retailer. All warranty claims must be submitted with an invoice or a proof
of purchase that denotes the purchase date and place of purchase. If you have any questions or comments concerning this
warranty, please contact the original retailer.
Warranty Coverage
Warranty Is Void if:
Getting Warranty Service
1. The equipment has been subjected to, in the opinion of PBZ, LLC, negligent handling, misuse, an accident, or if the instructions
in the owner's manual were not completely followed.
2. The equipment's components have been altered in any manner or repairs have taken place with unapproved parts.
Model #: KT1800
Ordering Parts
Please contact the original retailer to order replacement parts for your product.

Manufactured by PBZ LLC
A Paul B Zimmerman Inc. Company
www.zimmermanequipment.com
Table of contents
Other PBZ Farm Equipment manuals
Popular Farm Equipment manuals by other brands

Agri-Fab
Agri-Fab SmartLink 45-0453 owner's manual

HAUL MASTER
HAUL MASTER 68895 Owner's manual & safety instructions

Amazone
Amazone CatrosXL 4003-2TS Original operating manual

Ventrac
Ventrac AERA-vator EA600 Owner/operator's manual & parts list

Stara
Stara Victoria Top 3600 Instructions and parts manual

APV
APV ES 100 M3 EVO Original operating manual

Krone
Krone Comprima F 125 Original operating instructions

Roto-Mix
Roto-Mix Hay Pro Series Operation and parts manual

ABI Attachments
ABI Attachments ABI RASCAL instructions

AGROdeviate
AGROdeviate Hawkins Corn Reel installation manual

Vink
Vink 0604521 quick start guide

Meijer Holland
Meijer Holland Rambo 3 manual
