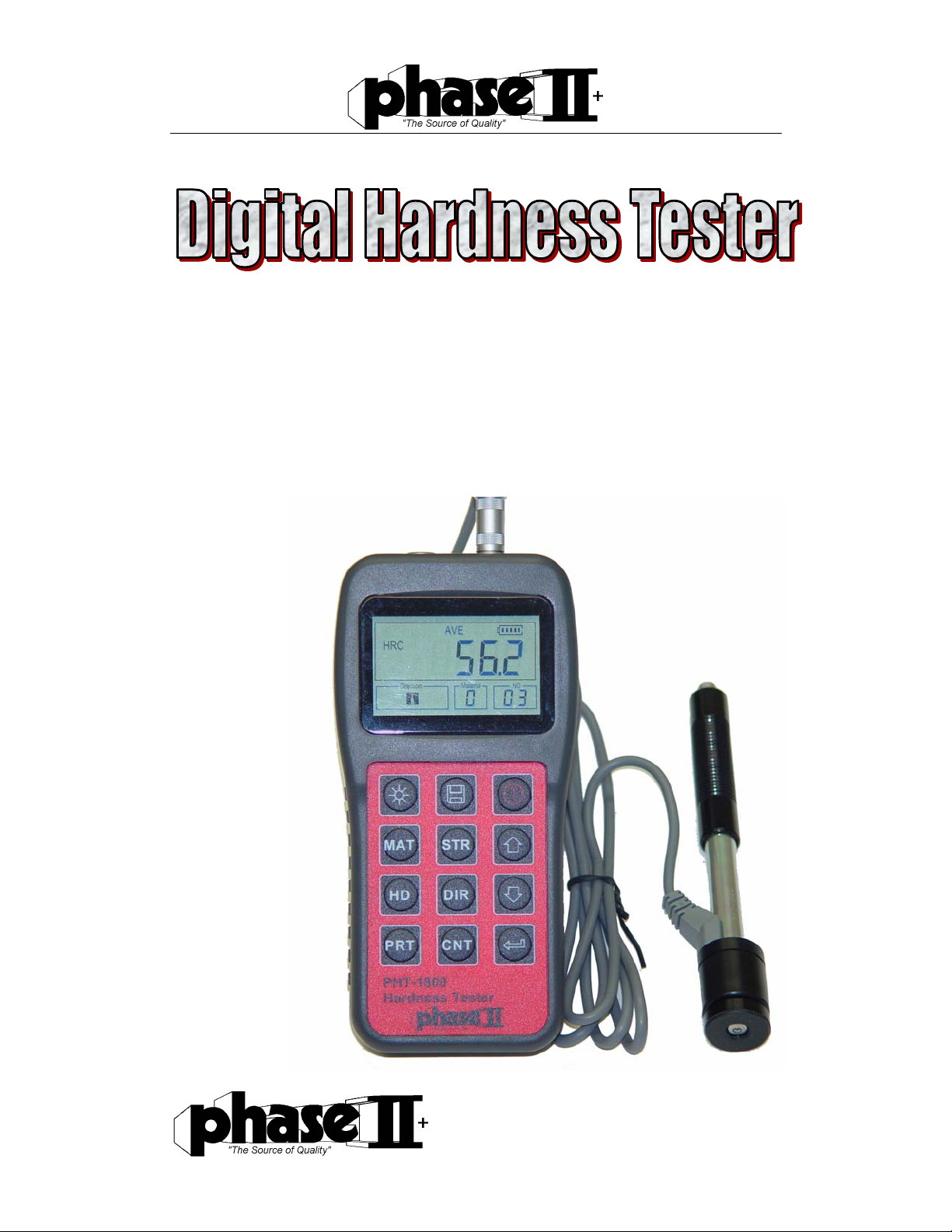

Model No. PHT-1800
Operation Manual

1
1 Overview....................................................................................................................3
1.1 Advantages........................................................................................................................3
1.2 Main Application &Testing Range ...................................................................................3
1.2.1 Main Application ...........................................................................................................3
1.2.2 Testing Range.................................................................................................................3
1.3 Technical Specifications ...................................................................................................4
1.4 Configuration....................................................................................................................5
1.5 Working Conditions..........................................................................................................5
2 Structure Feature &Testing Principle ....................................................................6
2.1 Structure Feature...............................................................................................................6
2.1.1 D Type Impact Device ...................................................................................................6
2.1.2 Different Types of Impact Device..................................................................................7
2.2 Main Screen......................................................................................................................7
2.3 Keypad Definitions...........................................................................................................8
2.4 Leeb Hardness Testing Principle.......................................................................................9
3 Preparation................................................................................................................9
3.1 Instrument Preparation and Inspection .............................................................................9
3.2 Impact Device Selection...................................................................................................9
3.3 Preparation of the Sample Surface..................................................................................10
4 Testing Program .....................................................................................................12
4.1 Start-Up...........................................................................................................................12
4.2 Loading...........................................................................................................................12
4.3 Localization ....................................................................................................................12
4.4 Testing.............................................................................................................................12
4.5 Read Measured Value .....................................................................................................13
4.6 Notification.....................................................................................................................13
5 Operation Detail .....................................................................................................14
5.1 Power On/Off..................................................................................................................14
5.2 Material Setting ..............................................................................................................14
5.3 Hardness/Strength testing ...............................................................................................15
5.4 Impact Direction Setting.................................................................................................15
5.5 Average Times Setting ....................................................................................................15
5.6 Data logging....................................................................................................................16
5.6.1 Viewing stored file/Group............................................................................................16
5.6.2 Clearing selected file/Group........................................................................................16
5.7 Print Report.....................................................................................................................16
5.8 System Reset...................................................................................................................17
5.9 EL Backlight...................................................................................................................17
5.10 Auto Power Off.............................................................................................................17
5.11 Battery Replacement.....................................................................................................17
5.12 Connecting to a Computer............................................................................................18
5.13 Error Code Reference ...................................................................................................18
6 Maintenance & Servicing......................................................................................19

2
6.1 Impact Device Maintenance ...........................................................................................19
6.2 Instrument Maintenance Program...................................................................................19
6.3 Fault Analysis & Evaluation...........................................................................................19
6.4 Notice of Transport and Storage Conditions................... Error! Bookmark not defined.
APPENDIX .................................................................................................................20
Table 1 ..................................................................................................................................20
Table 2 ..................................................................................................................................21
Table 3 ..................................................................................................................................22
Table 4 .................................................................................. Error! Bookmark not defined.

3
1 Overview
1.1 Advantages
Wide measuring range. Based on the principle of Leeb hardness testing
theory. Capable of measuring Leeb hardness of all metallic materials.
Large screen LCD, showing all functions and parameters. With
background light.
Seven impact devices are available for special application. Automatic
identification of impact device upon plug in.
Test at any angle, even upside down.
Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
Large memory could store 100 groups (Relative to average times 1-32 ) of
information including single measured value, mean value, impact direction,
impact times, material and hardness scale etc.
Battery symbol showing the capacity of the battery.
User calibration function.
Output via USB port. Micro printer support.
Compact plastic case, suitable for use under poor working conditions
Continuous working period of no less than 100 hours with two alkaline
batteries(AA size)；Auto power off.
Outside dimensions：150×74×32 mm
Weight：245g
1.2 Main Application &Testing Range
1.2.1 Main Application
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other large
equipment
Large, hard work piece
Testing of installed machinery and permanently assembled parts.
Material identification based upon hardness range
Rapid testing in large range and multi-measuring areas for large-scale
work piece
1.2.2 Testing Range
Testing range refer to Table 1 and Table 2 in the Appendix.

4
1.3 Technical Specifications
Error and repeatability of displayed value see Table1-1 below.
Table 1-1
No. Type of
impact device
Hardness value of Leeb
standard hardness block
Error of displayed
value Repeatability
1 D 760±30HLD
530±40HLD
±6 HLD
±10 HLD
6 HLD
10 HLD
2 DC 760±30HLDC
530±40HLDC
±6 HLDC
±10 HLDC
6 HLD
10 HLD
3 DL 878±30HLDL
736±40HLDL ±12 HLDL 12 HLDL
4 D+15 766±30HLD+15
544±40HLD+15 ±12 HLD+15 12 HLD+15
5 G 590±40HLG
500±40HLG ±12 HLG 12 HLG
6 E 725±30HLE
508±40HLE ±12 HLE 12 HLE
7 C 822±30HLC
590±40HLC ±12 HLC 12 HLC
Measuring range：HLD（170～960）HLD
Measuring direction：0~360°
Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS
Display：4-Digit LCD
Data memory：max. 100 groups（relative to impact times 1-32）
Working power：3V（2 AA size alkaline batteries）
Continuous working period：about 100 hours（With backlight off）
Communication interface：USB

5
1.4 Configuration
Table 1-2
No. Item Quantity Remarks
Standard
Configuration
1 Main unit 1
2 D type impact device 1 With cable
3 Standard test block 1
4 Cleaning brush (I) 1
5 Small support ring 1
6
A
lkaline battery 2
A
A size
7 Manual 1
8 Instrument package
case
1
9
Optional
Configuration
11 Cleaning brush (II) 1 For use with G
type impact
device
12 Other type of impact
devices and support
rings
Refer to Table 3
and Table 4 in the
appendix.
14 Communication cable 1
15 Micro Printer 1
16 Print cable 1
1.5 Working Conditions
Working temperature：0℃～＋40℃；
Storage temperature：-30℃～＋60℃
Relative humidity: ≤90％；
The surrounding environment should avoid any vibration, strong magnetic
field, viscous fluids, corrosive medium and heavy dust.

6
2 Structure Feature &Testing Principle
2.1 Structure Feature

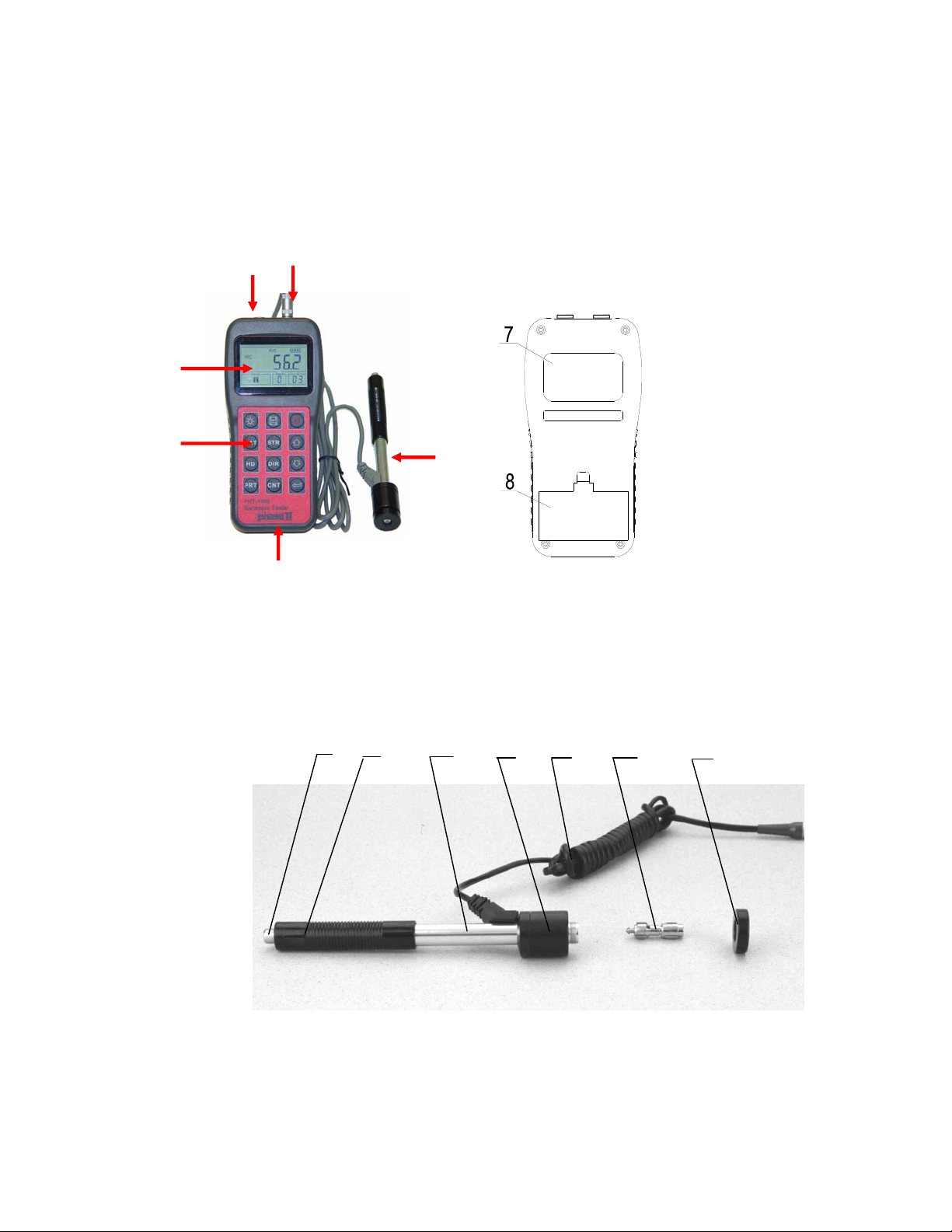

1. Main unit 2.Keypad 3. LCD display 4 Socket of USB
5. Socket of impact device 6. Impact device 7 Label 8. Battery cover
2.1.1 D Type Impact Device
1 2 3 4 5 6 7
1 Release button 2 Loading tube 3 Guide tube 4 Coil unit
5 Connection cable 6 Impact body 7 Support ring
POWER: 2 X 1.5V
HARDNESS GAUGE
0- Steel and Cast Steel
1- Cold Work Tool Steel
2- Stainless Steel
3- Gray Cast Iron
4- Nodular Cast Iron
5- Cast Aluminum Alloys
6- Copper-Zinc Alloys
7- Copper-Aluminum
8- Wrought Copper
9- Wrought Steel
Material Option:
4
1
2
3
5
6

7
2.1.2 Different Types of Impact Device
DC DL C D+15 E G
2.2 Main Screen

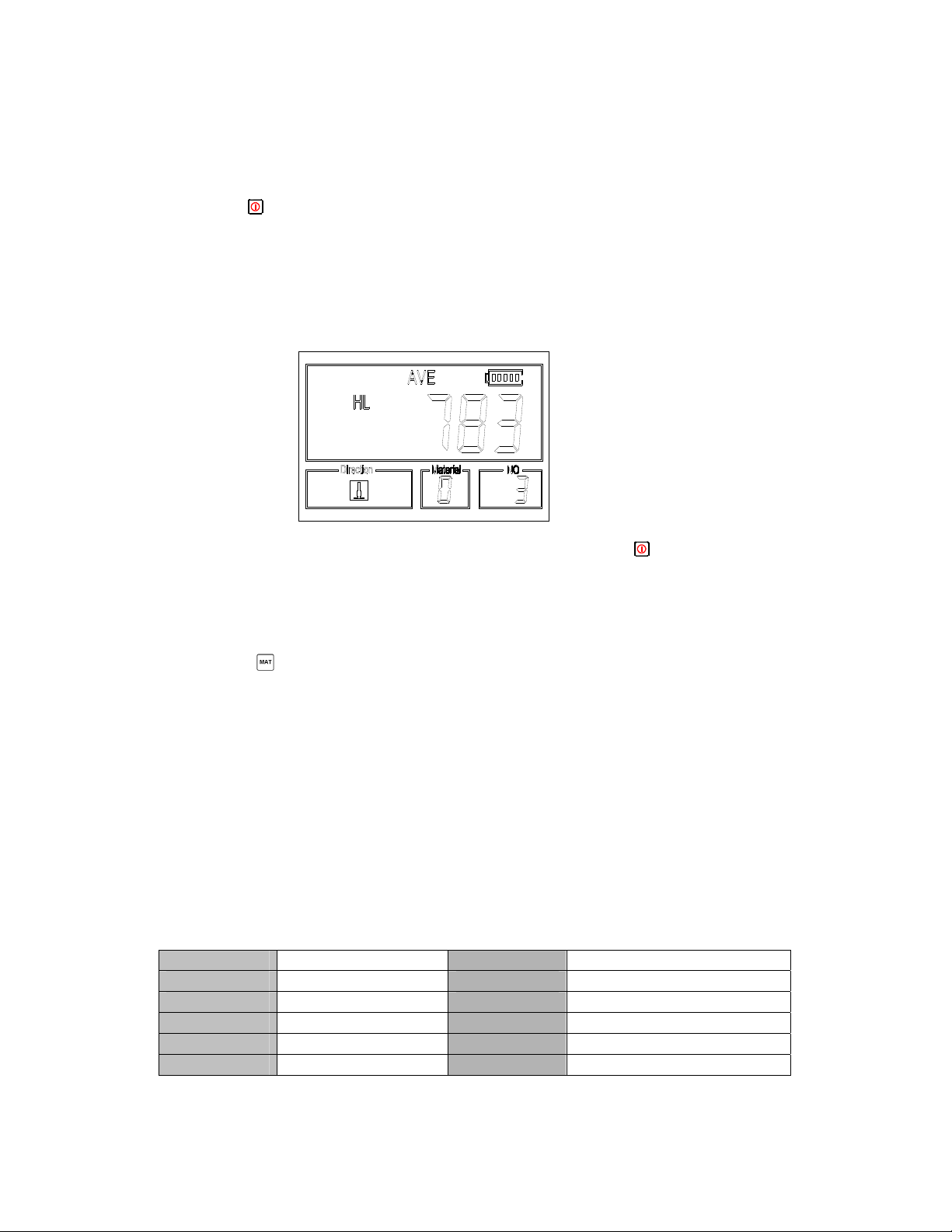

Below is the main display screen：
Instruction of the Main Display Screen:
Material
： The present presetting material.
Impact direction
： The present impact direction.
Hardness scale
： Hardness scale of the present measured value.
Battery information
： Showing the remaining capacity of the battery.
Measured value
： Display present single time measured value （without
showing average icon），or display the present mean value (with average icon
Hardness Scale
Average Icon
Direction
Battery Info
Impact Times
Measured Value
Material No
Memory Icon

8
prompting). “-HI-”means over conversion value or measure range. “-LO-”
means lower than conversion value or measure range.
Impact times
： Times that have been impacted.
Average Icon
： It will appear when showing the mean value of the measured
values after reaching the presetting impact times.
Memory Icon: It appears when operating the instrument memory.
2.3 Keypad Definitions

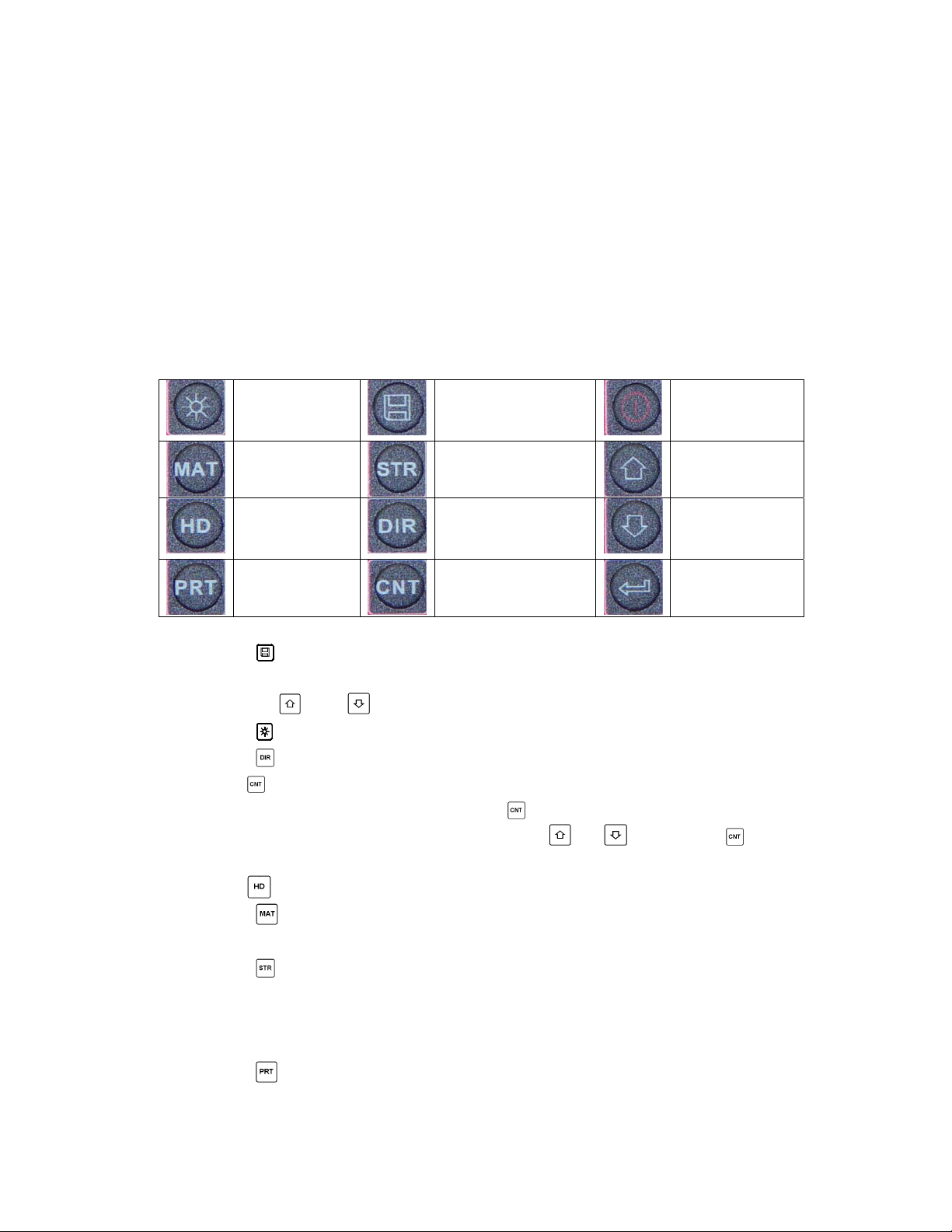

Table 2-1
Turn on/off
the EL
backlight
Data Save or Data
Delete
Turn the
instrument
on/off
Material
Selection
Hardness/Strength
switch
Plus or Up
Hardness
Scale
Selection
Direction change Minus or Down
Print data Impact Times set Data logging
or Enter
Press key to store present group of measured value into memory. This
operation is only valid after displaying the mean value.
Press key and could display single measured value.
Press key could switch on of off the background light of LCD.
Press key to set the impact direction.
Press key to change the impact times in one group. The impact times
item will flash when first pressing the key, and then the impact times
value will plus or minus when pressing the or key. Press key
finally to exit from changing the impact times process.
Press key to change the hardness scale.
Press key to change the material. Presetting hardness scale recovers
to HL automatically after material presetting changed.
Press key to switch between hardness test and strength test. Only D
and DC type of impact device has the function of strength testing. So
hardness testing is the only selection if the impact device is not D or DC
type.
Press key to print out the measured values after measurement.

9
2.4 Leeb Hardness Testing Principle
It is defined as the quotient of an impact body’s rebound velocity over its impact velocity,
multiplied by 1000. Harder materials produce a higher rebound velocity than softer
materials. For a specific group of material (e.g. steel, aluminum. etc.). Leeb hardness value
represents a direct relationship to its hardness properties. For ordinary metal, conversion
curves of hardness HL versus other standard static hardness (HB, HV, HRC, etc.) are available,
enabling you to convert HL into other hardness values.
3 Preparation
3.1 Instrument Preparation and Inspection
Verification of the instrument is performed by using a standard calibrated
test block. The error and repeatability of displayed value should be within the
regulation of Appendix table 2. The instrument and impact device must be
calibrated using a standard hardness block prior to first usage or having reset
the instrument system.

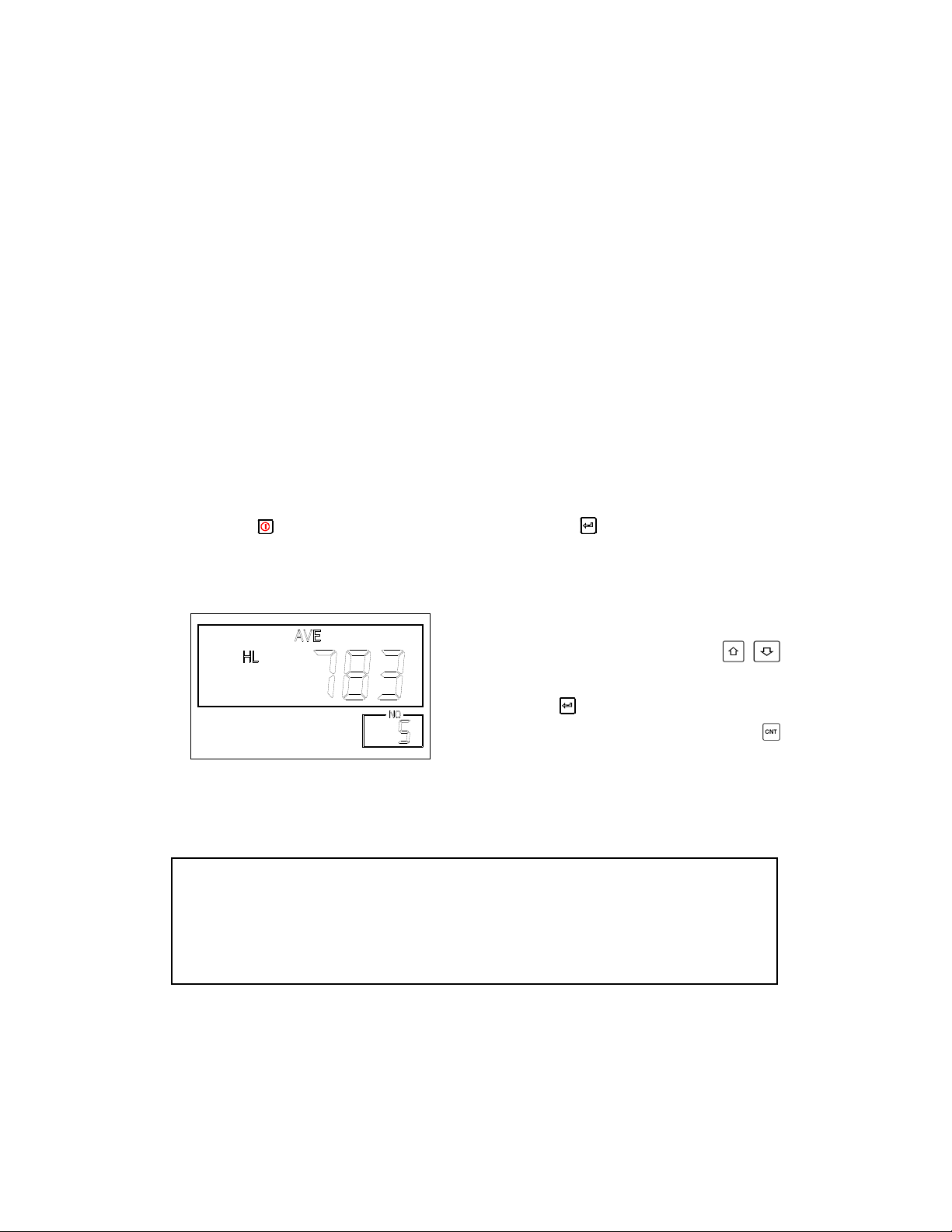

Press key, meanwhile pressing down the key to power on the
system. Then the user calibration screen shows as left below.
Test for 5 points on the standard
hardness block. It would display the
average measured value after
measuring 5 times. Press
key to change to its nominal value.
Press key to confirm the
calibration finally. Or press the
key to cancel the calibration.
Range of adjustment: ±30HL.
The measurement parameters, including the material setting, the
hardness scale and the impact direction can’t be changed during calibration.
3.2 Impact Device Selection
Refer to Appendix Table 1 and Table 3 for selection of impact device.
Note：For Verification, Take 5 tests around the test block and get your
average. This average value should be within the acceptable tolerance of the
test block value. If this value exceeds the allowable tolerance of the test block, a
calibration should be performed.
