phase II+ SRG 2200 User manual

w/Data Output via Bluetooth
ModelNo.SRG‐2200
INSTRUCTIONMANUAL
Manualshouldbereadpriortooperation!

TECHNICALSUPPORT:(201)962‐8352

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
2

GENERAL
The Phase II model no. SRG‐2200 Mini Surface Roughness Tester is a next generation of
product developed by the Phase II Metrology Group that features high accuracy, a wide
range of application, simple operation and stable performance. It is widely applicable in
testing surfaces of all kinds of metals and non-metals. Integrating the sensor with its
mainframe, it’s a hand-held set especially suited for use on any production site.
LargememorywithdataoutputviaBluetooth.
WORKINGPRINCIPLEANDSTRUCTUREFEATURES
WORKINGPRINCIPLE
When the motorized sensor is making a linear uniform motion along the test surface, the
contact stylus being perpendicular to the work surface, moves up and down with the work
surface. Its motion is converted into electric signals, which are amplified, filtered and
transformed into digital signals through a/d. The signals are then processed by the CPU
into Ra, Rz,RqandRt values before being displayed on the screen.
STRUCTURALFEATURES
Base Instrument 1 UNIT
AABattery 1UNIT
Reference Standard 1 UNIT
USB Flash Drive(Manual/Software) 1 UNIT
USBSoftDog(dongle) 1UNIT

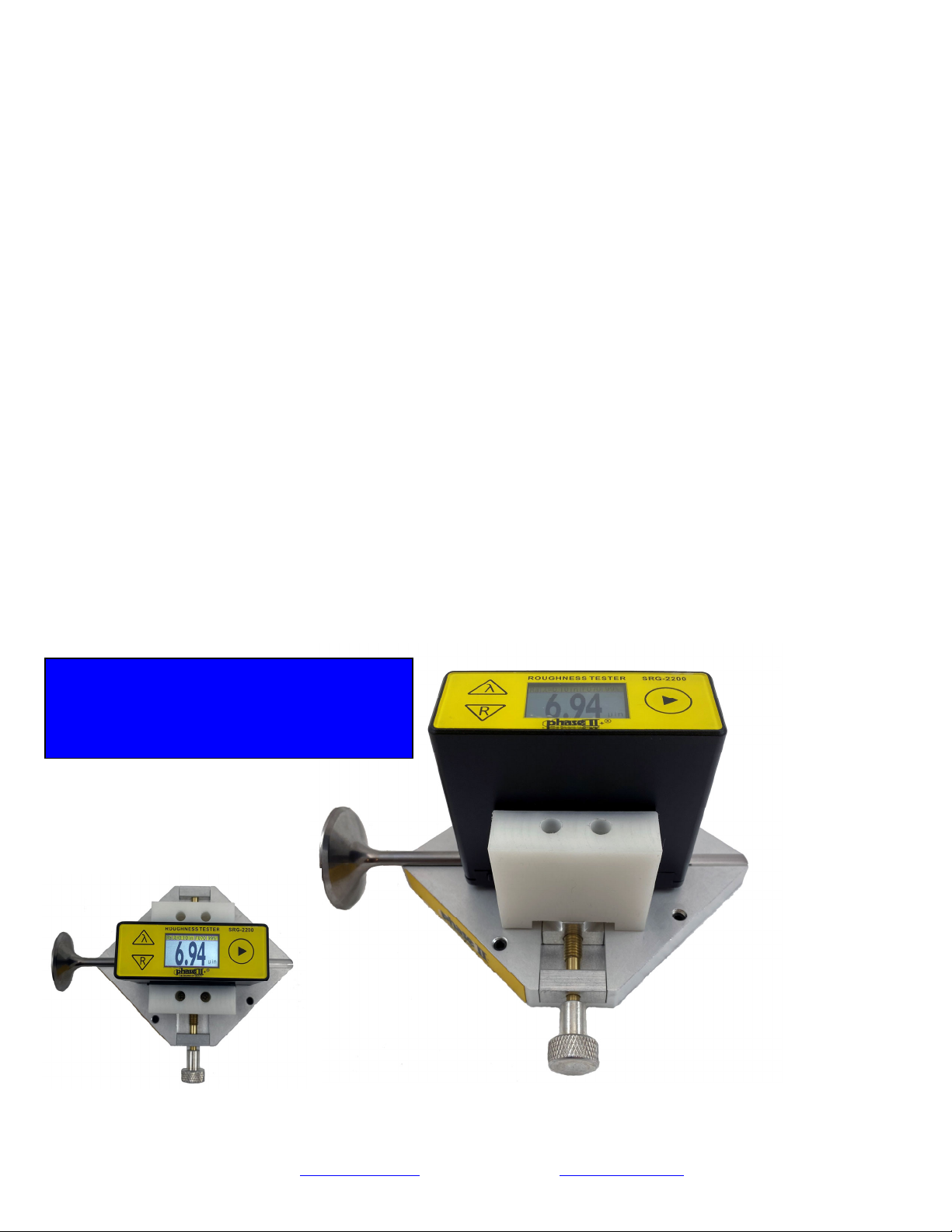

Optional Accessory
SmallRoundPartsVise
Now check surface finish on these difficult
to test parts with your SRG-2200!
PartNo.SRG2000‐VISE

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
3

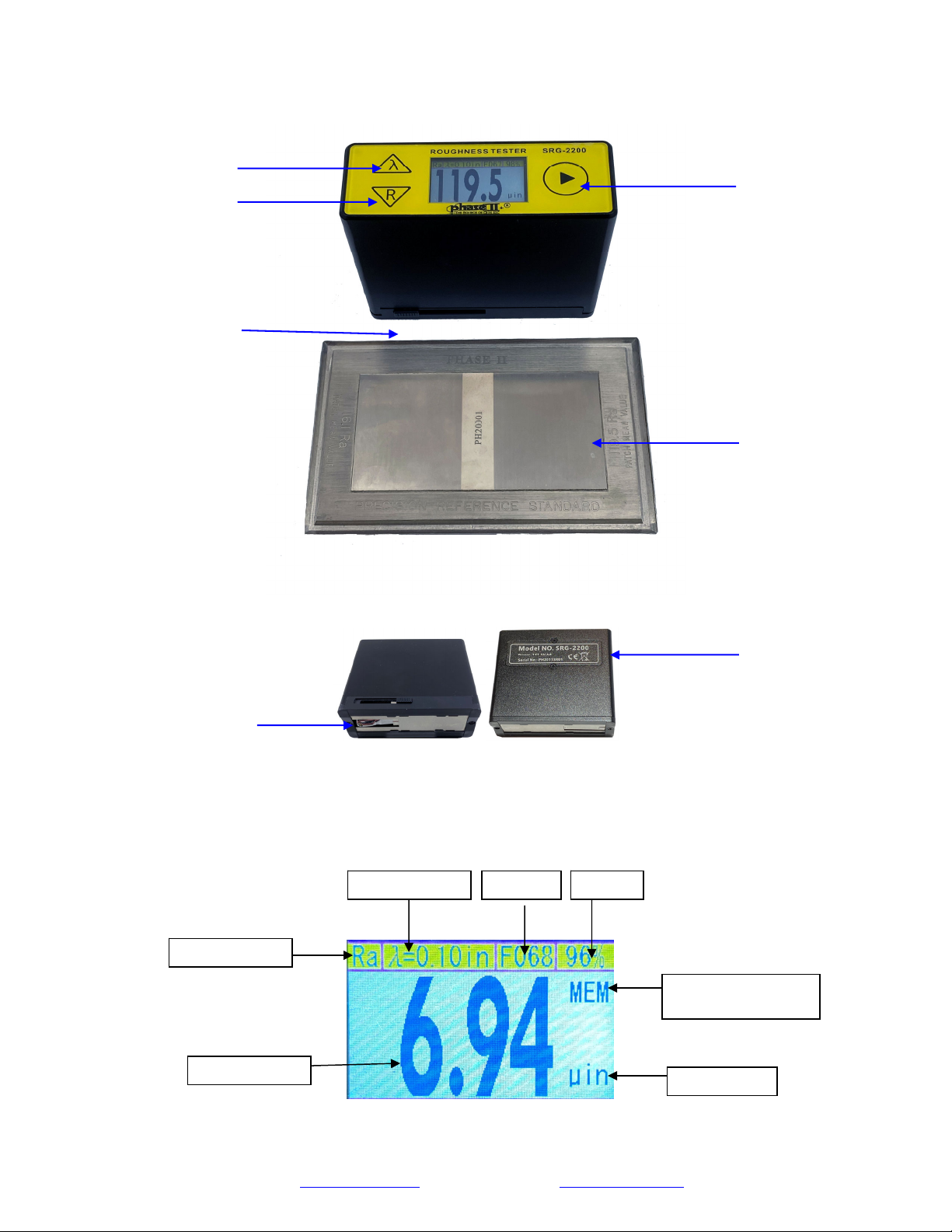

FIGURE 2: STRUCTURE OF MAINFRAME
1)Power/StartTestButton 2)Cut‐OfflengthSelection/Up
3)ParameterSelection/Down4)StylusProtectorShield
5)ReferenceStandard 6)Stylus
7)BatteryCompartment(1‐AA)
5
7
6
4
2
3 1
Cut-off Len
g
th Memor
y
Inch/Metric
Memory/Calibration
Status
Batter
y
Parameter
Ra Value

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
4
MAJOR TECHNICAL PARAMETERS
ROUGHNESSPARAMETERS

Ra, Rz, Rq, Rt
MEASURINGRANGE

RA: 0.05‐10.0µm RZ: 0.1‐50µm
Rq :0.05~10.0µmRt: 0.1~50µm
CUT‐OFFLENGTHS

0.25, 0.80, 2.50
FILTER

Gauss Digital
TRACINGLENGTH

0.23IN (6MM)
EVALUATIONLENGTH

1.25mm, 4.0mm, 5.0mm
TRACINGSPEED

0.04IN/SECOND (1.0MM/SECOND)
ACCURACY

+/-12% of known value
PICKUPSTYLUS

PIEZO-ELECTRIC
TRACERTIP

DIAMOND, RADIUS 10µM +/- 1µM
MEMORY/Transmission

500 Values/Bluetooth
OPERATINGTEMPERATURE

32-104 DEGREES F (0-40 DEGREES C)
POWER

One 1.5v AA Battery
CONTACTFORCEONPROBE

<0.5N
STATICMEASURINGFORCEOFSENSORSTYLUS

< 0.016N
DIMENSIONS

73 X 28 X 62mm
WEIGHT

0.5LBS (220G)
USEANDOPERATION
OPERATION:
POWER ON THE DEVICE.
Press and hold the button on the top panel. The display will show the model and serial number and
then the device is ready to work. The 1.14” IPS TFT display will show the measuring parameters and
sampling length of the previous test.
POWER OFF: Press and hold the button for a few seconds until the display turns off.
Before taking a test, choose the desired parameter Ra, Rz, Rq, or Rt and proper sampling length 2.5(0.10),
0.8(0.03) or 0.25(.01) (for sampling length option, consult the appendix).
After switching on the device, press the to change parameters.
To choose the proper sampling length, press the keypad button (0.25, 0.8OR 2.5).
After the parameters and sampling lengths are taken, you may begin testing.
Position the unit over the test area and press the start button on top of the unit. The stylus moves
automatically. When the value on the display blinks twice, the measurement has been completed and the
results shown upon the display.


21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
5

POINTSFORATTENTION:
While the stylus is in motion, you must keep the device even and steady so as not to affect the accuracy of the
reading.
Before the sensor returns to the original position, the device will not respond to any keypad operation until
the measurement is completed.

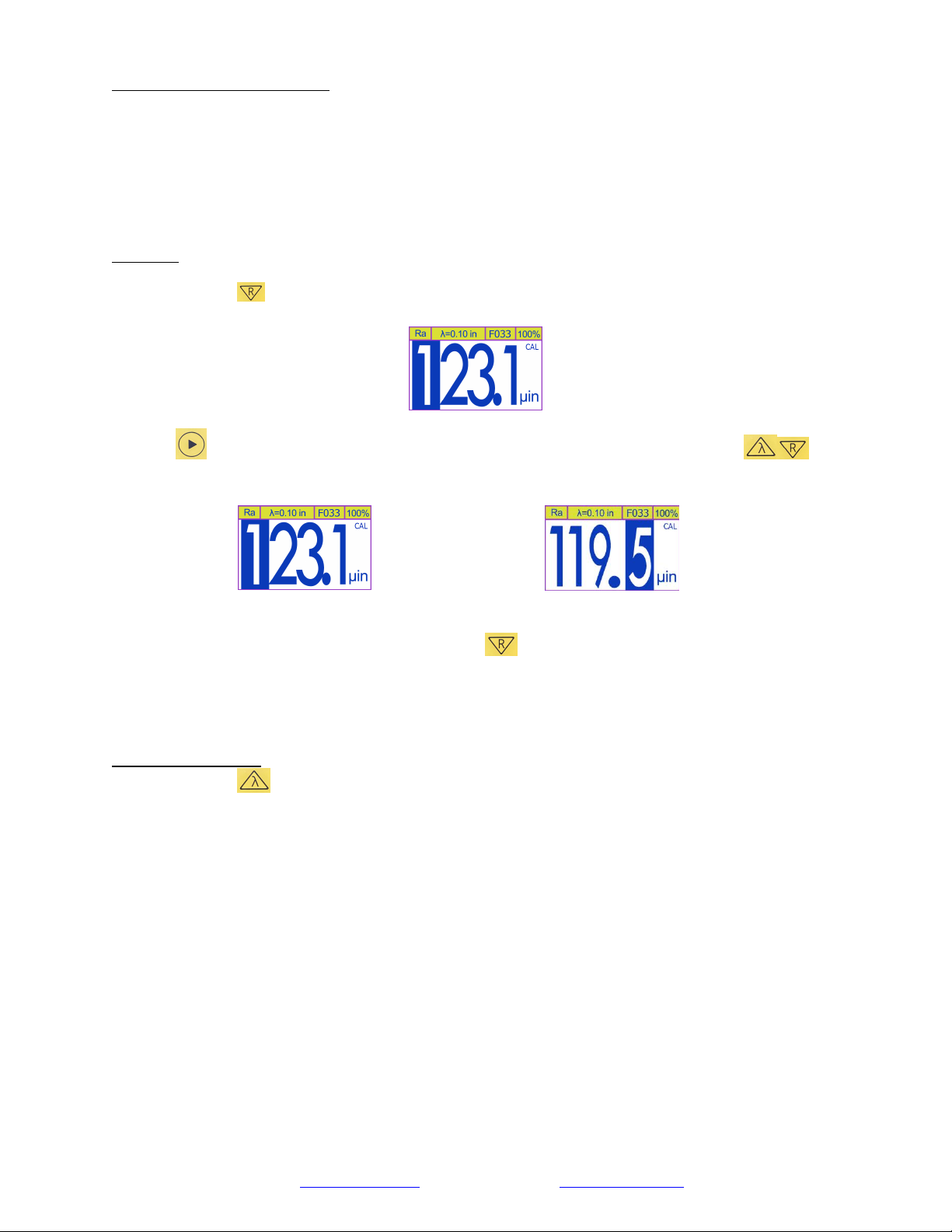

CALIBRATION
When abnormal errors are found, the supplied reference standard should be used for calibration. The Ra
value of the supplied standard is 119.5µin (3.03µm).
METHOD: Place the unit on the reference standard so the stylus can run across the 119.5 patch. Take a test. If
the value of the test is outside the allowable tolerance then follow these steps:
Press and hold the button for about 4 seconds and the display will be as shown below:
Press the button to toggle to the column that need to be changed. Use the Up and Down buttons to
adjust the numbers. See example below.
Once the correct value is entered, press and hold the for approx.. 4 seconds to save the calibration.
The value displayed at the end of this process should fall within the allowable tolerance of your test sample.
Normal measurements can resume at this time.


CONVERTINGIN/MM
Press and hold the keypad for about 2 seconds. The system will convert from Metric to English or English
to Metric
BATTERYINDICATOR
When the battery % symbol is near 10% then its time to change the battery in the SRG-2200. Remove the 2-
screws from the backside cover. remove the battery and dispose of properly. Replace with fresh AA battery.
Close the battery compartment. Power the unit on to make sure the battery % is 100%.

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
6
DATAOUTPUT
Plug the supplied flash drive into the USB port on your PC.
Plug in the supplied Softdog(dongle) into another USB port to allow
access to the software program.



Double click the Software folder to begin loading the software.
Power the SRG-2200 on














Click on the ComPort drop down to choose the correct Com port





21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
7



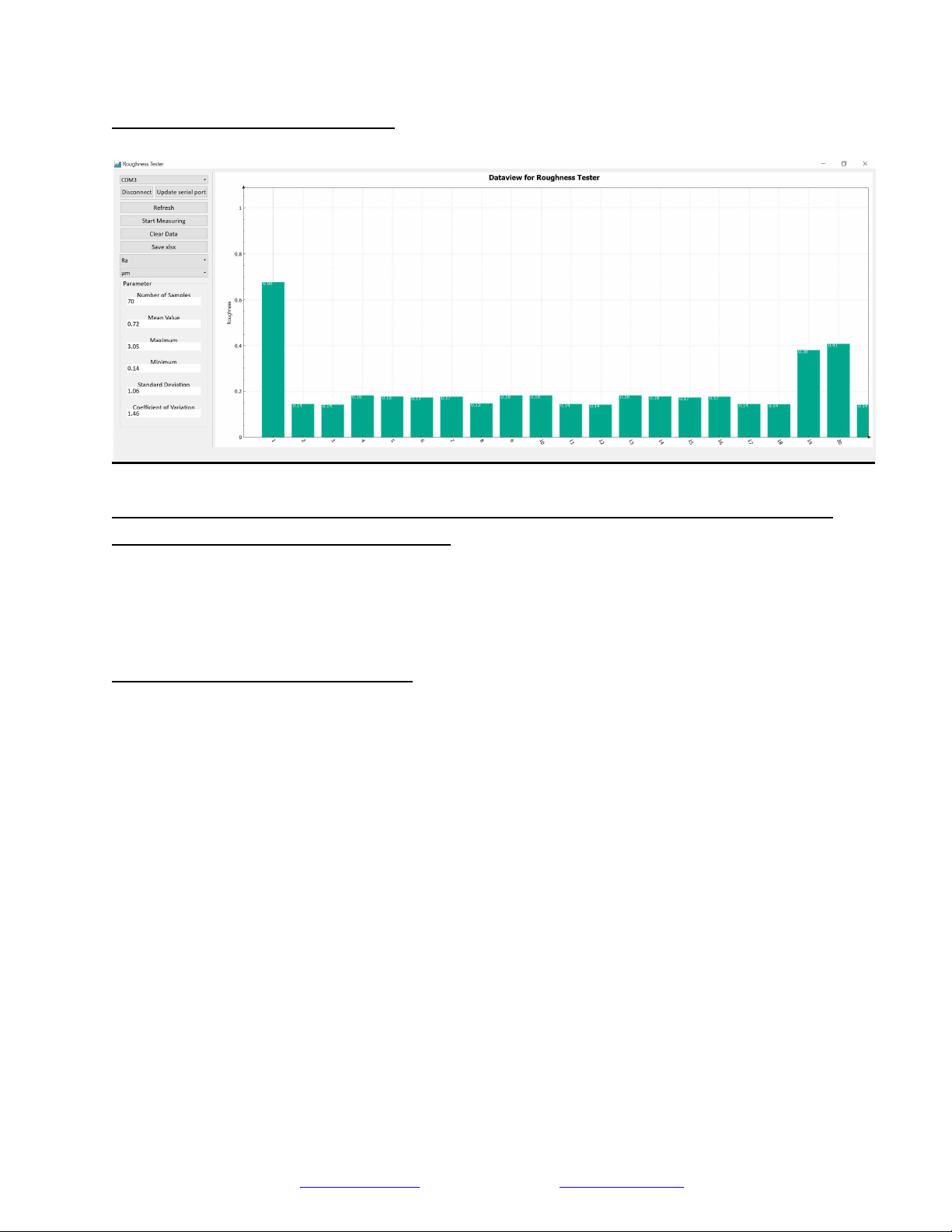

ClickontheCONNECTbox.



Alldatastoredinthememorywillbeshownonthedisplay.Youcan
saveasanExcelfileatanytime.




MAINTENANCEANDREPAIR
MAINTENANCE
Avoid collision, violent shock, heavy dust, dampness, oil and a strong magnetic field.
The Piezo-electric pick up stylus with diamond tip is extremely sensitive and accurate. After each use, make
sure that the supplied protective cover goes on this tip after each use. Damage to this tip will result in false
and erroneous readings.
REPAIR

ALLREPAIRSMUSTBEDONETHROUGHTHEPHASEIISERVICEDEPARTMENT.
A return authorization number is mandatory in order for a defective tester to be accepted for repair and/or
replacement. All testers must be accompanied by your warranty card or serial number. Complete description
of problem and a contact person for authorization of repairs must be supplied as well.
ANYATTEMPTATHOMEREPAIRWILLAUTOMATICALLYVOID
THESTATEDWARRANTY! NOEXCEPTIONS!


21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
8
Appendix:RecommendedSamplingLength.
Ra(µm)

Rz(µm)

SAMPLINGLENGTH

>40‐80

>160‐320

8

>20‐40

>80‐160

8

>10‐20

>40‐80

8

>5‐10

20‐40

2.5

>2.5‐5

>10‐20

2.5

>1.25‐2.5

>6.3‐0

0.8

>0.63‐1.25

>3.2‐6.3

0.8

>0.32‐0.63

>1.6‐3.2

0.8

>0.25‐0.32

>1.25‐1.6

0.25

>0.20‐0.25

>1.0‐1.25

0.25

>0.16‐0.20

>0.8‐1.0

0.25

>0.125‐0.16

>0.63‐0.8

0.25

>0.1‐0.125

>0.5‐0.63

0.25

>0.08‐0.1

>0.4‐0.5

0.25

>0.063‐0.08

>0.32‐0.4

0.25

>0.05‐0.063

>0.25‐0.32

0.25

>0.04‐0.05

>0.2‐0.25

0.25

>0.032‐0.04

>0.16‐0.2

0.25

>0.025‐0.032

>0.125‐0.16

0.25

>0.02‐0.025

>0.1‐0.125

0.25

>0.016‐0.02

>0.08‐0.1

0.08

>0.0125‐0.016

>0.063‐0.08

0.08

>0.01‐0.0125

>0.5‐0.063

0.08

>0.008‐0.01

>0.04‐0.05

0.08

>0.0063‐0.008

>0.032‐0.04

0.08

<0.0063

<0.032

0.08

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
9
Number
Finish
RMSRa
3 30-
45
25-40
4 18-
30
15-25
6 14-
20
12-18
7 5-9 4-8
8 1-5 0-4
PolishedFinishes
ComparedtoRMS
andRaReadin
g
s
RMS:RootMeanSquare
A) Profilometer measures scratch depth
B) Mean Average
C) Squares Average
Example: 36RMS
Means-Depth=36 or .006”
ChoosingTheCorrectGritSize:
Step1: Consult chart-Average particle size
Step2: Considering that only ½ the
diameter can be exposed to penetrate the
material, choose grit size of double the
depth needed
Propergrit‐Chart1
½ average particle size only half exposed
80 grit = 0105”
½ = .00525”
Grit Size Comparison
Average Particle Size
Grit Size Inches Microns
4 .2577 6848
6 .2117 5630
8 .1817 4620
10 .1366 3460
12 .1003 2550
14 .0830 2100
16 .0655 1660
20 .0528 1340
24 .0408 1035
30 .0365 930
36 .0280 710
46 .0200 508
54 .0170 430
60 .0160 406
70 .0131 328
80 .0105 266
90 .0085 216
100 .0068 173
120 .0056 142
150 .0048 122
180 .0034 86
220 .0026 65
240 .00248 63
260 .00175 44
320 .00128 32
400 .00090 23
500 .00065 16
600 .00033 8
900 .00024 6
SurfaceMeasurementsComparison
RMS
(Micro‐Inch)
RMS
(Micron)
Ra
(Micro‐Inch)
Ra
(Micron)
Grit
Size
80 2.03 71 1.80 80
58 1.47 52 1.32 120
47 1.20 42 1.06 160
34 .86 30 .76 180
17 .43 15 .38 240
14 .36 12 .30 320
These values are the average data of many tests,
therefore, slight deviations from the norm do exist.
However, because of the number of tests performed,
reasonable accuracy should be assumed. Because of
the many variables which create this data,
deviations of +/-5% would be considered well
within good measurement parameters.
The relationship between abrasive grit numbers and
surface roughness in terms of micro-inches is
sometimes a basis for speculation.
The values are approximately as follows:
GritSizeSurface
Roughness
Ra‐Micro‐Inch
500 4 -10
320 6-15
240 8-20
180 25-40
120 45-60
60 140-180

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
10

MainHeadquarters:U.S.A
PhaseIIMachine&Tool,Inc.
21 Industrial Ave
Upper Saddle River, NJ. 07458 USA
Tel: [phone]
Fax: [phone]
General E-Mail: [email protected]



BEIJING,CHINA
PhaseIIMeasuringInstruments(Beijing)Ltd.
Room 301, Bldg 2 Qing Yuan Xi Li, Haidian District, Beijing 100192,China
Tel:[phone]
Fax:[phone]
General E-mail: [email protected]

21 Industrial Ave Upper Saddle River, NJ. 07458
Tel: [phone] Fax: [phone]
E-mail: [e-mail] WebSite: http://phase2plus.com
11
Revised: May 12, 2017
Warranty Policy:
Allportableandstationarymaterialtestinginstrumentsmanufacturedfor/byPhase
IIshallbefreefromdefectsinmaterialandworkmanshipforaperiodof1to5full
years(dependinguponmodel)fromdateofpurchase.Partsfoundtobedefective
shallbereplacedorrepairedatPhaseII’ssolediscretion.ProductsfoundbyPhaseII
tobemisused,abusedorneglectedarenotcoveredunderthiswarranty.Partsnot
coveredbythiswarrantyarenormalwearandconsumableitemssuchas(butnot
limitedto)impactballs,impactbodies,diamondindenters,carbideballindenters,
impactsprings,cablesandconnectors,batteries,diamondstylus,contactprobes,
pointsandtestblocks.
Consumable(wearable)itemssuchascablesandprobes
havea90daywarrantyfromdateofpurchase.
Thiswarrantyisexclusiveandinlieuofallotherwarrantieswhetherwritten,oralor
implied,includinganyimpliedwarrantiesormerchantabilityorfitnessfora
particularpurpose.InnoeventshallPhaseIIbeliableforanyincidental,specialor
consequentialdamagesofanynature.
Any attempts to “open, modify, or tamper with” this device by
anyone other than Phase II will result in a voided warranty.

Return Policy:
All Phase II products must have authorization prior to return.
If product is not acceptable for any reason including application issues and
demonstrations, authorization for return must be obtained within 5 days of receipt
of product. Unit must be in same new condition it was received. Failure to do so
will result in an automatic 15% restocking fee. Returns after 30 days will not be
accepted.
