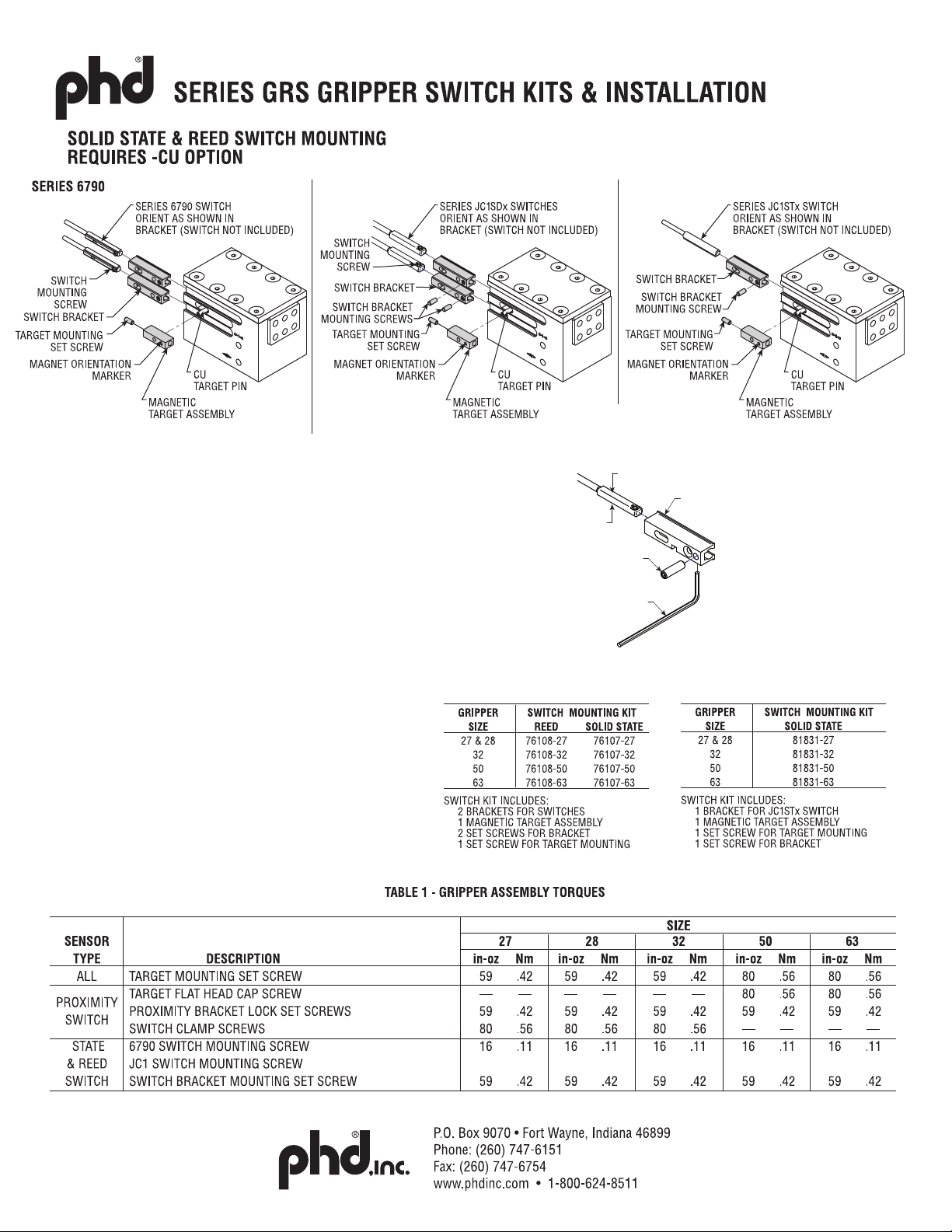

PHD GRS Series User manual

6441-427C
14 .10 14 .10 14 .10 14 .10 14 .10
INSTALLING & ADJUSTING 6790 SWITCHES.
1) Insert switch into switch bracket as shown.
2) Slide switch and bracket assembly into slots in body.
3) Adjust on/off position of switch and bracket assembly
per your requirements.
4) Tighten switch screw to recommended torque specification.
(see Table 1)
1) Apply removable threadlocker to target mounting set screw,
loosely install in target assembly.
2) Place target assembly on -CU target pin with magnet orientation
marker aligned as shown.
3) Tighten target mounting set screw to the recommended
torque specification. (see Table 1)
INSTALLING TARGET ASSEMBLY
6790 & JC1SDx
SWITCH MOUNTING KITS JC1STx SWITCH MOUNTING KITS
SERIES JC1STx
SERIES JC1SDx
HEX WRENCH
(SUPPLIED WITH SWITCH)
FRONT OF SWITCH
(PHD LOGO, LED,
HEX SET SCREW)
BACK OF SWITCH
SWITCH
BRACKET
SWITCH BRACKET
MOUNTING SCREW
JC1 SWITCH DETAIL VIEW
1) Insert switch into switch bracket oriented as shown. Align
switch screw with hole on side of the bracket (see JC1 Switch
Detail View)and tighten to the recommended torgue specification.
(see Table 1)
2) Slide switch and bracket assembly into slots in body.
3) Adjust on/off position of switch and bracket assembly
per your requirements.
4) Tighten bracket set screw to recommended torque specification.
(see Table 1)
INSTALLING & ADJUSTING JC1 SWITCHES.
DO NOT EXCEED RECOMMENDED TORQUE SPECIFICATIONS
