Philips CID3290/00 User manual

Register your product and get support at
www.philips.com/welcome CID3290
EN User manual 3

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your in-car entertainment system 5
Introduction 5
What’s in the box 6
Overview of the main unit 7
3 Get started 8
Install the car audio 8
Turn on 10
Set date and time 10
Adjust screen 11
4 Use map 12
Upgrade the map 12
5 Listen to radio 12
Tune to a radio station 12
Store radio stations in memory 13
Tune to a preset station 13
6 Play 14
Load discs 14
Connect USB device 14
Insert USB or SD/MMC card 14
Play/Pause 15
Skip/search 15
Direct select 15
Repeat one/all 16
Repeat a section 16
Random play 16
Select audio language 16
Select audio mode 17
Select subtitle language 17
Rotate pictures 17
Zoom 17
Select slide show duration 17
7 Play with Bluetooth device 18
Pair the Bluetooth-enabled devices 18
Make a call 18
Receive call 19
Listen to music from Bluetooth device 19
Adjust Bluetooth settings 20
8 Adjust sound 20
Adjust volume 20
Mute 20
Select preset equalizer 20
Adjust fader/balance 21
Set Dynamic Bass Boost (DBB) 21
9 Adjust settings 22
Display system setup menu 22
Adjust general settings 22
Adjust sound settings 23
Adjust video settings 24
Adjust Bluetooth settings 24
Adjust language settings 25
Adjust volume settings 26
Adjust DVD rating 26
10 Others 27
Listen to other devices 27
Reset 27
Replace fuse 27
11 Product information 28
General 28
Disc player 28
Radio 28
LCD 28
Bluetooth 29
12 Troubleshooting 30
About Bluetooth device 30
13 Glossary 31

4
The apparatus shall not be exposed to•
dripping or splashing.
Do not place any sources of danger on•
theapparatus(e.g.liquidlledobjects,
lighted candles).
Notice
The making of unauthorized copies of
copy-protectedmaterial,includingcomputer
programs,les,broadcastsandsound
recordings,maybeaninfringementof
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“DivX,DivX”Certied,andassociatedlogos
aretrademarksofDivX,Inc.andareused
under license.
OfcalDivX®Certiedproduct.Playsall
versionsofDivX®video(includingDivX®6)
withstandardplaybackofDivX®mediales.
TheBluetooth®wordmarkandlogosare
registered trademarks owned by Bluetooth
SIG,Inc.andanyuseofsuchmarksbyPhilips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby”andthedouble-Dsymbolare
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
1 Important
Safety
Read and understand all instructions•
before you use the apparatus. If damage
iscausedbyfailuretofollowinstructions,
the warranty does not apply.
Use of controls or adjustments or•
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Toreducetheriskoftrafcaccident,do•
no watch video during driving.
Toensuresafedriving,adjustthevolume•
to a safe and comfortable level.
Improper fuses can cause damage or•
re.Whenyouneedtochangethefuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
Toavoidshortcircuit,donotexposethe•
apparatus to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Never place any objects other than discs•
into the disc tray/slot.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the screen! Never•
touch,push,ruborstrikethescreenwith
any object.
Neverusesolventssuchasbenzene,•
thinner,cleanersavailablecommercially,
or anti-static sprays intended for discs.
Cleantheapparatuswithsoft,damp•
cloth. Never use substances such as
alcohol,chemicalsorhouseholdcleaners
on the apparatus.
EN

5
2 Your in-car
entertainment
system
Congratulationsonyourpurchase,and
welcometoPhilips!Tofullybenetfromthe
supportthatPhilipsoffers,registeryourproduct
at www.philips.com/welcome.
Introduction
Withthecarentertainmentsystem,youcan
Quickly found routine through the•
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from•
DVD,VCDorCD•
USB devices•
SD/SDHC/MMC cards•
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
Besides,youcanmake/receivephonecallswith
Bluetooth-enabled devices.
This apparatus includes this label:
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separateintothreematerials:cardboard(box),
polystyrene foam (buffer) and polyethylene
(bags,protectivefoamsheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packagingmaterials,exhaustedbatteriesand
old equipment.
Anychangesormodicationsmadetothis
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2010 © Koninklijke Philips Electronics N.V.
All rights reserved.
Specicationsaresubjecttochangewithout
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
English
EN

6
What’s in the box
Check and identify the contents of your package:
aMain unit
bISO wire
cCDC/camera cable
dAV OUT cable
eCMMB connector
f16 pin connector
gGPS antenna
hCleaning cloth
iPrinting material (include User manual,
Quick start guide)
ab
cd
ef
gh
i
EN

7
hSD card slot
iRESET
Reset the unit when it hangs up.•
j
Open the cover to insert USB•
device.
kAV IN
External equipment audio/video in•
socket.
lVOL +/-
Adjust volume.•
mNAVI
Enter the GPS navigation system or•
exit.
Overview of the main unit
aDisc slot
b
Eject disc.•
cFM/AM
Switch to the FM/AM source.•
dDISC
Switch to disc playing mode.•
e
Answer phone call.•
fDISP/ /
Adjust screen brightness.•
Turn on/off the screen display.•
gMap card slot
c
d
e
f
l
k
j
i
g
h
m
n
a p ob
English
EN

8
3 Get started
Caution
Use of controls or adjustments or performance•
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However,ifyourcarhasdifferentrequirements,
make the corresponding adjustment. If you have
anyquestionsregardinginstallationkits,consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
Toavoidshort-circuit:beforeyouconnect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (earth) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improperfusescancausedamageorre.
•
Whenyouneedtochangethefuse,consulta
professional.
nMENU
Return to the home menu.•
oBuilt-in microphone
p/MUTE
Turn the unit on or off.•
Turn mute on or off.•
EN

9
4 Connectwires(see“Connectwires”
section).

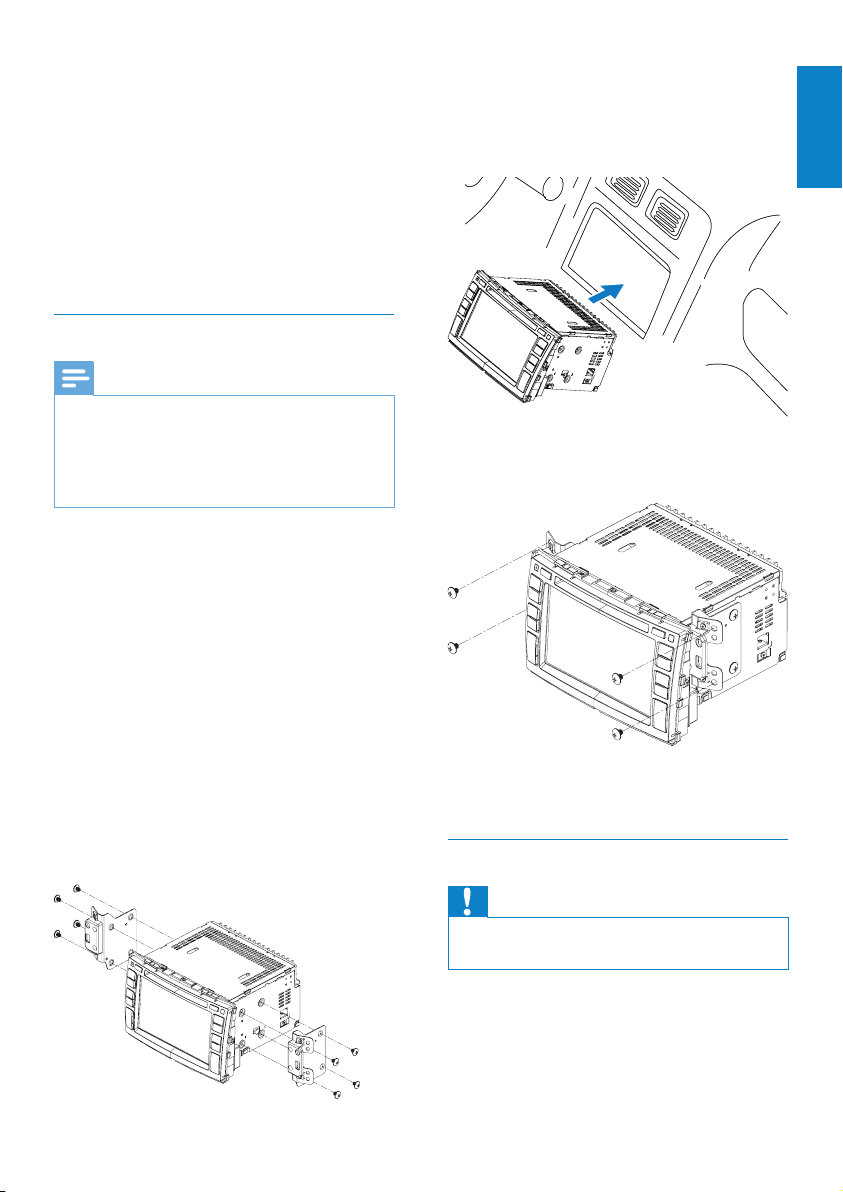

5Slide the unit into the dashboard until a
click sound is heard.
6Fix the unit onto the dashboard with
screws.
7Reconnect the negative terminal of the
car battery.
Connect wires
Caution
Ensure that all loose leads are insulated with•
electrical tape.
Note on the power supply lead (yellow)
When you connect other devices to this•
system,ensurethattheratingofthecar
circuit is higher than the total fuse value
of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the metal•
body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Mount in the dashboard
Note
Check wire connection before you mount the•
unit into a car.
If preset radio stations are lost when the ignition
•
keyisturnedOFFandthenbackON,reconnect
the red leads crosswise to the yellow ones.
1If the car does not have an on-board
driveornavigationcomputer,disconnect
the negative terminal of the car battery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigationcomputer,thecomputer
may lost its memory.
Ifthecarbatteryisnotdisconnected,•
toavoidshort-circuit,ensurethat
bare wires do not touch each other.
2Take out the original car audio and keep
the screws.
3Take off the mounting brackets from the
original car audio and mount them onto
this car audio system.
English
EN

10
2Tap a language to select.
The OSD language is changed to the»
selected language immediately.
Toturnofftheunit,press• for 3 seconds.
Set date and time
1Press MENU.
The main menu is displayed.»
1 Checkthecar’swiringcarefully,thendo
the other connections:
Turn on
Caution
Risk of road accidents! Never watch video or•
adjust settings while you drive.
1Press to turn on the unit.
The available OSD (On-Screen»
Display) languages are displayed.
Ye llowGreen Blue
Red
Black Yellow
Blue/white
Pink
Green/white
White/
brown
Orange/
white
Brown/
black
Gearbox
a
b
c
Red
White Yellow
Red
White Yellow
Amplifier
White White
Red Red Brown
Optional accessory
GPS antenna
Ye llow
Ye llow
Radio antenna
Rear display
Rear display
AV system
AUX
EN

11
3Tap or to set hour and minute.
Tip
Whendate/timeisset,tap•to return to main
menu.
Adjust screen
To turn off the screen
1Press DISP for over 2 seconds
The screen is turned off.»
Toturnonthescreen,press»DISP.
To adjust screen brightness
1Press DISP.
Brightness bar is displayed.»
2Tap VOL - or VOL + to adjust value.
3Press DISPtoconrm.
2Tap [Settings].
3Tap [Time].
The date/time setup menu is displayed.»
Set date
1Tap [Date].
2Tap the displayed date information.
A submenu is displayed.»
3Tap or tosetyear,monthandday.
Set clock mode
1Tap [Clock mode].
2Tap [12Hr] or [24Hr] to select clock
mode.
Set time
1Tap [Time].
2Tap the displayed time.
A submenu is displayed.»
English
EN

12
5 Listen to radio
Tune to a radio station
1Tap to display home menu.
2Tap [Radio].
Band and frequency information is»
displayed.
3Tap on FM or AM to select band:
FM band options:• FM1, FM2, FM3
AM band options:• AM1, AM2
4 Brieytap or to tune to a radio station
by step.
Tap• or for over 1 seconds to
tune to a radio station automatically.

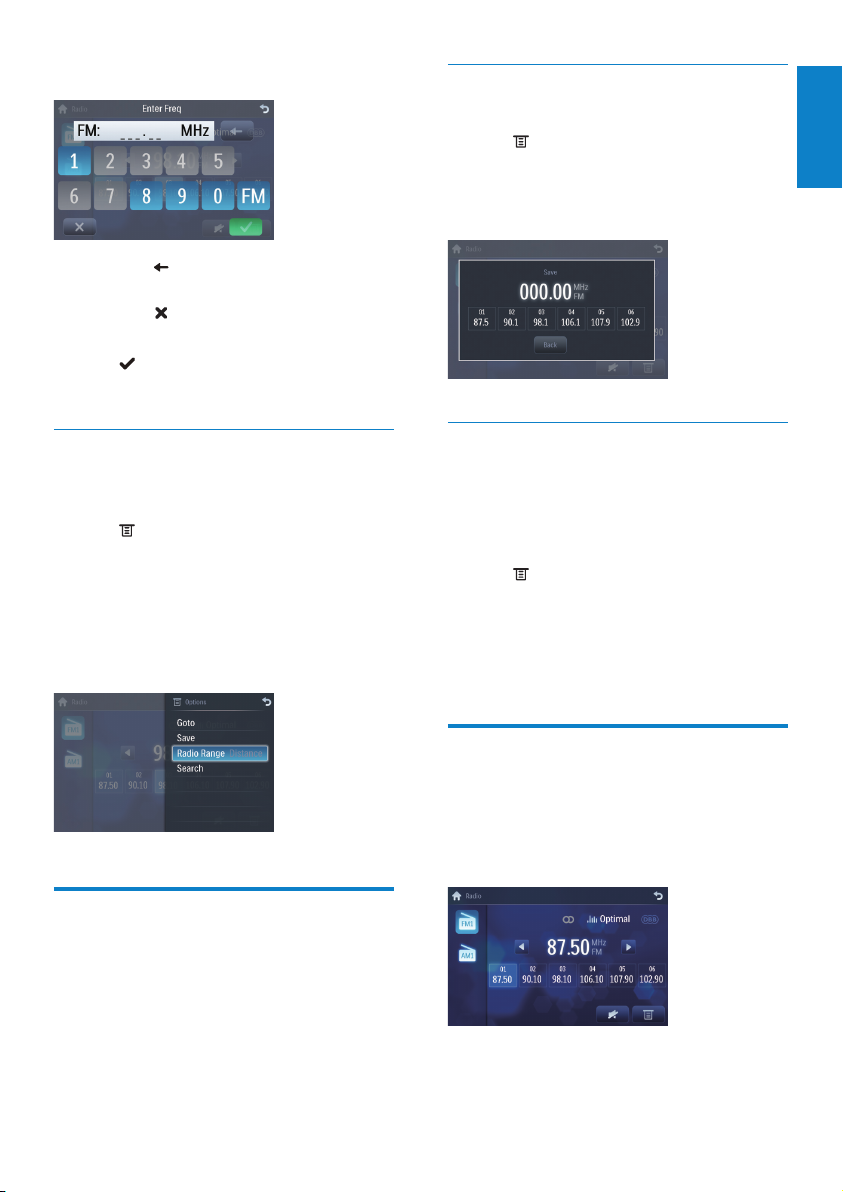

Tune by frequency
1Tap FM or AM to select band.
2Tap .
3Tap [Goto].
4 Use map
Note
You may need to upgrade the map (sold•
separately) before using it (see “Upgrade the
map”section)
1Tap the upper left corner to display home
menu.
2Tap [Navigation].
The navigation menu is displayed in a»
few seconds.
3Refer to the map manual to operate the
navigation tool.
Tip
You can press•NAVI to enter/exit the navigation
system.
Upgrade the map
1Turn off the car audio system.
2Press the map card (sold separately) until
you hear a click sound.
3Take out the card and bring it to the
authorized service center for upgrade.
4Insert the upgraded map card back into
the map card slot.
5Turn on the car audio.
The map upgrades in a few minutes.»
EN

13
Store stations manually
1Tune to the station.
2Tap .
3Tap [Save].
4Tap one of the channels 01 to 06 to save
the select band.
Store stations automatically
Youcansearchforastationwithintrosearch,
which broadcasts a 10-second preview of each
detected radio station.
1Select band.
2Tap .
3Tap [Search].
Auto search starts.The six strongest»
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1Tap [Radio].
2Select band.
3Tap one of the preset channels (01 to 06)
to select a preset station.
4Tap the numbers to enter frequency.
Tap• to clear the last entered
number.
Tap• to clear all the entered
numbers.
5Tap toconrm.
The radio station is broadcast.»
Select radio range
Beforeyoustarttosearchforradiostations,
you can select radio range.
1Tap .
2Tap [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and weak
signals can be broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
English
EN

14

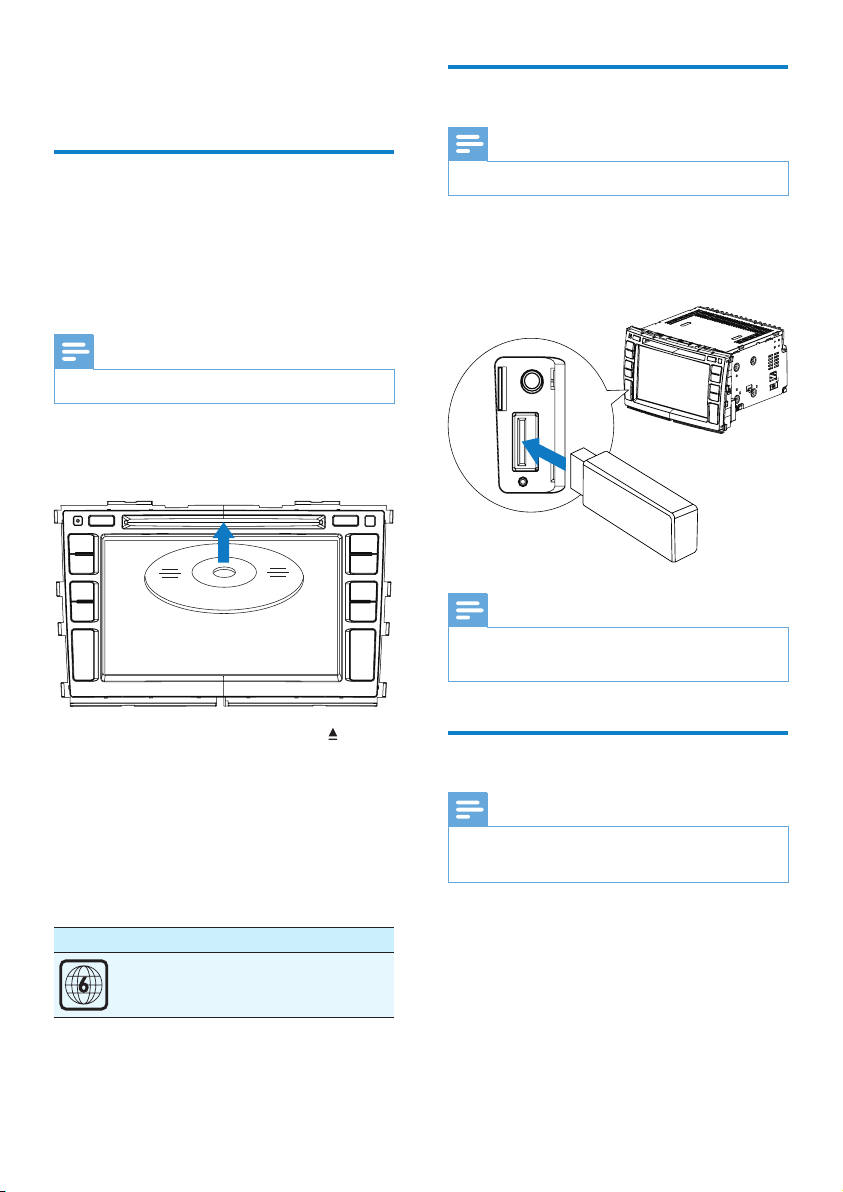

Connect USB device
Note
Ensure that the device contains playable content.•
1Open the USB door.
2Insert the USB device to the USB socket.
Play starts automatically.»
Note
ToremovetheUSBdevice,switchtodisc,radio•
orothersourcerst.
Insert USB or SD/MMC card
Note
Ensure that the device contains playable content.•
The unit supports SDHC card.•
1Insert the SD/MMC card into the SD/MMC
card slot.
Play starts automatically.»
6 Play
Load discs
Youcanplayvideo,audioorimagesstoredon
the following discs:
DVDvideo,DVD-R,DVD-RW•
VCD•
AudioCD,CD-R,CD-RW•
Note
Ensure that the disc contains playable content.•
1Insert the disc into the disc slot with label
side facing up.
Play starts automatically.»
Toremovethedisc,pressthe»button.
Whenthediscisejected,theunit»
switchestotheprevioussource,
ifconnected.Otherwise,the
unit switches to [Radio] mode
automatically.
You can play DVD discs with the following
region codes:
DVD region code Country
China
EN

15
Skip/search
1Tap to return to playlist menu.
2Tap one of below icons to select folder/
le:
• : To display all available audio
folders/track.
• : To display all available picture
folders/les.
• : To display all available video
folders/les
3Tap or to select a folder/track.
4Tap to start play.
Direct select
1Tap anywhere except for the upper left
cornertodisplaymenuonthescreen,if
necessary.
2Tap .
The search screen is displayed.»
Remove the SD/MMC card
1Switch to another source.
2Press the card until you hear a click sound.
The card is now disengaged.»
3Remove the SD or MMC card.
Play/Pause
1 Onceadisc,USBorSD/MMCcardis
inserted,playstartsautomatically.
ForDVDmovie,ifamenuappears,tap
to start play.
2 Topause,tap .
Toresumeplay,tap• again.
English
EN

16
For audio les:
1Tap to select:
• -1: play the current track repeatedly.
• -Folder: play all the tracks in the
current folder repeatedly.
• (in grey color): cancel repeat play.
Repeat a section
Youcanrepeataspecicsectionofvideole
(repeat A-B).
1 Duringplay,tapanywhereexceptforthe
upper left corner to display menu on the
screen,ifnecessary.
2Tap todisplaythe2ndmenu,if
necessary.
3Tap repeatedly to mark:
• [Repeat A-]: the start of the section
to repeat.
• [Repeat A-B]: the end of the section
to repeat.
The selected section plays repeatedly.•
4 ToexitA-Brepeatmode,tap
repeatedly until [Repeat A-B off] is
displayed.
Random play
Youcanplayaudiotracks/lesinrandomorder.
1 Duringplay,tap repeatedly to turn
random play on or off.
• is highlighted : start random play.
• turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1 Duringplay,tapanywhereexceptforthe
upper left corner to display menu on the
screen,ifnecessary.
3 Tapthenumberstoenterchapter/le
number,thentap .
Toclearthepreviousinput,tap• .
Toclearallinput,tap• .
Or tap• rstandthentapthe
numbers to enter time.
Repeat one/all
Duringplay,youcanselectdifferentrepeatplay
modes.
For DVD/VCD movie disc:
1Tap anywhere except for the upper left
cornertodisplaymenuonthescreen,if
necessary.
2Tap to display the 2nd menu.
3Tap to select:
• [Repeat chapter]: play the current
chapter repeatedly.
• [Repeat title]: play all chapters in the
title repeatedly.
• [Repeat off]: cancel repeat play.
For VCD karaoke:
1Tap to select:
• [Repeat one]: play the current track
repeatedly.
• [Repeat off]: cancel repeat play.
EN

17
Zoom
You can zoom in pictures for a close view.
1 Duringviewpictures,tapanywhere
except for the upper left corner to display
menuonthescreen,ifnecessary.
2Tap repeatedly to zoom in the picture.
3Tap , , or to pan through the
enlarged picture.
Select slide show duration
1Tap anywhere except for the upper left
cornertodisplaymenuonthescreen,if
necessary.
2Tap repeatedly to select:
• Fast: 3 seconds
• Normal: 5 seconds
• Slow: 8 seconds
2Tap to display the 2nd menu.
3Tap repeatedly.
The audio channel information is»
displayed on the upper line of the
screen.
Select audio mode
WhenyouplayVCDs,youcanselectanaudio
mode (R/L/Stereo).
1 Duringplay,tapanywhereexceptforthe
upper left corner to display menu on the
screen.
2Tap repeatedly until the audio mode
is selected.
Select subtitle language
For DVD or DivX discs that contain two or more
subtitle languages.
1 Duringplay,tapanywhereexceptforthe
upper left corner to display menu on the
screen,ifnecessary.
2Tap to display the 2nd menu
3Tap repeatedly to select a language.
The selected language is displayed.»
Rotate pictures
1 Whenyouviewpictures,tapanywhere
except for the upper left corner to display
menuonthescreen,ifnecessary.
2Tap repeatedly to rotate the picture.
English
EN

18

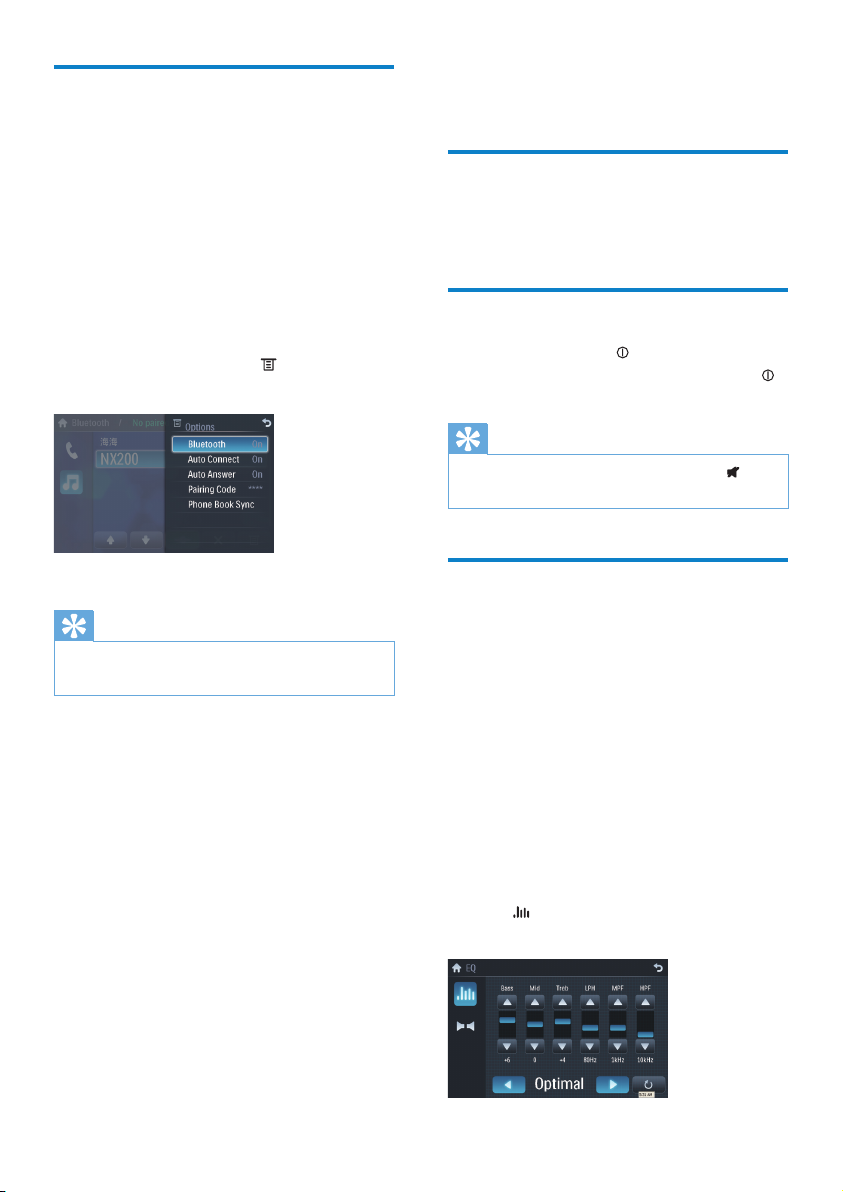

Disconnect Bluetooth devices
1 Todisconnectonedevice,tap (red).
»(green) is displayed.
Tip
The device will also be disconnected when the•
device is moved beyond the operational range.
If you want to reconnect the device to the
•
unit,placeitwithintheoperationalrange.
If you do not want to reconnect the device to
•
theunitautomatically,tap >[Auto connect],
then select [Off].Fordetails,seethe“Adjust
Bluetoothsettings”section.
Make a call
1Pair the phone with the unit.
2Tap to display the home menu.
3Tap [Bluetooth].
The Bluetooth menu is displayed.»
4Tap or toselectthepairedphone,
then tap .
7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth-
enabled device.
Pair the Bluetooth-enabled
devices
ToconnectyourBluetoothdevicetotheunit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a•
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this
•
unit,familiarizeyourselfwiththeBluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not
•
guaranteed.
Any obstacle between this unit and a Bluetooth
•
device can reduce the operational range.
Keep this unit away from any other electronic
•
device that may cause interference.
Turn on the Bluetooth function on the device.
•
1Search for Bluetooth device with the
device.
2 Select“CID3290”inthepairinglist.
3 Enterdefaultpassword“0000”.
if pairing succeeds. phone call record is»
displayed.
EN

19
Switch phone call to the mobile
If you do not want your passenger to hear
yourincomingcall,youcanswitchthecallto
the mobile.
1 Duringtalking,tap .
The voice is transferred from the unit’s»
loudspeaker to the mobile phone.
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
AdvancedAudioDistributionProle(A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
AudioVideoRemoteControlProle(AVRCP)
prole,youcanusethecontrolontheunitto
play music stored on the device.
1Pair the phone with the unit.
2Tap to return to home menu.
3Tap [Bluetooth].
The Bluetooth menu is displayed.»
4Start play music via device.
If your device support AVRCP.
1Tap .
2Tap to start play.
5Tap or to search for phone number
from the following list:
• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]
Or tap todialnumberdirectly,thentap
to dial.
Receive call
Bydefault,allincomingcallsarereceived
automatically.
1 Ifthereisincomingcall,[Incoming call...]
ashesonthescreen.Speakintothe
Bluetooth microphone.
2 Whenconversationends,tap (red)
to terminate the call.
Tip
You can select to receive calls manually by set•
[Auto answer] to [Off] status.
English
EN

20
8 Adjust sound
Adjust volume
1Press VOL + to increase volume.
Press• VOL - to reduce volume.
Mute
1 Duringplay,press .
Toturnthesoundbackon,press•
again.
Tip
You can also turn off sound by tapping•on
the screen.
Select preset equalizer
You can select preset equalizer:
• [User]
• [Techno]
• [Rock]
• [Classic]
• [Jazz]
• [Optimal]
• [Flat]
• [Pop]
1Tap anywhere except for the upper left
cornertodisplaymenuonthescreen,if
necessary.
2Tap .
The current Equalizer setting is displayed.»
Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Bluetooth]:toturnonoroff“Bluetooth”
function
• [Auto connect]: to turn on or off “Auto
connect”function
• [Auto answer]: to turn on or off “Auto
answer”function
• [Pairing code]: to set paring code
• [Phone Book Sync]: to synchronize phone
book
1 InBluetoothmenu,tap .
The option menu is displayed.»
2Tap an option to change the setting.
Tip
You can also adjust Bluetooth settings in the•
“Settings”menu.
EN
