Philips AWP3753 User manual

説明書
User manual
Hướng dẫn sử dụng
7-12
1-6
13-18
On-tap
AWP3753
AWP3754
Water Solutions

6
7
8
4
5
1
2
3
12
d
c
a b
ab
10
9
11
Ghi chú thời gian
1
Vỏ hộp lọc
2
Hộp lọc
3
4Vòng đệm kín
5
Bộ giữ hộp lọc
6
Cửa xả nước lọc
7
8Nút hỗ trợ
9Cửa xả nước không lọc
Vành Đai ốc
10
Bộ tiền lọc
11
Bộ điều hợp tùy chọn
12
Loại A
a
Loại B
b
Loại C
c
Cờ lê nhỏ
d
VN

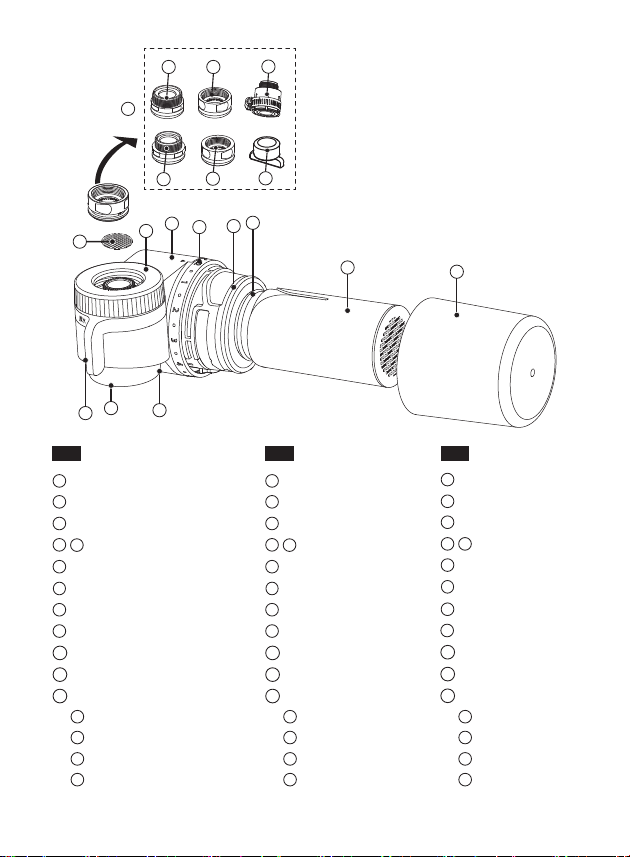

Timer
1
Filter cartridge housing
2
Filter cartridge
3
4Seal ring
5
Filter cartridge holder
6
Filtered water outlet
7
8Selection button
9Unltered water outlet
Attachment nut
10
Pre-lter
11
Optional adaptors
12
A-Type
a
B-Type
b
C-Typ e
c
Mini wrench
d
EN
日期轉動盤
1
濾芯上蓋
2
濾芯組件
3
4密封圈
5
濾芯底座
6
淨水出水口
7
8切換按鍵
9原水出水口
快接連接螺母
10
前置濾網
11
適配器組件
12
A類
a
B類
b
C類(萬用接頭)
c
迷你扳手
d
TC

Vành Đai ốc
1
Bộ giữ hộp lọc
2
Ghi chú thời gian
3
4Vòng đệm kín
5
Hộp lọc
6
Vỏ hộp lọc
7
8Cửa xả nước lọc
9Cửa xả nước không lọc
Cần gạt
10
Bộ tiền lọc
11
Bộ điều hợp tùy chọn
12
Loại A
a
Loại B
b
Loại C
c
Cờ lê nhỏ
d
VN
Attachment nut1
Filter cartridge holder
2
Timer
3
Seal ring
45
Filter cartridge
6
Filter cartridge housing
7
8Filtered water outlet
9Unltered water outlet
Selection lever
10
Pre-lter
11
Optional adaptors
12
A-Type
a
B-Type
b
C-Typ e
c
Mini wrench
d
EN
快接連接螺母1
濾芯底座
2
日期轉動盤
3
密封圈
45
濾芯組件
6
濾芯上蓋
7
8淨水出水口
9原水出水口
把手
10
前置濾網
11
適配器組件
12
A類
a
B類
b
C類(萬用接頭)
c
迷你扳手
d
TC
12
d
c
a b
ab
12345
67
10 9
11
8

1
1. Installation and usage
- This device can only attach to faucets with a diameter between 15mm and 24mm.
- Before attaching the device on the faucet, the matching adaptor should be selected first.
- The adaptors allow this device to be attached to most faucets, except for:
·faucets with a diameter of less than 15mm or more than 24mm
·faucets with a shower head
·faucets with rectangular or oval shaped outlets
·faucets with a sensor head
Installation
Preparation
Based on different adaptors, please refer to different installation methods.

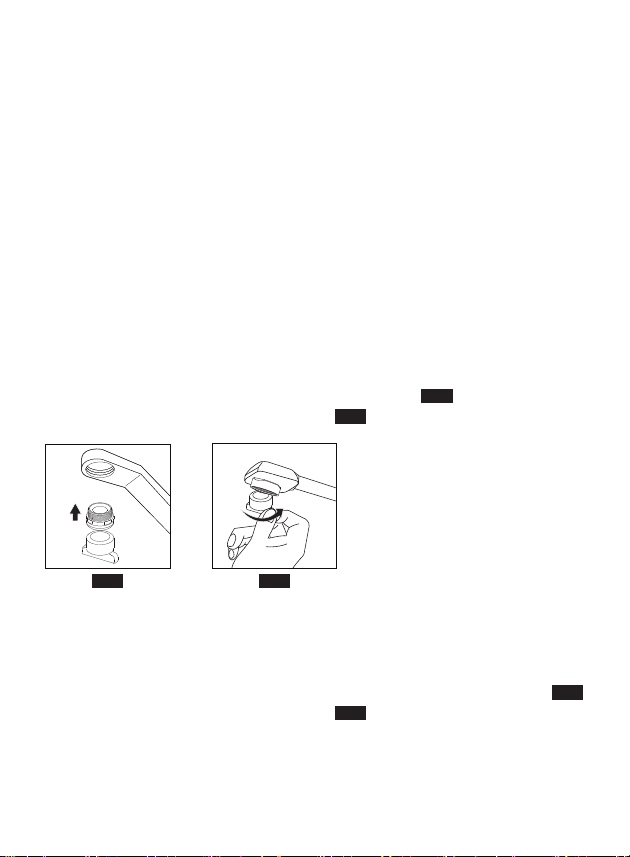

Installing A-type adaptors
Applicable for faucet aerators with male thread
(1) Remove the original aerator cap and seal ring from the tap.
(2) Screw the matching adaptor (A-type) onto the faucet.
(3) Use mini wrench to tighten the adaptor.
Installing B-type adaptors
Applicable for faucet aerators with female thread
(1) Remove the original aerator cap from the tap.
(2) Take out the original adaptor and screw the matching adaptor (B-type) onto the tap.
(3) Use mini wrench to tighten the adaptor.
B1-1
B1-2
A1-1
A1-1 A1-2
A1-2

2

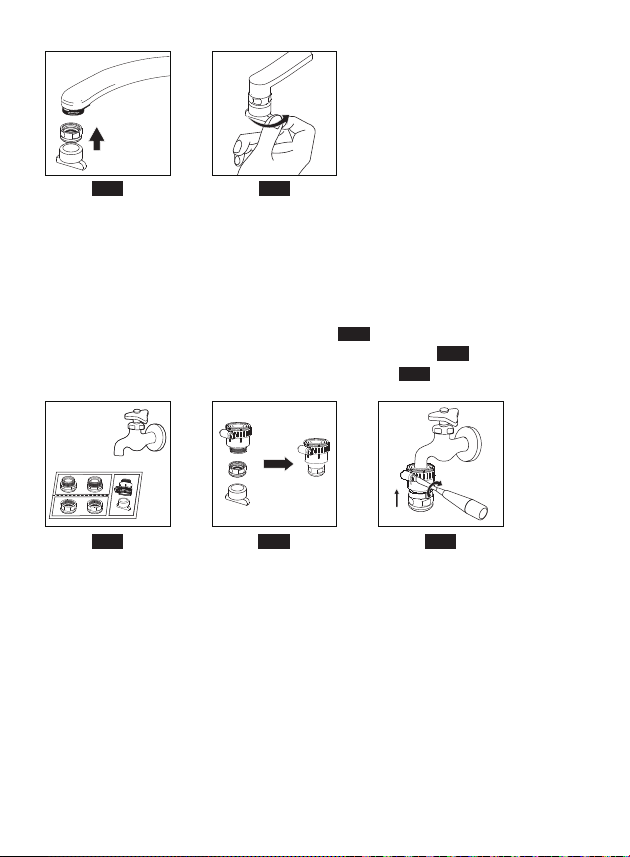

Installing C-type adaptor
Applicable for faucets other than A or B with a diameter of 15mm-21mm. Please prepare
a slotted screwdriver in advance before installing C-type adaptor.
(1) Whether the inner or the outer seal ring of C-type adaptor is necessary depends on
the dimension of the faucet outlet.
(2) Combine the B-type adaptor with the C-type adaptor.
(3) Adjust and screw the combined adaptors onto faucet.
Installing the device
(1) Unscrew the filter cartridge housing.
(2) Take the filter cartridge out from the protective film, and put it in the holder. Put the
housing back.
(3) Anticlockwise turn the attachment nut and attach the device to the faucet, then
release the nut.
(4) Set up the timer,
a. Point the arrow to the starting month
b. When to replace the filter depends on the user number and the daily usage:
·1 person
·· 2 persons
··· 3 persons
C1-1
C1-1
C1-2
C1-2
C1-3
C1-3
B1-1 B1-2
