Philips Micro Pure WP3811 User manual

WP3811

2

3
1

4


 6
 17
 29

6

Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.

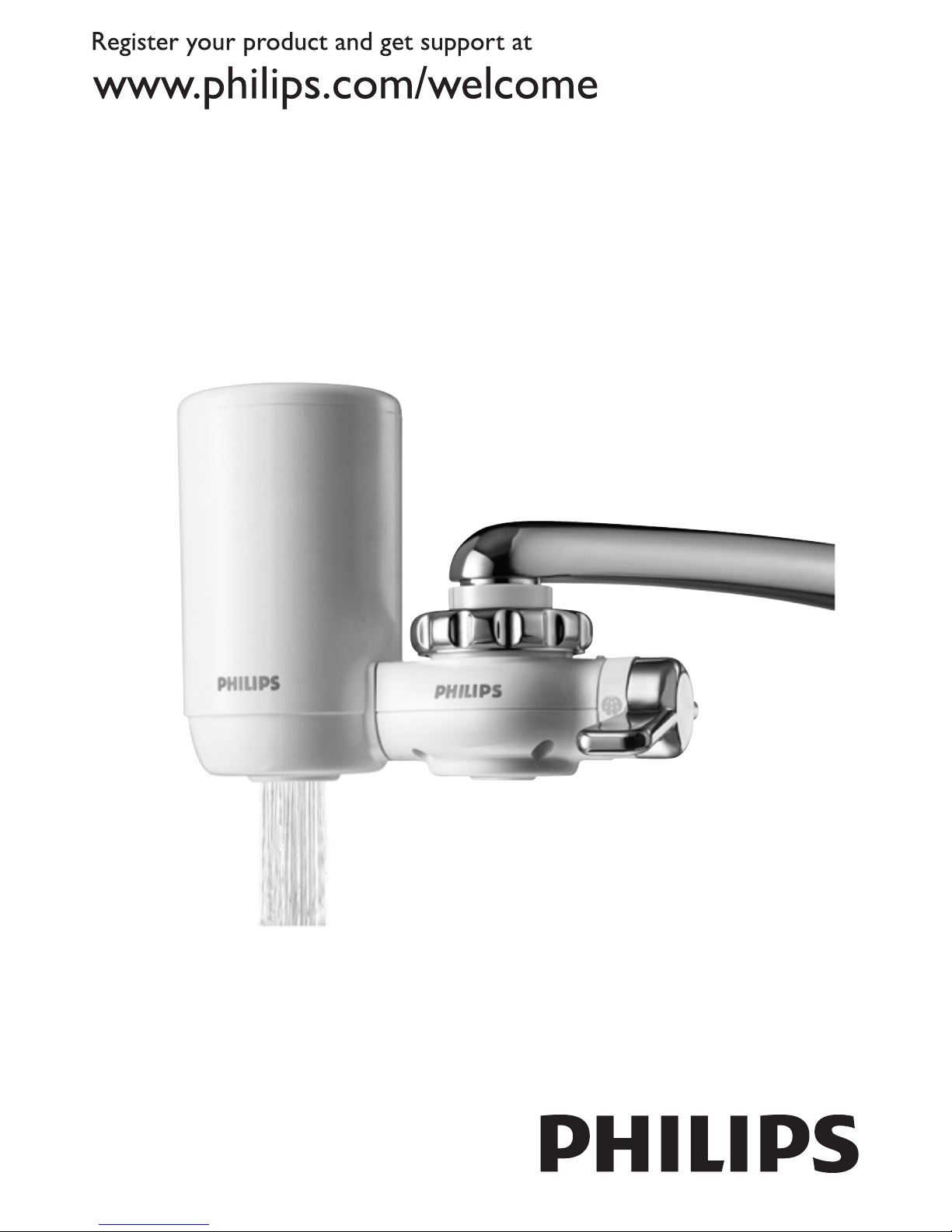

You have made an excellent choice. The Philips Micro Pure is a compact
and easy-to-install water purier that gives you pure water by removing
bacteria, harmful organic compounds and chlorine while keeping all the
good minerals in your water. Pure water made easy, by Philips.


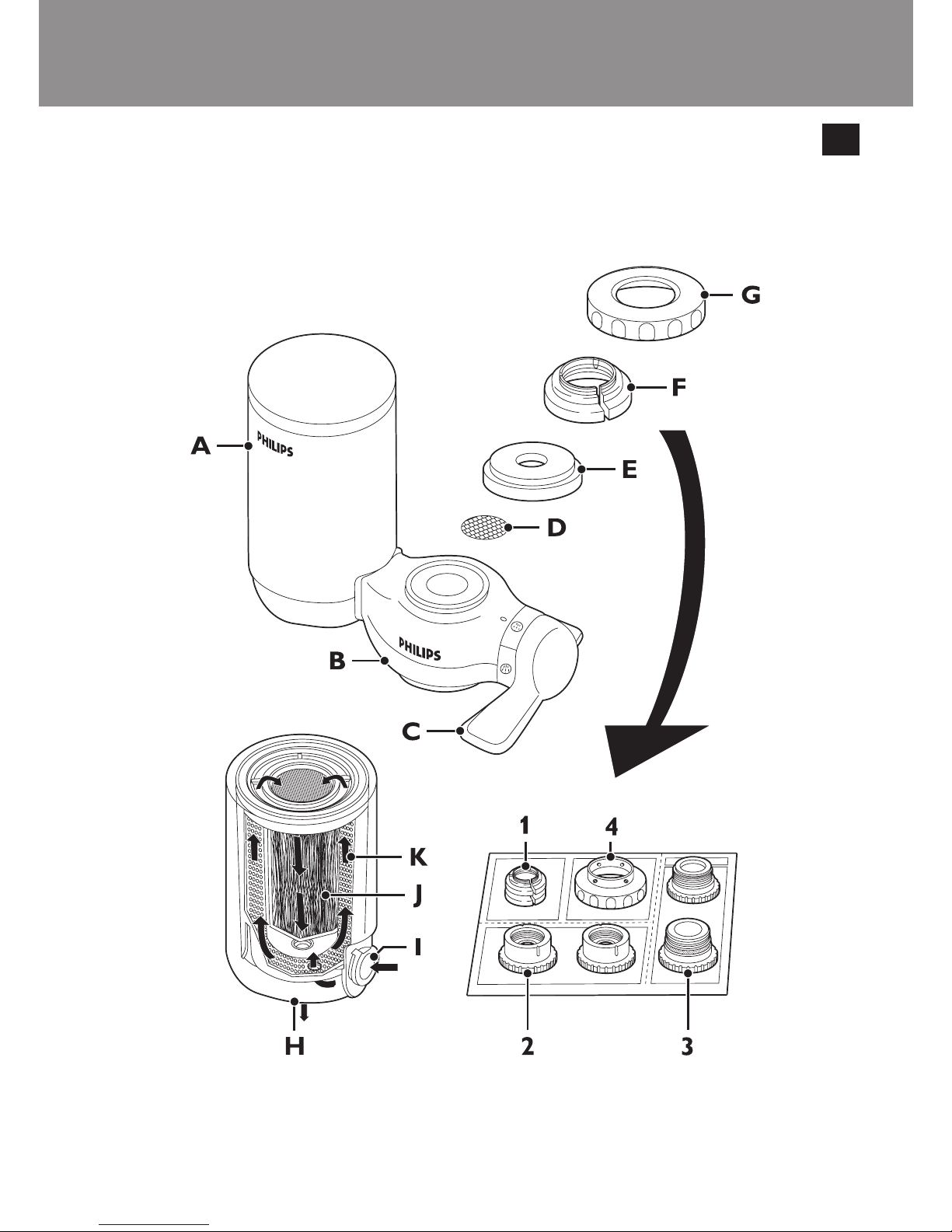

 Filter cartridge
 Water purier housing
 Water selection lever
 Stainless steel screen
 Rubber washer
 Adapter
 A-type
 B-type
 C type
 D-type
 Attachment nut
 Filtered water outlet
 Unltered water inlet
 Hollow bre
 Granular activated carbon

Read this user manual carefully before you use the water purier and
save it for future reference.

- This water purier is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given


supervision or instruction concerning use of the water purier by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with
the water purier.

- To prevent quick clogging of the lter cartridge, let the water run at
the unltered setting for around 5 seconds before every use.
- If the water is highly coloured or turbid due to work on your water
network, do not let the water run at the ltered setting until the
water is clear.
- Cautions:
1 Let the water run at the ltered setting for 10 seconds before use
each day.
2 Let the water run at the ltered setting for 60 seconds before use if
you have not used the water purier for more than two days.
3 If you have not used the water purier for more than two weeks, let
the water run at the ltered setting for 2-3 minutes before use. If the
lter cartridge emits an unpleasant smell, replace it with a new one.

- Do not let water hotter than 65°C run through the water purier at
the unltered setting or hotter than 50°C at the ltered setting.
This may damage the water purier.
- Do not let the water purier freeze.

- Only use the water purier to lter water that meets drinking water
standards.
- Do not use this water purier in combination with electric taps.
- Do not block the ltered water outlet or connect other devices to it.
- If the water pressure is very high, reduce the water ow of the tap to
prevent damage to the cartridge.
- Keep the water purier away from heat to avoid distortion or
breakage.
- Do not tamper with the water purier.
 7

- Do not remove the lter cartridge while you use the water purier.
- Do not install the water purier near a window where it is exposed
to direct sunlight.
- Do not use the water purier without a lter cartridge.
- This water purier does not soften water.
- Do not use ltered water in aquariums. Tap water, ltered or
unltered, can be harmful to sh.
- This water purier is intended for household use only.
- Do not store puried water to avoid contamination. Air contact
contaminates puried water quickly. If you want to store puried
water, use a clean container and keep it in the refrigerator. Do not
keep it in the refrigerator longer than 1 day to avoid contamination.

- Philips’ multi-ltration system consists of a primary lter, a secondary
lter, a high-tech hollow-bre membrane lter and a granular
activated carbon lter.
- The hollow bre membrane contains more than 520 billion
micropores that are small enough to remove particles down to
0.1µm. It eliminates 99.99%* of bacteria, rust and other particles
larger than the micropore size from your tap water without removing
calcium, magnesium and other minerals that are vital to your body. (*
tested according to Japanese Water Purier Association (JWPA)
standard).
- The granular activated carbon removes the unpleasant chlorine smell
and taste from your tap water.
- Apart from the recommended cartridge lifetime, Philips’ unique
cartridge replacement indicator helps you determine when to replace
the lter cartridge.
- The 2ltrs/min high-speed initial ow rate gives you a plenty of clean
water instantly.
- The water selection lever offers you a choice of three water ow
types: unltered spray, unltered stream or ltered spray.
- The eight tap-mounting adapters supplied with the water purier
allow easy installation on almost any type of tap.
8

- The bayonet-type mount ensures quick, easy and secure lter
cartridge replacement.


- Before you install the water purier, make sure all tap-mounting
adapters you require are present.
- The tap must have a diameter of 13mm-25mm.
- Determine what type of tap you have and select the appropriate
adapter.
- The adapters supplied make the water purier suitable for almost
any kitchen tap. However, the water purier may not t some
uncommon types of taps.
- The tap water pressure has to be between 0.7kgf/cm² (7 metres of
water column) and 3.5kgf/cm² (35 metres of water column). If you
use the water purier at a water pressure outside this range, either
the ltered water ow will be extremely low or the water purier
will get damaged.

- For taps with a round spout with a diameter of 16mm, 17.5mm or
19mm (Fig. 2).
1 Remove the attachment nut and the adapter from the water
purier housing (Fig. 3).
2 Pass the attachment nut over the tap spout (Fig. 4).
3 Place the matching adapter (A-type) over the tip of the spout. The
16mm adapter is packed with the water purier. Replace it with
the 17.5mm adapter or 19mm adapter to t the diameter of your
tap (Fig. 5).
4 Screw the attachment nut rmly onto the water purier
housing (Fig. 6).

- For taps with an aerator (threaded outside) (Fig. 7).
 9

1 Remove the attachment nut and the adapter from the water
purier (Fig. 8).
2 Remove the aerator cap from the tap and pass the attachment nut
over the spout. Take out the original adapter and screw the
matching adapter (B-type) onto the tap (Fig. 9).
3 Tighten the adapter further with a coin (Fig. 10).
4 Firmly screw the attachment nut onto the water purier
housing (Fig. 11).

- For taps with an aerator (threaded inside) (Fig. 12).
1 Remove the attachment nut and the adapter from the water
purier housing (Fig. 13).
2 Remove the aerator cap from the tap. Take out the original adapter
and screw the matching adapter (C-type) onto the tap through the
attachment nut. (Fig. 14)
3 Tighten the adapter further with a coin (Fig. 15).
4 Firmly screw the attachment nut onto the water purier
housing (Fig. 16).

- For taps other than A, B or C. (Fig. 17)
1 Remove the attachment nut and the adapter from the water
purier housing (Fig. 18).
2 Take out the original adapter and screw the D-type adapter onto
the water purier housing. (Fig. 19)
3 Push the water purier housing onto the tap from below and
tighten the 4 screws evenly (Fig. 20).
4 Screw the attachment nut rmly onto the water purier
housing (Fig. 21).
Make sure the rubber washer is rmly pushed against the tap to prevent
water leakage.
10


1 Make sure the tap is closed.
2 Set the water selection lever to the unltered stream
position (Fig. 22).
3 Tilt the lter cartridge 90° backwards and insert it into the water
purier housing. (Fig. 23)
4 Pull the cartridge upwards until it is in upright position. (Fig. 24)

1 Make sure that the water purier housing and the lter cartridge
are properly installed.
2 Turn the water selection lever to the desired setting (‘click’).

Select this setting for drinking, washing vegetables or fruits and
for cooking.
1 Turn the water selection lever until the ltered spray symbol is
aligned with the indicator (Fig. 25).
Do not let water hotter than 50°C run through the water purier at
this setting, as this may damage the water purier.
If you lter water between 35°C and 50°C, the water may have an
unpleasant smell. The lter cartridge has absorbed this smell during
ltering, but releases it again if you lter water hotter than 35°C.

Select this setting for washing dishes and other jobs that require a gentle
water ow.
1 Turn the water selection lever until the unltered spray symbol is
aligned with the indicator (Fig. 26).
 11

Do not let water hotter than 65°C run through the water purier at
this setting, as this may damage the water purier.

Select this setting for a strong water ow.
1 Turn the water selection lever until the unltered stream symbol is
aligned with the indicator (Fig. 22).
Do not let water hotter than 65°C run through the water purier at
this setting as this may damage the water purier.

Never use scouring pads, abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the water purier. These substances
may cause cracking, discolouration or distortion.
1 Clean the water purier with a damp cloth.

New lter cartridges are available under type number WP3911.
Replace the lter cartridge if it is clogged to prevent damage to the
water purier.
1 For optimal performance of the water purier, replace the lter
cartridge if either of the following situations occurs:
 You have used the lter cartridge for six months.
 The hollow bre of the lter cartridge (visible through the cartridge
window) has turned rust brown or dark grey (see section ‘Cartridge
replacement indicator’).
 The volume of puried water decreases substantially.
 The ltered water still has an unpleasant smell or is still turbid
after purication.
2 To change the lter, close the tap and set the water selection lever
to the unltered stream position. (Fig. 22)
12

3 Tilt the used lter cartridge 90° backwards and pull it off the water
purier housing (Fig. 23).
4 Write down the replacement date on the information label of the
new cartridge.
5 Tilt the new lter cartridge 90° backwards and insert it into the
water purier housing.
6 Pull the cartridge upwards until it is in upright position. (Fig. 24)

- We advise you to replace the lter cartridge every 6 months, for
optimum performance. Please register your product online at http://
www.philips.com/welcome for more information on lter cartridge
replacement.
- To help you determine when to replace the lter cartridge, the water
purier and each replacement lter cartridge comes with a self-
adhesive colour-coded cartridge replacement indicator. Place this
replacement indicator in a convenient place for future reference.
Tip: Remove the cover of the lter cartridge and stick the cartridge
replacement indicator to the inside of the cover. Check the colour of the
hollow bre of the lter cartridge through the cartridge window from time to
time. If the colour of the lter matches the rust brown or dark grey shown on
the cartridge replacement indicator, replace the lter cartridge (Fig. 27).

If you need service or information or if you have a problem, please visit
the Philips website at www.philips.com or contact the Philips Consumer
Care Centre in your country (you nd its phone number in the
worldwide guarantee leaet). If there is no Consumer Care Centre in
your country, go to your local Philips dealer.
 13


This chapter lists the questions most frequently asked about the water
purier. If you cannot nd the answer to your question, contact the
Consumer Care Centre in your country.
Question Answer
Why does water
leak from
the attachment nut?
Perhaps you have not installed the water
purier properly. Reinstall the water purier
according to the instructions in this user manual.
Perhaps the attachment nut or the tap-
mounting adapter is damaged. Contact an
authorised Philips service centre.
Perhaps the tap water pressure is higher than
specied.
You may need to wind some Teon tape around
the thread of the adapter.
Why is the water
ow weak at
the unltered
setting?
Perhaps the stainless steel screen under the
rubber washer inside the water purier housing
is clogged. Clean it with a toothbrush and rinse
it.
Why is the water
ow is weak at the
ltered setting?
Perhaps the lter cartridge is clogged. Replace
the lter cartridge.
Perhaps the tap water pressure is lower than
specied.

Product name and
type number WP3811 Philips Micro Pure
14

Type Direct tap mount
Major lter
components Polysulphone hollow-bre membrane and granular activated carbon
Initial water ow rate 2ltrs/min. (water pressure at 1kgf/cm2, water
temperature at 20°C)
Chlorine reduction
capacity WP3911-2,500ltrs (water density at 2ppm)
Turbidity reduction
capacity 3,000ltrs (water turbidity at 2NTU)
Filter lifetime Approximately 6 months at 10ltrs a day (the
actual lifetime depends on the quality of the
local water and the water pressure)
Replacement lter
cartridge WP3911
Minimum water
pressure 0.7kgf/cm² (7 metres of water column/70kPa)
Maximum water
pressure 3.5kgf/cm² (35 metres of water column/350kPa)
Accessories WP3911 lter cartridge, 8 tap-mounting
adapters, cartridge replacement indicator
Water purier
dimensions 105mm x 121mm x 83mm (H x W x D)
Packaging dimensions 140mm x 170mm x 84mm (H x W x D)
Weight Approximately 330g
Country of origin Japan
* Above specications are according to Japanese JIS S 3201 Standard.
 15

Point of Use (POU) installation. Input water quality: only use water
provided by your local water company and that complies with
Administrative Rule 518 issued by the Brazilian Ministry of Health.
WP3811/ WP3911
This water purier also complies with Brazilian
standard ABNT NBR 14908 ---
The apparatus is intended to be used for water
that complies with Administrative rule 518
issued by Ministry of Health
---
Internal volume of the appliance for test of
extractable amount 130ml
Reference volume for particle test approx. 2,500 liters
Minimum temperature of water at POU 1°C
Maximum temperature of water at POU 35°C
Free chlorine reduction efciency - Class C C I (≥ 75%)
Particle retention efciency – Class P P I (≥ 0,5 a <1μm)
Bacteriological retention efciencycomplies with
NBR 14908 ---
16

17

Enhorabuena por la compra de este producto y bienvenido a Philips. Para
sacar el mayor partido de la asistencia que Philips le ofrece, registre su
producto en www.philips.com/welcome.
Ha hecho una excelente elección. Micro Pure de Philips es un puricador
de agua compacto y fácil de instalar que le proporciona agua pura al
eliminar las bacterias, los compuestos orgánicos nocivos y el cloro al
mantener todos los minerales beneciosos en el agua. Agua pura de
forma fácil, por Philips.

 Cartucho de ltrado
 Carcasa del puricador de agua
 Palanca de selección
 Rejilla de acero inoxidable
 Arandela de goma
 Adaptador de corriente
 Tipo A
 Tipo B
 Tipo C
 Tipo D
 Tuerca de jación
 Salida de agua ltrada
 Entrada de agua sin ltrar
 Fibra hueca
 Carbono activo granulado

Antes de usar el puricador de agua, lea atentamente este manual de
usuario y consérvelo por si necesitara consultarlo en el futuro.

- El puricador de agua no debe ser usado por personas (adultos o
niños) con su capacidad física, psíquica o sensorial reducida, ni por
quienes no tengan los conocimientos y la experiencia necesarios, a


menos que sean supervisados o instruidos acerca del uso del
puricador de agua por una persona responsable de su seguridad.
- Asegúrese de que los niños no jueguen con el puricador de agua.

- Para evitar que el cartucho de ltrado se obstruya enseguida, deje
correr el agua en la posición sin ltrar durante unos 5 segundos antes
de cada uso.
- Si el agua está muy turbia o coloreada debido a que se están
realizando trabajos en la red de suministro, no la deje correr en la
posición de ltrado hasta que esté clara.
- Precauciones:
1 Deje correr el agua en la posición de ltrado durante 10 segundos
antes de usarla cada día.
2 Deje correr el agua en la posición de ltrado durante 60 segundos
antes de usarla si no ha utilizado el puricador de agua desde hace
más de dos días.
3 Si no ha utilizado el puricador de agua desde hace más de dos
semanas, deje correr el agua en la posición de ltrado durante 2 ó
3 minutos antes de usarla. Si el cartucho de ltrado despide un olor
desagradable, sustitúyalo por uno nuevo.

- No deje que agua a más de 65 °C pase a través del puricador en la
posición sin ltrar, ni a más de 50 °C en la posición de ltrado, ya que
ello podría dañar el puricador de agua.
- No deje que el puricador de agua se congele.

- Utilice el puricador de agua sólo para ltrar agua que cumpla los
estándares del agua potable.
- No utilice este puricador de agua con grifos eléctricos.
- No bloquee la salida de agua ltrada ni conecte otros dispositivos a
ella.
- Si la presión del agua es demasiado alta, reduzca el ujo de agua del
grifo para evitar daños en el cartucho.
18

- Mantenga el puricador de agua alejado del calor para evitar
deformaciones o roturas del mismo.
- No intente manipular el puricador de agua.
- No quite el cartucho de ltrado mientras utiliza el puricador de
agua.
- No coloque el puricador de agua cerca de una ventana en la que
quede expuesto a la luz solar directa.
- No utilice el puricador de agua sin cartucho de ltrado.
- Este puricador de agua no “ablanda” el agua.
- No utilice agua ltrada en acuarios. El agua del grifo, ltrada o no,
puede ser nociva para los peces.
- Este puricador de agua está diseñado únicamente para uso
doméstico.
- No almacene agua puricada para evitar que se contamine. El
contacto con el aire contamina el agua puricada rápidamente. Si
desea almacenar agua puricada, utilice un recipiente limpio y
guárdelo en el frigoríco. No lo guarde en el frigoríco más de un día
para evitar que el agua se contamine.

- El sistema multiltros de Philips está compuesto por un ltro principal,
un ltro secundario, un ltro de membrana de bra hueca de alta
tecnología, y un ltro de carbono activo granulado.
- La membrana de bra hueca contiene más de 520 mil millones de
microporos sucientemente pequeños para eliminar partículas de
hasta 0,1 µm. Elimina el 99,99%* de las bacterias, óxido y otras
partículas mayores que el microporo del agua del grifo, sin eliminar el
calcio, el magnesio y otros minerales vitales para el cuerpo. (*
Analizado según el estándar de la Asociación Japonesa de
Puricadores de Agua [JWPA, Japanese Water Purier Association].)
- El carbono activo granulado elimina el olor y sabor desagradables del
cloro del agua del grifo.
- Además de la vida útil recomendada para el cartucho, el exclusivo
indicador de sustitución del cartucho de Philips le ayuda a determinar
cuándo sustituir el cartucho de ltrado.
 19

- La alta velocidad del ujo inicial de 2 l/min le proporciona al instante
agua limpia abundante.
- La palanca de selección le permite elegir entre tres ujos de agua
diferentes: difusor sin ltrar, chorro sin ltrar o difusor ltrado.
- Los ocho adaptadores para acoplar al grifo que se suministran con el
puricador de agua permiten una instalación fácil en casi cualquier
tipo de grifo.
- El montaje tipo bayoneta asegura una sustitución rápida, fácil y segura
del cartucho de ltrado.


- Antes de instalar el puricador de agua, asegúrese de que tiene todos
los adaptadores que vaya a necesitar para acoplar al grifo.
- El grifo debe tener un diámetro de 13 a 25 mm.
- Determine el tipo de grifo que tiene y seleccione el adaptador
adecuado.
- Los adaptadores suministrados permiten instalar el puricador de
agua en casi cualquier grifo de cocina. Sin embargo, puede que el
puricador de agua no sea apropiado para modelos de grifos poco
corrientes.
- La presión del agua del grifo debe estar entre 0,7 kgf/cm² (7 metros
de columna de agua) y 3,5 kgf/cm² (35 metros de columna de agua).
Si utiliza el puricador de agua con una presión del agua que no esté
comprendida en ese rango, puede que el ujo de agua ltrada sea
extremadamente lento o que el puricador de agua se dañe.

- Para grifos con una boquilla redonda con un diámetro de 16 mm,
17,5 mm o 19 mm (g. 2).
1 Quite la tuerca de jación y el adaptador de la carcasa del
puricador de agua (g. 3).
2 Pase la tuerca de jación por la boquilla del grifo (g. 4).
20
