PLANEPRINT EAGLE User manual

PRINTING & ASSEMBLING MANUAL
PRINTING & ASSEMBLING MANUAL
EAGLE
You can find the STL data
at www.planeprint.com
NOTE: Slicing only
works with CURA!

EAGLE
2
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PRINTING THE PARTS – PRINTING PROFILES
You may wonder why this 3D model is suitable exclusively for CURA right?
The most important thing about small RC model airplanes is always the ratio of size to weight.
The lighter a model is, the better its flight characteristics and also the flight time is significantly
increased.
With our unique design process, we manage to make Weights relevant items in a true 1-wall prin-
ting process for the outer skin but also for the filling offer. So we save weight while maintaining the
necessary stability.
Here we show you how to get started from a standard CURA profile Make settings. For this model
we only need 4, easy to create profiles.
It is absolutely necessary to observe the information provided by PLANEPRINT.com in order:
to slice the component correctly. However, it may make sense to perfect your 3D printing by
additionally performing several hiring activities depending on your printer and the filament used.
The development of a complex, airworthy RC flight model to express on any standard 3D printer is
a very complex and extensive process. Therefore, we appeal to your fairness not to forward the STL
data you have acquired to third parties. Our STL files are provided with indelible copyright water-
marks that can be verified at any time.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
IMPORTANT FOR
THE 1-WALL-PRINT!
In order to print airfoils of the lowest possi-
ble weight with high stability, it is necessa-
ry to print with only one wall line (Nozzle 0.4
mm). Decisive here is the adhesion between
the layers! To achieve this, you must print at
a much higher temperature than normal. As
a guideline, 230 ° C is a good starting point.
The parts-cooling fan should be set to 0% or
a maximum of 20%. Since not every printer
works the same, it may be necessary to make
small adjustments to these settings.
For slicing all Planeprint
models, four profiles have
to be created in Cura:
PROFILE P1_fullbody
PROFILE P2_hollowbody
PROFILE P3_surface
PROFILE P4_flex
You can find the description at
www.planeprint.com/print

EAGLE
3
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P1_FULLBODY
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
eagle-Motormount-profile1.stl
MATERIAL PLA, Weight: ~ 2 g
ADDITIONAL SETTINGS
None required
eagle-Servomount-profile1.stl
MATERIAL PLA, ~ 2 g
ADDITIONAL SETTINGS
None required

EAGLE
4
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P1_FULLBODY
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
eagle-Tail hinge-profile1.stl
MATERIAL PLA, ~ 7 g
ADDITIONAL SETTINGS
None required
eagle-wingservo_xxx-profile1.stl
MATERIAL PLA, ~ 2 g
ADDITIONAL SETTINGS
None required

EAGLE
5
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
eagle-Parts-profile1.stl
MATERIAL PLA, ~ 5 g
ADDITIONAL SETTINGS
None required
PROFILE P1_FULLBODY
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!

EAGLE
6
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

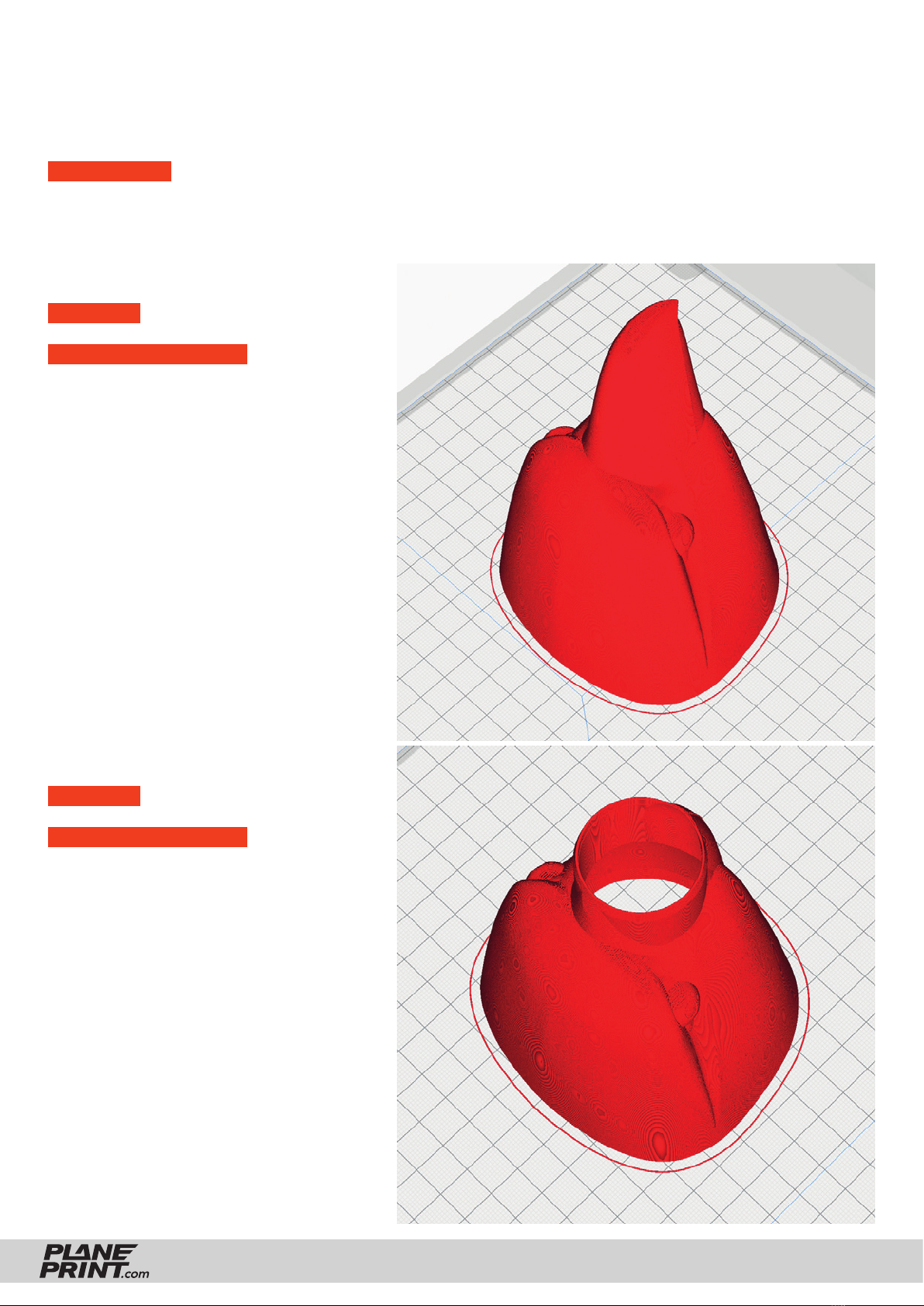

eagle-Head-profile3.stl
MATERIAL PLA, ~ 28 g
ADDITIONAL SETTINGS
None required
eagle-Motorhead-profile3.stl
MATERIAL PLA, ~ 28 g
ADDITIONAL SETTINGS
None required

EAGLE
7
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

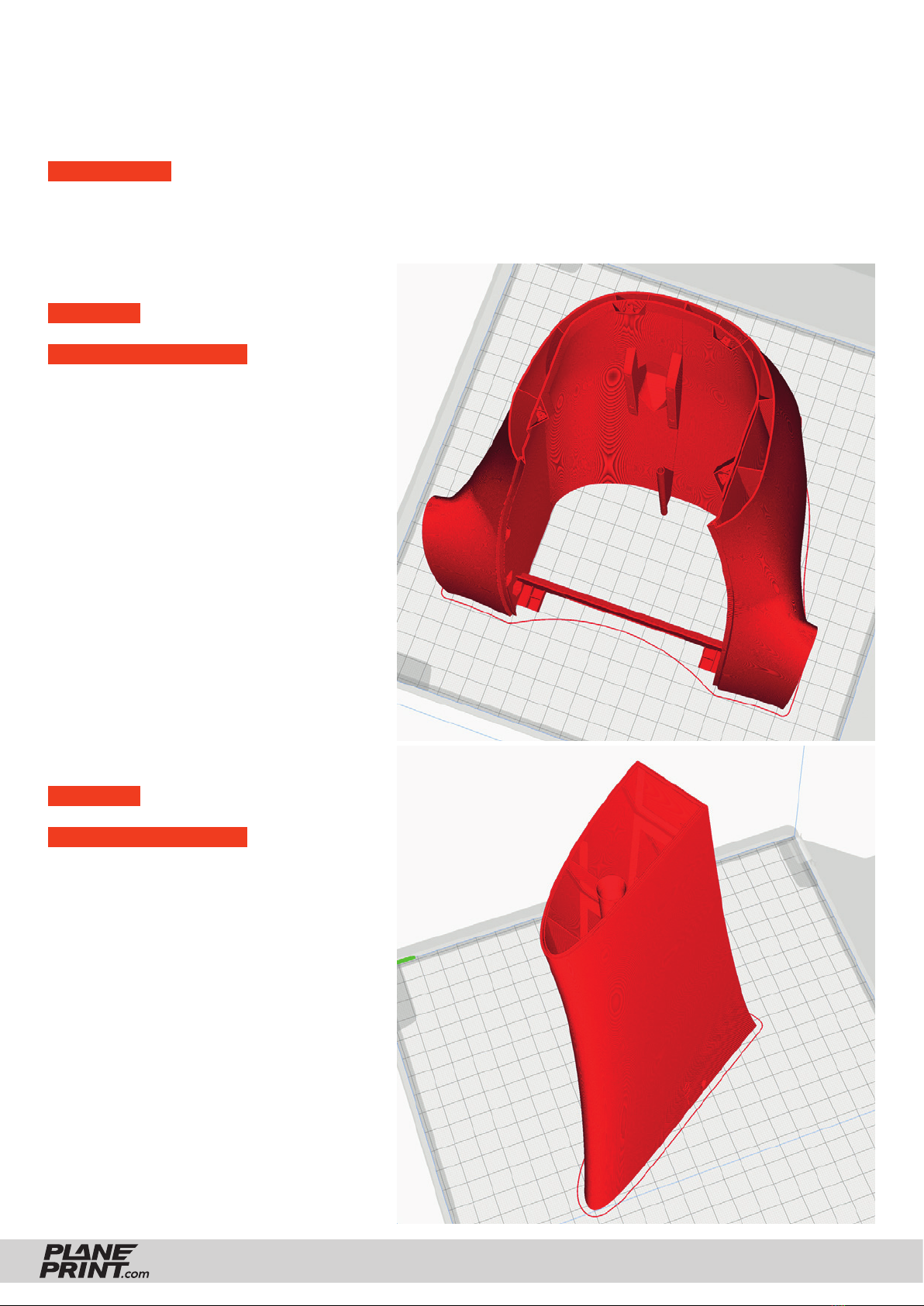

eagle-Body1-profile3.stl
MATERIAL PLA, ~ 88 g
ADDITIONAL SETTINGS
None required
eagle-Wing1-left/right-profile3.stl
MATERIAL PLA, ~ 37 g
ADDITIONAL SETTINGS
None required

EAGLE
8
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

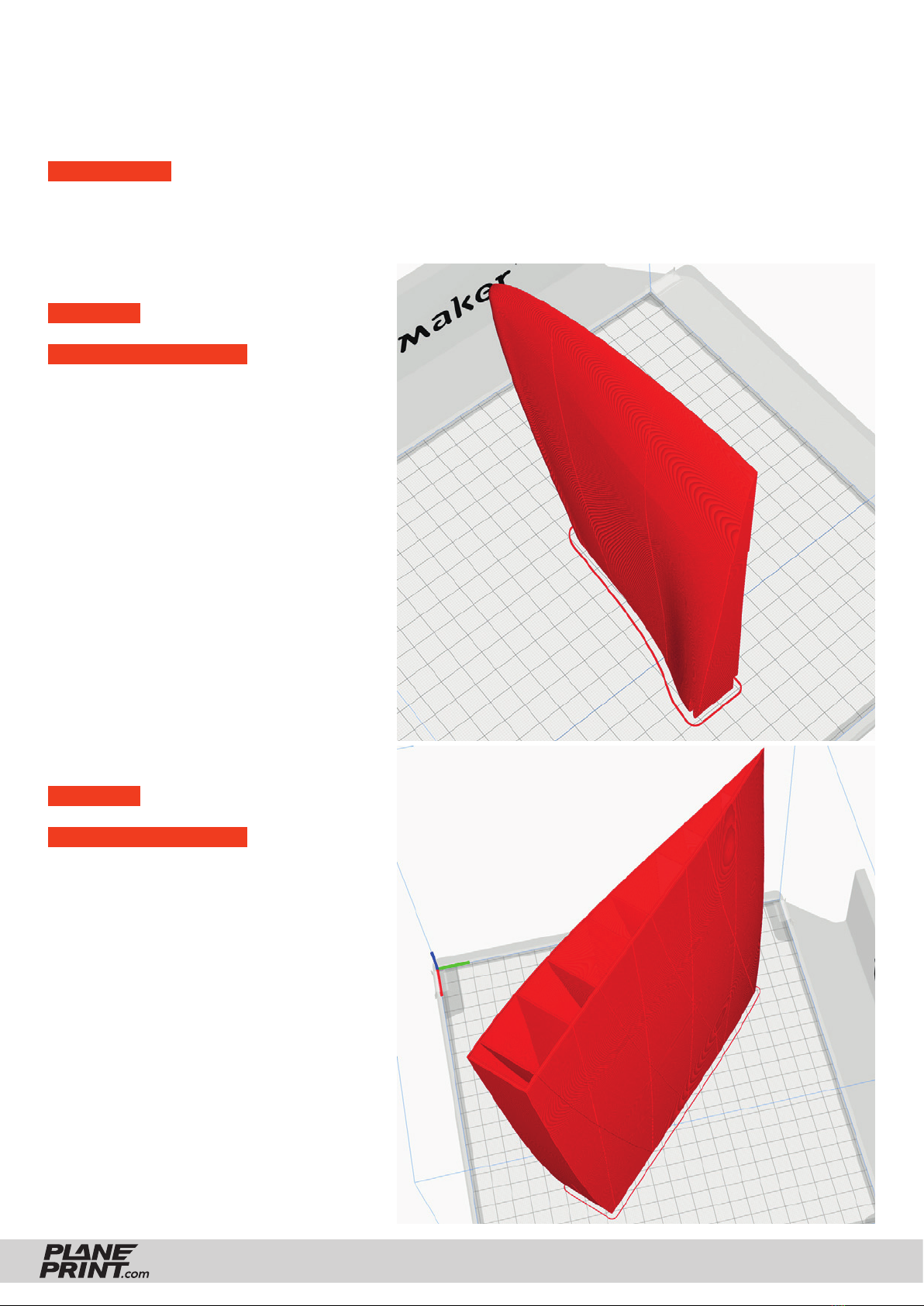

eagle-Wing2-left/right-profile3.stl
MATERIAL PLA, ~ 33 g
ADDITIONAL SETTINGS
None required
eagle-Wing3-both-profile3.stl
MATERIAL PLA, ~ 33 g
ADDITIONAL SETTINGS
None required

EAGLE
9
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

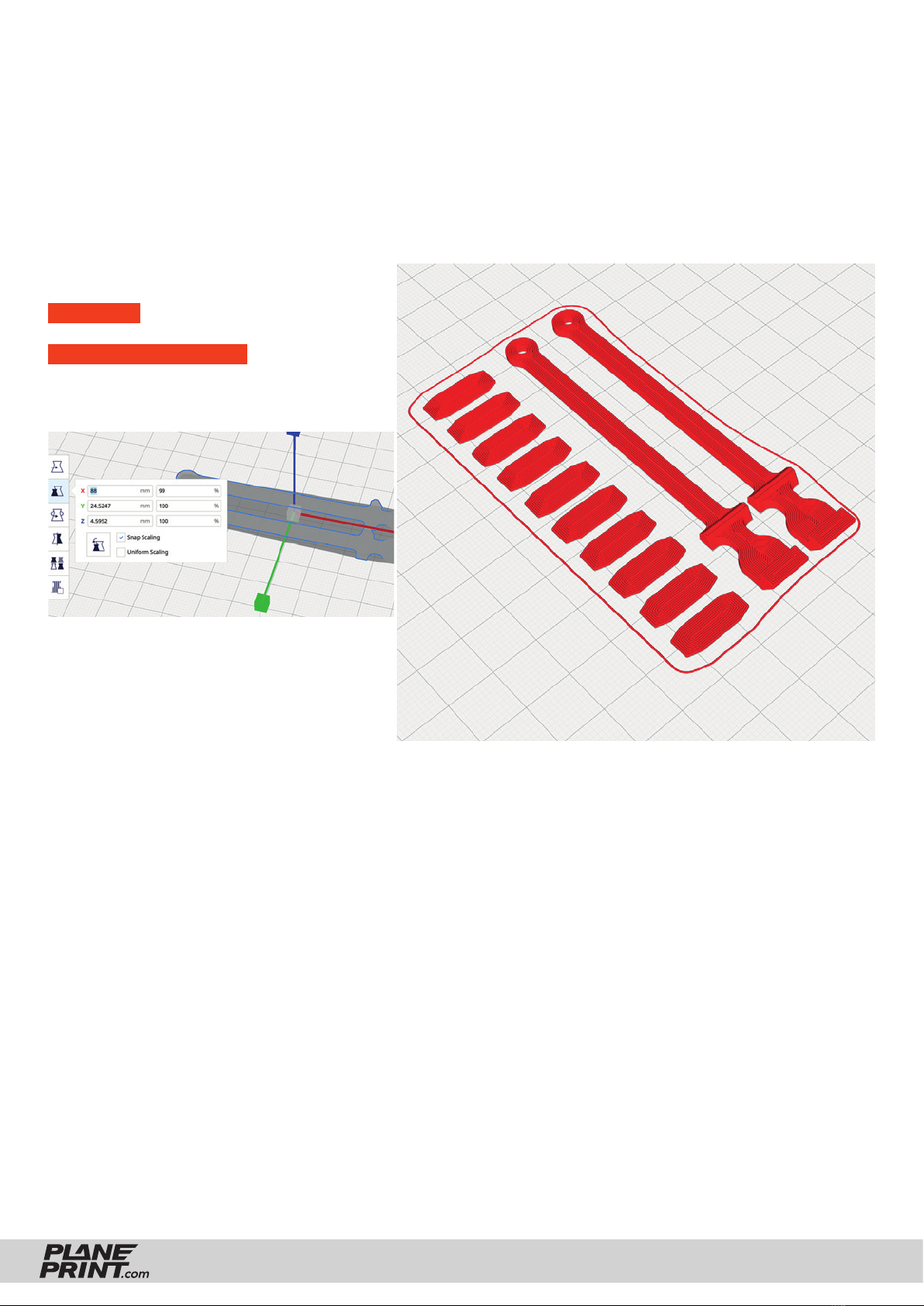

eagle-Servocovers-profile3.stl
MATERIAL PLA, ~ 2 g
ADDITIONAL SETTINGS
None required
If you have problems with printing, there
is a combined version in the Individual
parts folder.

EAGLE
10
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
eagle-Body2_LW-profile3.stl
MATERIAL LW-PLA, ~ 105 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
eagle-Body3_LW-profile3.stl
MATERIAL LW-PLA, ~ 38 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

EAGLE
11
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

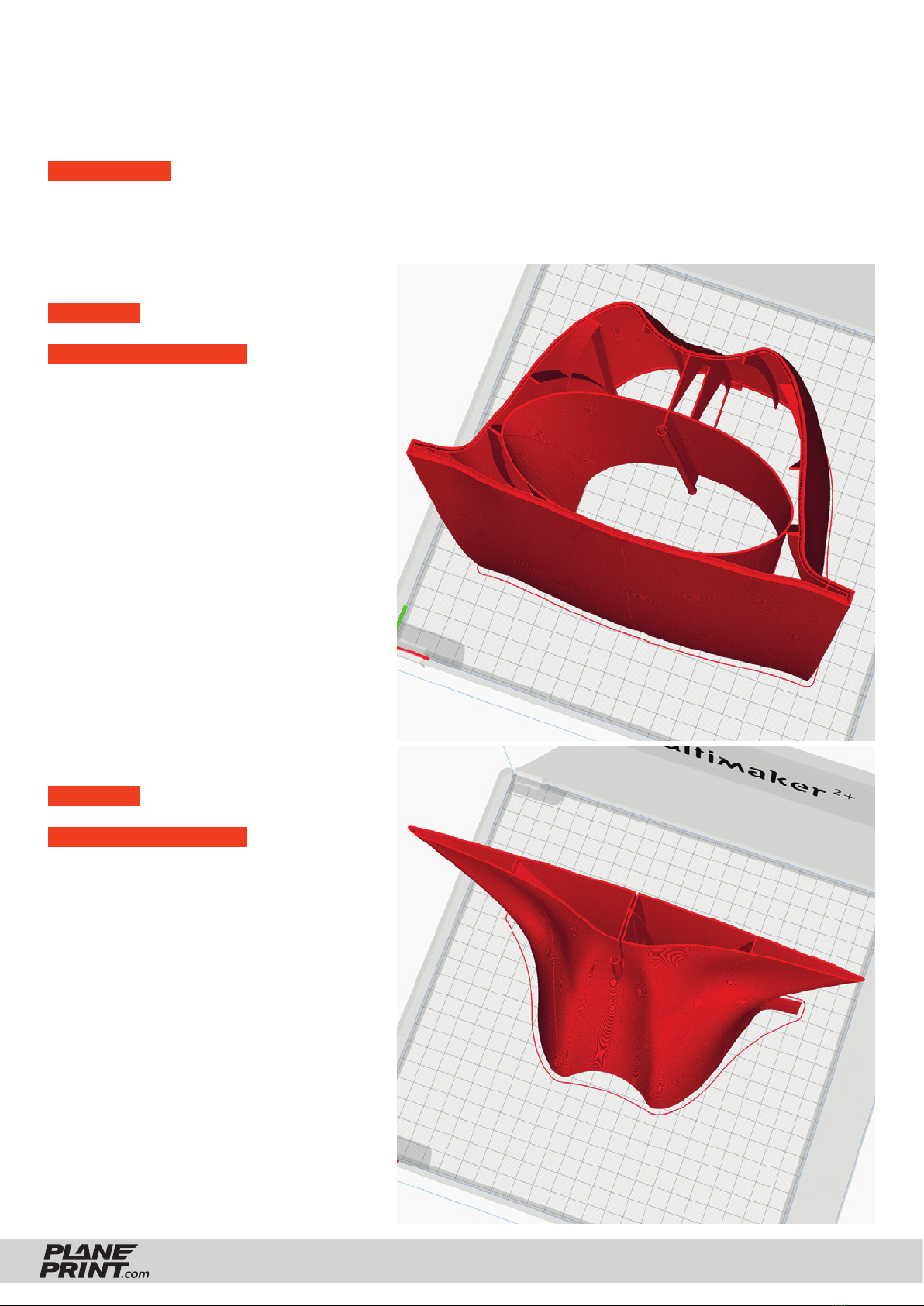

eagle-Aileron1_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 18 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
eagle-Aileron2_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 15 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

EAGLE
12
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
eagle-Aileron3_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 10 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
eagle-Cover_LW-profile3.stl
MATERIAL LW-PLA, ~ 21 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

EAGLE
13
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
eagle-Tail-left/right_LW-profile3.stl
MATERIAL LW-PLA, ~ 23 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
eagle-Wing4_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 74 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

EAGLE
14
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
eagle-Wing5_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 78 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
eagle-Wing6_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 63 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

EAGLE
15
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
eagle-Wing7_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 37 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
eagle-Wing8_LW-left/right-profile3.stl
MATERIAL LW-PLA, ~ 30 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
LW PLA
Since stringing is unfortunately unavoidable when
printing LW-PLA, this part have to be cleaned up
with the cutter.

EAGLE
16
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P4_FLEX
The following parts must be sliced with the PROFILE P4_FLEX.
Please note the additional settings for the individual parts!
eagle-Parts-flex-profile4.stl
MATERIAL TPU ~ A95, Weight: ~ 4 g
ADDITIONAL SETTINGS
• Wall Line Count: 10
Tension belt lenght
In the folder Individual parts you will find the tension
belts also as a single file. If you want to change them
slightly in length, you can simply change the dimen-
sion of the X-axis in Cura (Uniform scaling must NOT
be selected).

EAGLE
17
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
REQUIRED ACCESSOIRES
Filament
• normal PLA about 400 grams
• LW-PLA about 500 grams (Absolutely necessary)
• TPU (A95) about 10 grams

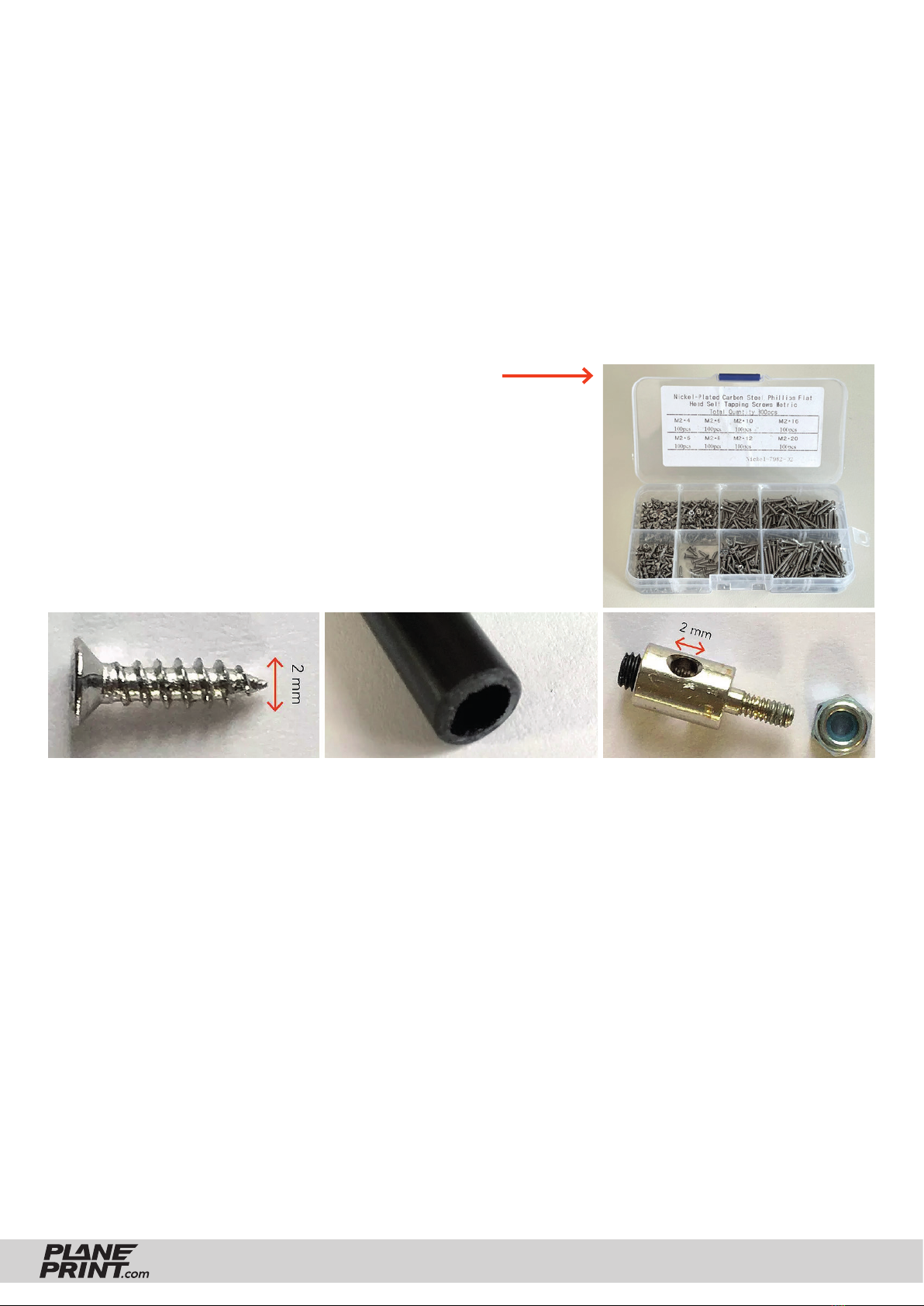

Materials
• some tapping screws Ø2*8 mm
(simply search for: M2 flat head tapping screw assortment)
• CA super glue (liquid and liquid medium)
• CA activator
• Servo extension cable 300mm, 2 pieces
• Carbon tube Ø8*1000mm, 1 piece
• Steel wire Ø1mm
• Neodym-Super-Magnet 5*5*5mm, 4 pieces
• Rod connection, 3 pieces
• Foil 0,5mm/0.020inches Din A4 (PVC, PET-G, Polycarbonate or Lexan),
1 piece
Tools
• Cutter knife
• small Philips screwdriver
• Drill Ø2,5mm, Ø1,5mm

EAGLE 18
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT

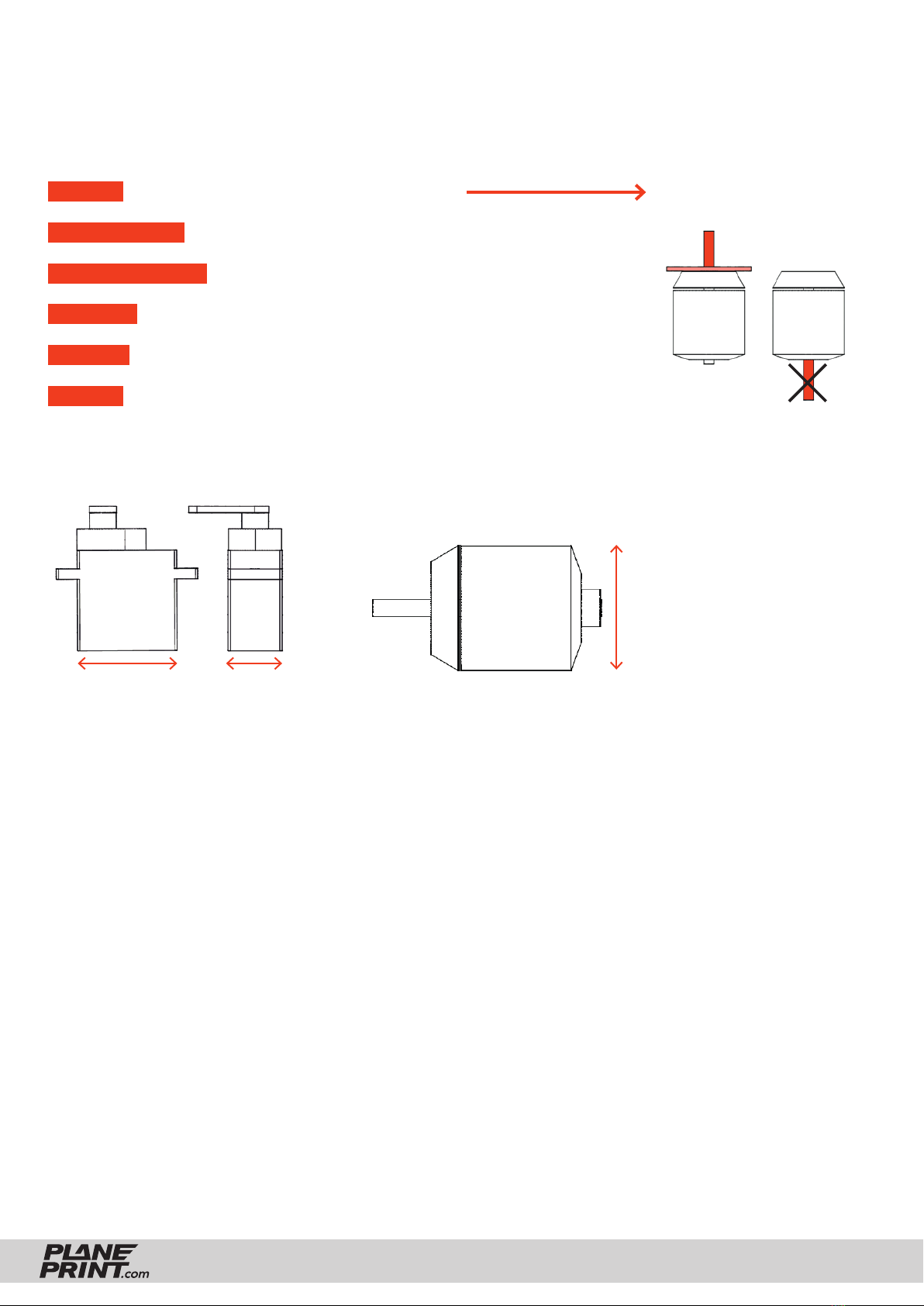

RC Components
The Notos allows the installation of a wide variety of drives.
We have good experience with this version:
ENGINE RAY G3 C2836/1120 or comparable motors
FOLDING PROP 11x5 (2S), 10x5 (3S)
BEC-CONTROLLER 30-50 A (must fit the engine!)
RECEIVER 4 Channel
BATTERY 2S or 3S Lipo, about 1000-2200 MaH
SERVOS Hitec HS-55 or EMAX ES08(A or D), 3 pieces
Pay attention to the position
of the motor shaft
Ømax. 28 mm
(1.1 inches)
max. 12 mm
(0.47 inches)
max. 22,5 mm
(0.88 inches)

EAGLE
19
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
ASSEMBLING MANUAL
Basic information
Gluing the parts
To glue the fuselage and wing parts well, use medium-liquid CA adhesive.
First check whether the parts go well together. Then apply a lot of CA glue to the part with the connections
and all surfaces that will touch later (except the bowden tubes). Put the parts together and align the parts per-
fectly. If glue comes out, wipe with a cloth. Then spray activator spray on the glue points.
IMPORTANT For a strong connection, the adhesive surfaces should be sanded. Please only use fresh CA
glue and activator spray for curing! The adhesive connections must hold perfectly!
Connection pieces
This surfaces should be sanded

EAGLE
20
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
Basic information
Installation of the TPU hinges
First insert the hinge into the movable flap and add a drop of liquid CA adhesive into the gap.
Wait for the glue to drain completely, then spray the activator on it.
Then put the flap in the wing until the flap touches the spacers and put a drop of CA glue on the hinge.
Wait again for the glue to run in, and then spray the activator on it.
Do not use too much glue, the flap must move easily!
These spacers ensure the correct
gap distance. Don´t remove!
