PLANEPRINT RISE User manual

PRINTING & ASSEMBLING MANUAL
RISE Glider version and Motor/Spoiler upgrade Kit
You can find the STL data
at www.planeprint.com
NOTE: Slicing only
works with CURA!

RISE
2
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PRINTING THE PARTS – PRINTING PROFILES
You may wonder why this 3D model is exclusive to CURA?
The most important thing with small RC model airplanes is always the size to weight ratio. The
lighter a model is, the better its flight characteristics and also the flight time is significantly increased.
With our unique design process, we manage to offer weight-relevant parts in a true 1-wall printing
process for both the outer skin and the filling. This allows us to save weight while maintaining the
necessary stability.
Here we show you how to make adjustments from a standard CURA profile. For this model we need
only 4, easy to create profiles.
It is important to follow the instructions from PLANEPRINT.com to slice the part correctly.
However, it can be useful to perfect your 3D printing by making some additional settings depending
on the printer and filament used.
The development of a complex, airworthy RC flight model to express on any standard 3D printer is
a very complex and extensive process. Therefore, we appeal to your fairness not to forward the STL
data you have acquired to third parties. Our STL files are provided with indelible copyright water-
marks that can be verified at any time.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
IMPORTANT FOR
THE 1-WALL-PRINT!
In order to print airfoils of the lowest possi-
ble weight with high stability, it is necessa-
ry to print with only one wall line (Nozzle 0.4
mm). Decisive here is the adhesion between
the layers! To achieve this, you must print at
a much higher temperature than normal. As
a guideline, 230 ° C is a good starting point.
The parts-cooling fan should be set to 0% or
a maximum of 20%. Since not every printer
works the same, it may be necessary to make
small adjustments to these settings.
For slicing all Planeprint
models, four profiles have
to be created in Cura:
PROFILE P1_fullbody
PROFILE P2_hollowbody
PROFILE P3_surface
PROFILE P4_flex
You can find the description at
www.planeprint.com/print

RISE 3
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P1_FULLBODY normal PLA
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
Interconnects_profile1_rise.stl
MATERIAL PLA, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required
Parts_profile1_rise.stl
MATERIAL PLA, ~ 4 g
ADDITIONAL SETTINGS
None required
There are several versions to choose from:

RISE 4
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P1_FULLBODY normal PLA
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
Servomount_xxx_profile1_rise.stl
MATERIAL PLA, ~ 3 g
ADDITIONAL SETTINGS
None required
Snap lock_profile1_rise.stl
MATERIAL PLA, ~ 4 g
ADDITIONAL SETTINGS
• Wall Line Count: 6

RISE 5
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P2_HOLLOWBODY normal PLA
The following parts must be sliced with the PROFILE P2_HOLLOWBODY.
Please note the additional settings for the individual parts!
Wingmount_profile2_rise.stl
MATERIAL PLA, ~ 4 g
ADDITIONAL SETTINGS
None required

RISE 6
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
Canopy LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 7 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Fuselage1 LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 30 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 7
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
Fuselage2 LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 34 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Fuselage3 LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 29 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 8
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
Fuselage4 LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 25 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Fuselage5 LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 18 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 9
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
Fuselage6 LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 8 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
• Fan +30 %
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Nose LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 11 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 10
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
V-tail-left LW_profile3_rise.stl
V-tail-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 20 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position left
right: • Z Seam Position right
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
V-tail2-left LW_profile3_rise.stl
V-tail2-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 5 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 11
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
V-tail3-left LW_profile3_rise.stl
V-tail3-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 11 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position right
right: • Z Seam Position left
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Wing1-left LW_profile3_rise.stl
Wing1-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 70 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position right
right: • Z Seam Position left
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 12
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

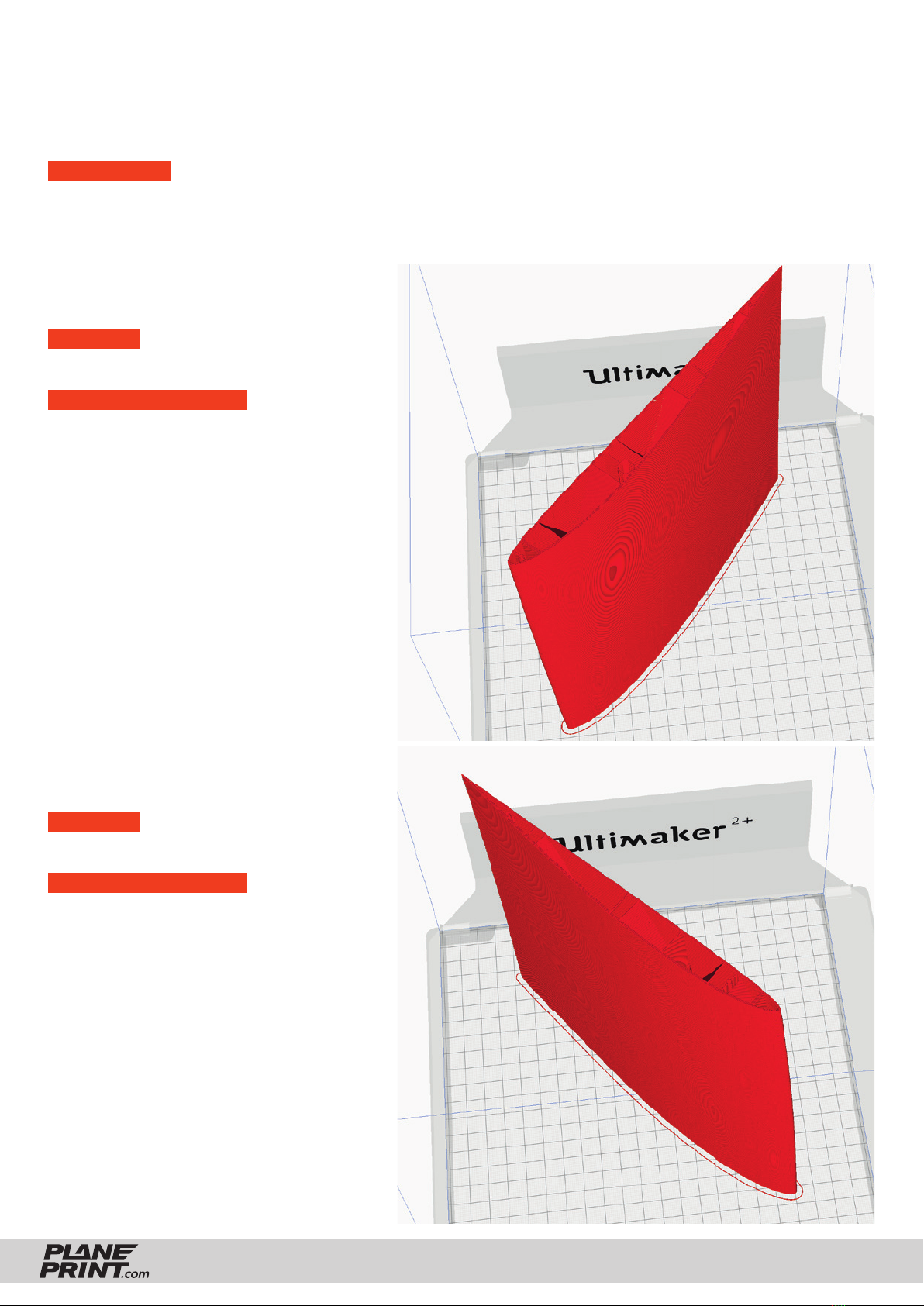

Wing2-left LW_profile3_rise.stl
Wing2-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 68 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position right
right: • Z Seam Position left
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Wing3-left LW_profile3_rise.stl
Wing3-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 63 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position left
right: • Z Seam Position right
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 13
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
Wing4-left LW_profile3_rise.stl
Wing4-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 52 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position left
right: • Z Seam Position right
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
Wing5-left LW_profile3_rise.stl
Wing5-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 63 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
left: • Z Seam Position left
right: • Z Seam Position right
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 14
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
Winglet-left LW_profile3_rise.stl
Winglet-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 5 g*
*Display in Cura. The actual weight is then 60% of this.
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
Wing2 left: • Z Seam Position right
Wing2 right: • Z Seam Position left
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).

RISE 15
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P4_FLEX TPU A95
The following parts must be sliced with the PROFILE P4_FLEX.
Please note the additional settings for the individual parts!
N_Hinges_profile4_rise.stl
MATERIAL TPU ~ A95, Weight: ~ 1 g
ADDITIONAL SETTINGS
None required

RISE 16
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P1_FULLBODY normal PLA
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
Motormount 16_profile1_rise.stl
MATERIAL PLA, ~ 2 g
ADDITIONAL SETTINGS
None required
INFO If your motor has other
hole spacing than 16 mm use the file
Motormount undrilled_profile1.stl
Spoiler mount_profile1_rise.stl
MATERIAL PLA, ~ 2 g
ADDITIONAL SETTINGS
None required
This parts are only required for the Motor/Spoiler upgrade Kit!

RISE 17
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
Nose motor LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 10 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
Spoiler-left LW_profile3_rise.stl
Spoiler-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 10 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
This parts are only required for the Motor/Spoiler upgrade Kit!

RISE 18
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
This parts are only required for the Motor/Spoiler upgrade Kit!
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
Wing1 spoiler-left LW_profile3_rise.stl
Wing1 spoiler-right LW_profile3_rise.stl
MATERIAL LW-PLA, ~ 69 g*
ADDITIONAL SETTINGS
left: • Z Seam Position right
right: • Z Seam Position left
- Setting Profile3_Surface
- Flow 60 % or less
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

RISE
19
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
REQUIRED ACCESSOIRES
Filament
• normal PLA about 50 grams
• LW-PLA about 500 grams (ABSOLUTELY NECESSARY)
We strongly recommend using white (natural) LW-PLA, which heats up much less in direct sunlight.
• TPU (A95) about 10 grams
Materials
• Socket Head Screw Ø3mm*22mm with nut, 2 pieces
• CA super glue (liquid and liquid medium)
• CA activator
• Carbon tube Ø6*1000mm (inside Ø4mm), 1 piece
• Carbon rod Ø1.2mm*1000, 6 pieces (better plus one as reserve)
• Steel wire Ø1mm, short piece for the servo linkages
• Rod connection, 2 pieces
Tools
• Cutter knife
• small Philips screwdriver
• needle-nose pliers
Rod connectionCarbon tube Socket Head Screw with nut

RISE 20
PRINTING & ASSEMBLING MANUAL
© PLANEPRINT
RC Components
ENGINE • Topmodel XPower XC2212/18 (our recommendation)
• or Roxxy C22-20-20 1330kv
or comparable motors
FOLDING PROP 7,5x4
SPINNER Ø 30 mm
BEC-CONTROLLER min. 15 A (must fit the engine!)
RECEIVER Glider: 3 Channel, Motorized version: 5 Channel
BATTERY 3S Lipo, about 600-1000 MaH
SERVOS Hitec HS-5055MG or (or similar in the same size), 2 or 3 pieces
Maximum dimensions:
Pay attention to the position
of the motor shaft
Maximum dimensions:
Ø max. 22 mmmax. 23 mm max. 13 mm 16 mm
