PLANEPRINT NOTOS User manual

PRINTING & CONSTRUCTION MANUAL
NOTOS
WATCH OUT!
This 3D print model
is specially optimized
for CURA.
The STL data download
at www.planeprint.com

NOTOS
2
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PRINTING THE PARTS – PRINTING PROFILES
You may wonder why this 3D model is suitable exclusively for CURA right?
The most important thing about small RC model airplanes is always the ratio of size to weight.
The lighter a model is, the better its flight characteristics and also the flight time is significantly
increased.
With our unique design process, we manage to make Weights relevant items in a true 1-wall prin-
ting process for the outer skin but also for the filling offer. So we save weight while maintaining the
necessary stability.
Here we show you how to get started from a standard CURA profile Make settings. For this model
we only need 4, easy to create profiles.
It is absolutely necessary to observe the information provided by PLANEPRINT.com in order:
to slice the component correctly. However, it may make sense to perfect your 3D printing by
additionally performing several hiring activities depending on your printer and the filament used.
The development of a complex, airworthy RC flight model to express on any standard 3D printer is
a very complex and extensive process. Therefore, we appeal to your fairness not to forward the STL
data you have acquired to third parties. Our STL files are provided with indelible copyright water-
marks that can be verified at any time.
Thank you for your understanding and have fun with your PLANEPRINT MODEL!
IMPORTANT FOR
THE 1-WALL-PRINT!
In order to print airfoils of the lowest possi-
ble weight with high stability, it is necessa-
ry to print with only one wall line (Nozzle 0.4
mm). Decisive here is the adhesion between
the layers! To achieve this, you must print at
a much higher temperature than normal. As
a guideline, 230 ° C is a good starting point.
The parts-cooling fan should be set to 0% or
a maximum of 20%. Since not every printer
works the same, it may be necessary to make
small adjustments to these settings.
For slicing all Planeprint
models, four profiles have
to be created in Cura:
PROFILE P1_fullbody
PROFILE P2_hollowbody
PROFILE P3_surface
PROFILE P4_flex
You can find the description at
www.planeprint.com/print

NOTOS
3
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT

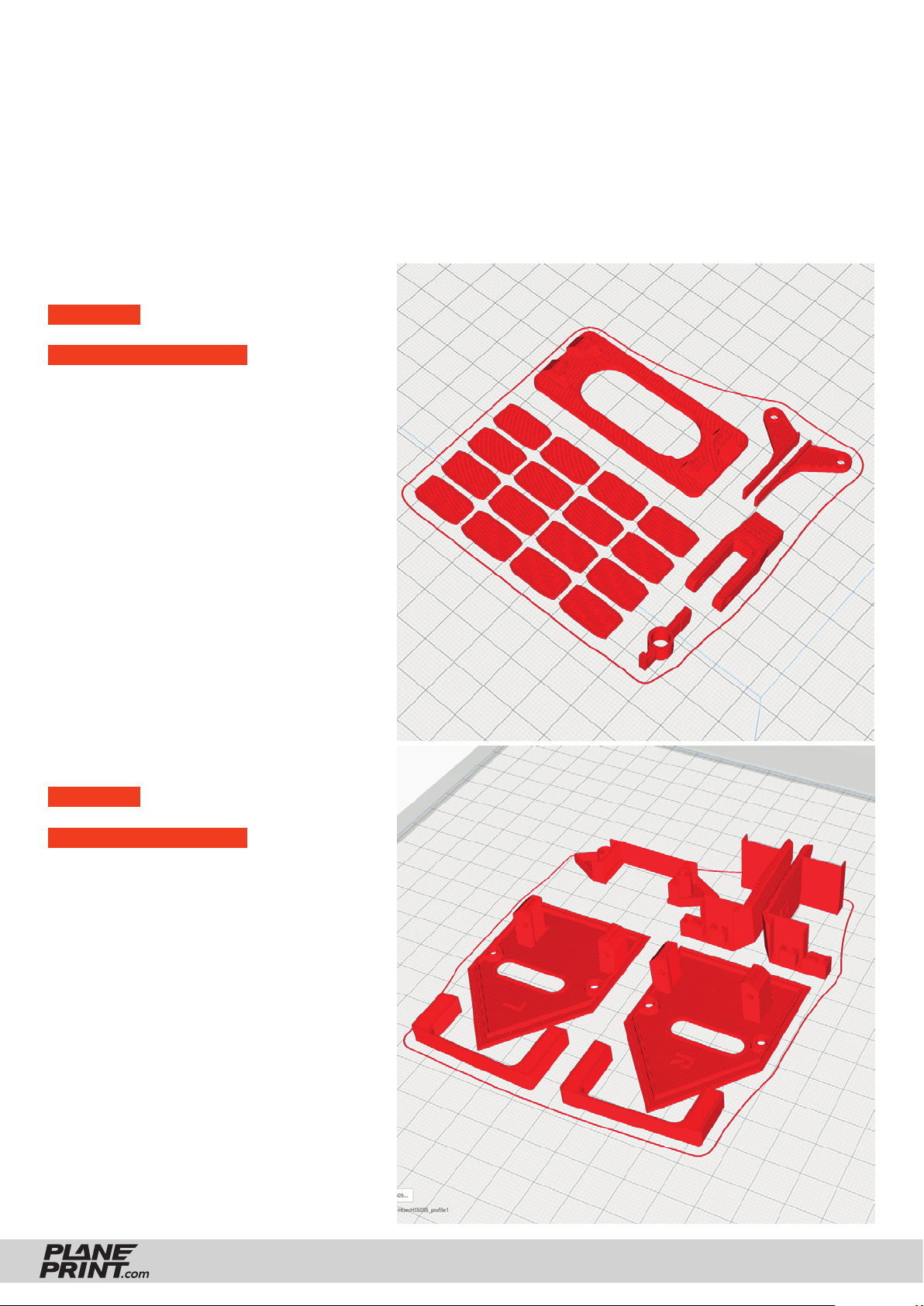

PROFILE P1_FULLBODY
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
N_AOA-adjuster_profile1.stl
MATERIAL PLA, Weight: ~ 10 g
ADDITIONAL SETTINGS
None required
N_Motorbracket_profile1.stl
MATERIAL PLA, ~ 5 g
ADDITIONAL SETTINGS
None required

NOTOS
4
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P1_FULLBODY
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
N_Parts_profile1.stl
MATERIAL PLA, ~ 7 g
ADDITIONAL SETTINGS
None required
N_Servobrackets-xxx_profile1.stl
MATERIAL PLA, ~ 16 g
ADDITIONAL SETTINGS
None required

NOTOS
5
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
N_Spinner2_profile1.stl
MATERIAL PLA, ~ 8 g
ADDITIONAL SETTINGS
None required
PROFILE P1_FULLBODY
The following parts must be sliced with the PROFILE P1_FULLBODY.
Please note the additional settings for the individual parts!
N_Spinnerplate1_profile1.stl
MATERIAL PLA, ~ 3 g
ADDITIONAL SETTINGS
None required

NOTOS
6
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P2_HOLLOWBODY
The following parts must be sliced with the PROFILE P2_HOLLOWBODY.
Please note the additional settings for the individual parts!
N_Battery holder_profile2.stl
MATERIAL PLA, ~ 9 g
ADDITIONAL SETTINGS
• Wall Line Count: 5
N_Gear1_profile2.stl
MATERIAL PLA, ~ 21 g
ADDITIONAL SETTINGS
• Wall Line Count: 3
• Top Layers: 3

NOTOS
7
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P2_HOLLOWBODY
The following parts must be sliced with the PROFILE P2_HOLLOWBODY.
Please note the additional settings for the individual parts!
N_R-Hinge_profile2.stl
MATERIAL PLA, ~ 4 g
ADDITIONAL SETTINGS
• Adaptive Layers: checked

NOTOS
8
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Elevator2_profile3.stl
MATERIAL PLA, ~ 2 g
ADDITIONAL SETTINGS
None required
N_Fuselage1_profile3.stl
MATERIAL PLA, ~ 80 g
ADDITIONAL SETTINGS
None required

NOTOS
9
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Fuselage2_profile3.stl
MATERIAL PLA, ~ 92 g
ADDITIONAL SETTINGS
None required
N_Spinner1_profile3.stl
MATERIAL PLA, ~ 3 g
ADDITIONAL SETTINGS
None required

NOTOS
10
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE normal PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Wing1-left/right_profile3.stl
MATERIAL PLA, ~ 38 g
ADDITIONAL SETTINGS
Wing left: • Z Seam Position right
Wing right: • Z Seam Position left

NOTOS
11
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Aileron1-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 11 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Aileron2-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 11 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
12
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Aileron3-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 10 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Canopy1-LW_profile3.stl
MATERIAL LW-PLA, ~ 29 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
13
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Canopy2-LW_profile3.stl
MATERIAL LW-PLA, ~ 24 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Elevator-left-LW_profile3.stl
MATERIAL LW-PLA, ~ 14 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
14
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Fuselage3-LW_profile3.stl
MATERIAL LW-PLA, ~ 84 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Fuselage4-LW_profile3.stl
MATERIAL LW-PLA, ~ 72 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
15
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.
N_Fuselage5-LW_profile3.stl
MATERIAL LW-PLA, ~ 56 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Fuselage6-LW_profile3.stl
MATERIAL LW-PLA, ~ 53 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
16
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

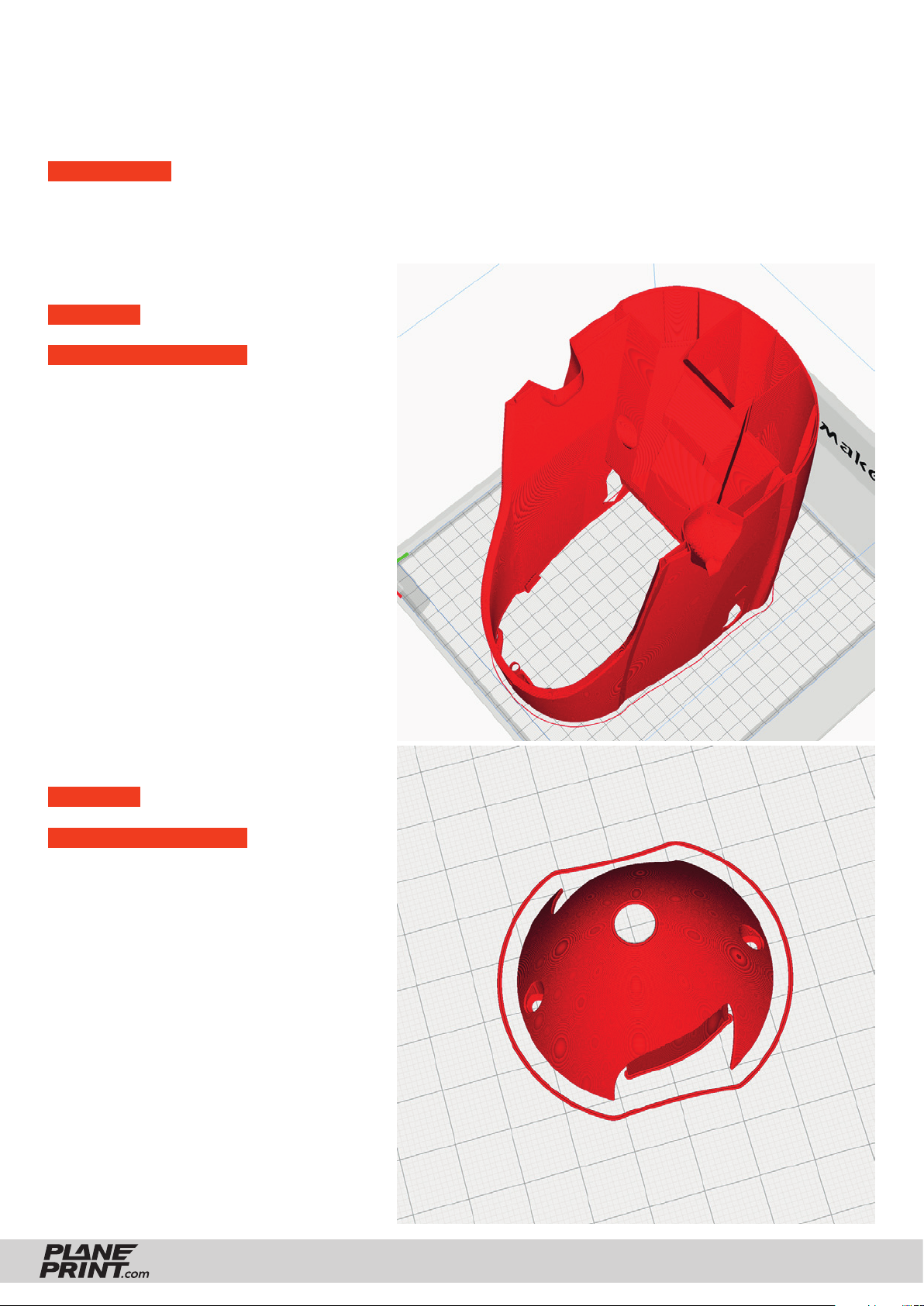

N_VS-LW_profile3.stl
MATERIAL LW-PLA, ~ 4 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_HS1-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 31 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
17
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

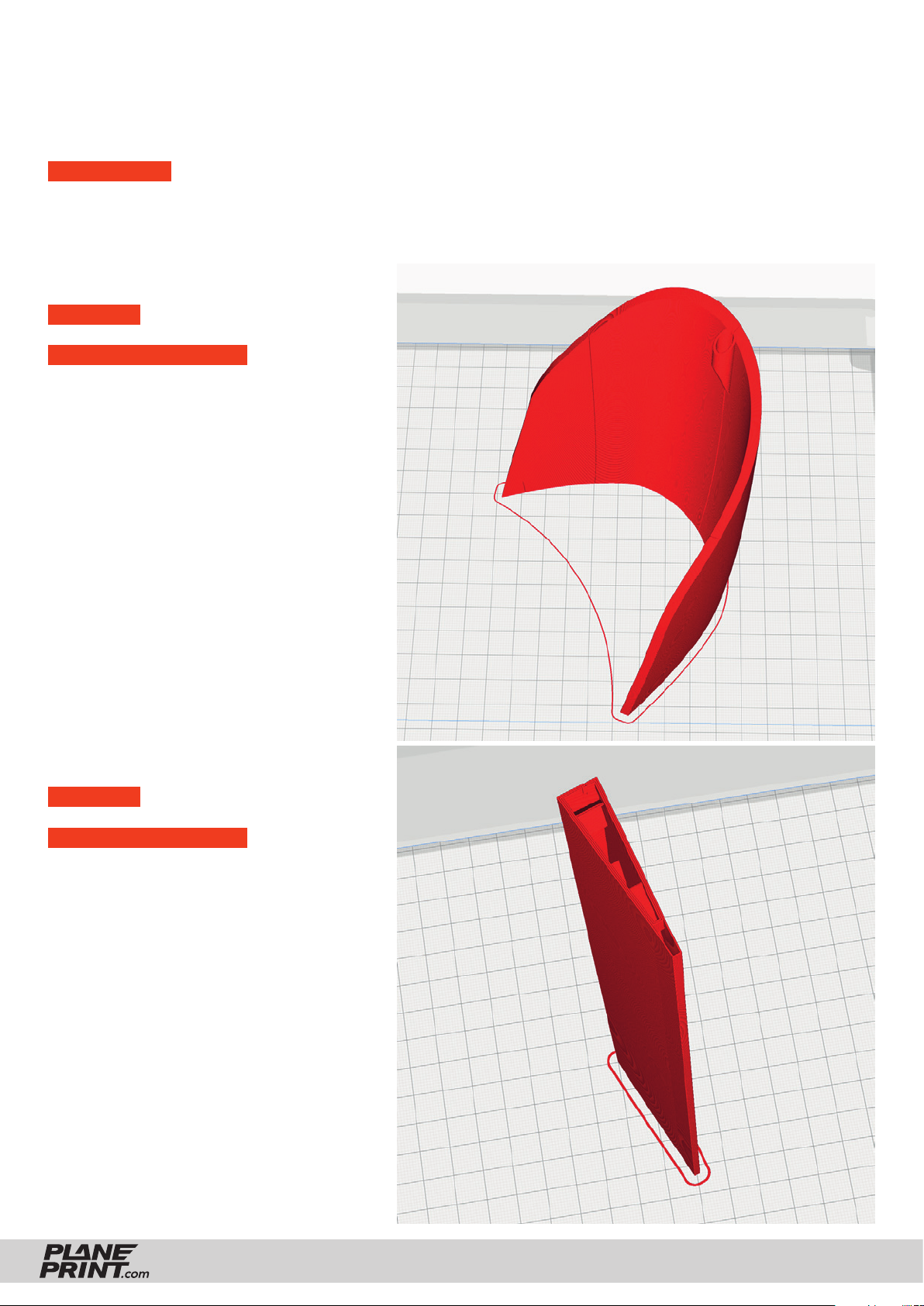

N_HS2-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 4 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Rudder-LW_profile3.stl
MATERIAL LW-PLA, ~ 23 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
18
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

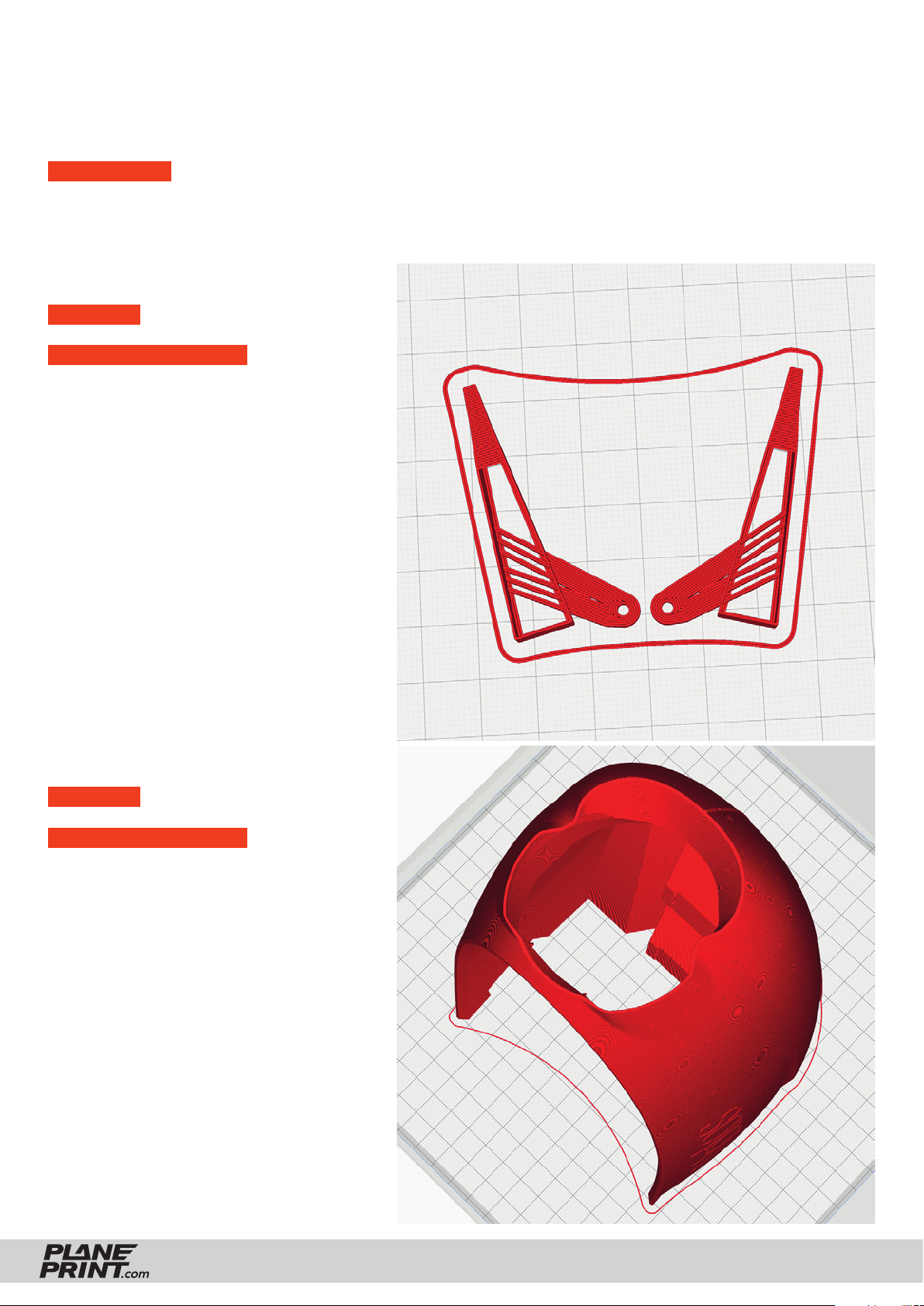

N_Gear2-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 8 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
• Brim
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Topwing-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 20 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
19
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

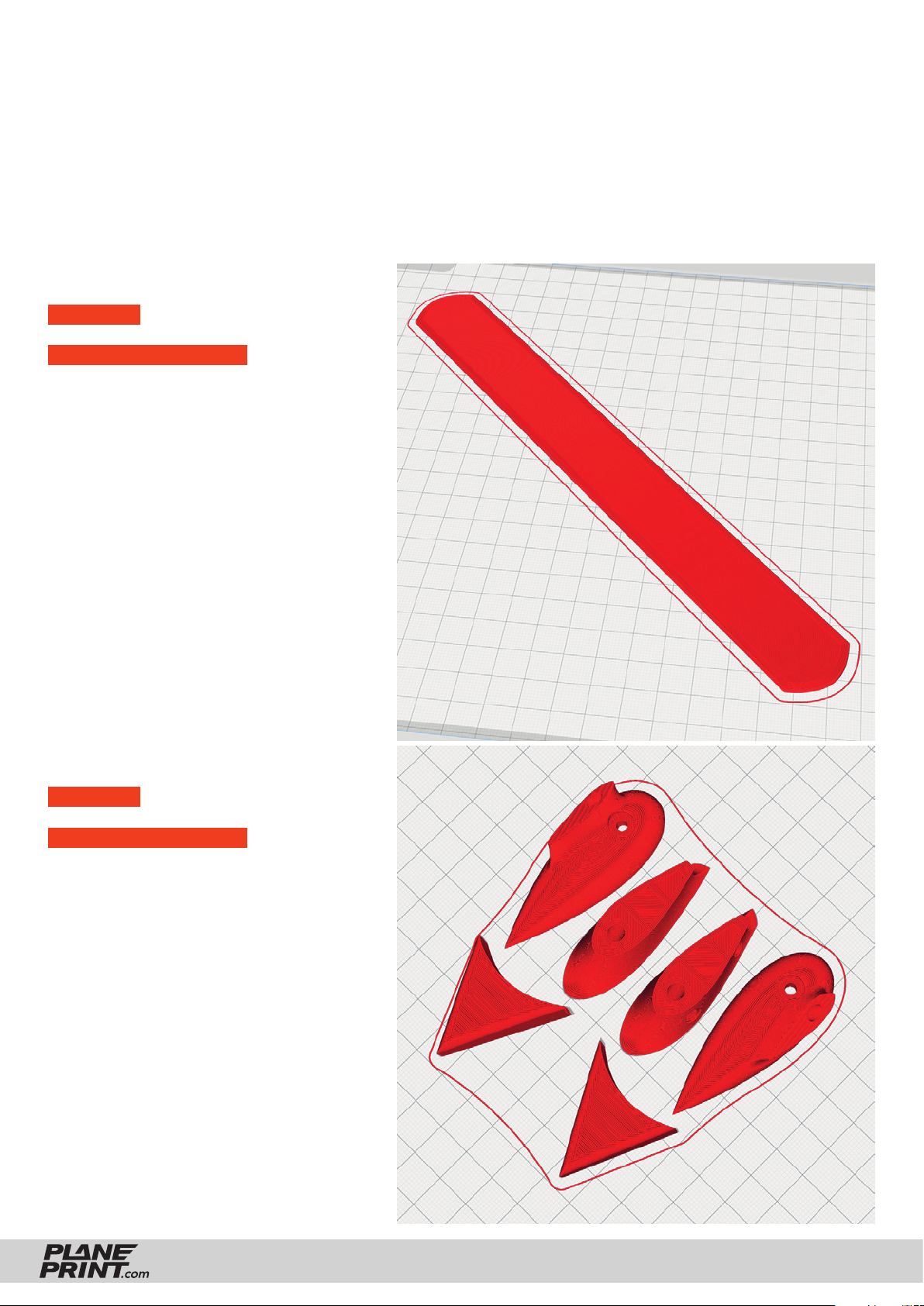

N_Wing2-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 82 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
Wing2 left: • Z Seam Position right
Wing2 right: • Z Seam Position left
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Wing3-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 51 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.

NOTOS
20
PRINTING & CONSTRUCTION MANUAL
© PLANEPRINT
PROFILE P3_SURFACE Light-Weight LW-PLA
The following parts must be sliced with the PROFILE P3_SURFACE (1-wall-print).
Please note the additional settings for the individual parts!
PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same
time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required.

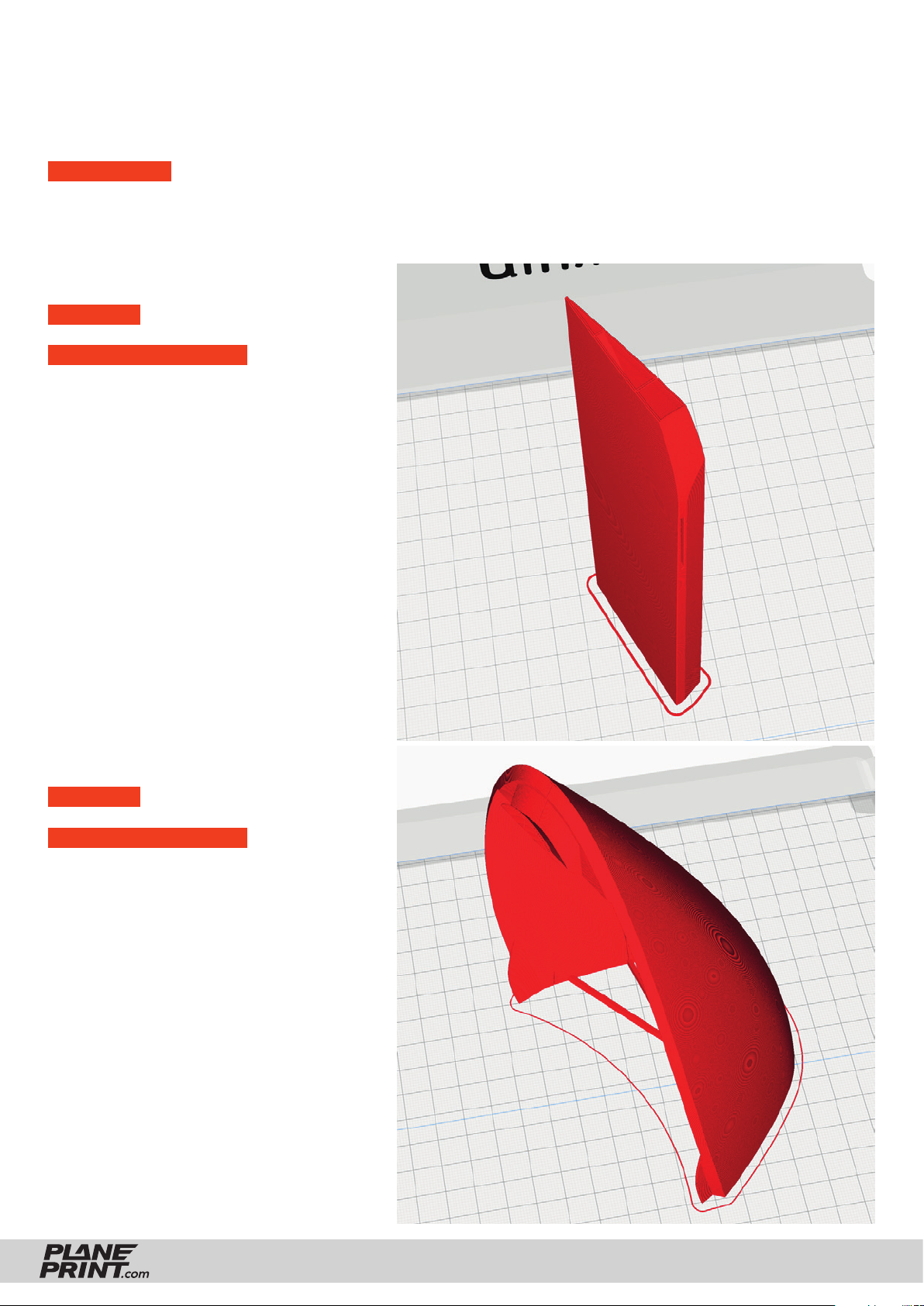

N_Wing4-left/right-LW_profile3.stl
MATERIAL LW-PLA, ~ 26 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
N_Winglets-LW_profile3.stl
Material: LW-PLA
It is better to print both at the same time so
that the tips do not get too hot. They are also
available individually in the download.
MATERIAL LW-PLA, ~ 11 g*
ADDITIONAL SETTINGS
- Setting Profile3_Surface
- Flow 60 %
- Higher nozzle temperature
The optimal weight and sufficient strength is achieved
with 60 % flow. Increase the temperature until the wall
thickness is 0.4 to 0.5 mm. (We print at 250° and 60% flow).
*Display in Cura. The actual weight is then 60% of this.
