Pride Mobility Jazzy 1122 User manual

Exeter, PA
St. Catharines, ON 1-800-800-8586
www.pridemobility.com
Owner’s Manual
ATTENTION:
Please read the content
of your owners manual
before operating your
power chair.
All manuals and user guides at all-guides.com
all-guides.com

2 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
Copyright © 2003
Pride Mobility Products Corp.
SAFETY GUIDELINES
INFMANU1489
Please read and follow all instructions in this owners manual before attempting to operate your power chair for the
first time. If there is anything in this manual you do not understand or if you require additional assistance for set-up
contact your authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings cautions and instructions
in this owners manual. Using your Pride product safely also depends upon your own good judgement and/or
common sense as well as that of your provider caregiver and/or healthcare professional. Pride is not responsible
for injuries and/or damage resulting from any persons failure to follow the warnings cautions and instructions in
this owners manual. Pride is not responsible for injuries and/or damage resulting from any persons failure to
exercise good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very important
for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 3

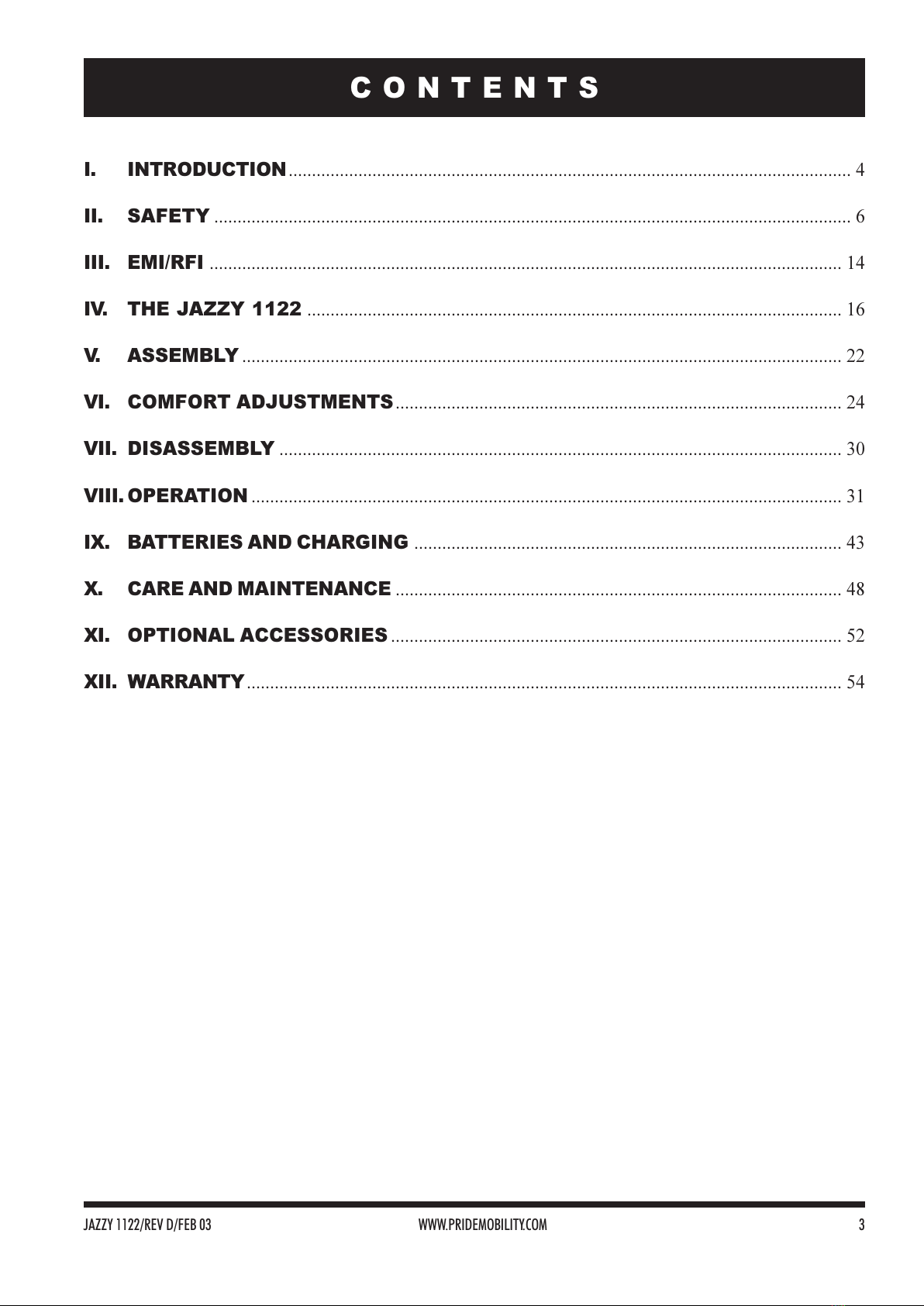

I. INT ODUCTION......................................................................................................................... 4
II. SAFETY ......................................................................................................................................... 6
III. EMI/ FI ........................................................................................................................................ 14
IV. THE JAZZY 1122 ................................................................................................................... 16
V. ASSEMBLY ................................................................................................................................. 22
VI. COMFO T ADJUSTMENTS................................................................................................ 24
VII. DISASSEMBLY ......................................................................................................................... 30
VIII. OPE ATION ............................................................................................................................... 31
IX. BATTE IES AND CHA GING ............................................................................................ 43
X. CA E AND MAINTENANCE ................................................................................................ 48
XI. OPTIONAL ACCESSO IES ................................................................................................. 52
XII. WA ANTY................................................................................................................................54
CONTENTS
All manuals and user guides at all-guides.com

4 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
I. INTRODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride
Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with
modern attractive styling. We are certain that the design features and trouble-free operation of your new power
chair will add convenience to your daily living.
At Pride your safety is important to us. Please read and follow all of the instructions in this manual before you
attempt to operate your Jazzy for the first time. These instructions were produced for your benefit. Your under-
standing of these instructions is essential for the safe operation of your new power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Pride is also
not liable for any property damage or personal injury arising out of the failure of any person and/or user to following
the instructions and recommendations set forth in this manual or any other instructions or recommendations con-
tained in other power chair related literature issued by Pride or contained on the power chair itself.
This owners manual is compiled from the latest specifications and product information available at the time of
publication. We reserve the right to make changes as they become necessary. Any changes to our products may
cause slight variations between the illustrations and explanations in this manual and the product you had purchased.
If you experience any problems with your power chair that your are unable to solve or if you do not feel capable of
safely following any of the instructions and/or recommendations as contained in this manual please contact your
authorized Pride provider for assistance.
Once you understand how to operate and take care of your power chair we are certain that it will give you years of
trouble-free service and enjoyment.
Information Exchange
We want to hear your questions comments and suggestions about this manual. We would also like to hear about the
safety and reliability of your new power chair and about the service you received from your authorized Pride provider.
Please notify us of any change of address so we can keep you apprised of important information about safety new
products and new options that can increase your ability to use and enjoy your power chair. Please feel free to write us
at the address below:
Pride Mobility Products Corporation
Attn: Customer Care Department
182 Susquehanna Avenue
Exeter PA 18643-2694
1-800-424-8205
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 5
I. INTRODUCTION

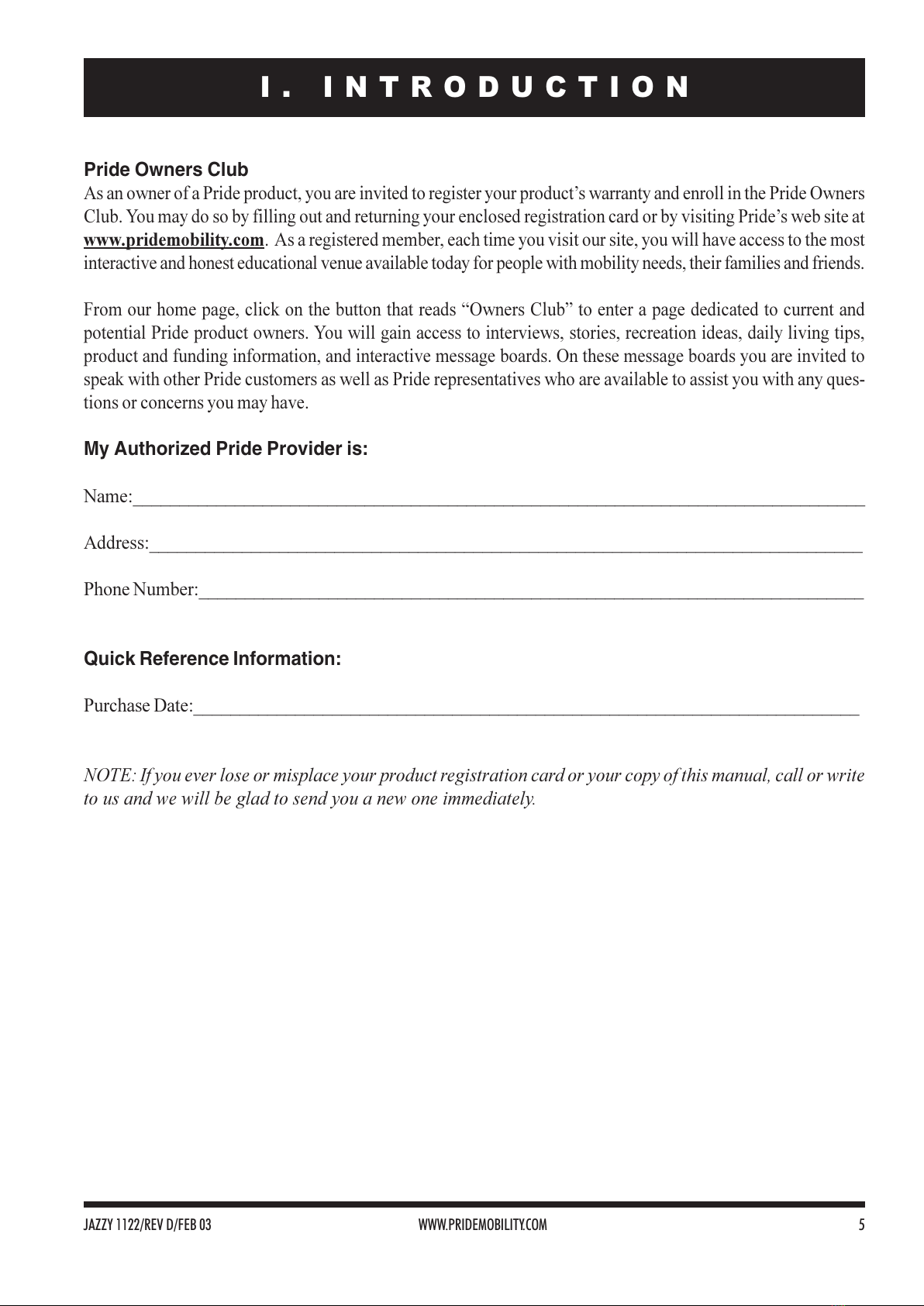

Pride Owners Club
As an owner of a Pride product you are invited to register your products warranty and enroll in the Pride Owners
Club. You may do so by filling out and returning your enclosed registration card or by visiting Prides web site at
www.pridemobility.com. As a registered member each time you visit our site you will have access to the most
interactive and honest educational venue available today for people with mobility needs their families and friends.
From our home page click on the button that reads Owners Club to enter a page dedicated to current and
potential Pride product owners. You will gain access to interviews stories recreation ideas daily living tips
product and funding information and interactive message boards. On these message boards you are invited to
speak with other Pride customers as well as Pride representatives who are available to assist you with any ques-
tions or concerns you may have.
My Authorized Pride Provider is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Quick Reference Information:
Purchase Date:________________________________________________________________________
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, call or write
to us and we will be glad to send you a new one immediately.
All manuals and user guides at all-guides.com

6 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
II. SAFETY
SAFETY
WARNING! Do not operate your new power chair for the first time without completely
reading and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an
extensive variety of products to best fit the individual needs of the power chair user. Please be aware that the final
selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power
chair user who is capable of making such a decision and his/her healthcare professional (i.e. medical doctor
physical therapist etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power
chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride provider in the
instruction process for the use of the product.
There are certain situations including some medical conditions where the power chair user will need to practice
operating the power chair in the presence of a trained attendant. A trained attendant can be defined as a family
member or care professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities you will probably encounter situations in which you will
need some practice. Simply take your time and you will soon be in full and confident control as you maneuver
through doorways on and off of elevators up and down ramps and over moderate terrain.
Below are some precautions tips and other safety considerations that will help the user become accustomed to
operating the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and electronics. A wide range
of accessories is available from your authorized Pride provider to further customize your power chair to better suit
your needs and/or preferences. However under no circumstances should you modify add remove or disable any
feature part or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Unautho-
rized modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check
before each use to make sure your power chair operates smoothly and safely. See X. Care and Maintenance.
Perform the following inspections prior to using your power chair:
nCheck for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).
nCheck all electrical connections. Make sure they are tight and not corroded.
nCheck all controller connections to the electronics tray. Make sure they are secured properly.
All manuals and user guides at all-guides.com
all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 7
II. SAFETY

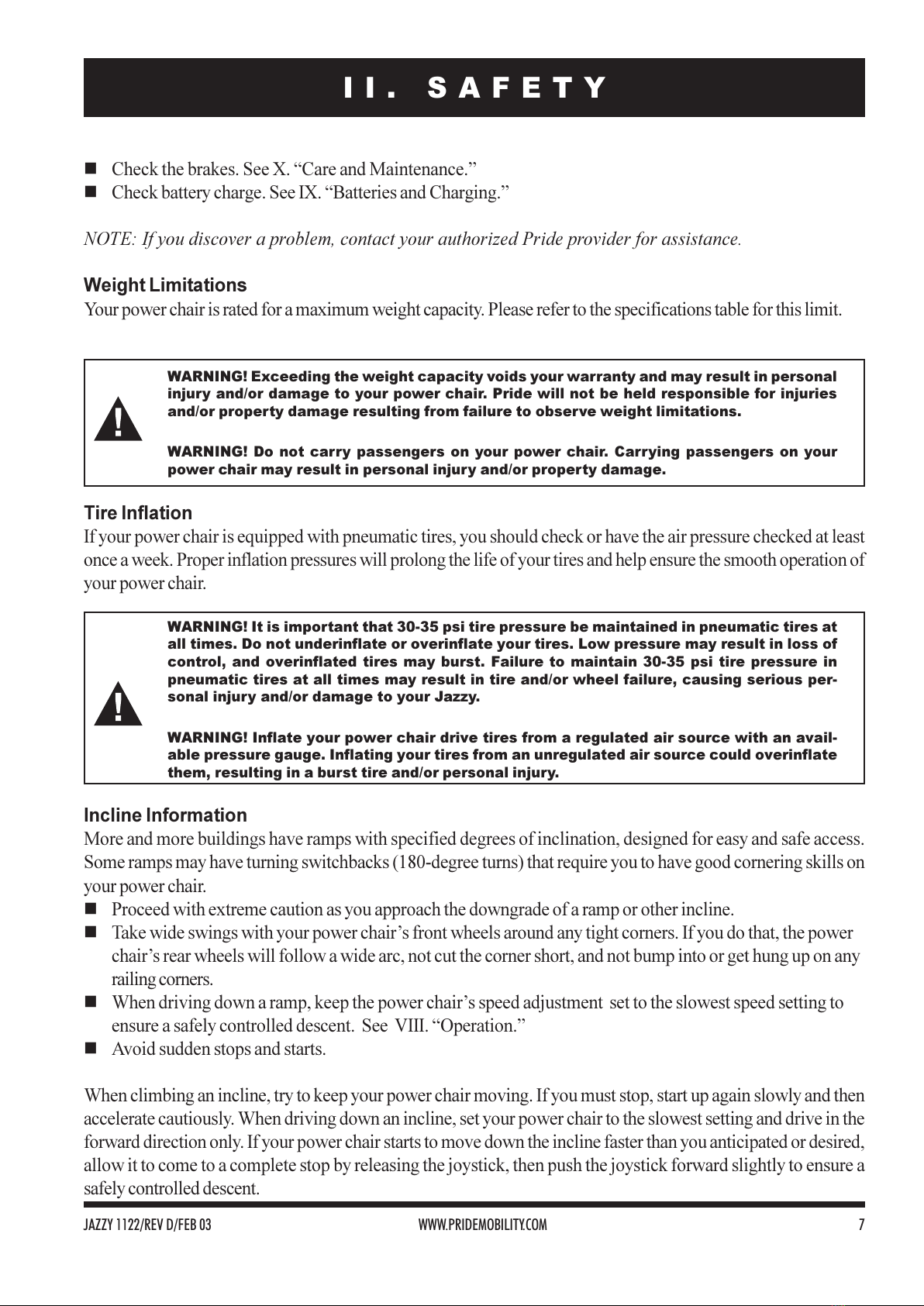

nCheck the brakes. See X. Care and Maintenance.
nCheck battery charge. See IX. Batteries and Charging.
NOTE: If you discover a problem, contact your authorized ride provider for assistance.
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tire Inflation
If your power chair is equipped with pneumatic tires you should check or have the air pressure checked at least
once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth operation of
your power chair.
WARNING! It is important that 30-35 psi tire pressure be maintained in pneumatic tires at
all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure in
pneumatic tires at all times may result in tire and/or wheel failure, causing serious per-
sonal injury and/or damage to your Jazzy.
WARNING! Inflate your power chair drive tires from a regulated air source with an avail-
able pressure gauge. Inflating your tires from an unregulated air source could overinflate
them, resulting in a burst tire and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination designed for easy and safe access.
Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering skills on
your power chair.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline.
nTake wide swings with your power chairs front wheels around any tight corners. If you do that the power
chairs rear wheels will follow a wide arc not cut the corner short and not bump into or get hung up on any
railing corners.
nWhen driving down a ramp keep the power chairs speed adjustment set to the slowest speed setting to
ensure a safely controlled descent. See VIII. Operation.
nAvoid sudden stops and starts.
When climbing an incline try to keep your power chair moving. If you must stop start up again slowly and then
accelerate cautiously. When driving down an incline set your power chair to the slowest setting and drive in the
forward direction only. If your power chair starts to move down the incline faster than you anticipated or desired
allow it to come to a complete stop by releasing the joystick then push the joystick forward slightly to ensure a
safely controlled descent.
All manuals and user guides at all-guides.com

8 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
II. SAFETY

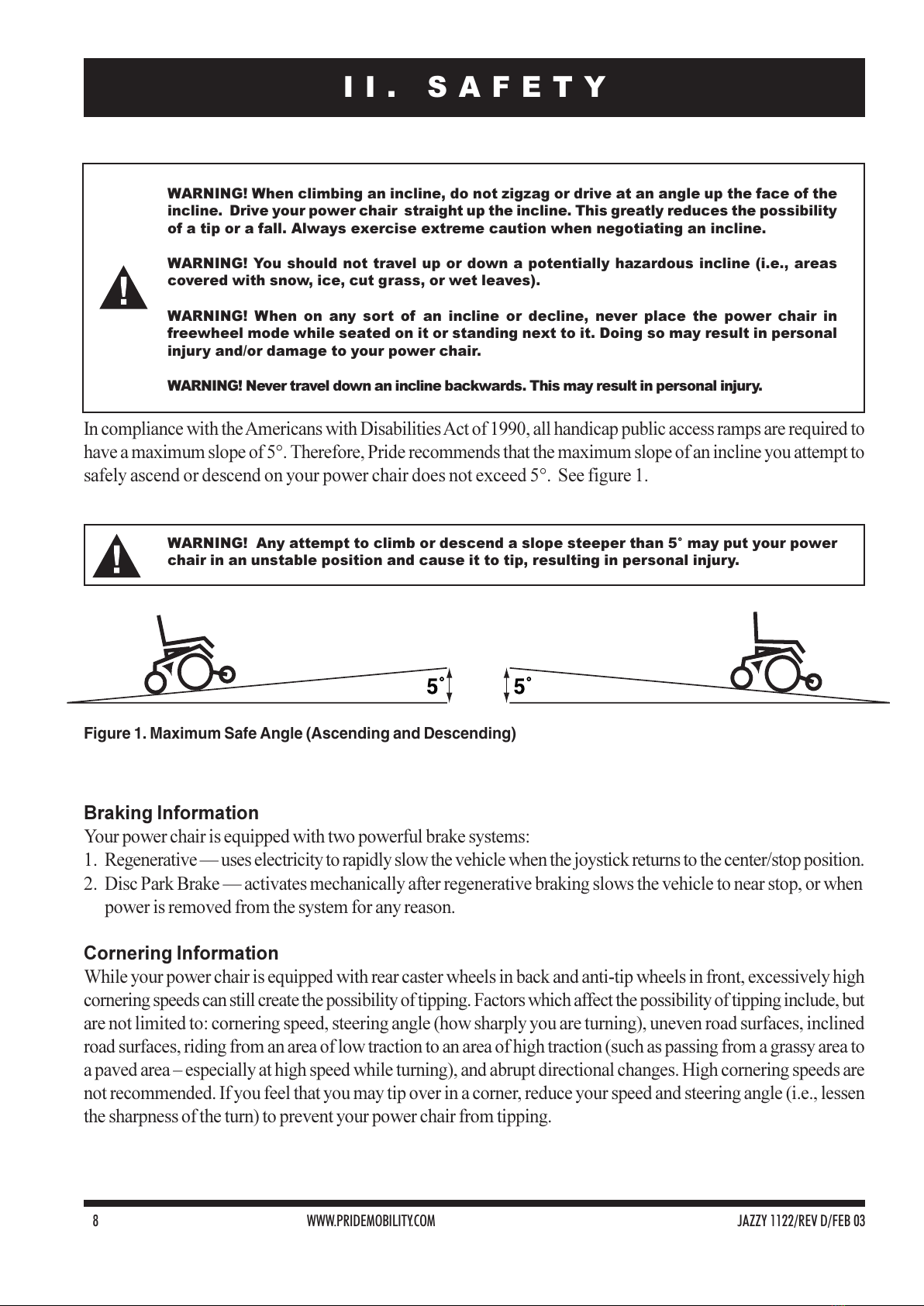

Figure 1. Maximum Safe Angle (Ascending and Descending)
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. his greatly reduces the possibility
of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline backwards. his may result in personal injury.
In compliance with the Americans with Disabilities Act of 1990 all handicap public access ramps are required to
have a maximum slope of 5°. Therefore Pride recommends that the maximum slope of an incline you attempt to
safely ascend or descend on your power chair does not exceed 5°. See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° may put your power
chair in an unstable position and cause it to tip, resulting in personal injury.
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative  uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop position.
2. Disc Park Brake  activates mechanically after regenerative braking slows the vehicle to near stop or when
power is removed from the system for any reason.
Cornering Information
While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front excessively high
cornering speeds can still create the possibility of tipping. Factors which affect the possibility of tipping include but
are not limited to: cornering speed steering angle (how sharply you are turning) uneven road surfaces inclined
road surfaces riding from an area of low traction to an area of high traction (such as passing from a grassy area to
a paved area  especially at high speed while turning) and abrupt directional changes. High cornering speeds are
not recommended. If you feel that you may tip over in a corner reduce your speed and steering angle (i.e. lessen
the sharpness of the turn) to prevent your power chair from tipping.
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 9
II. SAFETY
Figure 1a. Correct Curb Approach (Correct and incorrect)
WARNING! When cornering sharply, reduce your speed. his greatly reduces the possibil-
ity of a tip or fall. o avoid personal injury and/or property damage, always exercise com-
mon sense when cornering.
Outdoor riving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry level surfaces
composed of concrete blacktop or asphalt. However Pride recognizes that there will be times when you will
encounter other surface types. For this reason your power chair is designed to perform admirably on packed soil
grass and gravel. Feel free to use your power chair safely on lawns and in park areas.
nReduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
nAvoid tall grass that can entangle the running gear.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface avoid that surface.
Freewheel Mode
Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a trained
attendant. For more information about how to place your power chair into and out of freewheel mode see IV.
The Jazzy 1122.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. he
chair could roll uncontrollably on its own, causing personal injury.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces unprotected ledges and/or drop-offs (curbs
porches stairs etc.). The correct method for approaching a curb is illustrated in figure 1a.
All manuals and user guides at all-guides.com

10 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
II. SAFETY
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than two inches unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step,
curb, or other obstacle. his may cause the power chair to tip and cause personal injury.
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
oors
nDetermine if the door opens toward or away from you.
nDrive your power chair gently and slowly forward to push the door open. Or drive your power chair gently
and slowly backward to pull the door open.
Elevators
Modern elevators have a door edge safety mechanism that when pushed reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close push on the rubber door edge or
allow the rubber door edge to contact the power chair and the door will reopen.
nUse care that pocketbooks packages or power chair accessories do not become caught in elevator doors.
EMI & RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause
unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy (EM). When
EM adversely affects the operation of an electronic device it is called Electromagnetic Interference (EMI) or
Radio Frequency Interference (RFI). For more information see III. EMI/RFI.
Lift/Elevation Products
If you will be traveling with your power chair you may find it necessary to use a lift/elevation product to aid in
transportation. Pride recommends that you closely review the instructions specifications and safety information
set forth by the manufacturer of the lift/elevation product before using that product.
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 11
II. SAFETY
Motor Vehicle Transport
Currently there are no standards approved for tie-down systems in a moving vehicle of any type to transport a
person while seated in a power chair.
Transfers
Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or
healthcare professional present while learning to properly transfer yourself.
To eliminate the possibility of injury Pride recommends that you or a trained attendant perform the following tasks
before attempting a transfer:
nReduce the distance between your power chair and the object you are transferring onto.
nTurn the power off. See VIII. Operation.
nEnsure your power chair is not in freewheel mode. See IV. The Jazzy 1122.
nTurn both caster wheels toward the transfer destination to improve power chair stability during transfer.
nMake sure both armrests are flipped up or removed from your power chair.
nFlip the footrest up or move the leg rests aside; this will help to keep your feet from getting caught on the
footrest or the leg rests during the transfer.
WARNING! Before transferring, position yourself as far back as possible in the power
chair seat to prevent the power chair from tipping forward during transfer and causing
injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.
Positioning Belts
Your authorized Pride provider therapist(s) and other healthcare professionals are responsible for determining
your requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! he positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your Jazzy suitable for use as a seat in any vehicle. Anyone traveling in a vehicle
should be properly belted into seats approved by the vehicle manufacturer.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when it
is being transported. Failure to do so may result in personal injury and/or damage to your
power chair.
All manuals and user guides at all-guides.com
all-guides.com

12 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
II. SAFETY
Inclement Weather Precautions
WARNING! Pride recommends that you do not operate your power chair in icy or slippery
conditions or on salted surfaces (i.e., walks or roads). Such use may adversely affect the
performance and safety of your power chair, resulting in an accident and personal injury.
WARNING! Do not expose your power chair to any type of moisture at any time (rain, snow,
mist, or wash). Such exposure can damage your power chair. Never operate your power
chair if it has been exposed to moisture until it has dried thoroughly.
Reaching and Bending
Never reach lean or bend while driving your power chair. If it is absolutely necessary to reach lean or bend while
seated on your power chair it is important to maintain a stable center of gravity and keep the power chair from
tipping. Pride recommends that the power chair user determine his/her personal limitations and practice bending
and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the power chair. his may cause your power chair to tip, possibly
resulting in personal injury. Keep your hands away from the tires when driving.
Batteries
In addition to following the warnings below be sure to comply with all other battery handling information. For
more information about your power chairs batteries see IX. Batteries and Charging.
WARNING! Power chair batteries can weigh approximately 60 pounds each. If you are unable to lift
that much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. his will prevent unexpected motion from inadvertent joystick contact. his
will also eliminate the possibility of unintended chair movement from electromagnetic (EM)
sources. Failure to do so may result in personal injury.
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 13
Prescription rugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety
issues when taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This includes
awareness of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.
II. SAFETY
All manuals and user guides at all-guides.com

14 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
III. EMI/RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause
unintended motion of powered wheelchairs. Radio waves are a form of electromagnetic energy (EM). When this
energy adversely affects the operation of an electronic device it is called Electromagnetic Interference (EMI)
or Radio Frequency Interference (RFI).
WARNING! Radio waves may interfere with the control of powered wheelchairs.
EMI/ FIF EQUENTLY ASKED QUESTIONS (FAQS)
The following FAQs summarize what you should know about EMI/RFI. Use this information to minimize the risk
that EMI/RFI will affect your power chair.
Where do radio waves come from?
Radio waves are emitted from the antennas of cellular phones mobile two-way radios (such as walkie-talkies)
radio stations TV stations amateur radio (HAM) transmitters wireless computer links microwave sources and
paging transmitters. Radio waves are a form of EM. Because electromagnetic energy is more intense closer to the
transmitting antenna (source of emission) the EM fields from two-way radios are of special concern to power
chair users.
If my power chair is affected by EMI/RFI, what kind of motion should I e pect?
This is hard to predict. It would depend on a number of factors:
nStrength of the radio waves
nConstruction of the power chair
nPosition of the power chair (whether it is on level ground or on an incline)
nWhether or not the power chair is in motion
An affected wheelchairs movement can be erratic. It may move by itself or come to a sudden stop. Furthermore
it is possible for EMI/RFI to unexpectedly release the brakes on a power chair. Some intense sources of EMI/RFI
can even damage the control system of your Jazzy.
Is there any way to know for sure whether radio waves are responsible for the unintended motion
of my power chair?
Unfortunately interference from radio wave sources may be difficult to recognize since the signals from these
sources are invisible and may be intermittent. However the FDA recommends that you report all incidents of
unintended motion or brake release to the power chair manufacturer and if possible note whether there was a
radio wave source nearby at the time of the incident.
Has anyone been hurt from erratic, unintended motion of powered wheelchairs?
The FDA has reports of injuries that resulted from the apparent uncontrolled motion of powered wheelchairs.
However it is unclear how many of these incidents were actually caused by radio wave interference.
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 15
III. EMI/RFI

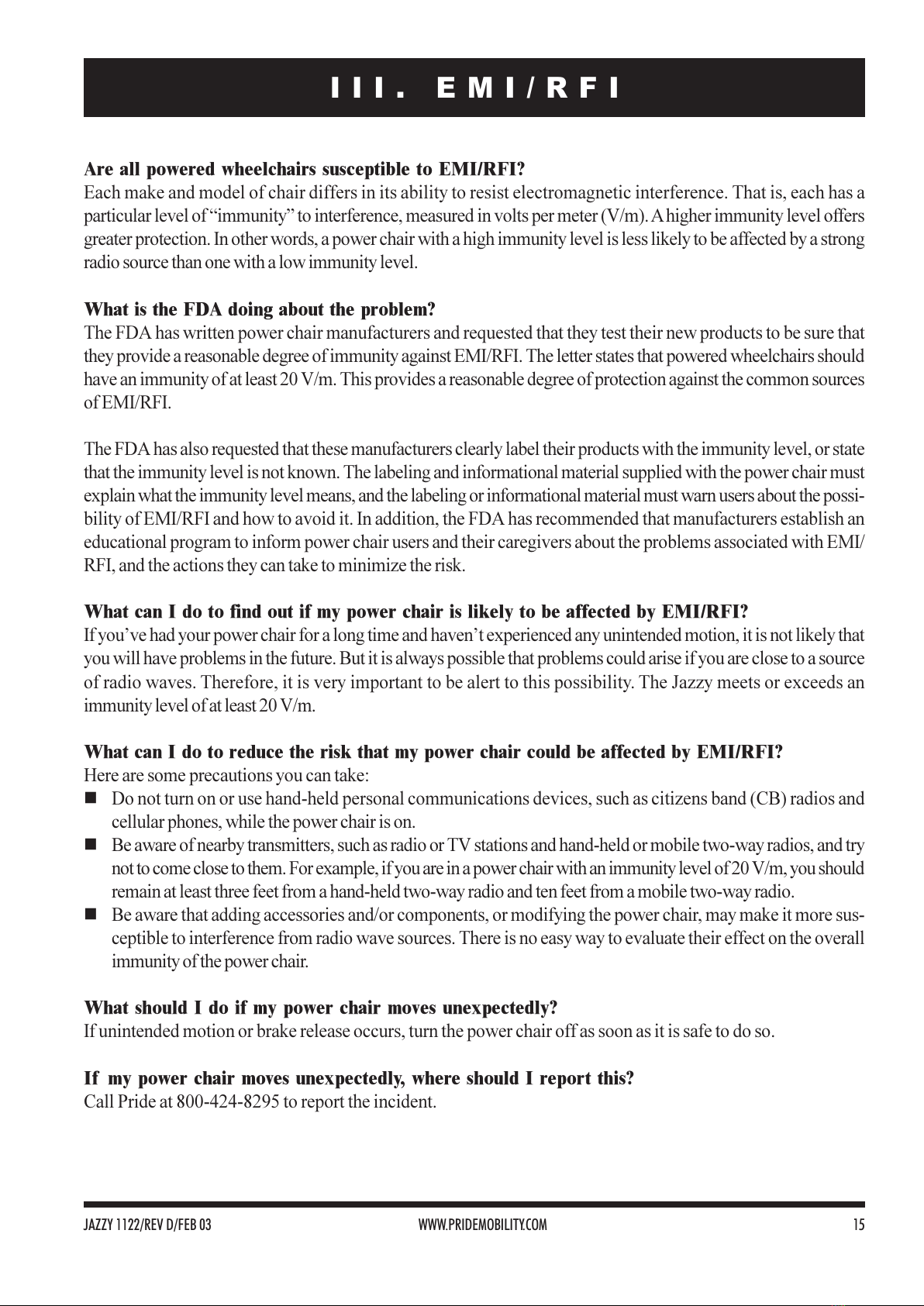

Are all powered wheelchairs susceptible to EMI/RFI?
Each make and model of chair differs in its ability to resist electromagnetic interference. That is each has a
particular level of immunity to interference measured in volts per meter (V/m). A higher immunity level offers
greater protection. In other words a power chair with a high immunity level is less likely to be affected by a strong
radio source than one with a low immunity level.
What is the FDA doing about the problem?
The FDA has written power chair manufacturers and requested that they test their new products to be sure that
they provide a reasonable degree of immunity against EMI/RFI. The letter states that powered wheelchairs should
have an immunity of at least 20 V/m. This provides a reasonable degree of protection against the common sources
of EMI/RFI.
The FDA has also requested that these manufacturers clearly label their products with the immunity level or state
that the immunity level is not known. The labeling and informational material supplied with the power chair must
explain what the immunity level means and the labeling or informational material must warn users about the possi-
bility of EMI/RFI and how to avoid it. In addition the FDA has recommended that manufacturers establish an
educational program to inform power chair users and their caregivers about the problems associated with EMI/
RFI and the actions they can take to minimize the risk.
What can I do to find out if my power chair is likely to be affected by EMI/RFI?
If youve had your power chair for a long time and havent experienced any unintended motion it is not likely that
you will have problems in the future. But it is always possible that problems could arise if you are close to a source
of radio waves. Therefore it is very important to be alert to this possibility. The Jazzy meets or exceeds an
immunity level of at least 20 V/m.
What can I do to reduce the risk that my power chair could be affected by EMI/RFI?
Here are some precautions you can take:
nDo not turn on or use hand-held personal communications devices such as citizens band (CB) radios and
cellular phones while the power chair is on.
nBe aware of nearby transmitters such as radio or TV stations and hand-held or mobile two-way radios and try
not to come close to them. For example if you are in a power chair with an immunity level of 20 V/m you should
remain at least three feet from a hand-held two-way radio and ten feet from a mobile two-way radio.
nBe aware that adding accessories and/or components or modifying the power chair may make it more sus-
ceptible to interference from radio wave sources. There is no easy way to evaluate their effect on the overall
immunity of the power chair.
What should I do if my power chair moves une pectedly?
If unintended motion or brake release occurs turn the power chair off as soon as it is safe to do so.
If my power chair moves une pectedly, where should I report this?
Call Pride at 800-424-8295 to report the incident.
All manuals and user guides at all-guides.com

16 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
IV. THE JAZZY 1122
Your Jazzy has two main assemblies: the seat and the power base. See figure 1b. There are a variety of seating
options that are designed to accommodate most users. Typically the seating assembly includes the armrests
seatback and joystick controller. Your Jazzy may also have some optional accessories attached to it such as a
basket a cane/crutch holder a cup holder or a power seat switch. See XI. Optional Accessories.
The power base assembly is the heart of your Jazzy. The power base assembly includes two drive wheels two
anti-tip wheels two rear caster wheels a power seat connector (optional) harness connectors and a body
shroud. See figures 1b through 5.
SEATBACK
CONTROLLER
ARMRESTS
BODY SHROUD
ANTI-TIP WHEELS
DRIVE WHEEL
REAR CASTER WHEEL
Figure 1b. he Jazzy 1122
POWER BASE ASSEMBLY
SEAT ASSEMBLY
FOOTREST
FREEWHEEL LEVER
(REAR)
All manuals and user guides at all-guides.com
all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 17
IV. THE JAZZY 1122

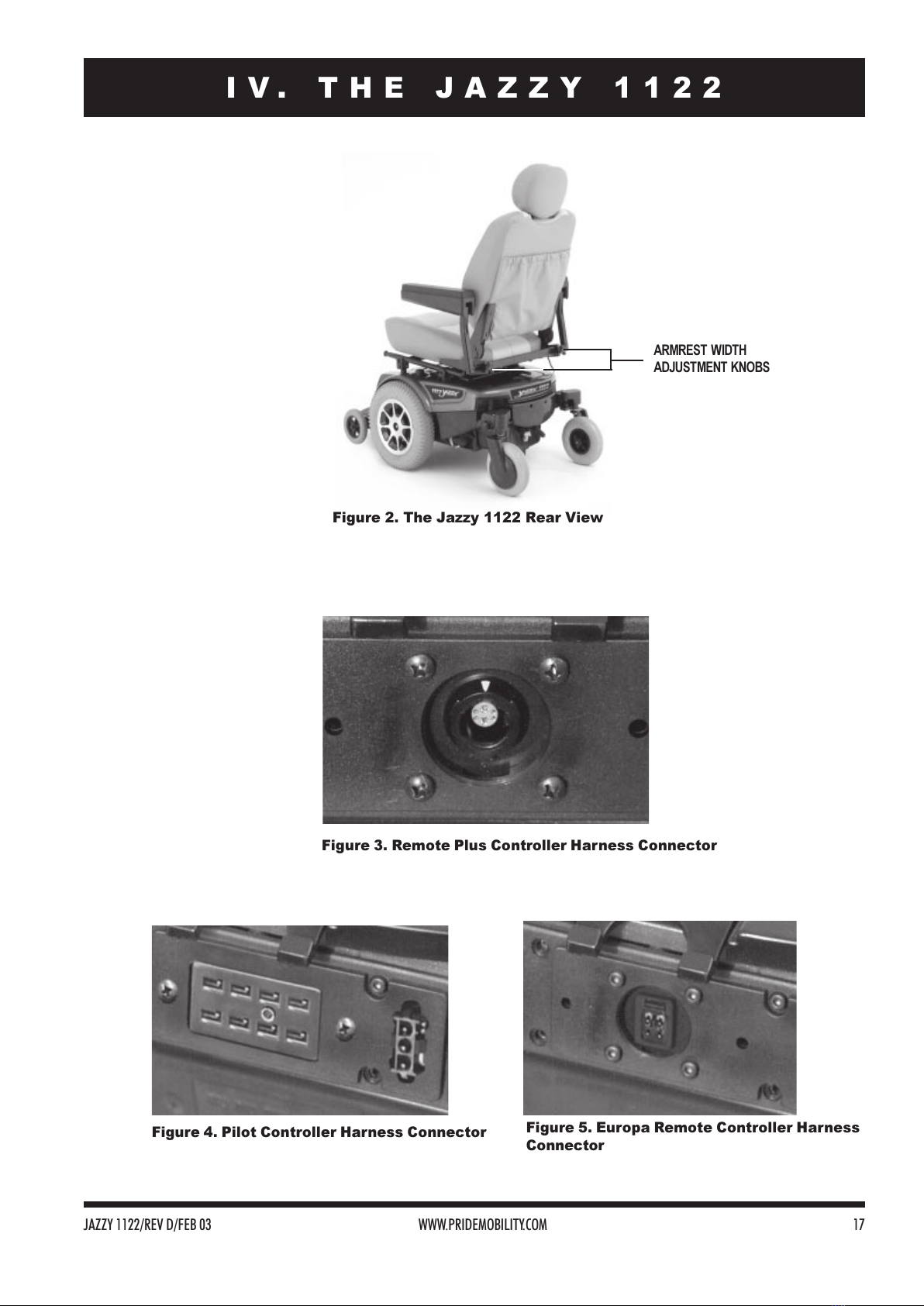

Figure 2. he Jazzy 1122 Rear View
ARMREST WIDTH
ADJUSTMENT KNOBS
Figure 4. Pilot Controller Harness Connector Figure 5. Europa Remote Controller Harness
Connector
Figure 3. Remote Plus Controller Harness Connector
All manuals and user guides at all-guides.com

18 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
IV. THE JAZZY 1122

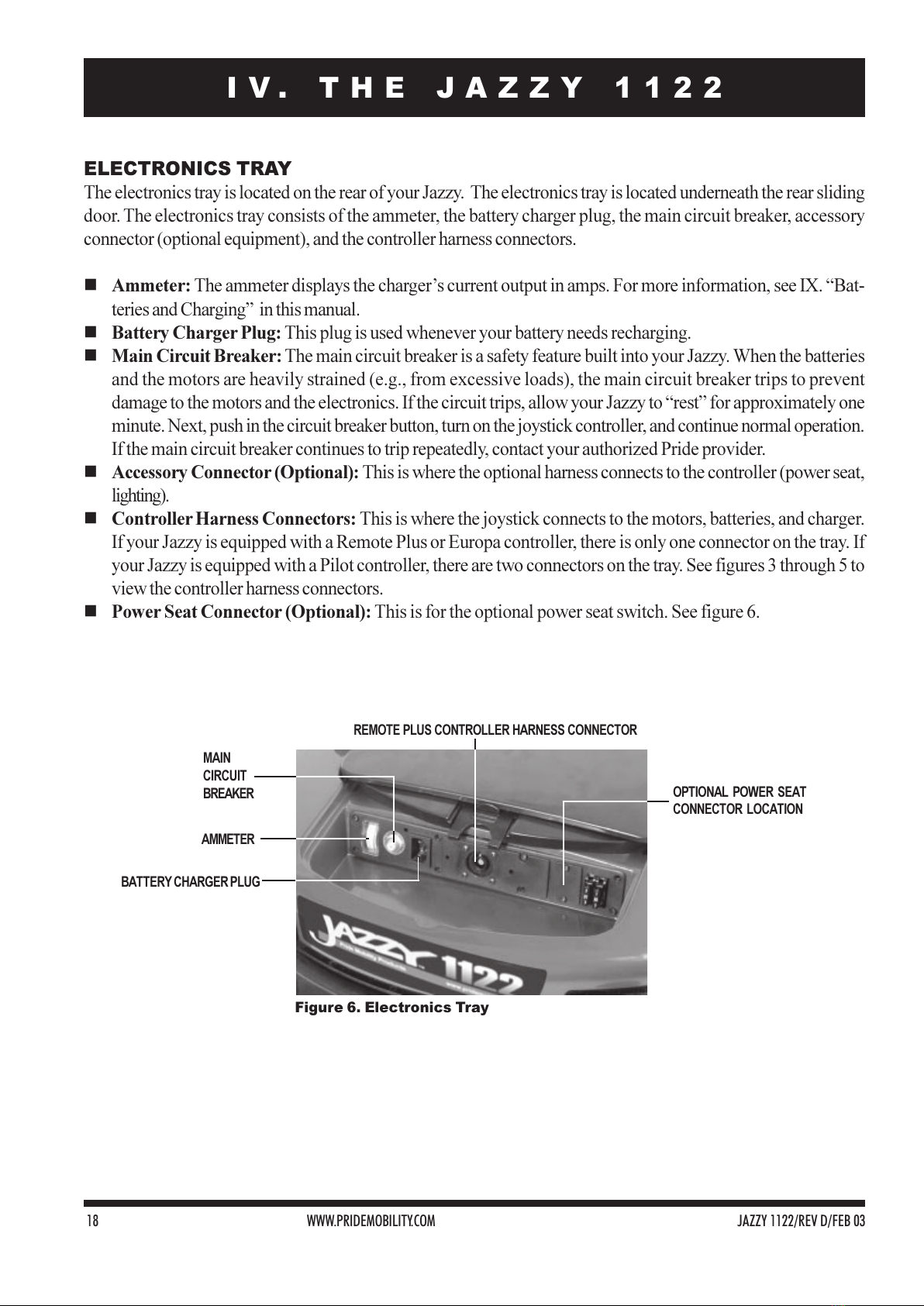

ELECT ONICS T AY
The electronics tray is located on the rear of your Jazzy. The electronics tray is located underneath the rear sliding
door. The electronics tray consists of the ammeter the battery charger plug the main circuit breaker accessory
connector (optional equipment) and the controller harness connectors.
nAmmeter: The ammeter displays the chargers current output in amps. For more information see IX. Bat-
teries and Charging in this manual.
nBattery Charger Plug: This plug is used whenever your battery needs recharging.
nMain Circuit Brea er: The main circuit breaker is a safety feature built into your Jazzy. When the batteries
and the motors are heavily strained (e.g. from excessive loads) the main circuit breaker trips to prevent
damage to the motors and the electronics. If the circuit trips allow your Jazzy to rest for approximately one
minute. Next push in the circuit breaker button turn on the joystick controller and continue normal operation.
If the main circuit breaker continues to trip repeatedly contact your authorized Pride provider.
nAccessory Connector (Optional): This is where the optional harness connects to the controller (power seat
lighting).
nController Harness Connectors: This is where the joystick connects to the motors batteries and charger.
If your Jazzy is equipped with a Remote Plus or Europa controller there is only one connector on the tray. If
your Jazzy is equipped with a Pilot controller there are two connectors on the tray. See figures 3 through 5 to
view the controller harness connectors.
nPower Seat Connector (Optional): This is for the optional power seat switch. See figure 6.
Figure 6. Electronics ray
AMMETER
OPTIONAL POWER SEAT
CONNECTOR LOCATION
REMOTE PLUS CONTROLLER HARNESS CONNECTOR
BATTERY CHARGER PLUG
MAIN
CIRCUIT
BREAKER
All manuals and user guides at all-guides.com

JAZZY 1122/REV D/FEB 03 WWW.PRIDEMOBILITY.COM 19
IV. THE JAZZY 1122
F EEWHEEL LEVE
For your convenience your Jazzy is equipped with a freewheel lever. See figures 7 and 8. This lever allows you to
disengage the drive motors and maneuver the chair manually.
WARNING! Do not use your Jazzy while the drive motors are disengaged unless you are in
the presence of an attendant! Do not disengage the drive motors when your Jazzy is on an
incline. he chair could roll down on its own, causing injury!
To operate the manual freewheel lever:
1. Pull the manual freewheel lever out and rotate clockwise for freewheel mode (drive disengaged.) See figure 7.
2. Rotate the manual freewheel lever counterclockwise for drive mode (drive motors engaged.) See figure 8.
CAU ION! It is important to remember that when your Jazzy is in freewheel mode, the
braking system is disengaged.
NOTE: If a lever is difficult to move in either direction, rock your Jazzy back and forth slightly. The lever
should then move to the desired position.
Figure 7. Freewheel Mode
Figure 8. Drive Mode
All manuals and user guides at all-guides.com

20 WWW.PRIDEMOBILITY.COM JAZZY 1122/REV D/FEB 03
ACTIVE-T AC SUSPENSION
Your Jazzy is equipped with Active-Trac Suspension (ATS). ATS is a suspension system designed to make your
Jazzy traverse different types of terrain and obstacles while maintaining smooth operation. With ATS your front
anti-tip wheels work in conjunction with your motor suspension to help you maneuver over obstacles.
As your front anti-tip wheels come in contact with an obstacle the front anti-tip wheel assembly is drawn upward.
At the same time your motors are forced downward. This allows the motors to push the Jazzy over an obstacle
and limits the possibility of your power chair getting caught on the obstacle.
ATS also helps in day-to-day operating conditions. For instance when you release the joystick your Jazzy begins
to slow down. As the chair slows down the front anti-tip wheels will automatically drop toward the ground. This
will reduce the forward tip that is typically encountered with center-wheel drive chairs.
EA SUSPENSION
Your Jazzy 1122 is equipped with Rear Suspension. See figure 9. This suspension system works in conjunction
with the ATS and is designed to maintain a smooth ride when driving over rough terrain and up and down curbs.
This system works by allowing the caster forks to respond to weight transfers and uneven terrain. The rear caster
wheels will pivot as you drive over obstacles. This system also enhances performance when the front anti-tip wheels
are set lower to the surface.
IV. THE JAZZY 1122
Figure 9. Rear Suspension System
REAR
CASTER
WHEEL
REAR
CASTER
FORK
All manuals and user guides at all-guides.com
