Owner’s Manual

2 www.pridemobility.com Jazzy 600
SAFETY GUIDELINES
The symbols below are used throughout this owner's manual and on the power chair to identify warnings and important
information. It is very important for you to read them and understand them completely.
WARNING! Failure to follow designated procedures can cause either personal injury, component
damage, or malfunction ( lack sym ol on yellow triangle with lack order).
MANDATORY! These actions should e performed as specified. Failure to perform mandatory
actions can cause injury to personnel and/or damage to equipment (white sym ol on lue dot).
PROHIBITED! These actions should e prohi ited. These actions should not e performed at any
time or in any circumstances. Performing a prohi ited action can cause injury to personnel and/
or damage to equipment ( lack sym ol with red circle and red slash).
Copyright © 2005
This product is manufactured by
Pride Mobility Products Corporation
182 Susquehanna Avenue
Exeter, PA 18643
USA
INFMANU3039/RevA/May05
088 609 661

Jazzy 600 www.pridemobility.com 3
I. INTRODUCTION .................................................................................................................................... 4
II. SAFETY .................................................................................................................................................... 5
III. YOUR POWER CHAIR ....................................................................................................................... 14
IV. ASSEMBLY ............................................................................................................................................ 19
V. COMFORT ADJUSTMENTS........................................................................................................... 21
VI. BATTERIES AND CHARGING ....................................................................................................... 2
VII. OPERATION .......................................................................................................................................... 30
VIII. CARE AND MAINTENANCE ........................................................................................................... 33
IX. WARRANTY ........................................................................................................................................... 39
CONTENTS
This owners manual is compiled from the latest specifications and product information available at the time of publication.
We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations
between the illustrations and explanations in this manual and the product you have purchased.

4 www.pridemobility.com Jazzy 600
I. INTRODUCTION
SAFETY
WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of-
the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you
with the conveniences you expect during your daily activities. Once you understand how to safely operate and care for
your power chair, it should give you years of trouble free operation and service.
Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power chair for the
first time. In addition, your safety depends upon you, as well as your provider, caretaker, or healthcare professional in
using good judgement.
If there is any information in this manual which you do not understand, or if you require additional assistance for setup or
operation, please contact your authorised Pride Provider. Failure to follow the instructions in this manual and those
located on your power chair can lead to personal injury and/or damage to the power chair, including voiding the
warranty.
PURCHASERS AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove or
render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to install any
retrofit kits from time to time provided by Pride to enhance or preserve the safe use of this product.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the safety
and reliability of your new power chair, and about the service you received from your authorised Pride Provider.
Please notify us of any change of address, so we can keep you apprised of important information about safety, new
products, and new options that can increase your ability to use and enjoy your power chair. Please feel free to contact us
at the address below:
Pride Mobility Products Australia Pty. Ltd.
21 Healey Road
Dandenong, 31 5
Victoria, Australia
My authorised Pride Provider:
Name:_____________________________________________________________________________________
Address:___________________________________________________________________________________
Phone Number:______________________________________________________________________________
Purchase Date:_______________________________________________________________________________
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact us and
we will be glad to send you a new one immediately.

Jazzy 600 www.pridemobility.com 5
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very
important for you to read and understand them completely.
Corrosive chemicals contained in attery. Use only AGM or Gel-Cell atteries to reduce
the risk of leakage or explosive conditions.
Read and follow the information in the owners manual.
Maximum seating weight.

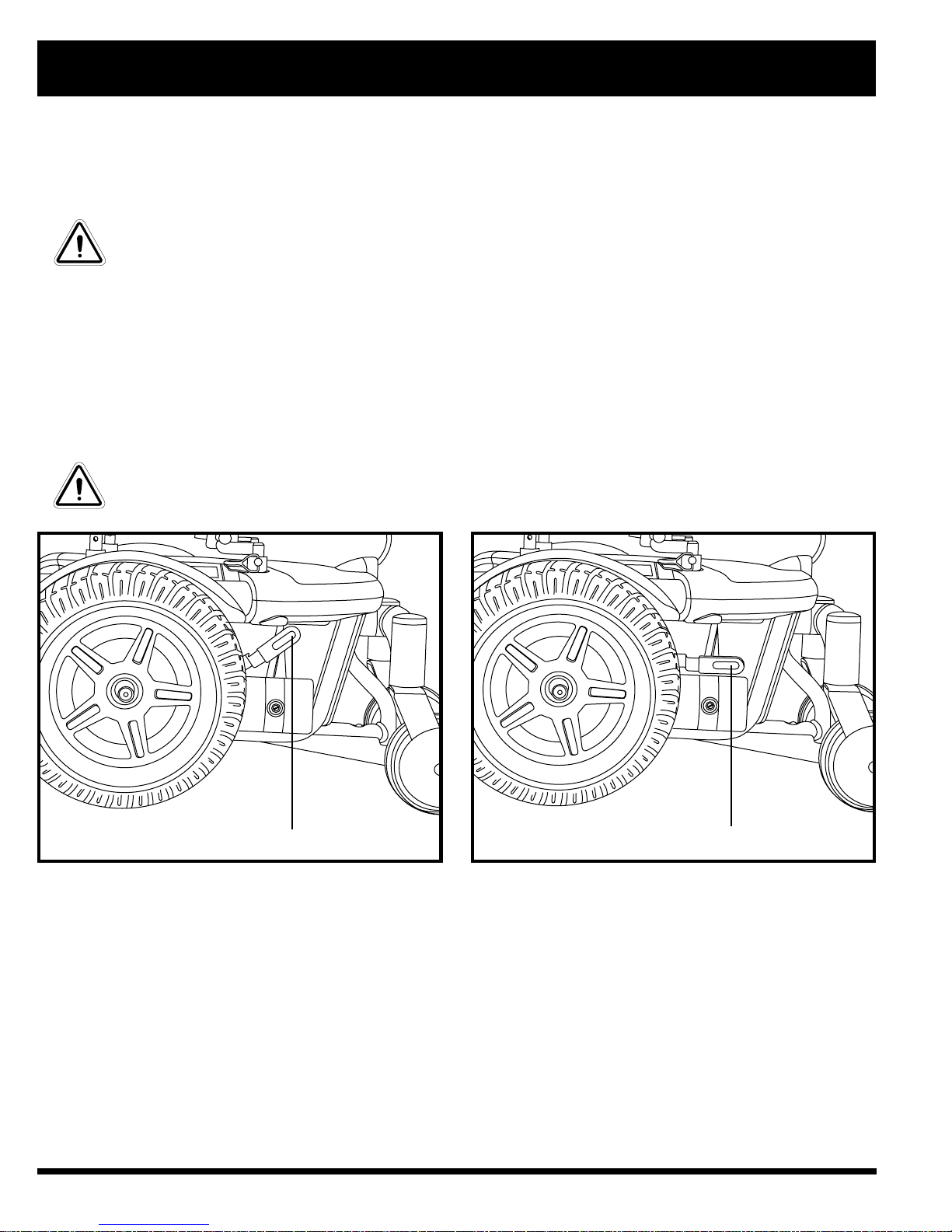

Locked and in drive mode.
Place unit on level ground and stand ehind or to one side when changing from drive
mode to freewheel mode or freewheel mode to drive mode.
Unlocked and in freewheel mode.
Battery Configuration:
T = Terminal Post
Connect Red wire to T with +
Connect Black wire to T with 

6 www.pridemobility.com Jazzy 600
II. SAFETY
Do not use a cell phone, walkie/talkie, laptop, or other radio transmitter while operating.
Avoid exposure to rain, snow, ice, salt, or standing water whenever possi le. Maintain and
store in a clean and dry condition.
Removal of grounding prong can create electrical hazard. If necessary, properly install an
approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. Failure
to heed could result in personal injury and/or property damage.
Prevent personal injury and equipment damage. Do not connect an extension lead to the
AC/DC converter or the attery charger.

Jazzy 600 www.pridemobility.com 7
II. SAFETY
SAFETY
MANDATORY! Do not operate your new power chair for the first time without completely reading
and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive
variety of products to best fit the individual needs of the power chair user. Please be aware that the final selection and
purchasing decision regarding the type of power chair to be used is the responsibility of the power chair user, who is
capable of making such a decision, and his/her healthcare professional (i.e., medical doctor, physical therapist, etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted the power chair
to the user and has assisted the prescribing healthcare professional and/or the authorised Pride Provider in the instruction
process for the use of the product.
There are certain situations, including some medical conditions, where the power chair user will need to practice operating
the power chair in the presence of a trained attendant. A trained attendant can be defined as a family member or care
professional specially trained in assisting a power chair user in various daily living activities.
As you begin using your power chair during daily activities, you will probably encounter situations in which you will need
some practice. Simply take your time and you will soon be in full and confident control as you maneuver through doorways,
on and off of lifts, up and down ramps, and over moderate terrain.
Below are some precautions, tips, and other safety considerations that will help the user become accustomed to operating
the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide range of accessories
is available from your authorised Pride Provider to further customize your power chair to better suit your needs and/or
preferences. However, under no circumstances should you modify, add, remove, or disable any feature, part, or function
of your power chair.
WARNING! Do not modify your power chair in any way not authorised y Pride. Unauthorised
modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check before
each use to make sure your power chair operates smoothly and safely.
Perform the following inspections prior to using your power chair:
nCheck for proper tyre inflation. Maintain but do not exceed 2. bar in each tyre (if equipped with pneumatic tyres).
nCheck all electrical connections. Make sure they are tight and not corroded.
nCheck all controller connections to the power base. Make sure they are secured properly.
nCheck the brakes. See VIII. Care and Maintenance.
nCheck battery charge. See VI. Batteries and Charging.
NOTE: If you discover a problem, contact your authorised Pride Provider for assistance.

8 www.pridemobility.com Jazzy 600
II. SAFETY
Weight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal injury
and/or damage to your power chair. Pride will not e held responsi le for injuries and/or property
damage resulting from failure to o serve weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your power
chair may result in personal injury and/or property damage.
Tyre Inflation
If your power chair is equipped with pneumatic tyres, you should check or have the air pressure checked regularly. Proper
inflation pressures will prolong the life of your tyres and help ensure the smooth operation of your power chair.
WARNING! It is important that 2.4 ar tyre pressure e maintained in pneumatic tyres at all times.
Do not underinflate or overinflate your tyres. Low pressure may result in loss of control, and
overinflated tyres may urst. Failure to maintain 2.4 ar tyre pressure in pneumatic tyres at all
times may result in tyre and/or wheel failure, causing serious personal injury and/or damage to
your power chair.
WARNING! Inflate your power chair drive tyres from a regulated air source with an availa le
pressure gauge. Inflating your tyres from an unregulated air source could overinflate them, resulting
in a urst tyre and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination, designed for easy and safe access. Some ramps
may have turning switchbacks (180-degree turns) that require you to have good cornering skills on your power chair.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline.
nTake wide swings with your power chairs front wheels around any tight corners. If you do that, the power chairs rear
wheels will follow a wide arc, not cut the corner short, and not bump into or get hung up on any railing corners.
nWhen driving down a ramp, keep the power chairs speed adjustment set to the slowest speed setting to ensure a
safely controlled descent. See VII. Operation.
nAvoid sudden stops and starts.
When climbing an incline, try to keep your power chair moving. If you must stop, start up again slowly and then accelerate
cautiously. When driving down an incline, set your power chair to the slowest setting and drive in the forward direction
only. If your power chair starts to move down the incline faster than you anticipated or desired, allow it to come to a
complete stop by releasing the joystick, then push the joystick forward slightly to ensure a safely controlled descent.
WARNING! When clim ing an incline, do not zigzag or drive at an angle up the face of the incline.
Drive your power chair straight up the incline. This greatly reduces the possi ility of a tip or a fall.
Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered
with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in freewheel
mode while seated on it or standing next to it. Doing so may result in personal injury and/or
damage to your power chair.
WARNING! Never travel down an incline rearwards. This may result in personal injury.

Jazzy 600 www.pridemobility.com 9
II. SAFETY
Figure 1. Maximum Safe Slope (Ascending and Descending)
WARNING! Even though your power chair is capa le of clim ing slopes greater than those illustrated
in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause insta ility in your power chair,
resulting in personal injury and/or damage to your power chair.
Most handicap public access ramps are required to have a maximum slope of 8. % (5°). Therefore, Pride recommends
that the maximum slope of an incline you attempt to safely ascend or descend on your power chair does not exceed 8. %
(5°). See figure 1.
WARNING! Any attempt to clim or descend a slope steeper than 8.7% (5°) may put your power
chair in an unsta le position and cause it to tip, resulting in personal injury.
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative  uses electricity to rapidly slow the vehicle when the joystick returns to the centre/stop position.
2. Disc Park Brake  activates mechanically after regenerative braking slows the vehicle to near stop, or when power is
removed from the system for any reason.
Cornering Information
While your power chair is equipped with four caster wheels, excessively high cornering speeds can still create the possibil-
ity of tipping. Factors which affect the possibility of tipping include, but are not limited to: cornering speed, steering angle
(how sharply you are turning), uneven road surfaces, inclined road surfaces, riding from an area of low traction to an area
of high traction (such as passing from a grassy area to a paved area  especially at high speed while turning), and abrupt
directional changes. High cornering speeds are not recommended. If you feel that you may tip over in a corner, reduce your
speed and steering angle (i.e., lessen the sharpness of the turn) to prevent your power chair from tipping.
WARNING! When cornering sharply, reduce your speed. This greatly reduces the possi ility of a
tip or fall. To avoid personal injury and/or property damage, always exercise common sense when
cornering.
Public Streets and Road ays
WARNING! You should not operate your power chair on pu lic streets and roadways. Be aware
that it may e difficult for traffic to see you when you are seated on your power chair. O ey all
local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme
caution.
Removable Parts
WARNING! Do not attempt to lift or move a power chair y any of its remova le parts. Personal
injury and/or damage to the power chair may result.

10 www.pridemobility.com Jazzy 600
II. SAFETY
Free heel Mode
Your power chair is equipped with two manual freewheel levers to allow for manual maneuverability by a trained attendant.
For more information about how to place your power chair into and out of freewheel mode, see III. Your Power Chair.
WARNING! Do not use your power chair in freewheel mode without an attendant present. Personal
injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while seated
on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. The chair could
roll uncontrolla ly on its own, causing personal injury.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry, level surfaces composed
of concrete, blacktop, or tarmac. However, Pride recognizes that there will be times when you will encounter other surface
types. For this reason, your power chair is designed to perform admirably on packed soil, grass, and gravel. Feel free to
use your power chair safely on lawns and in park areas.
nReduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
nAvoid tall grass that can entangle the running gear.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface, avoid that surface.
Stationary Obstacles (Steps, Kerbs, etc.)
Proceed with extreme caution when driving near raised surfaces, unprotected ledges and/or drop-offs (kerbs, porches,
stairs, etc.). The correct method for approaching a kerb is illustrated in figures 2 and 3.
WARNING! Do not attempt to have your power chair clim or descend an o stacle that is higher
than 5 cm unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed rearwards down any step, ker , or
other o stacle. This may cause the power chair to tip and cause personal injury.

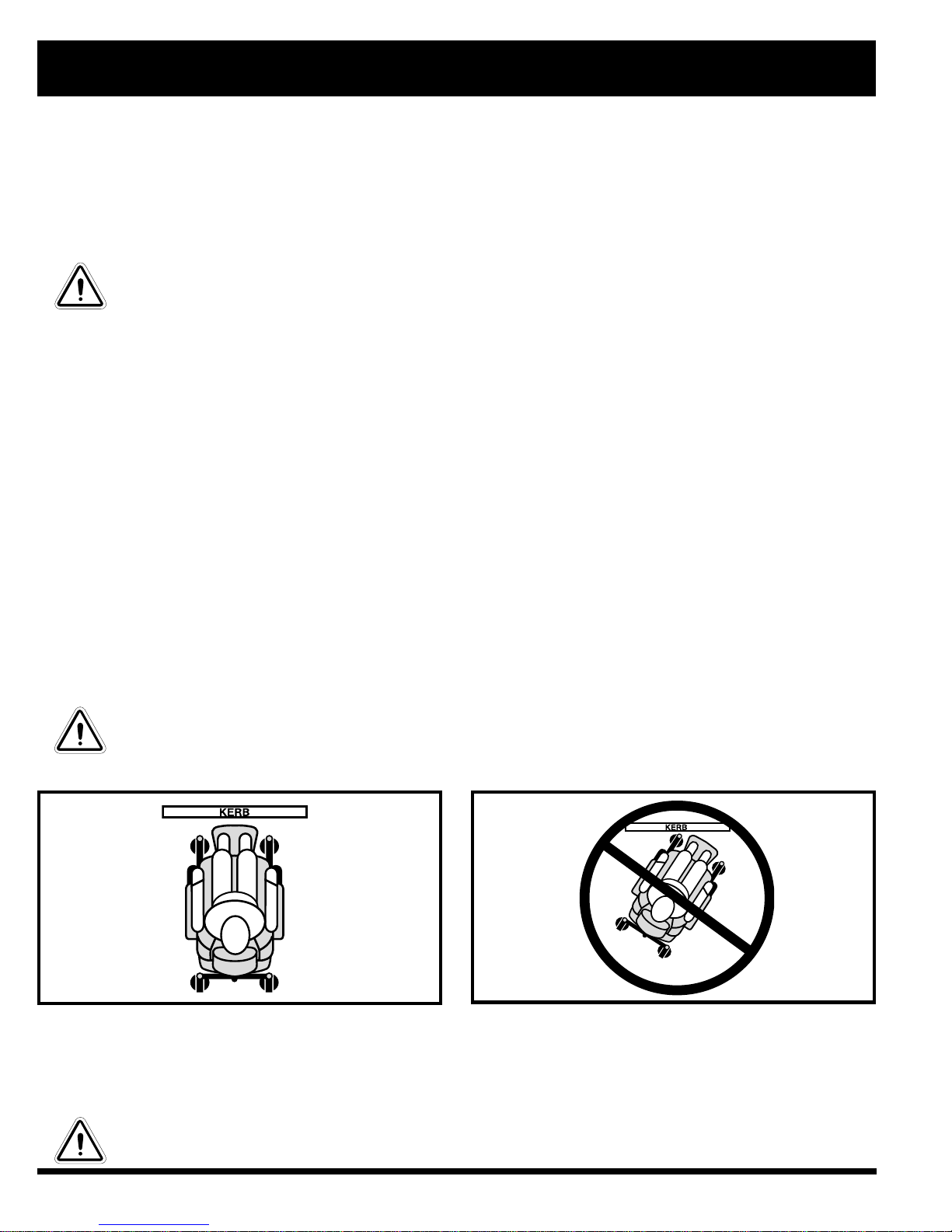

Figure 2. Correct Kerb Approach Figure 3. Incorrect Kerb Approach
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use a lift.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to
yourself and to others and/or damage your power chair.

Jazzy 600 www.pridemobility.com 11
II. SAFETY
Transfers
Transferring onto and off of your power chair requires a
good sense of balance. Always have an attendant or health-
care professional present while learning to properly trans-
fer yourself.
To eliminate the possibility of injury, Pride recommends that
you or a trained attendant perform the following tasks be-
fore attempting a transfer:
nTurn the power off. See VII. Operation.
nEnsure your power chair is not in freewheel mode. See
III. Your Power Chair.
nTurn the caster wheels toward the transfer destination
to improve power chair stability during transfer.
nMake sure both armrests are flipped up or removed
from your power chair.
nFlip up the foot platform or move the leg rests aside;
this will help to keep your feet from getting caught on
the foot rigging during the transfer.
nReduce the distance between your power chair and

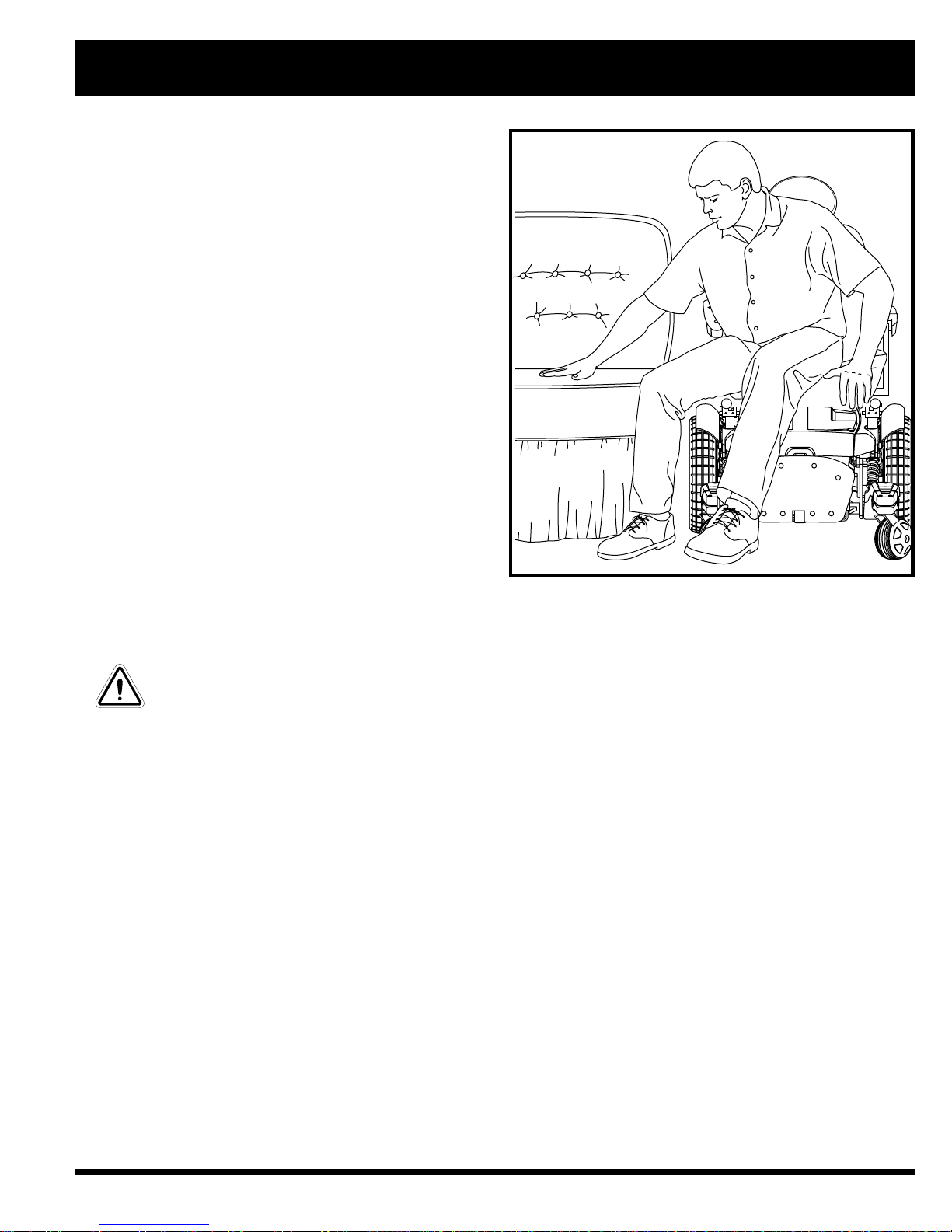

the object you are transferring onto. Figure 4. Ideal Transfer Position
WARNING! Before transferring, position yourself as far ack as possi le in the power chair seat
to prevent the power chair from tipping forward during transfer and causing injury.
WARNING! Avoid using your armrests for weight earing purposes. Such use may cause the power
chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the foot riggings. Such use may cause the power
chair to tip and cause personal injury.
Doors
nDetermine if the door opens toward or away from you.
nDrive your power chair gently and slowly forward to push the door open. Or drive your power chair gently and slowly
rearwards to pull the door open.
Lifts
Modern lifts have a door edge safety mechanism that, when pushed, reopens the lift door(s).
nIf you are in the doorway of a lift when the door(s) begin to close, push on the rubber door edge or allow the rubber
door edge to contact the power chair and the door will reopen.
nUse care that handbags, packages, or power chair accessories do not become caught in lift doors.
Lift/Elevation Products
If you will be traveling with your power chair, you may find it necessary to use a lift/elevation product to aid in transportation.
Pride recommends that you closely review the instructions, specifications, and safety information set forth by the manufacturer
of the lift/elevation product before using that product.

12 www.pridemobility.com Jazzy 600
II. SAFETY
Inclement Weather Precautions
Exposure of your power chair to inclement weather conditions should be avoided whenever possible. If suddenly caught
up in rain, snow, severe cold or heat while operating your power chair proceed to shelter at the earliest opportunity.
Thoroughly dry your power chair before storing, charging, or operating your power chair.
WARNING! Operating in rain, snow, salt, mist/spray conditions, and on icy/slippery surfaces can
cause personal injury and/or damage to the power chair and electrical system. Maintain and store
your power chair in a dry and clean condition.
Motor Vehicle Transport
Currently, there are no standards approved for tie-down systems in a moving vehicle of any type to transport a person
while seated in a power chair.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury and/or
property damage may result.
WARNING! Always e sure your power chair and its atteries are properly secured when it is eing
transported. Failure to do so may result in personal injury and/or damage to your power chair.
Positioning Belts
Your authorised Pride Provider, therapist(s), and other healthcare professionals are responsible for determining your re-
quirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning elt to safely operate your power chair, make sure it is
fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! The positioning elt is not designed for use as a seat elt in a motor vehicle. Nor is
your power chair suita le for use as a seat in any vehicle. Anyone traveling in a vehicle should e
properly elted into seats approved y the vehicle manufacturer.
Reaching and Bending
Never reach, lean, or bend while driving your power chair. If it is absolutely necessary to reach, lean, or bend while seated
on your power chair, it is important to maintain a stable centre of gravity and keep the power chair from tipping. Pride
recommends that the power chair user determine his/her personal limitations and practice bending and reaching in the
presence of a qualified healthcare professional.
WARNING! Do not end, lean, or reach for o jects if you have to pick them up from the floor y
reaching down etween your knees. Movements such as these may change your centre of gravity
and the weight distri ution of the power chair. This may cause your power chair to tip, possi ly
resulting in personal injury.
WARNING! Prevent personal injury! Keep your hands away from the tyres when driving. Be aware
that loose fitting clothing can ecome caught in drive tyres.
Batteries
In addition to following the warnings below, be sure to comply with all other battery handling information. For more
information about your power chairs batteries, see VI. Batteries and Charging.
WARNING! Power chair atteries are heavy. See specifications ta le. If you are una le to lift that
much weight, e sure to get help. Lifting eyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.

Jazzy 600 www.pridemobility.com 13
II. SAFETY
WARNING! Always protect the atteries from freezing and never charge a frozen attery. Charging
a frozen attery may result in personal injury and/or damage to the attery.
Preventing Unintended Movement
WARNING! If you anticipate eing seated in a stationary position for an extended period of time,
turn off the power. This will prevent unexpected motion from inadvertent joystick contact. This
will also eliminate the possi ility of unintended chair movement from electromagnetic (EM) sources.
Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of safety issues when
taking prescribed or over-the-counter drugs or when the user has specific physical limitations.
WARNING! Consult your physician if you are taking prescri ed or over-the-counter medication or
if you have certain physical limitations. Some medications and limitations may impair your a ility
to operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This includes awareness
of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your a ility to operate your power chair in a safe manner.
Electromagnetic and Radio Frequency Interference (EMI/RFI)
WARNING! La oratory tests have shown that electromagnetic and radio frequency waves can
have an adverse affect on the performance of electrically-powered mo ility vehicles.
Electromagnetic and Radio Frequency Interference can come from sources such as cellular phones, mobile two-way
radios (such as walkie-talkies), radio stations, TV stations, amateur radio (HAM) transmitters, wireless computer links,
microwave signals, paging transmitters, and medium-range mobile transceivers used by emergency vehicles. In some
cases, these waves can cause unintended movement or damage to the control system. Every electrically-powered mobility
vehicle has an immunity (or resistance) to EMI. The higher the immunity level, the greater the protection against EMI. This
product has been tested and has passed at an immunity level of 20 V/m.
PROHIBITED! To prevent unintended movement, turn off the power to the electrically-powered
mo ility vehicle efore using a cell phone, two-way radio, lap-top, or any other type of radio
transmitter. Avoid coming into close proximity of radio or TV stations.
WARNING! The addition of accessories or components to the electrically-powered mo ility vehicle
can increase the suscepti ility of the vehicle to EMI. Do not modify your power chair in any way
not authorised y Pride.
WARNING! The electrically-powered mo ility vehicle itself can distur the performance of other
electrical devices located near y, such as alarm systems.
NOTE: or further information on EMI/R I, go to the Resource Centre on www.pridemobility.com. If
unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Contact
your authorised Pride Provider to report the incident.

14 www.pridemobility.com Jazzy 600
III. YOUR POWER CHAIR
THE JAZZY 600
The Jazzy 600 has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat
assembly includes the armrests, seatback, and seat base. The power base assembly includes two motor/brake assemblies,
two drive wheels, four caster wheels, two batteries, and wiring harnesses. See figure 5, 6, and .
SEATBACK
REAR SHROUD
DRIVE WHEEL
CASTER WHEEL
Figure 5. The Jazzy 600
POWER BASE
ASSEMBLY
SEAT ASSEMBLY JOYSTICK
FOOT RIGGING
(FOOT PLATFORM SHOWN)
SEAT BASE
SEATBACK
RELEASE LEVER
ARMRESTS
CONTROLLER
( FLIGHT SHOWN)
CASTER WHEEL
MANUAL FREEWHEEL LEVER

Jazzy 600 www.pridemobility.com 15
III. YOUR POWER CHAIR
JAZZY 600 SPECIFICATIONS
Class of Use: B
Maximum Safe Slope: 8.7% (5°)
Maximum Climbing Abilit : 8.7% (5°)
Maximum Obstacle Climbing Abilit : 5 cm
Suspension: Active-Trac Extreme
Drive Wheels: 35.5 cm, pneumatic (35.56 solid optional)
Front Caster Wheels: 13 cm, solid
Rear Caster Wheels: 15.25 cm, solid
Maximum Speed: Up to 8 km/h*
Brakes: Intelligent Braking electronic regenerative, disc park brake
Ground Clearance: 8 cm
Turning Radius: 49.5 cm (without foot riggings)
Overall Size: Length: 89.5 cm (without foot riggings)
Length: 97 cm (with swing-away footrests)
Width: 60 cm
Seating Options: Limited Recline High-Back Seat
Full Recline High-Back Seat
Drivetrain: Two motor, mid-wheel drive
Batteries: Two 12-volt, NF-22 batteries
Range: Up to 40 km*
Batter Charger: Off-board
Electronics: 75-amp Pride Flight Controller
Weight Capacit : 136 kg
Component Weights: Base: 55 kg
Seat: 20 kg
Batteries: 17.25 kg each
*Depending on user weight and terrain.

16 www.pridemobility.com Jazzy 600
III. YOUR POWER CHAIR
ELECTRICAL COMPONENTS
The electrical components are located inside the power base. The main circuit breaker is located on the front of the battery
tray. The controller connector(s) are located inside the power base. See figure .
Motor Connectors: This is where the power module connects to the motors.
Battery Connector: This is where the power module connects to the batteries.
Controller Connector: This is where the controller connects to the power module.
Figure 6. The Jazzy 600 Power Base
MOTOR/BRAKE
ASSEMBLY
REAR SHROUD FASTENERS
TRAPEZE BARS
FRONT COVER

Jazzy 600 www.pridemobility.com 17
III. YOUR POWER CHAIR
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries and the
motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage to the motors and
the electronics. If the circuit trips, allow your power chair to rest for approximately one minute. Next, push in the circuit
breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeat-
edly, contact your authorised Pride Provider.
Figure 7. Jazzy 600 Electrical Components
BATTERY CONNECTOR
MAIN CIRCUIT BREAKER
POWER MODULE
MOTOR CONNECTOR
MOTOR CONNECTOR

18 www.pridemobility.com Jazzy 600
MANUAL FREEWHEEL LEVERS
The Jazzy 600 has a manual freewheel lever on each motor. Manual freewheel levers enable you to disengage the drive
motors from the gearboxes and maneuver the chair manually.
WARNING! Do not use the power chair while the drive motors are disengaged! Do not disengage
the drive motors when the power chair is on an incline, as the unit could roll on its own, causing
injury!
To engage or disengage the drive motors:
1. Locate the lever on top of each motor.
2. Pull the two levers upward to engage the drive motors. See figure 8.
3. Push the two levers downward to disengage the drive motors. See figure 9.
If a lever is difficult to move in either direction, slightly rock the power chair back and forth. The lever should then move to
the desired position.
WARNING! It is important to remem er that when your power chair is in freewheel mode, the
raking system is disengaged.
III. YOUR POWER CHAIR
Figure 9. Freewheel Mode (Drive Disengaged)Figure 8. Drive Mode (Drive Engaged)
MANUAL FREEWHEEL LEVER
MANUAL FREEWHEEL LEVER

Jazzy 600 www.pridemobility.com 19
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly
to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and
assembled by an end user or by a qualified carer before using the product or making comfort adjustments.
IV. ASSEMBLY
ARMREST ANGLE ADJUSTMENT
SEAT INSTALLATION
ARMREST WIDTH ADJUSTMENT
Figure 10. Jazzy 600Assembly View
TYRE/TUBE REPLACEMENT
FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT
SEAT HEIGHT/ANGLE ADJUSTMENT
CONTROLLER POSITION
FOOT PLATFORM
ANGLE ADJUSTMENT

20 www.pridemobility.com Jazzy 600
IV. ASSEMBLY

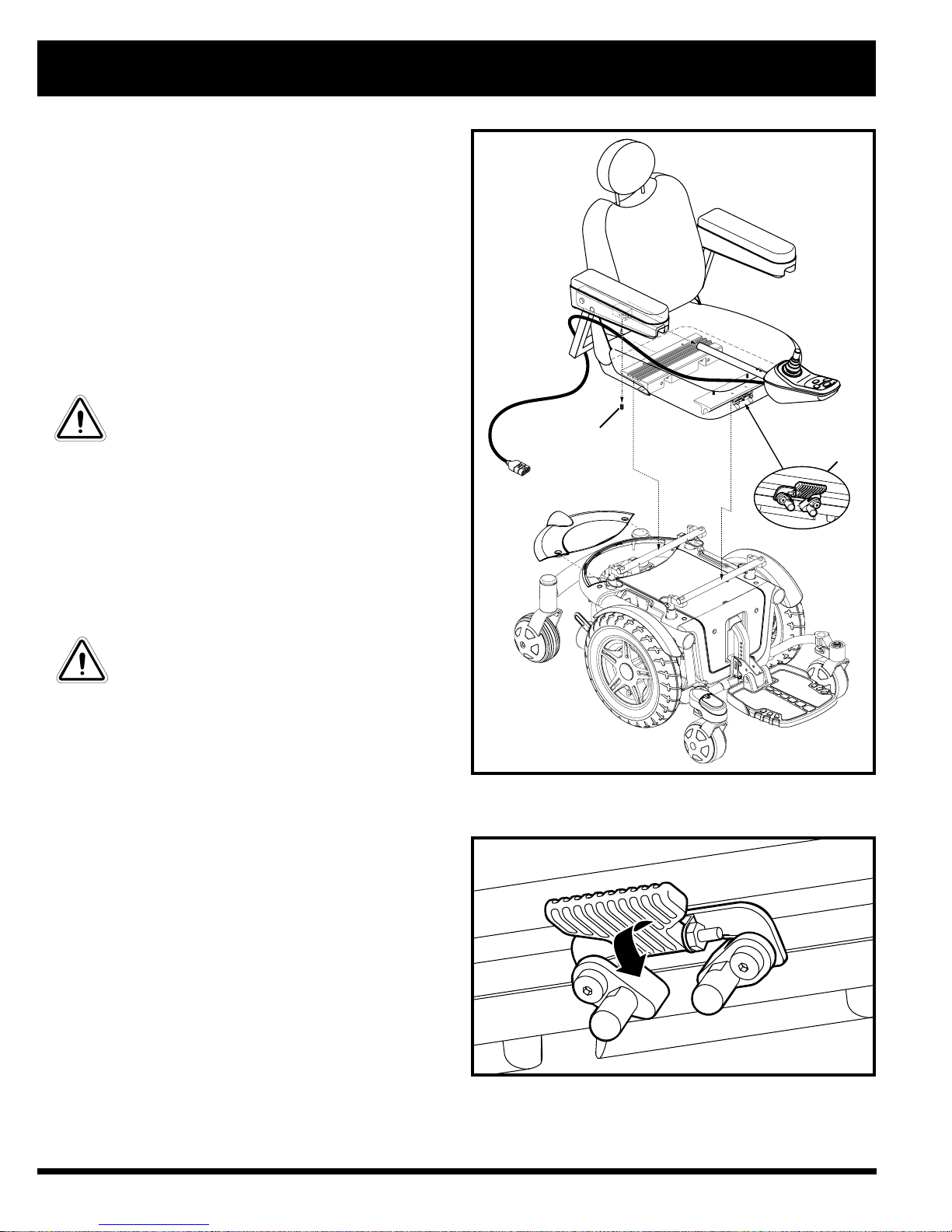

SEAT INSTALLATION
It may be necessary to install the seat either prior to initial
operation or after transporting your power chair. Most seats
are attached to the power base with the Universal Mount-
ing System (UMS). The UMS consists of universal parts
that may be attached to any medium-back or high-back
seat, regardless of seat width or seat depth. The two main
components are aluminum extrusions mounted to the seat
base. These extrusions attach to a pair of trapeze bars that
are mounted to the power base. See figure 11.
WARNING! Do not pick up the seat frame
y the armrests. They are free to pivot,
and you may lose control of the seat if
they do so, resulting in personal injury
or damage to the chair.
To install the seat:
1. Tilt the seat back and slide the rear extrusion onto the
rear trapeze bar. See figure 11.
3. Lower the front extrusion onto front trapeze bar until
the seat locks into place.
4. Flip the seat latch safety down. See figure 11a.
WARNING! Make sure the seat latch
safety is flipped down efore using your
power chair.
5. Install the controller into one of the armrests. See figure
11. Tighten the setscrew.
6. Turn the rear shroud fasteners one-quarter turn in any
direction. See figure 6.
. Remove the rear shroud.
8. Plug the controller connector into the power base. See
figure .
9. Reinstall the rear shroud. Turn the rear shroud fasteners
one-quarter turn in any direction.
10. Route the controller cable so that it cannot be pinched
in the seat hinge.
11. Secure the controller cable to the armrest receiver with
one or more wire ties.
Figure 11. Seat Installation (UMS)
SETSCREW
SEAT
LATCH
SAFETY
Figure 11a. Seat Installation (Seat Latch Safety)
