Pride Mobility Power Tote P-100 User manual

PowerToteP-100PowerToteP-100
PowerToteP-100PowerToteP-100
PowerToteP-100

www.pridemobility.com Power Tote P-100 Lift System
SAFETY GUIDELINES
Copyright © 2005
Pride Mobility Products Corp.
INFMANU3114/Rev A/August 2005
This product is manufactured by:
Silver Star Mobility
578 Mason Way
Medford, Oregon 97501
The symbols below are used throughout this owner's manual and on the product to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Failure to follow designated procedures can cause either personal injury,
component damage, or malfunction (black symbol on yellow triangle with black border).
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause injury to personnel and/or damage to equipment (white
symbol on blue dot with white border).
PROHIBITED! These actions should be prohibited. These actions should not be performed
at any time or in any circumstances. Performing a prohibited action can cause injury to
personnel and/or damage to equipment (black symbol with red circle and red slash).
Please fill out the following information for quick reference:
PrideProvider:_____________________________________________________________________
Address:__________________________________________________________________________
PhoneNumber:_____________________________________________________________________
Purchase Date:____________________ SerialNumber:_________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information avail-
able at the time of publication. We reserve the right to make changes as they become necessary. Any
changes to our products may cause slight variations between the illustrations and explanations in this
manual and the product you have purchased.

PowerToteP-100LiftSystem www.pridemobility.com 3
CONTENTS
I. INTRODUCTION......................................................................................................................... 4
II. SAFETY......................................................................................................................................... 6
III. INSTALLATION .......................................................................................................................... 8
IV. OPERATION............................................................................................................................... 11
V. CARE AND MAINTENANCE ................................................................................................ 13
VI. TROUBLESHOOTING............................................................................................................ 14
VII. SPECIFICATIONS ................................................................................................................... 15
VIII.WARRANTY................................................................................................................................16

4 www.pridemobility.com Power Tote P-100 Lift System
Welcometo Pride MobilityProductsCorporation (Pride). Congratulations onthe purchase of yournewPower
ToteP-100 LiftSystem.ThePowerToteP-100designcombinesthemostadvancedstate-of-the-artcomponents
withmodern,attractive styling.Wearecertain thatthe designfeatures andtrouble-freeoperationwilladd conve-
niencetoyourdailylivingandensurecompletesatisfaction.
At Pride, your safety is important to us. Please read and follow all instructions in this manual before
operating your lift system for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new lift system.
Prideisnotliablefordamagetopropertyorpersonalinjuryarising outoftheunsafeuseofaPowerToteP-100Lift
System.Prideis alsonot liablefor anyproperty damageorpersonalinjuryarising outof thefailure ofanyperson
and/oruser to follow theinstructions and recommendations setforth in this manualorany other instructions or
recommendationscontainedinotherliftsystemrelatedliteratureissuedbyPrideorcontainedonthePowerTote
P-100LiftSystemitself.
INTERNET AND PRIVATE PURCHASES
If you purchased your product over the internet or from a previous owner and you have any questions about
the safe use and/or maintenance of the product, please visit Pride’s web site www.pridemobility.com or
contact your authorized Pride Provider.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,
refuse,orneglectto installanyretrofit kitsfromtimetotimeprovidedby Pridetoenhance orpreservethesafeuse
ofthisproduct.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear
about the safety and reliability of your new lift system, and about the service you received from your
authorized Pride Provider.
Please notify us of any change of address, so we can keep you apprised of important information about
safety, new products, and new options that can increase your ability to use and enjoy your new lift system.
Please feel free to contact us at the address below:
PrideMobilityProducts Corporation
Attn.:CustomerCare Department
182SusquehannaAve.
Exeter, PA18643-2694
[e-mail]
800.424.8205
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.
I. INTRODUCTION

PowerTote P-100LiftSystem www.pridemobility.com 5
I. INTRODUCTION
PRIDE OWNERS CLUB
As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and
return your enclosed product registration card or visit Pride’s web site at www.pridemobility.com. As a
registered member, each time you visit our site, you have access to the most interactive, educational venue
available today for people with mobility needs, their families, and friends.
From our home page, select “Owners Club” to enter a page dedicated to current and potential Pride product
owners. You will gain access to interviews, stories, recreation ideas, daily living tips, product and funding
information, and interactive message boards. These message boards invite you to communicate with other
Pride customers as well as Pride representatives who are available to assist you with any questions or
concerns you may have.

6 www.pridemobility.com Power Tote P-100 Lift System
II. SAFETY
PRODUCT SAFETY SYMBOLS
The symbols below are used on the lift system to identify warnings, mandatory actions, and prohibited
actions. It is very important for you to read and understand them completely.
Read and follow the information in the owner’s manual.
Maximum lifting capacity.
Crush Hazard. Pinch/crush points created during assembly and operation.
Keep hands clear.
Lift system intended for use with unoccupied wheelchair. Do not use product
to lift people.
Do not use as a step.
D
W
R
1
2
3
4
L
0
0
4
R
E
V
A
Do not sit on mobility device while activating lift or during transport.
Do not sit on Power Chair or
Scooter while activating lift
or during transport.

PowerTote P-100LiftSystem www.pridemobility.com 7
LIFTING CAPABILITIES
The Power Tote P-100 Lift System is designed for a maximum lift weight of 100 lbs. (45.35 kg). Under no
circumstancesshould the PowerTote P-100 be made to exceed this weight limit. Subjecting the liftsystem to
the strain of hoisting more than it is designed to lift may cause it to fail, resulting in damage to the wheelchair
and/or the lift operator. Refer to the wheelchair owner’s manual for information on the overall weight of the
wheelchairbefore lifting.
WARNING! Adding accessories will increase the weight of your wheelchair. Verify with
your authorized Pride Provider that the total weight of your wheelchair, including additions,
does not exceed the maximum weight allowance.
INSTALLATION
Your PowerToteP-100 Lift System is designedto be mounted primarily to a vehiclehitch system. Before lift
installation,ensure that thehitch shows nosignsof rust orwear and thatthefront and rearvehicle suspension is
acceptable.Ifanyvehiclealterationsarenecessary,makesurethatyoufullyunderstandtheinstructionsfordrilling
orcuttingbeforemakingany alterations.
WARNING! Before drilling or cutting into the vehicle, make absolutely certain through
visual inspection that there are no obstructions in the path of the drill bit, such as the fuel
tank, exhaust pipes, or electrical wires.
LIFTING NON-PRIDE PRODUCTS
ThePowerToteP-100LiftSystemisanextremelyversatiledevice,whichusersmayemploytoliftitemsotherthan
Pride products. Pride has no control over such use, nor can Pride anticipate every possible use to which a lift
systemmaybeput. Liftingnon-Pride productswith thePowerTote P-100is doneat theoperator’s ownrisk, and
Prideacceptsnoliability fordamageorinjuryresultingfromsuch use.
PRELIFT INSPECTION
Beforeoperatingthe PowerToteP-100Lift System,inspect yoursurroundingstoensurethat theliftsystemhasa
clearpath of operation.Removeany possible obstructionsbefore operating the liftand do not allowchildren to
operateor playnear the lift.
OPERATOR POSITIONING
Theoperatorofthelift shouldstandasafedistancefromtheunitbeing lifted/loweredtoensurethathis/herfeetare
neverpositionedunderthe raisedliftplatform. Theoperatorshouldalsokeephis/herhandsclearofthe liftsystem
toavoidthepotentialforinjury.
TRANSPORT VEHICLE POSITIONING
Besureyourvehicle isparkedonflat, levelgroundbeforeattemptingtoload,lift,orremoveawheelchair withthe
Power Tote P-100 Lift System. Make sure the vehicle emergency park brake is engaged before loading or
unloadingawheelchair.
II. SAFETY

8 www.pridemobility.com Power Tote P-100 Lift System
III. INSTALLATION
POWER TOTE P-100 LIFT SYSTEM INSTALLATION
ThePowerToteP-100LiftSystemisdesignedtobeeasilyinstalledontoanyvehicleequippedwithaClass1,Class
2,orClass3hitchreceiver.Thehitchreceivershouldbeinstallednohigherthan20in.(50.8 cm)fromthebottomof
thehitchtubetotheground.
NOTE: Once installed, the lift system may obstruct the view of the vehicle license plate. Research the
local laws for license plate obstruction in your area and install the optional license plate kit if necessary.
Contact your authorized Pride Provider for more information.
WARNING! Prevent product and/or vehicle damage! The Power Tote P-100 Lift System
should be installed by an authorized service technician only.

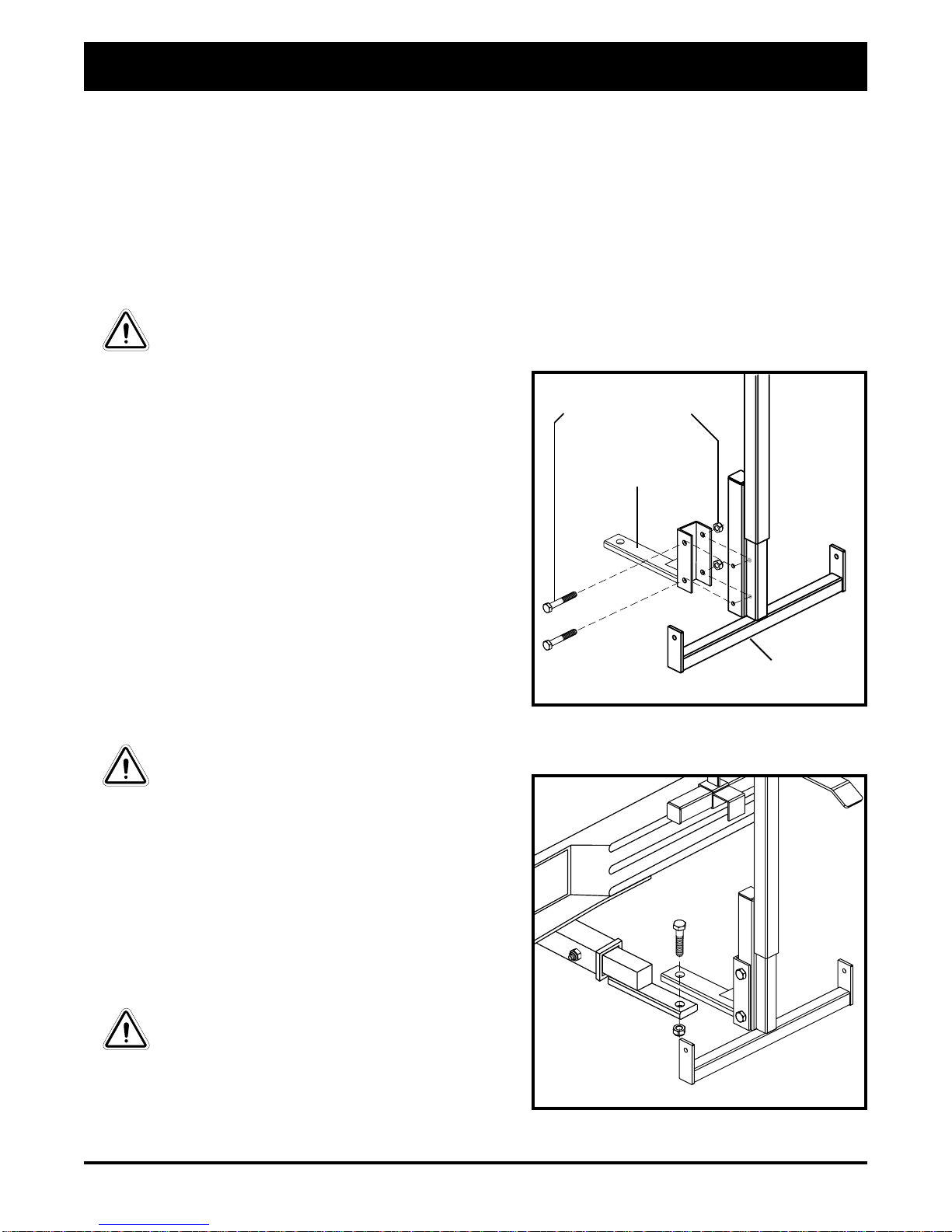

Figure 1. HitchTube Assembly (Class 1 Hitch
Bracket Shown)
Figure 2. Lift FrameVehicle Mounting (Class 1 Hitch
Bracket Shown)
Followthese steps to installthePowerTote P-100 Lift:
1. Removethepre-assembledmountinghardwarefromthe
Class1hitchbracketorClass2 orClass 3hitch tubeand
useittoattachthehitchbracket/hitchtubetotheliftframe.
Seefigure1.
2. If yourvehicle isequippedwith aClass 1hitch receiver,
slidethehitchbracketoverthehitchreceiver,aligningthe
mountingholes. Securethe hitchbracketto thehitch re-
ceiverwiththesuppliedhardware.Seefigure2.
3. Ifyourvehicleisequipped withaClass2orClass3hitch
receiver,slidethehitchtubeintothevehiclehitchreceiver,
aligningthemountingholeclosesttotheliftwiththemount-
ingholein thehitchreceiver.Seefigure3.
WARNING! Lifting weight beyond your
physical capability can result in personal
injury. Ask for assistance if necessary
when attaching the lift frame to the hitch
receiver.
WARNING! Avoid pinch points! Do not hold
the lift frame by the pivot points when
mounting the lift frame to the hitch
receiver.
4. SecuretheClass2or Class3hitch tubewiththesupplied
boltand nut,inserting thebolt fromthepassenger’s side
throughto thedriver’sside of thehitch. Seefigure 3.
WARNING! Threading the bolt from the
wrong side or allowing the bolt to turn
while tightening the nut will dislodge the
threaded insert in the hitch tube.
WARNING! Do not attach a Class 2 hitch
tube to a Class 3 hitch receiver. Personal
injury or product damage may result.
HITCH BRACKET
MOUNTINGHARDWARE
LIFT FRAME

PowerTote P-100LiftSystem www.pridemobility.com 9
III. INSTALLATION
NOTE: Ensure the hitch bolt is tightened firmly before
securing the nut to the hitch assembly to minimize the
chance that the lift will tilt during transport.
5. Route thelift systemwiringharness throughthevehicle.
Referto“WiringHarnessInstallation.”
WARNING! Prevent product damage!
Route the wiring harness through the
vehicle rather than under the vehicle to
avoid coming in contact with sharp edges,
extreme temperatures, moving parts, and
roadway debris. Power shorts may occur
if wires come in contact with hot exhaust
parts or sharp edges.
WARNING! Never attach the wiring
harness to a secondary power source. Do
not attempt to use trailer wiring to power
the lift system. The wiring harness must
be connected directly to the vehicle
battery.

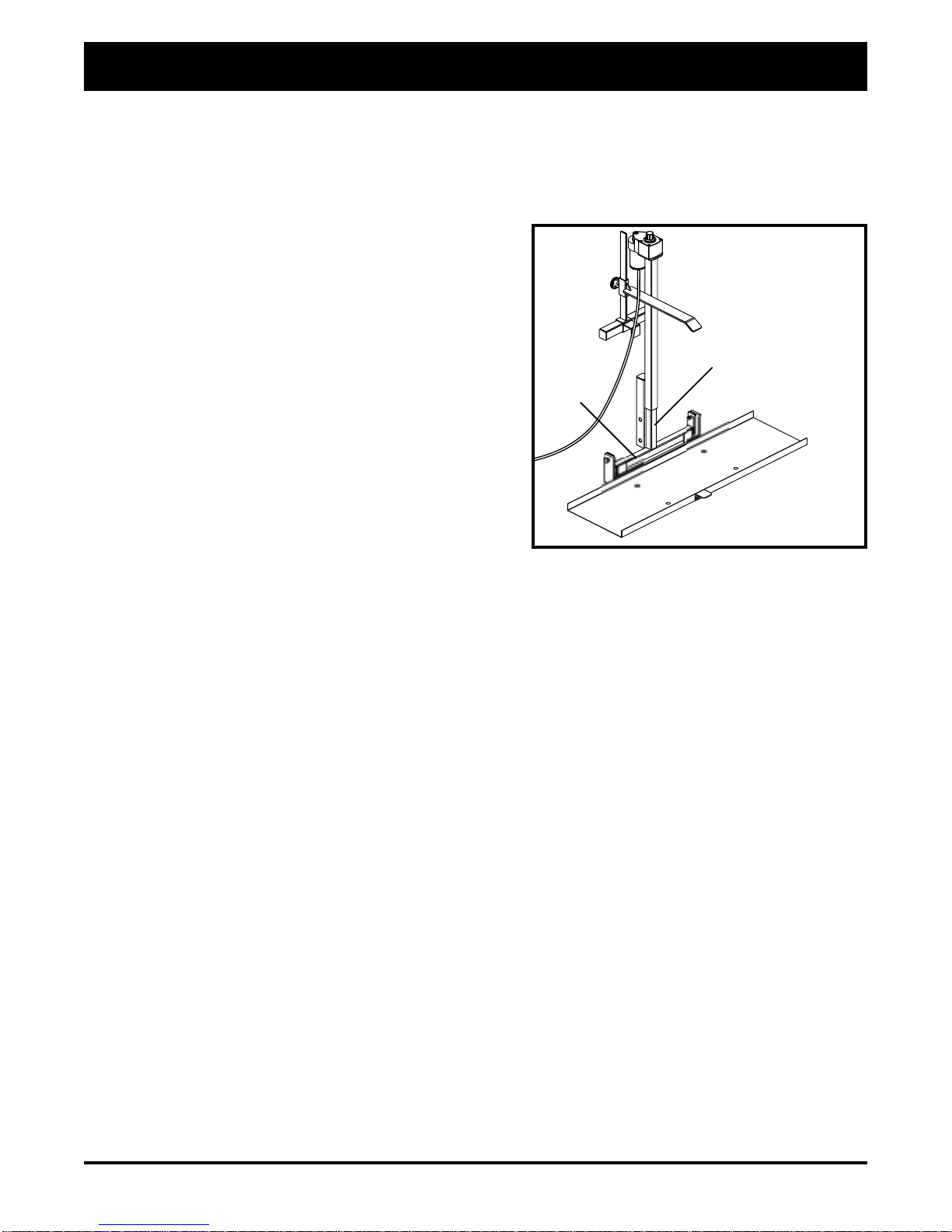

6. PositiontheliftplatformovertheliftH-frame,aligningthe
mountingholesineach. Seefigure4.
7. Secure thelift platformto theH-frame withthe supplied
hardware.See figure4.
Wiring Harness Installation
Thewiringharnessisapproximately25ft.(7.62meters)long
andwillaccommodatemostvehicles.
NOTE: You may wish to perform a practice run before
installing the wiring harness. Route a piece of light
rope (equivalent to the gage of the wiring harness)
along the anticipated path observing contact points,
potential rubbing/chafing points, and any sharp edges.
Remove sharp edges with a fine grade file, then treat
the steel with a rust inhibitor or metal sealant.
Figure 3. Lift FrameVehicle Mounting (Class 3 Hitch
Tube Shown)
Figure 4. Lift Platform Installation
LIFT PLATFORM
H-FRAME
HITCH TUBE
HITCH
RECEIVER

10 www.pridemobility.com Power Tote P-100 Lift System
III. INSTALLATION
Figure 5.Wiring Harness Installation
VEHICLE BATTERY
WIRINGHARNESS
LIFT FRAME
LIFT WIRING CONNECTION
Followthese steps toroutethePowerToteP-100 Lift System wiringharness:
1. Route thelift systemwiring harness(starting atthelift)throughthe interiorof thevehicle untilyou reachthe
automobilebattery. See figure 5.Youwill typically findpassthrough points at therear lighting assemblies,
whichwill enableyou to routethe cablethroughthe trunkand under theback seat.
2. Conceal the harness behind or under the interior panels of the vehicle (there should be existing holes). Be
certainthattheharnessis protectedwith arubber grommetwhen passingit throughthemetalpanelsandinto
theenginecompartment.
3. Insidetheenginecompartment,securetheharnesstothefirewallandtheinnerfenderwithplasticwireties.Use
carenotto causeabrasions tothe wiringharness.Itis importanttosecurethewiring harness atvarious points
alongitsrunofthevehicle.
WARNING! Do not cut or shorten the wiring harness. If the harness is too long, coil the
excess wire and secure it with plastic wire ties.
4. Connect the red wire to the positive (+) terminal and the black (grounding) wire to the negative (-)
terminalof the vehicle battery.
WARNING! Before operating the lift, inspect the wiring harness for proper routing and
grounding. Improper routing can cause damage to the harness, and improper grounding
can cause damage to the electrical system.
GROUNDINGWIRE

PowerTote P-100LiftSystem www.pridemobility.com 11
IV. OPERATION
POWER TOTE P-100 LIFT SYSTEM OPERATION
ThePowerToteP-100LiftSystemisdesignedtoliftanunoccupiedwheelchairfromthe groundforthepurposeof
easyvehicletransport.
WARNING! The Power Tote P-100 Lift System is intended for the transport of wheelchairs
only. The wheelchair must be unoccupied before operating the lift.
WARNING! Prevent vehicle damage! Do not exceed the load limits of your vehicle or hitch
system as specified by the vehicle manufacturer.
WARNING! Use extreme caution when driving with the lift installed on your vehicle. Be
aware that the lift extends away from the back of the vehicle and extra clearance is
needed when backing up, turning, parking, or driving through driveway entrances/exits.
Drive slowly when negotiating pot holes, road bumps, and railroad tracks.

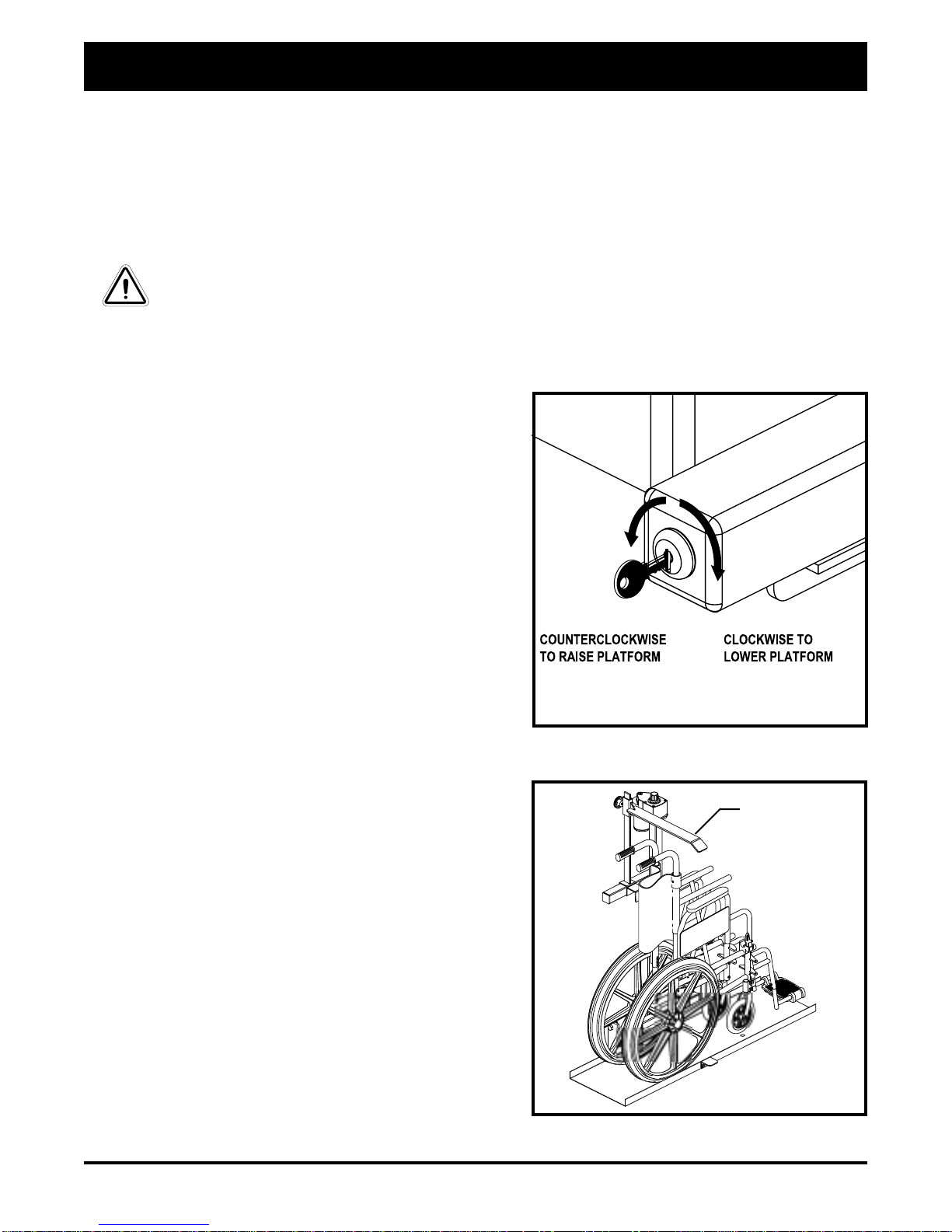

Figure 6. Key Switch Operation
Followthese stepstooperatethePowerToteP-100Lift:
1. Insert thekey into thekey switch.
2. Turn and hold the key clockwise to lower the lift plat-
form. See figure 6. Release the key as soon as the lift
platformtouchestheground.
3. Fold the wheelchair. Refer to the wheelchair owner’s
manualformoreinformation.
4. Roll the wheelchair onto the center of the lift platform.
Seefigure7.
NOTE:Make sure that thelock-downarm is in thefully
raised position before loading the wheelchair onto the
lift platform. See figure 7.
5. Engagetheparkbrakestolockthewheelsinplace. Refer
tothewheelchairowner’smanualformoreinformation.
6. Turn and holdthe key counterclockwiseto raise thelift.
Seefigure6.Continuetoraisetheliftuntilthemotorstops,
thenrelease thekey.
NOTE: The motor will stop automatically at the top of
its stroke and will emit a clicking sound. Release the
key immediately upon hearing this sound.
Figure 7.Wheelchair Positioning
LOCK-DOWNARM

12 www.pridemobility.com Power Tote P-100 Lift System
IV. OPERATION
7. Loosenthesecurementknobontherearofthelock-down
armandslidethearmdownoverthewheelchairarmrests
with enough pressure to hold the wheelchair in place.
Tighten the securement knob to lock the arm in place.
Seefigure8.
WARNING! Ensure that the lock-down arm
is adjusted so that it only applies the
necessary amount of pressure needed to
secure the wheelchair. Applying too much
pressure to the wheelchair may result in
product damage.
NOTE: You may need to raise and lower the lift plat-
form a few times before achieving the proper amount of
pressure needed for secure transport. Once the proper
pressure is obtained, keep the lock-down arm set to this
height for continued use.
NOTE: Pay attention to the path of the lift platform
duringoperation.Makesuretheliftdoesnotrubagainst
or interfere with the vehicle in any way. If you notice
any contact between the lift platform and the vehicle,
stop lift operation immediately and contact your
authorized Pride Provider for assistance.
Followthesestepstoremovethewheelchairfromthelift:
1. Lowertheplatform tothe ground.
2 Unlock the wheelchairpark brakes, androll the wheel-
chairoffoftheplatform.
3. Pivottheplatformtoaverticalposition,then raisethelift
untiltheplatformissecured inthestowedposition bythe
lockingbracket. Seefigure 9.
4. Removethekeyfromthelift systemwhenitisnot inuse.
MANUAL POWER TOTE P-100 OPERATION
Theliftsystemisequippedwithamanualcrankthatservesas
backup in the event of a power failure. Using the supplied
tool, rotate the manual crank (located on top of the motor
housing) clockwise or counterclockwise to move the plat-
formup or down. Seefigure 9.
Figure 8. Lock-down Arm Positioning
Figure 9. Platform Storage
SECUREMENTKNOB
LOCKING
BRACKET
MANUALCRANK

PowerTote P-100LiftSystem www.pridemobility.com 13
V. CARE AND MAINTENANCE
CARE AND MAINTENANCE
Yourliftsystemrequires aminimalamountofcareandmaintenance. Ifyoudonotfeelconfidentin yourabilityto
performthe maintenance listed below, you may scheduleinspection and maintenance at yourauthorizedPride
Provider.Thefollowing areasrequireperiodicinspectionand/or careandmaintenance.
90-Day Maintenance Schedule
!Lowerthe platform to theground, clean away anyrem-
nantsofoldgreasefromtheT-barinner-telescopingtube,
andapplya newcoat ofall-weatherlithiumgreaseto the
inner-telescopingtube.See figure10.
!Applyall-weatherlithiumgreasetothepivotpointsofthe
T-bar.
!Lubricatethekeyswitchwithan electrical-typelubricant
(notWD-40).
!Remove the battery connections and clean them to en-
sureuninterruptedelectronicconnection.
!Torquethehitch bolt.
!Checkthe lift system for loose or damaged parts. Have
yourauthorizedPrideProviderrepairorreplaceanyprob-
lempartsbeforeusingtheliftsystem.
T-BARINNER-
TELESCOPING TUBE
T-BAR
Figure 10. Lift Frame Maintenance
General Cleaning Guidelines
Theliftsystemcanbehandwashedalongwiththevehiclewithsoapandwater.However,automaticdrive-through
carwashes shouldbe avoided asthey mayinterfere with andcause damagetothe lift.
Wiring Harness
Thewiringharnessshouldbe checked periodically for corrosion and/or decay. Contact your authorized Pride
Providerif thewiring harness needsto bereplaced.
Lift Platform/Metal Components
!Checktheliftplatform forwearor damage.Contactyour authorizedPrideProviderforrepairorreplacement.
!Theliftplatform surfacemay becomeslippery ifexposed tomoisture(ice,snow, rain,mist/spray conditions,
etc.).Usecaution whenloading/unloading awheelchair in these conditionsandwipe offany excessmoisture
fromtheliftplatform.
!Regularlyinspectthemetalliftcomponentsforscratches.Treatanyproblemareaswitharustinhibitorormetal
sealant.
Ifyourliftsystemisexhibitingwearthatyoufeelisquestionableinanyway,contactyourauthorizedPrideProvider
immediately.Donot attempttorepair, adjust,ormodify themanufacturersettingsandmaterials.

14 www.pridemobility.com Power Tote P-100 Lift System
VI. TROUBLESHOOTING
TROUBLESHOOTING
Anyelectromechanicaldeviceoccasionally requiressome troubleshooting.However,mostof theproblems that
mayarisecanusually besolved witha bitof thoughtand commonsense. Manyof theseproblems occurbecause
thebattery is notfully charged orbecausethe battery isworn down and canno longer holdacharge.
Whatifthemotoronmy lift system will not operate?
!Makesurethe vehiclebatteryisfullycharged.
!Makesure all connections tothemotor and battery aresecure.
!Checkthe wiringharness for signsof wear ordecay.Replacethe harness ifnecessary.
Whatifthelift system operates slowly upor down?
!Makesurethe vehiclebatteryisfullycharged.
!Makesure all connections tothemotor and battery aresecure.
!Checkthe wiringharness for signsof wear ordecay.Replacethe harness ifnecessary.
Whatiftheliftplatformdoesnotfoldintothestowedposition?
Checkto makesurethere arenoobstructions intheplatform pivotpoints.
Whatiftheliftplatform does not lower completely to the ground?
!Verifythatthehitch receiver isatthe proper height.Thedistance from the bottomof the hitchtothe ground
shouldnot exceed 20 in. (50.8 cm).
!Checkto makesure thatthearea underthe liftplatformis freefrom obstructions.
Whatif the lift bottomsoutwhendrivingoverbumps or driveway entrances?
Verifythatthehitchreceiver isattheproper height.The distancefromthebottom ofthehitchto thegroundshould
be 20 in. (50.8 cm).

PowerTote P-100LiftSystem www.pridemobility.com 15
VII. SPECIFICATIONS
SPECIFICATIONS
MaximumLiftCapacity 100 lbs. (45.35 kg)
MaximumWheelchairWidth(Folded) 12 in. (30.5 cm)
MaximumHitchtoGroundClearance 20 in. (50.8 cm)
Motor Fullysealed, 12-voltDC

16 www.pridemobility.com Power Tote P-100 Lift System
VIII. WARRANTY
THREE-YEAR TRANSFERABLE LIMITED WARRANTY
Forthree (3)years fromthe dateofpurchase, PrideMobility Productswill repairorreplace atour option,free of
charge,anymechanicalor electricalcomponentfounduponexaminationbyanauthorizedrepresentativeofPride
tobedefective inmaterialand/or workmanship.
Thiswarranty doesnot extend tothose items,which may requirereplacement duetonormal wearand tear.
!Labor,servicecalls, shipping,andothercharges incurredfor repairof theproduct, unlessspecificallyautho-
rizedby Pride MobilityProducts Corporation INADVANCE,are excluded.
Exclusionsalsoincludecomponentswith damage caused by:
!Contamination
!Abuse,misuse,accident,or negligence
!Batteryfluidspillageorleakage
!Commercialuse,or useother thannormal
!Improperoperation, maintenance,or storage
!Repairsand/ormodificationsmadetoanypart withoutspecificconsent fromPrideMobility ProductsCorpo-
ration.
!CircumstancesbeyondthecontrolofPride
SERVICE CHECKS AND WARRANTY SERVICE
AnauthorizedPrideMobilityProductsProvidermust performwarrantyservice.DonotreturnfaultypartstoPride
MobilityProductswithoutpriorwrittenauthorization.Alltransportationcostsandshippingdamageincurredwhile
submittingpartsfor repairorreplacement istheresponsibilityofthe purchaser.
Failureto followthe instructions,warnings, andnotes inthe owner’smanual andthose locatedon yourPride lift
productcan resultin personalinjury orproduct damageandwillvoidPride’sproduct warranty.
Thereis nootherexpress warranty.
IMPLIED WARRANTIES
Impliedwarranties, includingthose ofmerchantability andfitness foraparticular purpose,are limitedto one(1)
yearfrom the date ofpurchase and to theextentpermitted by law.Any and allimpliedwarranties are excluded.
Thisistheexclusive remedy.Liabilitiesfor consequentialdamagesunderanyandallwarranties areexcluded.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of
limitationincidentalorconsequentialdamages.The abovelimitationorexclusionmaynotapplytoyou.
Thiswarrantygives youspecific rights,andyoumayalso haveother rights,whichvaryfromstate tostate.
Pleasefillout andreturn theproductregistrationcardto PrideMobility Products.ThiswillaidPride inproviding
thebestpossibletechnicalandcustomerservice.

PowerTote P-100LiftSystem www.pridemobility.com 17
NOTES

18 www.pridemobility.com Power Tote P-100 Lift System
NOTES
